Newbie electrical question

Discussion in 'Tonneau Covers, Caps and Shells' started by cliffordprefect, Apr 30, 2018.

  1. Apr 30, 2018 at 7:23 PM
    #1
    cliffordprefect

    #1
    cliffordprefect [OP] New Member

    Joined:
    Apr 30, 2018
    Member:
    #252159
    Messages:
    1
    First Name:
    Cliff
    Vehicle:
    2000 Tacoma 2WD
    Just bought my first Tacoma, 2000 2wd, and separately bought an offbrand camper shell from another guy on craigslist.

    Wondering how to hook up the lights. The bed has a plug and so does the shell, but they are not the same and I don't know how to adapt them together. Is there an adapter to be found, or do I need to put a new plug on one side?

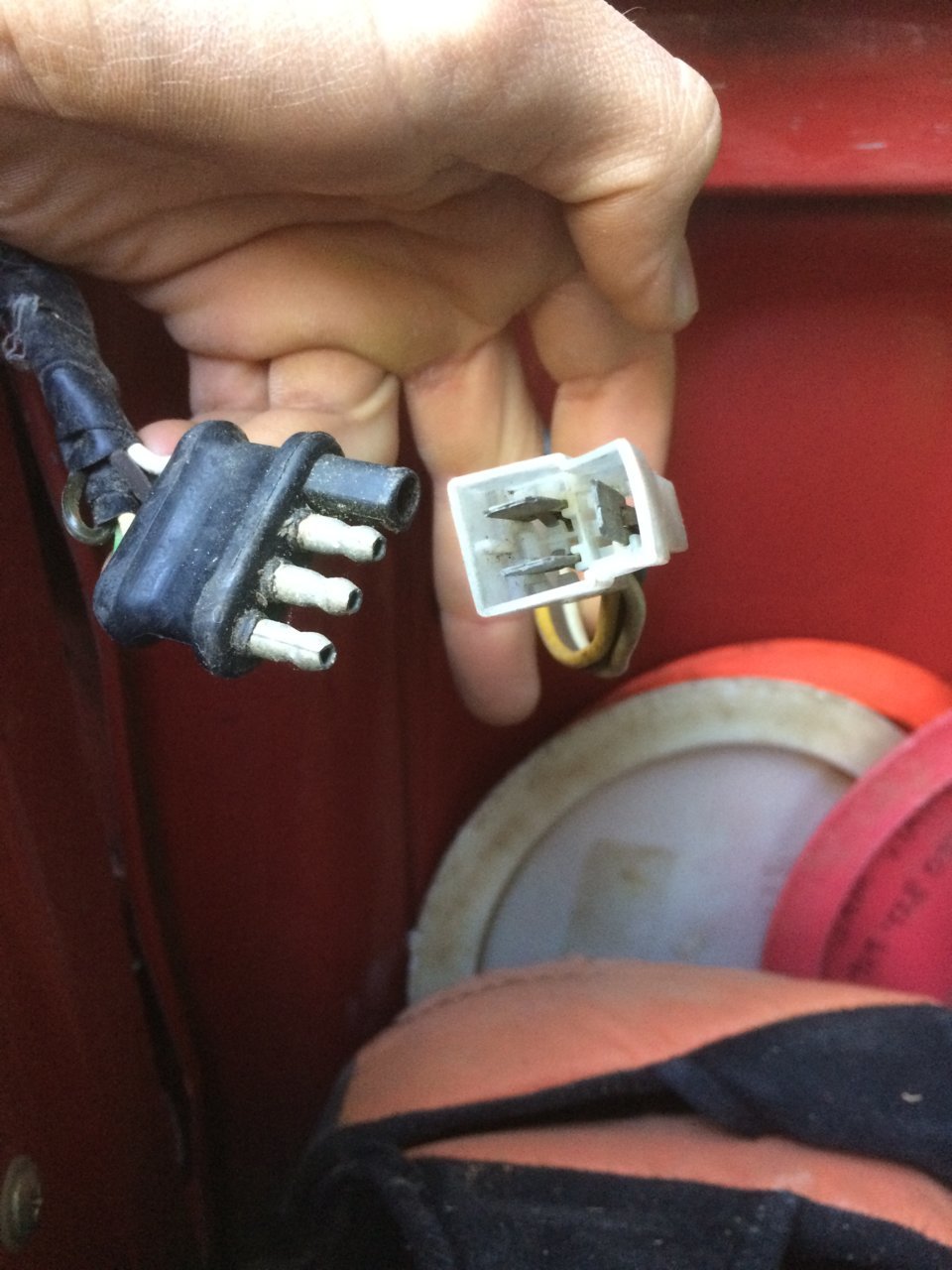

    The plug on the left is what comes out of the camper shell, and the one on the right is hooked up to the truck.

    Thanks!

    Photo Apr 30, 7 02 12 PM.jpg

    cliffordprefect, Apr 30, 2018
    #1
  2. May 1, 2018 at 5:18 AM
    #2
    nzbrock

    #2
    nzbrock Well-Known Member

    Joined:
    Jan 6, 2013
    Member:
    #94572
    Messages:
    1,730
    Gender:
    Male
    First Name:
    Noah
    Philadelphia, PA
    Vehicle:
    99 TRD Prerunner 3RZ
    SAW 2.0 Coilovers Wheeler's 5 Leaf Bilstein 5100s LCE long tube header Flowmaster Delta 50 Muffler FJ Trail Team Wheels 255/85/16 Cooper ST Maxx 4Runner overhead sunglass console RSX Leather Seats All LED lights Red/Clear Tail Light Tundra Brakes Black Headlights and Corners 4Runner Auto Up/Down Windows Bullet Liner Cargo tie down system
    The plug on the left is a 4 pin trailer harness connector. I guess they just used that to wire the topper. The one on the right is also aftermarket, but I have not seen one like that before. You will need to figure out what wire goes to each light. If you want, you can get a 4 pin trailer harness extension and put it in place of the 3 wire connector on the right.

    nzbrock, May 1, 2018
    #2
  3. May 1, 2018 at 9:55 AM
    #3
    cascadetaco

    #3
    cascadetaco Toyota Addict

    Joined:
    Jan 11, 2017
    Member:
    #207242
    Messages:
    368
    Gender:
    Male
    central oregon
    Vehicle:
    2017 SR 4cyl 4x4 5speed
    cascadetaco, May 1, 2018
    #3
  4. May 2, 2018 at 10:43 PM
    #4
    BluLED

    #4
    BluLED Well-Known Member

    Joined:
    Oct 10, 2013
    Member:
    #114245
    Messages:
    45
    Gender:
    Male
    First Name:
    Steve
    SoCal in the foggy desert
    YEP what they both said. It may sound confusing at first but you'll find it is simple-really. Also check that the topper has a good ground when your done hooking every thing up.

    BluLED, May 2, 2018
    #4
  5. May 2, 2018 at 11:03 PM
    #5
    scocar

    #5
    scocar Treat the cause, not the symptom

    Joined:
    Nov 11, 2009
    Member:
    #25814
    Messages:
    37,149
    Gender:
    Male
    First Name:
    Ricardo
    In close proximity to an undisclosed location
    Vehicle:
    2015 DCLB 4x4 SR5
    Mostly pallet racks loaded with very impressive boxes, and a smashed head unit
    It depends what they go to. I assume in the cap you have an interior dome light and a 3rd brake light. That is two of the hot leads. And you have a ground.

    I would also get a 4-prong "trailer" harness to mate with the one on the shell. That is readily available and easy.

    Trace the truck side harness, an you'll likely find it is routed through the bed side to the tail light housing. Remove the tail light housing from the outside of the bed, and in there, you will likely find a wire tap to the brake lamp in your tail light, which will be for activating your shell's 3rd brake light. The dome light will need a hot lead that may go all the way to your battery, and should have an inline fuse at least.

    While looking for a pic, I stumbled on this thread, should help a lot.

    https://www.tacomaworld.com/threads/camper-third-brake-light-wiring-by-a-noob.181629/

    scocar, May 2, 2018
