No Homelink®. ? No Problem......First Mod

Discussion in '3rd Gen. Tacomas (2016+)' started by TacoBella, Oct 8, 2015.

  1. Oct 8, 2015 at 7:25 PM
    #1
    TacoBella

    TacoBella [OP] Well-Known Member

    Joined:
    Sep 30, 2011
    Member:
    #64421
    Messages:
    2,876
    First Name:
    Tom
    Vehicle:
    2016 Tacoma (SOLD) Ford Ranger Lariat sold leased RTL-E Ridgeline
    AVS Bug Deflector. TruXedo Lo Pro
    This is a simple mod that I think is better than Homelink® as it opens the garage door without advertising you have homelink if you leave your truck out at night. I used this mod on my Bikes.

    See Smuglys version here later in the thread.
    https://www.tacomaworld.com/threads/no-homelink®-no-problem-first-mod.394920/page-2#post-11159336

    https://www.tacomaworld.com/threads/no-homelink®-no-problem-first-mod.394920/page-3#post-11167407

    Much cleaner but no direct access to battery

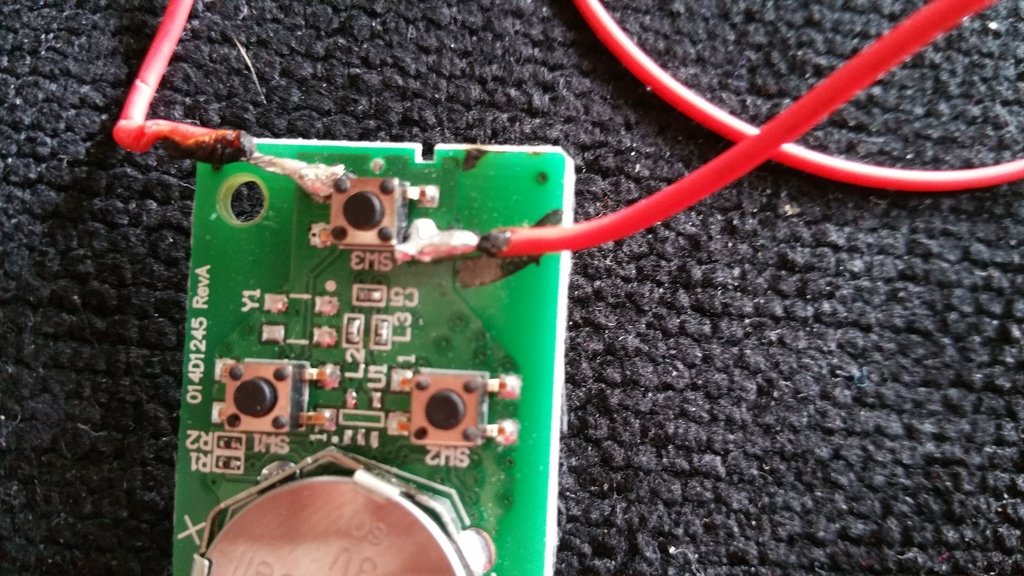

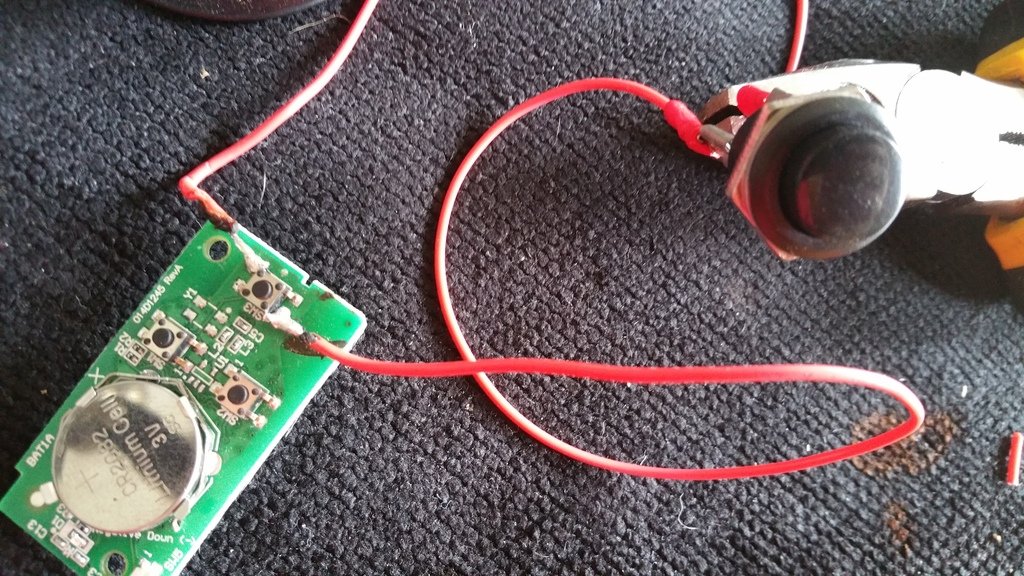

    I opened a small keychain Liftmaster® opener and soldered two wires to the momentary switch

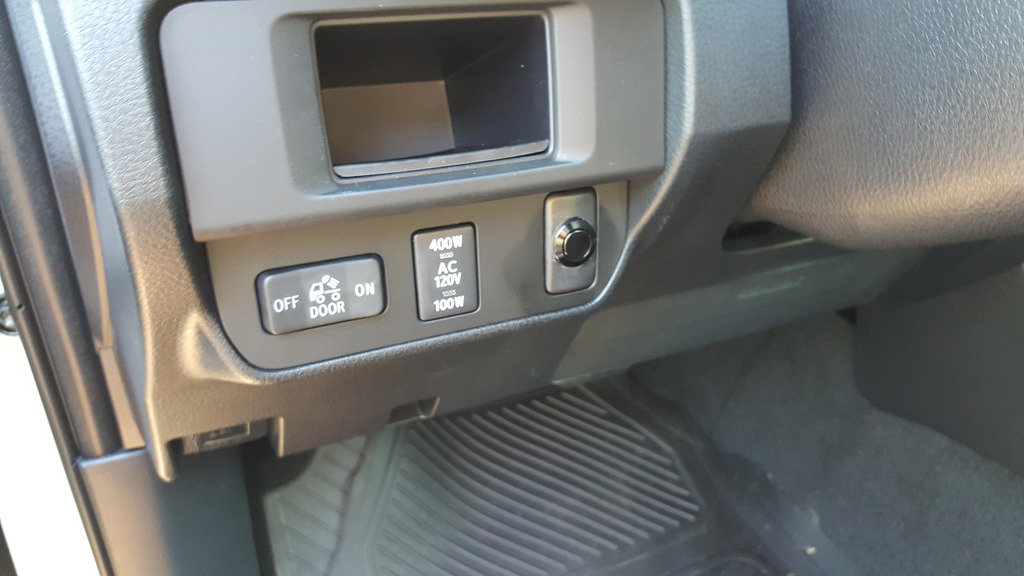

    Then I took out the blank to the lower left of the steering wheel (for those who have one there unused) And drilled a hole to fit a momentary switch. I slipped the opener in the blank hole and attached the wires to a couple of small phillips terminals on the switch. Put the blank back in and taped the opener under the dash with the battery exposed for easy changing.
    PARTS
    Wire
    Momentary switch
    http://www.amazon.com/gp/product/B00D0XK32O?psc=1&redirect=true&ref_=oh_aui_detailpage_o04_s00
    Keychain Garage door opener

    I did NOT use the switch in the following picture I used this one bought Amazon with the tiny terminal bolts to hold the wires,

    [​IMG]

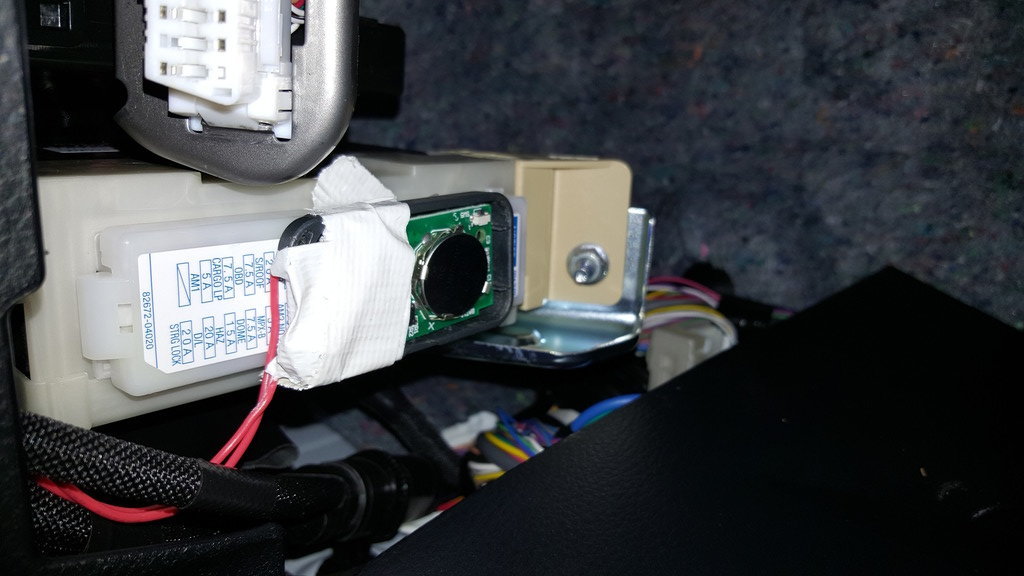

    I did not need the rear bolt on the switch. I just pushed and screwed it into the blank and cut one side off to get at the terminals. Taped the opener under the dash on the fuse box with battery access. I may find a better place for it later/







    Last edited: Nov 16, 2015
  2. Oct 8, 2015 at 7:49 PM
    #2
    MN5oh

    MN5oh Active Member

    Joined:
    Sep 12, 2015
    Member:
    #164041
    Messages:
    33
    Gender:
    Male
    Vehicle:
    2016 Black TRD Sport DBL Long bed
    Awesome. Looks clean... Definitely going to do this when my Sport arrives.

    Thanks for the detailed instructions!

  3. Oct 8, 2015 at 9:12 PM
    #3
    TacoBella

    TacoBella [OP] Well-Known Member

    Joined:
    Sep 30, 2011
    Member:
    #64421
    Messages:
    2,876
    First Name:
    Tom
    Vehicle:
    2016 Tacoma (SOLD) Ford Ranger Lariat sold leased RTL-E Ridgeline
    AVS Bug Deflector. TruXedo Lo Pro
    YW!!
    The hardest part was drilling the hole in the blank large enough. Had to use a dremel to finalize te size. If I had to do this again I might get a smaller momentary switch.

  4. Oct 9, 2015 at 7:58 AM
    #4
    atrouth

    atrouth Well-Known Member

    Joined:
    Sep 29, 2015
    Member:
    #165422
    Messages:
    573
    Gender:
    Male
    First Name:
    Anthony
    Vehicle:
    2016 MGM Tacoma TRD Sport DCLB 4x4
    If you deleted the battery and soldered wires there could you run it so that it only has power when the vehicle is on? Would then have the security aspect of homelink so you cant open the garage door without the vehicle having power

    TacoLou and ManBeast like this.
  5. Oct 9, 2015 at 7:59 AM
    #5
    CaptAmerica

    CaptAmerica Asphalt Avenger! TTC#13

    Joined:
    Dec 29, 2014
    Member:
    #145193
    Messages:
    36,313
    Gender:
    Male
    First Name:
    Cap
    In a van down by the river
    Vehicle:
    Gen 2.9 DCLB TRD Sport w/tech
    Stickers and not enough wax
    Voltage differences between the car and the remote will destroy the remote. A Homelink mirror involves a tiny step-down transformer.

    This solution bypasses all of that, and it perfectly removable. Two soldering-burned thumbs up!

  6. Oct 9, 2015 at 8:01 AM
    #6
    atrouth

    atrouth Well-Known Member

    Joined:
    Sep 29, 2015
    Member:
    #165422
    Messages:
    573
    Gender:
    Male
    First Name:
    Anthony
    Vehicle:
    2016 MGM Tacoma TRD Sport DCLB 4x4
    Ahh ok, I wasnt sure of the voltage on that little button cell. I'm sure we could find a way to step the voltage down, for a more permanent solution. Good write up either way!

    TacoLou likes this.
  7. Oct 9, 2015 at 8:02 AM
    #7
    BillyM67

    BillyM67 Well-Known Member

    Joined:
    Aug 18, 2015
    Member:
    #162105
    Messages:
    54
    Gender:
    Male
    Vehicle:
    2014 Silver Avalon Limited
    Nice mod. FYI - Like the rest of the electronics, HomeLink doesn't work if the vehicle is off. :thumbsup:

    CaptAmerica likes this.
  8. Oct 9, 2015 at 8:52 AM
    #8
    TacoBella

    TacoBella [OP] Well-Known Member

    Joined:
    Sep 30, 2011
    Member:
    #64421
    Messages:
    2,876
    First Name:
    Tom
    Vehicle:
    2016 Tacoma (SOLD) Ford Ranger Lariat sold leased RTL-E Ridgeline
    AVS Bug Deflector. TruXedo Lo Pro
    Good idea, but I think 12V would fry the board. I don't want to have to put resistors inline. I wanted to Keep it simple..


    If I were to leave the truck outside for any length of time I can pull the battery or turn off the garage door opener itself at night if I leave the truck outside..
    My MX5 has Homelink on the mirror .It's handy but I would not want to buy a new mirror to have Homelink so I made my own. I guess if i really wanted to be stealth. I could have hidden the switch under the dash panel instead of using a blank

    Last edited: Oct 9, 2015
  9. Oct 9, 2015 at 8:53 AM
    #9
    TacoBella

    TacoBella [OP] Well-Known Member

    Joined:
    Sep 30, 2011
    Member:
    #64421
    Messages:
    2,876
    First Name:
    Tom
    Vehicle:
    2016 Tacoma (SOLD) Ford Ranger Lariat sold leased RTL-E Ridgeline
    AVS Bug Deflector. TruXedo Lo Pro
    It works on my Miata when its off..........Hmmmmm

  10. Oct 9, 2015 at 8:56 AM
    #10
    atrouth

    atrouth Well-Known Member

    Joined:
    Sep 29, 2015
    Member:
    #165422
    Messages:
    573
    Gender:
    Male
    First Name:
    Anthony
    Vehicle:
    2016 MGM Tacoma TRD Sport DCLB 4x4
    You can apparently buy a voltage step down for like $5, adjust the output voltage to 3v and should be golden. As the cheapest security option

    TacoLou and TacoBella [OP] like this.
  11. Oct 9, 2015 at 9:06 AM
    #11
    BlkTaco47

    BlkTaco47 Unhinged

    Joined:
    Apr 9, 2011
    Member:
    #54635
    Messages:
    4,971
    Gender:
    Male
    Vehicle:
    2016 Black AT DCSB 4x4 TRD
    JL Audio C2690tx Speakers Alpine MRV-F300 JL Audio 10" Sub - Full length Ported Sub Box Kicker Tweeters BFG KO2's 265/70/17 Tint N-Fab Bars Husky WB Mats AVS Visors Console Divider Tacoma Tonneau Cover ALL PRO 1.5" wheel spacers aFe CAI w/ Dry filter TRD Wheels Custom Remote Starter TRD Pro Grille ROAV Dash Cam 3" RC Lift Turn-down exhaust pipe TRD PRO Shift Knob vF Tune
    woah! nice work dude! doing the same when mine arrives

  12. Oct 9, 2015 at 9:39 AM
    #12
    wingfiry

    wingfiry Well-Known Member

    Joined:
    Sep 14, 2015
    Member:
    #164235
    Messages:
    108
    Gender:
    Male
    Atlanta
    Vehicle:
    2016 TRD Sport 4x4 AC MT White
    I'll be doing something very similar when mine arrives.. fortunately, my garage door remote takes the 12v a23 batteries, so I'll be able to wire it straight to vehicle power;-)

    I'm hoping I'll be able to fit everything in the upper console.

    Nice write-up!

    Last edited: Oct 9, 2015
  13. Oct 9, 2015 at 9:57 AM
    #13
    CaptAmerica

    CaptAmerica Asphalt Avenger! TTC#13

    Joined:
    Dec 29, 2014
    Member:
    #145193
    Messages:
    36,313
    Gender:
    Male
    First Name:
    Cap
    In a van down by the river
    Vehicle:
    Gen 2.9 DCLB TRD Sport w/tech
    Stickers and not enough wax
    Nice. Mine takes a AAA.

  14. Oct 9, 2015 at 10:29 AM
    #14
    NoDak

    NoDak Well-Known Member

    Joined:
    Aug 22, 2012
    Member:
    #85277
    Messages:
    2,280
    Gender:
    Male
    First Name:
    JR
    Minot, ND
    Vehicle:
    16 Tacoma TRD Sport 4x4 Blazing Blue
    my 14 4runner homelink works fine with the vehicle off.

    if you want to know if a homelink mirror can work w/o the vehicle on, look at the plug and see if there is 3 wires (for those that don't temp readout).

    3rd wire is constant power.

  15. Oct 9, 2015 at 11:29 AM
    #15
    127.0.0.1

    127.0.0.1 AKA ::1

    Joined:
    Dec 24, 2012
    Member:
    #93641
    Messages:
    3,921
    Gender:
    Male
    /etc/hosts
    Vehicle:
    2013 NBM AC 4.0 4x4 Auto OR
    if you wanna perm-a-wire it

    tap the usb power from under the head unit
    that will -not- fry the board

    Xtm3330, TacoLou and BelizeMe like this.
  16. Oct 9, 2015 at 11:32 AM
    #16
    atrouth

    atrouth Well-Known Member

    Joined:
    Sep 29, 2015
    Member:
    #165422
    Messages:
    573
    Gender:
    Male
    First Name:
    Anthony
    Vehicle:
    2016 MGM Tacoma TRD Sport DCLB 4x4
    What's the voltage output on that? The step downs are pretty simple to run if you want to avoid running wires across the dash and keep it all by the fuse box. Plus if you use that add a circuit no wire tapping is necessary

  17. Oct 9, 2015 at 12:19 PM
    #17
    TacoBella

    TacoBella [OP] Well-Known Member

    Joined:
    Sep 30, 2011
    Member:
    #64421
    Messages:
    2,876
    First Name:
    Tom
    Vehicle:
    2016 Tacoma (SOLD) Ford Ranger Lariat sold leased RTL-E Ridgeline
    AVS Bug Deflector. TruXedo Lo Pro
    Homey don't do no wire tapping...Nope. :anonymous:

  18. Oct 9, 2015 at 12:49 PM
    #18
    127.0.0.1

    127.0.0.1 AKA ::1

    Joined:
    Dec 24, 2012
    Member:
    #93641
    Messages:
    3,921
    Gender:
    Male
    /etc/hosts
    Vehicle:
    2013 NBM AC 4.0 4x4 Auto OR
  19. Oct 9, 2015 at 1:11 PM
    #19
    916carl

    916carl Well-Known Member

    Joined:
    Jul 26, 2015
    Member:
    #160332
    Messages:
    2,673
    Gender:
    Male
    First Name:
    Carl
    Vehicle:
    2008 DCSB TRD Sport SR5
  20. Oct 9, 2015 at 7:49 PM
    #20
    FlyFisher1

    FlyFisher1 Well-Known Member

    Joined:
    Sep 2, 2015
    Member:
    #163264
    Messages:
    227
    Gender:
    Male
    NJ
    Awesome! I'm going to do this on my wife's Edge
