OEM front camera install

Discussion in '3rd Gen. Tacomas (2016-2023)' started by TRDitalia, Jul 18, 2020.

  1. Jul 18, 2020 at 6:18 PM
    #1
    TRDitalia

    TRDitalia [OP] Active Member

    Joined:
    Jul 18, 2020
    Member:
    #334847
    Messages:
    25
    Gender:
    Male
    Vehicle:
    2020 TRD Sport DCSB
    Just put in the pro grill that has the camera mount on it and am now looking into installing the OEM camera. Does anyone know if there are any resources out there about the install or exactly what parts are needed? I know that 867B0-04030 is required and also possibly 88214-04020. Any other info would be appreciated.


    71tattooguy likes this.
  2. Jul 18, 2020 at 7:26 PM
    #2
    cruxx

    cruxx Well-Known Member

    Joined:
    Apr 20, 2017
    Member:
    #216831
    Messages:
    1,199
    Gender:
    Male
    First Name:
    Huy
    Vehicle:
    2017 TRD Sport
    Anytime backup camera mod

    Benny blanco likes this.
  3. Jul 18, 2020 at 8:30 PM
    #3
    Captqc

    Captqc Well-Known Member

    Joined:
    Mar 5, 2017
    Member:
    #212458
    Messages:
    5,106
    Gender:
    Male
    Tigard, OR
    Vehicle:
    2017 Tacoma 4x4 TRD AC Off Road
    Welcome to the forum. Are you a do it yourself type or do it for me type?

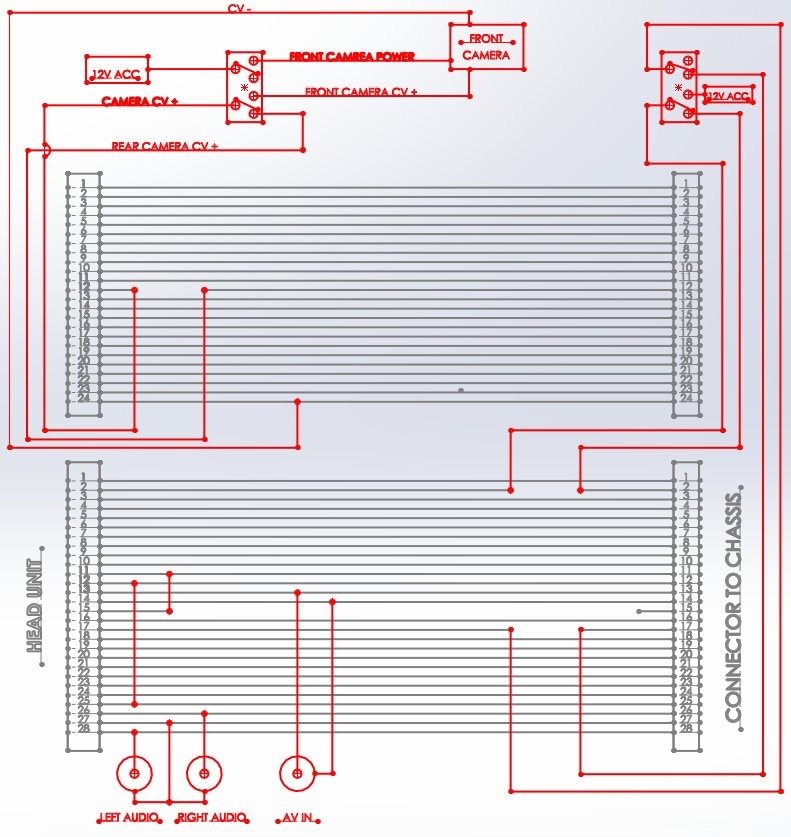

    Here’s a diagram for wiring up a front camera. (Not mine).

    TRDitalia[OP] likes this.
  4. Jul 19, 2020 at 5:36 AM
    #4
    TRDitalia

    TRDitalia [OP] Active Member

    Joined:
    Jul 18, 2020
    Member:
    #334847
    Messages:
    25
    Gender:
    Male
    Vehicle:
    2020 TRD Sport DCSB
    Definitely a do it yourself type but the diagram does confuse me. Not as experienced with wiring.

  5. Jul 19, 2020 at 6:25 AM
    #5
    Captqc

    Captqc Well-Known Member

    Joined:
    Mar 5, 2017
    Member:
    #212458
    Messages:
    5,106
    Gender:
    Male
    Tigard, OR
    Vehicle:
    2017 Tacoma 4x4 TRD AC Off Road
    Okay, you’re better off taking @cruxx suggestion to check out the anytime backup camera mod. Use the search feature in the upper right corner and it will bring up the threads on it. I not sure but I believe that it’s plug and play so no splicing wires.

  6. Jun 16, 2021 at 2:04 PM
    #6
    swolbrahammer

    swolbrahammer Member

    Joined:
    Dec 18, 2019
    Member:
    #313667
    Messages:
    7
    Gender:
    Male
    First Name:
    Mitchell
    Vehicle:
    2020 Voodoo Blue TRD Off Road Double Cab SB
    Were you able to figure anything out with this? I too just installed the pro grill with the factory camera mount. It seems as though there is a false camera currently in place, with a factory wiring harness hooked up to it. Surprisingly I haven't found anything online about being able to purchase the front camera and plug it into the factor harness.

  7. Jun 20, 2021 at 3:37 PM
    #7
    showers

    showers Member

    Joined:
    Mar 24, 2020
    Member:
    #322889
    Messages:
    17
    Vehicle:
    2020 Black Tacoma OR
    Following

  8. Aug 31, 2021 at 7:01 AM
    #8
    20’TacoRoss

    20’TacoRoss Well-Known Member

    Joined:
    Dec 10, 2020
    Member:
    #349164
    Messages:
    66
    Gender:
    Male
    Vehicle:
    20’ Cement Tacoma TRD sport manual
  9. Aug 31, 2021 at 12:43 PM
    #9
    showers

    showers Member

    Joined:
    Mar 24, 2020
    Member:
    #322889
    Messages:
    17
    Vehicle:
    2020 Black Tacoma OR

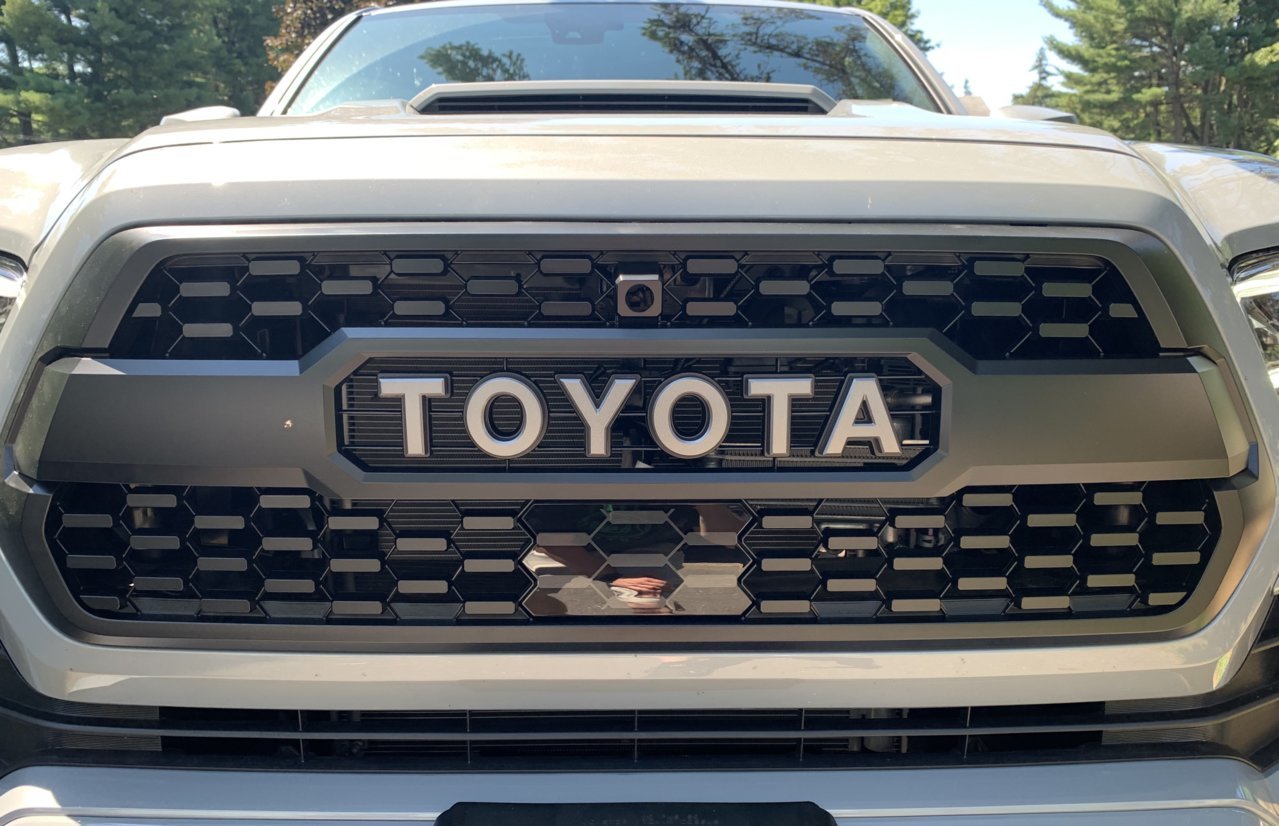

    So I used the the blank camera housing and cut a hole to put the raayoo camera through it (used silicone to make it water tight. I also cut down the side in order to feed the camera wires through and silicones that as well. I ran the camera wire harness through the firewall and connected it per the germes lab module instructions. It honestly looks completely stock and using the mode button to switch to the anytime camera is just as easy. I'll upload pics later so you can see for yourselves.

    Camera: Reverse Backup Camera,RAAYOO L002... https://www.amazon.com/dp/B074P45P7G?ref=ppx_pop_mob_ap_share

    Germes lab: Germes Lab. RFCC Car Camera... https://www.amazon.com/dp/B08PD1G443?ref=ppx_pop_mob_ap_share

  10. Sep 3, 2021 at 5:44 AM
    #10
    Crosbaugh

    Crosbaugh Well-Known Member

    Joined:
    Jun 21, 2021
    Member:
    #369167
    Messages:
    253
    Is the camera mount removable or a permanent part of the pro grille?

  11. Sep 3, 2021 at 6:37 AM
    #11
    markram

    markram Well-Known Member

    Joined:
    Feb 26, 2008
    Member:
    #4967
    Messages:
    552
    washington, state of
    Vehicle:
    2020 TRD OR DCSB 4X4 Cement
    here's a couple links to check out:

    https://www.tacomaworld.com/threads/aftermarket-front-camera.715485/
    https://www.tacomaworld.com/threads/anytime-front-and-rear-camera-mod.542285/

  12. Sep 3, 2021 at 11:05 AM
    #12
    showers

    showers Member

    Joined:
    Mar 24, 2020
    Member:
    #322889
    Messages:
    17
    Vehicle:
    2020 Black Tacoma OR
    The part of the grill that sticks out is permanent but the camera housing is removable.

  13. Jan 13, 2022 at 10:44 PM
    #13
    Tacotim12345

    Tacotim12345 Well-Known Member

    Joined:
    Dec 8, 2021
    Member:
    #384152
    Messages:
    71
    What camera mount is that

  14. Mar 13, 2022 at 7:52 PM
    #14
    kaptainsims

    kaptainsims Well-Known Member

    Joined:
    Sep 25, 2021
    Member:
    #378019
    Messages:
    74
    Gender:
    Male
    First Name:
    Sims
    Vehicle:
    2021 Tacoma TRD Offroad Double Cab 6 speed
    None yet
    Did you ever try getting the oem camera installed?

  15. Mar 14, 2022 at 6:07 AM
    #15
    ToyBliss

    ToyBliss Active Member

    Joined:
    Mar 21, 2021
    Member:
    #360057
    Messages:
    32
    Flagstaff
    Vehicle:
    2021 White 4x4 manual trans
    I wonder if my Pioneer from Crutchfield aftermarket is capable of two cameras.

  16. Mar 21, 2022 at 2:46 PM
    #16
    redeyehal

    redeyehal Well-Known Member

    Joined:
    Aug 5, 2020
    Member:
    #336675
    Messages:
    86
    Gender:
    Male
    First Name:
    Donald
    North Carolina
    Vehicle:
    2020 TRD OR
    PTR57-35170 TRD Pro Shift Knob PT857-35200 LED Bed Lighting Kit PTR03-35160 Tacoma TRD Performance Air Intake PT84K-35221 TRD Lift Kit PT27835170 Roof Rack - Double Cab
    I have the same thing, I reached out to Sparks and they said that Toyota does not provide front camera installation information. Not only is the wiring harness different but also the EC2 chip on trucks with front cameras.

  17. Mar 21, 2022 at 4:13 PM
    #17
    piratepegleg

    piratepegleg Well-Known Member

    Joined:
    Feb 17, 2022
    Member:
    #390427
    Messages:
    169
    Gender:
    Male
    First Name:
    Davey
    Texas
    Vehicle:
    2022 Lunar Rock TRD OR
    Pro grill, leer 100XR
    I seem to remember on my CTSV that people were taking the factory reverse cam out of a new escalade and replacing the one that came factory as it was of higher quality. Has anyone looked into using a camera from another manufacturer?

    JJ Diablo likes this.
  18. Oct 9, 2023 at 10:25 AM
    #18
    EthanDW

    EthanDW New Member

    Joined:
    Oct 9, 2023
    Member:
    #435117
    Messages:
    1
    Gender:
    Male
    First Name:
    Ethan
    Have you figured it out if you can use oem camera

  19. Oct 9, 2023 at 11:56 AM
    #19
    Chew

    Chew Not so well known user

    Joined:
    Mar 6, 2019
    Member:
    #285575
    Messages:
    7,981
    Gender:
    Male
    First Name:
    Chewy
    Midwest
    Vehicle:
    19 TRD OR
    Amazon dog poo bed mat mod
    welcome
    FYI; the OP hasn't returned for over 2 years.
