OEM Glass Breakage Sensor Installation

Discussion in '3rd Gen. Tacomas (2016+)' started by OnHartung'sRoad, Sep 18, 2021.

  1. May 1, 2022 at 9:46 AM
    #161
    Roman337

    Roman337 Well-Known Member

    Joined:
    Nov 18, 2014
    Member:
    #142621
    Messages:
    57
    Gender:
    Male
    NorCal
    Vehicle:
    2017 Tacoma OR DCSB

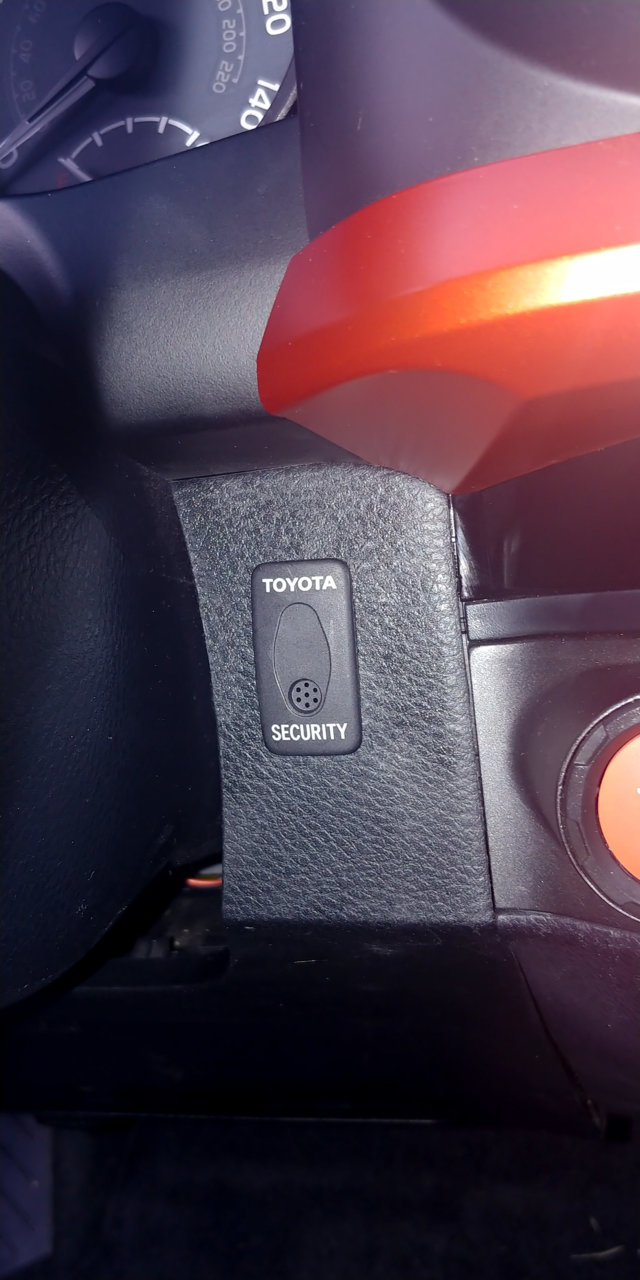

  2. May 1, 2022 at 9:53 AM
    #162
    Ahomeofbones

    Ahomeofbones Well-Known Member

    Joined:
    Aug 11, 2021
    Member:
    #373925
    Messages:
    315
    Gender:
    Male
    Vehicle:
    2021 TRD OR
    Clean.

  3. Jun 23, 2022 at 7:24 PM
    #163
    TRD Larry

    TRD Larry trd larry

    Joined:
    Sep 24, 2007
    Member:
    #2792
    Messages:
    970
    Gender:
    Male
    First Name:
    Larry
    South Park, PA
    Vehicle:
    2019 Tacoma Black,Sport,Premium and Tech Package
    Sport pedals,, Magnaflow cat back exhaust system,Kuhmo 275x55x20, Platinum #220 Abyss wheels 20x9.5. Under hood lights, OEM LED cargo bed lights, extra D-rings installed in bed, AC mod, diff. breather mod, OEM LED puddle lights and footwell lights, Homelink mirror, oil catch can, raptor grille lights, replaced chrome grille molding with black molding, tailgate lock/unlock and tailgate opener, console organizer, glove compartment organizer, Caliraised stealth LED light bar, TRD Cold Air Intake, Lighted cup holders, Meso extended fuse cover, Meso stage 1 tail lights, Meso switch panel, Door bowl lights. Anytime front and rear backup camera mod.TRD Pro Rigid fog lights.Door edge guards. TRD Pro shift knob.
    Finally installed the GBS and it is not working. Double checked my connections and everything is good. Went through the checklist and everything is working but the GBS. One thing I did not do before the install was to check the alarm system. I took for granted it works. When I tried to test the system I could not get the alarm to go off. How do you test the system short of a major impact? Not sure what to do next short of removing the GBS system.

  4. Jun 23, 2022 at 7:45 PM
    #164
    Xx_Evilvirus_xX

    Xx_Evilvirus_xX Well-Known Member

    Joined:
    Sep 20, 2018
    Member:
    #266897
    Messages:
    667
    Gender:
    Male
    Houston, TX
    Vehicle:
    2018 Tacoma TRD Offroad 4x4
    Is your fob key near your truck or on you? If so leave it far away and test it.

    Skydvrr likes this.
  5. Jun 23, 2022 at 8:00 PM
    #165
    TRD Larry

    TRD Larry trd larry

    Joined:
    Sep 24, 2007
    Member:
    #2792
    Messages:
    970
    Gender:
    Male
    First Name:
    Larry
    South Park, PA
    Vehicle:
    2019 Tacoma Black,Sport,Premium and Tech Package
    Sport pedals,, Magnaflow cat back exhaust system,Kuhmo 275x55x20, Platinum #220 Abyss wheels 20x9.5. Under hood lights, OEM LED cargo bed lights, extra D-rings installed in bed, AC mod, diff. breather mod, OEM LED puddle lights and footwell lights, Homelink mirror, oil catch can, raptor grille lights, replaced chrome grille molding with black molding, tailgate lock/unlock and tailgate opener, console organizer, glove compartment organizer, Caliraised stealth LED light bar, TRD Cold Air Intake, Lighted cup holders, Meso extended fuse cover, Meso stage 1 tail lights, Meso switch panel, Door bowl lights. Anytime front and rear backup camera mod.TRD Pro Rigid fog lights.Door edge guards. TRD Pro shift knob.
    The fob was about 30 ft. away. Maybe that is still too close.I will try farther away. I also have the intensity turned to 10.

  6. Jun 23, 2022 at 8:34 PM
    #166
    girMobi

    girMobi Well-Known Member

    Joined:
    Mar 30, 2022
    Member:
    #393870
    Messages:
    62
    Gender:
    Male
    Vehicle:
    2020 TRD OFF
    RCI, Martin, Vort and Irken tech
    the connector attached to the gbs with just one white-green wire connected is the negative trigger. put your fob away, roll the windows down, lock door with your key, wait 30 secs and touch the lead to ground, alarm goes off.
    tap the back window with a nail to test max range. too high a sensitivity and the alarm will go off from outside sounds not related to breaking a window

  7. Jun 24, 2022 at 4:15 AM
    #167
    TRD Larry

    TRD Larry trd larry

    Joined:
    Sep 24, 2007
    Member:
    #2792
    Messages:
    970
    Gender:
    Male
    First Name:
    Larry
    South Park, PA
    Vehicle:
    2019 Tacoma Black,Sport,Premium and Tech Package
    Sport pedals,, Magnaflow cat back exhaust system,Kuhmo 275x55x20, Platinum #220 Abyss wheels 20x9.5. Under hood lights, OEM LED cargo bed lights, extra D-rings installed in bed, AC mod, diff. breather mod, OEM LED puddle lights and footwell lights, Homelink mirror, oil catch can, raptor grille lights, replaced chrome grille molding with black molding, tailgate lock/unlock and tailgate opener, console organizer, glove compartment organizer, Caliraised stealth LED light bar, TRD Cold Air Intake, Lighted cup holders, Meso extended fuse cover, Meso stage 1 tail lights, Meso switch panel, Door bowl lights. Anytime front and rear backup camera mod.TRD Pro Rigid fog lights.Door edge guards. TRD Pro shift knob.
    Thanks, will give this a try.

  8. Jun 24, 2022 at 5:37 AM
    #168
    JDKred

    JDKred Well-Known Member

    Joined:
    Nov 30, 2020
    Member:
    #348298
    Messages:
    228
    First Name:
    JD
    Vehicle:
    16 MT KDMax Tuned
    Why do the MT always get no love.... So sad

    Bad-Dawg likes this.
  9. Jun 24, 2022 at 6:53 PM
    #169
    TRD Larry

    TRD Larry trd larry

    Joined:
    Sep 24, 2007
    Member:
    #2792
    Messages:
    970
    Gender:
    Male
    First Name:
    Larry
    South Park, PA
    Vehicle:
    2019 Tacoma Black,Sport,Premium and Tech Package
    Sport pedals,, Magnaflow cat back exhaust system,Kuhmo 275x55x20, Platinum #220 Abyss wheels 20x9.5. Under hood lights, OEM LED cargo bed lights, extra D-rings installed in bed, AC mod, diff. breather mod, OEM LED puddle lights and footwell lights, Homelink mirror, oil catch can, raptor grille lights, replaced chrome grille molding with black molding, tailgate lock/unlock and tailgate opener, console organizer, glove compartment organizer, Caliraised stealth LED light bar, TRD Cold Air Intake, Lighted cup holders, Meso extended fuse cover, Meso stage 1 tail lights, Meso switch panel, Door bowl lights. Anytime front and rear backup camera mod.TRD Pro Rigid fog lights.Door edge guards. TRD Pro shift knob.
    Got it working. The problem was the key fob was still too close. Did not know the range of the key fob was so strong. Ended up taking the key fob to the back yard( approx. 37’ away) and then when I tapped the window the alarm sounded. I think I need to back the setting off to a 8 or 9. When I have more time I plan to do more testing. Thanks to all that helped. Much appreciated.

    Xx_Evilvirus_xX and eurowner like this.
  10. Jun 24, 2022 at 11:26 PM
    #170
    Froth

    Froth Active Member

    Joined:
    Oct 17, 2015
    Member:
    #166886
    Messages:
    34
    Gender:
    Male
    First Name:
    fred
    Vehicle:
    2016 taco
    I have mine set to 7.....I have a break glass simulator, used for setting up break glass in security systems....worked great at 7....

  11. Jun 25, 2022 at 5:19 AM
    #171
    TRD Larry

    TRD Larry trd larry

    Joined:
    Sep 24, 2007
    Member:
    #2792
    Messages:
    970
    Gender:
    Male
    First Name:
    Larry
    South Park, PA
    Vehicle:
    2019 Tacoma Black,Sport,Premium and Tech Package
    Sport pedals,, Magnaflow cat back exhaust system,Kuhmo 275x55x20, Platinum #220 Abyss wheels 20x9.5. Under hood lights, OEM LED cargo bed lights, extra D-rings installed in bed, AC mod, diff. breather mod, OEM LED puddle lights and footwell lights, Homelink mirror, oil catch can, raptor grille lights, replaced chrome grille molding with black molding, tailgate lock/unlock and tailgate opener, console organizer, glove compartment organizer, Caliraised stealth LED light bar, TRD Cold Air Intake, Lighted cup holders, Meso extended fuse cover, Meso stage 1 tail lights, Meso switch panel, Door bowl lights. Anytime front and rear backup camera mod.TRD Pro Rigid fog lights.Door edge guards. TRD Pro shift knob.
    Thanks. I will set at 7 and se how it works.

  12. Aug 5, 2022 at 8:30 PM
    #172
    TACO5AU5

    TACO5AU5 Well-Known Member

    Joined:
    Jan 2, 2021
    Member:
    #351485
    Messages:
    79
    Gender:
    Male
    New york
    Vehicle:
    2020 Tacoma Trd offroad
    SSO slime line hybrid bumper Baja design s8 Baja design ditch lights Eibach coilovers Icon rear leaf springs
  13. Aug 5, 2022 at 9:06 PM
    #173
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    7,963
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    ECT connector is NOT same kind required. See post #92

    Rainoffire likes this.
  14. Aug 7, 2022 at 9:45 AM
    #174
    Bad-Dawg

    Bad-Dawg Member

    Joined:
    Aug 7, 2022
    Member:
    #403015
    Messages:
    17
    Gender:
    Male
    Vehicle:
    2020 Tacoma TuRD OFFroad
    Thank you! Thank you! Thanks for this forum thread. So helpful in locating and installing OEM GBS. My daughter's significant other had his passenger window busted out and items stolen. Thief didn't open the door so the alarm never sounded. I wanted to let him know that I care about him and felt bad for him. So I started down the rabbit hole trying to figure out how to install an OEM GBS in his truck. Also, incentivized me to do the same. Mine was no problem, plug and play, I have A/T. He has manual transmission, so I'm working out the logistics to make it work and still be factory clean.

    So based on this thread:
    - 3rd gen tacoma GBS kit coming.
    - smaller mic sensor ordered (fits 2015), there is a blank open in center panel.

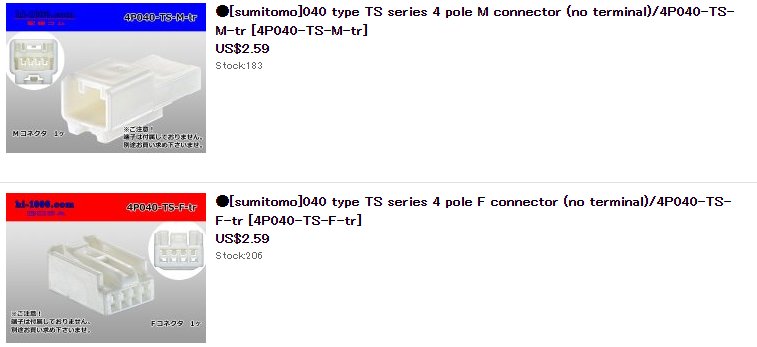

    - order m/f plugs and m/f pins from hi-1000ec, to make extension to center panel.

    I know I could splice it or install spade connectors, but I want to do it as close to right as possible. Why not?

  15. Aug 7, 2022 at 9:47 AM
    #175
    Bad-Dawg

    Bad-Dawg Member

    Joined:
    Aug 7, 2022
    Member:
    #403015
    Messages:
    17
    Gender:
    Male
    Vehicle:
    2020 Tacoma TuRD OFFroad
    For those that ordered from hi-1000ec:

    How long did it take for your package?

  16. Aug 7, 2022 at 1:11 PM
    #176
    jaxterra

    jaxterra Well-Known Member

    Joined:
    Aug 15, 2020
    Member:
    #337702
    Messages:
    215
    Gender:
    Male
    Guess you never figured this out?

  17. Aug 7, 2022 at 8:36 PM
    #177
    2020SilverSky

    2020SilverSky Well-Known Member

    Joined:
    Apr 13, 2020
    Member:
    #324683
    Messages:
    67
    Gender:
    Male
    Seattle. WA
    Vehicle:
    2020 TRD Off Road 4WD 6MT
    Super fast for me. Ordered on the 10th, shipped on the 12th, received on the 15th. They shipped DHL.

  18. Aug 8, 2022 at 6:22 AM
    #178
    Bad-Dawg

    Bad-Dawg Member

    Joined:
    Aug 7, 2022
    Member:
    #403015
    Messages:
    17
    Gender:
    Male
    Vehicle:
    2020 Tacoma TuRD OFFroad

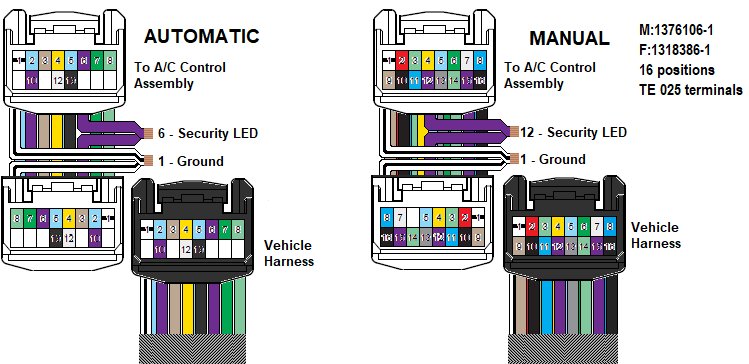

    @caribe makaira would you happen to know what the connectors behind the red blinking security light in the center console? I would like to make an electrical harness that is plug and play all the way and incorporates the LED in the shorter mic sensor.

  19. Aug 8, 2022 at 4:25 PM
    #179
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    7,963
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    Are you referring to A33?

  20. Aug 8, 2022 at 7:26 PM
    #180
    Bad-Dawg

    Bad-Dawg Member

    Joined:
    Aug 7, 2022
    Member:
    #403015
    Messages:
    17
    Gender:
    Male
    Vehicle:
    2020 Tacoma TuRD OFFroad
    Ok. I looked at post #76 because you mention A33. So, are you telling a slow person like me that A33 is connecting multiple things behind my center console, to make the security led light up? And, if that is the case, are pins/wires to 6 and 12 what I need to tap into to make the LED work on the short mic sensor?

    Also, if you can explain enough so I can get the LED to work, do you have a way I can buy you a beverage of your choice?
