Discussion in '2nd Gen. Tacomas (2005-2015)' started by Benson X, Dec 18, 2011.

Page 13 of 31
  1. Feb 3, 2013 at 9:32 AM
    #241
    GroBrochet

    #241
    GroBrochet Member

    Joined:
    Dec 14, 2012
    Member:
    #93082
    Messages:
    10
    Gender:
    Male
    First Name:
    Pierre
    Quebec, Canada
    Vehicle:
    Tacoma 2012 Sr5 sport full cab V6
    Start recieving part to proceed with this mod on my Taco 2012. Got pair of Sienna mirrors from Amazon for 50$ each. when I removed mirror and looked at the back plate, I realized that they were not real OEM. I thought no big deal I just need the heating pad. Spliting the glass from back plate and heating pad was just a pain. Was very careful, heated the whole assembly but at the end, glass cracked and could not save the pads. 100$ down the shoot. Now getting a bit worried if I carry on with this. Currently seeking to get Universal heating pads. Anyone tried those? wonder if 4Runner 2012 mirror would be a one-to-one replacement. 4Runner has signal lens and heat combination just like my Taco 2012. Still, I just can't put in my mind a valid reason why Toyota do not provide such a basic option on the Taco but only on all other models... even the 2013 do not have it. will persevere...

    GroBrochet, Feb 3, 2013
    #241
  2. Feb 3, 2013 at 10:18 AM
    #242
    File IFR

    #242
    File IFR "... Intercepting The Localizer"

    Joined:
    Mar 4, 2012
    Member:
    #74145
    Messages:
    4,497
    Gender:
    Male
    First Name:
    Mike
    Central MA
    Vehicle:
    2012 MGM 4X4 DC-LB TRD Sport
    That sucks.

    Did you not know about the Highlander mirror option?

    File IFR, Feb 3, 2013
    #242
  3. Feb 3, 2013 at 10:21 AM
    #243
    OZ-T

    #243
    OZ-T I hate my neighbour

    Joined:
    Dec 15, 2009
    Member:
    #27584
    Messages:
    50,587
    Gender:
    Male
    First Name:
    Peter North
    British Columbia
    Vehicle:
    Mag Grey 09 Trd Sport DCLB 4x4
    OME 885x , OME shocks and Dakars , Wheelers SuperBumps front and rear , 275/70/17 Hankook ATm , OEM bed mat , Weathertech digifit floor liners , Weathertech in-channel vents , headache rack , Leer 100RCC commercial canopy , TRD bedside decals removed , Devil Horns by Andres , HomerTaco Satoshi
    The 2010+ 4Runner mirrors work , there is a thread on that

    OZ-T, Feb 3, 2013
    #243
  4. Mar 29, 2013 at 12:56 PM
    #244
    Benson X

    #244
    Benson X [OP] My build thread sucks...

    Joined:
    Nov 13, 2010
    Member:
    #46123
    Messages:
    5,678
    Gender:
    Male
    First Name:
    Ben
    Olympia, WA
    Vehicle:
    '11 MGM DC/LB
    If you don't draw blood, you're doing it wrong!
    >>>*UPDATE* FOR THE THOSE WITH TRD-OR TACOS (with no switch blanks) <<<
    ​

    So, a new member     bgreenley (Brandon) contacted me regarding my inquiry to find a solution for TRD OR trucks that don't have switch blank by the steering wheel. We went back and forth bouncing ideas off each-other, trying to piece together a method that would work. He put together this awesome write-up as a supplemental addition to the OEM Heated Mirror Mod! Original Thread located HERE (http://www.tacomaworld.com/forum/2nd...d-package.html)

    Mad props to     bgreenley for putting this together, and making it work. Make sure to give him some rep, and welcome him as a new TW Member!!! :headbang:

    Benson X, Mar 29, 2013
    #244
  5. Mar 29, 2013 at 10:14 PM
    #245
    AaronArf

    #245
    AaronArf Well-Known Member

    Joined:
    Nov 12, 2011
    Member:
    #66926
    Messages:
    4,218
    Gender:
    Male
    First Name:
    Aaron
    VA Beach
    Vehicle:
    2023 LR OR DCSB
    Def going to do this mod. Even better that the 2012 *Highlander* mirrors are a direct fit! Doesn't get more factory looking then this mod.

    Edited so no one else gets confused, I did mean the Highlander mirrors not sienna's. Thanks BensonX.

    Last edited: Apr 28, 2013
    AaronArf, Mar 29, 2013
    #245
  6. Apr 2, 2013 at 3:42 PM
    #246
    Drunknsloth

    #246
    Drunknsloth Indffrnce will be the fall of manknd but who cares

    Joined:
    Jun 17, 2010
    Member:
    #39105
    Messages:
    3,126
    Gender:
    Male
    First Name:
    Retribution
    South West
    Vehicle:
    08 SR5 Access V6 6-Speed
    Blacked-Out Badges; Retribution Decals (Sockmonkey); Tailgate Mod; Red LED Rear Blinkers; Yellow Foglights; Yellow Front Blinkers; Superwhite Xenon Corner Bulb; Leer Bedcap; Bedrug Bedmat; Black Cupholders; Black Plastic Piece Around Window Controls; Plasti-Dip Front Bumper Valence; Plasti-Dip Grill Surround; Blackout Chrome Back Bumper; Metal Miller Skid-Plate; Aero Turbine 2525 Muffler; TSB Rear Leaf Springs and Shocks; Satoshi Grill Pending; Off-Roading Torn off Mirror (Replaced); Blue-Sea Fuse Box; Tinted Tail Lights; URD Short Shifter; Interior Mood Lighting; Hood Lights; BedLights Pending
    We can't see the pictures. Looks like they're linked to your email.

    Drunknsloth, Apr 2, 2013
    #246
  7. Apr 3, 2013 at 10:37 AM
    #247
    johnnychimpo711

    #247
    johnnychimpo711 Well-Known Member

    Joined:
    Sep 15, 2012
    Member:
    #87016
    Messages:
    57
    Gender:
    Male
    North Carolina
    Vehicle:
    23 PreRunner SR5
    Removed the dealer tag holder…that’s it.
    I finally got my heated mirrors installed with integrated turn signals. I used MuthCo mirrors and the OEM heated mirror switch and a lot of patience and wiring. I fused everything through my homemade breaker box (pelican case and relays, more wires). It only took me a few hours, once the weather cooperated and I had time at home. I took this little project and made a few adjustments to adapt it to what I wanted. BensonX, you did an awesome write-up and made my life easier when formulating a "game plan" to get this stuff installed. I also used your hidden CB install thread to put mine in. I attached a few pics for everyone to see. I will add better pictures later, maybe even write up a build page for the turn signaled mirrors as a supplement to this thread.

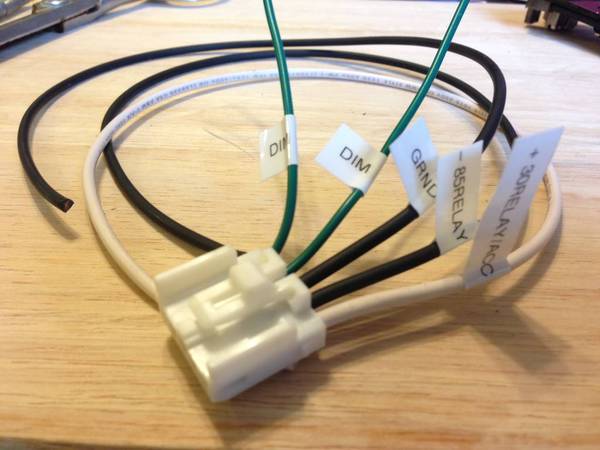

    Switch wiring
    http://www.tacomaworld.com/gallery/data/500/medium/Wiring.jpeg
    Junction/breaker box (used a pelican case)

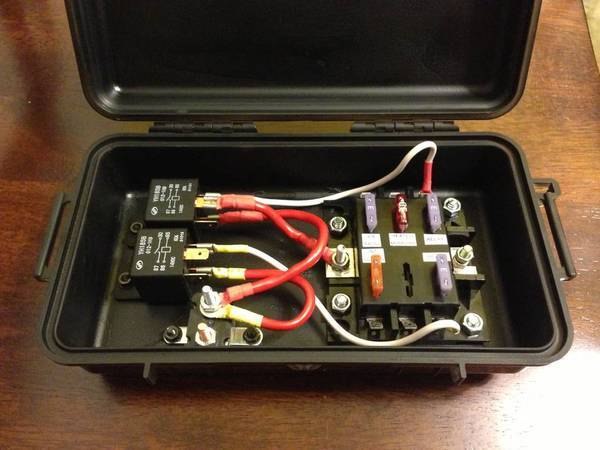

    http://www.tacomaworld.com/gallery/data/500/medium/Circuit_Junction.jpeg
    http://www.tacomaworld.com/gallery/data/500/medium/Circuit_Junction_2.jpeg
    http://www.tacomaworld.com/gallery/data/500/medium/Circuit_Junction_3.jpeg
    CB install

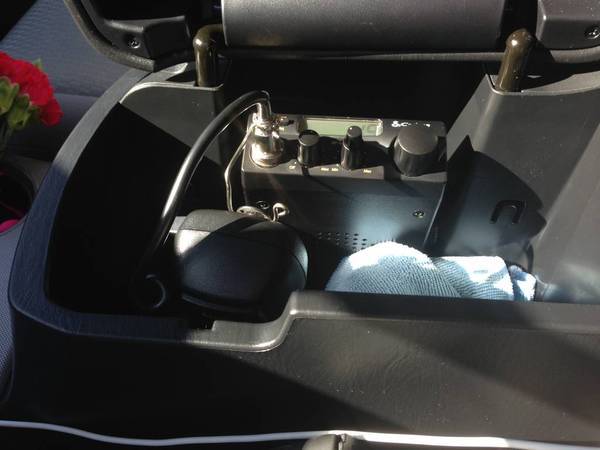

    http://www.tacomaworld.com/gallery/data/500/medium/Hidden_CB_install.jpeg


    I have a video of the working mirrors that I can't upload, because I'm at work. It really all came together and worked like a charm. Thanks BensonX!

    Circuit Junction.jpg
    Circuit Junction 2.jpg
    Circuit Junction 3.jpg
    Hidden CB install.jpg

    johnnychimpo711, Apr 3, 2013
    #247
  8. Apr 3, 2013 at 10:49 AM
    #248
    Benson X

    #248
    Benson X [OP] My build thread sucks...

    Joined:
    Nov 13, 2010
    Member:
    #46123
    Messages:
    5,678
    Gender:
    Male
    First Name:
    Ben
    Olympia, WA
    Vehicle:
    '11 MGM DC/LB
    If you don't draw blood, you're doing it wrong!
    Do you mean the 2012 Highlander Mirrors? Those ones are a direct-fit for '05-'13 Tacos. Just wanted to make sure you don't order the wrong ones.

    Awesome man, looks great! I like your DIY fuse-block, that's pretty smart right there. There's talk of trying to get a Meet 'n Eat going for us PNW folks, check out the NW Meet Thread for more info., it would be cool to meet more local guys.

    Benson X, Apr 3, 2013
    #248
  9. Apr 3, 2013 at 3:09 PM
    #249
    Drunknsloth

    #249
    Drunknsloth Indffrnce will be the fall of manknd but who cares

    Joined:
    Jun 17, 2010
    Member:
    #39105
    Messages:
    3,126
    Gender:
    Male
    First Name:
    Retribution
    South West
    Vehicle:
    08 SR5 Access V6 6-Speed
    Blacked-Out Badges; Retribution Decals (Sockmonkey); Tailgate Mod; Red LED Rear Blinkers; Yellow Foglights; Yellow Front Blinkers; Superwhite Xenon Corner Bulb; Leer Bedcap; Bedrug Bedmat; Black Cupholders; Black Plastic Piece Around Window Controls; Plasti-Dip Front Bumper Valence; Plasti-Dip Grill Surround; Blackout Chrome Back Bumper; Metal Miller Skid-Plate; Aero Turbine 2525 Muffler; TSB Rear Leaf Springs and Shocks; Satoshi Grill Pending; Off-Roading Torn off Mirror (Replaced); Blue-Sea Fuse Box; Tinted Tail Lights; URD Short Shifter; Interior Mood Lighting; Hood Lights; BedLights Pending
    :thumbsup:

    Drunknsloth, Apr 3, 2013
    #249
  10. Jul 5, 2013 at 5:32 PM
    #250
    itsakeeper

    #250
    itsakeeper Well-Known Member

    Joined:
    Sep 23, 2012
    Member:
    #87600
    Messages:
    114
    Gender:
    Male
    nova scotia
    Vehicle:
    2012 SR5
    I bought the Highlander mirrors and spent 2 hours tonight in 30deg C. heat putting just one on the drivers side and getting the wires run into the cab. Quite the job getting the wires through both the door and into the mirror. Leaving the passenger for next week. Other than that the new mirror snapped right in.:D

    itsakeeper, Jul 5, 2013
    #250
  11. Jul 16, 2013 at 12:43 PM
    #251
    itsakeeper

    #251
    itsakeeper Well-Known Member

    Joined:
    Sep 23, 2012
    Member:
    #87600
    Messages:
    114
    Gender:
    Male
    nova scotia
    Vehicle:
    2012 SR5
    Got the passenger side done last night and decided to wire everything up tonight.
    Problem - I ordered a highlander switch from another board member and just looked at it and there are only 4 wires - so I'm thinking a backlight but not dimmed and everything else is the same ?
    Any ideas ?

    itsakeeper, Jul 16, 2013
    #251
  12. Jul 16, 2013 at 1:27 PM
    #252
    Benson X

    #252
    Benson X [OP] My build thread sucks...

    Joined:
    Nov 13, 2010
    Member:
    #46123
    Messages:
    5,678
    Gender:
    Male
    First Name:
    Ben
    Olympia, WA
    Vehicle:
    '11 MGM DC/LB
    If you don't draw blood, you're doing it wrong!
    So the switch you bought has pre-terminated pigtails plugged-in?

    Which 4 wires are connected? You should have (2) illumination leads; 1 for the indicator light, and 1 to illuminate the "mirror picture"

    Benson X, Jul 16, 2013
    #252
  13. Jul 16, 2013 at 2:34 PM
    #253
    itsakeeper

    #253
    itsakeeper Well-Known Member

    Joined:
    Sep 23, 2012
    Member:
    #87600
    Messages:
    114
    Gender:
    Male
    nova scotia
    Vehicle:
    2012 SR5
    Not sure which are which - would you have the associated colors ?

    itsakeeper, Jul 16, 2013
    #253
  14. Jul 16, 2013 at 2:38 PM
    #254
    Benson X

    #254
    Benson X [OP] My build thread sucks...

    Joined:
    Nov 13, 2010
    Member:
    #46123
    Messages:
    5,678
    Gender:
    Male
    First Name:
    Ben
    Olympia, WA
    Vehicle:
    '11 MGM DC/LB
    If you don't draw blood, you're doing it wrong!
    There is really no "specific" color code.

    If the guy used the Toyota OEM pigtails, they will all be green - otherwise, it whateve color wire he decided to use. You can reference the diagram that CtryBoyInMT to determine which 4 of the 5 your have plugged in:
    [​IMG]

    Benson X, Jul 16, 2013
    #254
  15. Jul 16, 2013 at 2:47 PM
    #255
    itsakeeper

    #255
    itsakeeper Well-Known Member

    Joined:
    Sep 23, 2012
    Member:
    #87600
    Messages:
    114
    Gender:
    Male
    nova scotia
    Vehicle:
    2012 SR5
    Well I could have the equivalent of 1,2,3,4 or 5,4,3,2 if you get my drift. From the bottom I have dark green, green w.yellow trace, red w.black trace, and white w.black trace - its supposed to be a highlander switch and the leads are just cut off leaving a couple of inches of wire that should be the stock colors -anyone got a wiring schematic for a highlander :)
    I'll hook it up tomorrow night, painting shed now -
    30deg C and I don't feel like crawling under the dash

    itsakeeper, Jul 16, 2013
    #255
  16. Jul 16, 2013 at 3:06 PM
    #256
    Benson X

    #256
    Benson X [OP] My build thread sucks...

    Joined:
    Nov 13, 2010
    Member:
    #46123
    Messages:
    5,678
    Gender:
    Male
    First Name:
    Ben
    Olympia, WA
    Vehicle:
    '11 MGM DC/LB
    If you don't draw blood, you're doing it wrong!
    Okay, got it. Since this was removed form an actual Highlander, the wiring path may be different from this mod.

    So the bottom Green wires are def. the Illuminaiton wires. Looking at the wiring diagram in the OP, you are most-likely missing a pigtail for #5 which connects to Relay #30. I would continue with your install and just connect another pig-tail to #5.

    You can get an OEM Toyota terminal lead for abut $5 form the dealer. Part No. 82998-12340

    Hope this helps, but feel free to post/PM with any other ???S or concerns. Good Luck :cheers:

    Benson X, Jul 16, 2013
    #256
  17. Jul 16, 2013 at 3:25 PM
    #257
    itsakeeper

    #257
    itsakeeper Well-Known Member

    Joined:
    Sep 23, 2012
    Member:
    #87600
    Messages:
    114
    Gender:
    Male
    nova scotia
    Vehicle:
    2012 SR5
    If that terminal lead has 5 wires I'd need another switch as well. I'll see what happens tomorrow night - no worries, rum fixes all. :)

    itsakeeper, Jul 16, 2013
    #257
  18. Jul 16, 2013 at 3:35 PM
    #258
    Benson X

    #258
    Benson X [OP] My build thread sucks...

    Joined:
    Nov 13, 2010
    Member:
    #46123
    Messages:
    5,678
    Gender:
    Male
    First Name:
    Ben
    Olympia, WA
    Vehicle:
    '11 MGM DC/LB
    If you don't draw blood, you're doing it wrong!
    If the switch is this part # 84871-48030 and looks like this:
    [​IMG] then, you should be good to go.

    Benson X, Jul 16, 2013
    #258
  19. Jul 16, 2013 at 5:02 PM
    #259
    itsakeeper

    #259
    itsakeeper Well-Known Member

    Joined:
    Sep 23, 2012
    Member:
    #87600
    Messages:
    114
    Gender:
    Male
    nova scotia
    Vehicle:
    2012 SR5
    looks like that But 4 pins :) different connection - will post a pic in a minute

    itsakeeper, Jul 16, 2013
    #259
  20. Jul 16, 2013 at 5:11 PM
    #260
    itsakeeper

    #260
    itsakeeper Well-Known Member

    Joined:
    Sep 23, 2012
    Member:
    #87600
    Messages:
    114
    Gender:
    Male
    nova scotia
    Vehicle:
    2012 SR5
    Here you go. Nevermind, I have to post the pic somewhere else and link it here. Pita. Tomorrow night

    itsakeeper, Jul 16, 2013
    #260
