OEM Wiring connectors

Discussion in '3rd Gen. Tacomas (2016+)' started by The_Dave, Jun 21, 2018.

  1. Jun 21, 2018 at 7:28 PM
    #1
    The_Dave

    The_Dave [OP] Active Member

    Joined:
    Nov 30, 2016
    Member:
    #203708
    Messages:
    41
    Gender:
    Male
    First Name:
    Dave
    Vehicle:
    2018 Quicksand TRD
    Would someone be able to point me in the right direction to locate OEM wiring harness connectors. I'd like to swap out my lower driving lights but I'd rather not cut the connectors if I don't have too.

    TIA

  2. Jun 22, 2018 at 5:20 PM
    #2
    Nutz45_1

    Nutz45_1 Well-Known Member

    Joined:
    Jul 5, 2016
    Member:
    #191251
    Messages:
    127
    Gender:
    Male
    First Name:
    James
    Mullens West Virginia
    Vehicle:
    2016 Tacoma sr black on black
    Hids low beams,all inter LEDs, ultra motor sport wheels 265/65/18 bfg a/t KO2s 6k rev lights led tail an brake new taillight covers
    What are you changing too?

  3. Jun 22, 2018 at 5:43 PM
    #3
    BigWhiteTRD

    BigWhiteTRD Official thread killer (only crickets remain)

    Joined:
    May 24, 2017
    Member:
    #219848
    Messages:
    1,231
    Gender:
    Male
    First Name:
    Ted
    Treasure/Space Coast Florida
    Vehicle:
    2017 AC TRD OR Auto 4wd, 2012 AC SR5 4.0 MT 4wd
  4. Jun 22, 2018 at 7:27 PM
    #4
    The_Dave

    The_Dave [OP] Active Member

    Joined:
    Nov 30, 2016
    Member:
    #203708
    Messages:
    41
    Gender:
    Male
    First Name:
    Dave
    Vehicle:
    2018 Quicksand TRD
    Id like to change out my lower fog lamps to LED units, just getting my ducks in a row if they do not come plug and play.

  5. Jun 22, 2018 at 7:28 PM
    #5
    The_Dave

    The_Dave [OP] Active Member

    Joined:
    Nov 30, 2016
    Member:
    #203708
    Messages:
    41
    Gender:
    Male
    First Name:
    Dave
    Vehicle:
    2018 Quicksand TRD
  6. Jun 22, 2018 at 7:43 PM
    #6
    BigWhiteTRD

    BigWhiteTRD Official thread killer (only crickets remain)

    Joined:
    May 24, 2017
    Member:
    #219848
    Messages:
    1,231
    Gender:
    Male
    First Name:
    Ted
    Treasure/Space Coast Florida
    Vehicle:
    2017 AC TRD OR Auto 4wd, 2012 AC SR5 4.0 MT 4wd

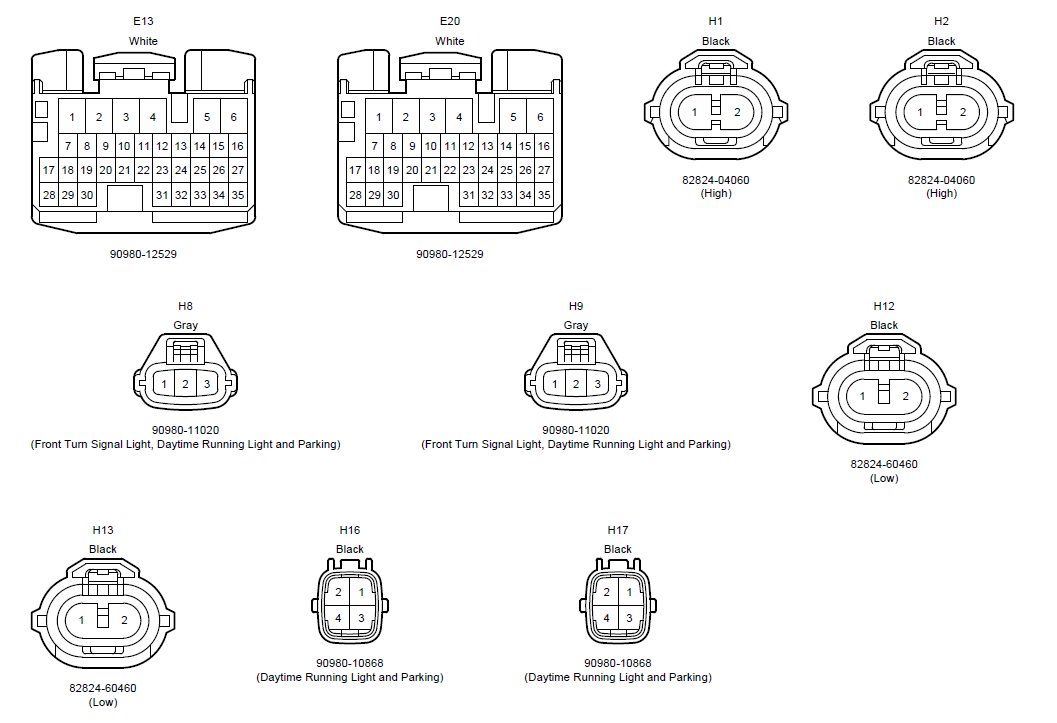

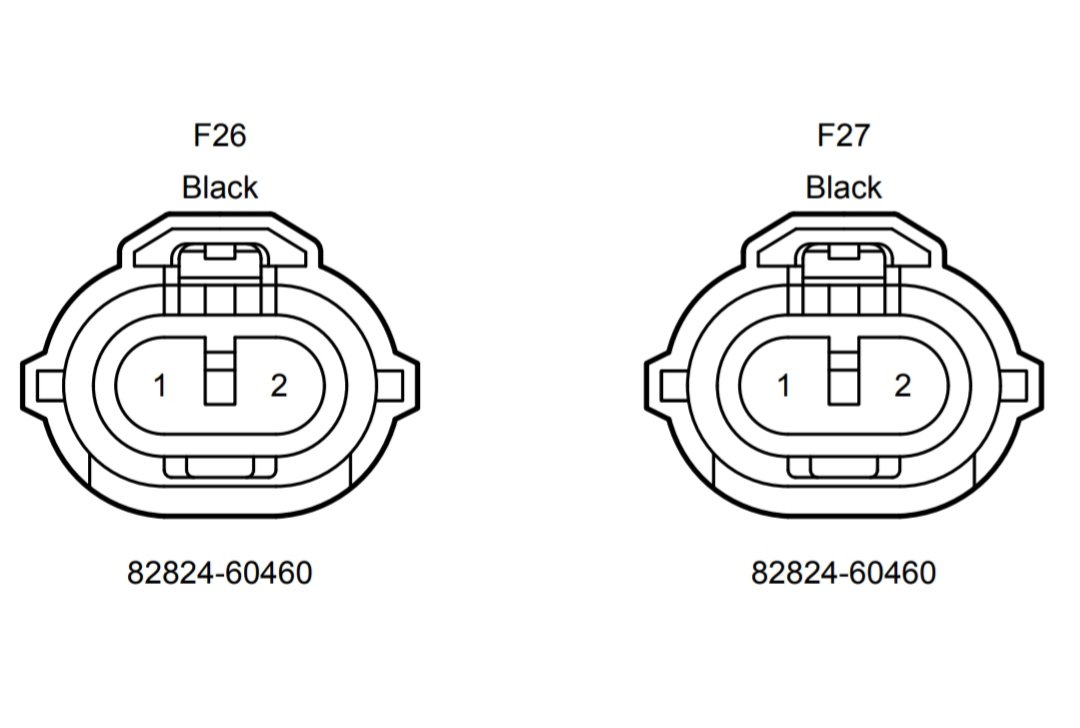

    I believe fogs are these (truck side)


  7. Jun 22, 2018 at 7:48 PM
    #7
    The_Dave

    The_Dave [OP] Active Member

    Joined:
    Nov 30, 2016
    Member:
    #203708
    Messages:
    41
    Gender:
    Male
    First Name:
    Dave
    Vehicle:
    2018 Quicksand TRD
    Excellent!

  8. Jun 23, 2018 at 3:30 AM
    #8
    N2DesignsInc

    N2DesignsInc ----------Owner---------- N2 Designs, Inc. Vendor

    Joined:
    Jan 26, 2018
    Member:
    #242487
    Messages:
    2,177
    Gender:
    Male
    First Name:
    Jimmy
    Los Angeles, CA
    Vehicle:
    2018 Limited Cement
    Mods: Is this still a Tacoma?
    Make sure they’re H11 it will be plug n play now a days, as these are not HID or Bi-Xenon swaps. They are all plug n play now, fogs, lows, highs and even rears if you buy the right model replacement lamp. They are all listed in the manual. I upgraded everything I have in the front to LED and everything was Plug n play. There is a thread on LED uogrades the I learned slot from and even swayed me to purchasing the brand mention within it.

  9. Sep 15, 2020 at 6:08 PM
    #9
    TRDCal

    TRDCal Well-Known Member

    Joined:
    Feb 2, 2016
    Member:
    #176893
    Messages:
    192
    Gender:
    Male
    Canada
    Vehicle:
    2018 DCSB Sport MT

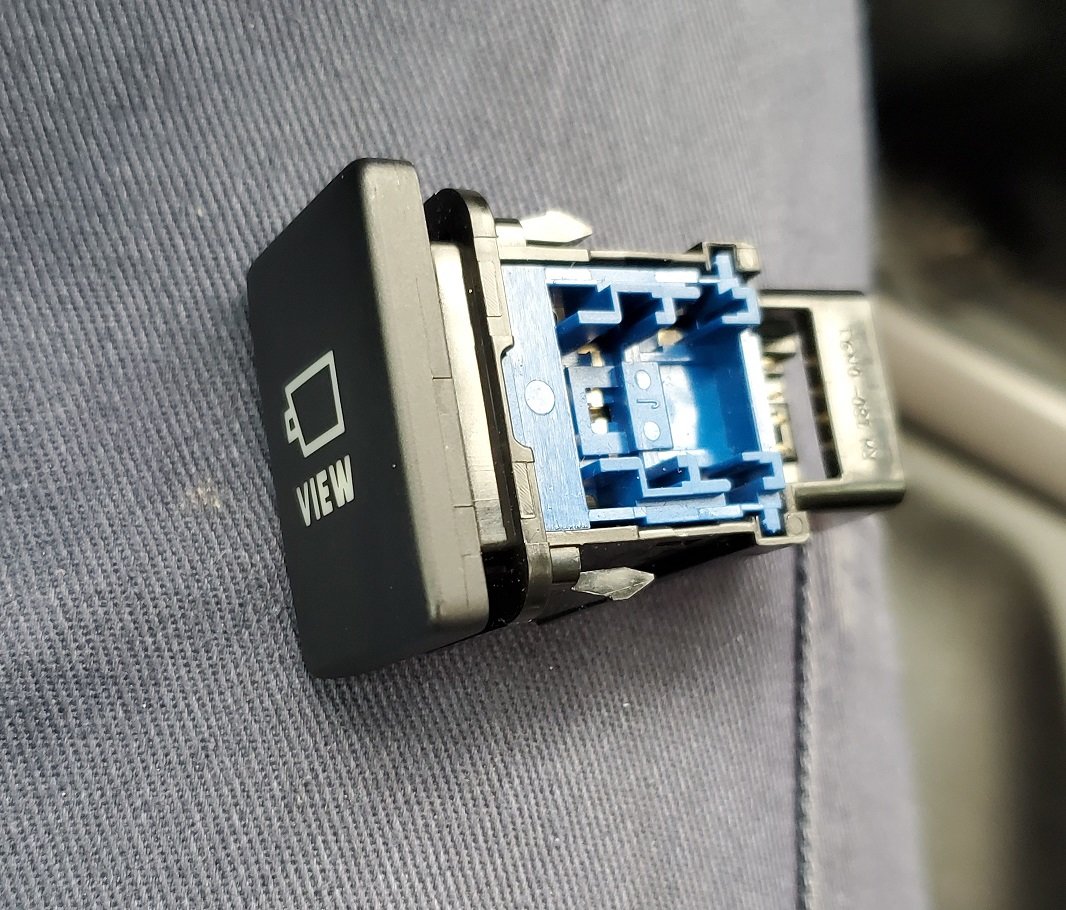

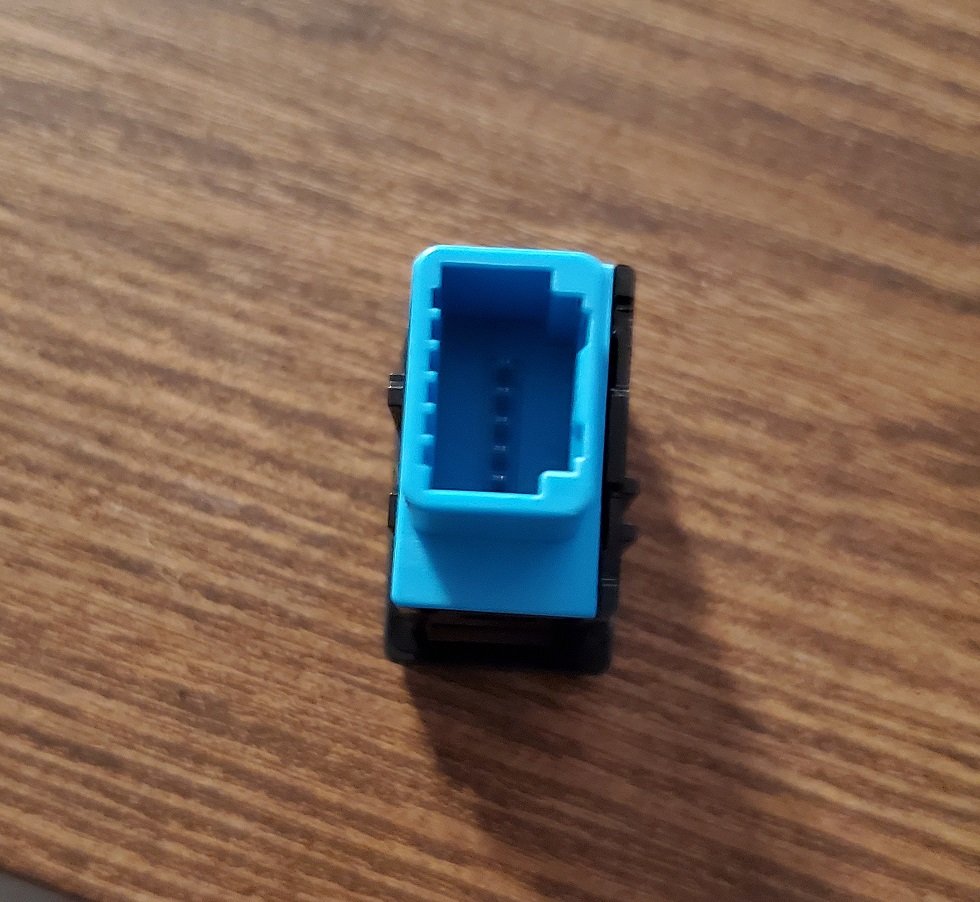

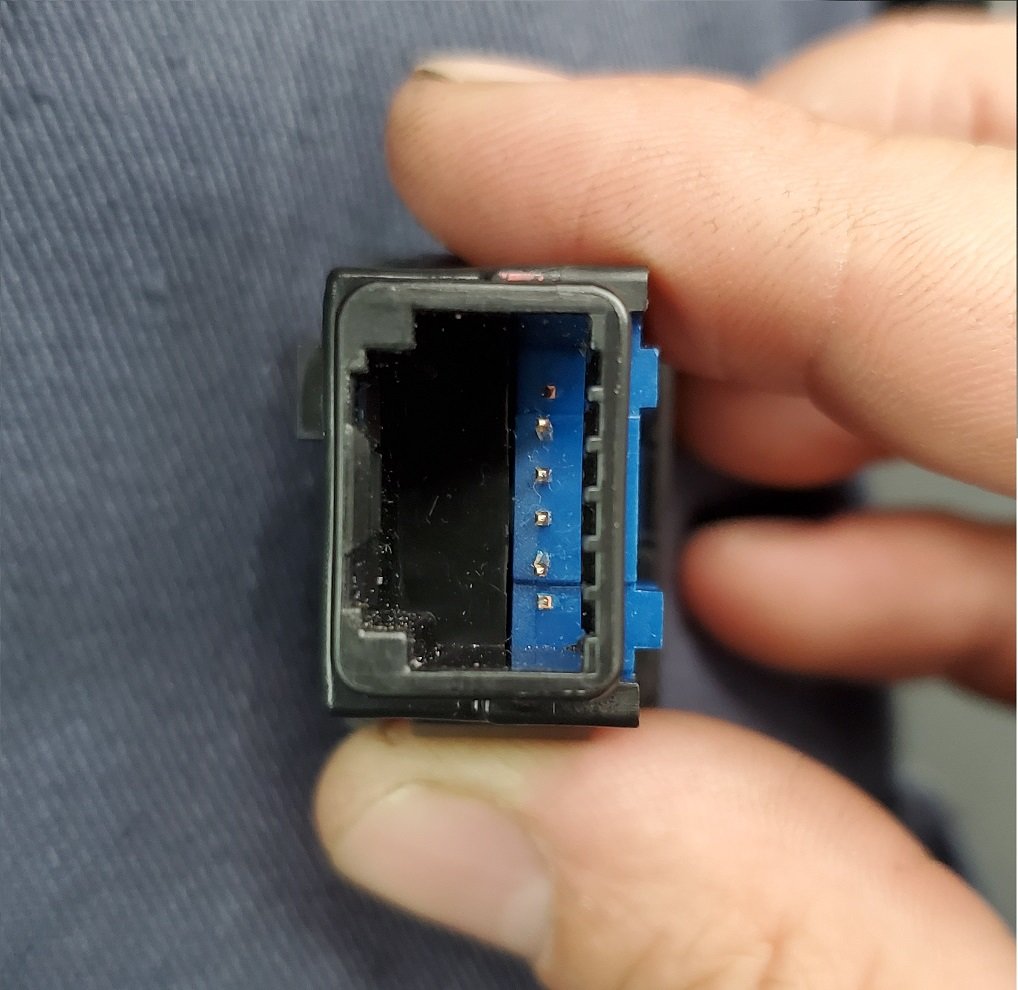

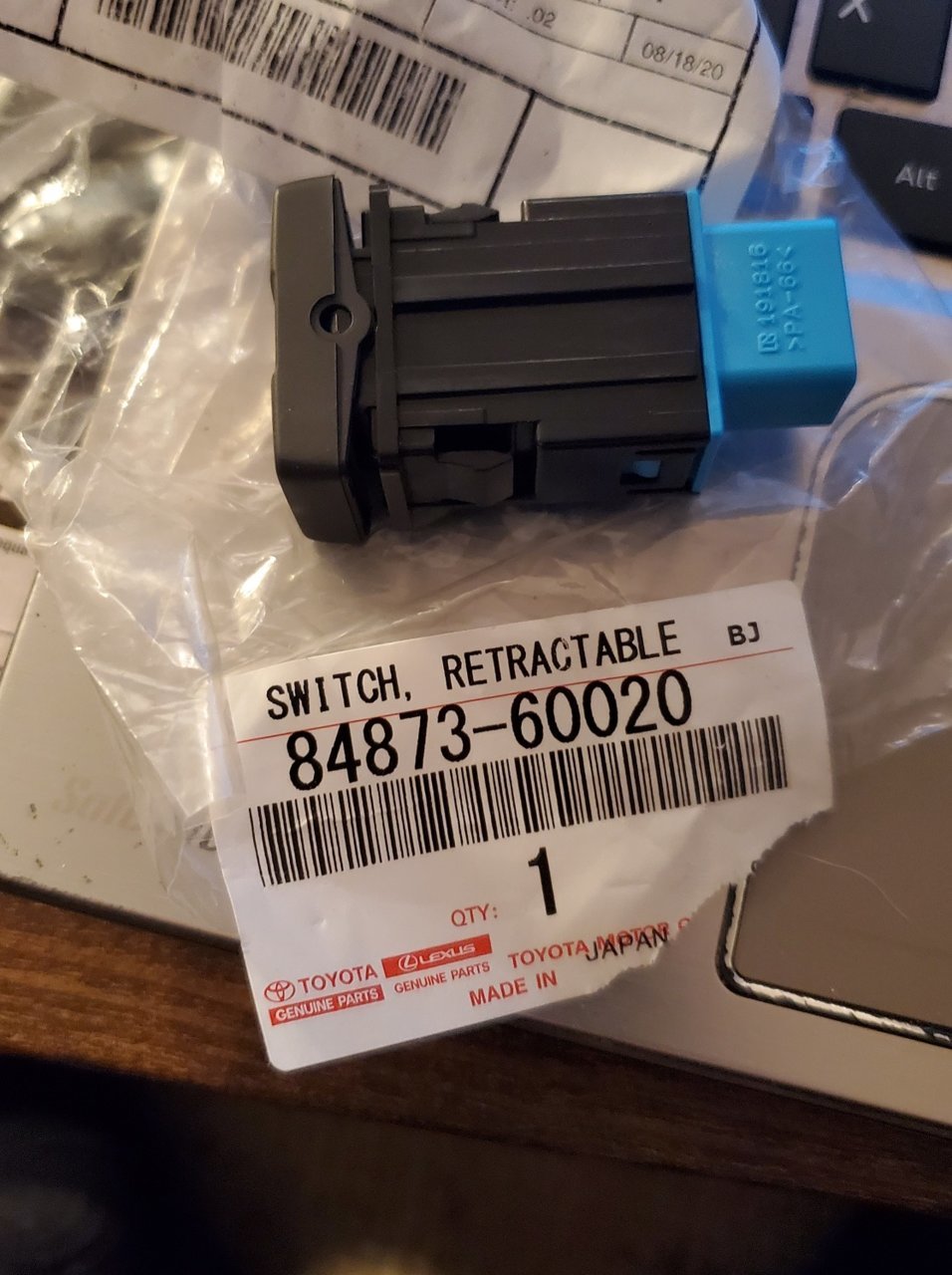

    Question RE: oem connectors, figured I'd try here before starting a new thread. I want to add a couple factory switches to control my KTJO folding mirrors and front view camera. Trying to make this proper plug and play. How do I go about finding the OEM connector housing PN's for these switches. I've already purchased the pins/sockets for the connectors, just need the housings nows.

    20200908_172851.jpg 20200908_172837.jpg 20200915_195503.jpg 20200915_195454.jpg

    Last edited: Sep 16, 2020
  10. Sep 16, 2020 at 10:24 AM
    #10
    TRDCal

    TRDCal Well-Known Member

    Joined:
    Feb 2, 2016
    Member:
    #176893
    Messages:
    192
    Gender:
    Male
    Canada
    Vehicle:
    2018 DCSB Sport MT
  11. Sep 16, 2020 at 10:30 AM
    #11
    Skydvrr

    Skydvrr IG: @kalopsianick

    Joined:
    Sep 13, 2017
    Member:
    #229889
    Messages:
    7,485
    Gender:
    Male
    First Name:
    Nick
    Gilbert, AZ
    Vehicle:
    Black '17 OR
    TRDCal likes this.
  12. Sep 16, 2020 at 10:49 AM
    #12
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    4,021
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,

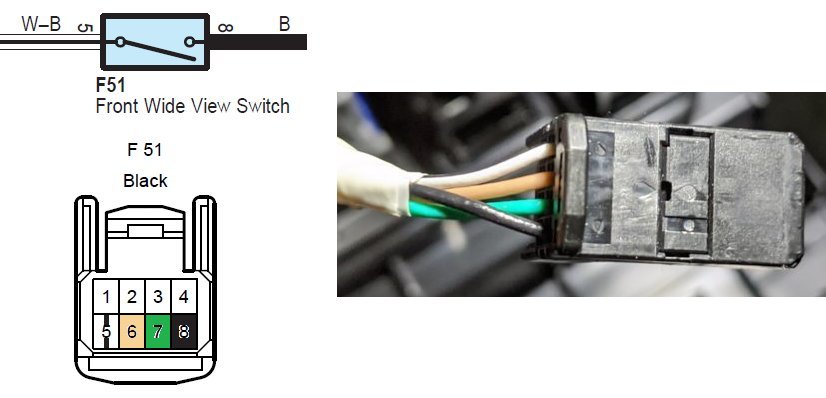

    No part number on it. Maybe someone with the switch installed could look at the connector for the part number.
    For the retractable switch no info, yet.
    @MESO most likely does...
    Edit add: ECT Stealth PRO shift knob

    Last edited: Sep 16, 2020
    TRDCal likes this.
  13. Sep 16, 2020 at 7:35 PM
    #13
    TRDCal

    TRDCal Well-Known Member

    Joined:
    Feb 2, 2016
    Member:
    #176893
    Messages:
    192
    Gender:
    Male
    Canada
    Vehicle:
    2018 DCSB Sport MT
    Thanks for looking! For my own knowledge, is the connector PN usually in the wiring diagrams or parts manual? Or are they not really anywhere but sometimes can be found on the connectors themselves? Appreciate you doing some leg work here, I'm happy to do it, just don't really know where to start.

    @MESO Any chance you have that switch connector housing PN?

  14. Sep 16, 2020 at 7:38 PM
    #14
    MESO

    MESO Major Modder Vendor

    Joined:
    Feb 16, 2015
    Member:
    #148809
    Messages:
    15,450
    Gender:
    Male
    State of Jefferson
    Vehicle:
    2016 DCLB TRD OR QS
    Sorry I don’t use that connector in any of my products so not sure of the part #

    Skydvrr likes this.
  15. Sep 16, 2020 at 7:39 PM
    #15
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    4,021
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,

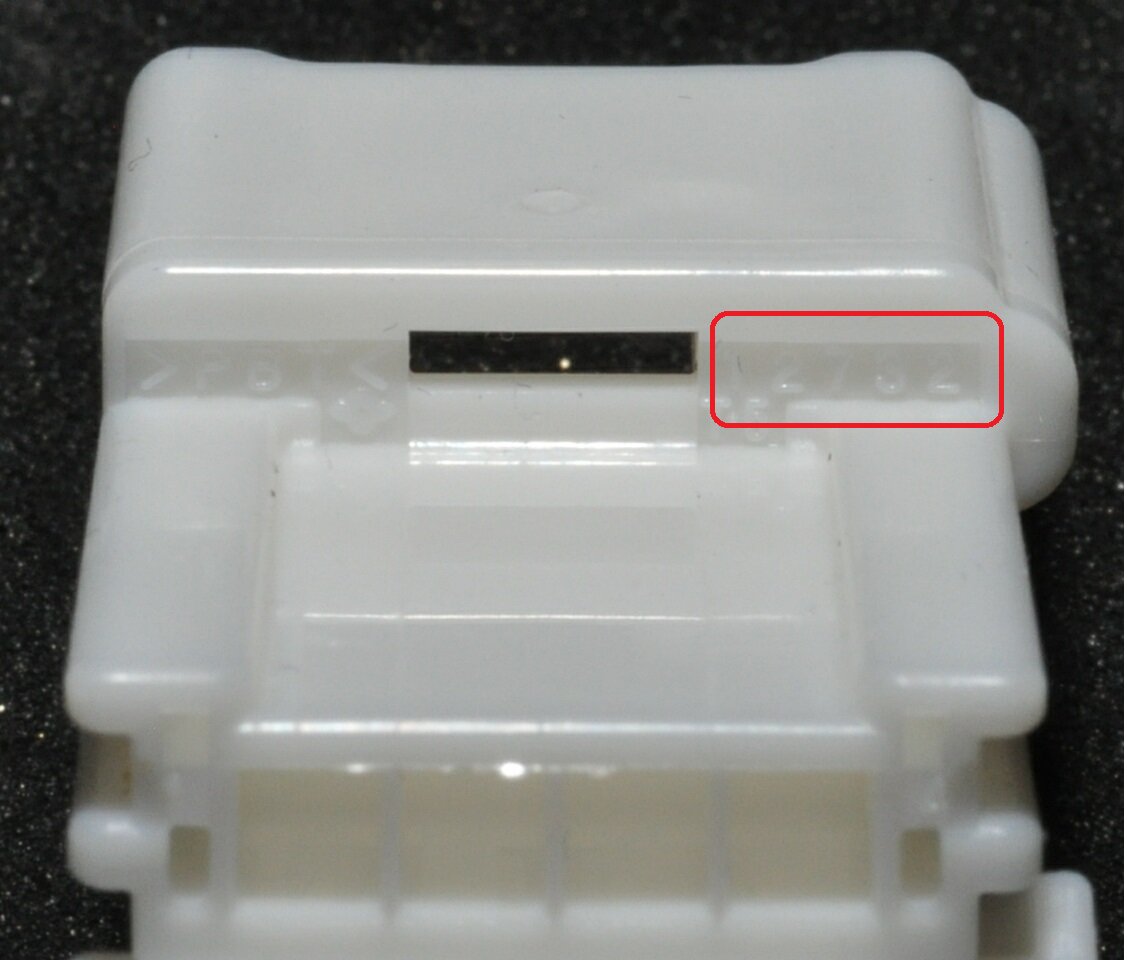

    Yes in the EWD depending on year the info, and on the connector. If you have a nice magnifier...

    Bleep100 and Skydvrr like this.
  16. Sep 16, 2020 at 7:42 PM
    #16
    TRDCal

    TRDCal Well-Known Member

    Joined:
    Feb 2, 2016
    Member:
    #176893
    Messages:
    192
    Gender:
    Male
    Canada
    Vehicle:
    2018 DCSB Sport MT
    Thanks! I'll look for a wiring diagram. That mirror switch is out of a 2020 Land Cruiser so might be easier said that done haha

    Cheers, thanks for looking

  17. Sep 16, 2020 at 7:43 PM
    #17
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    4,021
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    I see the switch is meant for a Land Cruiser. You're going to have to get a Electronic Wiring Diagram and search for the connector...

  18. Sep 16, 2020 at 8:01 PM
    #18
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    4,021
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    @TRDCal , are those 5 pins in the retractable switch?

    Last edited: Sep 16, 2020
  19. Sep 17, 2020 at 2:25 AM
    #19
    TRDCal

    TRDCal Well-Known Member

    Joined:
    Feb 2, 2016
    Member:
    #176893
    Messages:
    192
    Gender:
    Male
    Canada
    Vehicle:
    2018 DCSB Sport MT
    Yes 5 pins. Would guess the connector has 6 sockets tho cause the 5 pins are offset to one side

  20. Sep 17, 2020 at 6:52 AM
    #20
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    4,021
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    I guesstimate a 12 socket connector with 7 empty slots.
