OEM Wiring connectors

Discussion in '3rd Gen. Tacomas (2016-2023)' started by The_Dave, Jun 21, 2018.

  1. Sep 17, 2020 at 7:34 AM
    #21
    STrooper

    STrooper For HIS glory!

    Joined:
    Jan 27, 2019
    Member:
    #280870
    Messages:
    2,035
    Gender:
    Male
    First Name:
    Jack
    NC
    Vehicle:
    2018 TRD Sport QuickSand / 2020 TRD Sport Cement!
  2. Sep 17, 2020 at 2:17 PM
    #22
    TRDCal

    TRDCal Well-Known Member

    Joined:
    Feb 2, 2016
    Member:
    #176893
    Messages:
    307
    Gender:
    Male
    Canada
    Vehicle:
    2018 DCSB Sport MT
    You could go to your local dealer or google "XXXXXX-XXXXXX connector" (you have to type "connector" otherwise google thinks its a math equation lol) and loads will come up for sale on various oem parts supplier websites, sometimes ebay or Amazon has the more commonly used ones.

    This site contains affiliate links for which the site may be compensated.
    #22
    STrooper[QUOTED] likes this.
  3. Sep 17, 2020 at 3:11 PM
    #23
    TRDCal

    TRDCal Well-Known Member

    Joined:
    Feb 2, 2016
    Member:
    #176893
    Messages:
    307
    Gender:
    Male
    Canada
    Vehicle:
    2018 DCSB Sport MT
    Roger. I'll probably just rig something up for that one. Found a wiring diagram and it depicts connectors but it doesn't show PNs...only shows the drawing ref number like "A35"

  4. Sep 17, 2020 at 4:53 PM
    #24
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    10,305
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    Post that here...let's have a look.

  5. Sep 19, 2020 at 11:40 AM
    #25
    TRDCal

    TRDCal Well-Known Member

    Joined:
    Feb 2, 2016
    Member:
    #176893
    Messages:
    307
    Gender:
    Male
    Canada
    Vehicle:
    2018 DCSB Sport MT

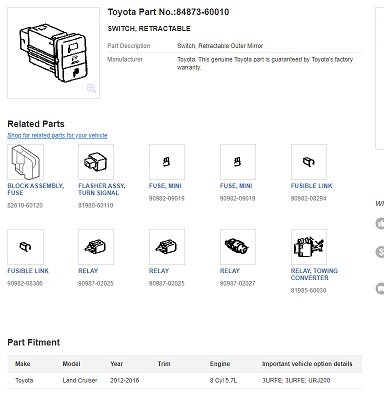

    Got into this alittle deeper this morning, looks like I may have been sent on a wild goose chase. The other day I found mirror retract switch PN: 84873-60010 (my switch is -60020) on partsdeal.com which fit 2012 to 2016 Land Cruisers and it look identical to my switch. I was thinking because the PN was so close it may just be the backlighting that was a different colour or something but the connector would be the same.


    Turns out that switch is incorrectly pictured on partsdeal. On the 2012 - 2016 Land Cruisers the mirror adjustment and retract switch is an assembly:

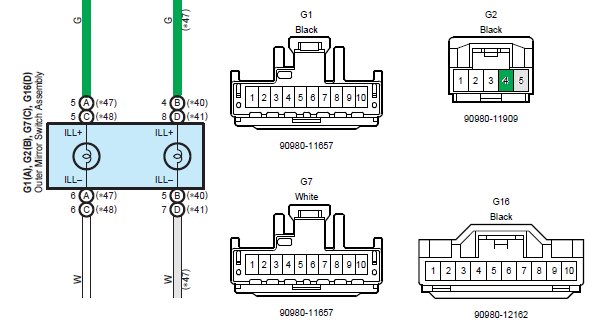

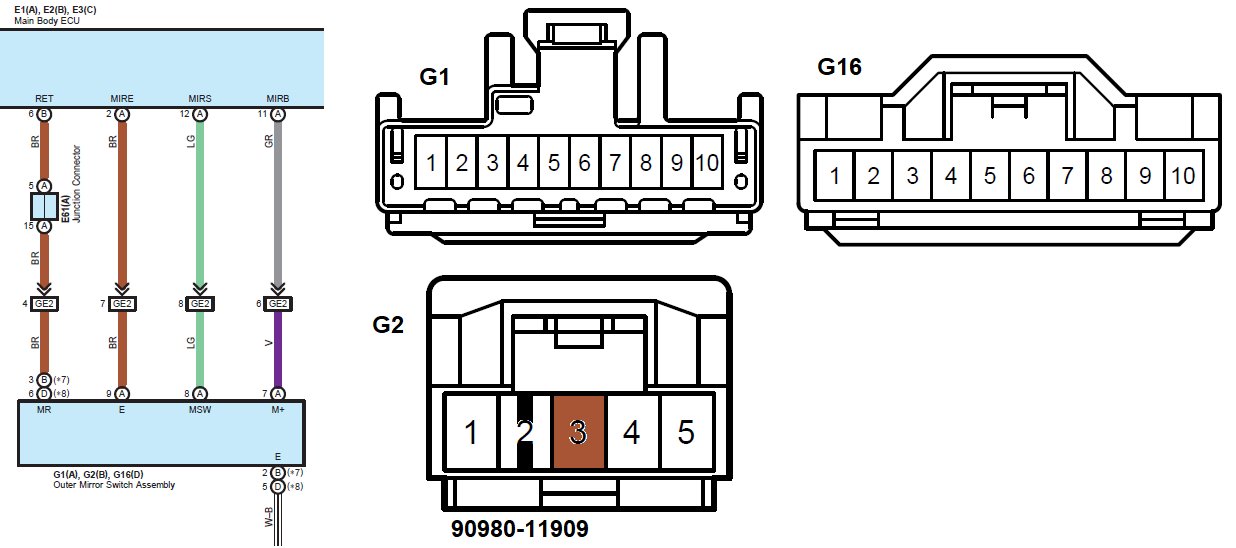

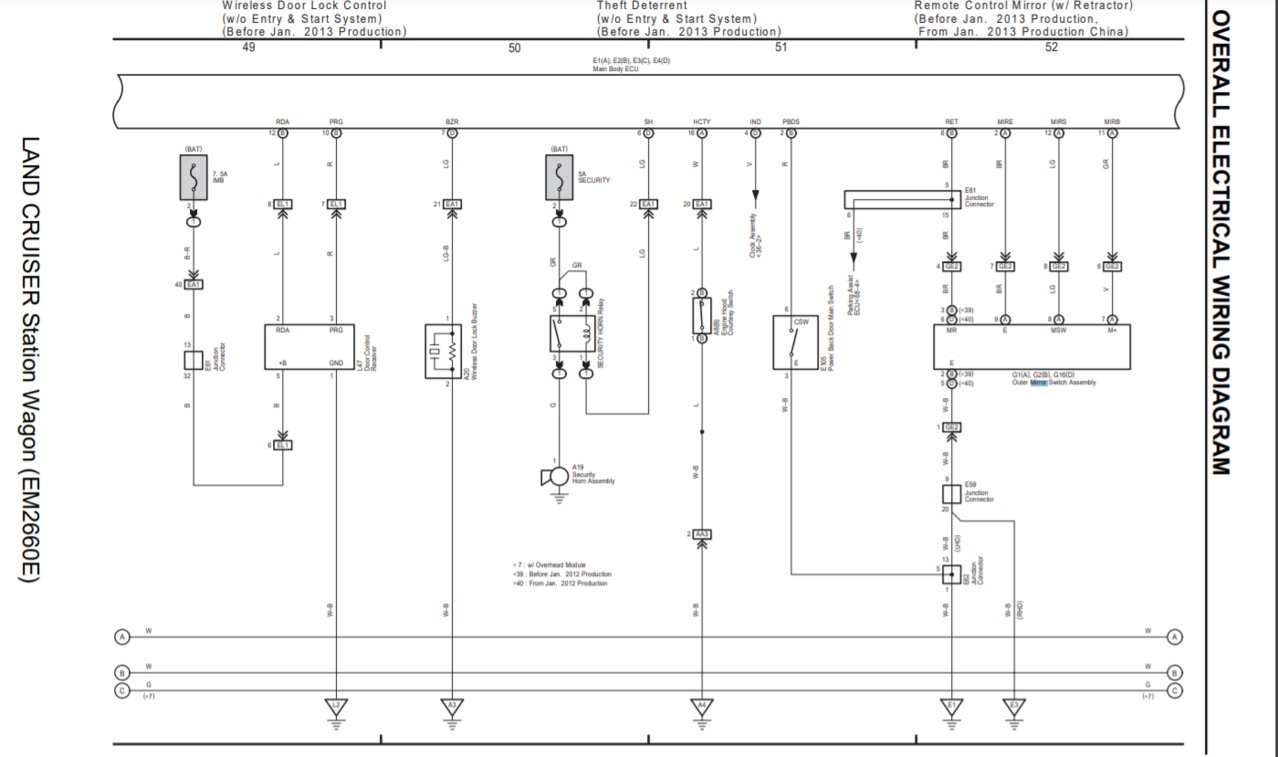

    The wiring diagram for a 2013 Land Cruiser calls out connectors G2, G16 and per my.firewood.com (awesome resource for older Land Cruiser manuals FYI), both those are 10 pin flat connectors so obviously not for my switch.

    I can't find a manual for 2017 + Land Cruisers so looks like I'm SOL. Not to worry, I'll rig something up to make this switch work,

  6. Sep 19, 2020 at 11:44 AM
    #26
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    10,305
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    Since you have the pins, make a silicone plug.

  7. Sep 19, 2020 at 12:20 PM
    #27
    TRDCal

    TRDCal Well-Known Member

    Joined:
    Feb 2, 2016
    Member:
    #176893
    Messages:
    307
    Gender:
    Male
    Canada
    Vehicle:
    2018 DCSB Sport MT
    Exactly! I do want it to be removable tho so I'll try brushing alittle vaseline or something in the switch receptacle first.

  8. Sep 19, 2020 at 12:38 PM
    #28
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    10,305
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,

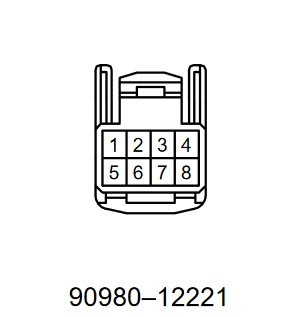

    Maybe this one is it:

  9. Sep 19, 2020 at 12:51 PM
    #29
    ToyoProTaco

    ToyoProTaco Well-Known Member

    Joined:
    Dec 31, 2019
    Member:
    #314753
    Messages:
    113
    Vehicle:
    2020 Magnetic Gray Metallic Tacoma TRD Pro
    Looks like this one.
    Saw some that appear to be like the switches as well.

    Just search for RM1022E or Toyota Repair Connectors. Toyota has published a complete guide with everything about repairing their harnesses. Connectors, pins, including which pins to use with which connectors, tons of info. It's 451 pages long.

  10. Sep 19, 2020 at 1:02 PM
    #30
    TRDCal

    TRDCal Well-Known Member

    Joined:
    Feb 2, 2016
    Member:
    #176893
    Messages:
    307
    Gender:
    Male
    Canada
    Vehicle:
    2018 DCSB Sport MT
    How did I miss that?? lol Its $5.80 at my local dealer so worth a shot. Just ordered so I guess we'll see...Thanks!

    I did have a look through that. Just wasn't sure if it would contain connectors for all the new style switches that Toyota is using now still it was published awhile ago

  11. Sep 19, 2020 at 5:50 PM
    #31
    ToyoProTaco

    ToyoProTaco Well-Known Member

    Joined:
    Dec 31, 2019
    Member:
    #314753
    Messages:
    113
    Vehicle:
    2020 Magnetic Gray Metallic Tacoma TRD Pro
    It may not but at least is a start.

    TRDCal likes this.
