Oil Catch Can Install Guide

Discussion in '2nd Gen. Tacomas (2005-2015)' started by CayucosTacoma, Jul 25, 2012.

  1. Nov 11, 2017 at 1:23 AM
    #901
    DaveB.inVa

    DaveB.inVa Well-Known Member

    Joined:
    Sep 20, 2014
    Member:
    #138742
    Messages:
    91
    Gender:
    Male
    SWVa
    Vehicle:
    2015 AC SR5 4x4 V6 AT MGM
    Oil Catch Can, OIl Pressure and Temp Gauges, General Grabber AT2 265/70R16
    Another thing to think of, check where the mass air flow sensor will be in relation to the crankcase vent intake. It will be upstream of the MAF sensor and can potentially foul it if you put a port in the metal tube in your pictures.

    You may be able to find a silicone coupler with a port in it and put it after the MAF tube you have.

    http://www.siliconeintakes.com/holset-turbocharger/-p-500.html

    You may be able to find something like that above, its just a 1/2" port in a tube. That may be all you need though, I can't remember the size, it's close though!

  2. Nov 11, 2017 at 2:31 AM
    #902
    Key-Rei

    Key-Rei Well-Known Member

    Joined:
    Jun 20, 2017
    Member:
    #221942
    Messages:
    1,183
    First Name:
    Key
    Florida
    Vehicle:
    2010 TRD Off-Road 6Spd 4x4 209BSM
    Locker anytime Fog Lights anytime Full LED light conversion TRD cat back Rear cat delete Exaust Y reroute away from actuator Alloy Clutch master 2000 4Runner "Dog Leg" shift leaver Marlin shift seats and bushing Rear seat delete Rear diff breather extension Chrome grille swap Debadge Rear seat delete Honda blower motor beefy plug and wire mod Anytime 12v and USB with volt gauge in bed Blue Sea fuse box Hella AND 70's Caddy horns Low profile recessed hex drain plug swaps Alluminum battery strap 7pin relocated Backup cam on anytime Various other creature comfort and personal taste mods.
    I was actually looking at similar fittings, and after how you explained how the system is supposed to work I knew the inlet had to be south of the MAF for the fouking reason, just like how people get issues with the fouled MAF from oiled air filters. :tinfoilhat:

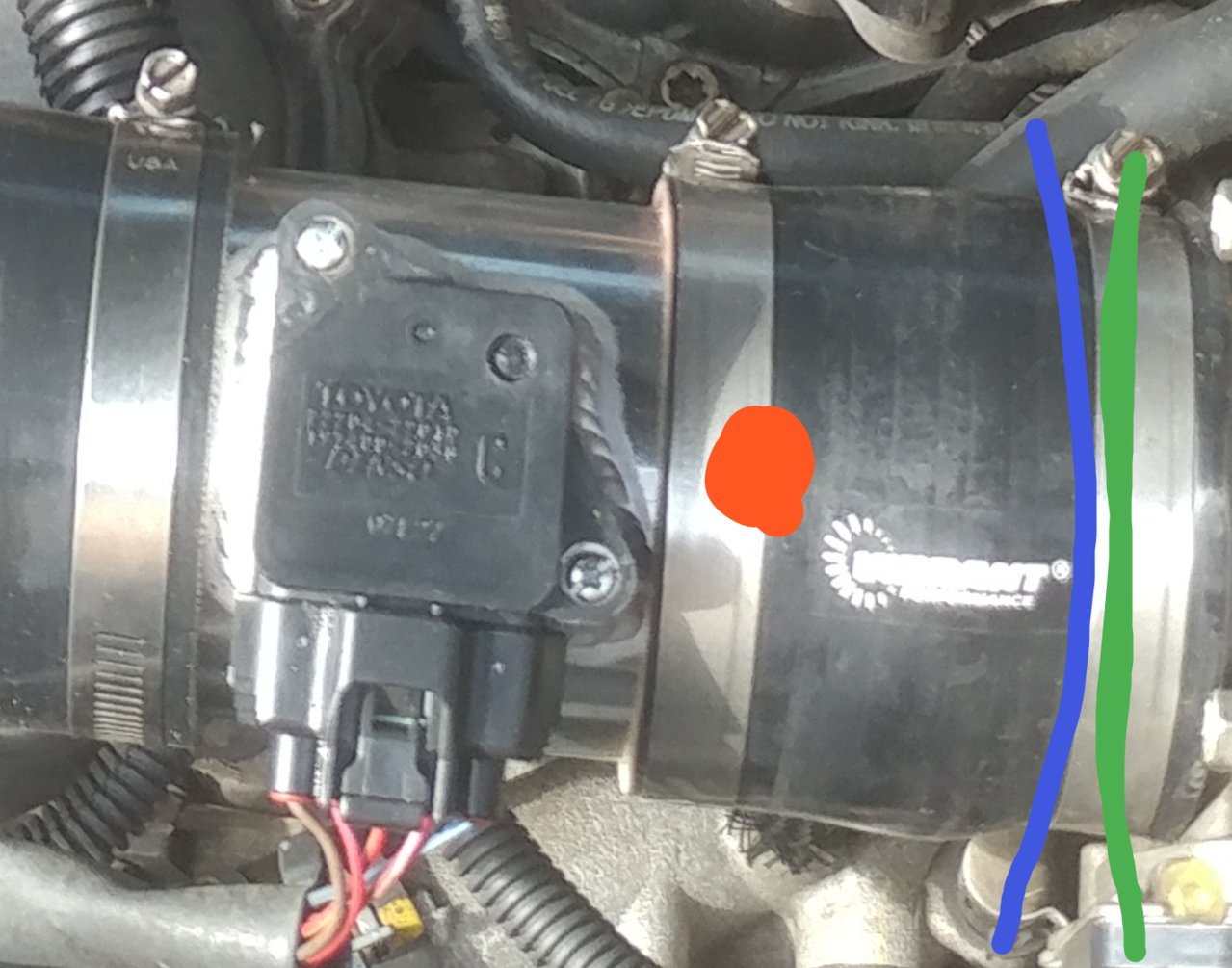

    I was thinking about tapping it directly behind the MAF sensor so that the flow wouldn't be interrupted anymore. Than it already is by the MAF stalk itself. I'll have to scooch my couplers around some but I have the room to do it.



    (Red dot future bung location, blue line maf tube end, green line TB begins.)


    If you're interested, check out my thread over here that explains just whatndaheck is going on with my intake and why.

    https://www.tacomaworld.com/threads/dual-vvt-i-fj-intake-mod-for-tacoma-single-vvt-i-engines.510565/

    DaveB.inVa likes this.
  3. Nov 11, 2017 at 9:39 AM
    #903
    hx989

    hx989 Superunknown Member

    Joined:
    Feb 6, 2016
    Member:
    #177349
    Messages:
    1,423
    I've passed visual in CA with a catch can on a BMW. It was all black and looked factory tho

    Drainbung likes this.
  4. Nov 11, 2017 at 10:21 AM
    #904
    TRlPPlN

    TRlPPlN Pavement Cruiser

    Joined:
    Jan 14, 2009
    Member:
    #12595
    Messages:
    525
    Gender:
    Male
    Bay Area, CA South SF to be precise
    Vehicle:
    MGM DCSB 09 DC TRD Sport 4x4 - Family Hauler
    That’s the way I passed with my previous car with an an IM and intake. Painted both flat black so there’s no bling in the engine compartment . I’ll probably do the same with a catch can when the time comes

  5. Nov 11, 2017 at 10:57 AM
    #905
    Drainbung

    Drainbung Some days you watch the show, and some days...

    Joined:
    Sep 2, 2010
    Member:
    #42629
    Messages:
    3,219
    Gender:
    Male
    First Name:
    Bob
    Oceanside, CA
    Vehicle:
    10 DCLB
    Fueled by anger and cheap beer...
    The genius that just did my smog check was questioning the front axle and transmission breathers...he had to get his boss.

    RickTRDSport likes this.
  6. Nov 11, 2017 at 4:16 PM
    #906
    ThomasMore66

    ThomasMore66 We can't stop here, this is bat country!

    Joined:
    Feb 9, 2013
    Member:
    #97155
    Messages:
    4,519
    Gender:
    Male
    Dallas/Fort Worth & Durango
    Vehicle:
    Supercharged 2013 TRD Offroad 4wd
    TRD Supercharger, TRD exhaust, Leather seats, running boards removed (why it came with them I cannot imagine), Salex organizers, BAMF behind-the-grill light bar, Rigid SR-20 and SR-Q - Spots mounted behind stock grill, color-matched grill, WeatherTech FloorLiner DigitalFit floor mats, Tech Deck, Avid bolt-on slider/step converted to weld on by TW member Achirdo, Diaz Fabrication Model T, Icon Stage 4 with OME Dakar rear leaf springs, OME Driveshaft spacer, Toytec 1" Front Diff Drop, FN BFD 18"x9" GMG Wheels, Toyo AT2 285-65-18 tires, Ultragauge mounted above mirror, Tuffy Box lockable storage, MattGecko rear window security bar, Relentless Fab tailgate protector, CSJumper 700 lumen flood pattern back-up LED's, modified BeeRadd under-hood lighting with two KC Cyclones; KB Voodoo cargo management system and standard rails, AllPro hi-lift jack mount, 48" hi-lift, RCI Metalworks aluminum front skid, Flyzeye 3VP-RS in glovebox and console, AFE CAI, Coupe fuse box cover, battery hold-down bracket and CAI air-box cover, Wurton pod led's installed as bed lights on Lowbrow Customs motorcycle fork brake line aluminum brackets, Pop-n-Lock PL5400, Extang Solidfold 2.0, Rechelon Retro's, Moromoto LED fogs URD 2.85" stealth pulley, URD Y-pipe, Walbro 255lph fuel pump, Speedhut AFR and Boost gauges, Cravenspeed gauge holder.
    So glad I don’t live there. Too many rules.

    Drainbung likes this.
  7. Nov 11, 2017 at 7:42 PM
    #907
    TRlPPlN

    TRlPPlN Pavement Cruiser

    Joined:
    Jan 14, 2009
    Member:
    #12595
    Messages:
    525
    Gender:
    Male
    Bay Area, CA South SF to be precise
    Vehicle:
    MGM DCSB 09 DC TRD Sport 4x4 - Family Hauler
    :rofl: Out of all things .

    Drainbung likes this.
  8. Nov 13, 2017 at 3:54 PM
    #908
    WorldWar546

    WorldWar546 Baja Member

    Joined:
    Mar 22, 2013
    Member:
    #100310
    Messages:
    228
    Gender:
    Male
    First Name:
    Anthon
    Utah
    Vehicle:
    TRD Supercharged '14 Black Baja
    TRD Supercharger And a lot of rice n chrome

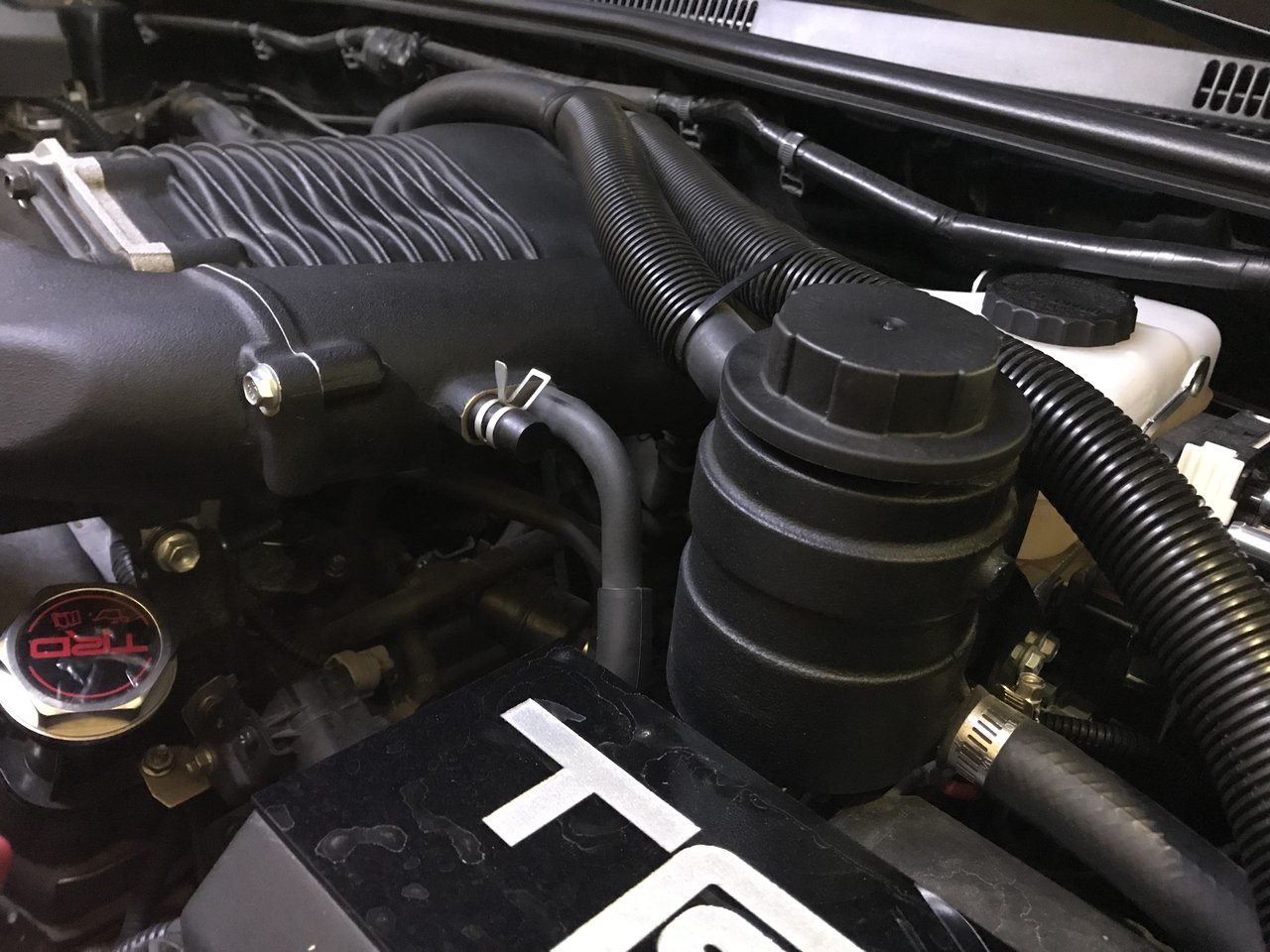

    How did you guys with supercharger install a Catch Can? I’m so close but yet so far :( I can easily get to the intake side of the PCV but can get the crank case. I have no room to even see let alone to attatch the new hose. I know I got to start pulling parts off like the supercharger colant tank but I want to make sure I’m not missing anything that could make this easier.

    Thanks!

  9. Nov 14, 2017 at 11:02 AM
    #909
    ThomasMore66

    ThomasMore66 We can't stop here, this is bat country!

    Joined:
    Feb 9, 2013
    Member:
    #97155
    Messages:
    4,519
    Gender:
    Male
    Dallas/Fort Worth & Durango
    Vehicle:
    Supercharged 2013 TRD Offroad 4wd
    TRD Supercharger, TRD exhaust, Leather seats, running boards removed (why it came with them I cannot imagine), Salex organizers, BAMF behind-the-grill light bar, Rigid SR-20 and SR-Q - Spots mounted behind stock grill, color-matched grill, WeatherTech FloorLiner DigitalFit floor mats, Tech Deck, Avid bolt-on slider/step converted to weld on by TW member Achirdo, Diaz Fabrication Model T, Icon Stage 4 with OME Dakar rear leaf springs, OME Driveshaft spacer, Toytec 1" Front Diff Drop, FN BFD 18"x9" GMG Wheels, Toyo AT2 285-65-18 tires, Ultragauge mounted above mirror, Tuffy Box lockable storage, MattGecko rear window security bar, Relentless Fab tailgate protector, CSJumper 700 lumen flood pattern back-up LED's, modified BeeRadd under-hood lighting with two KC Cyclones; KB Voodoo cargo management system and standard rails, AllPro hi-lift jack mount, 48" hi-lift, RCI Metalworks aluminum front skid, Flyzeye 3VP-RS in glovebox and console, AFE CAI, Coupe fuse box cover, battery hold-down bracket and CAI air-box cover, Wurton pod led's installed as bed lights on Lowbrow Customs motorcycle fork brake line aluminum brackets, Pop-n-Lock PL5400, Extang Solidfold 2.0, Rechelon Retro's, Moromoto LED fogs URD 2.85" stealth pulley, URD Y-pipe, Walbro 255lph fuel pump, Speedhut AFR and Boost gauges, Cravenspeed gauge holder.

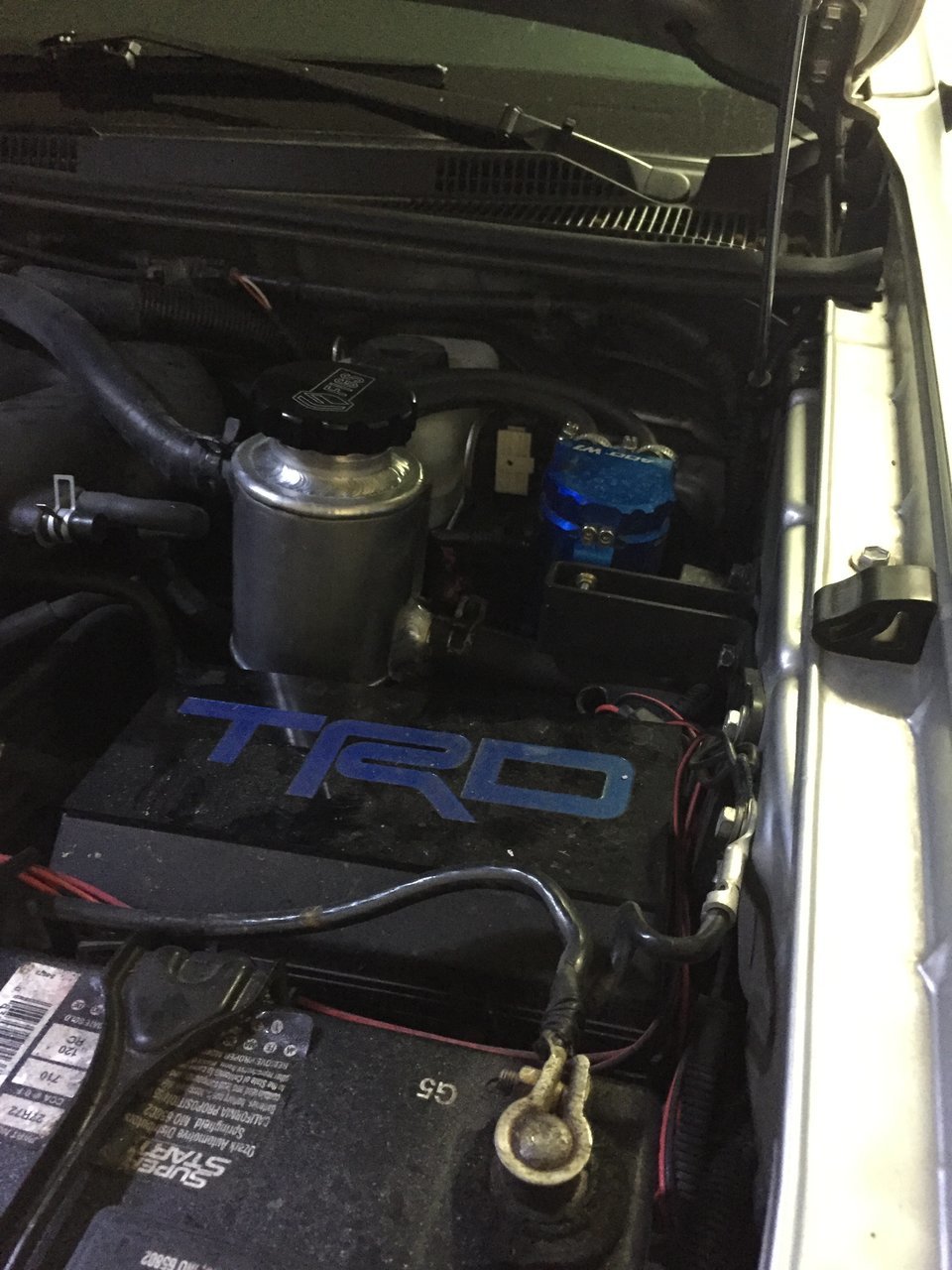

  10. Nov 14, 2017 at 6:18 PM
    #910
    Richie Rich

    Richie Rich Insert Member joke here

    Joined:
    May 3, 2014
    Member:
    #129031
    Messages:
    149
    Gender:
    Male
    760 (San Diego)
    Vehicle:
    2010 X-Runner BSP
    20in TSW Nurburgrings, Tundra/Lexus big brake kit, Snugtop, Bedrug, TRD Short shifter, Anzo taillights, Pioneer Nav system, Ultragauge, Dash cam. Coming soon: More low.
    So I went to install my catch can today and ran into something.

    Catch can fittings have a 1/2" nipple, PCV and return fittings on the truck are about 50% smaller.
    Not really a fan of the idea of smashing the hose with clamps to try to seal it. Even if it worked, I am far too OCD for hackery like that.
    Should I try to find fittings for the catch can with smaller ports and run a smaller diameter hose?

    Any other suggestions are welcome.

  11. Nov 14, 2017 at 7:02 PM
    #911
    Drainbung

    Drainbung Some days you watch the show, and some days...

    Joined:
    Sep 2, 2010
    Member:
    #42629
    Messages:
    3,219
    Gender:
    Male
    First Name:
    Bob
    Oceanside, CA
    Vehicle:
    10 DCLB
    Fueled by anger and cheap beer...
    The ADD W1 came with two different size fittings. Not sure which one you have but I have to agree with using adapters and clamps looks rough.

  12. Nov 14, 2017 at 7:03 PM
    #912
    Scott B.

    Scott B. Well-Known Member

    Joined:
    Nov 11, 2014
    Member:
    #142118
    Messages:
    937
    Gender:
    Male
    First Name:
    Scott
    Georgia
    Vehicle:
    2015 Tacoma SR5 Expo
    Find smaller fittings for the catch can.

    You might be able to find a hose barb with 2 different sized ends, to convert the hose size, as an alternative.

  13. Nov 14, 2017 at 7:18 PM
    #913
    Richie Rich

    Richie Rich Insert Member joke here

    Joined:
    May 3, 2014
    Member:
    #129031
    Messages:
    149
    Gender:
    Male
    760 (San Diego)
    Vehicle:
    2010 X-Runner BSP
    20in TSW Nurburgrings, Tundra/Lexus big brake kit, Snugtop, Bedrug, TRD Short shifter, Anzo taillights, Pioneer Nav system, Ultragauge, Dash cam. Coming soon: More low.
    I have the small Mishimoto one. Only came with one size fittings.

  14. Nov 14, 2017 at 7:21 PM
    #914
    Richie Rich

    Richie Rich Insert Member joke here

    Joined:
    May 3, 2014
    Member:
    #129031
    Messages:
    149
    Gender:
    Male
    760 (San Diego)
    Vehicle:
    2010 X-Runner BSP
    20in TSW Nurburgrings, Tundra/Lexus big brake kit, Snugtop, Bedrug, TRD Short shifter, Anzo taillights, Pioneer Nav system, Ultragauge, Dash cam. Coming soon: More low.
    Dude! This might be the solution.
    I was checking through my shed to see if I had any 90 degree fittings that would fit in the catch can and came across a bunch of various sized barbed fittings, some that couple together.

    Going to have to look at that in the AM and see what I have to work with. Thankfully the catch can has NPT threads so I can probably find something.

    Anybody know the inner diameter of the stock PCV hose?

    Drainbung likes this.
  15. Nov 14, 2017 at 7:21 PM
    #915
    Drainbung

    Drainbung Some days you watch the show, and some days...

    Joined:
    Sep 2, 2010
    Member:
    #42629
    Messages:
    3,219
    Gender:
    Male
    First Name:
    Bob
    Oceanside, CA
    Vehicle:
    10 DCLB
    Fueled by anger and cheap beer...
    That sucks unless you can source the right size fittings.

  16. Nov 14, 2017 at 7:22 PM
    #916
    Drainbung

    Drainbung Some days you watch the show, and some days...

    Joined:
    Sep 2, 2010
    Member:
    #42629
    Messages:
    3,219
    Gender:
    Male
    First Name:
    Bob
    Oceanside, CA
    Vehicle:
    10 DCLB
    Fueled by anger and cheap beer...
    I believe it's 3/8.

  17. Nov 15, 2017 at 6:29 AM
    #917
    Torspd

    Torspd Tor-nication

    Joined:
    Sep 18, 2009
    Member:
    #22958
    Messages:
    12,760
    Gender:
    Male
    First Name:
    Tor
    Houston
    Vehicle:
    MMVI 4.4L 4x4 Access Cab
    Torspd Custom Turbo kit [] Borg Warner 9180EFR Turbo [] ProEFI Pro128 EMS [] TiAL Q BOV [] TiAL V44 Wastegate @ 15psi [] CP Pistons [] CP Carrillo Rods [] ARP Head studs [] ARP Main Studs [] ARP Header - Head Studs [] Ported Heads w/ 1mm oversized valves intake/exhaust [] Brian Crower Forged Stroker Crank [] Darton M.I.D. Sleeved Block [] Kelford Camshafts [] Torspd 170* T-stat mod [] APR Large Fuel Rail [] Aeromotive Stealth 340 LPH Fuel Pump [] FueLab FPR [] APR T56 Conversion Kit [] KP RACING Built T56 [] McLeod Racing Custom Twin Disk Clutch [] One Piece Aluminum Driveshaft [] MGW Shifter [] Custom lowering kit [] Ohlins Front Coilovers [] QA1rear shocks [] Custom Ron Davis Radiator [] Dual SPAL Electric Fans []
    You are correct.

    Drainbung likes this.
  18. Nov 15, 2017 at 8:29 AM
    #918
    StOrMyThEtAcO

    StOrMyThEtAcO @stormythetaco

    Joined:
    Mar 23, 2015
    Member:
    #151561
    Messages:
    5,806
    Gender:
    Male
    First Name:
    Cody
    Flagstaff, Arizona
    Vehicle:
    13 DCSB TRD OR 6 speed Supercharged/ 18 T4R TRD Offroad Prem.
    I took my blower off for an unrelated issue and got it hooked up before I put it back on.
    Not that that answers your question but... Removing the blower isn't to chananging of a task.

    WorldWar546 likes this.
  19. Nov 15, 2017 at 10:02 AM
    #919
    ThomasMore66

    ThomasMore66 We can't stop here, this is bat country!

    Joined:
    Feb 9, 2013
    Member:
    #97155
    Messages:
    4,519
    Gender:
    Male
    Dallas/Fort Worth & Durango
    Vehicle:
    Supercharged 2013 TRD Offroad 4wd
    TRD Supercharger, TRD exhaust, Leather seats, running boards removed (why it came with them I cannot imagine), Salex organizers, BAMF behind-the-grill light bar, Rigid SR-20 and SR-Q - Spots mounted behind stock grill, color-matched grill, WeatherTech FloorLiner DigitalFit floor mats, Tech Deck, Avid bolt-on slider/step converted to weld on by TW member Achirdo, Diaz Fabrication Model T, Icon Stage 4 with OME Dakar rear leaf springs, OME Driveshaft spacer, Toytec 1" Front Diff Drop, FN BFD 18"x9" GMG Wheels, Toyo AT2 285-65-18 tires, Ultragauge mounted above mirror, Tuffy Box lockable storage, MattGecko rear window security bar, Relentless Fab tailgate protector, CSJumper 700 lumen flood pattern back-up LED's, modified BeeRadd under-hood lighting with two KC Cyclones; KB Voodoo cargo management system and standard rails, AllPro hi-lift jack mount, 48" hi-lift, RCI Metalworks aluminum front skid, Flyzeye 3VP-RS in glovebox and console, AFE CAI, Coupe fuse box cover, battery hold-down bracket and CAI air-box cover, Wurton pod led's installed as bed lights on Lowbrow Customs motorcycle fork brake line aluminum brackets, Pop-n-Lock PL5400, Extang Solidfold 2.0, Rechelon Retro's, Moromoto LED fogs URD 2.85" stealth pulley, URD Y-pipe, Walbro 255lph fuel pump, Speedhut AFR and Boost gauges, Cravenspeed gauge holder.
    I don’t remember the hoses being an issue. Getting your hand to the PCV, now that was an issue. Blood sacrifice was required.

    WorldWar546, hx989 and Drainbung like this.
  20. Nov 15, 2017 at 11:58 AM
    #920
    WorldWar546

    WorldWar546 Baja Member

    Joined:
    Mar 22, 2013
    Member:
    #100310
    Messages:
    228
    Gender:
    Male
    First Name:
    Anthon
    Utah
    Vehicle:
    TRD Supercharged '14 Black Baja
    TRD Supercharger And a lot of rice n chrome
    I’ll admit taking off the blower scares me a bit, I’ll try removing the coolant tank first if that doesn’t help I’ll get my big boy pants on and take the blower off, will give me an excuse to paint the valve covers too lol!

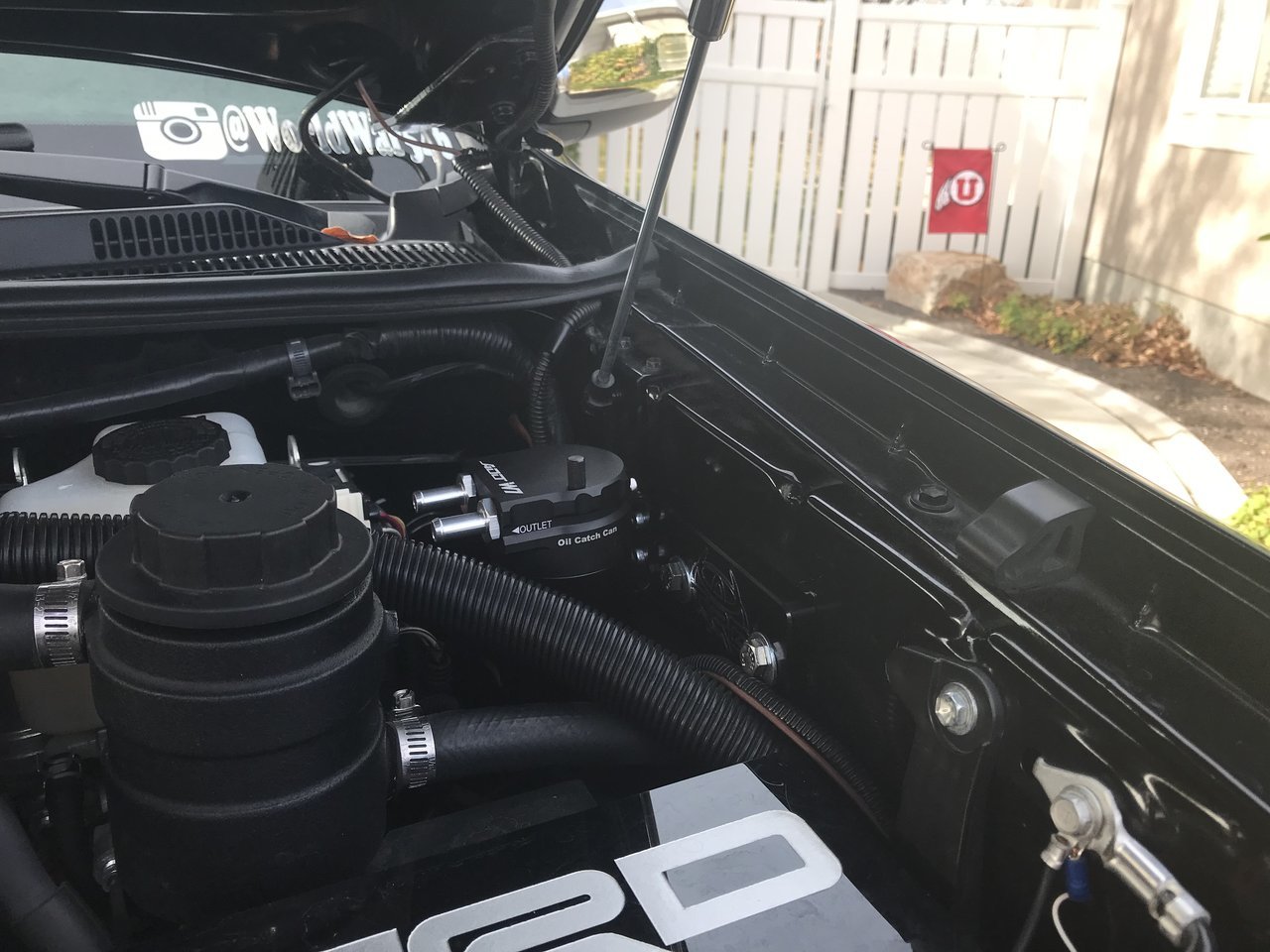

    StOrMyThEtAcO likes this.
