    Is there a way to add the OEM inverter button function to a switch panel? I am assuming it's not as simple as finding +/- wire and extending to the controller. OEM switch has 5 wires. Ignoring the 120/400 aspect, I'd just like to turn on/off outlet with existing switch panel rather than relocate button or find another place to mount it. May as well just tag @3JOH22A

  5. Sep 25, 2024 at 3:12 PM
    MaverickT883

    MaverickT883 Paintless

    Joined:
    Nov 17, 2020
    Member:
    #346995
    Messages:
    3,350
    Gender:
    Male
    First Name:
    Maverick
    Ontario, Canada
    Vehicle:
    2021 Tacoma TRD Off-road Access Cab
    Check build thread!
    Talk to @Shveet if you haven't already- he's pretty good with the electrical stuff. However, my personal recommendation is spend a few extra bucks and replace the inverter with a better one.

  6. Sep 25, 2024 at 3:30 PM
    Saturnine

    Saturnine YVAN EHT NIOJ

    Joined:
    Jun 25, 2020
    Member:
    #332540
    Messages:
    4,015
    First Name:
    Dar C
    North of the wall
    Vehicle:
    TRD go brrrr
    All the mods
    Yeah, it's not so much about needing more - it does what I need it to do and the location works. If I can't integrate it, I'll just hide it somewhere else and run a second inverter elsewhere if I need to

  7. Sep 25, 2024 at 3:39 PM
    MaverickT883

    MaverickT883 Paintless

    Joined:
    Nov 17, 2020
    Member:
    #346995
    Messages:
    3,350
    Gender:
    Male
    First Name:
    Maverick
    Ontario, Canada
    Vehicle:
    2021 Tacoma TRD Off-road Access Cab
    Check build thread!
    https://www.tacomaworld.com/threads/how-to-400w-anytime-mod-3rd-gen.436831/
    You'll need to do this to force it to run 400w at all times.
    Appears one wire is for sensing speed, one is for sensing gear, and a hot, neutral and a ... not sure
    https://www.tacomaworld.com/threads/3rd-gen-ac-outlet-in-cab-and-400w-anytime.505598/
    This thread also has a ton of info on the wiring for the inverter.

    That's about the extent of what I know lol

  8. Sep 25, 2024 at 3:50 PM
    somebody

    somebody GAR-FAB.ca

    Joined:
    Feb 11, 2019
    Member:
    #282699
    Messages:
    1,096
    First Name:
    Jason
    Durham ON
    Vehicle:
    19 DCLB Sport
    It's likely just a momentary switch if you can buzz out with a meter which two wires are the switch. The other 3 will be for the lights. Online service manual will have the wire colours too.

    Shveet likes this.
  9. Sep 25, 2024 at 5:15 PM
    Shveet

    Shveet joe-shmo

    Joined:
    May 28, 2018
    Member:
    #254719
    Messages:
    6,308
    Gender:
    Male
    Own-tario
    Vehicle:
    2018 shitbox
    ¯\_(ツ)_/¯

    i would assume:
    1) Neg
    2) pos 100
    3) pos 400
    4) power LED
    5) no friggen idea

  10. Sep 25, 2024 at 5:26 PM
    Saturnine

    Saturnine YVAN EHT NIOJ

    Joined:
    Jun 25, 2020
    Member:
    #332540
    Messages:
    4,015
    First Name:
    Dar C
    North of the wall
    Vehicle:
    TRD go brrrr
    All the mods
    2 LEDs!

  11. Sep 25, 2024 at 6:31 PM
    MaverickT883

    MaverickT883 Paintless

    Joined:
    Nov 17, 2020
    Member:
    #346995
    Messages:
    3,350
    Gender:
    Male
    First Name:
    Maverick
    Ontario, Canada
    Vehicle:
    2021 Tacoma TRD Off-road Access Cab
    Check build thread!
    I'd bet 1 pos for 400/100, then a neutral, and a shift sensor and a speed sensor. Only way to find out is to cut and hope LOL

  12. Sep 25, 2024 at 7:01 PM
    Saturnine

    Saturnine YVAN EHT NIOJ

    Joined:
    Jun 25, 2020
    Member:
    #332540
    Messages:
    4,015
    First Name:
    Dar C
    North of the wall
    Vehicle:
    TRD go brrrr
    All the mods
    Those wires are at the inverter end. There's 8 wires on that side. And you better believe they're not the same colour as what's at the button end!

  13. Sep 25, 2024 at 7:05 PM
    3JOH22A

    3JOH22A Toyota Gigolo

    Joined:
    Mar 27, 2019
    Member:
    #288172
    Messages:
    11,594
    Gender:
    Male
    District 6ix
    Vehicle:
    3G Tacoma on 35"s, 5G 4Runner
    I've used the AC outlet exactly 0 times in my two trucks over the past 14 years, and I don't have the wiring diagram manual for 3rd gens. However, the FSM has a switch test page, attached. If you just want to wire a button or rocker switch and don't care about the indicator light, closing or opening pin 3 to pin 6 turns the inverter on or off, respectively.


    Attached Files:

  14. Sep 25, 2024 at 7:17 PM
    blackgen2tacoma

    blackgen2tacoma Well-Known Member

    Joined:
    Jan 2, 2024
    Member:
    #440780
    Messages:
    84
    Gender:
    Male
    First Name:
    Andrew
    Vehicle:
    2013 black Tacoma limited
    what year is your truck I’ll get you a wiring diagram from button to inverter tomorrow morning when I get to work.

  15. Sep 25, 2024 at 7:28 PM
    Saturnine

    Saturnine YVAN EHT NIOJ

    Joined:
    Jun 25, 2020
    Member:
    #332540
    Messages:
    4,015
    First Name:
    Dar C
    North of the wall
    Vehicle:
    TRD go brrrr
    All the mods
    17!

    I'm just looking to move the on/off function to a 8-gang switch module. the above FSM doesn't really help me in terms of understanding what needs to be done... Which kinda leads me down the path of not doing it.

  16. Sep 25, 2024 at 10:24 PM
    MaverickT883

    MaverickT883 Paintless

    Joined:
    Nov 17, 2020
    Member:
    #346995
    Messages:
    3,350
    Gender:
    Male
    First Name:
    Maverick
    Ontario, Canada
    Vehicle:
    2021 Tacoma TRD Off-road Access Cab
    Check build thread!
    Fuck it. Rip it all out and redo it. Brain cannot compute.

  17. Sep 26, 2024 at 4:33 AM
    blackgen2tacoma

    blackgen2tacoma Well-Known Member

    Joined:
    Jan 2, 2024
    Member:
    #440780
    Messages:
    84
    Gender:
    Male
    First Name:
    Andrew
    Vehicle:
    2013 black Tacoma limited

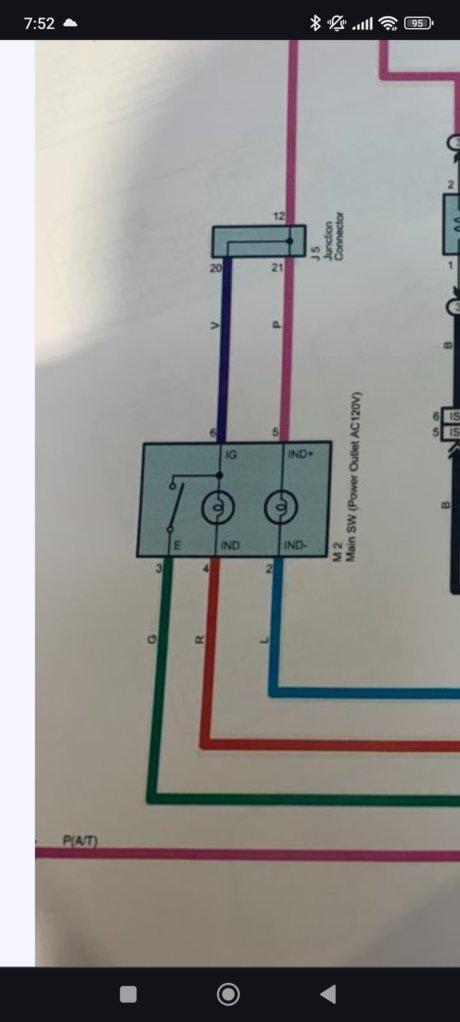

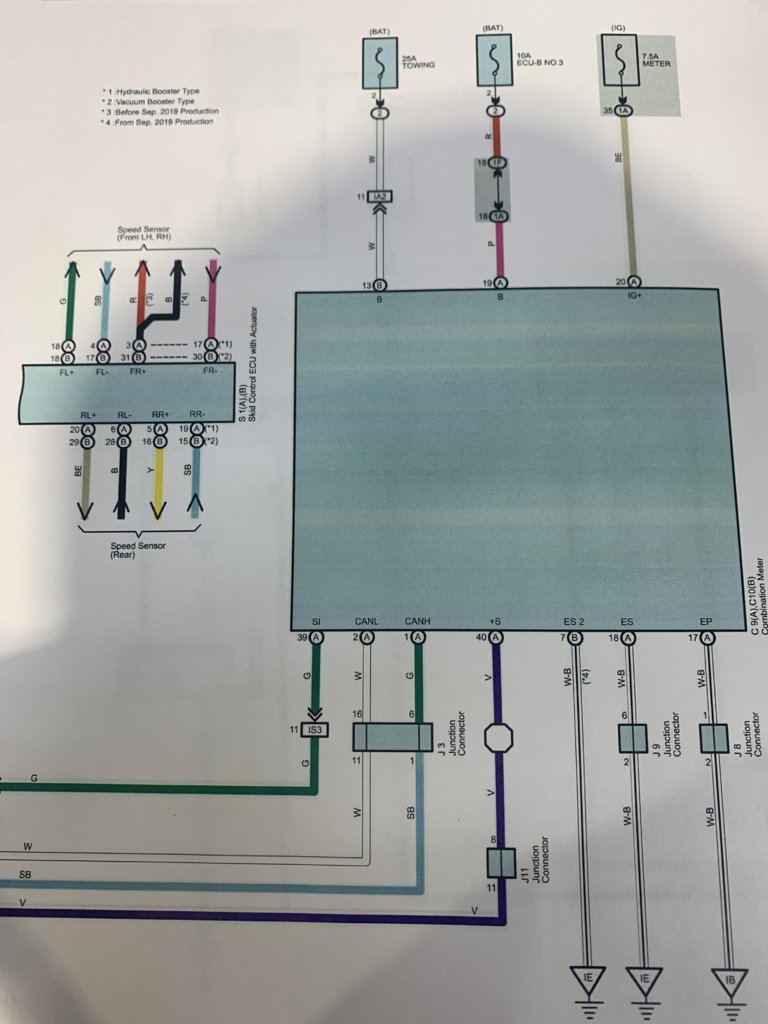

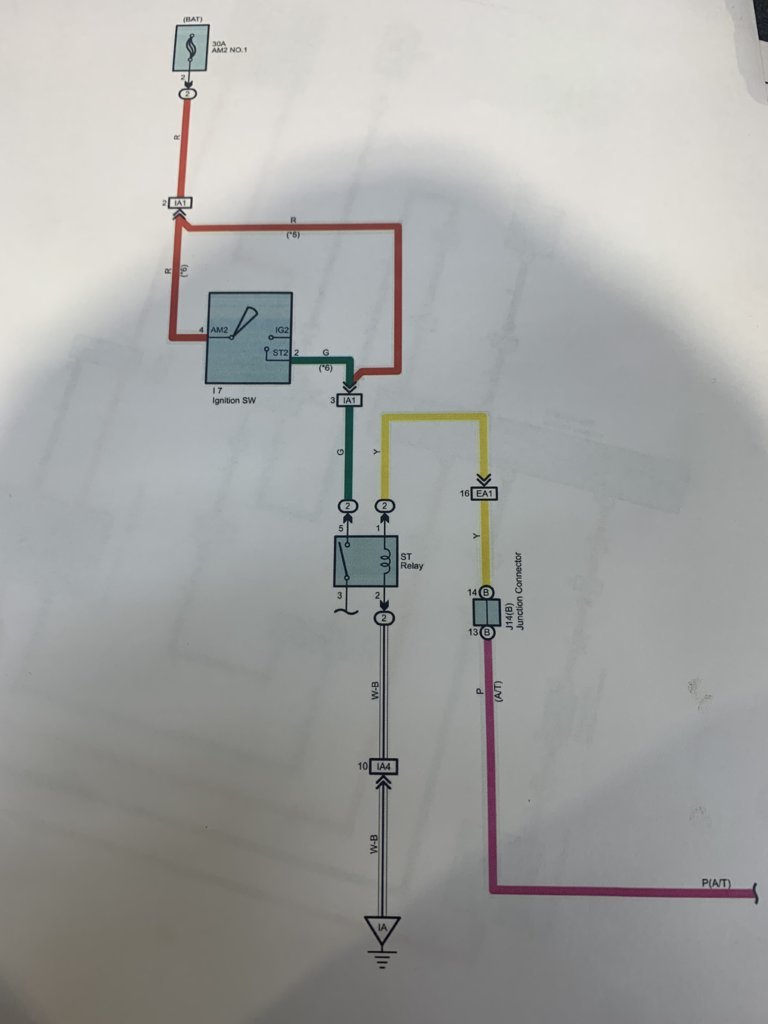

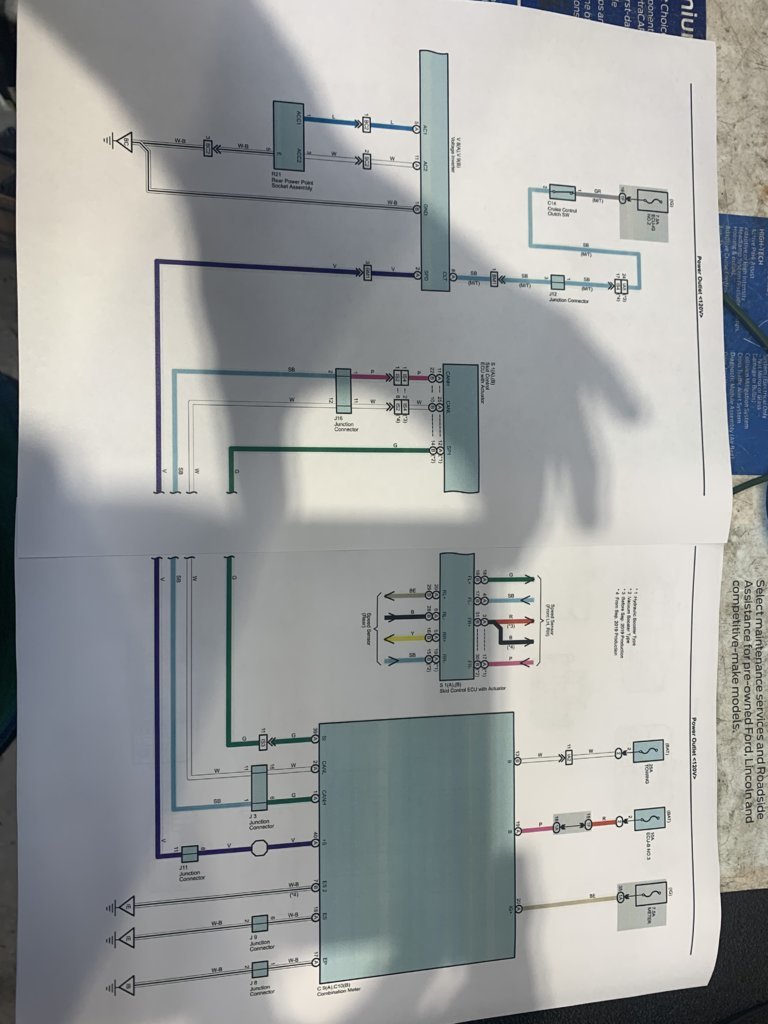

    @Saturnine here the diagrams let me know if you need anything else




    somebody likes this.
  18. Sep 26, 2024 at 4:55 AM
    somebody

    somebody GAR-FAB.ca

    Joined:
    Feb 11, 2019
    Member:
    #282699
    Messages:
    1,096
    First Name:
    Jason
    Durham ON
    Vehicle:
    19 DCLB Sport
    Looks like the green wire is the signal to the inverter. You could tap that and the black wire and run in parallel to another switch. The button is a momentary switch so you may need a double press on the switch panel if it's only on/off every press.


    blackgen2tacoma likes this.
  19. Sep 26, 2024 at 5:22 AM
    blackgen2tacoma

    blackgen2tacoma Well-Known Member

    Joined:
    Jan 2, 2024
    Member:
    #440780
    Messages:
    84
    Gender:
    Male
    First Name:
    Andrew
    Vehicle:
    2013 black Tacoma limited
    Buy the look of it pin 6 and 3 to your new switch and ground pin 2 to active the inverter relay. But it will only work with the key turn on. Also you can run pin 3 to your relay box and use what ever switch fused power you have there but you will still need to ground pin 2 for the inverter relay. You also could re route pin 2 on the inverter relay to your switch box and use a 12v/fused hot to a switch so you can use the inverter with the key off but if you forget to de press the switch you could kill your battery.

    Last edited: Sep 26, 2024
  20. Sep 26, 2024 at 7:35 AM
    3JOH22A

    3JOH22A Toyota Gigolo

    Joined:
    Mar 27, 2019
    Member:
    #288172
    Messages:
    11,594
    Gender:
    Male
    District 6ix
    Vehicle:
    3G Tacoma on 35"s, 5G 4Runner
    Makes more sense than the Navier-Stokes differential equations they teach you in school?
