PARKER315 Build

Discussion in '3rd Gen. Builds (2016-2023)' started by Parker315, Mar 20, 2018.

  1. Mar 20, 2018 at 1:17 PM
    #1
    Parker315

    Parker315 [OP] Modding on a Budget | TTC Member #0127

    Joined:
    Dec 27, 2017
    Member:
    #239512
    Messages:
    1,392
    Gender:
    Male
    First Name:
    Brett
    Cypress Texas
    Vehicle:
    17 Tacoma TRD Sport DCSB MGM
    TTC (Texas Toyota Coalition) Member #127


    Truck: 2017 TRD Sport DCSB AT 3.5L V6 Magnetic Grey Metallic

    • Purchased Brand New on 11/08/2017
    • 25 miles on the odometer
    • Final Assembly Point – San Antonio, Texas
    • Date of Manufacture: 08/17

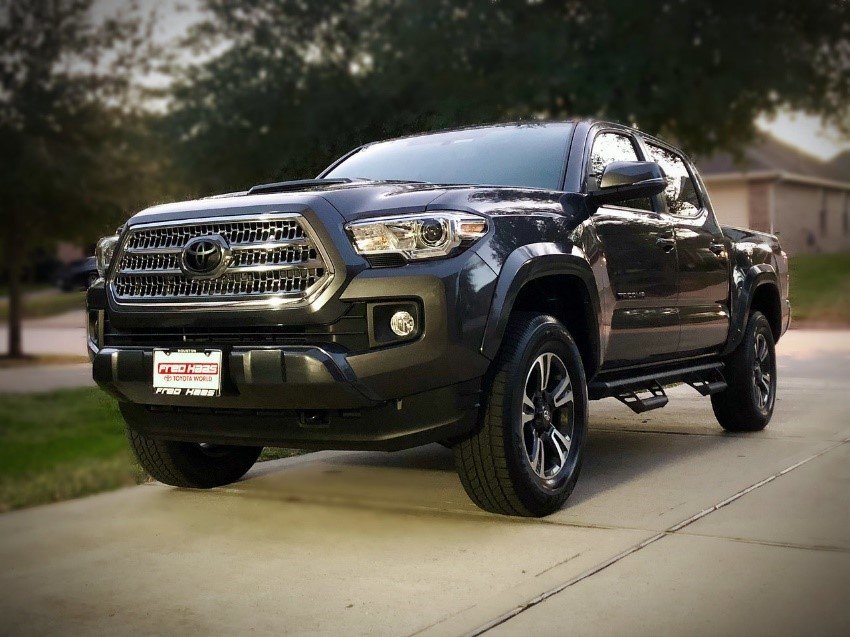

    Taco New.jpg 20180103_200547413_iOS.jpg



    Dealership Add-Ons:
    • Double Cab Predator Steps
    • LED Convenience Bed Lights
    • Bed 100-400w Power Inverter
    • Remote Locking Tailgate
    • Blackout Emblems
    • Black Tailgate Letter Inserts
    Mechanical/Performance Upgrades
    Exterior Upgrades:

    Interior Upgrades:

    Electrical Upgrades:
    https://imgur.com/a/NrEr2tU

    Check out the LED/HID Conversation Thread & LED Lighting Conversion Thread (on the LED conversion thread, DO NOT FOLLOW OP. VERY OUTDATED)

    Lighting Upgrades:
    Each set change was just an upgrade from the previous. No other reason for changing. All the lights worked well.

    Engine Bay LED Lighting
    LowBeam Projectors
    • My 1st Set: Auxbeam H11 LED F-16 Series CREE Chips (found on Amazon)
    • My 2nd Set: Hikari Ultra LED Kit - H11 Philips Lumileds (excellent lights, just upgraded to a little better. Found on Amazon)
    • My Current: Morimoto HID Elite 55w 6500K
    HighBeam Reflectors
    • 1st Set: HIKARI LED H11, CREE Chips (excellent light, just upgraded to a little better. Found on Amazon)
    • Current: deAutoLED 45w H9 LED (AMAZING LIGHTS) New product, link not available yet.
    Fog Lights
    Front Turn Signals
    Front Side Marker Bulbs
    Reverse Lights
    License Plate Bulbs
    • 1st Set: SuperBright LED 194/921 Wedge (Flickering problems)
    • Current Set: deAutoLED 194/921 wedge (excellent quality and great light output)
    Interior Lights
    Ditch Lights
    LED Light Bar

    If using a different brand of light bar with CaliRaised brackets, I found that you needed to do some simple engineering to get the light to fit the CaliRaised brackets. At least with the AuxBeam I used.

    I needed two Reducing Automotive studs

    Size: M6 > M8

    M8 being the side that fits the light and M6 that fits through the brackets. The brackets don't have just a single hole drilled it’s a 4" long slot.

    I got my studs at Ace Hardware. They come in two lengths 23mm and 31mm. I used the 23mm length.

    You will also need an M6 and M8 nut. I used a regular stainless nut, so it wouldn’t rust, but I might recommend a lock nut just to be safe. So far though I have had no issues.

    You may even want to apply some heavy-duty lock tight to the end of the stud that goes into the light. I used pliers to screw the stud into the light firmly. The rest of the install process can be seen HERE



    Some of my LED Lighting Reviews

    1.) https://www.tacomaworld.com/threads/led-lighting-conversion.436865/page-57#post-16945696


    2.) https://www.tacomaworld.com/threads/led-lighting-conversion.436865/page-61#post-16988210


    3.) https://www.tacomaworld.com/threads/led-lighting-conversion.436865/page-62#post-16989585

    4.) https://www.tacomaworld.com/threads/led-lighting-conversion.436865/page-112#post-17516484


    Thanks for checking it out. If you have questions, feel free to ask!

    Check back later for more updates and changes.

    Last edited: Jun 24, 2020

    This site contains affiliate links for which the site may be compensated.
    #1
  2. Mar 27, 2018 at 5:28 AM
    #2
    Jonesy78672

    Jonesy78672 Well-Known Member

    Joined:
    Dec 22, 2017
    Member:
    #239127
    Messages:
    54
    Gender:
    Male
    First Name:
    Adam
    Chesapeake, Va
    Vehicle:
    2017 Tacoma SR 4x4
    33x10.5xR17 Fuel Shok -12mm 20%/5% tint N-Fab side steps Ditch Lights Gator soft tri-fold bed cover 2” leveling kit with add-a-leaf MBRP 2.5” cat back turn down exhaust Leer 100XR
    How are those high beams? Are they worth getting

  3. Mar 27, 2018 at 2:31 PM
    #3
    Parker315

    Parker315 [OP] Modding on a Budget | TTC Member #0127

    Joined:
    Dec 27, 2017
    Member:
    #239512
    Messages:
    1,392
    Gender:
    Male
    First Name:
    Brett
    Cypress Texas
    Vehicle:
    17 Tacoma TRD Sport DCSB MGM
    TTC (Texas Toyota Coalition) Member #127
    Hey!! Whats up brother. Sorry for the delay. Those Hikari Cree bulbs are just fine and plenty bright especially since I don't drive with my Highs on to often. With that said, I'd just go with the new Hikari Phillips bulbs. I just bought another set to replace the AuxBeam's in the fogs. Not that there is anything wrong with the AuxBeam. The Hikari Phillips are just kick ass.



    Dude I see that you're from Newport News Virginia. My Fiance is from there. she moved to Texas about 7 or 8 years ago. Are you originally from there?

  4. Mar 27, 2018 at 4:16 PM
    #4
    Jonesy78672

    Jonesy78672 Well-Known Member

    Joined:
    Dec 22, 2017
    Member:
    #239127
    Messages:
    54
    Gender:
    Male
    First Name:
    Adam
    Chesapeake, Va
    Vehicle:
    2017 Tacoma SR 4x4
    33x10.5xR17 Fuel Shok -12mm 20%/5% tint N-Fab side steps Ditch Lights Gator soft tri-fold bed cover 2” leveling kit with add-a-leaf MBRP 2.5” cat back turn down exhaust Leer 100XR
    Oh nice yeah I gotta look into them, im wanting to change my high beams out.

    An no just staying with a buddy for the time till I move into a house I’m originally from South Carolina

    Parker315[QUOTED][OP] likes this.
  5. Mar 28, 2018 at 3:59 AM
    #5
    Parker315

    Parker315 [OP] Modding on a Budget | TTC Member #0127

    Joined:
    Dec 27, 2017
    Member:
    #239512
    Messages:
    1,392
    Gender:
    Male
    First Name:
    Brett
    Cypress Texas
    Vehicle:
    17 Tacoma TRD Sport DCSB MGM
    TTC (Texas Toyota Coalition) Member #127
    Last edited: Apr 9, 2018
    Jonesy78672 likes this.
  6. Apr 1, 2018 at 12:39 PM
    #6
    ToyoDrew

    ToyoDrew Well-Known Member

    Joined:
    Sep 14, 2010
    Member:
    #43262
    Messages:
    1,378
    Gender:
    Male
    Texas
    Vehicle:
    17 Inferno TRD-OR DCSB 4x4 (SOLD)
    OVTune, Hertz spkrs & JBL MS-8 DSP, Turn-as-Tail mod, LEDs everywhere, MESOJDM Turn Signal, Bakflip Revolver X2, Pop-n-Lock, Yakima roof rack, & many minor mods
    YES!!! Love your build and am glad that you finally made your own thread for me to reference!!! :D

  7. Apr 9, 2018 at 7:27 AM
    #7
    Soul Surfer

    Soul Surfer Jimi Was Last Seen: Roam in’ Around…

    Joined:
    Aug 10, 2015
    Member:
    #161457
    Messages:
    16,898
    Gender:
    Male
    First Name:
    Jimi
    West Central Florida Coast
    Vehicle:
    ‘24 T4R Off-Road
    Subbed, Awesome truck!
    What color Tacoma bed decal did you use? Thanks.

    Parker315[OP] likes this.
  8. Apr 9, 2018 at 7:30 AM
    #8
    Parker315

    Parker315 [OP] Modding on a Budget | TTC Member #0127

    Joined:
    Dec 27, 2017
    Member:
    #239512
    Messages:
    1,392
    Gender:
    Male
    First Name:
    Brett
    Cypress Texas
    Vehicle:
    17 Tacoma TRD Sport DCSB MGM
    TTC (Texas Toyota Coalition) Member #127
    Thanks, Jimi! I ordered it in matte black.

    Soul Surfer[QUOTED] likes this.
  9. Apr 9, 2018 at 7:31 AM
    #9
    Soul Surfer

    Soul Surfer Jimi Was Last Seen: Roam in’ Around…

    Joined:
    Aug 10, 2015
    Member:
    #161457
    Messages:
    16,898
    Gender:
    Male
    First Name:
    Jimi
    West Central Florida Coast
    Vehicle:
    ‘24 T4R Off-Road
    Thank you. That’s a good matchup. I’m thinking about doing the same :cheers:

    Parker315[OP] likes this.
  10. Apr 9, 2018 at 7:41 AM
    #10
    Parker315

    Parker315 [OP] Modding on a Budget | TTC Member #0127

    Joined:
    Dec 27, 2017
    Member:
    #239512
    Messages:
    1,392
    Gender:
    Male
    First Name:
    Brett
    Cypress Texas
    Vehicle:
    17 Tacoma TRD Sport DCSB MGM
    TTC (Texas Toyota Coalition) Member #127
    No problem! JupiterOnEarth has some cool stuff and @amirak can customize whatever you're looking for. :thumbsup:

    Soul Surfer[QUOTED] likes this.
  11. Apr 9, 2018 at 7:46 AM
    #11
    Soul Surfer

    Soul Surfer Jimi Was Last Seen: Roam in’ Around…

    Joined:
    Aug 10, 2015
    Member:
    #161457
    Messages:
    16,898
    Gender:
    Male
    First Name:
    Jimi
    West Central Florida Coast
    Vehicle:
    ‘24 T4R Off-Road
    :hattip:

    Parker315[QUOTED][OP] likes this.
  12. Apr 23, 2018 at 8:36 AM
    #12
    Parker315

    Parker315 [OP] Modding on a Budget | TTC Member #0127

    Joined:
    Dec 27, 2017
    Member:
    #239512
    Messages:
    1,392
    Gender:
    Male
    First Name:
    Brett
    Cypress Texas
    Vehicle:
    17 Tacoma TRD Sport DCSB MGM
    TTC (Texas Toyota Coalition) Member #127
    Rear Bumper LED Wiring Write Up

    Alright so I am going to do my best to try and explain how I wired up my reverse pods.

    First and foremost, here are the items I used to get the job done.

    · [​IMG]$46 MicTuning Flush Mount Led Pods, 2Pcs 40W Flood CREE Led Work Light Bar, Off Road Backup Driving Lights Fog Lamp for Jeep Bumper ATV UTV SUV Truck BoatThe Lights

    · [​IMG]$20 CH4x4 Push Switch for Toyota Tacoma - Rear Lights Symbol - Blue LedFancy Toyota Push Switch

    · [​IMG]$20 14 AWG 20 ft OZ-USA 2 Wire 12v 24v cable car truck marine boat light led bar electrical wiring industrial20’ Electrical marine grade wire/cable

    · [​IMG]$8 MUYI 5 Kit 2 Pin Way 16 AWG Waterproof Connector Wire 1.5mm Series Terminal Connector BlackWaterproof electrical connections

    · [​IMG]$16 Auxbeam LED Light Bar Rocker Switch with 3Pcs Switching lines Wiring Loom Harness Kit with Fuse and RelaySingle LEAD wiring harness

    · [​IMG]$15 Auxbeam LED Work Light Rocker Switch with 3Pcs Switching Lines Wiring Loom Harness Kit with Fuse and RelayDouble LEAD wiring harness


    So first I took my single lead wiring harness, sniped the blade connector off of the light fixture connection end and soldered my waterproof connection in its place (female end)…

    Then hooked up the wire harness as normal, connecting to the battery, mounted the relay in a neat spot, then passed the switch end through the firewall and connecting my “Fancy” Toyota push switch.

    Here is a photo of my switch panel.

    [​IMG]

    I then ran the light fixture end with the waterproof connector down out of the engine bay and as far as I could down the driver side of the truck following the factory wiring for reference. I landed just past the driver side door. I then buttoned up the connection there for the time being.

    Next, I took my wire/cable and soldered a waterproof connector to one end using the male connection this time to LATER connect to that female connection I already ran previously. I then measured how much of the 20’ of wire/cable I was going to need and cut accordingly.

    Then I took the double lead harness and cut the wiring at the relay so that I only had the wiring with the dual leads and not the rest of the harness. I snipped the blade connectors off of the leads and then soldered the female waterproof connectors on. After this, I then took the double lead wiring with the new connections and soldered that to the other end of the Wire/Cable.

    So now to recap… at this point, I have a section of wiring with a male waterproof connector at one end while on the other end I have two leads for two lights with female waterproof connections.

    So now I add some dielectric grease to the waterproof connections for extra proofing and longevity. Then connect the new section of wiring to the wiring a ran previously just past the driver side door. Followed the factory wiring all the way to the end of the truck and buttoned up the two lead connections to the right and left side of the rear bumper.


    Now I take my two lights and solder male waterproof connections to those lights and mount them to the bumper and connect them to the two leads I left behind the bumper. At this point, you go to the cab, hit the switch, and voila there is light lol

    [​IMG]

  13. Apr 27, 2018 at 7:49 PM
    #13
    RobP62

    RobP62 NVR20LD

    Joined:
    Jun 4, 2017
    Member:
    #220718
    Messages:
    41,519
    Gender:
    Male
    First Name:
    Rob
    Street, Md.
    Vehicle:
    TTC Member #0125
    :bowdown:

    Very nice Brett! This is really great, and like Drew said so much easier to point people to.

    Very impressive to say the least! So much yet to strive for. :drunk:

    :headbang:

    ToyoDrew and Parker315[OP] like this.
  14. Apr 27, 2018 at 7:51 PM
    #14
    Parker315

    Parker315 [OP] Modding on a Budget | TTC Member #0127

    Joined:
    Dec 27, 2017
    Member:
    #239512
    Messages:
    1,392
    Gender:
    Male
    First Name:
    Brett
    Cypress Texas
    Vehicle:
    17 Tacoma TRD Sport DCSB MGM
    TTC (Texas Toyota Coalition) Member #127
    Hey!! Thanks a lot Rob :thumbsup::D

    RobP62[QUOTED] likes this.
  15. Apr 27, 2018 at 7:58 PM
    #15
    RobP62

    RobP62 NVR20LD

    Joined:
    Jun 4, 2017
    Member:
    #220718
    Messages:
    41,519
    Gender:
    Male
    First Name:
    Rob
    Street, Md.
    Vehicle:
    TTC Member #0125
    Yea, again very impressed and so inspiring. If I wasn't such a lazy F@ck I'd do something like this. Instead I'm gonna go make another frozen margarita and just wait for you to add to this thread. :burp:

  16. Apr 28, 2018 at 1:36 AM
    #16
    ToyoDrew

    ToyoDrew Well-Known Member

    Joined:
    Sep 14, 2010
    Member:
    #43262
    Messages:
    1,378
    Gender:
    Male
    Texas
    Vehicle:
    17 Inferno TRD-OR DCSB 4x4 (SOLD)
    OVTune, Hertz spkrs & JBL MS-8 DSP, Turn-as-Tail mod, LEDs everywhere, MESOJDM Turn Signal, Bakflip Revolver X2, Pop-n-Lock, Yakima roof rack, & many minor mods
    Lol. Nothing wrong with living vicariously through Brett

    Parker315[OP] and RobP62[QUOTED] like this.
  17. Apr 28, 2018 at 8:18 AM
    #17
    RobP62

    RobP62 NVR20LD

    Joined:
    Jun 4, 2017
    Member:
    #220718
    Messages:
    41,519
    Gender:
    Male
    First Name:
    Rob
    Street, Md.
    Vehicle:
    TTC Member #0125
    I know right! It's much easier on my wallet this way. :rofl:

    Parker315[OP] likes this.
  18. Apr 28, 2018 at 8:25 AM
    #18
    Parker315

    Parker315 [OP] Modding on a Budget | TTC Member #0127

    Joined:
    Dec 27, 2017
    Member:
    #239512
    Messages:
    1,392
    Gender:
    Male
    First Name:
    Brett
    Cypress Texas
    Vehicle:
    17 Tacoma TRD Sport DCSB MGM
    TTC (Texas Toyota Coalition) Member #127
    Lmao :rofl:

    You guys are halarious! Go ahead laugh it up. Laugh at my addiction :rofl:

    Honestly I have fun doing it, but I’m about at the end of my minor cosmetic mods. Next it will just be 1 major mod each year :rolleyes:

    Maybe next year I’ll finally install my lift, wheels, and tires.

    Btw that light mod I did yesterday involves switch back. The way I hooked it all up was a first that even the manufacturer wasn’t sure if it would work. Imagine my excitement when it worked just as I thought :bananadance:

    Last edited: Apr 28, 2018
    ToyoDrew and RobP62 like this.
  19. Apr 28, 2018 at 9:04 AM
    #19
    RobP62

    RobP62 NVR20LD

    Joined:
    Jun 4, 2017
    Member:
    #220718
    Messages:
    41,519
    Gender:
    Male
    First Name:
    Rob
    Street, Md.
    Vehicle:
    TTC Member #0125
    Well damn man I for one can't wait until you get that video up! First time I've ever wanted Monday to get here. :rofl:

    ToyoDrew and Parker315[OP] like this.
  20. Apr 28, 2018 at 10:21 AM
    #20
    ToyoDrew

    ToyoDrew Well-Known Member

    Joined:
    Sep 14, 2010
    Member:
    #43262
    Messages:
    1,378
    Gender:
    Male
    Texas
    Vehicle:
    17 Inferno TRD-OR DCSB 4x4 (SOLD)
    OVTune, Hertz spkrs & JBL MS-8 DSP, Turn-as-Tail mod, LEDs everywhere, MESOJDM Turn Signal, Bakflip Revolver X2, Pop-n-Lock, Yakima roof rack, & many minor mods
    OO, now I'm excited too! My wallet cringes tho lol

    Parker315[OP] and RobP62 like this.
