Plasti-dip FULL TRUCK DIP THREAD

Discussion in 'Detailing' started by ThunderOne, Feb 10, 2015.

  1. Feb 10, 2015 at 12:56 AM
    #1
    ThunderOne

    ThunderOne [OP] ColoradoTinyJohnson

    Joined:
    May 20, 2009
    Member:
    #17473
    Messages:
    9,355
    First Name:
    Mitchell
    Nashville
    Vehicle:
    1ST GEN OR GTFO
    PlastiDERP
    PAGE 8 FOR DIP JOB #2

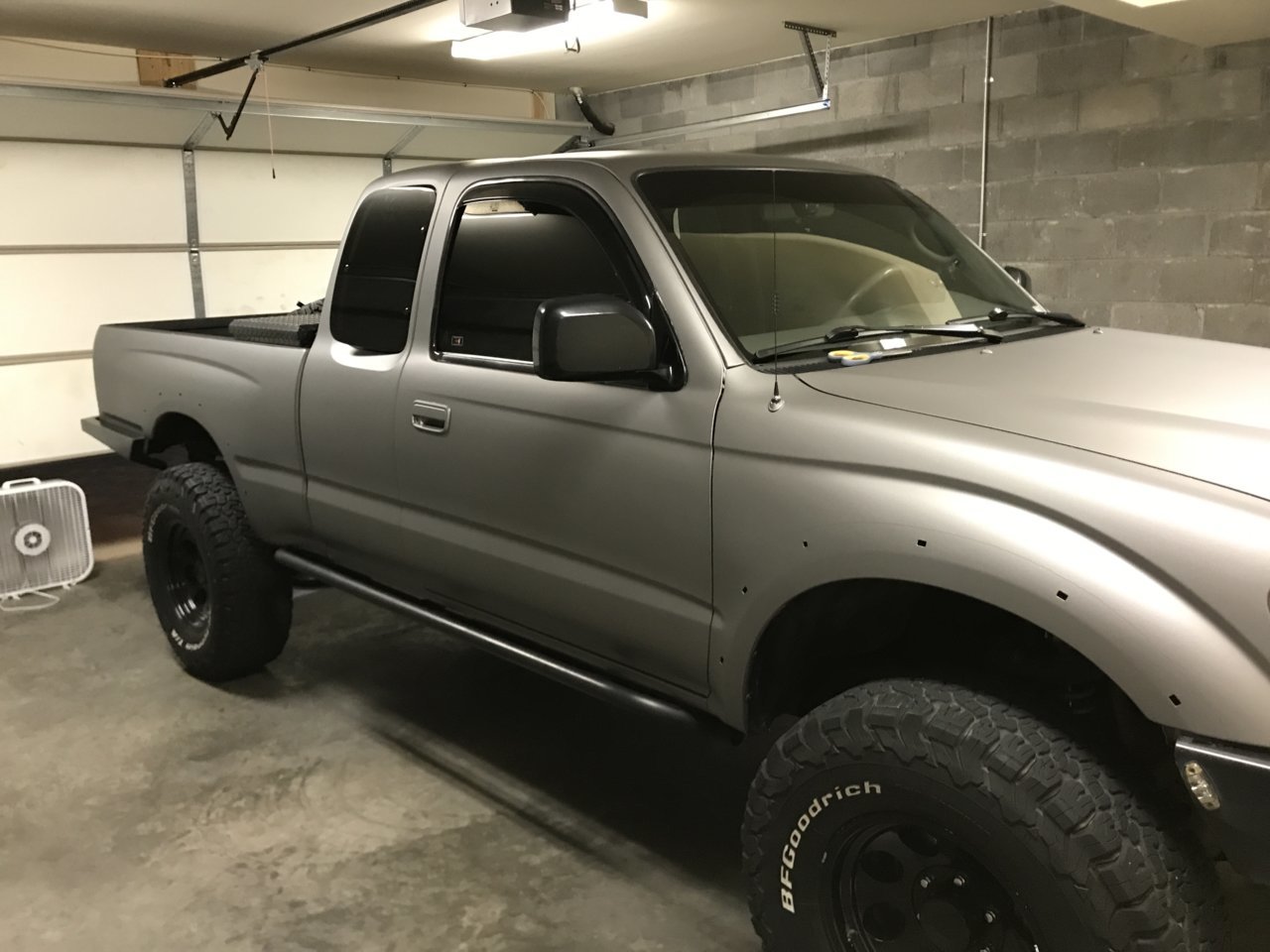

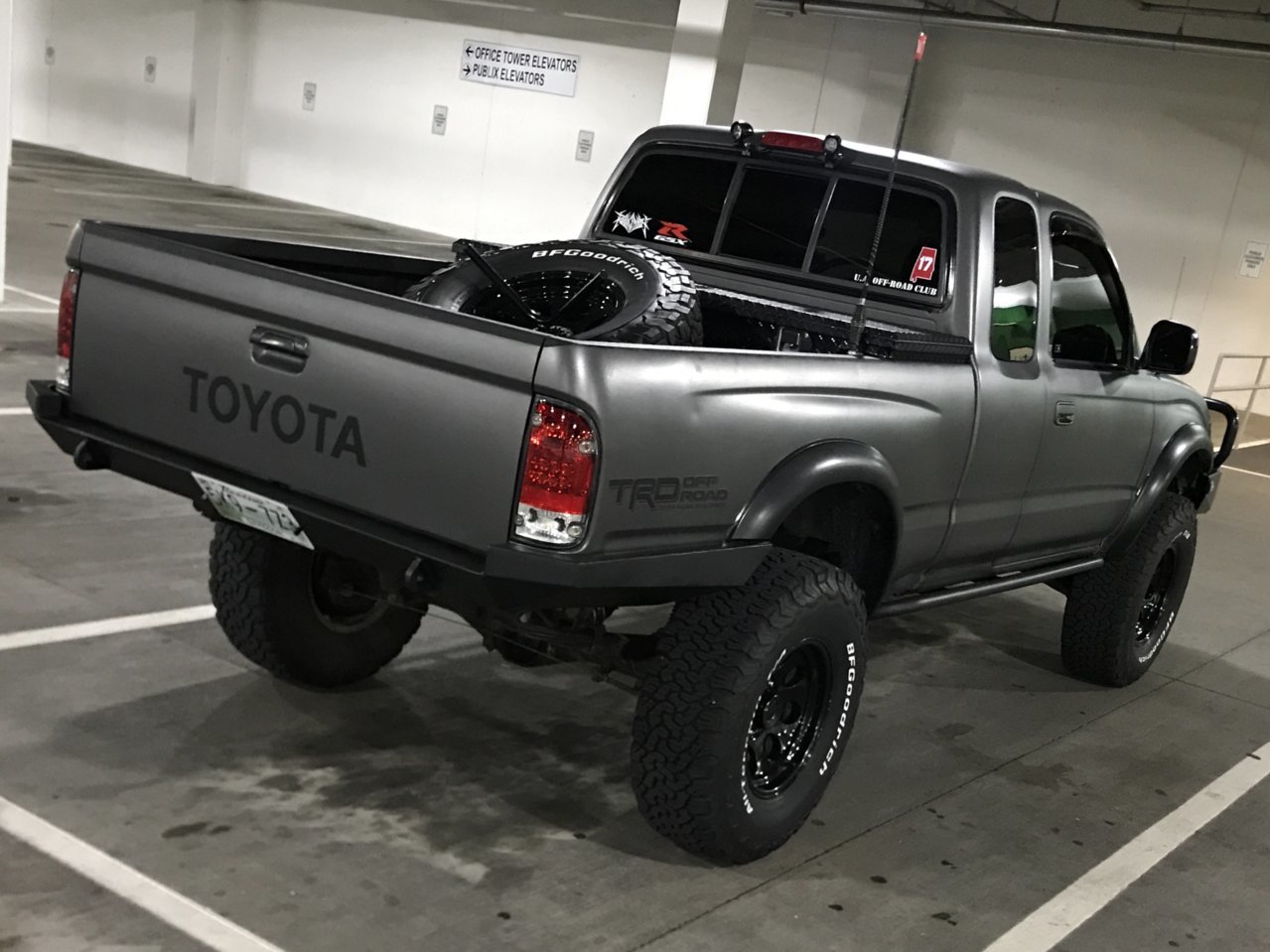

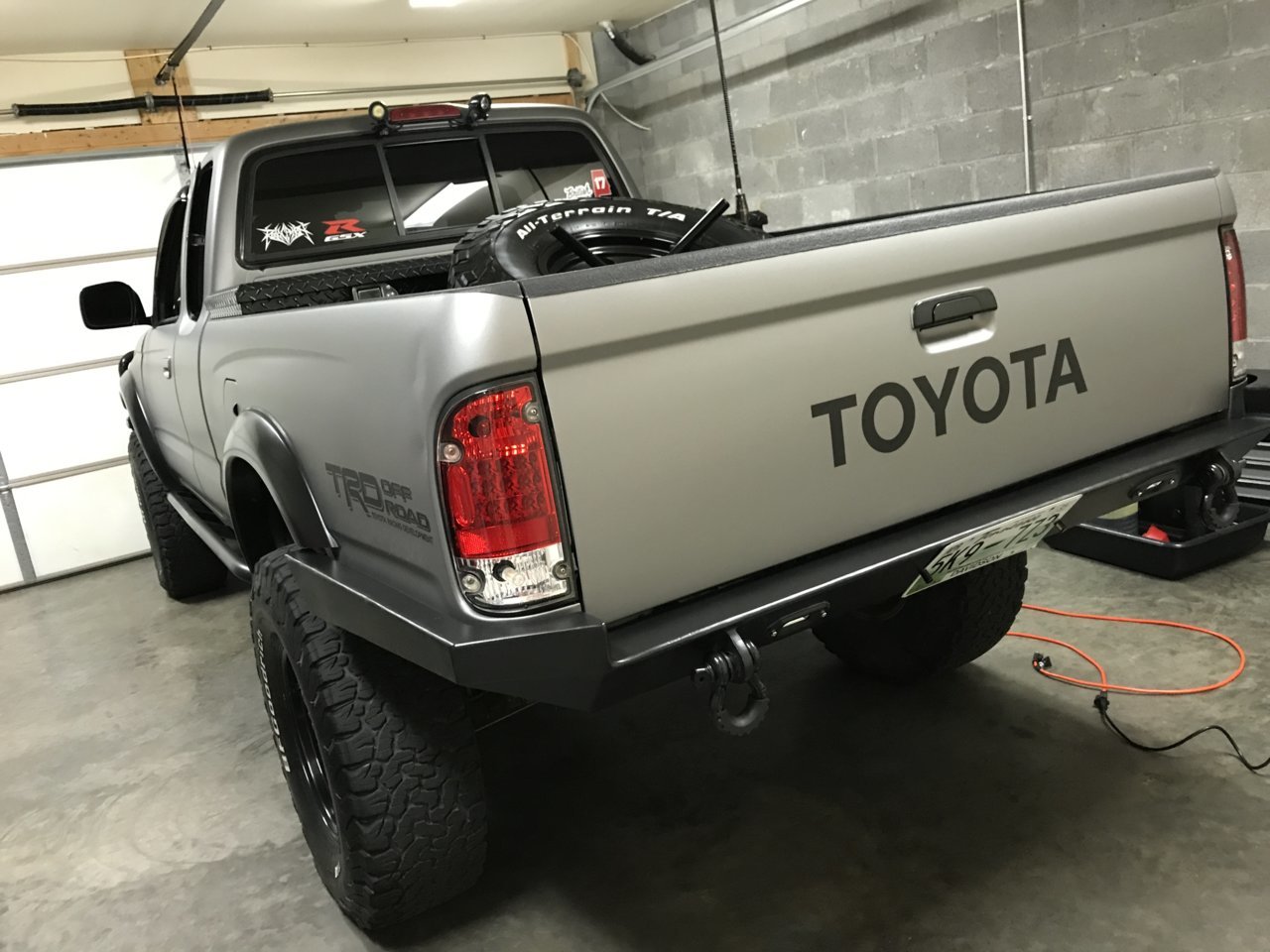

    New color (space grey):

    [​IMG]



    OLD COLOR

    [​IMG]



    [​IMG]

    This hasn't been made yet so I figured I'd start it. I know there's a thread with people doing little things like emblems and stuff but if you have done a full dip on your truck post it up.

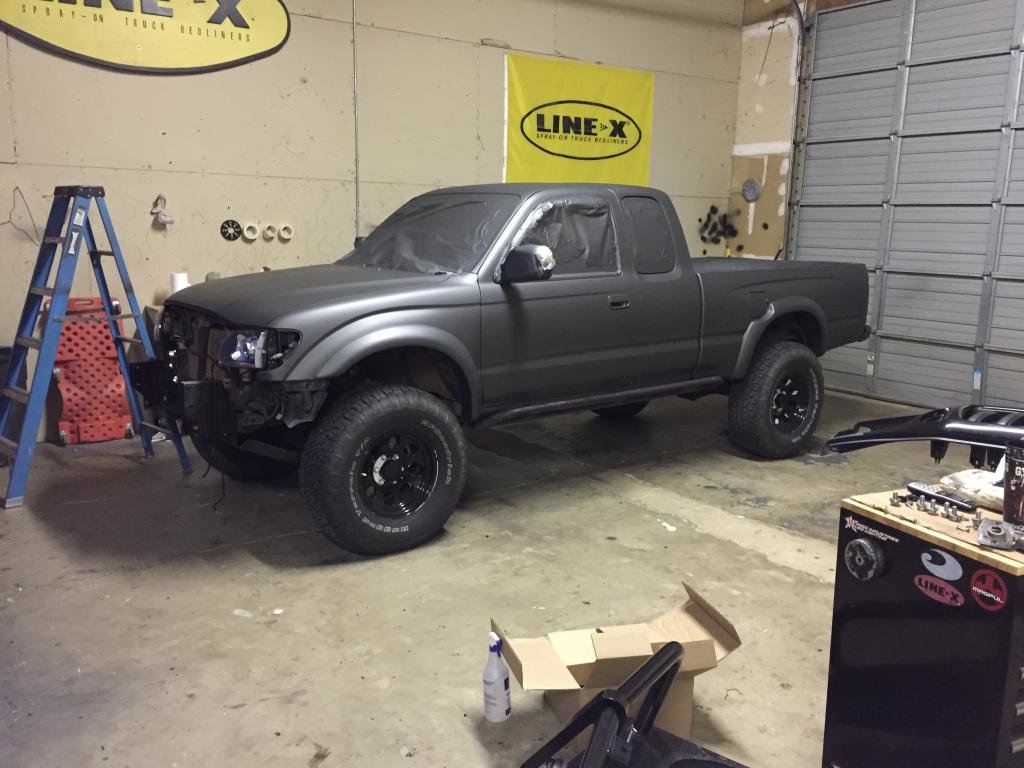

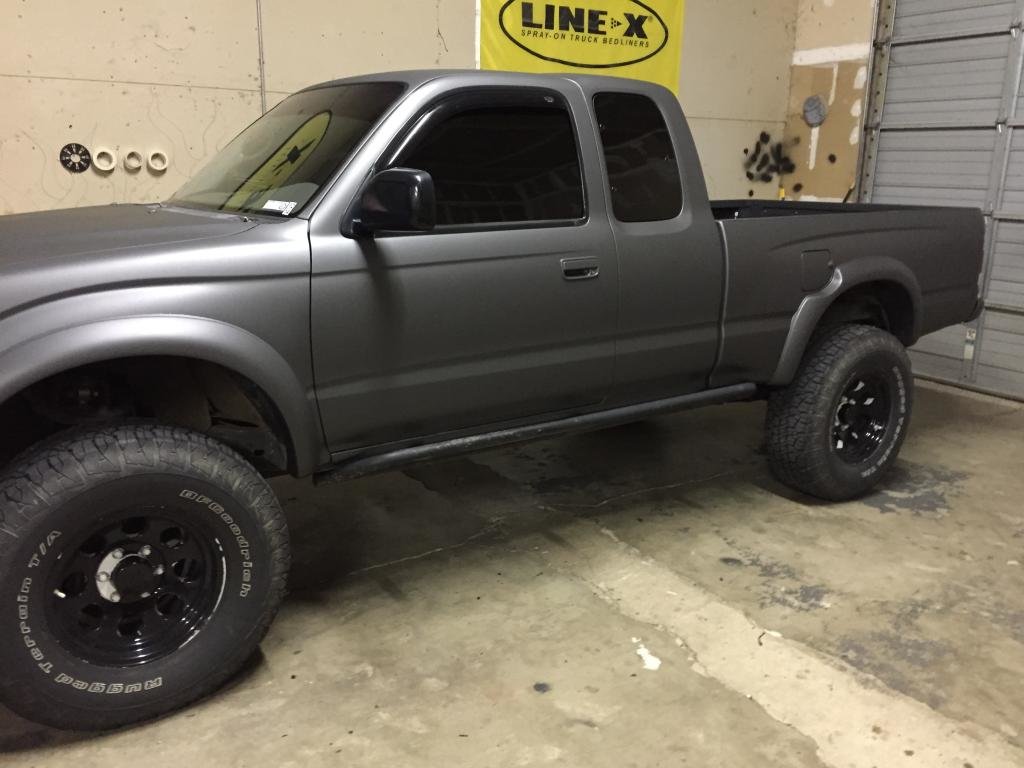

    OLD COLOR:
    Anthracite grey

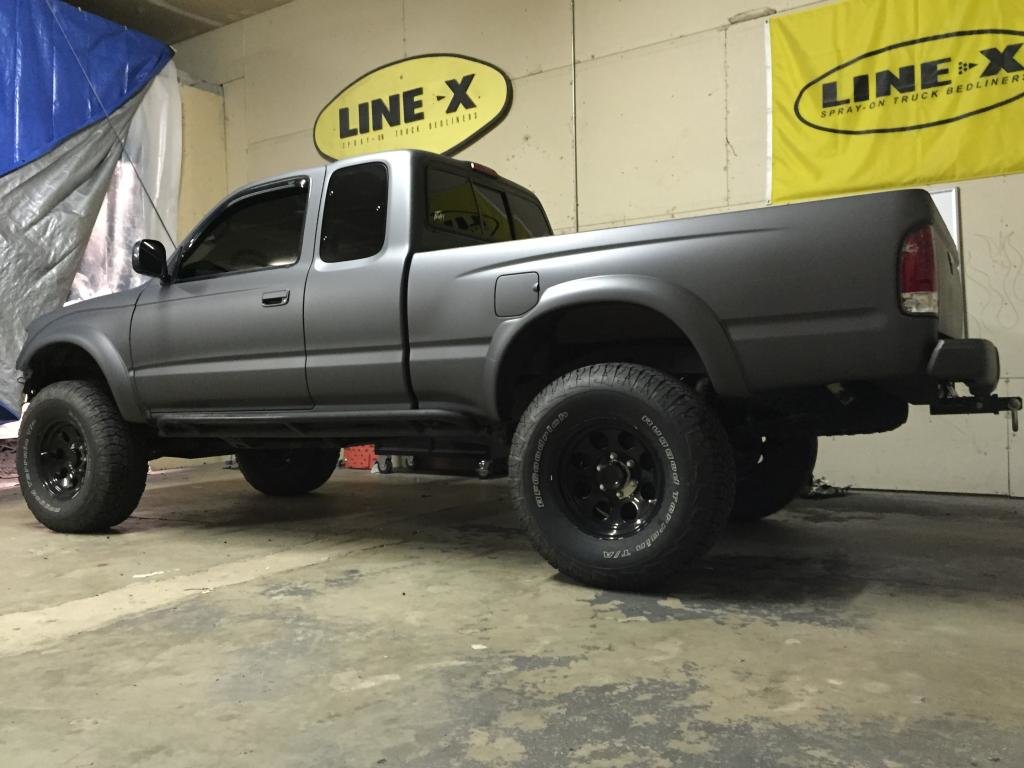

    63E32093-27B8-4378-95DF-3007B38AD931_zps_4b9db7c7e17be08783f19cf52b0168800262ff92.jpg

    EDIT: Seems to hold up to general trail abuse, such as mud, tree scrapes, pin striping, etc. Mind you, the pics below are taken on plastidip job that is now over 3 years old.


    Before

    After pressure washing


    After proper wash



    There were many times that I indiscriminately drove under, around, next to, and otherwise loved on some tree branches. The effects of the branches scraping the were minimal, if at all. There was zero tearing as some other previous posters were concerned with. The most damage were some minor scuffs, most of which can be masked with Ice spray wax.

    All that being said, I do have some small speckled stains from other mud encounters that you can see up close. I am not sure if it was some sort of chemical/mineral in that particular dirt, or the fact that it baked in the sun for a couple of weeks before being removed. After this particular outing from the pictures shown above, the truck was garaged the entire time before being washed. I will try to get pics of the offending stains later.


    Pro-tip: don't use full strength degreaser (yes even Simple Green) on anything other than white. It will do some odd things to the color and will look rather unsightly.

    Here's some other folks' work that was posted in this thread:

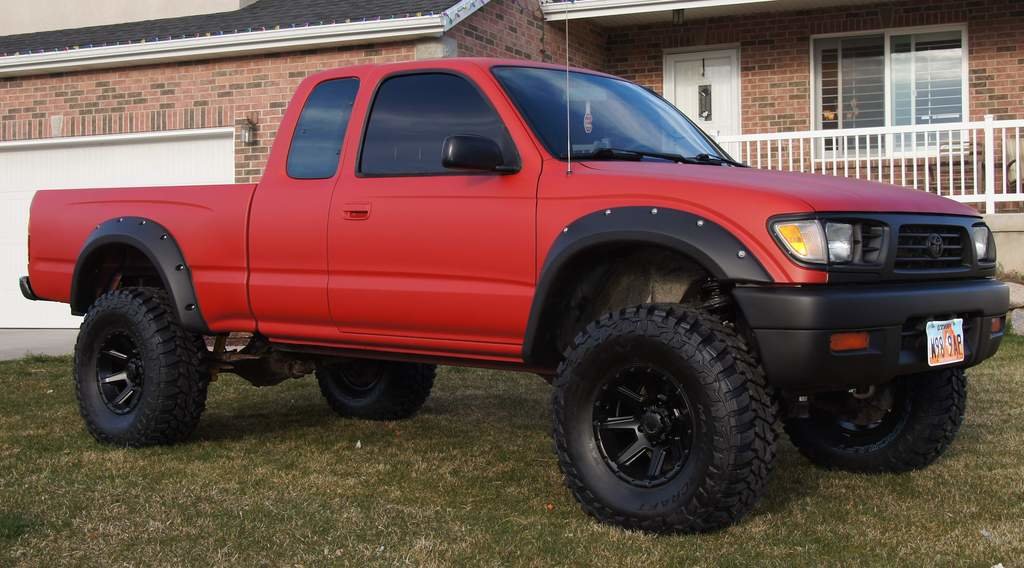

    Super Red
    [​IMG]

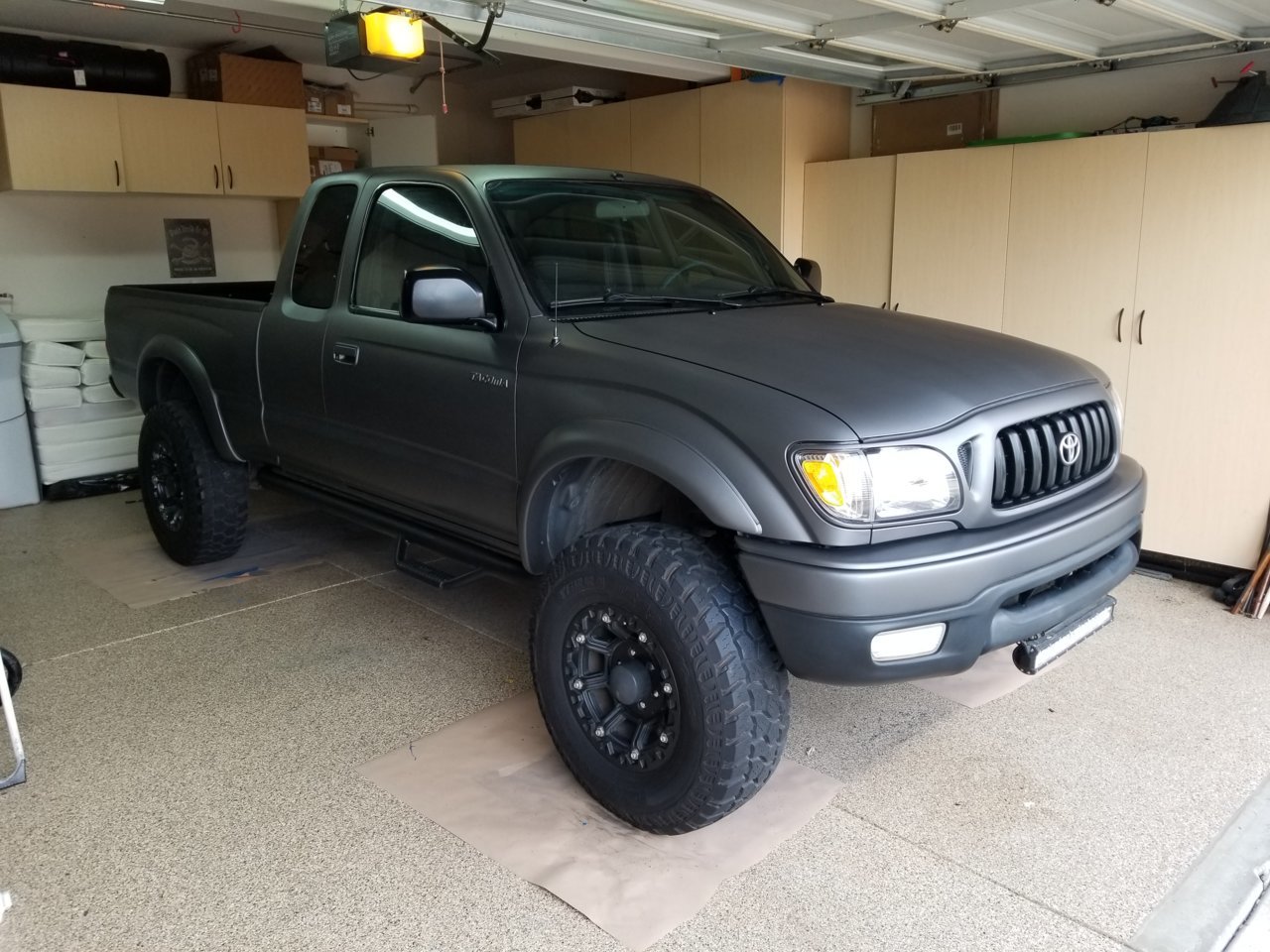

    Anthracite Grey
    [​IMG]



    Someone asked me how long this whole process took so I figured I'd post here also:

    I would say 3-4 days of a few hours per day. If you wanted to work non-stop, you could probably get it done in 2 days.

    Day 1: wash the shit out of the truck. That's it.
    Day 2: Spent a couple hours masking off the windows and stuff. Thankfully with dip, you don't have to mask it off exactly right as it will pull right off most weather stripping and stuff, save for the occasional need for an xacto knife where the dip will bridge between weather stripping and the body. You can also try to tape it off exactly right and then pull it up when the dip is still wet, if bridging is a concern.
    Day 3: Finished masking and then sprayed with Pre-Dip spray.
    Day 4: Laid down the coats (I had to order another gallon of the final color, so I had to wait almost a week after this. 3 gallons of final color recommended). You only need to wait about 30 minutes between coats. Stuff dries hella fast. Then I pulled the tape off.
    Day 5: Spray down the truck with Dip Coat, dipped the flares and reattached and put Dip Coat on those too.

    This was me spending basically half days working on it, so if you did it all day, 2-3 days max. I just preferred not to rush it. My work tends to get worse as I get tired and annoyed lol. The first dip job I did took about 2 days though, but I went slower and took more breaks this time.

    Last edited: May 1, 2020
  2. Feb 10, 2015 at 2:48 AM
    #2
    Janster

    Janster Old & Forgetful

    Joined:
    Mar 25, 2007
    Member:
    #1138
    Messages:
    14,347
    Gender:
    Female
    First Name:
    Jandy
    Lancaster, PA
    Vehicle:
    2016 GMC Canyon SLT w/ LineX and....
    I hope you're not concerned about gas mileage.... that's gonna add a shit-ton of extra weight to the truck.

    TacoSpecial33 likes this.
  3. Feb 10, 2015 at 7:35 AM
    #3
    LEX

    LEX --- --- --- - ----

    Joined:
    Oct 15, 2008
    Member:
    #9991
    Messages:
    3,575
    Gender:
    Male
    Houston, Texas
    Vehicle:
    100 Series LC
  4. Feb 10, 2015 at 8:00 AM
    #4
    GTABurnout

    GTABurnout Well-Known Member

    Joined:
    Aug 15, 2011
    Member:
    #61724
    Messages:
    1,134
    Gender:
    Male
    Tucson AZ
    Vehicle:
    2012 Tundra Crewmax Rock Warrior TRD SC
    Icons, TRD Supercharger, TRD Exhaust, TRD Intake
    Is this a serious post?

  5. Feb 10, 2015 at 8:24 AM
    #5
    Pugga

    Pugga Pasti-Dip Free 1983 - 2015... It was a good run

    Joined:
    Jun 18, 2010
    Member:
    #39131
    Messages:
    35,084
    Gender:
    Male
    First Name:
    Mike
    Massachusetts
    Vehicle:
    '19 Ford F-250 SCREW
    F-250 Land Yacht Mod
    The little bit of weight the plasti-dip will add will not impact fuel economy enough to notice. It'd be about the equivalent of having an extra passenger at best. You might be thinking of the guys who Line-X'd their vehicles. That stuff is a lot thicker.

  6. Feb 11, 2015 at 4:17 PM
    #6
    ThunderOne

    ThunderOne [OP] ColoradoTinyJohnson

    Joined:
    May 20, 2009
    Member:
    #17473
    Messages:
    9,355
    First Name:
    Mitchell
    Nashville
    Vehicle:
    1ST GEN OR GTFO
    PlastiDERP
    LOL yeah I'm definitely concerned about gas mileage... full toolbox, 33s with 4.10s and budbuilt skid plate and bellypan, sliders and an ARB. :rolleyes:

  7. Feb 11, 2015 at 4:18 PM
    #7
    ThunderOne

    ThunderOne [OP] ColoradoTinyJohnson

    Joined:
    May 20, 2009
    Member:
    #17473
    Messages:
    9,355
    First Name:
    Mitchell
    Nashville
    Vehicle:
    1ST GEN OR GTFO
    PlastiDERP
    I just peeled the dip off of one rim, it weighed a whole idk... half an ounce? I could crush it with my hand into a ping pong sized ball.

    cruiserguy and Colchicine like this.
  8. Feb 11, 2015 at 8:20 PM
    #8
    ThunderOne

    ThunderOne [OP] ColoradoTinyJohnson

    Joined:
    May 20, 2009
    Member:
    #17473
    Messages:
    9,355
    First Name:
    Mitchell
    Nashville
    Vehicle:
    1ST GEN OR GTFO
    PlastiDERP
  9. Feb 11, 2015 at 8:24 PM
    #9
    travel_taco

    travel_taco Gentlemans Sausage

    Joined:
    May 26, 2012
    Member:
    #79561
    Messages:
    1,572
    Gender:
    Male
    CO
    Vehicle:
    09 Rust Bucket
    anti-fuel saving mods
    Last edited: Feb 11, 2015
  10. Feb 11, 2015 at 10:45 PM
    #10
    ThunderOne

    ThunderOne [OP] ColoradoTinyJohnson

    Joined:
    May 20, 2009
    Member:
    #17473
    Messages:
    9,355
    First Name:
    Mitchell
    Nashville
    Vehicle:
    1ST GEN OR GTFO
    PlastiDERP
  11. Feb 17, 2015 at 9:02 PM
    #11
    ThunderOne

    ThunderOne [OP] ColoradoTinyJohnson

    Joined:
    May 20, 2009
    Member:
    #17473
    Messages:
    9,355
    First Name:
    Mitchell
    Nashville
    Vehicle:
    1ST GEN OR GTFO
    PlastiDERP
  12. Feb 17, 2015 at 9:11 PM
    #12
    !TacoTaco!

    !TacoTaco! TACO LOVER!

    Joined:
    Feb 9, 2012
    Member:
    #72517
    Messages:
    869
    Gender:
    Male
    First Name:
    Felix
    PSL, FL
    Vehicle:
    09 Prerunner TRD SR5 Sport
    Removed coal filter, Also installed AFE air filter. Roof rack with custom diamond plate air diverter.
    I think it came out great, looks nice and smooth. I have been toying around with the idea of doing my rims. I was going to do it this past weekend but ended up in hospital and with no release date in sight not sure when I will be able to do it. Any advice on how to do it ? I will be using rTtle cans and I am no expert at that.
    Thanks!

  13. Feb 17, 2015 at 9:50 PM
    #13
    ThunderOne

    ThunderOne [OP] ColoradoTinyJohnson

    Joined:
    May 20, 2009
    Member:
    #17473
    Messages:
    9,355
    First Name:
    Mitchell
    Nashville
    Vehicle:
    1ST GEN OR GTFO
    PlastiDERP
    Just do lots of thin coats for the rims. Hope you feel better soon!

  14. Feb 18, 2015 at 8:33 AM
    #14
    Blze001

    Blze001 Breaks things.

    Joined:
    Jul 6, 2013
    Member:
    #107727
    Messages:
    462
    Virginia
    Vehicle:
    2013 TRD Sport DCSB
    Looks like you need to touch up the rims a wee bit :D

  15. Feb 18, 2015 at 9:33 AM
    #15
    ThunderOne

    ThunderOne [OP] ColoradoTinyJohnson

    Joined:
    May 20, 2009
    Member:
    #17473
    Messages:
    9,355
    First Name:
    Mitchell
    Nashville
    Vehicle:
    1ST GEN OR GTFO
    PlastiDERP
    I actually need to hit them with goo gone to get the rest of it off. I peeled most of it but it was too thin in some areas to get a good peel.

  16. Feb 18, 2015 at 12:22 PM
    #16
    Crock112

    Crock112 Well-Known Member

    Joined:
    Oct 20, 2013
    Member:
    #114844
    Messages:
    225
    Gender:
    Male
    First Name:
    Crock
    New England
    Vehicle:
    '04 2.7l SR5 4x4 xtracab
    How much did that run you? Love the color!

  17. Feb 18, 2015 at 12:32 PM
    #17
    John taco

    John taco Well-Known Member

    Joined:
    May 16, 2014
    Member:
    #129986
    Messages:
    854
    First Name:
    JT - Johnny
    King of Prussia PA
    Damn that looks clean. Did you add thinner? If so what was you ratio thinner/dip? Is the dip surface pretty smooth?

    I assume you used a electric painters gun?

  18. Feb 18, 2015 at 12:39 PM
    #18
    DaVikes

    DaVikes Well-Known Member

    Joined:
    Feb 26, 2013
    Member:
    #98580
    Messages:
    348
    Gender:
    Male
    First Name:
    Ross
    Denver
    Vehicle:
    Colorado Sports Car
    Arb front bumper, warn winch, All Pro rear bumper, OME up front, OME and All Pro Standard in Back, ARB locker, 34 x 10.5 KO2's, 17" Level 8 Trackers, and fancy single piece driveshaft.
    I think the truck looks awesome. How many gallons did it take? I'm guessing that stuff is no more than 10lbs per gallon. (a bit heavier than water)

  19. Feb 18, 2015 at 12:43 PM
    #19
    Taco Dan

    Taco Dan Well-Known Member

    Joined:
    Nov 4, 2011
    Member:
    #66435
    Messages:
    1,096
    Gender:
    Male
    First Name:
    Dan
    Tuscaloosa, AL
    Vehicle:
    07 FJ Cruiser auto 4X4
    Snorkel, Cooper ST Maxx 255/80/17, diff breather relocate, Cobra ultra III cb radio set up Warrior Products front bumper
    what was the cost of the dip OP? BTW I'm in Tuscaloosa, honk or wave if you see me around town.

  20. Feb 18, 2015 at 9:34 PM
    #20
    ThunderOne

    ThunderOne [OP] ColoradoTinyJohnson

    Joined:
    May 20, 2009
    Member:
    #17473
    Messages:
    9,355
    First Name:
    Mitchell
    Nashville
    Vehicle:
    1ST GEN OR GTFO
    PlastiDERP
    About $220 for all the supplies
    Yes a Wagner gun, no thinner. I think gallons from DYC are pre thinned now. The surface came out fairly smooth, I need to wash it to get a lot of the overspray off and it will look better.

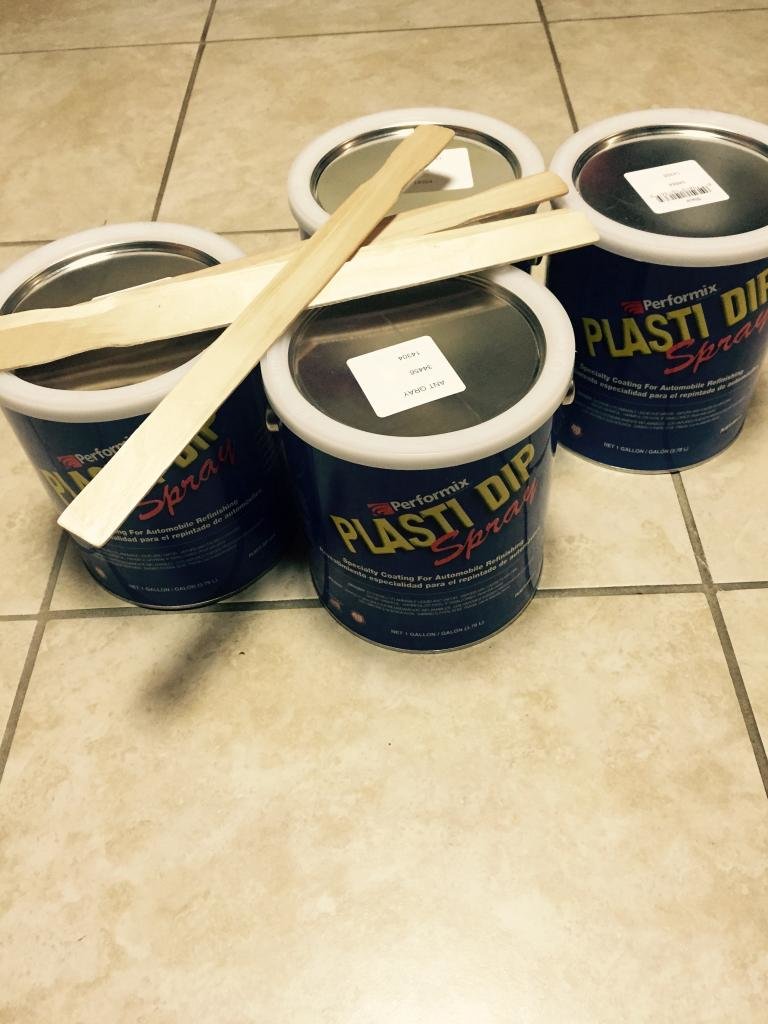

    The shipping weight was 32lbs for four gallons. I'm sure the total weight added was more like 20-25.


    $220 with supplies. Will do! I'm usually around campus/15th street mostly.

    Colchicine, DubfromGA and swdavis like this.
