Plug and Play Brake Light taps

Discussion in '3rd Gen Tacoma Parts Marketplace (2016+)' started by Puppypunter, Feb 11, 2021.

  1. May 17, 2021 at 8:08 AM
    #381
    Mrcleanz

    Mrcleanz New Member

    Joined:
    May 17, 2021
    Member:
    #365932
    Messages:
    1
    Gender:
    Male
    First Name:
    Chris
    Vehicle:
    2021 Taco trdor4x4 access cab
    @Puppypunter Please add me to the list. I joined this forum to place an order. Let me know if I qualify . Not sure how to pay or make this request official. What a newb, huh?

    Last edited: May 17, 2021
  2. May 17, 2021 at 8:21 AM
    #382
    bcmbcmbcm

    bcmbcmbcm Member

    Joined:
    May 17, 2021
    Member:
    #365935
    Messages:
    22
    Gender:
    Male
    First Name:
    Brett
    Vehicle:
    21 22?? TRDOR AG manual 'allocation requested'
    Hello, I am new to TW. 21 TRD OR AG manual on 'order' and very excited. Will likely be getting a topper and am looking forward to using your tap. Do you have the ability and interest in modifying a factory tailgate power lock harness to output taps for the lock/unlock for the topper lock pop? That way the folks at the top store won't have to splice and/or run a separate loom all the way to the front. I would be willing to be the guinea pig and order and have sent to you an OEM tailgate lock kit.

    I just think this would be best to show up with the third brake light tap and lock pop tap ready to go.

    Thanks again!

  3. May 17, 2021 at 8:29 AM
    #383
    VTCAL

    VTCAL Well-Known Member

    Joined:
    Mar 11, 2021
    Member:
    #358973
    Messages:
    327
    Vehicle:
    2021 Sport
    Please add me to the growing list. The softopper has gotta have it's lights. ;-)

  4. May 17, 2021 at 8:34 AM
    #384
    daveeasa

    daveeasa Slowest crimp in the West

    Joined:
    May 14, 2020
    Member:
    #328079
    Messages:
    2,595
    Gender:
    Male
    First Name:
    David
    San Diego
    Vehicle:
    2016 OR 4x4 DCSB MGM 6MT
    Yeah we can do that too. See examples in the idea hole. It T’s off the intercept where the OEM tailgate lock harness connects from body to tailgate.

  5. May 17, 2021 at 9:00 AM
    #385
    bcmbcmbcm

    bcmbcmbcm Member

    Joined:
    May 17, 2021
    Member:
    #365935
    Messages:
    22
    Gender:
    Male
    First Name:
    Brett
    Vehicle:
    21 22?? TRDOR AG manual 'allocation requested'
    That's great. Thank you. I also saw a tap for the bed lights. Would be really clean to run the topper LED rope light from the factory circuit.

  6. May 17, 2021 at 9:08 AM
    #386
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    6,111
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    Puppypunters idea hole

  7. May 17, 2021 at 9:20 AM
    #387
    daveeasa

    daveeasa Slowest crimp in the West

    Joined:
    May 14, 2020
    Member:
    #328079
    Messages:
    2,595
    Gender:
    Male
    First Name:
    David
    San Diego
    Vehicle:
    2016 OR 4x4 DCSB MGM 6MT
    We can do that too. I will send some bed light connectors to Johnny. I owe him a care package.

  8. May 17, 2021 at 10:43 AM
    #388
    Pyrotech

    Pyrotech Well-Known Member

    Joined:
    Nov 25, 2018
    Member:
    #273741
    Messages:
    2,388
    Gender:
    Male

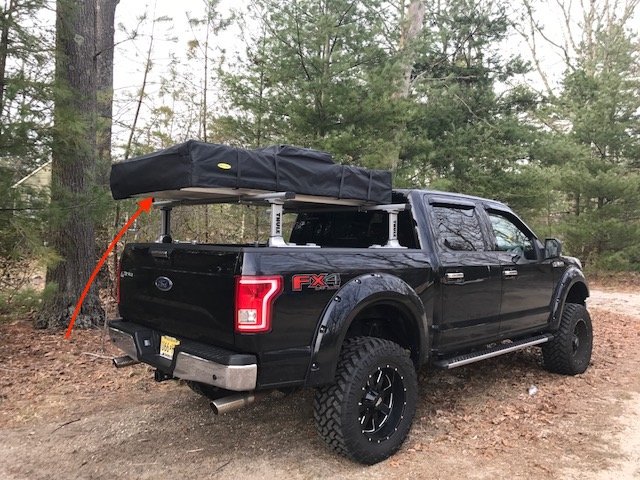

    alrighty.... When this thread started I had NO idea I needed a brake light tap, fast forward a bit and I realize that once I put the bed rack on and the RTT I would need to mount a brake light on the rear bed bar since the factory one is now blocked. So, I order one of the taps in anticipation of a new project. A custom 3rd brake light, yes I know you can buy one cheaper than what it will take to build the one. But designing and building my own custom brake light is a good excuse to expand my CAD skills, and to try out some resin casting.

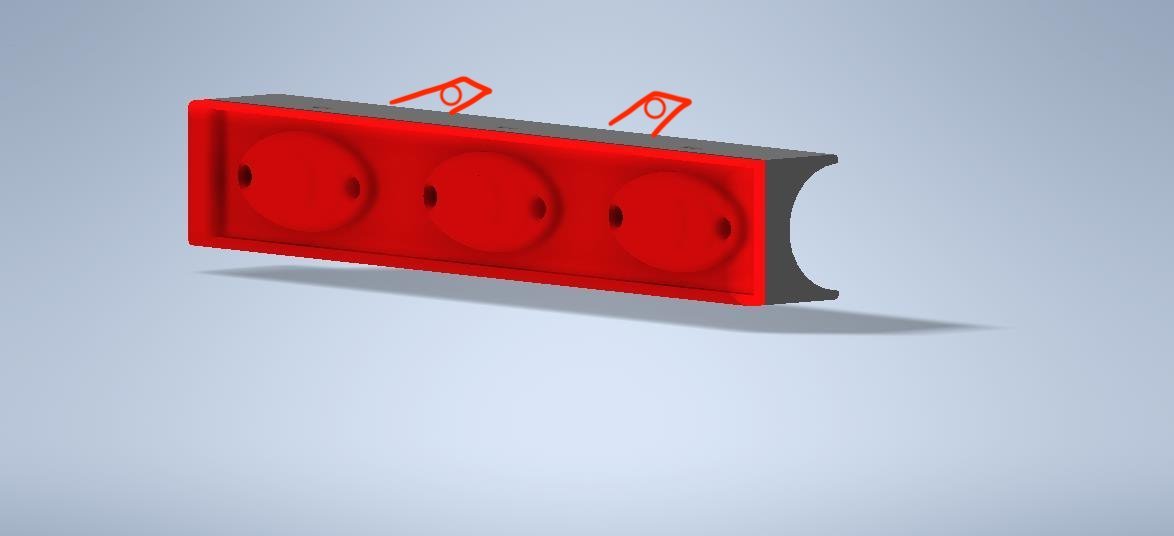

    3rd Brake Light Assembly.jpg

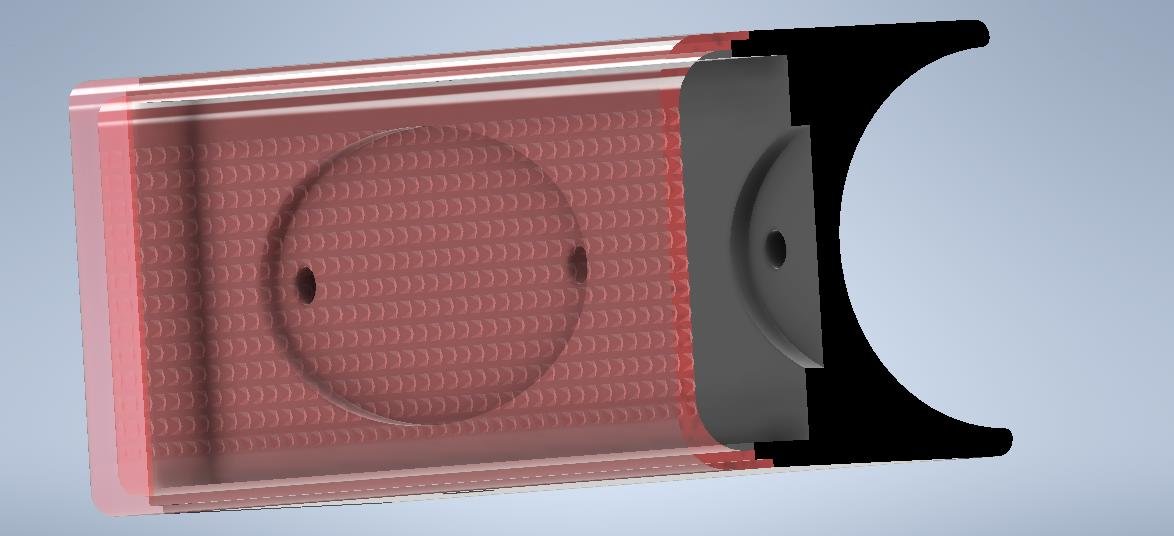

    Brake Light housing split.jpg

    Yep this is the idea that spun up in my head as a direct result of this very thread.

    907rx7, daveeasa and kmorgan3 like this.
  9. May 17, 2021 at 11:04 AM
    #389
    kmorgan3

    kmorgan3 Well-Known Member

    Joined:
    Aug 22, 2019
    Member:
    #302994
    Messages:
    1,109
    Gender:
    Male
    First Name:
    Kyle
    Vehicle:
    2019 Tacoma SR | 2020 4Runner SR5 Premium
    I've got a custom idea for you based off this design. I've been looking for a 3rd brake light that has mounting holes in the back of it so that I can screw it (forever) to the underside of my RTT. Here's an example of the location:

    The holes in the back I'm talking about would serve the purpose of a right-angle bracket that attaches to the tent. On the wire-side we could make a water-proof connector to allow the harness to be removable. It'd be a very short wire run to the connector.

    Johnny's harness would be configured in this way: From Johnny's brake tap we would run the wires up to a flush-mounted connector in the bedside. Like a Deutsch:

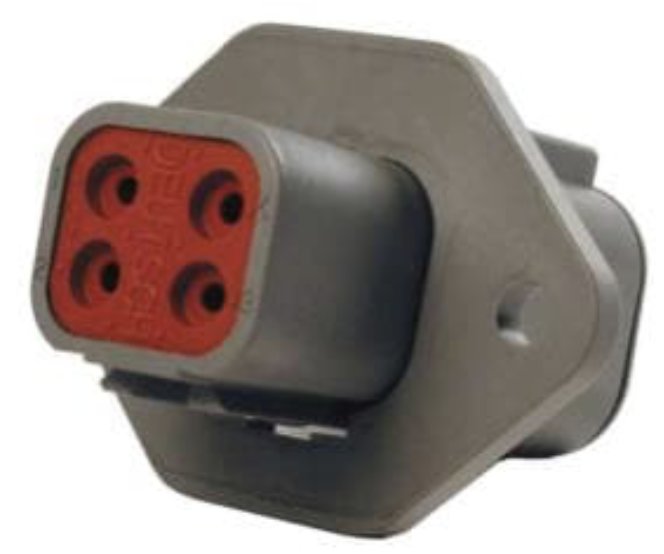

    Screen Shot 2021-05-17 at 12.03.49 PM.jpg

    Then the wire harness portion would plug-in to the flush-mount connector in the bedside and then run to the brake light. It'd keep everything very removable.

    Any thoughts? Maybe this should go in the hole.

    Pyrotech likes this.
  10. May 17, 2021 at 11:24 AM
    #390
    Pyrotech

    Pyrotech Well-Known Member

    Joined:
    Nov 25, 2018
    Member:
    #273741
    Messages:
    2,388
    Gender:
    Male
    so your thinking of having a removable jumper from the light and the bedside connector? If the light is going on the underside of the RTT , guessing to the floor? would the screw not need to go through the top of the light?

    I like the idea of that flange Deutsch connector.. gonna have to work that into the bed. could also provide a nice delivery point to run 12vdc up into the tent through a floor mounted outlet of some sort

    kmorgan3 likes this.
  11. May 17, 2021 at 11:31 AM
    #391
    kmorgan3

    kmorgan3 Well-Known Member

    Joined:
    Aug 22, 2019
    Member:
    #302994
    Messages:
    1,109
    Gender:
    Male
    First Name:
    Kyle
    Vehicle:
    2019 Tacoma SR | 2020 4Runner SR5 Premium
    Correct! It'd be thru-bolted through the floor (underneath the mattress; like the mounting rails). The bolt could go through the top of the light, but I imagined it would be easier to attach a bracket to the light and then use some new holes in the bracket to do the mounting. That way thru-bolting is easier. Here's a crappy photo:
    3rd Brake Light Assembly.jpg

    You're a step ahead of me with the 12V :thumbsup: You could easily make a tap from the trailer connector or elsewhere to give some power into 2 pins on the flush-plug. Then your wire harness would have two connectors on the other end: one to the brake light (from Johnny's tap) and one to a USB charger or something that goes into the tent.

    Pyrotech likes this.
  12. May 17, 2021 at 11:34 AM
    #392
    Pyrotech

    Pyrotech Well-Known Member

    Joined:
    Nov 25, 2018
    Member:
    #273741
    Messages:
    2,388
    Gender:
    Male
    in that case a molded in rail connector on the top .. think DIN rail style. would be good. screw a short piece of DIN rail down and then slide the light onto that and lock it into place

    kmorgan3 likes this.
  13. May 17, 2021 at 11:40 AM
    #393
    kmorgan3

    kmorgan3 Well-Known Member

    Joined:
    Aug 22, 2019
    Member:
    #302994
    Messages:
    1,109
    Gender:
    Male
    First Name:
    Kyle
    Vehicle:
    2019 Tacoma SR | 2020 4Runner SR5 Premium
    Yesssss! I think it'd sell. At least one. To me. :anonymous:

  14. May 17, 2021 at 11:43 AM
    #394
    Pyrotech

    Pyrotech Well-Known Member

    Joined:
    Nov 25, 2018
    Member:
    #273741
    Messages:
    2,388
    Gender:
    Male
    something like this on top

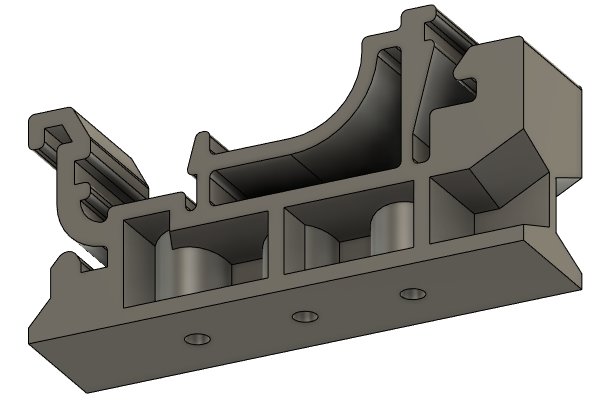

    modified DIN RAIL foot.jpg

    the 3 holes could get a a heat set thread insert either in the light top or the mounting "foot"

    kmorgan3 likes this.
  15. May 17, 2021 at 12:28 PM
    #395
    Puppypunter

    Puppypunter [OP] Well-Known Member

    Joined:
    Jan 4, 2020
    Member:
    #315086
    Messages:
    1,470
    Gender:
    Male
    First Name:
    Johnny
    Vehicle:
    2019 Black SR
    I have been prototyping something like this with the deutsch connector. This one has turn signals, brake, parking, reverse, ground, and a constant to be ran back to the battery.
    https://www.tacomaworld.com/threads/puppypunters-idea-hole.711584/page-13#post-25655184 The deutsch come in 2 (though not black, but I have a guy with a 3D printer solving that hopefully), 3, 4, 6, 8, and even a 12. I was planning on kind of do these as a built-to-order kind of thing. They can do everything listed above, as well as:
    -lock/unlock (if you have tailgate lock installed and want to add a pop & lock for a topper)
    -bed light tap for a cargo lamp to come on and off with the bed lights. Can do a plug and play solution for 16-19 with the bad lights added, or a 20+ with or without the bed lights. Soppyse I could do it without the OEM option if the user wanted to run the wires and tap the bed light signal.
    Could also use the battery tap for really anything (like an RTT) up to about 7A. (Limited by wire gauge really. Can arrange for more power to be ran, but deutsch size 16 will only accept 14ga wire in a solid type, 13A per connector. So you can get creative with a larger gauge and a bus bar or something).

  16. May 17, 2021 at 12:41 PM
    #396
    daveeasa

    daveeasa Slowest crimp in the West

    Joined:
    May 14, 2020
    Member:
    #328079
    Messages:
    2,595
    Gender:
    Male
    First Name:
    David
    San Diego
    Vehicle:
    2016 OR 4x4 DCSB MGM 6MT
    I was thinking out loud to myself this morning of maybe doing an aux +12V terminal in the taillight cavity. For compressor and then as a tap for all rear power via relay or otherwise. Not sure how horrible that idea is, but all those studs are sitting there waiting to be used.

  17. May 17, 2021 at 2:38 PM
    #397
    Puppypunter

    Puppypunter [OP] Well-Known Member

    Joined:
    Jan 4, 2020
    Member:
    #315086
    Messages:
    1,470
    Gender:
    Male
    First Name:
    Johnny
    Vehicle:
    2019 Black SR
    Adding
    Yeah, like at @daveeasa and @caribe makaira are pointing out, I can absolutely add a lock/unlock. I have already made a stand alone lock tap, so I have the parts for it ready to go. And yes again to tapping the factory bed lights for a adding a rope light. It would turn on/off just like the OEM bed lights would (or in addition to them). So you would need a tap for brake+, bed light+, ground, lock, and unlock. So a 6 pin receptacle. I haven't actually gotten to the "business" part of this, so no idea on pricing yet. But I plan on doing that part soon. Since these will be kind of built custom to the user, I will probably just do an ala carte kind of thing. Let me know if this sounds like something you'd be interested in.

    @VTCAL Added as well

    Mrcleanz and daveeasa like this.
  18. May 18, 2021 at 1:49 PM
    #398
    Woodylz

    Woodylz Well-Known Member

    Joined:
    Jul 3, 2020
    Member:
    #333292
    Messages:
    313
    Gender:
    Male
    First Name:
    Chris
    Raleigh Hills, OR
    Vehicle:
    2020 Silver Sky OR AC
    ask my wallet about my modifications...
    @Puppypunter Please add me to the list as well. Thanks!

  19. May 18, 2021 at 3:29 PM
    #399
    Puppypunter

    Puppypunter [OP] Well-Known Member

    Joined:
    Jan 4, 2020
    Member:
    #315086
    Messages:
    1,470
    Gender:
    Male
    First Name:
    Johnny
    Vehicle:
    2019 Black SR
    Added. Hope to send out PMs tomorrow for this round.

    Woodylz likes this.
  20. May 19, 2021 at 8:50 AM
    #400
    Puppypunter

    Puppypunter [OP] Well-Known Member

    Joined:
    Jan 4, 2020
    Member:
    #315086
    Messages:
    1,470
    Gender:
    Male
    First Name:
    Johnny
    Vehicle:
    2019 Black SR
    PM's sent for this batch. Get them while they're hot! :bananadead:
