Rear Diff Vent behind the tail light Mod

Discussion in '2nd Gen. Tacomas (2005-2015)' started by uncleART, Jul 12, 2013.

  1. Jul 12, 2013 at 2:22 AM
    #1
    uncleART

    uncleART [OP] Well-Known Member

    Joined:
    May 12, 2013
    Member:
    #103994
    Messages:
    1,489
    Gender:
    Male
    First Name:
    Arty
    Bothell, WA
    Vehicle:
    13 MGM DCLB Sport
    3" Toytec ULK 285/75-16 BFG KO2 Verge FN Wheels DeBadged, Toyota Bedmat, Window tint 30%, DeFlapped the front, Bilstein 5100s, Toytec coil overs, Dakar leafs, LR UCAs, SwayBar relocate, TRD Offroad tow hook, RotoPax, DeFlapped the rear, Tailgate mod, CBI receiver shackle w/ Bolt Hitch Pin, BFG KO2 285/75-16, FNWheels Verge, Weathertech Floor Liners, Spare tire mod, UWS toolbox with Bolt Latch Retrofit, Rear Diff vent relocated, Blacked-out grill emblem, Toolbox Bedrail mod, Trailer Plug relocated, ECGS bushing, Redline Hood Struts, Leer 100XR, C4 Fabrication Lo-Pro Bumper, Relentless Fab Frame Reinforcements, Warn 9.5XP-S Winch, Baja Designs S8 20" Lighbar, Off-Grid Engineering Dual Battery Tray, Odessey 35-PC1400 Batteries, BlueSea ML-ACR
    Here's what I did to relocate my Rear Diff Vent. There are many great locations. Any location is better than stock. This is just what I preferred.

    I must give credit to David K for the Toyota part numbers.

    and MATJEKA for behind the tail light idea.

    Parts List:
    From your Toyota dealer ($12)
    Union, part# 90404-51319
    Breather, part# 90930-03136

    Local Auto Parts Store ($35)
    10' - 5/16" fuel line
    2- 5/16"-5/8" hose clamps
    2- rubber coated clamps
    Tye-Wraps

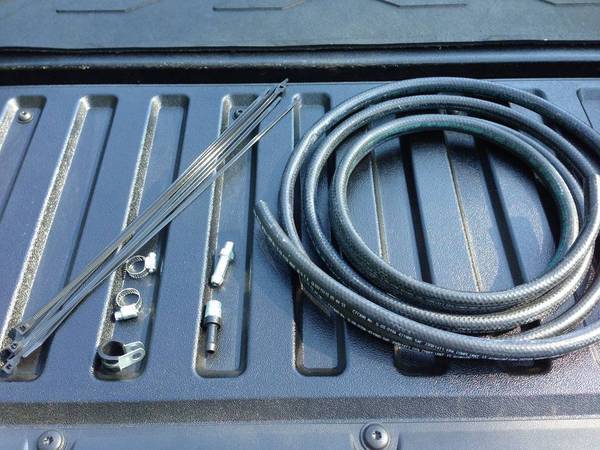

    I orderd these parts.
    [​IMG]

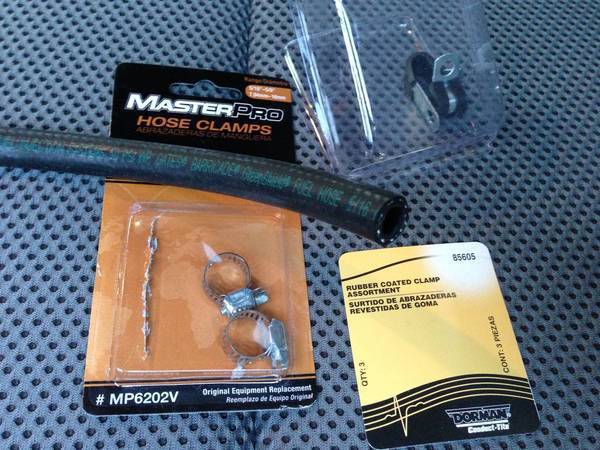

    Got this stuff from an auto parts store.
    [​IMG]

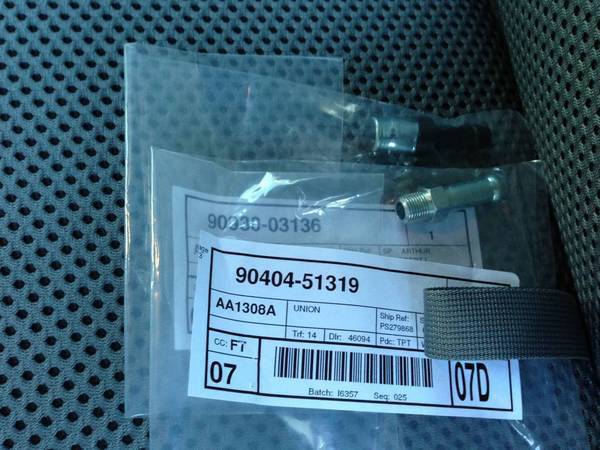

    Parts ready.
    [​IMG]

    Remove tail light.
    [​IMG]

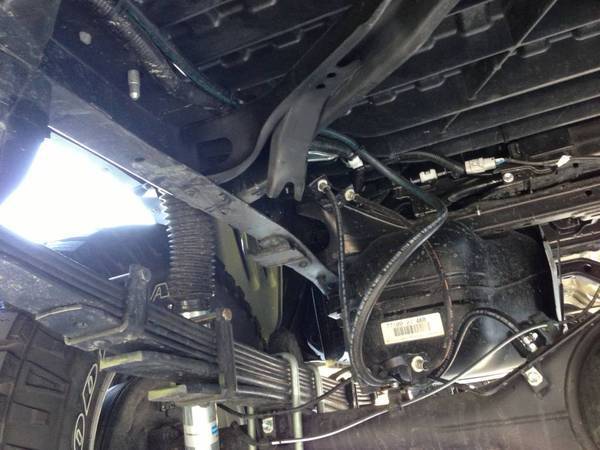

    I installed the union and routed the hose along the wiring harness.
    Incidentally, when I removed the stock relief vent, there was a huge in-rush of air into the diff. It had cooled down after driving around.
    It will be nice to have a 2-way breather now.
    [​IMG]

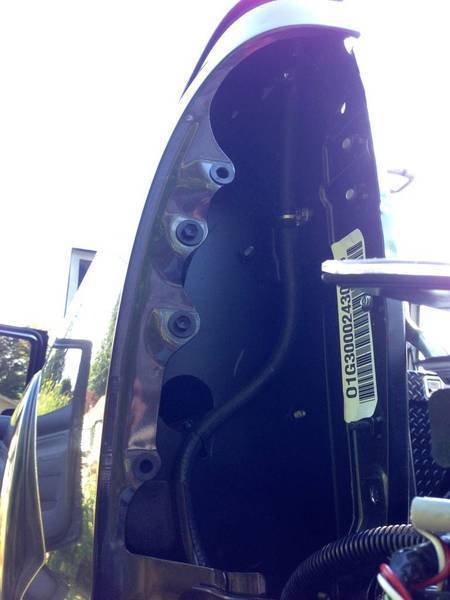

    Routed the hose up to the rear tail light.
    [​IMG]

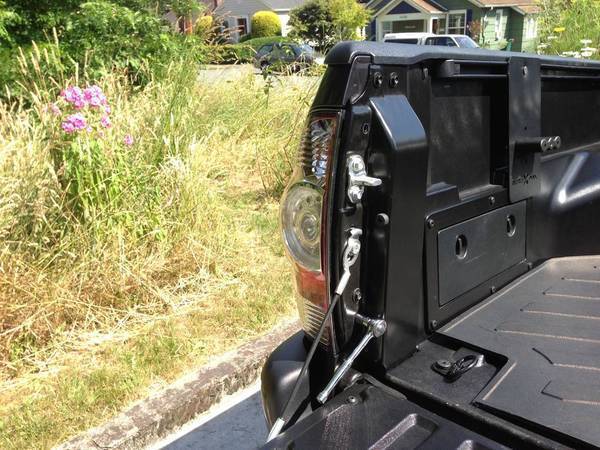

    Installed way up high. Secured with a clamp in a pre-existing hole with a 1/4-20 bolt & nyloc nut.
    [​IMG]

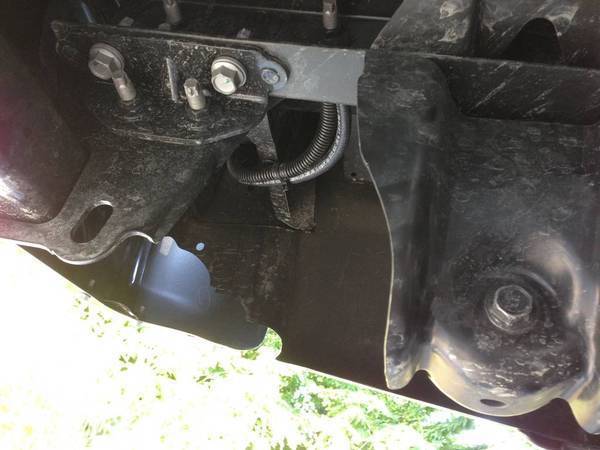

    I wasn't happy with my tie-wraps at the brake line location. So I installed another clamp.
    [​IMG]

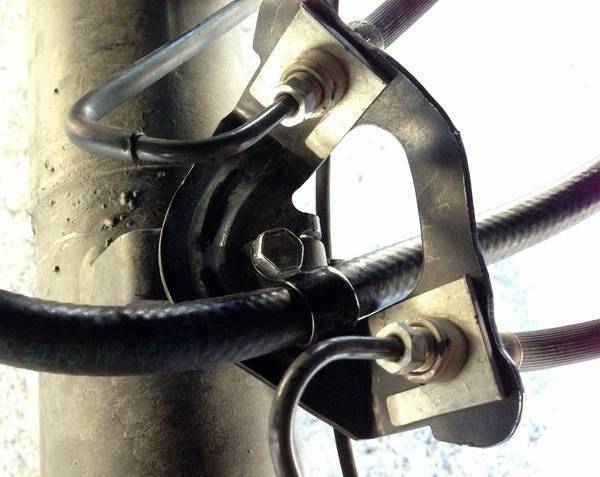

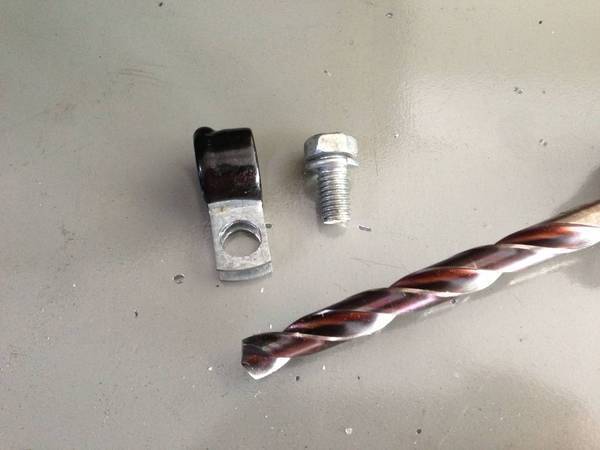

    Had to drill out the clamp.

    [​IMG]
    Much cleaner.

    Last edited: Jul 12, 2013
  2. Jul 12, 2013 at 2:47 AM
    #2
    45acp

    45acp Paint me back in Wyoming again...

    Joined:
    Aug 9, 2009
    Member:
    #20861
    Messages:
    6,704
    Gender:
    Male
    First Name:
    Jonathan
    Boring, Wisconsin
    Vehicle:
    1981 Long bed 4x4
    Nice!!

  3. Jul 12, 2013 at 3:00 AM
    #3
    XPOTRON

    XPOTRON Is LIVE on the GRID.

    Joined:
    Feb 1, 2011
    Member:
    #50358
    Messages:
    6,808
    Gender:
    Male
    First Name:
    Stefen
    Chandler, Arizona
    Vehicle:
    IG: @ST3F3NS
    DUROBUMPS Use TRON10 for 10% Off & Free Shipping
    looks good man, subd for part #s

  4. Jul 12, 2013 at 3:38 AM
    #4
    45acp

    45acp Paint me back in Wyoming again...

    Joined:
    Aug 9, 2009
    Member:
    #20861
    Messages:
    6,704
    Gender:
    Male
    First Name:
    Jonathan
    Boring, Wisconsin
    Vehicle:
    1981 Long bed 4x4
    wut

  5. Jul 12, 2013 at 3:54 AM
    #5
    uncleART

    uncleART [OP] Well-Known Member

    Joined:
    May 12, 2013
    Member:
    #103994
    Messages:
    1,489
    Gender:
    Male
    First Name:
    Arty
    Bothell, WA
    Vehicle:
    13 MGM DCLB Sport
    3" Toytec ULK 285/75-16 BFG KO2 Verge FN Wheels DeBadged, Toyota Bedmat, Window tint 30%, DeFlapped the front, Bilstein 5100s, Toytec coil overs, Dakar leafs, LR UCAs, SwayBar relocate, TRD Offroad tow hook, RotoPax, DeFlapped the rear, Tailgate mod, CBI receiver shackle w/ Bolt Hitch Pin, BFG KO2 285/75-16, FNWheels Verge, Weathertech Floor Liners, Spare tire mod, UWS toolbox with Bolt Latch Retrofit, Rear Diff vent relocated, Blacked-out grill emblem, Toolbox Bedrail mod, Trailer Plug relocated, ECGS bushing, Redline Hood Struts, Leer 100XR, C4 Fabrication Lo-Pro Bumper, Relentless Fab Frame Reinforcements, Warn 9.5XP-S Winch, Baja Designs S8 20" Lighbar, Off-Grid Engineering Dual Battery Tray, Odessey 35-PC1400 Batteries, BlueSea ML-ACR
    Thanks.

    He subscribed to the thread - like a book mark - for later reference.

    JRE likes this.
  6. Jul 12, 2013 at 4:02 AM
    #6
    45acp

    45acp Paint me back in Wyoming again...

    Joined:
    Aug 9, 2009
    Member:
    #20861
    Messages:
    6,704
    Gender:
    Male
    First Name:
    Jonathan
    Boring, Wisconsin
    Vehicle:
    1981 Long bed 4x4
    Derp. Haha, I thought he was awaiting part numbers. I'm running on about an hour worth of sleep. :anonymous:

  7. Jul 12, 2013 at 4:24 AM
    #7
    uncleART

    uncleART [OP] Well-Known Member

    Joined:
    May 12, 2013
    Member:
    #103994
    Messages:
    1,489
    Gender:
    Male
    First Name:
    Arty
    Bothell, WA
    Vehicle:
    13 MGM DCLB Sport
    3" Toytec ULK 285/75-16 BFG KO2 Verge FN Wheels DeBadged, Toyota Bedmat, Window tint 30%, DeFlapped the front, Bilstein 5100s, Toytec coil overs, Dakar leafs, LR UCAs, SwayBar relocate, TRD Offroad tow hook, RotoPax, DeFlapped the rear, Tailgate mod, CBI receiver shackle w/ Bolt Hitch Pin, BFG KO2 285/75-16, FNWheels Verge, Weathertech Floor Liners, Spare tire mod, UWS toolbox with Bolt Latch Retrofit, Rear Diff vent relocated, Blacked-out grill emblem, Toolbox Bedrail mod, Trailer Plug relocated, ECGS bushing, Redline Hood Struts, Leer 100XR, C4 Fabrication Lo-Pro Bumper, Relentless Fab Frame Reinforcements, Warn 9.5XP-S Winch, Baja Designs S8 20" Lighbar, Off-Grid Engineering Dual Battery Tray, Odessey 35-PC1400 Batteries, BlueSea ML-ACR
    Haha. It took me a few minutes too. I haven't gone to bed yet, I'm gettin' tired.:yawn:

  8. Jul 12, 2013 at 4:29 AM
    #8
    XPOTRON

    XPOTRON Is LIVE on the GRID.

    Joined:
    Feb 1, 2011
    Member:
    #50358
    Messages:
    6,808
    Gender:
    Male
    First Name:
    Stefen
    Chandler, Arizona
    Vehicle:
    IG: @ST3F3NS
    DUROBUMPS Use TRON10 for 10% Off & Free Shipping
    derp derp haha :p you got it gents, just keepin as a reference for later

  9. Jul 12, 2013 at 4:53 AM
    #9
    medic2230

    medic2230 @Koditten Pirate Radio member #002

    Joined:
    Oct 13, 2008
    Member:
    #9942
    Messages:
    63,972
    Gender:
    Male
    First Name:
    Murph
    Bama! Roll Tide
    Vehicle:
    2011 Taco 4x4 DCLB 2019 TRD PRO 4runner 2018 RAM 2500 mega cab
    20% Tint, OME 3"complete lift with Dakar's, Light Racing UCA's, 285/75/16 Nitto Terra Grapplers, 10 HP TW sticker, Ultraguage, B.A.M.F. Rock Sliders, MedicFab Bed Rack, Relentless front bumper, Air Flow Snorkel, Ham comms, Tech Deck
    I've had my stuff for this mod for about a month now and I'm glad I waited. I am going to go this route instead of putting it in the fuel door area. Nice write up!

  10. Jul 12, 2013 at 4:57 AM
    #10
    Mattnatti

    Mattnatti TEQ HED

    Joined:
    Jan 7, 2013
    Member:
    #94703
    Messages:
    291
    Gender:
    Male
    First Name:
    Matt
    Cincinnati, Ohio
    Vehicle:
    12' reg cab 4x4 2.7L auto
    I did this for the diff's, trans and transmission on the Land Cruiser and when I bought the Tacoma I couldn't believe that Toyota only stubbed the rear diff up off of the housing. WTF?

    I haven't done it yet to the Tacoma but might just do it this weekend.

  11. Jul 12, 2013 at 11:06 AM
    #11
    uncleART

    uncleART [OP] Well-Known Member

    Joined:
    May 12, 2013
    Member:
    #103994
    Messages:
    1,489
    Gender:
    Male
    First Name:
    Arty
    Bothell, WA
    Vehicle:
    13 MGM DCLB Sport
    3" Toytec ULK 285/75-16 BFG KO2 Verge FN Wheels DeBadged, Toyota Bedmat, Window tint 30%, DeFlapped the front, Bilstein 5100s, Toytec coil overs, Dakar leafs, LR UCAs, SwayBar relocate, TRD Offroad tow hook, RotoPax, DeFlapped the rear, Tailgate mod, CBI receiver shackle w/ Bolt Hitch Pin, BFG KO2 285/75-16, FNWheels Verge, Weathertech Floor Liners, Spare tire mod, UWS toolbox with Bolt Latch Retrofit, Rear Diff vent relocated, Blacked-out grill emblem, Toolbox Bedrail mod, Trailer Plug relocated, ECGS bushing, Redline Hood Struts, Leer 100XR, C4 Fabrication Lo-Pro Bumper, Relentless Fab Frame Reinforcements, Warn 9.5XP-S Winch, Baja Designs S8 20" Lighbar, Off-Grid Engineering Dual Battery Tray, Odessey 35-PC1400 Batteries, BlueSea ML-ACR
    Yeah. But remember that the stock one is not a 2-way vent like the others. It's a pressure relief valve. This inherently has its own issues.

    On my 2013 Sport, all the other breathers are already routed to the upper part of the engine bay. The front diff & actuator vents are located at the fender well. The trans & t-case are located up behind the intake manifold.

    The guys that have the Offroad package with an E-Locker, will need to raise that vent as well.

    Last edited: Jul 12, 2013
    JKU3000 likes this.
  12. Jul 18, 2013 at 9:02 AM
    #12
    ailll1

    ailll1 Well-Known Member

    Joined:
    Nov 3, 2011
    Member:
    #66387
    Messages:
    170
    Gender:
    Male
    First Name:
    Alex
    Québec, Canada
    Vehicle:
    2016 Tacoma Trd Sport Double cab
    Man did I ever got raped at the dealer today! 27$ for the breather and union! Just remembered me why I never go to the dealer...

    JKU3000 likes this.
  13. Jul 18, 2013 at 9:35 AM
    #13
    13TRDsport

    13TRDsport Well-Known Member

    Joined:
    May 22, 2013
    Member:
    #104693
    Messages:
    234
    Gender:
    Male
    NE PA
    Vehicle:
    13 Access cab TRD Sport
    Aero Turbine 2525XL, K&N air filter, TRD Shift knob. Bilstein 5100's w\Eibach springs.
    Looks like my sport has a breather and tube already???

  14. Jul 18, 2013 at 9:48 AM
    #14
    miacevedo

    miacevedo Well-Known Member

    Joined:
    Sep 24, 2010
    Member:
    #43746
    Messages:
    454
    Gender:
    Male
    First Name:
    Mike
    SoCal
    Vehicle:
    SuperWhite 4X4
    All Pro Hybrid front bumper. All Pro rock sliders. Warn Winch. Icon 2.5 Remote Resi Coilovers & Rear Icon 2.0 Extended Remote Resi's. AP Standard leafs. Rear SuperBumps. OEM bed mat and All Weather floor mats. Pelfreybilt IFS Skid. Method NV wheels on 285/75/16 Toyo Open Country AT2.
    Sub'd!

    Should have put it on the passenger side to help the Taco lean :D

    Geeterman likes this.
  15. Jul 18, 2013 at 9:50 AM
    #15
    Boost JuNkY

    Boost JuNkY Well-Known Member

    Joined:
    Apr 10, 2011
    Member:
    #54706
    Messages:
    370
    Gender:
    Male
    First Name:
    Billy
    Vancouver, BC
    Vehicle:
    2003 TACOMA DC OFF ROAD
    35'S ON 3s
    Placed mine in the taillight as well. Skipped the whole breather part and installed a clear inline mini fuel filter instead and clear rubber hose so I can see if it gets dirty. Holding real well after 2+ years

    Walldiver7, JKU3000 and winkel like this.
  16. Jul 18, 2013 at 12:09 PM
    #16
    uncleART

    uncleART [OP] Well-Known Member

    Joined:
    May 12, 2013
    Member:
    #103994
    Messages:
    1,489
    Gender:
    Male
    First Name:
    Arty
    Bothell, WA
    Vehicle:
    13 MGM DCLB Sport
    3" Toytec ULK 285/75-16 BFG KO2 Verge FN Wheels DeBadged, Toyota Bedmat, Window tint 30%, DeFlapped the front, Bilstein 5100s, Toytec coil overs, Dakar leafs, LR UCAs, SwayBar relocate, TRD Offroad tow hook, RotoPax, DeFlapped the rear, Tailgate mod, CBI receiver shackle w/ Bolt Hitch Pin, BFG KO2 285/75-16, FNWheels Verge, Weathertech Floor Liners, Spare tire mod, UWS toolbox with Bolt Latch Retrofit, Rear Diff vent relocated, Blacked-out grill emblem, Toolbox Bedrail mod, Trailer Plug relocated, ECGS bushing, Redline Hood Struts, Leer 100XR, C4 Fabrication Lo-Pro Bumper, Relentless Fab Frame Reinforcements, Warn 9.5XP-S Winch, Baja Designs S8 20" Lighbar, Off-Grid Engineering Dual Battery Tray, Odessey 35-PC1400 Batteries, BlueSea ML-ACR
    Bummer. I've been going in enough since May, that the parts guy always recognizes me. I think he's been giving me like 10 percent off.

    JKU3000 likes this.
  17. Jul 18, 2013 at 12:11 PM
    #17
    uncleART

    uncleART [OP] Well-Known Member

    Joined:
    May 12, 2013
    Member:
    #103994
    Messages:
    1,489
    Gender:
    Male
    First Name:
    Arty
    Bothell, WA
    Vehicle:
    13 MGM DCLB Sport
    3" Toytec ULK 285/75-16 BFG KO2 Verge FN Wheels DeBadged, Toyota Bedmat, Window tint 30%, DeFlapped the front, Bilstein 5100s, Toytec coil overs, Dakar leafs, LR UCAs, SwayBar relocate, TRD Offroad tow hook, RotoPax, DeFlapped the rear, Tailgate mod, CBI receiver shackle w/ Bolt Hitch Pin, BFG KO2 285/75-16, FNWheels Verge, Weathertech Floor Liners, Spare tire mod, UWS toolbox with Bolt Latch Retrofit, Rear Diff vent relocated, Blacked-out grill emblem, Toolbox Bedrail mod, Trailer Plug relocated, ECGS bushing, Redline Hood Struts, Leer 100XR, C4 Fabrication Lo-Pro Bumper, Relentless Fab Frame Reinforcements, Warn 9.5XP-S Winch, Baja Designs S8 20" Lighbar, Off-Grid Engineering Dual Battery Tray, Odessey 35-PC1400 Batteries, BlueSea ML-ACR
    Sounds good. I saw that there are a bunch of guys here on TW that used a fuel filter!

  18. Jul 28, 2013 at 1:48 AM
    #18
    DJB1

    DJB1 Well-Known Member

    Joined:
    Jun 8, 2013
    Member:
    #105835
    Messages:
    2,223
    Gender:
    Male
    First Name:
    Dave
    SLC, UT
    Vehicle:
    2003 Regular Cab 4X4 5MT
    Thanks for the info and the part numbers. I did mine this way too. Super fast and easy.

  19. Jul 28, 2013 at 2:34 AM
    #19
    uncleART

    uncleART [OP] Well-Known Member

    Joined:
    May 12, 2013
    Member:
    #103994
    Messages:
    1,489
    Gender:
    Male
    First Name:
    Arty
    Bothell, WA
    Vehicle:
    13 MGM DCLB Sport
    3" Toytec ULK 285/75-16 BFG KO2 Verge FN Wheels DeBadged, Toyota Bedmat, Window tint 30%, DeFlapped the front, Bilstein 5100s, Toytec coil overs, Dakar leafs, LR UCAs, SwayBar relocate, TRD Offroad tow hook, RotoPax, DeFlapped the rear, Tailgate mod, CBI receiver shackle w/ Bolt Hitch Pin, BFG KO2 285/75-16, FNWheels Verge, Weathertech Floor Liners, Spare tire mod, UWS toolbox with Bolt Latch Retrofit, Rear Diff vent relocated, Blacked-out grill emblem, Toolbox Bedrail mod, Trailer Plug relocated, ECGS bushing, Redline Hood Struts, Leer 100XR, C4 Fabrication Lo-Pro Bumper, Relentless Fab Frame Reinforcements, Warn 9.5XP-S Winch, Baja Designs S8 20" Lighbar, Off-Grid Engineering Dual Battery Tray, Odessey 35-PC1400 Batteries, BlueSea ML-ACR
    I'm glad it worked out for you!

  20. Aug 11, 2013 at 2:10 PM
    #20
    Tacozilla

    Tacozilla Well-Known Member

    Joined:
    Jan 29, 2013
    Member:
    #96437
    Messages:
    205
    Gender:
    Male
    So Cal
    Vehicle:
    2013 DCLB TRD 4X4 MGM
    subd for future

    sickStEvO likes this.
