Replacing alternator on an '06 4L engine.

Discussion in 'Technical Chat' started by ZMan2k2, Sep 5, 2014.

  1. Sep 5, 2014 at 1:27 PM
    #1
    ZMan2k2

    ZMan2k2 [OP] Well-Known Member

    Joined:
    Aug 28, 2011
    Member:
    #62491
    Messages:
    806
    Gender:
    Male
    First Name:
    Richard
    Calgary, Canada
    Vehicle:
    06 DC LB SR5
    So, my alternator was dying, my stereo killed it. It was only the 90A version that comes with the SR5 truck, my model, so I needed an upgrade. I purchased a new alternator from Bill at Marion Bumper2Bumper (a vendor on the site), and in a week, had the alternator from paid for, to in my hot little hands. Good service from Bill, good communication and quality products. I'll give the final results at the end of the install guide.

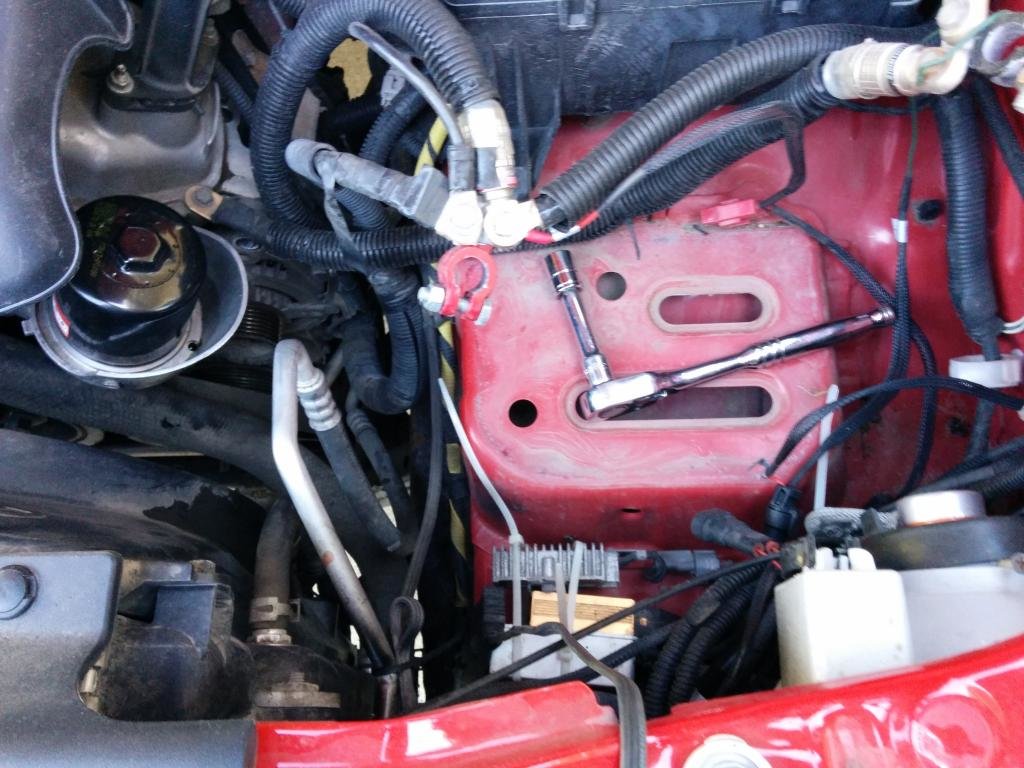

    First step. Pull the battery and tray. This will give you some room to work, as the alternator has to come out from the top.
    Second step, take a 14mm socket, and loosen the idler pulley. It's the pulley right in the middle of all the action on the front of the engine. They say there's a hole that you can slide a screwdriver or something in, to hold it in place with the tension off the belt, but I couldn't see it, so I just slid the belt off the alternator pulley, and let go of the tensioner.

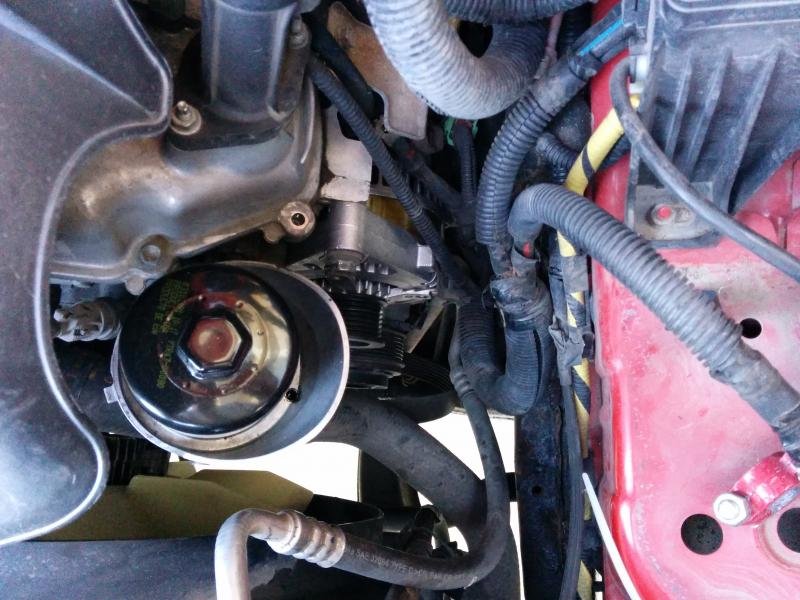

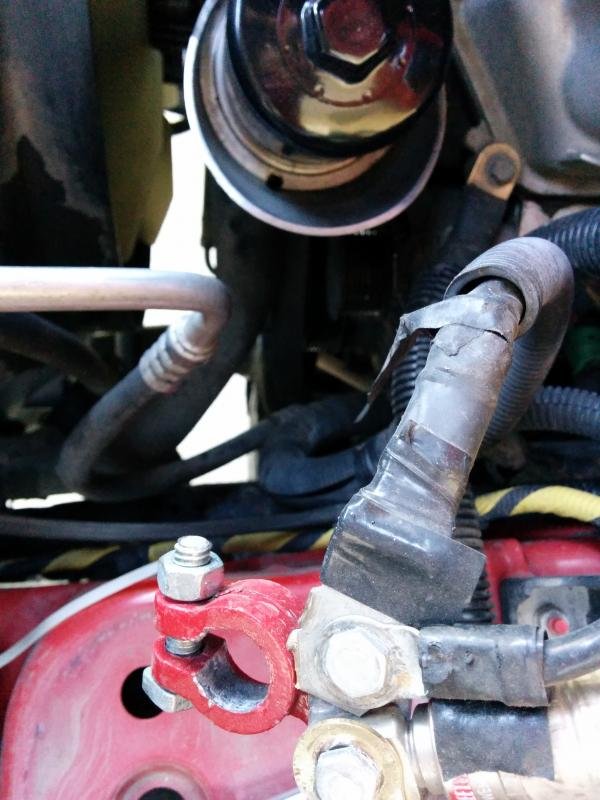

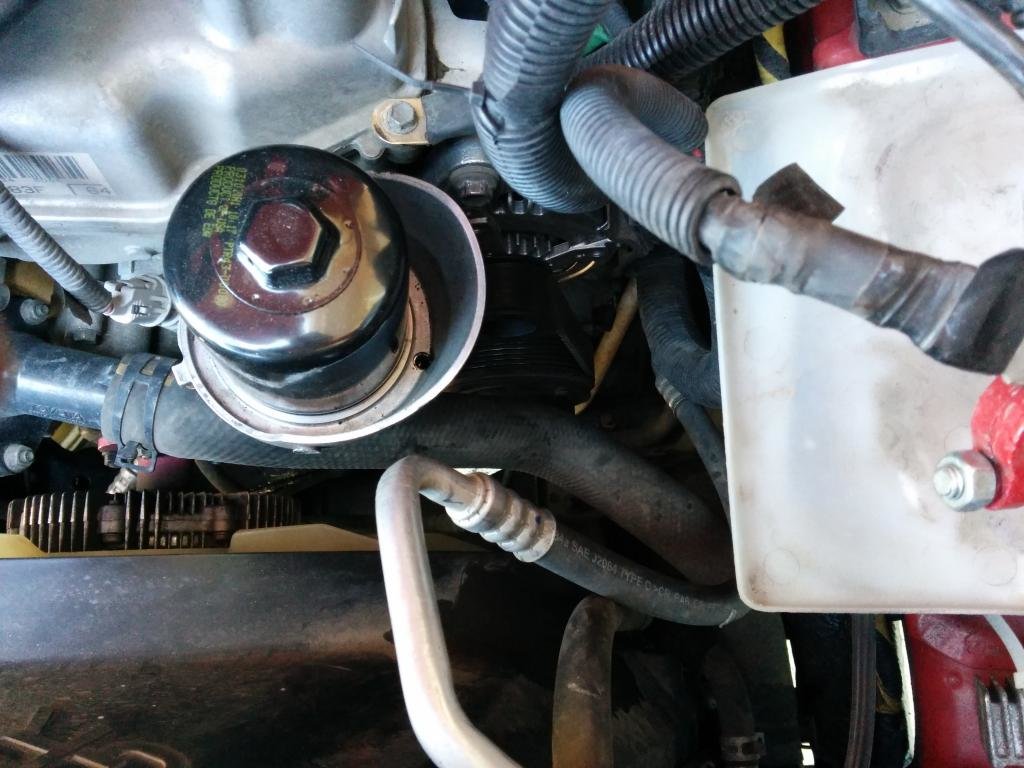

    Third step. Take the same 14mm socket, and remove the two bolts that hold the alternator to the engine block. One is easily visible at the top, the other is between the pulley beside the alternator, and the compressor for the A/C, hidden underneath. The bottom one, the coolant hose kind of gets in the way, but it is removeable, just be patient. Also, remove the 10mm bolt that holds the connection to the battery from the positive post from the alternator. And the 10mm bolt that holds the wiring harness to the casing of the alternator on the bracket on the side.
    a6e42771-aad9-4fd2-b755-3a5dd895faaa_zps_ca4d52ead0b7122ef43fd168f2776e12dbf975c5.jpg

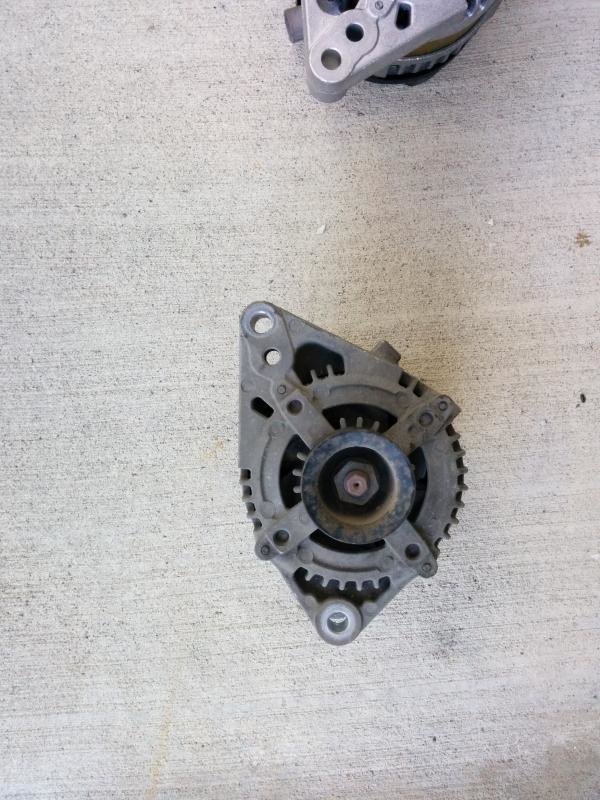

    Forth step. Wrestle that bad alternator out of there. There's a hardline with a rubber hose on it, that goes from the A/C condenser into the engine bay. Bend it a little towards the fan, and move the wiring harness that was attached to the alternator. Sorry, no pics of removal, just one of the alternator on the ground.

    Fifth step, installation of the new alternator. It's reverse of the removal of the old one, I recommend getting the top bolt for the alternator started by hand, then using that pivot point, to get the bottom started and installed. I tightened the bolts to 40 ft.lbs., I couldn't find a recommended torque setting online, and that seemed like a good number. If you can find another #, let me know, and I'll edit.

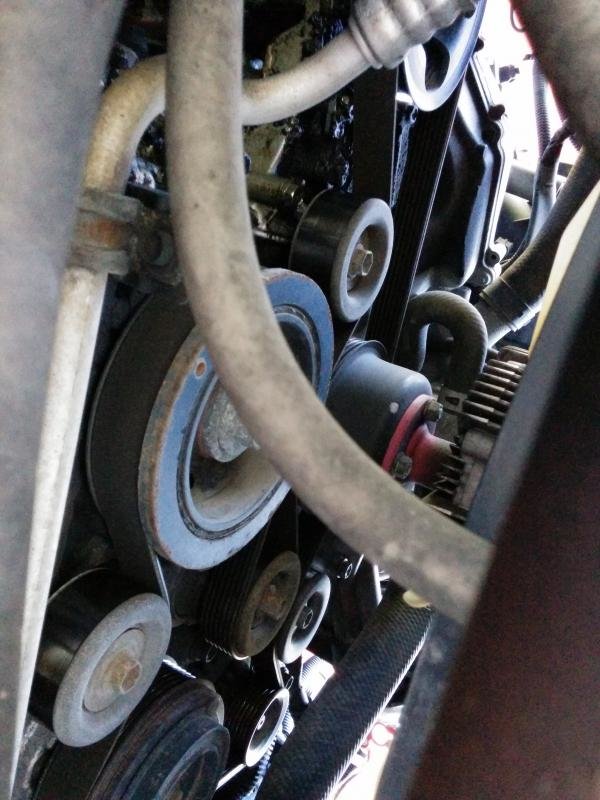

    Next step, is only if you're replacing the belt too. I did, as mine had 104k km's on it, but the old belt was still in decent condition, with no cracks or breaks in the rubber or V-belt portions of the belt, so I'm keeping it as a backup. Take a picture of the belt. To see how it's run through the engine. As another option, Haynes manual has a decent picture in it on how to route the belt, and is another option that you can use.

    Route the belt, tighten it on the tensioner, and that's it. I had my belt pop off twice after using my picture, so I used the Haynes manual drawing, and got it secured finally, for perfect running.

    Put everything back on, double check your connections, and put the battery back in the truck. One more check, then start it, and see if any lights show up on the dash. No, check the belt, to make sure it's spinning all the accessories. Good? :thumbsup: No? Go back and check the routing again.

    If you're good, button everything up, and go clean up. You're done.

    Now the alternator from Bill. It's a 250A alternator, that delivers 70-75% of power at idle. I have a 160A stereo in the truck, so I needed something big. After much discussion with Bill, I settled on the 250A unit. At idle, with the stereo at full crank, louder than I normally listen, I get 12.2V. At cruise speed of 14-1500rpm, I get 13.6V. With the stereo turned down, hot, I get 13.8V. Cold 14.0V. Quality product. I'm happy with it, and doing this has given me courage to tackle the alternator belt on the wifes' 4Runner. But that's another day.
