Rigid Industries SR-Q Back Up Light Kit Install

Discussion in '2nd Gen. Tacomas (2005-2015)' started by TacoDaddy, Jan 7, 2014.

  1. Jan 7, 2014 at 4:01 PM
    #1
    TacoDaddy

    TacoDaddy [OP] Just call me Daddy

    Joined:
    Dec 10, 2011
    Member:
    #68519
    Messages:
    501
    Gender:
    Male
    First Name:
    Brian
    Costa Mesa, CA
    Vehicle:
    '11 Sport
    So I really wanted a set of aftermarket back up lights for my truck since the stockers are so weak. I did some searching and decided to try one of Rigid's products, the SR-Q Diffused Lens back up light kit. I did a search on here and found a thread offering the kits for sale, new, with a discount to TW members. The thread is here: http://www.tacomaworld.com/forum/bu...id-industries-back-up-reverse-light-kits.html

    I PM'd Chas of MRT, told him I wanted the standard lights, not flush mount, with the diffused lens. He's a cool dude and responds fairly quickly. He sent me a link to pay him via PayPal and after paying, I received my kit a few days later. When you open the box, you'll see this:

    [​IMG]

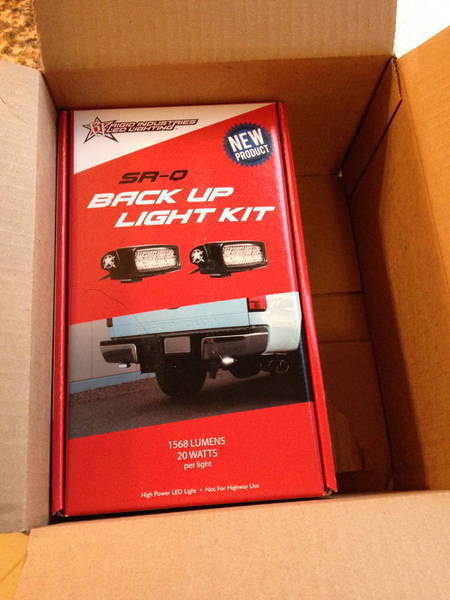

    The kit comes with 2 lights, mounting hardware, wire harness, black covers and a 3 way illuminated switch. To install this kit, you will need the following tools:
    Wire cutters/crimpers
    Wire strippers
    Scissors (to trim the wire loom)
    1/2" Wrench
    10mm Wrench
    Power Drill with 1/2" bit
    14mm Socket & Socket wrench
    #5 Metric Allen wrench
    Dremel with sanding bit
    Pocket knife/utility knife
    An old metal hanger
    Electrical tape
    ~20 zip ties
    1 self tapping sheet metal screw
    1 small T-tap

    [​IMG]

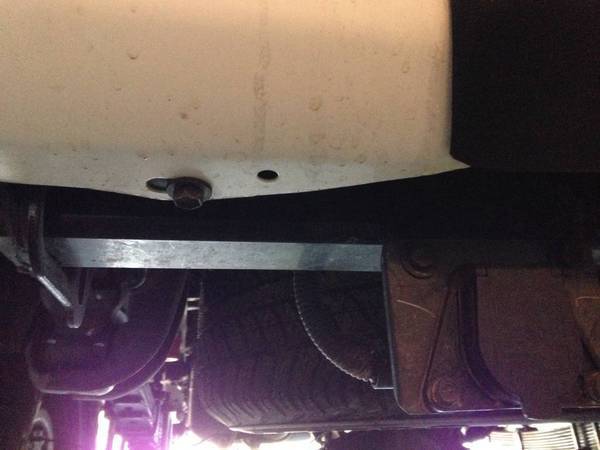

    When deciding where to mount the new lights, I decided to mount them using the two factory holes in the rear bumper, closest to the hitch.

    [​IMG]

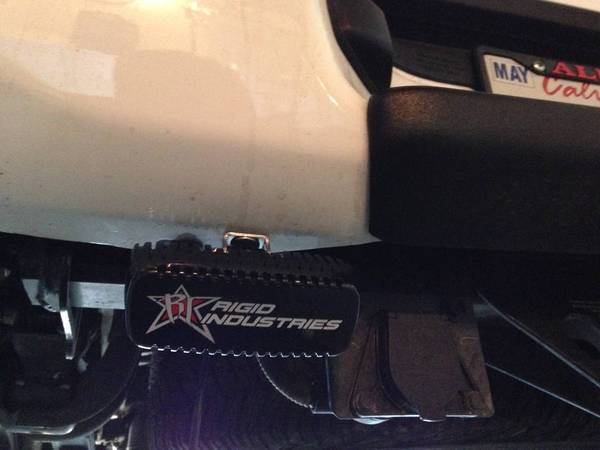

    Loosely bolt the mounts to the lights and then the lights to the bumper.

    [​IMG]
    [​IMG]

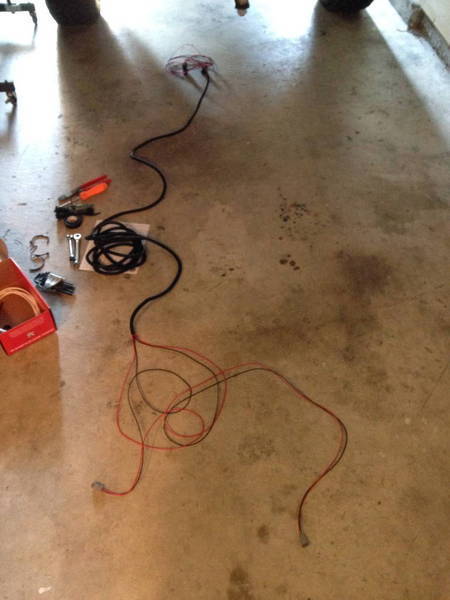

    You're going to want to lay your wire harness down, front to back, before you begin to attach any connections.

    [​IMG]

    I decided to start my wiring from the front to the back. If you look at the underside of the driver's side of your truck, there will be a big rubber grommet with a factory wiring harness coming through the cab floor. This is where I pulled my wires through to mount the relay and switch inside the cab. You're going to want to remove your door sill, dummy pedal and kick panel. For more room to work with, I used the 14mm socket and wrench, unbolted my seat and tilted it back towards the back seat. This will allow you enough room to pull the carpet back and gain access to that rubber grommet.

    [​IMG]

    Remove the grommet and pull into the cab. You'll want to make a very small slit in the grommet so you can slide your wires through. Also, to do this, you'll have to remove the wires from the relay. Before doing so, take note of which color goes where in the relay:

    [​IMG]

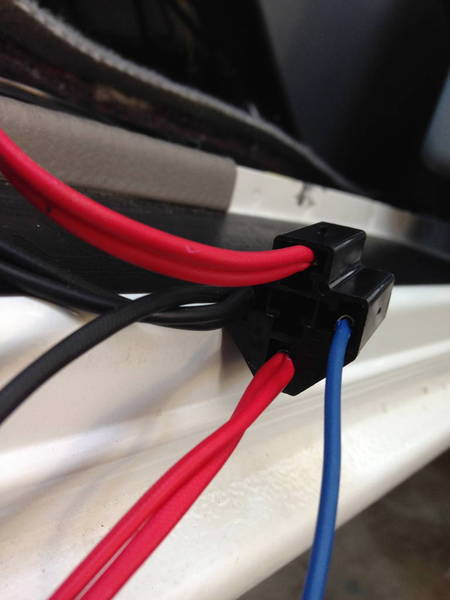

    To remove the wires from the relay, you will need a very slim flathead screwdriver or something that can fit in the channel between the wires and the relay (I used one of my girlfriend's bobby pins). Stick the screwdriver into the channel, angle the screwdriver away from the wires and while holding the screwdriver in place, pull the wires out of the relay. YOU ONLY NEED TO DO THIS FOR THE RED AND BLACK WIRES! Once they are removed from the relay, push them, one by one, through the slit you made in the grommet:

    [​IMG]

    You can now replace the wires into the relay. REPLACE THE GROMMET. Set everything aside and now work on getting power into the cab. Bolt the red wire with the fuse to the positive terminal on your battery:

    [​IMG]

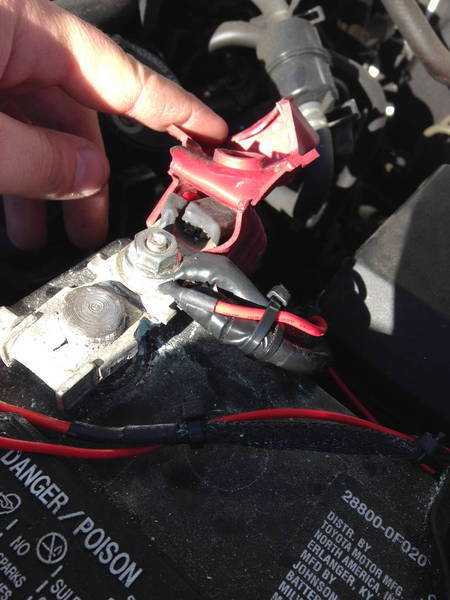

    Remove the fuse from the fuse holder until install is complete. Get the metal hanger and snip it so it's just a metal stick. Using electrical tape, firmly tape the free end of the red wire to the hanger. You're going to use the hanger to snake the red wire into the cab using the grommet in the firewall on the lower driver's side.

    [​IMG]

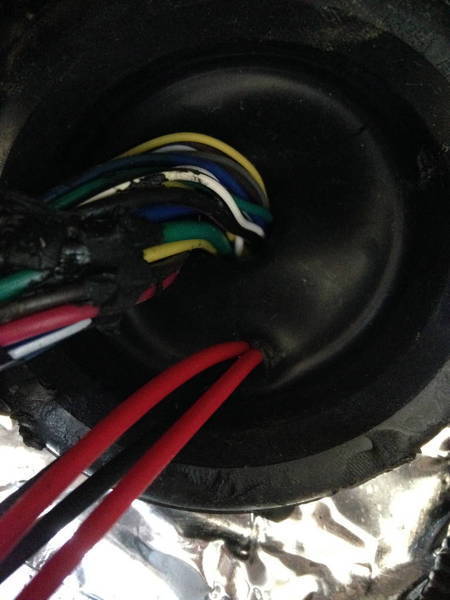

    Poke the hanger through the grommet and then get under the dash to pull the wire through. The power wire is fairly long so I decided to shorten it using butt connectors. Secure your relay under the dash and use some zip ties to loom your wires for your switch.

    [​IMG]

    Use your drill and the self tapping screw to ground out your relay on the sheet metal behind the kick panel. (Skip this step if you do not want your switch to illuminate) To get the lights to turn on automatically when the transmission is in reverse, refer to this thread: http://www.tacomaworld.com/forum/2n...anytime-rear-view-camera-switch-dash-mod.html and use your T-tap to tap into the skinny red wire on the harness by the fuse panel.

    [​IMG]

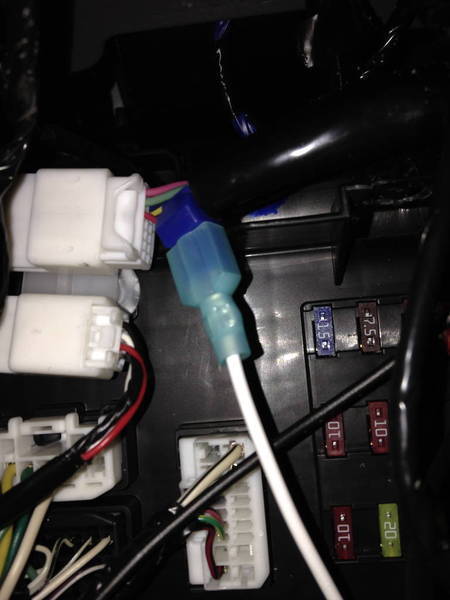

    Hook your white wire up to the T-tap and run to your switch. Now you can drill the hole for your switch. I placed my switch under the dash, below the coin pocket so it's out of the way.

    [​IMG]

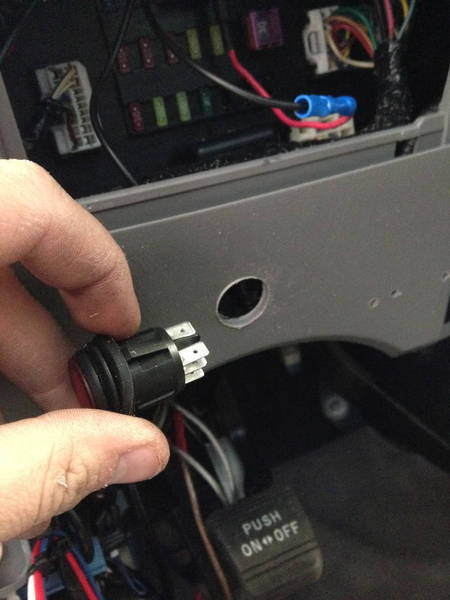

    The instructions tell you to use a 1/2" drill bit for the hole but that is way too small. I used my Dremel with a sanding bit to widen the hole until the switch fit nice and snug.

    Feed your wires through the hole from the back. Connect them to the switch according to the diagram in the instructions. Replace the fuse into the holder under the hood. Attach the rear connectors into the lights. The switch in the up position will run the lights with the truck on or off. The middle position will keep the lights off whether the truck is on/off or in reverse. The bottom position will only turn the lights on when the transmission is in reverse. Now that you've got the switch positions straight, press your switch into the dash.

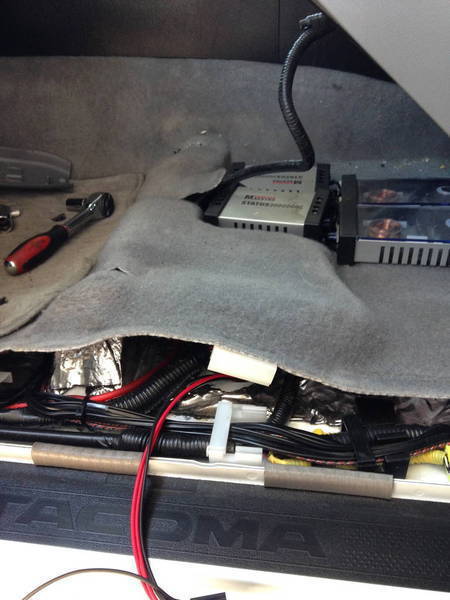

    Bolt your seat back up, snap all the plastic back together and clean up the cab. You're done in there. Now you need to run the harness back to the lights, keeping it out of the way of moving parts. I just ran mine along the factory harness on top of the driver's side frame rail. Make sure to use plenty of zip ties to secure the harness in place.

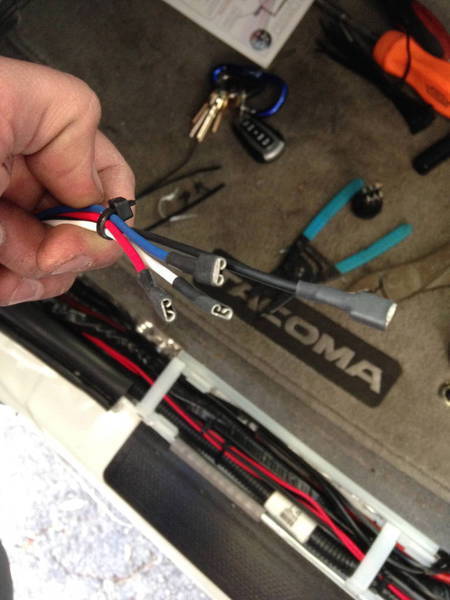

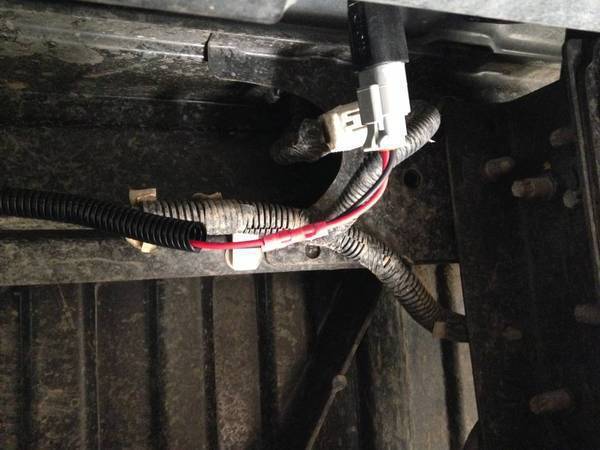

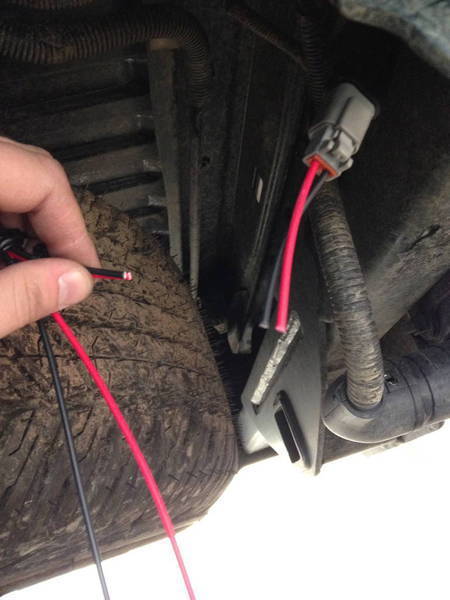

    Being that this is a universal kit, by the time you get to the back of the truck, theres about 4 feet of wire left over. You can coil up the wires and zip tie them in place :jerkoff: or you can snip them like so:

    [​IMG]

    And use butt connectors to re-connect them like so:

    [​IMG]

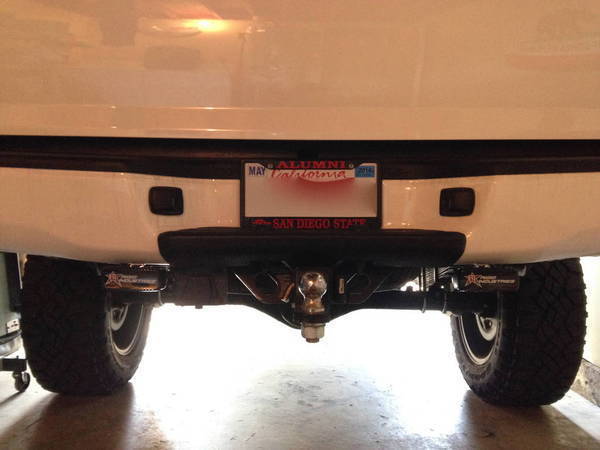

    Guess what, big boy? YOU'RE DONE. Put your tools away, wait for dark and marvel at your work.

    [​IMG]

    [​IMG]

    [​IMG]

    Stock reverse lights (LED)

    [​IMG]

    Stock reverse lights & Rigids

    Yes, they're expensive. Yes, you can install different lights for much cheaper. However, these are great lights with great output and they may very well outlast your Tacoma :eek:

    Last edited: Jan 9, 2014
  2. Jan 7, 2014 at 4:55 PM
    #2
    2006KJ

    2006KJ Well-Known Member

    Joined:
    Jun 1, 2012
    Member:
    #79907
    Messages:
    701
    Gender:
    Male
    looks good! can you post pictures comparing stock vs stock and rigid's in the dark?

  3. Jan 7, 2014 at 5:51 PM
    #3
    RacecarGuy

    RacecarGuy Well-Known Member

    Joined:
    Jul 12, 2012
    Member:
    #82501
    Messages:
    818
    Gender:
    Male
    Houston, Texas
    Vehicle:
    '12 DCSB OR
    Pelfreybilt front and rear HC bumper w/swingout, BAMF LCA Skids, BAMF Diff skid, Pelfreybilt IFS and Trans skid, RCI gas tank skid, Bronze SCS F-5's, Icon RR's ext travel, Dakar leafs, Archive Garage shackle flip
    No night shots is like turning off porn before they get undressed. We need pics!

  4. Jan 7, 2014 at 7:00 PM
    #4
    Delliam15

    Delliam15 Well-Known Member

    Joined:
    Jun 3, 2013
    Member:
    #105523
    Messages:
    50
    Gender:
    Male
    Irmo, SC
    Vehicle:
    2012 DCB PreRunner V6
    Led Interior Lights, HID Headlights and Fogs, Bed Lights, Bak Roll-X Tonneau, 2 10" Subwoofers, Electronic Pop-n-Lock Tailgate lock
    How much did you end up paying?

  5. Jan 7, 2014 at 7:12 PM
    #5
    Newlife

    Newlife Well-Known Member

    Joined:
    Jun 22, 2013
    Member:
    #106845
    Messages:
    8,541
    Gender:
    Male
    First Name:
    Adam
    Knoxville TN
    Vehicle:
    2020 t4r orp
    Bone f’n stock for now
    I've got 2 6" blitzpros on their way and may do this

  6. Jan 8, 2014 at 3:41 AM
    #6
    scottw1

    scottw1 Well-Known Member

    Joined:
    Jan 7, 2013
    Member:
    #94652
    Messages:
    384
    Gender:
    Male
    First Name:
    Scott
    Norfolk, VA
    Vehicle:
    2010 SR5 Tacoma 4x4
    Lighted 4wd dial, Sirus XM radio
    Nice write-up

  7. Jan 8, 2014 at 11:27 AM
    #7
    Chas of MRT

    Chas of MRT Total Automotive Performance

    Joined:
    Aug 16, 2011
    Member:
    #61803
    Messages:
    966
    Gender:
    Male
    First Name:
    Chas
    Las Vegas, NV
    Vehicle:
    06 Tundra V8
    Airaid Bilstein
    Awesome write up TacoDaddy! Those look great installed and probably will outlast most trucks lol

    Thanks for taking the time to do this.

    Anyone looking for Rigid, Vision X, KC or other name brand lights hit me up :)

  8. Jan 9, 2014 at 8:26 PM
    #8
    TacoDaddy

    TacoDaddy [OP] Just call me Daddy

    Joined:
    Dec 10, 2011
    Member:
    #68519
    Messages:
    501
    Gender:
    Male
    First Name:
    Brian
    Costa Mesa, CA
    Vehicle:
    '11 Sport
    *Edited* Sorry for not posting those lol

  9. Jan 9, 2014 at 8:34 PM
    #9
    RacecarGuy

    RacecarGuy Well-Known Member

    Joined:
    Jul 12, 2012
    Member:
    #82501
    Messages:
    818
    Gender:
    Male
    Houston, Texas
    Vehicle:
    '12 DCSB OR
    Pelfreybilt front and rear HC bumper w/swingout, BAMF LCA Skids, BAMF Diff skid, Pelfreybilt IFS and Trans skid, RCI gas tank skid, Bronze SCS F-5's, Icon RR's ext travel, Dakar leafs, Archive Garage shackle flip
    Wow, those are bright. Seriously considering doing this mod.

  10. Jan 9, 2014 at 8:40 PM
    #10
    Rubio92

    Rubio92 Well-Known Member

    Joined:
    Oct 14, 2012
    Member:
    #88981
    Messages:
    556
    Gender:
    Male
    First Name:
    Josh
    Bakersfield, CA
    Vehicle:
    '04 Prerunner IMPULSE RED
    Projector Retrofit in sig LED's galore inside and out Painted black stock alloys
    Ha...that's a bold statment! I mean...it's a Toyota...:D

  11. Jan 9, 2014 at 8:51 PM
    #11
    TacomaWill

    TacomaWill Well-Known Member

    Joined:
    Aug 19, 2013
    Member:
    #110803
    Messages:
    241
    Gender:
    Male
    First Name:
    Will
    Columbus, GA
    Vehicle:
    05 TRD OffRoad 4x4 SR5 Tacoma
    Fox 2.0 Coilover's, Light Racing UCA's, Icon VS 2.0 rear shocks, Body Armor front bumper, SB XRC10 Winch w/ Dominion Offroad Technora Synthetic Rope, JDM Cyrstal Black Headlights, 6000k HID's, Four Pro Comp Lights, TRD Sport Hood, Flowmaster 40, 5% tint on rear, 15% on front, +++++ more
    Subd for when I install my duallys on the roof rack facing backwards

  12. Jan 10, 2014 at 6:22 PM
    #12
    2006KJ

    2006KJ Well-Known Member

    Joined:
    Jun 1, 2012
    Member:
    #79907
    Messages:
    701
    Gender:
    Male
    thats awesome!!! thanks for posting.. i'll be doing this mod. i think i'll do the flush mount ones.

    Last edited: Jan 10, 2014
  13. Jan 10, 2014 at 6:35 PM
    #13
    Agent Smith

    Agent Smith Always outnumbered, never outgunned

    Joined:
    Oct 4, 2010
    Member:
    #44197
    Messages:
    1,020
    Gender:
    Male
    Vehicle:
    05 TRD Offroad Ivan Stewart Edition
    Toytec lift,FJ Anthracite wheels wrapped in BFG A/T 265/75/16's,WAAG Brush Guard, IPF 868's,sleeved fog lights
    +1 rep for the detailed write up and the $$$ you spent!

  14. Jan 10, 2014 at 6:49 PM
    #14
    TacoDaddy

    TacoDaddy [OP] Just call me Daddy

    Joined:
    Dec 10, 2011
    Member:
    #68519
    Messages:
    501
    Gender:
    Male
    First Name:
    Brian
    Costa Mesa, CA
    Vehicle:
    '11 Sport
    Thanks broski

  15. Jan 10, 2014 at 6:51 PM
    #15
    Agent Smith

    Agent Smith Always outnumbered, never outgunned

    Joined:
    Oct 4, 2010
    Member:
    #44197
    Messages:
    1,020
    Gender:
    Male
    Vehicle:
    05 TRD Offroad Ivan Stewart Edition
    Toytec lift,FJ Anthracite wheels wrapped in BFG A/T 265/75/16's,WAAG Brush Guard, IPF 868's,sleeved fog lights
    Anytime broseph!

  16. Jan 10, 2014 at 8:34 PM
    #16
    ramonortiz55

    ramonortiz55 Not A Well-Known Member

    Joined:
    Nov 28, 2012
    Member:
    #92013
    Messages:
    34,105
    Gender:
    Male
    First Name:
    Ramon
    Texas
    Vehicle:
    2015 DCSB Offroad 4x4
    stock

    Nice T.I.T.

  17. Jan 10, 2014 at 11:01 PM
    #17
    TacoDaddy

    TacoDaddy [OP] Just call me Daddy

    Joined:
    Dec 10, 2011
    Member:
    #68519
    Messages:
    501
    Gender:
    Male
    First Name:
    Brian
    Costa Mesa, CA
    Vehicle:
    '11 Sport
    Tit? Singular? I don't follow

  18. Jan 11, 2014 at 10:37 AM
    #18
    Agent Smith

    Agent Smith Always outnumbered, never outgunned

    Joined:
    Oct 4, 2010
    Member:
    #44197
    Messages:
    1,020
    Gender:
    Male
    Vehicle:
    05 TRD Offroad Ivan Stewart Edition
    Toytec lift,FJ Anthracite wheels wrapped in BFG A/T 265/75/16's,WAAG Brush Guard, IPF 868's,sleeved fog lights
    Pretty sure he meant T.I.T.S. (Tacoma in the snow) for your sig pic. Unless you have a uni-tit, and he saw it and liked it.

  19. Jan 11, 2014 at 6:19 PM
    #19
    ramonortiz55

    ramonortiz55 Not A Well-Known Member

    Joined:
    Nov 28, 2012
    Member:
    #92013
    Messages:
    34,105
    Gender:
    Male
    First Name:
    Ramon
    Texas
    Vehicle:
    2015 DCSB Offroad 4x4
    stock
    Yup.

  20. Jan 13, 2014 at 7:40 AM
    #20
    TacoDaddy

    TacoDaddy [OP] Just call me Daddy

    Joined:
    Dec 10, 2011
    Member:
    #68519
    Messages:
    501
    Gender:
    Male
    First Name:
    Brian
    Costa Mesa, CA
    Vehicle:
    '11 Sport
    Muchos gracias
