Sakibomb's Expedition Rig

Discussion in '3rd Gen. Builds (2016+)' started by sakibomb, Aug 16, 2016.

  1. Aug 16, 2016 at 7:09 PM
    #1
    sakibomb

    sakibomb [OP] Well-Known Member

    Joined:
    Mar 17, 2016
    Member:
    #181529
    Messages:
    167
    Gender:
    Male
    First Name:
    Kevin
    DFW Texas
    Vehicle:
    2016 TRDOR DCSB 6MT
    Dual Batteries Blue Sea Fuse Panel
    Most Recent Picture

    Current Mods

    Bicycle front fork mount
    Dual Batteries
    Custom shift knob
    Bedside and tailgate decals

    G-TEK Fab Intake kit

    Future Mods
    High clearance rear bumper w/swingout
    Front bumper
    Sliders
    OBA
    Bed rack

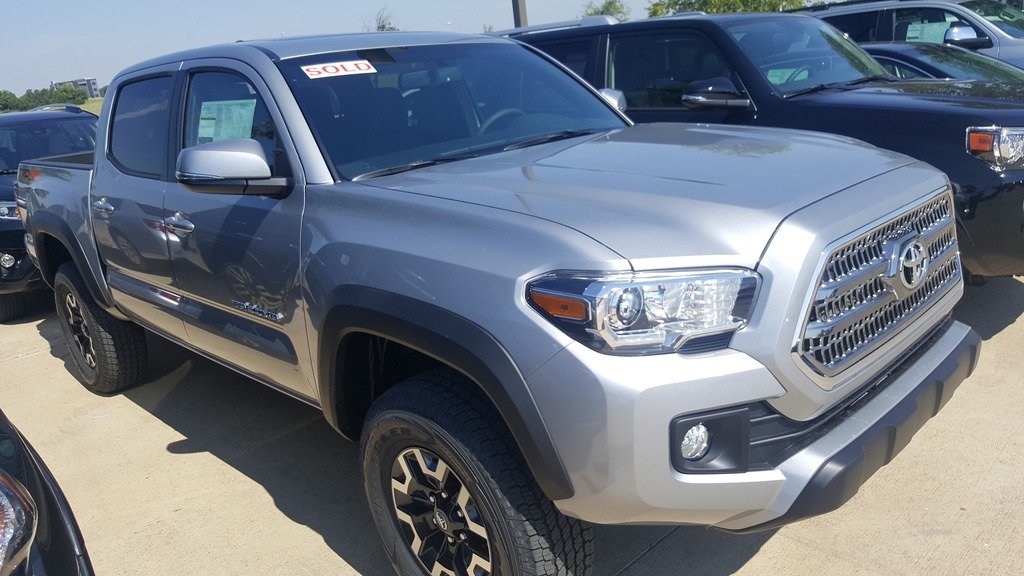

    Always been a full-size domestic truck owner but decided to dive in (even after researching on TW) and order my 2016 DCSB TRDOR 6MT in March with a 4-6 month wait. Wow that was tough!!! Especially after joining TW.

    Then just before the 4th of July I got an e-mail

    Because.. America

    Started off mounting a bicycle fork holder on the front bed rail

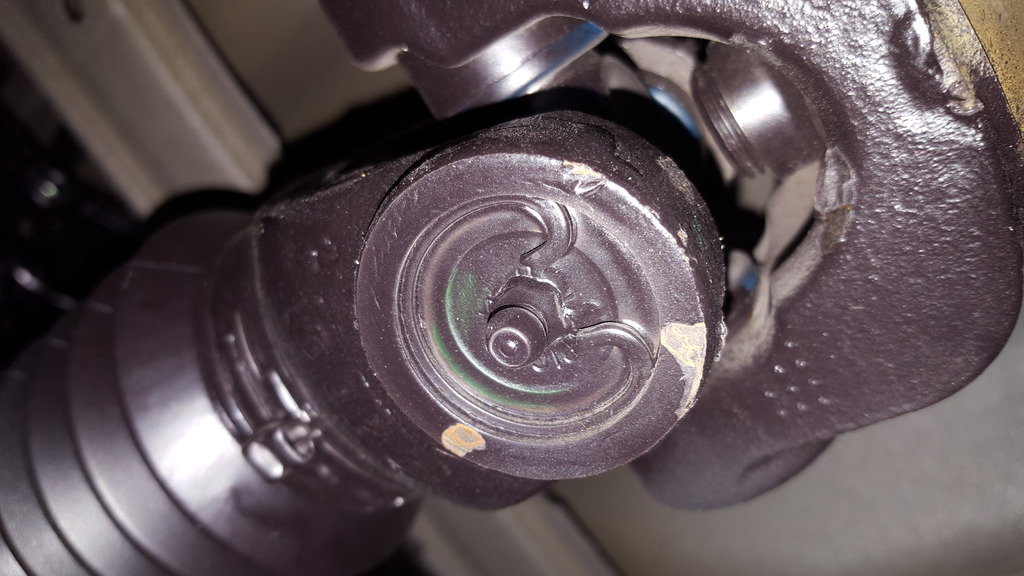

    Actually, first thing I did was grease my u-joints. Specifically asked the dealer to check this...

    Each took 6-10 pumps :frusty: Very Frustrating... Anyways back on track

    Next mod is my dual battery setup I had installed in my other truck. Powered the camper for a 3 week roadtrip west from Dallas to the grand canyon, SLC, and snowboarding at Angelfire NM.

    More to follow..........

    Last edited: Apr 24, 2020
    Spare Parts likes this.
  2. Aug 16, 2016 at 7:41 PM
    #2
    sakibomb

    sakibomb [OP] Well-Known Member

    Joined:
    Mar 17, 2016
    Member:
    #181529
    Messages:
    167
    Gender:
    Male
    First Name:
    Kevin
    DFW Texas
    Vehicle:
    2016 TRDOR DCSB 6MT
    Dual Batteries Blue Sea Fuse Panel

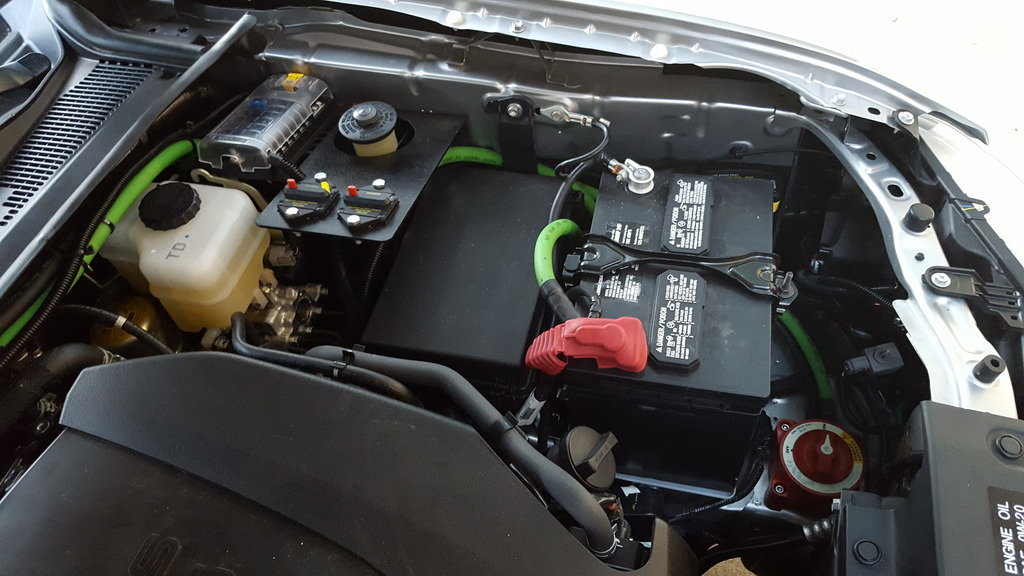

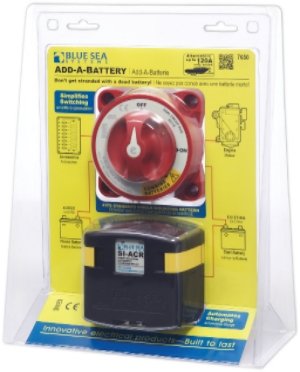

    Thought the isolator would work, but it is only 95A and would also require me cutting into my factory wiring harness. Decided to go with Blue Sea and after contemplating how "cool" it would be to mount the in-cab switch for the 7622 ML-ACR, I went with the add-a-battery kit
    If I need to combine the batteries (dead start battery or extra juice for winching) I will most likely be out of the truck and I'm ok with popping the hood and turning the switch.

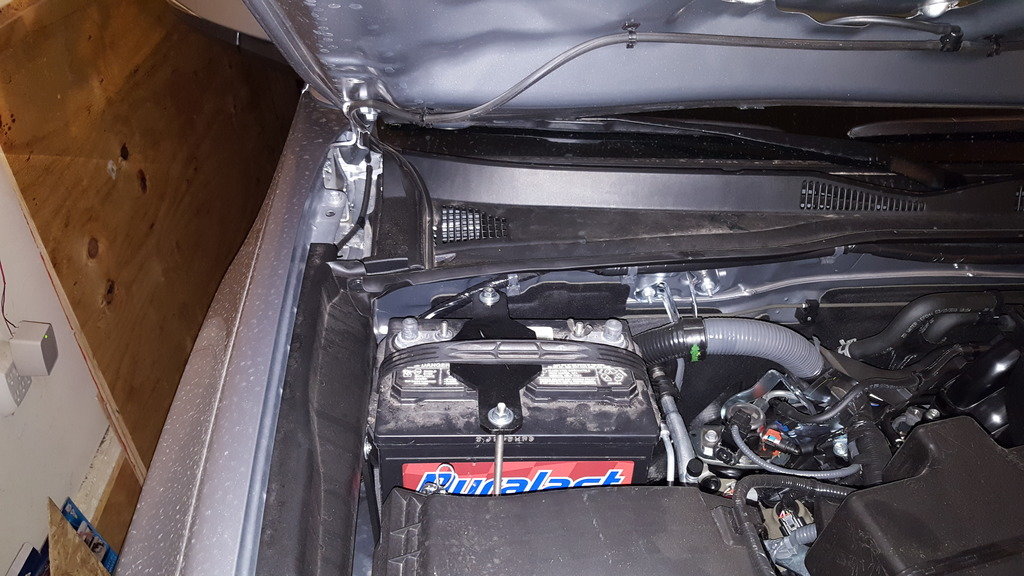

    Mounted both close to the starting battery where I could gain access to the backside (for bolt/nut mounting) by removing the drivers side wheel liner.

    Going with a light green secondary color theme, so I HAD to spend some extra $$ on these cables. Decided to go 1/0, overkill?? Sure... don't care. From Ebay but my color and high strand count.

    Offgrid Engineering aluminum dual battery tray (with slight modification due to the large deep cycle I had. Purchased longer stainless steel rods and notched the hold down bracket.

    Pirhett, Toynado and _RJP_ like this.
  3. Aug 16, 2016 at 7:42 PM
    #3
    ramonortiz55

    ramonortiz55 Not A Well-Known Member

    Joined:
    Nov 28, 2012
    Member:
    #92013
    Messages:
    34,137
    Gender:
    Male
    First Name:
    Ramon
    Texas
    Vehicle:
    2015 DCSB Offroad 4x4
    stock
  4. Aug 17, 2016 at 6:07 AM
    #4
    sakibomb

    sakibomb [OP] Well-Known Member

    Joined:
    Mar 17, 2016
    Member:
    #181529
    Messages:
    167
    Gender:
    Male
    First Name:
    Kevin
    DFW Texas
    Vehicle:
    2016 TRDOR DCSB 6MT
    Dual Batteries Blue Sea Fuse Panel
    Went back and forth with the wiring and I'll post up my final schematic for those interested.

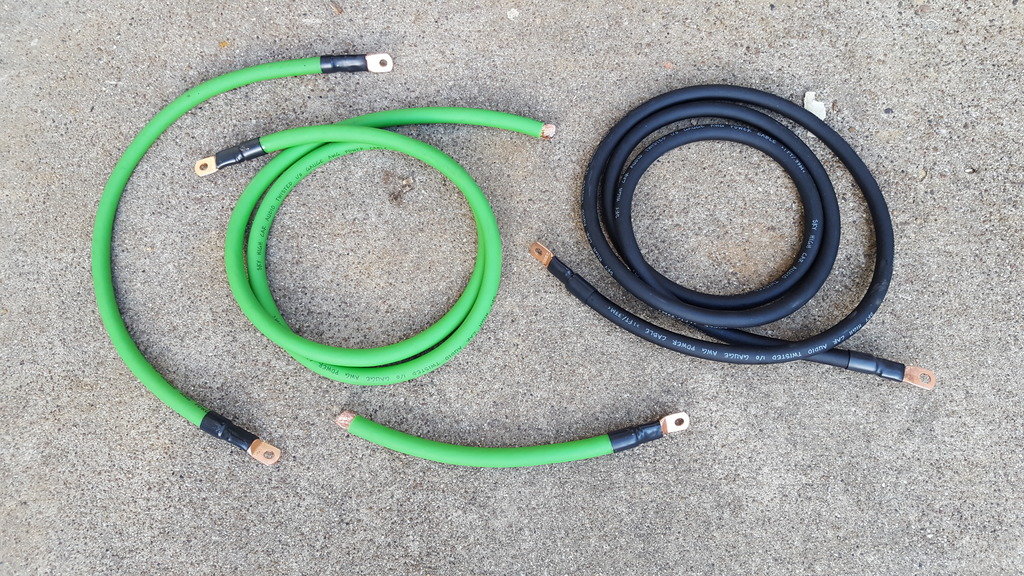

    Started cutting wires and crimping terminals

    My understanding from other threads is the start isolation is more applicable to boats (what this kit is designed for) and therefore I bypassed the SI function and connected cables and ground

    Although the Add-a-Battery kit is designed for 120A alt (mine is 130A), the relay can take intermittent loading of 210A (5 minutes)

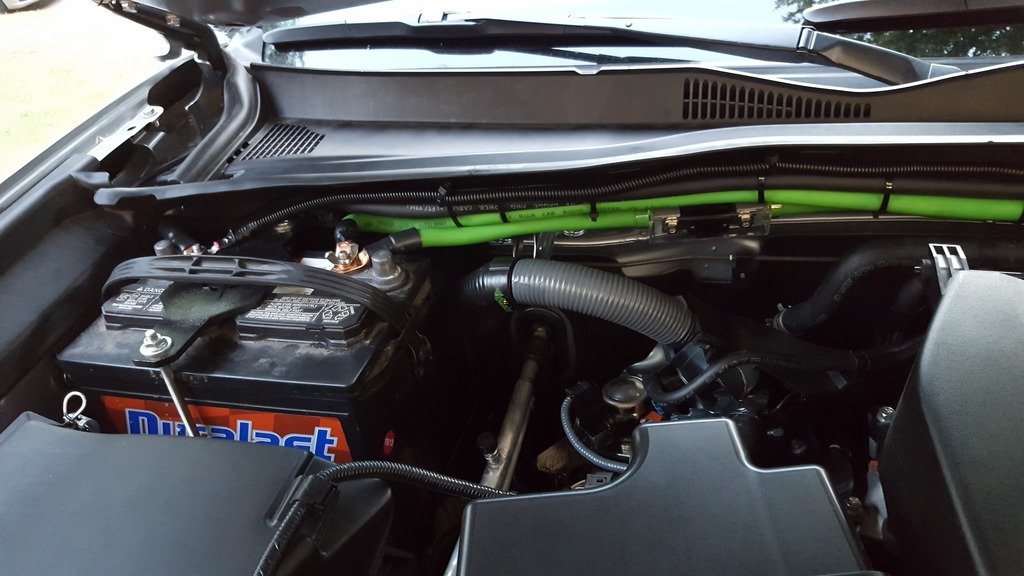

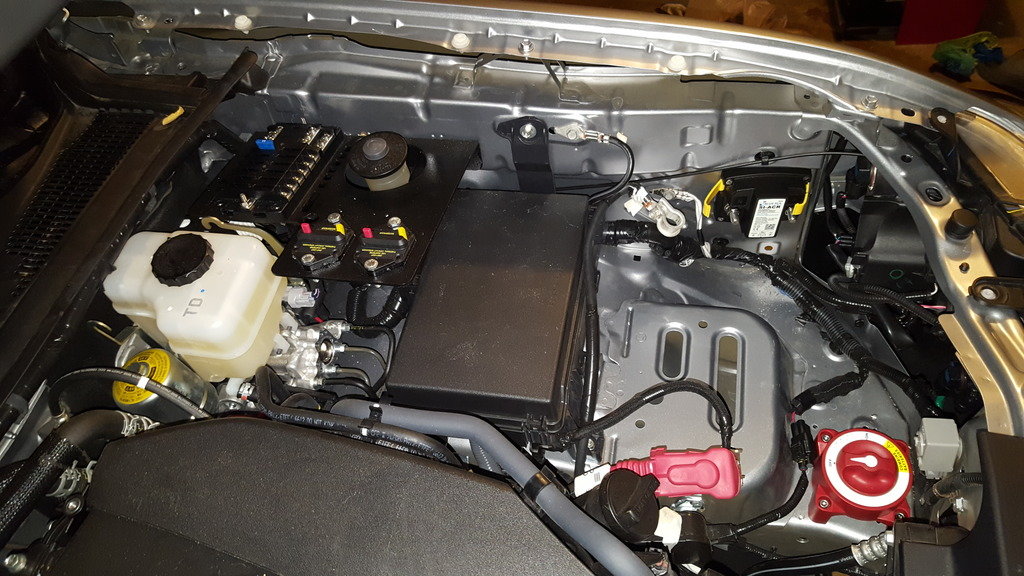

    Mounted the fuse block panel after paint and installed the cb's (square holes needed opened up to fit the circuit breakers)

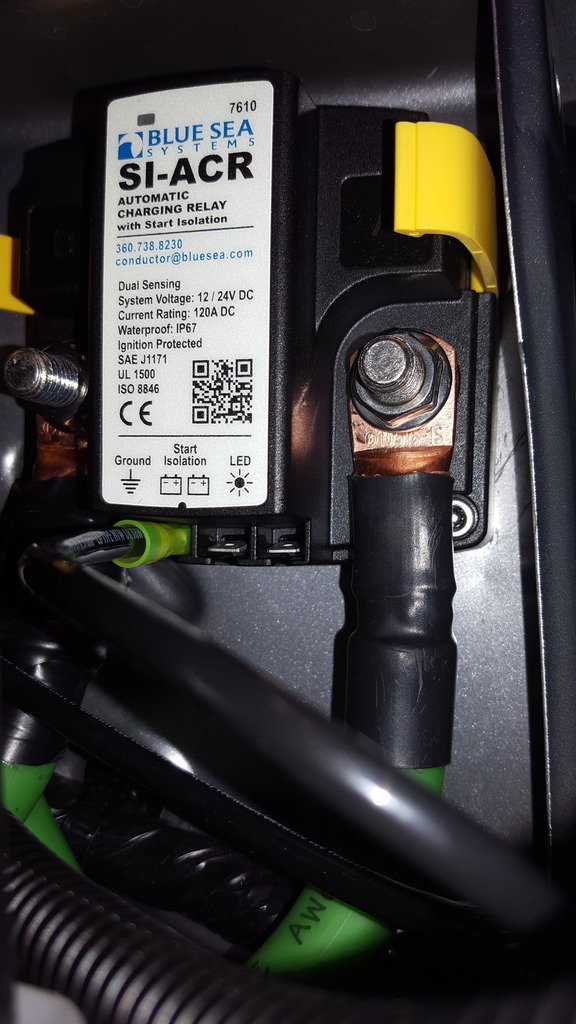

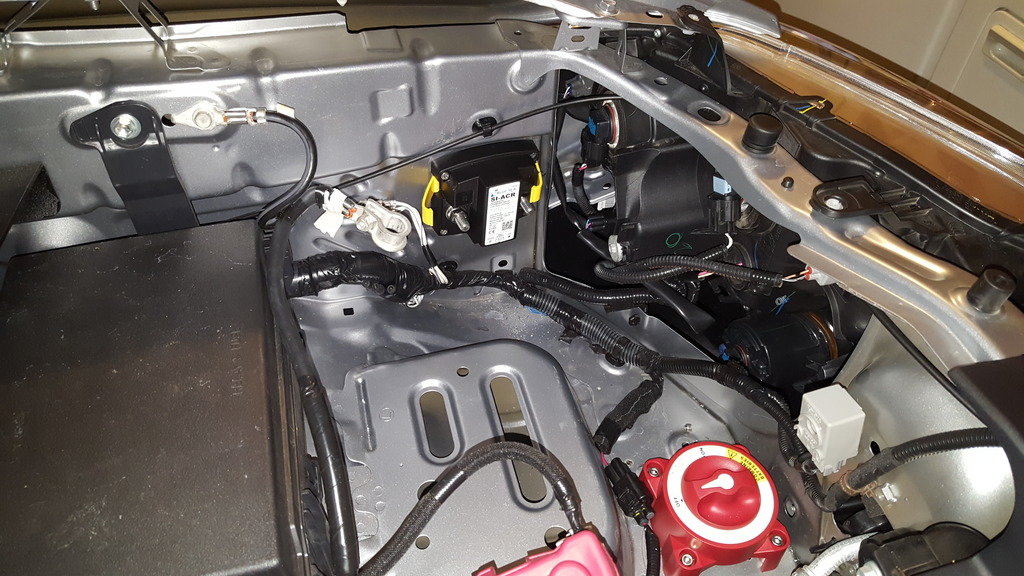

    Routed the cables and re-installed the start battery

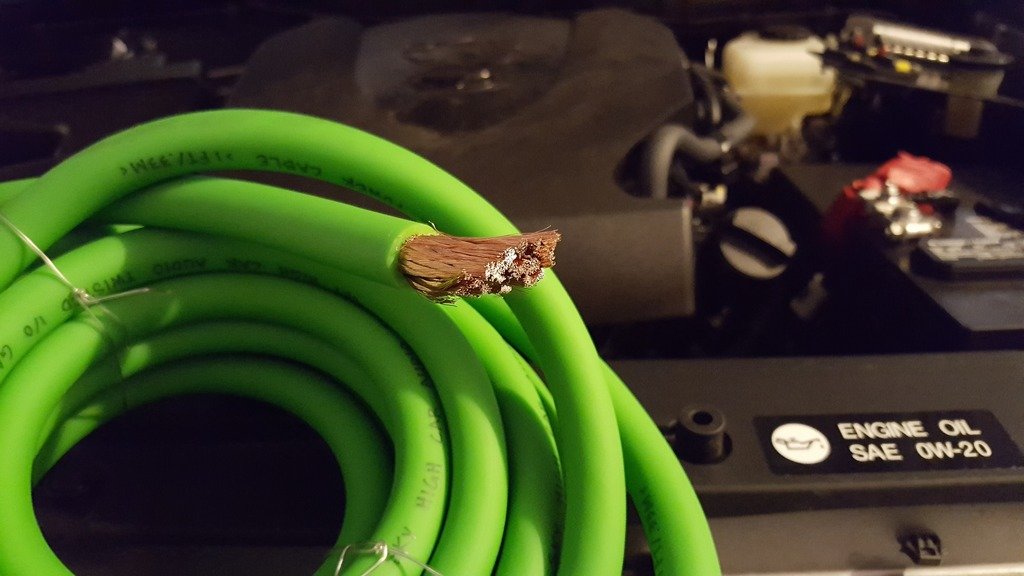

    1/0 cables came with a 300A ANL fuse w/ holder I mounted on the firewall next to the Aux battery

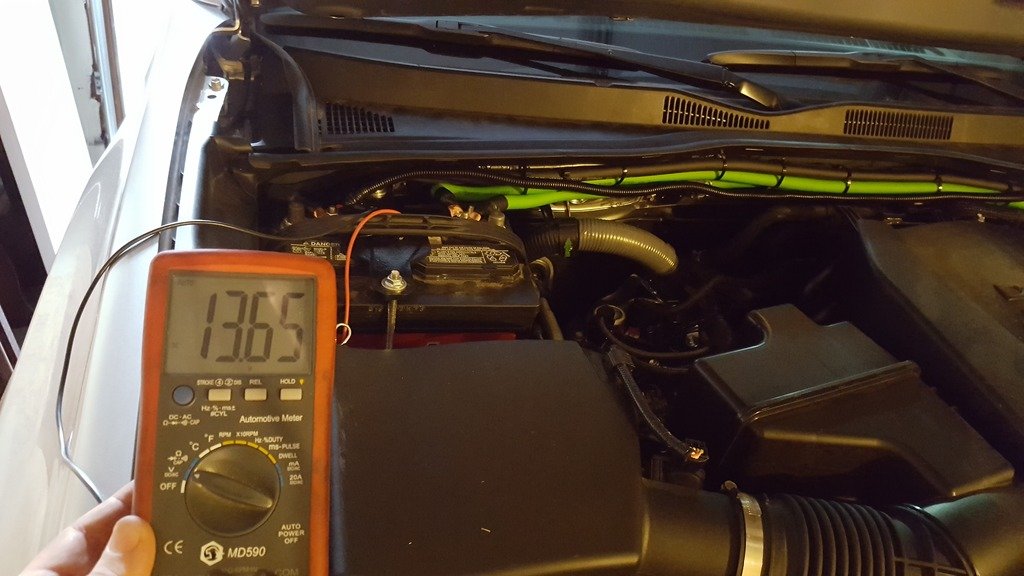

    Fired up the truck and confirmed success!

    Pirhett, Toynado and _RJP_ like this.
  5. Aug 18, 2016 at 8:00 AM
    #5
    _RJP_

    _RJP_ Tree Killer

    Joined:
    Jun 10, 2016
    Member:
    #189270
    Messages:
    23
    Gender:
    Male
    OR
    Vehicle:
    '16 Tacoma OR
    I'll be doing this to mine as well. Thanks for the good write up.

  6. Aug 18, 2016 at 9:13 AM
    #6
    sakibomb

    sakibomb [OP] Well-Known Member

    Joined:
    Mar 17, 2016
    Member:
    #181529
    Messages:
    167
    Gender:
    Male
    First Name:
    Kevin
    DFW Texas
    Vehicle:
    2016 TRDOR DCSB 6MT
    Dual Batteries Blue Sea Fuse Panel
    I'll work on the schematic and post that for reference as well. :thumbsup:

    Toynado and _RJP_ like this.
  7. Aug 18, 2016 at 9:28 AM
    #7
    sakibomb

    sakibomb [OP] Well-Known Member

    Joined:
    Mar 17, 2016
    Member:
    #181529
    Messages:
    167
    Gender:
    Male
    First Name:
    Kevin
    DFW Texas
    Vehicle:
    2016 TRDOR DCSB 6MT
    Dual Batteries Blue Sea Fuse Panel

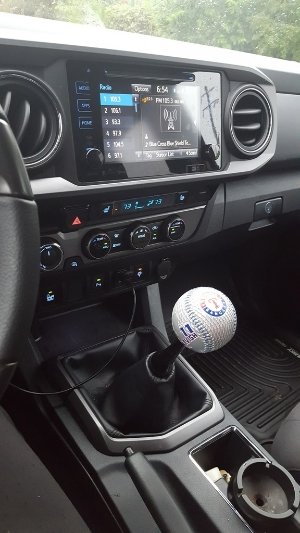

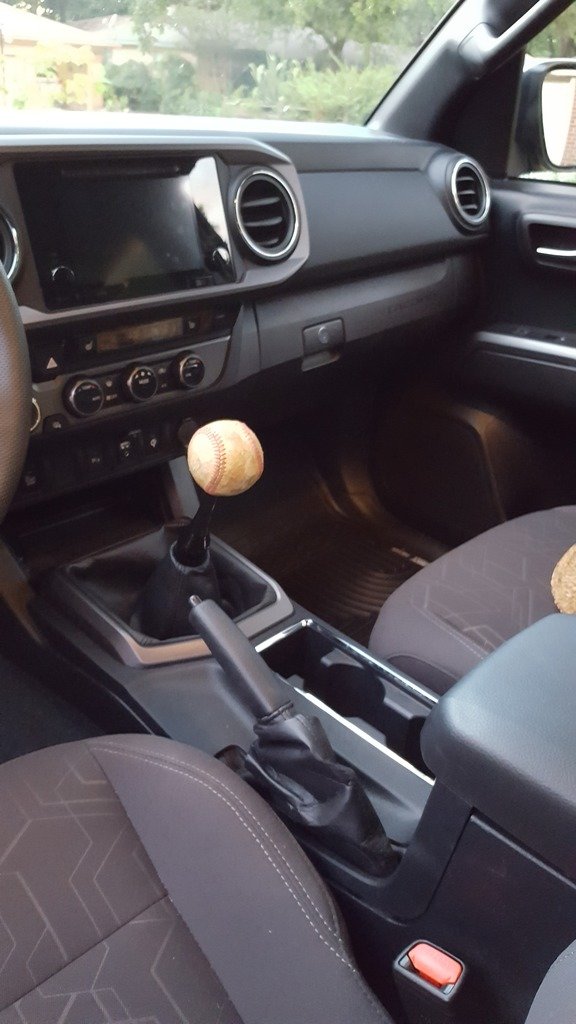

    Was looking at buying a TRD shift knob, but saw a thread on custom shift knobs which got me thinking what I could do that was different.

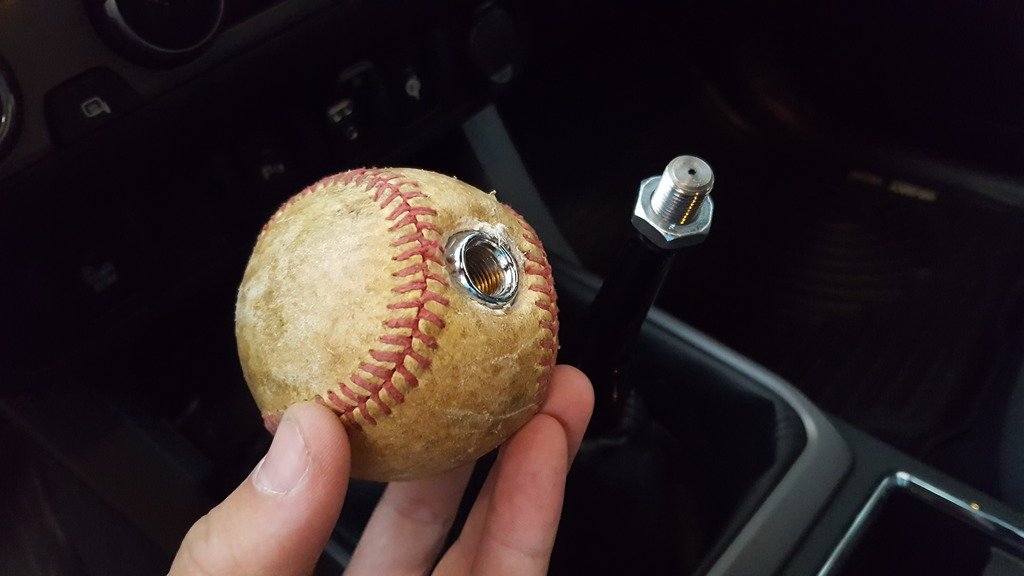

    I grabbed a used baseball and with a 5/8" wood bit, drilled into the ball and pressed in a M12 x 1.25 lug nut (long).

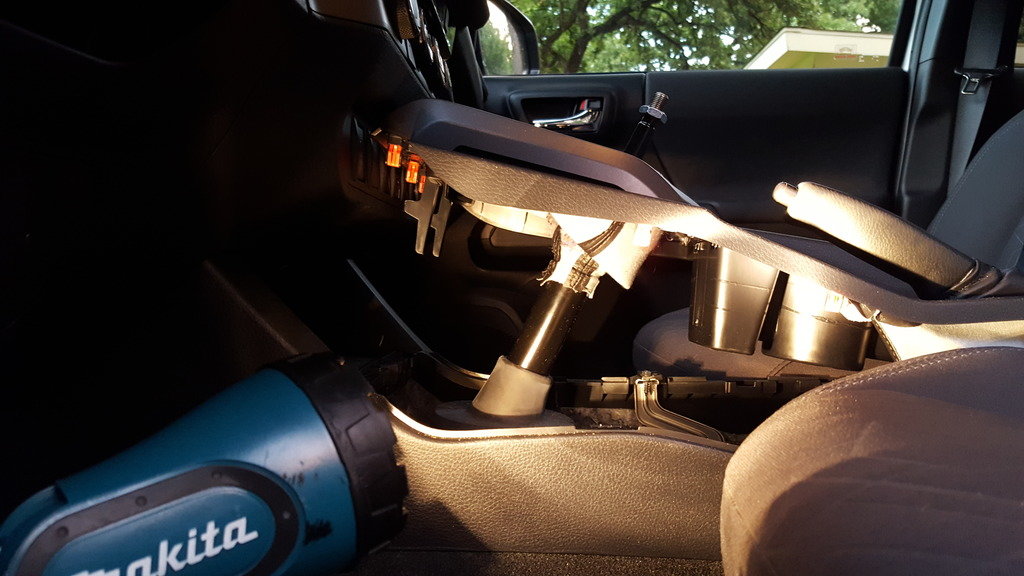

    Removed the console panel to access the shift boot. Cut the zip tie holding the chrome/plastic piece that locks to the stock shift knob. Slid the boot down and re-zip tied lower on the shaft and reinstalled the console.

    Ordered some custom baseballs, and along with the lug nuts and jam nuts, am still under $50. Here is the prototype, will probably re-orient the hole on the next ones.

    uurx, sloppybones and Spare Parts like this.
  8. Aug 19, 2016 at 7:03 PM
    #8
    Gallowbraid

    Gallowbraid Well-Known Member

    Joined:
    Nov 12, 2015
    Member:
    #169439
    Messages:
    63
    Gender:
    Male
    Where did you relocate the lines under your second battery? I believe it's a brake booster that's there...

  9. Aug 22, 2016 at 5:39 AM
    #9
    sakibomb

    sakibomb [OP] Well-Known Member

    Joined:
    Mar 17, 2016
    Member:
    #181529
    Messages:
    167
    Gender:
    Male
    First Name:
    Kevin
    DFW Texas
    Vehicle:
    2016 TRDOR DCSB 6MT
    Dual Batteries Blue Sea Fuse Panel
    Looks like you have a sport. Offgrid4x4's website lists fitment for the 3rd gen with ATRAC (TRD Offroad). That spot was empty for me.

    This is from offgrid4x4's website

  10. Aug 22, 2016 at 7:54 AM
    #10
    sakibomb

    sakibomb [OP] Well-Known Member

    Joined:
    Mar 17, 2016
    Member:
    #181529
    Messages:
    167
    Gender:
    Male
    First Name:
    Kevin
    DFW Texas
    Vehicle:
    2016 TRDOR DCSB 6MT
    Dual Batteries Blue Sea Fuse Panel

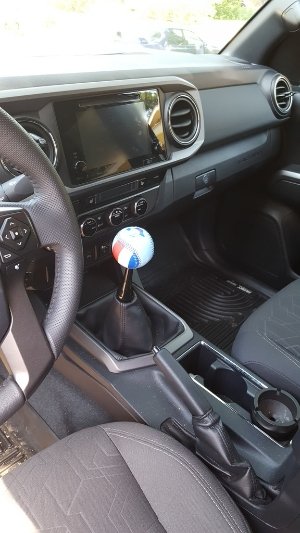

    Finished up the other shift knobs
    6f51f397-5fcb-4397-8d63-b9267f45a484_7d72db7808b2338dc3433b5eebd7dd4d4537ff23.jpg d70163d2-b5c7-46ed-877a-8d29771b67c2_c9090ee70ce967328ddda5137b94ff067dc76e8c.jpg db924011-a689-4f87-9383-7855162b9b84_498245316b866d6a7fdfdb71c8d90c13b0c559de.jpg

    Plus got my new bedside decals and tailgate letters

    Pirhett, sloppybones and _RJP_ like this.
  11. Aug 22, 2016 at 9:50 AM
    #11
    _RJP_

    _RJP_ Tree Killer

    Joined:
    Jun 10, 2016
    Member:
    #189270
    Messages:
    23
    Gender:
    Male
    OR
    Vehicle:
    '16 Tacoma OR
    Nice Battle of Gonzales decal.

  12. Aug 25, 2016 at 12:29 PM
    #12
    sakibomb

    sakibomb [OP] Well-Known Member

    Joined:
    Mar 17, 2016
    Member:
    #181529
    Messages:
    167
    Gender:
    Male
    First Name:
    Kevin
    DFW Texas
    Vehicle:
    2016 TRDOR DCSB 6MT
    Dual Batteries Blue Sea Fuse Panel
    Thanks :thumbsup: Almost went with Teenage Mutant Ninja Turtles

  13. Oct 2, 2016 at 6:18 PM
    #13
    sakibomb

    sakibomb [OP] Well-Known Member

    Joined:
    Mar 17, 2016
    Member:
    #181529
    Messages:
    167
    Gender:
    Male
    First Name:
    Kevin
    DFW Texas
    Vehicle:
    2016 TRDOR DCSB 6MT
    Dual Batteries Blue Sea Fuse Panel

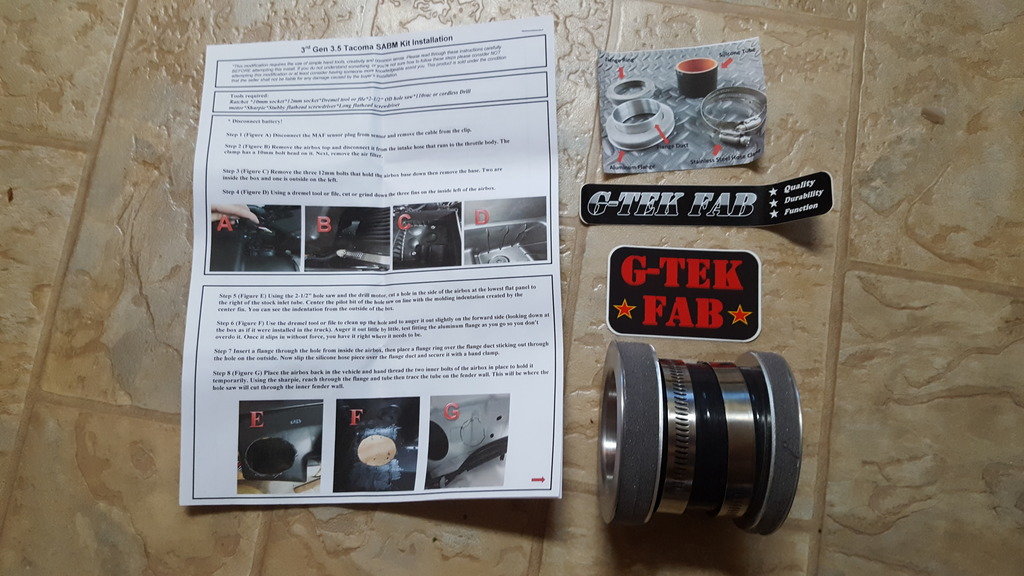

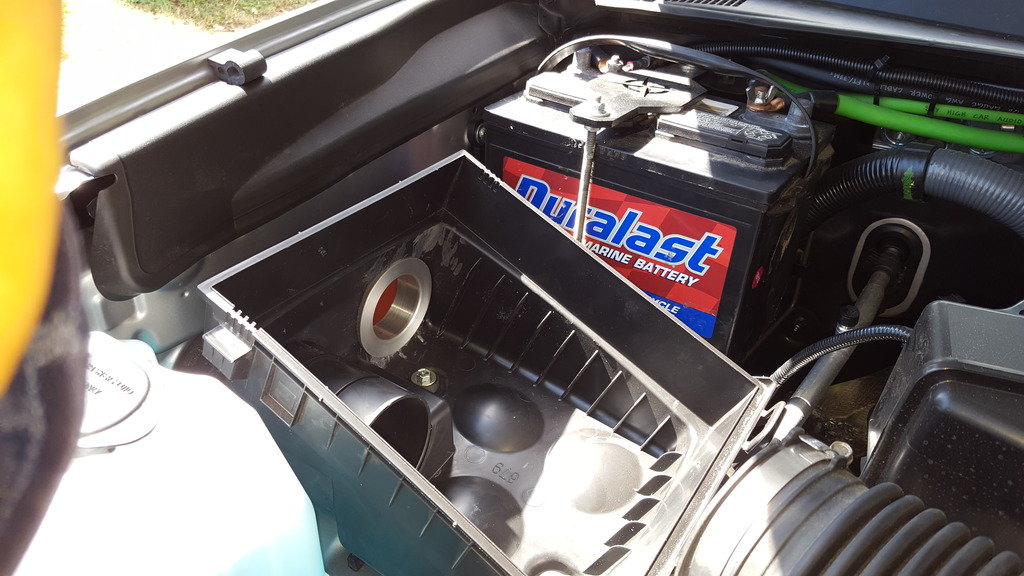

    Was picked to test a prototype G-TEK Fab Intake kit.


    Installed

    Initial impression: Increase in induction noise, but less than I would think from an aftermarket intake (past experience in other vehicles, not tacoma though). Seemingly improved throttle response and low torque.
    -This may be more noticeable to me as I have 6MT. Others may notice as well but there is a slight delay in power delivery (computer control) that AT people may not notice since upshifts are under constant acceleration. This is improved and even if it just sounds like she's working harder, it is more enjoyable.

    No MPG report until i can do my daily commute (Fuelly in my sig is from day 1 and pretty constant at 19 so we can all see). But as for this tank, I have been getting on the throttle and enjoying the music it makes up high.

    Pirhett likes this.
  14. Oct 10, 2016 at 10:20 AM
    #14
    BrandonTRD

    BrandonTRD Well-Known Member

    Joined:
    Apr 21, 2014
    Member:
    #128175
    Messages:
    148
    Gender:
    Male
    Vehicle:
    2016 TRD Offroad
    Icon Stage 5 Kit
    Could you put a link for the front fork holder mod you did? Just curious on pricing and if you like it. I am torn between doing this or just grabbing a bike pad.

  15. Oct 10, 2016 at 12:47 PM
    #15
    sakibomb

    sakibomb [OP] Well-Known Member

    Joined:
    Mar 17, 2016
    Member:
    #181529
    Messages:
    167
    Gender:
    Male
    First Name:
    Kevin
    DFW Texas
    Vehicle:
    2016 TRDOR DCSB 6MT
    Dual Batteries Blue Sea Fuse Panel
    I added an Amazon link to the part I purchased. Didn't take pictures when installing, but very easy to install since the front rail is removable. I like it and would recommend it, but you can do just fine without. I haven't locked it, but nice to know I can throw a padlock on it. Have had to run to a store before and hope no one walks off with it.

    BrandonTRD likes this.
  16. Oct 10, 2016 at 5:54 PM
    #16
    warmitupchriss

    warmitupchriss Well-Known Member

    Joined:
    Mar 13, 2016
    Member:
    #181108
    Messages:
    54
    Gender:
    Male
    Orange County, California
    Vehicle:
    2016 Tacoma
    Any idea of which swingout bumper you were interested in?

  17. Oct 11, 2016 at 5:44 AM
    #17
    sakibomb

    sakibomb [OP] Well-Known Member

    Joined:
    Mar 17, 2016
    Member:
    #181529
    Messages:
    167
    Gender:
    Male
    First Name:
    Kevin
    DFW Texas
    Vehicle:
    2016 TRDOR DCSB 6MT
    Dual Batteries Blue Sea Fuse Panel
    I'm leaning towards building one. If I was to go with a vendor I would probably go Pelfreybilt high clearance then add a swingout (not a standard option).

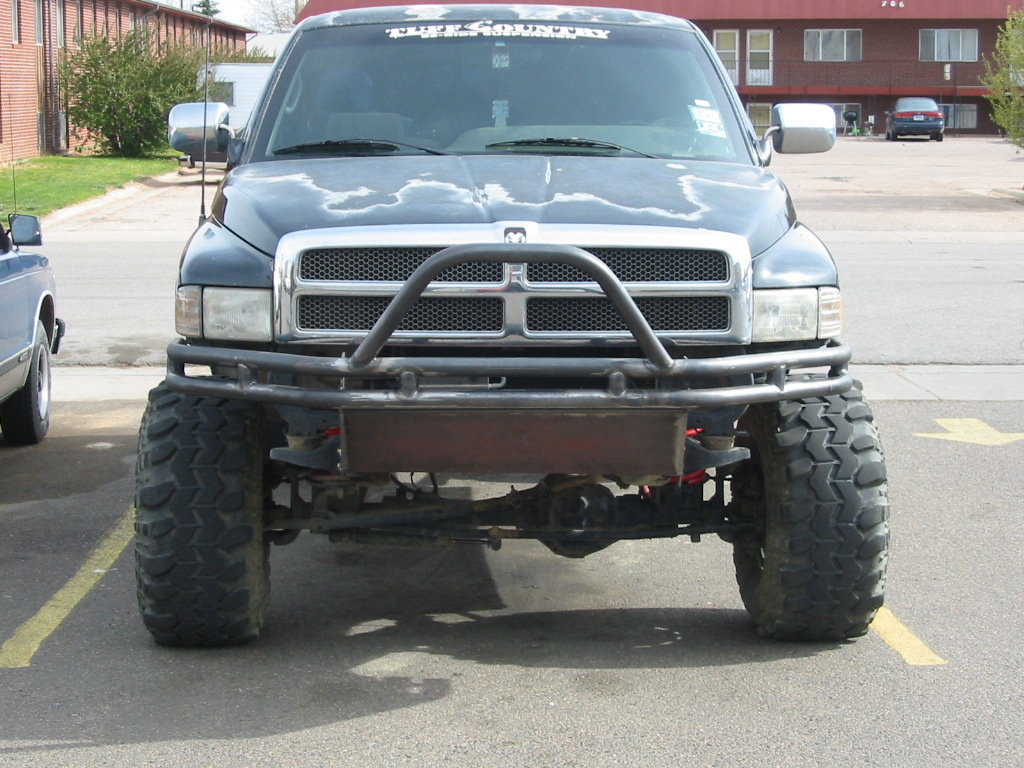

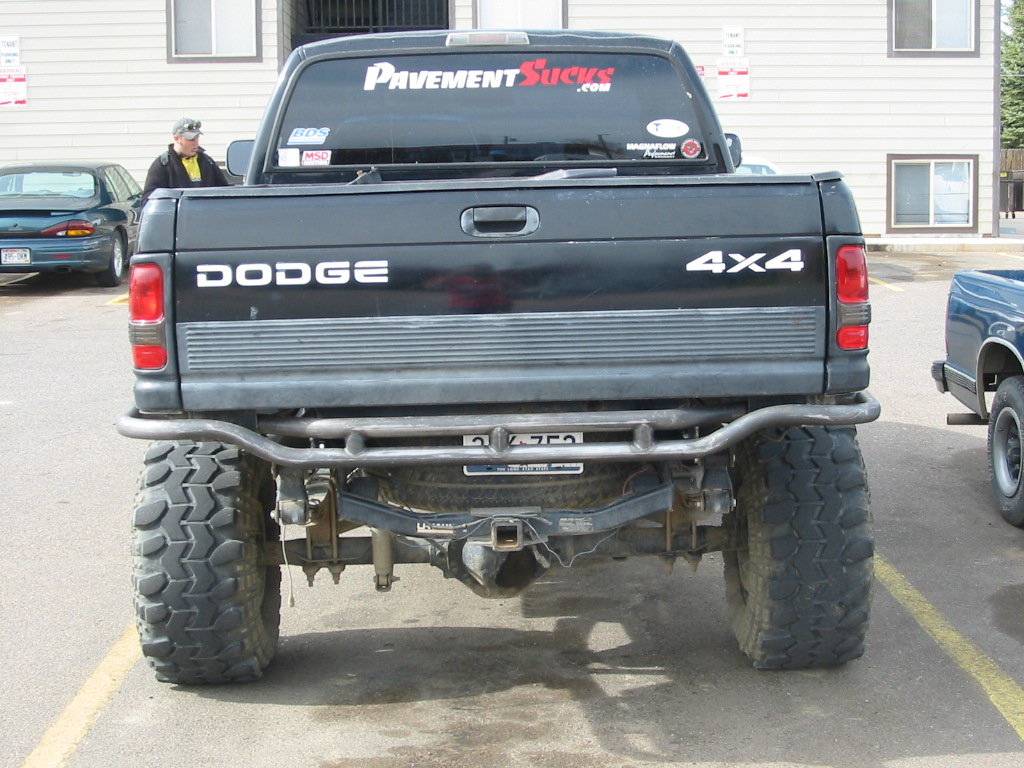

    I built these while at WYOTECH for a previous truck



  18. Oct 25, 2016 at 5:46 AM
    #18
    sakibomb

    sakibomb [OP] Well-Known Member

    Joined:
    Mar 17, 2016
    Member:
    #181529
    Messages:
    167
    Gender:
    Male
    First Name:
    Kevin
    DFW Texas
    Vehicle:
    2016 TRDOR DCSB 6MT
    Dual Batteries Blue Sea Fuse Panel

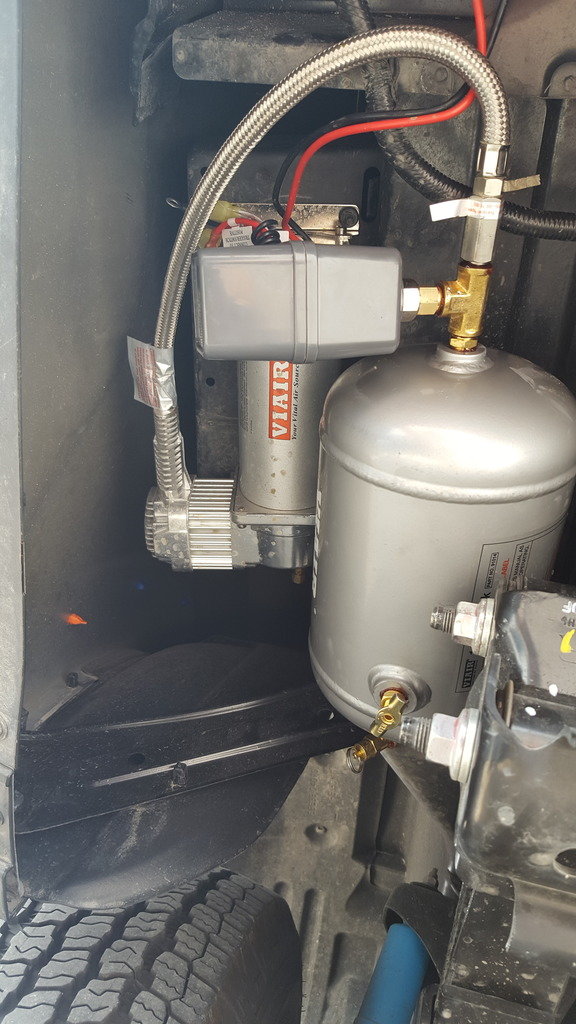

    After going back and forth with how to deal with the 2.5 gal tank, I bought a 1 gallon tank which made choosing a mounting location easier

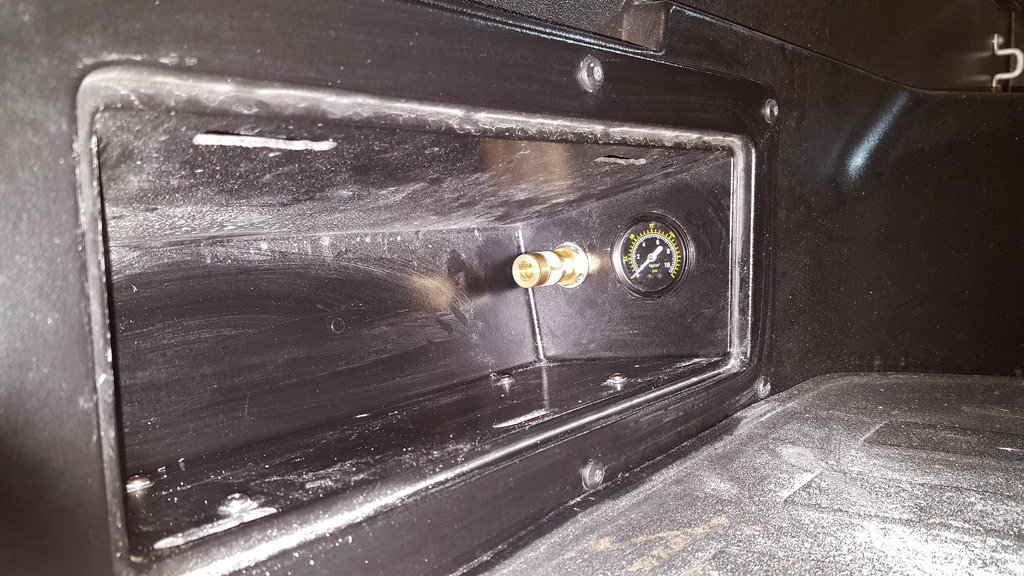

    Gauge and quick connect mounted in the cubby

    Next up is wiring to my AOB switch and a splash guard to protect the components from road debris

    Pirhett likes this.
  19. Oct 26, 2016 at 10:12 PM
    #19
    Pirhett

    Pirhett Instagram @pirhett_ship

    Joined:
    Jan 29, 2015
    Member:
    #147498
    Messages:
    5,227
    Gender:
    Male
    First Name:
    Rhett
    San Diego
    Vehicle:
    2014 TRD Sport 4x4 DCLB MGM
    Stock...
    Awesome Ideas! Glad to see some effort went into them and can't wait for when you throw 35s, rtt, front and rear bumper on :stirthepot::stirthepot::stirthepot::stirthepot:

  20. Nov 14, 2016 at 8:04 AM
    #20
    Mbridges

    Mbridges Member

    Joined:
    Oct 13, 2014
    Member:
    #140298
    Messages:
    5
    Gender:
    Male
    Running Springs, CA
    Vehicle:
    2017 Tacoma Double Cab SB TRD Off Road quicksand

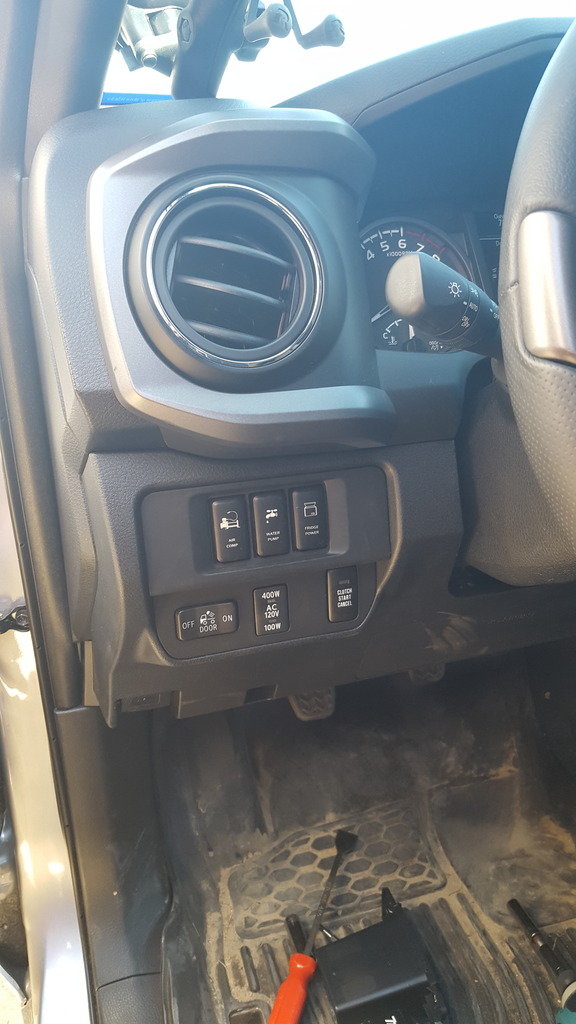

    where did you get the switch panel? It looks sweet and factory.
