SATOSHI MOD --- 1st gen. write-up (lots of pics)

Discussion in '1st Gen. Tacomas (1995-2004)' started by tacomarotto, May 31, 2012.

  1. May 31, 2012 at 12:00 AM
    #1
    tacomarotto

    tacomarotto [OP] "Change is inevitable, but growth is optional."

    Joined:
    Jan 27, 2010
    Member:
    #30187
    Messages:
    3,657
    Gender:
    Male
    First Name:
    Jon
    New Orleans, LA
    Vehicle:
    FJ Cruiser 07'
    Bilstein 5100 (2.5") aFe short ram intake KC light bar PIAA halogen Lights Hella Lights on top Yakima Load Warrior
    Alright so here is my Satoshi Mod!

    first off id like to give a special thanks to HOMERTACO for supplying the M1 mesh grill and making it look that much more badass.

    also all the other write-ups that inspired me with this mod

    I wanted to make a good write-up for all the 01-04 tacos since i could NOT find a solid write-up for it

    so here it goes...





    Satoshi Mod Links:

    HomerTaco Satoshi and Mesh Grills: http://www.tacomaworld.com/forum/homertaco/

    Original Satoshi: http://satoshigrill.blogspot.com/2008/08/05-toyota-tacoma-satoshi-grill-mod.html

    01-04 Satoshi: http://www.customtacos.com/forum/showthread.php?t=61042-

    98-00 Satoshi: http://www.tacomaworld.com/forum/1st-gen-tacomas/72510-satoshi-type-grill-1st-gen-style.html

    Best Write-up I found and followed: http://www.tacomaworld.com/forum/2nd-gen-tacomas/28831-my-satoshi-grill-write-up.html






    Tips:

    Before you get started i have a few things that you might want to keep in mind while doing this mod:

    -BE PATIENT.

    -When applying the fiberglass, make sure to try and get the fiber glass as close to the surface where you want it to be covering. this means you need LESS bondo

    -LESS bondo the better

    -let bondo dry!

    -fiberglass is really sticky. use gloves. i used my bare hands and it burns... and you have to scrub your hands ALOT to get it off

    -sand everything before you paint it.

    -go slow and take your time. i did mind in 4 days. took breaks and let things dry when needed.

    -you can do this mod but be aware there is a lot of time invested with waiting on things to dry like fiberglass, bondo, paint, waiting for mesh material coming in the mail.... :spy: (i know that doesnt dry)

    -you dont have to follow every step i made. you can do your own thing. take what you like from other write-ups or ideas and make your own process.

    -SAND AFTER THE FILLER PRIMER. it will be bumpy and ugly. so sand a little bit after you do a few coats of filler primer to cover the bondo.

    -01Tacoma- to anyone looking to do this it's a very easy project to just dive into as log a you take your time and pay attention to detail... And for the recor idiot 7" lights behind mine if anyone was wondering about what size will fit

    -im sure there will be more in the future... dont hesitate to ask me :D











    NOW...


    Step 1: Remove the Grill


    Supplies:


    philips screw driver = to screw off the two screws on the corners of the grill

    long screw driver = to disengage all the plastic anchor points​






    here's a good link with the steps to remove the grill


    http://ebayba.uniqueautodepot.net/2010/grillcraft/mx/silver/installation/toy-1945-s.pdf

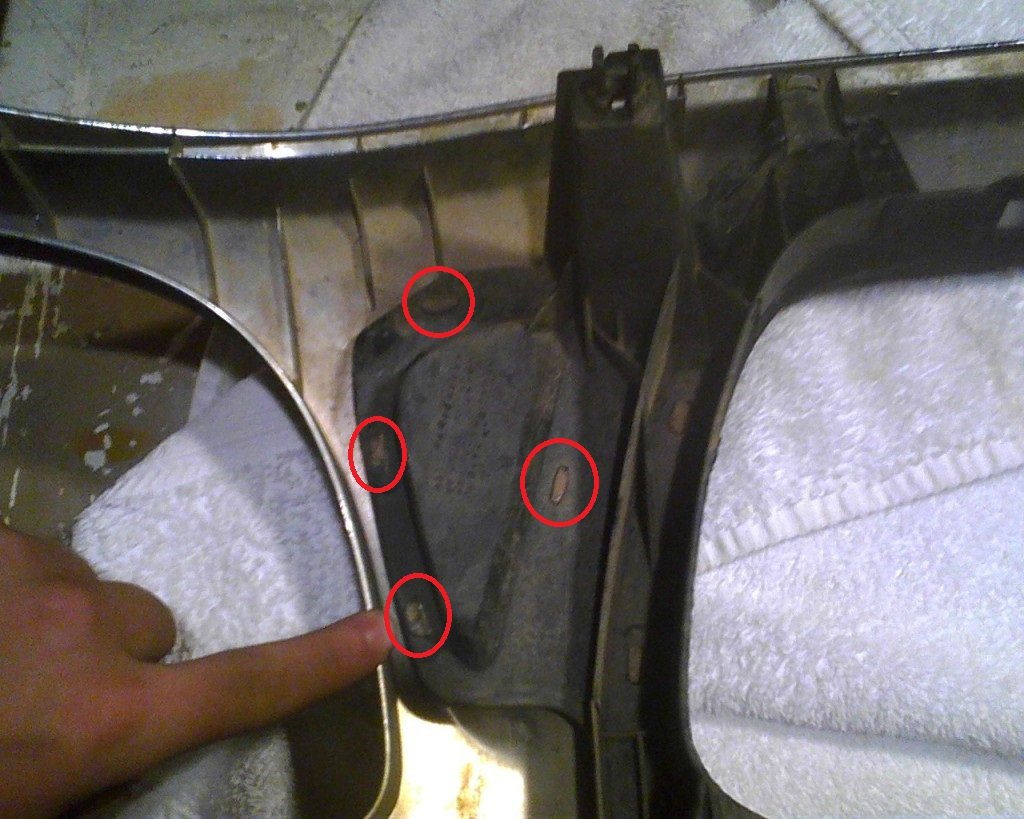

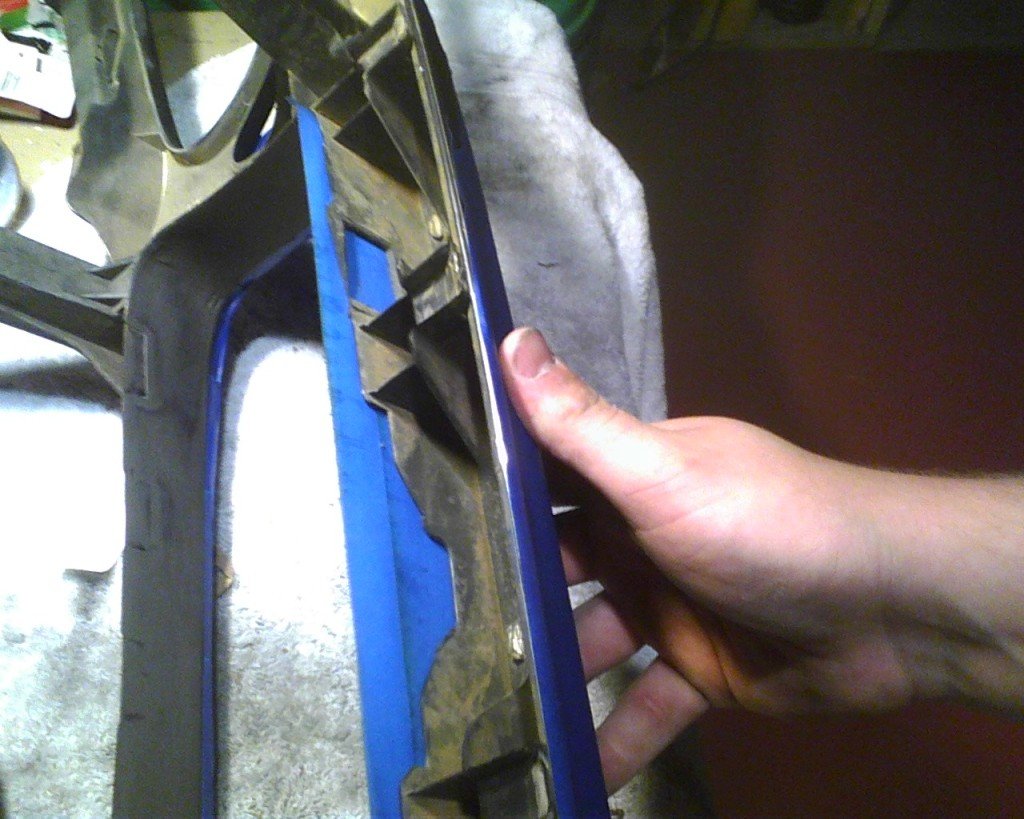

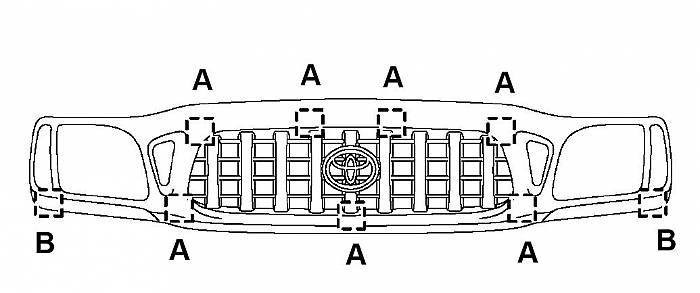

    the clips are shown in the figure below


    [​IMG]















    Remove the grill from the truck


    [​IMG]



    [​IMG]













    Step 2: Cut out the center piece


    Supplies:

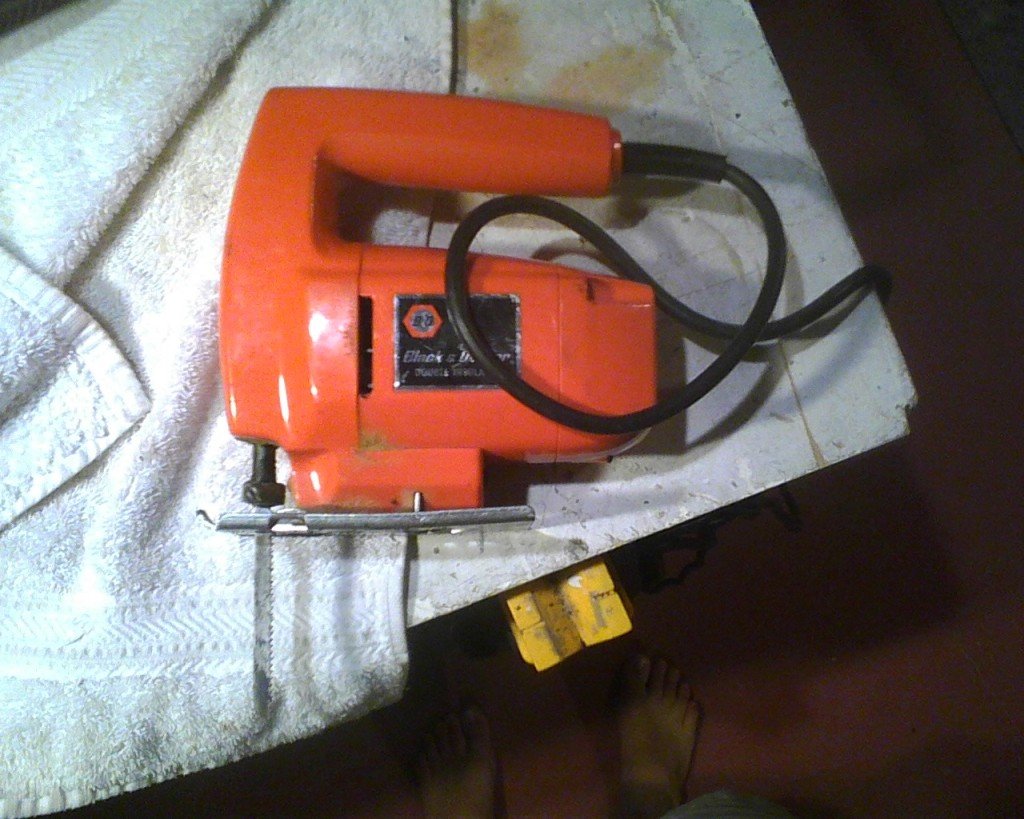

    electric power jigsaw = to cut out the inside plastic

    dremel = to cut off excess plastic

    sandpaper = to sand down and make the inside portion smooth

    goggles = to protect them eyes!

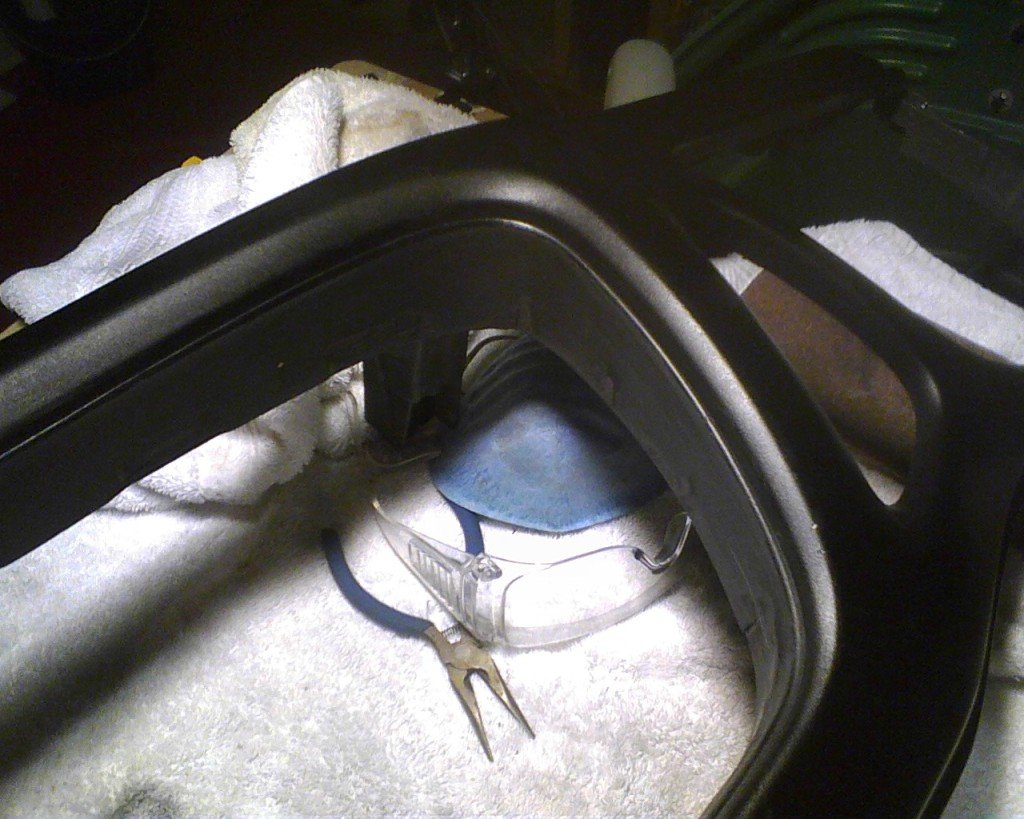

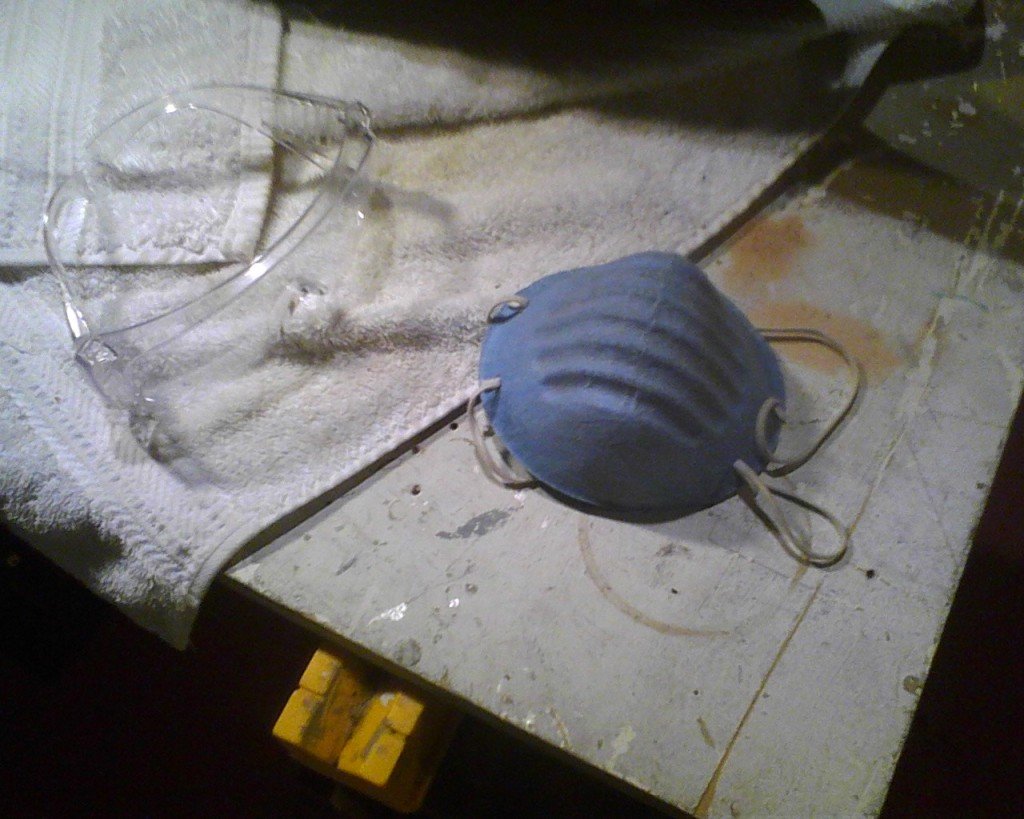

    breathing mask = the dremel heats up the plastic and gives off fumes​

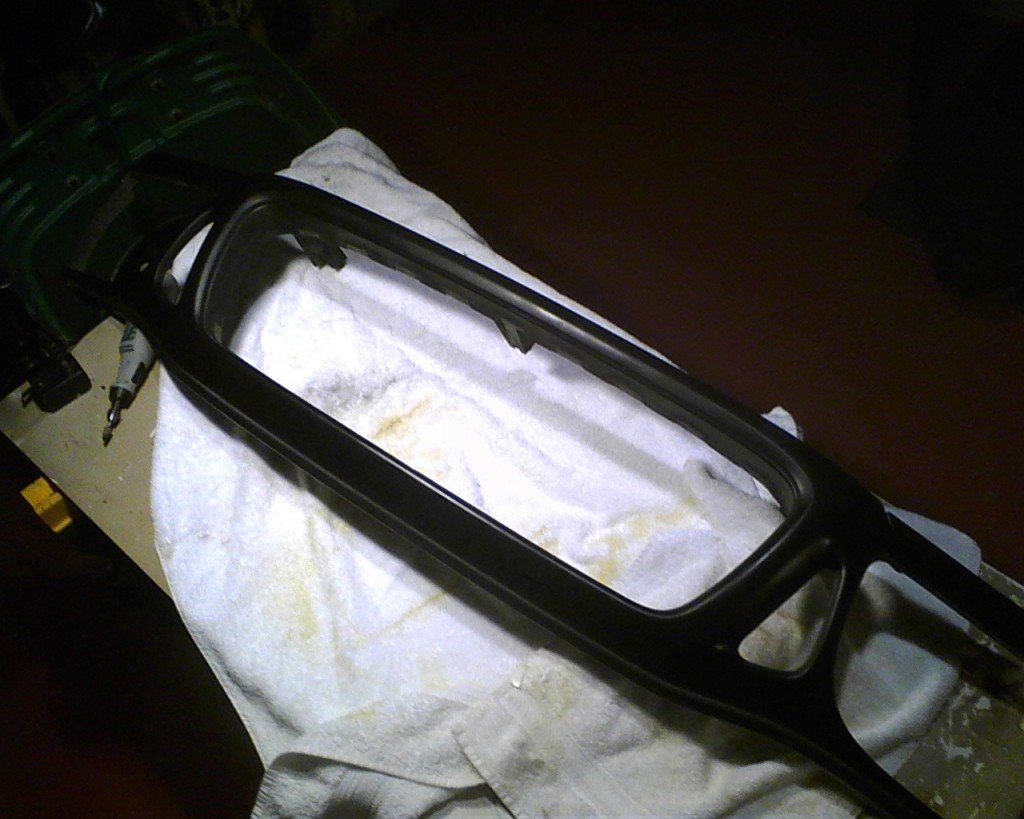

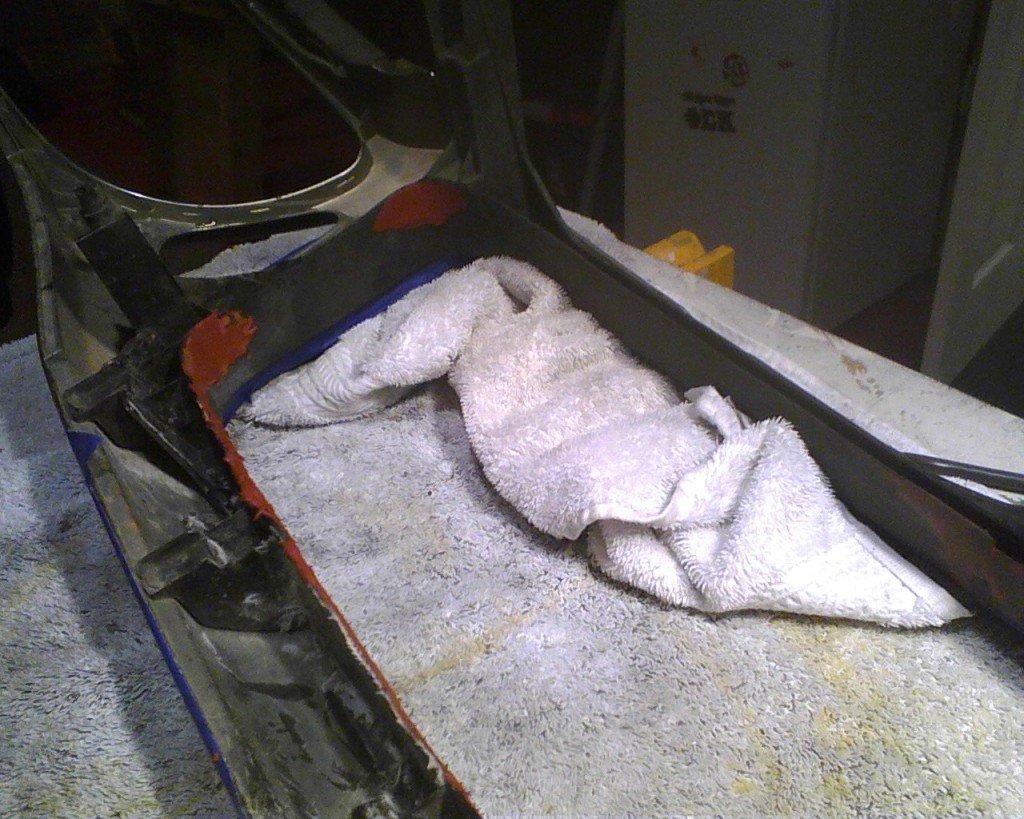

    [​IMG]




    [​IMG]




    [​IMG]



    [​IMG]














    Alright... NOW to begin!!!


    begin with the jigsaw and cut away at the center piece








    [​IMG]





    [​IMG]





    [​IMG]

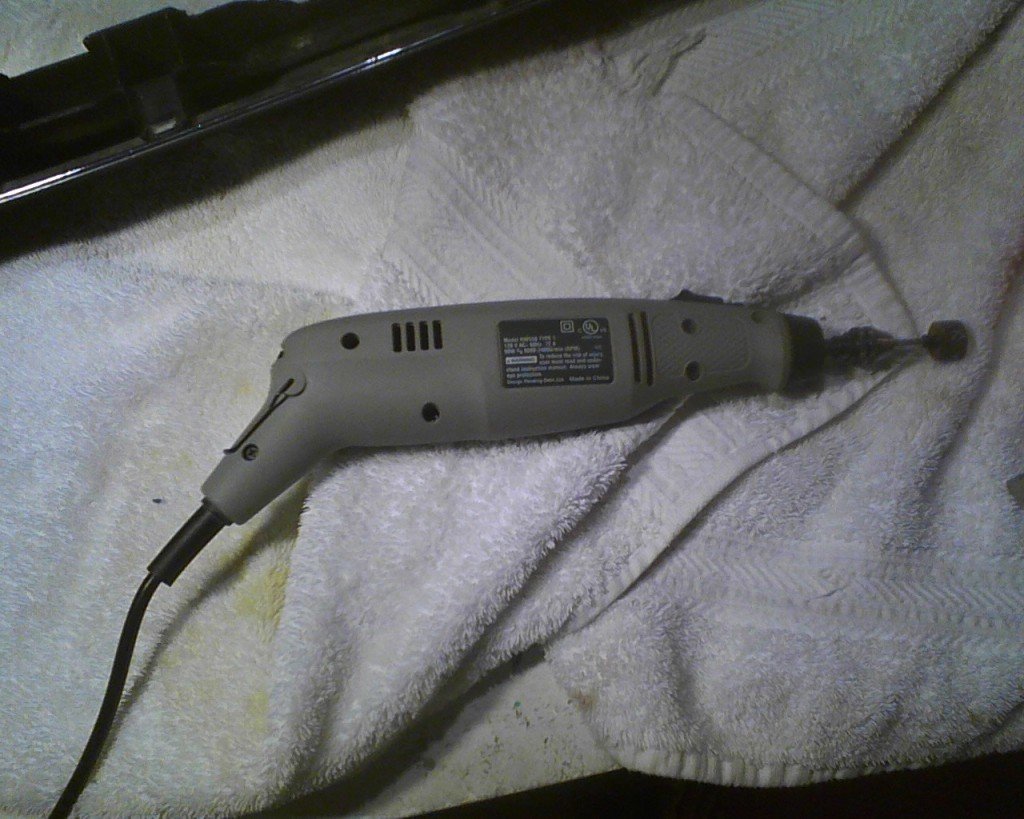

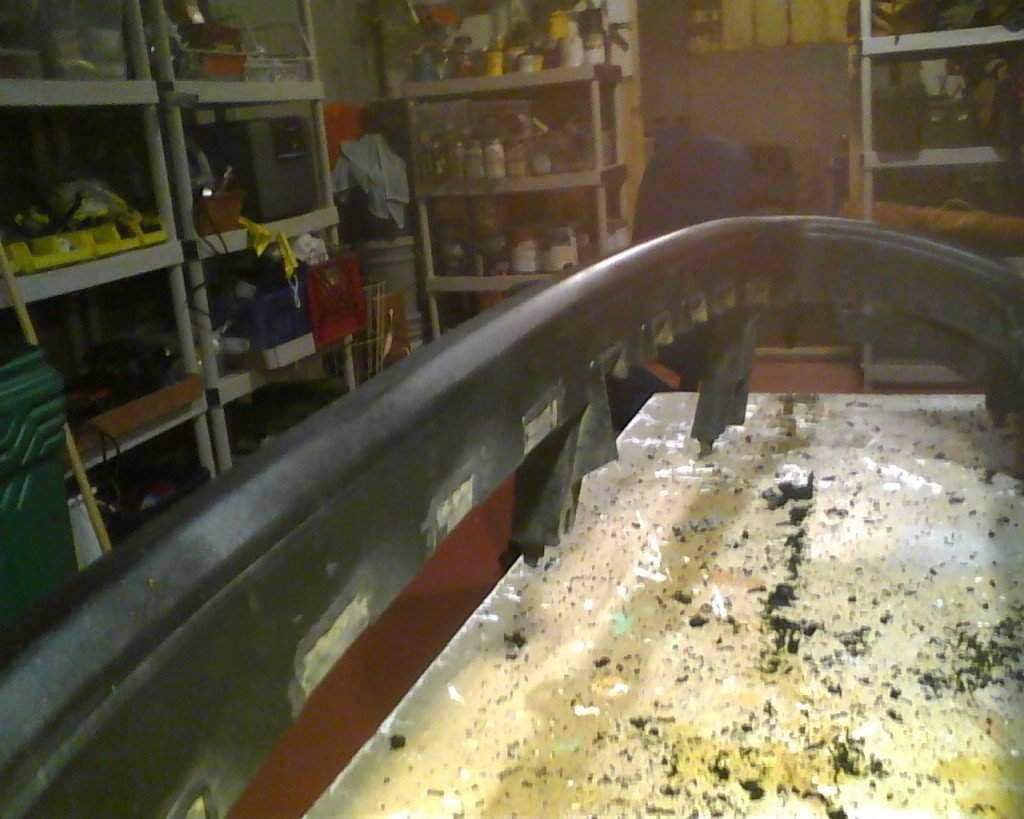

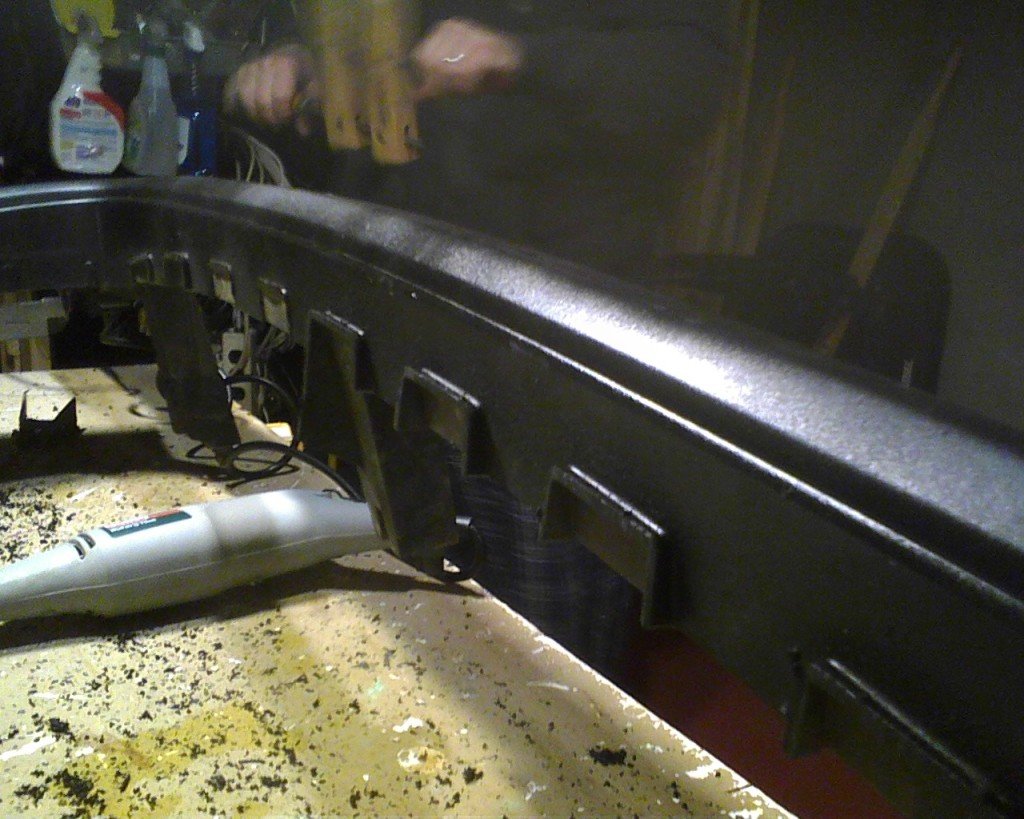

    use the dremel to cut and smooth down the remaining plastic




    [​IMG]



    [​IMG]










    Now to cut out the small triangles inserts

    (this part is optional to your choosing.)



    cut away at the tabs that secure it


    [​IMG]



    [​IMG]

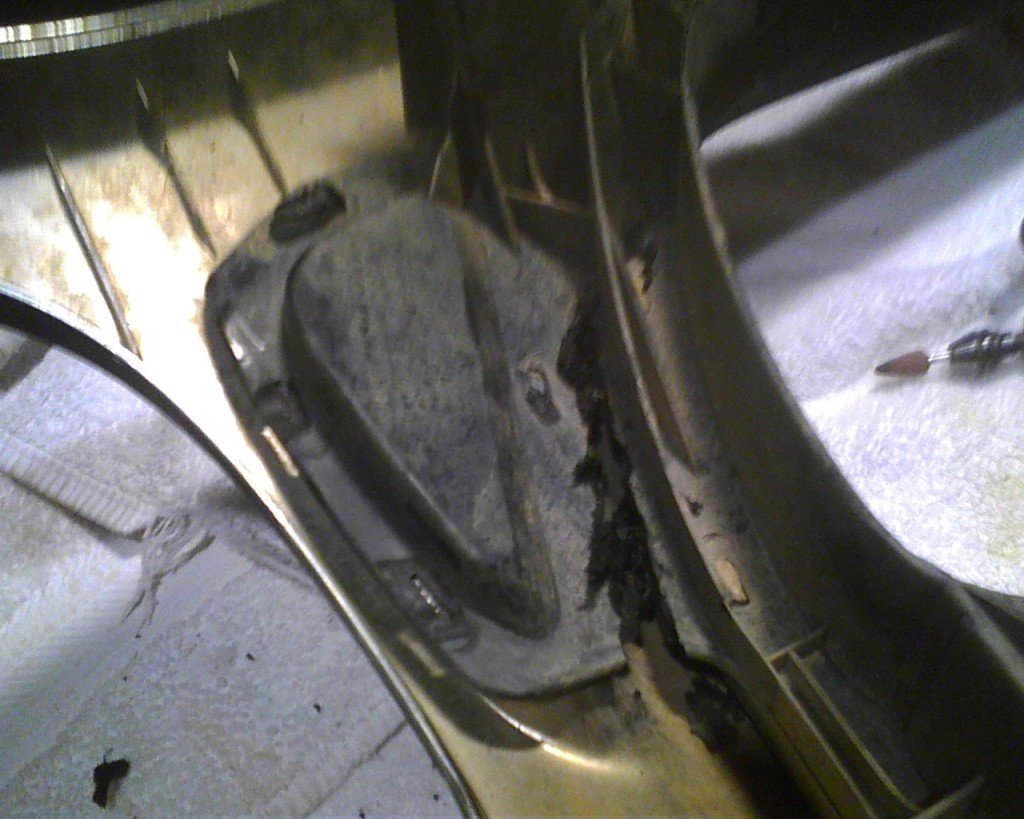

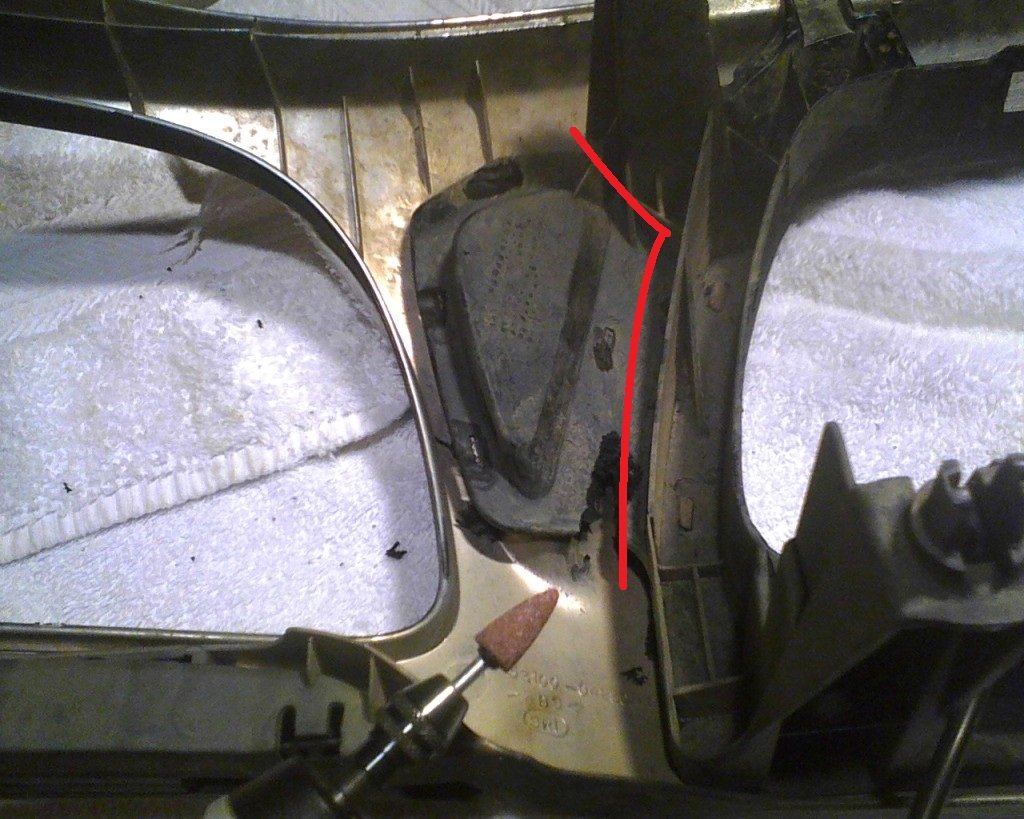

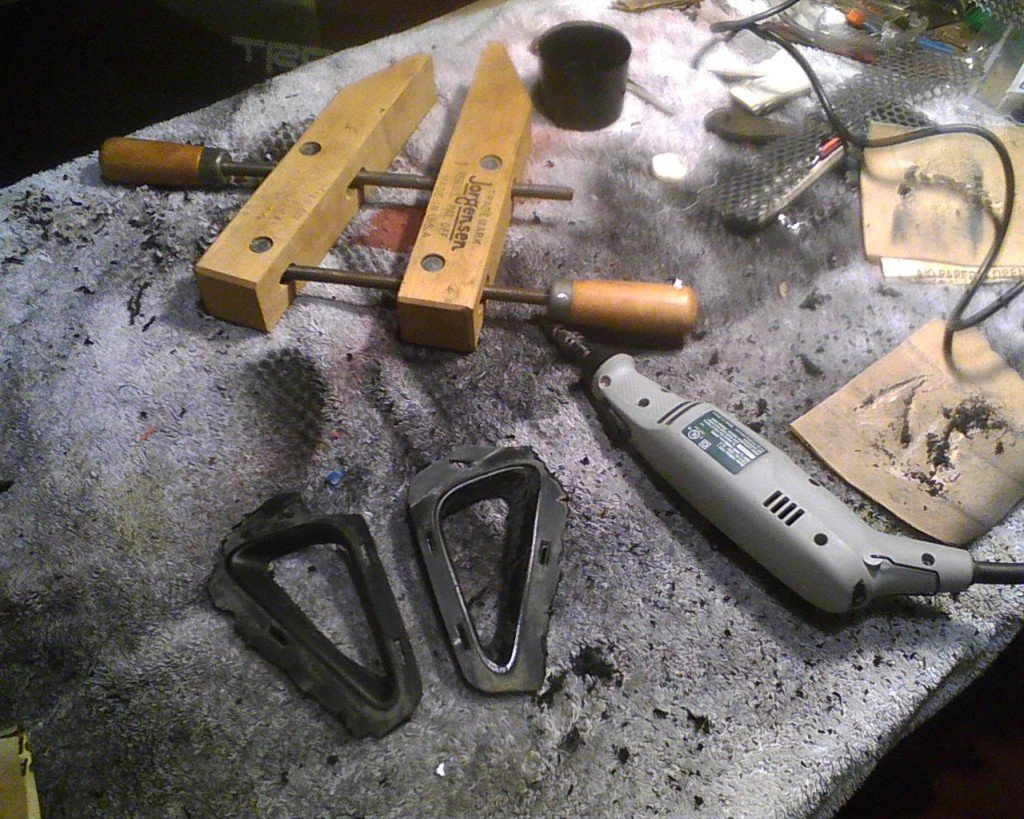

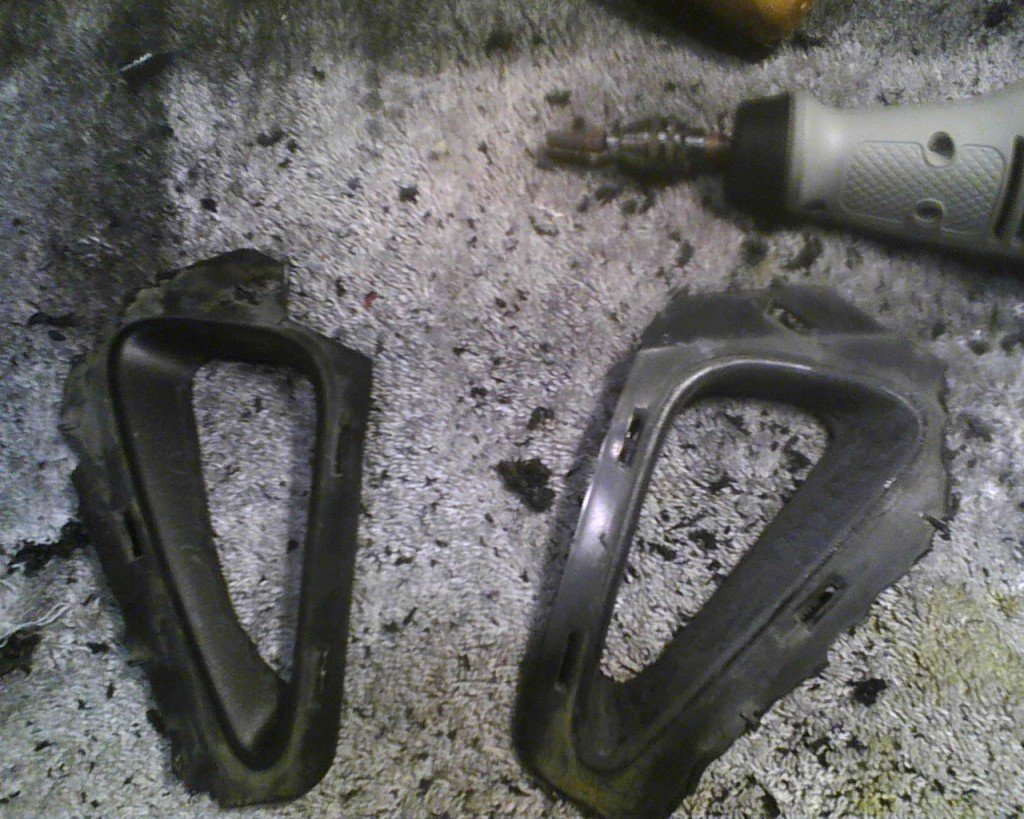

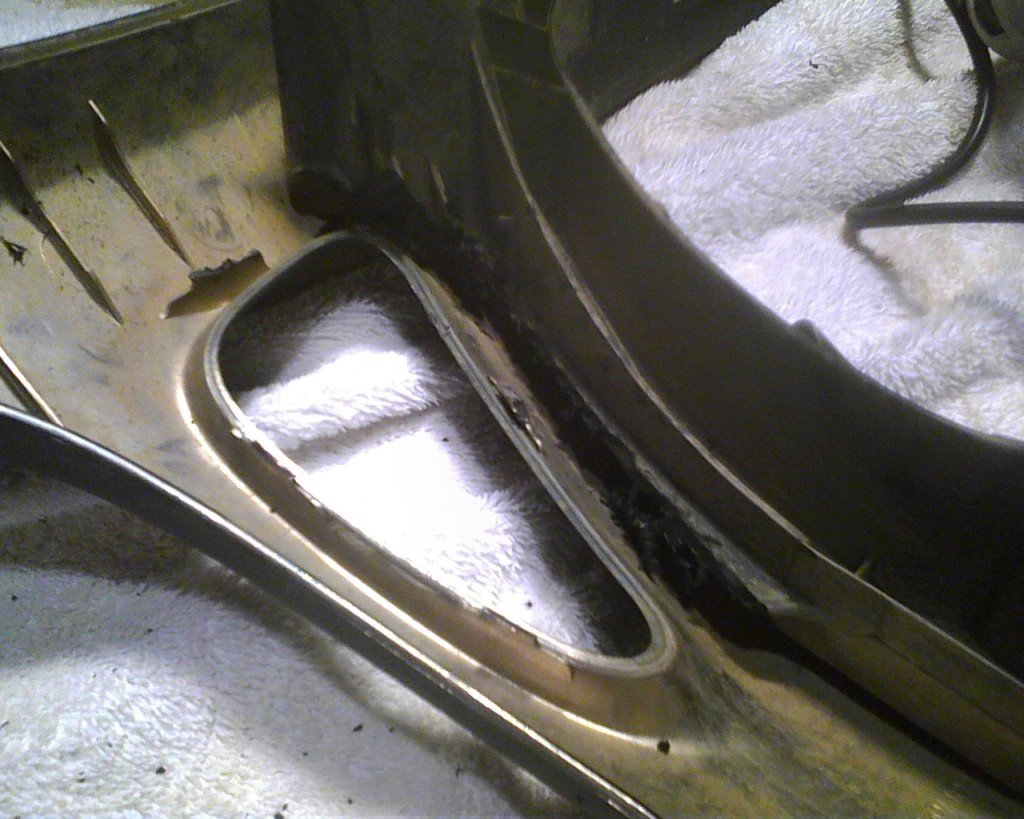

    The use a smaller tip to get in there and cut the triangle off of the grill



    [​IMG]



    [​IMG]



    [​IMG]



    [​IMG]

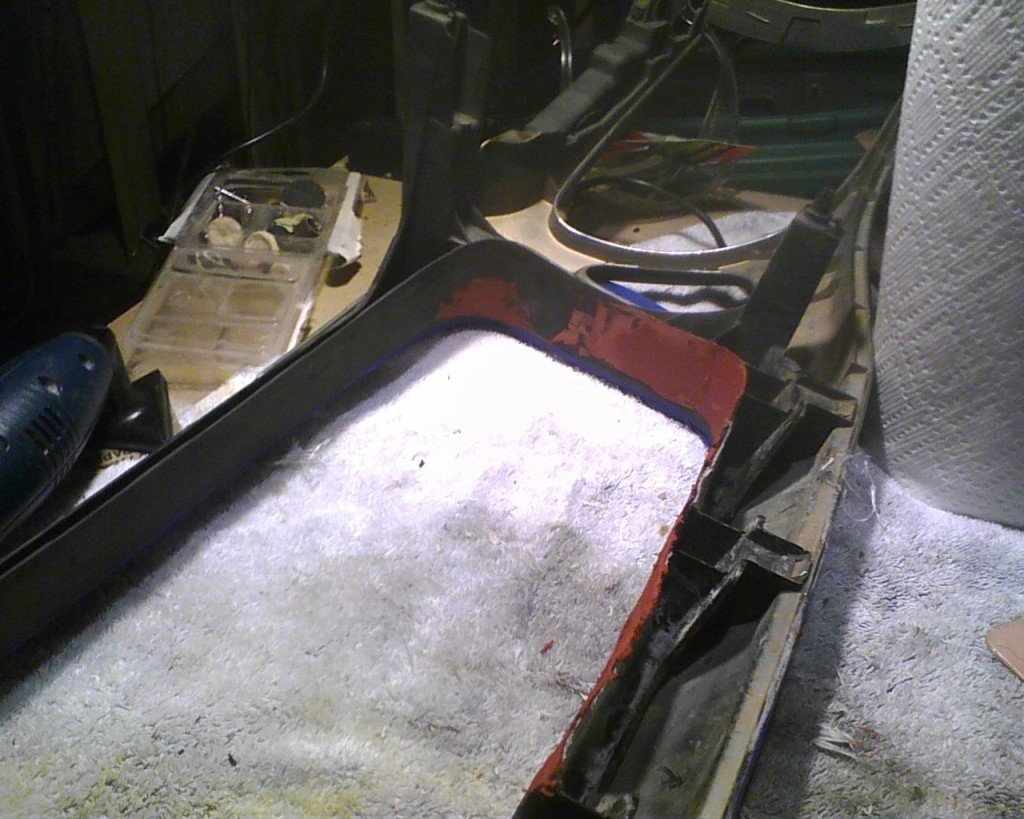

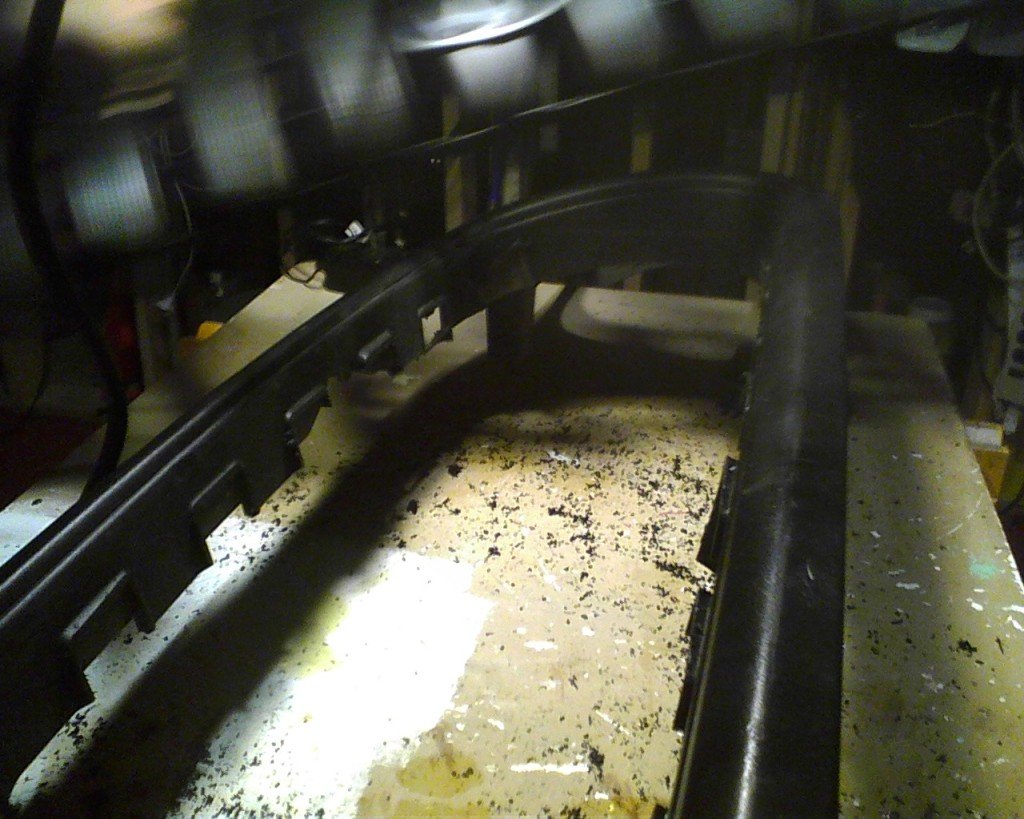

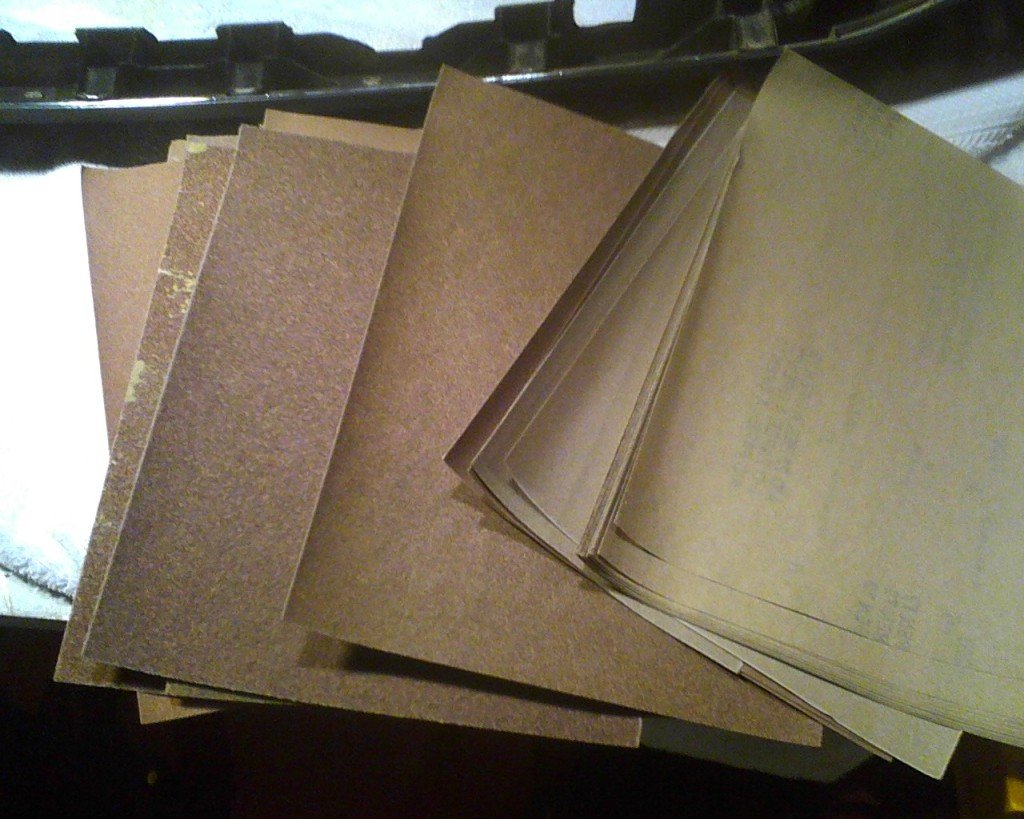

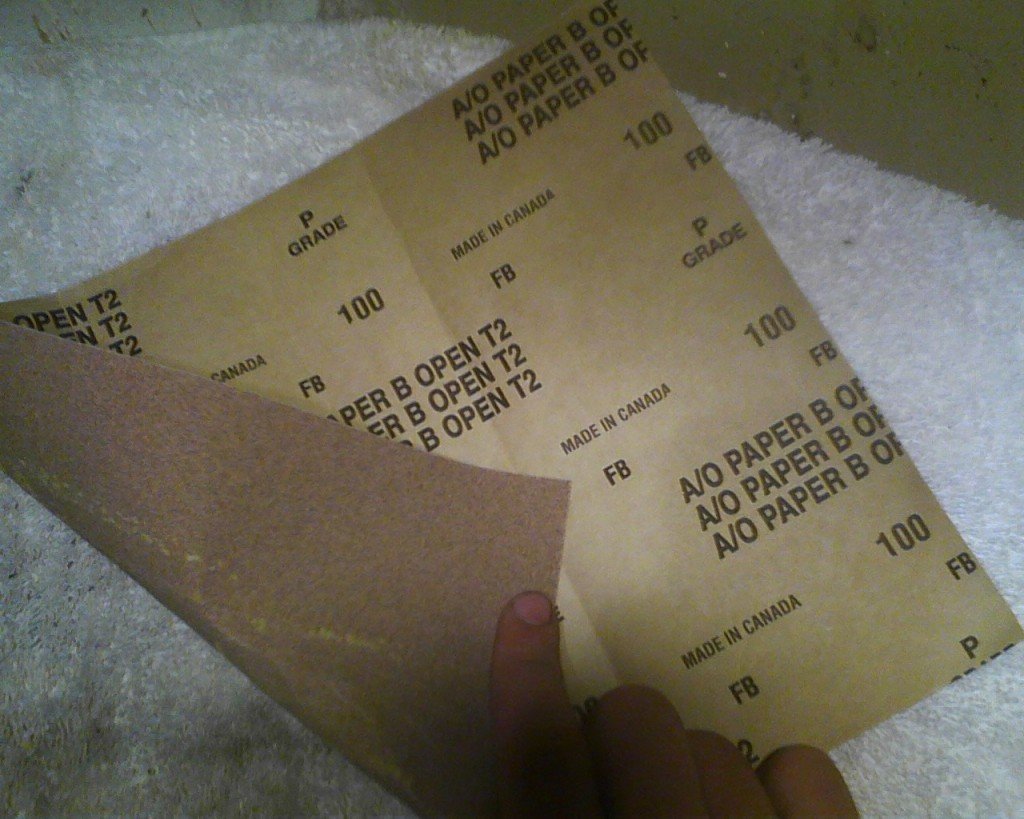

    Now use the sandpaper to smooth out the inside

    start with a low grit and work your way up to a higher grit.

    I used 60 - 100 - 220

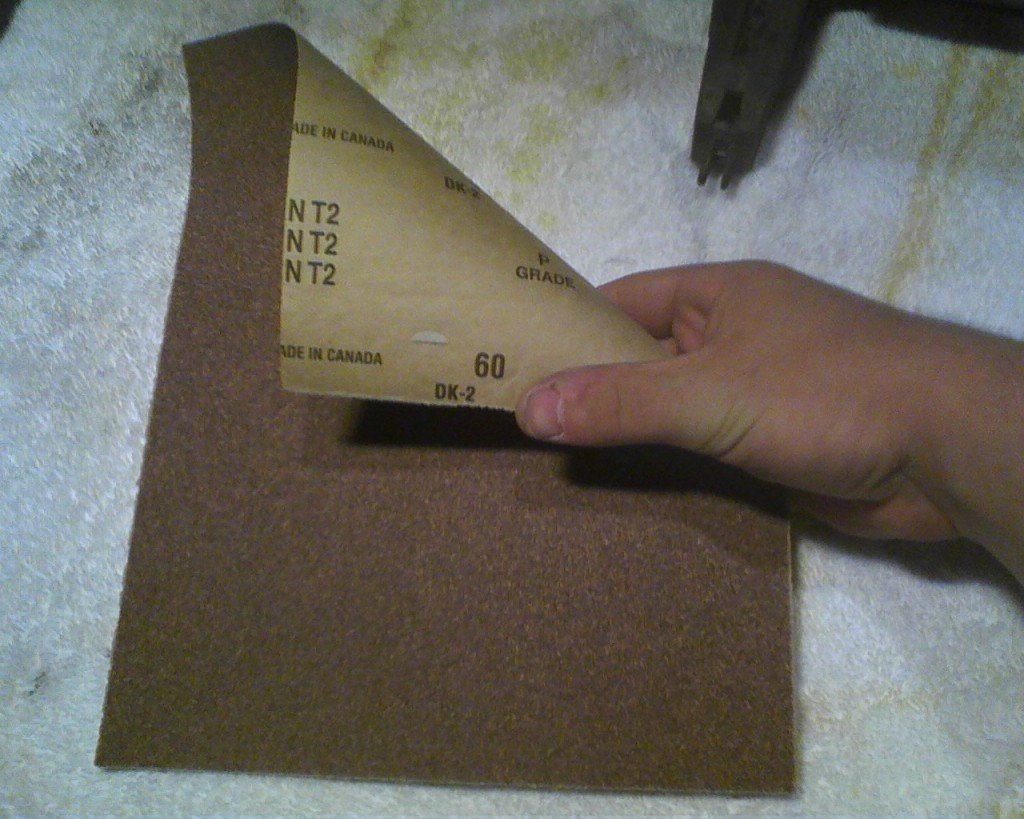

    60 Grit


    [​IMG]



    [​IMG]






    100 Grit



    [​IMG]



    [​IMG]

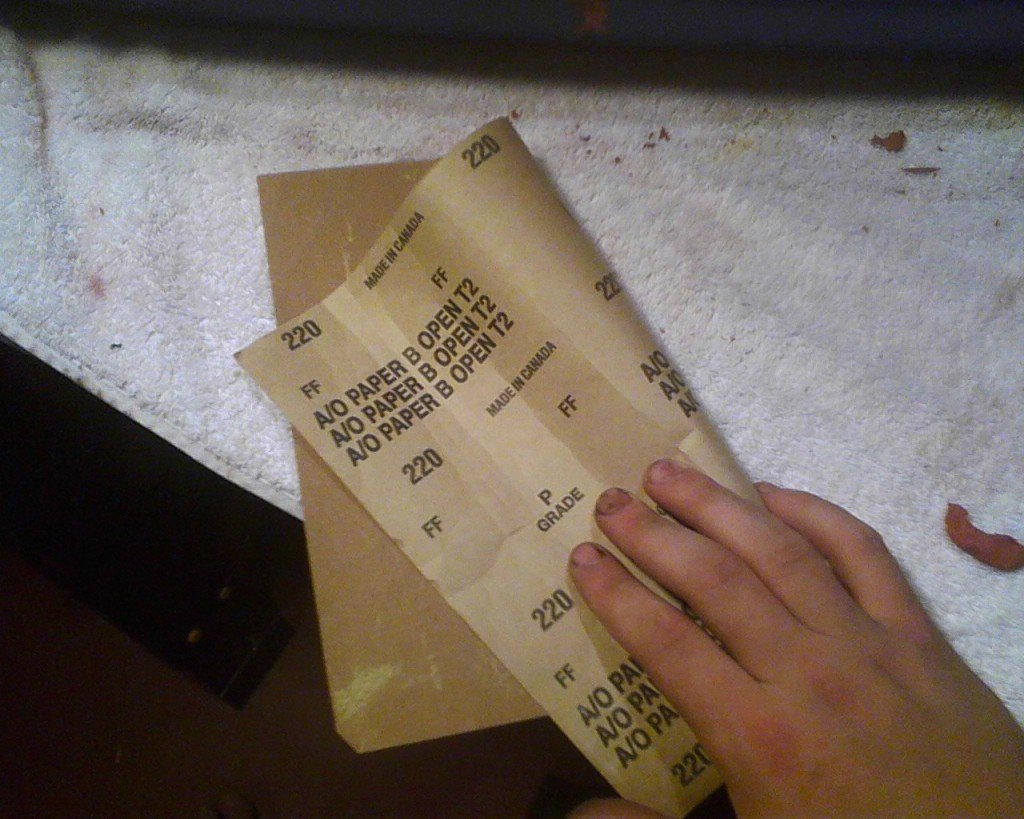

    220 grit



    [​IMG]



    [​IMG]
















    Step 3: Fiberglass Application



    Supplies:

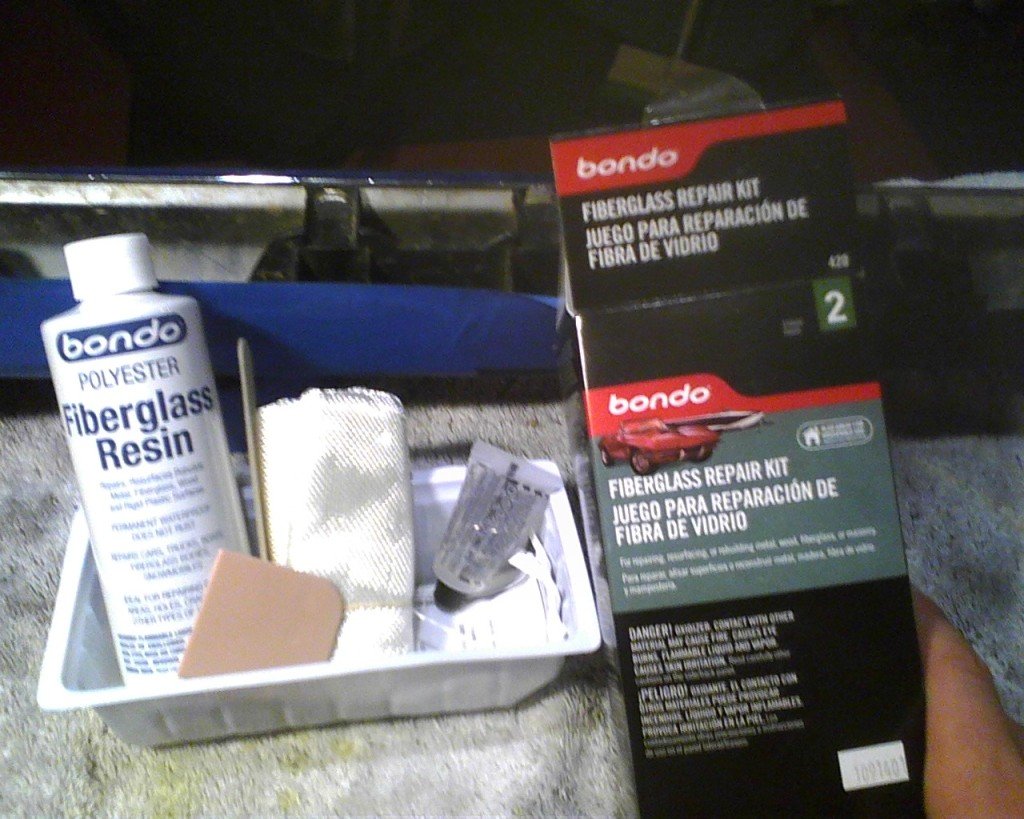

    Bondo fiberglass repair kit = comes with all the tools needed with instuctions

    painters tape = to make a guide for the fiberglass application

    dremel with cutting edge OR sissors = to cut away the excess fiberglass when it dries

    paper towels and good soap = this stuff is messy!!!​

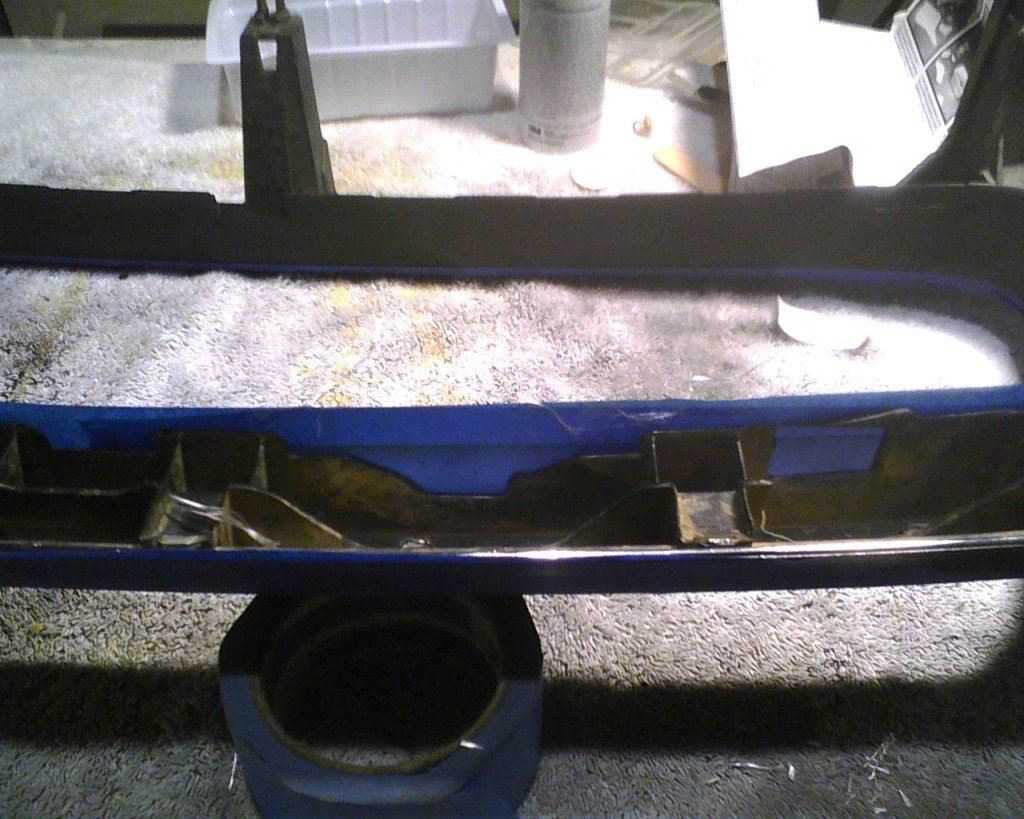

    i taped off the grill to keep the resin off the grill



    [​IMG]

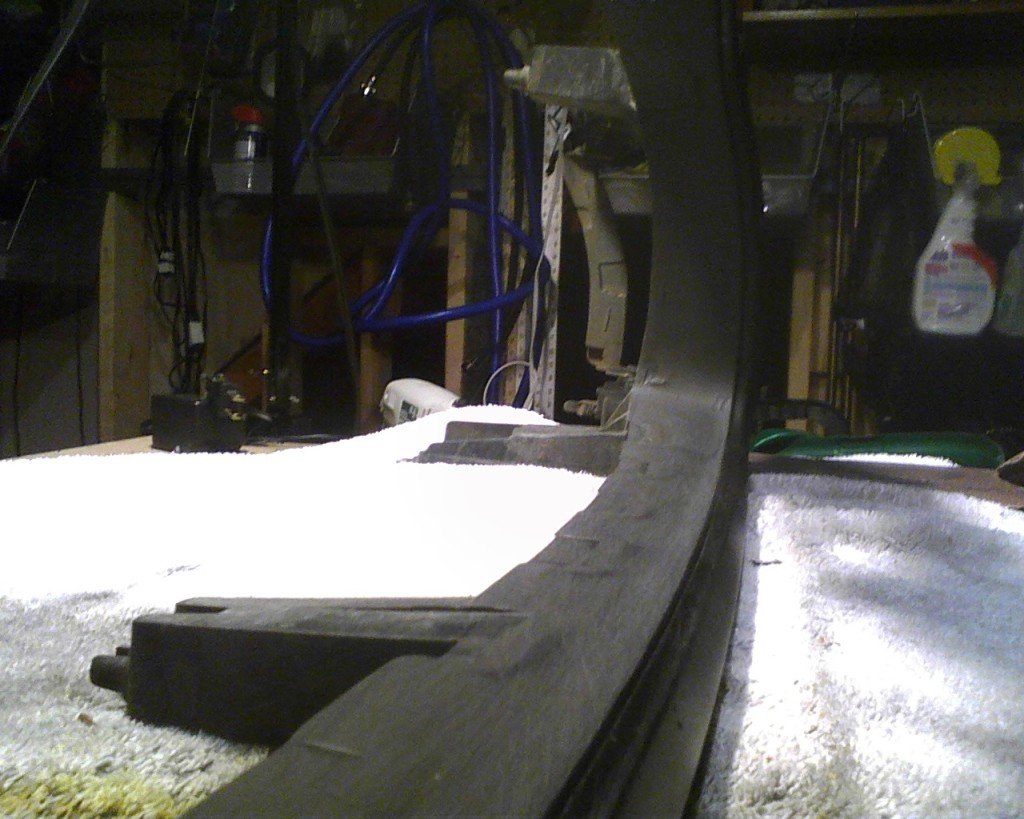

    this is the area that the fiberglass is going to be applied



    [​IMG]

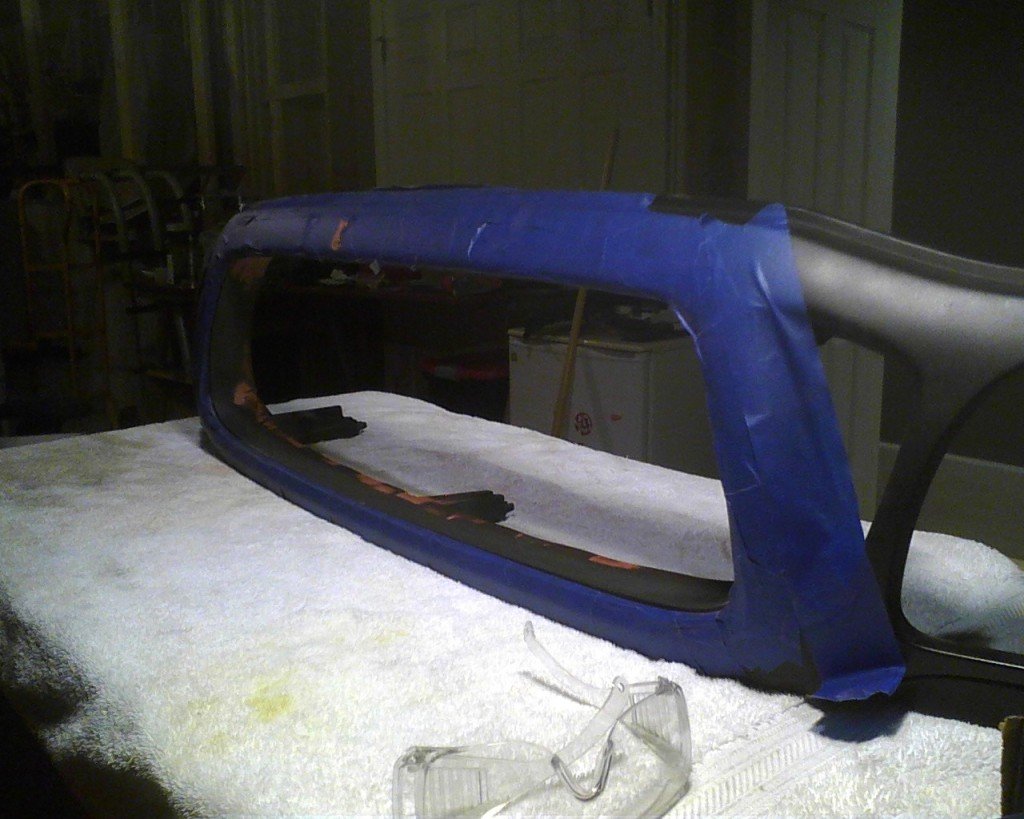

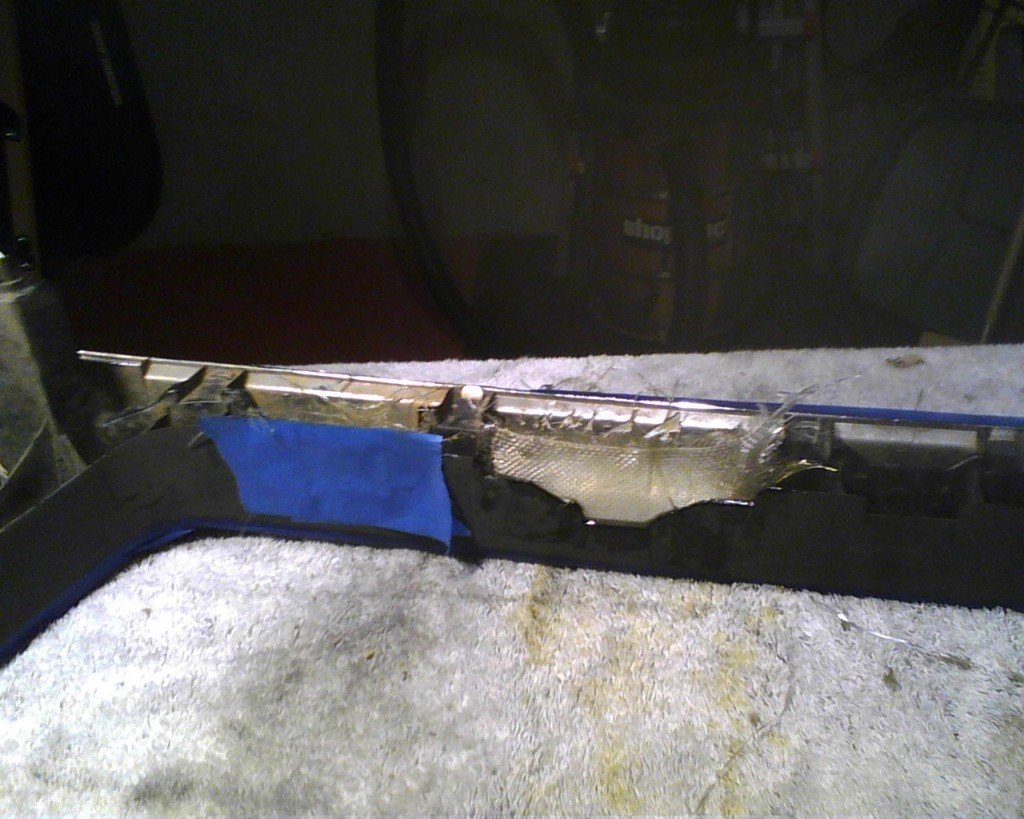

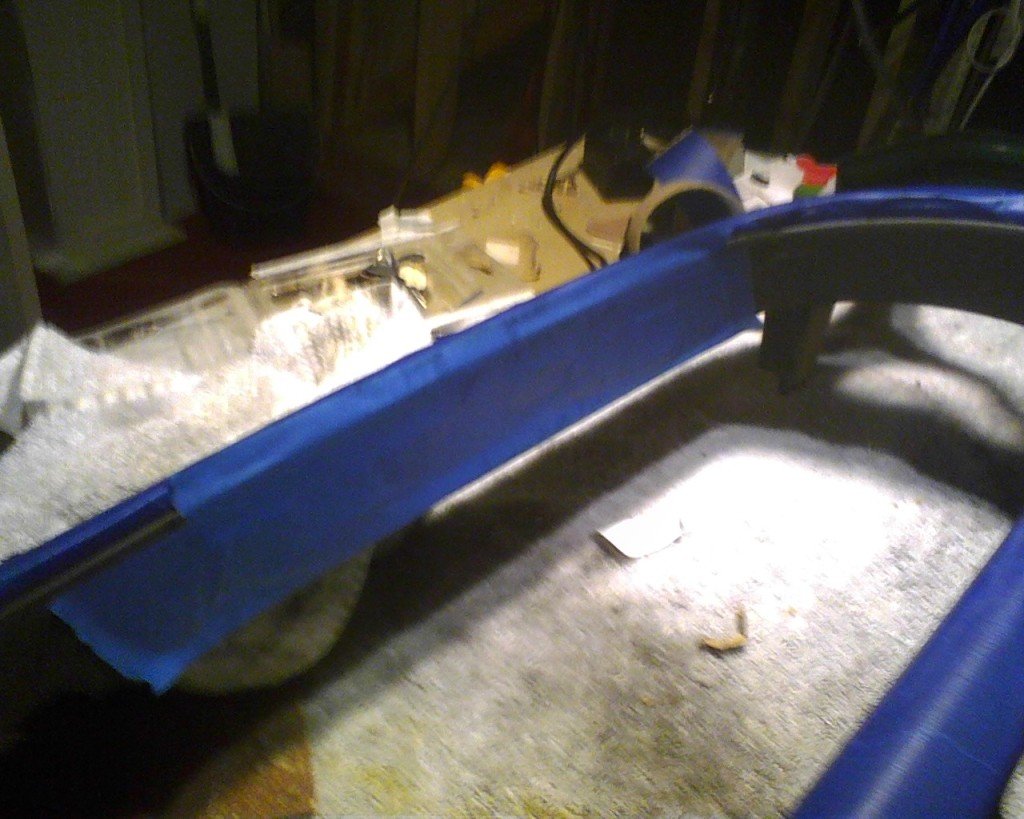

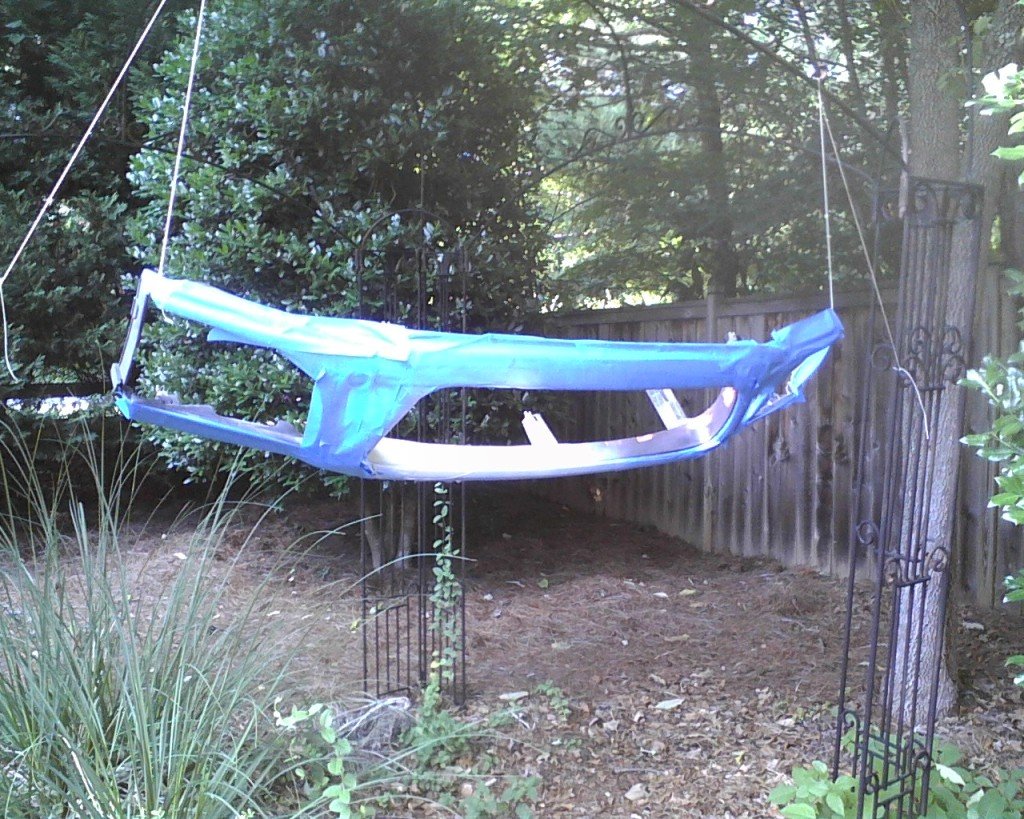

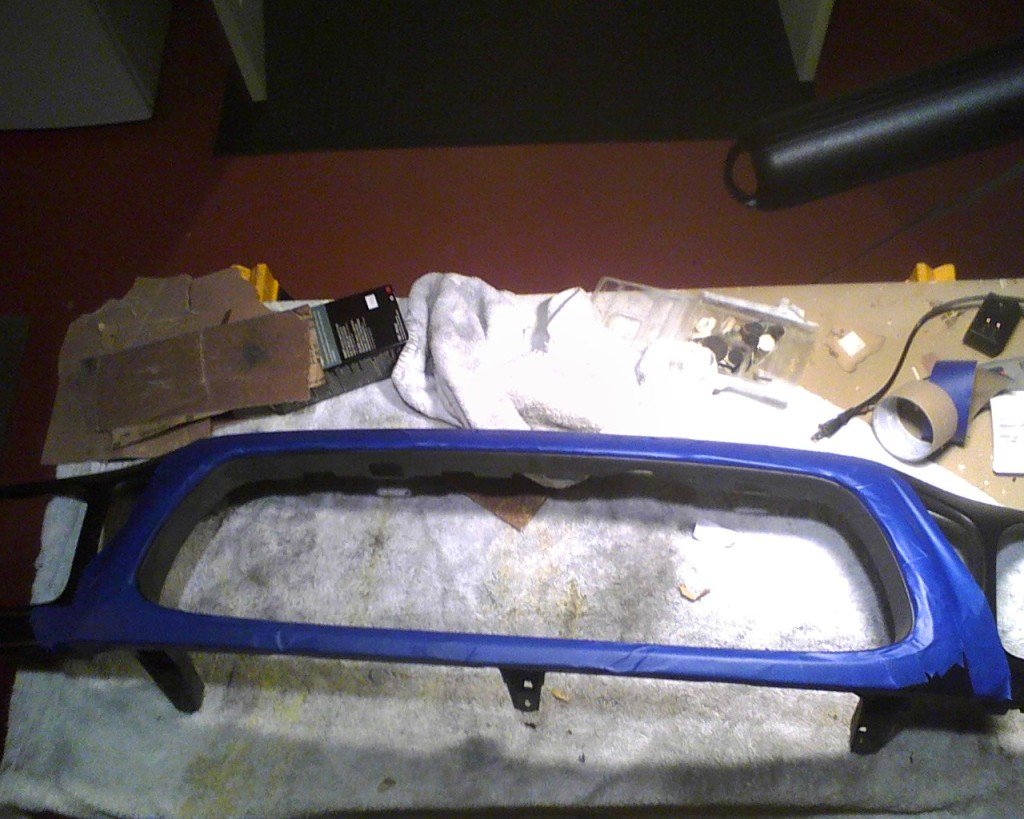

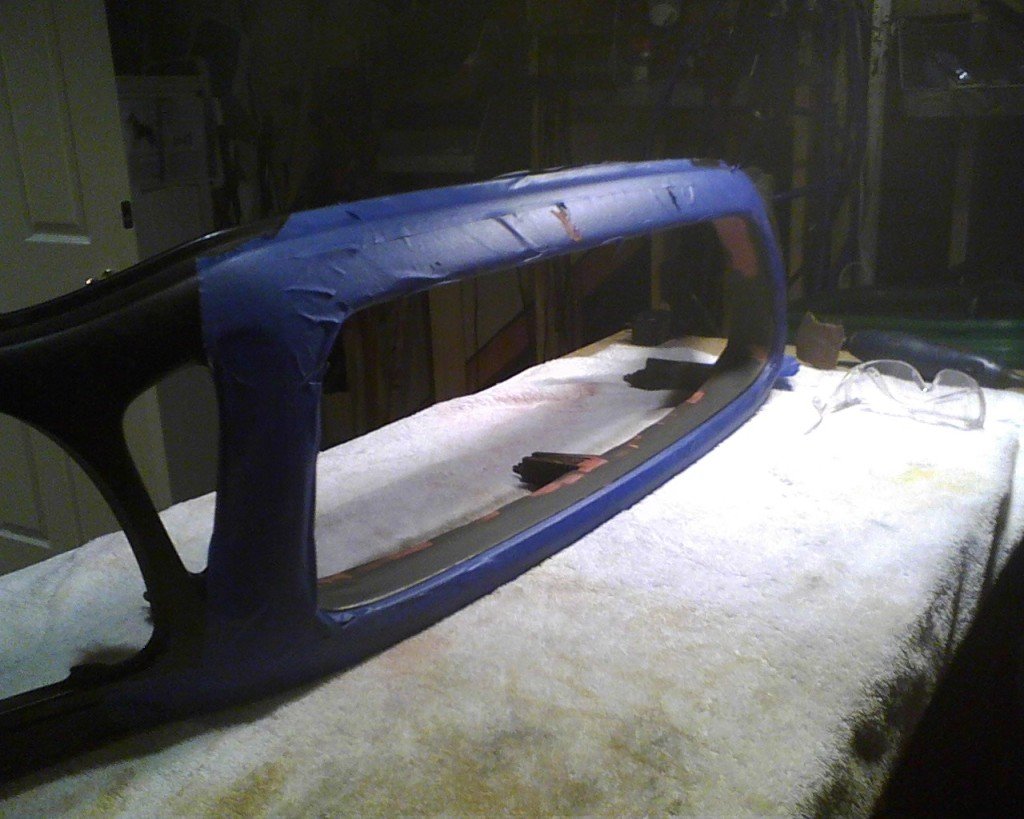

    apply the painters tape on the area that is going to have the fiberglass


    [​IMG]




    [​IMG]




    [​IMG]


















    Follow the instructions given and mix up the fiberglass resin




    [​IMG]




    [​IMG]

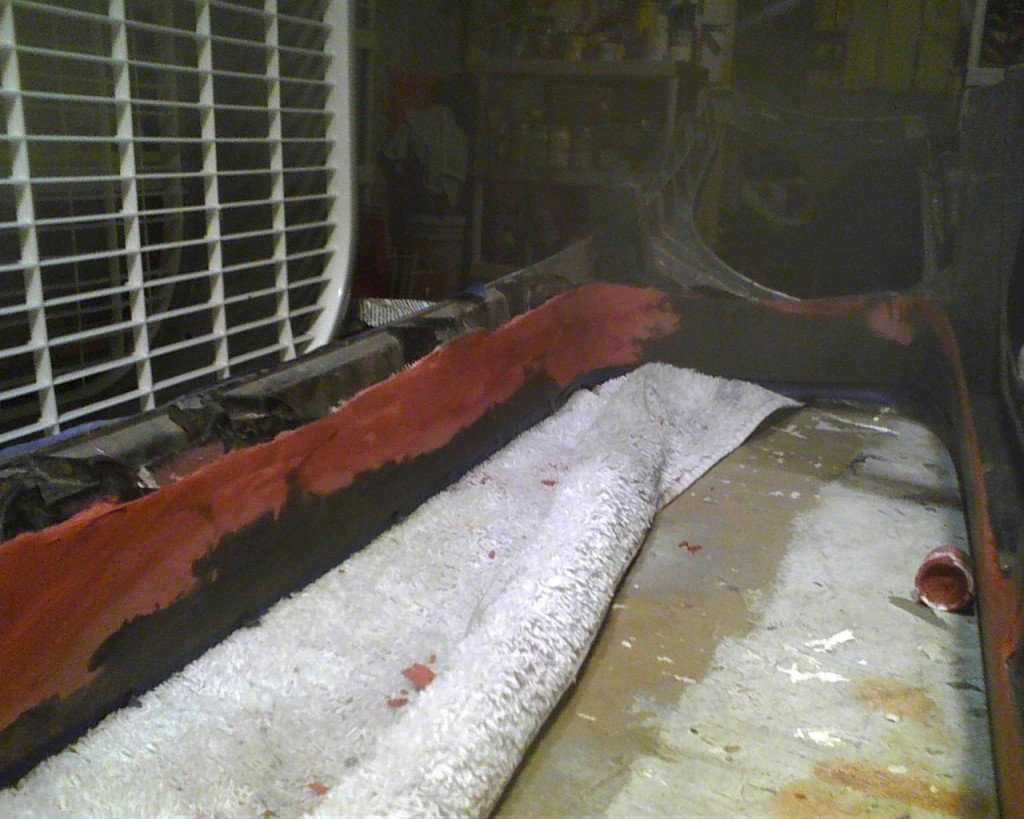

    Cover the cloth fiberglass in the resin and Now apply the Fiberglass





    [​IMG]

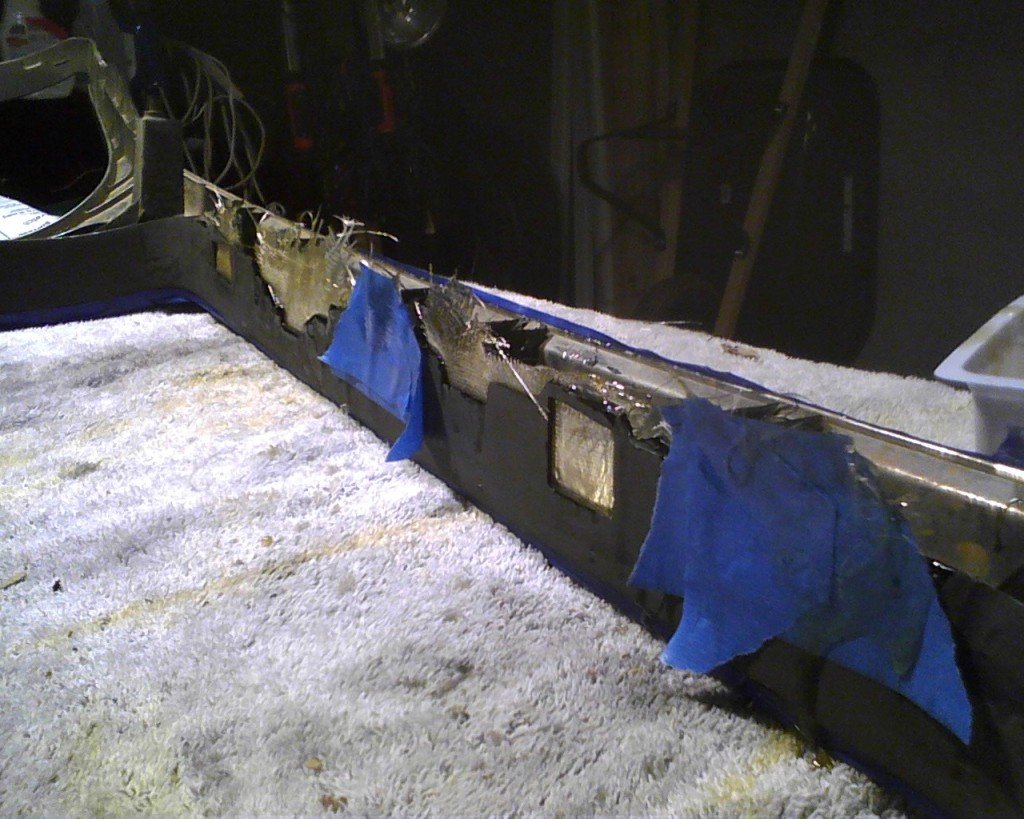

    let the fiberglass sit for about 5 minutes and then remove the painters tape



    [​IMG]











    Let the fiberglass dry for 90 minutes!




    [​IMG]





    [​IMG]





    [​IMG]

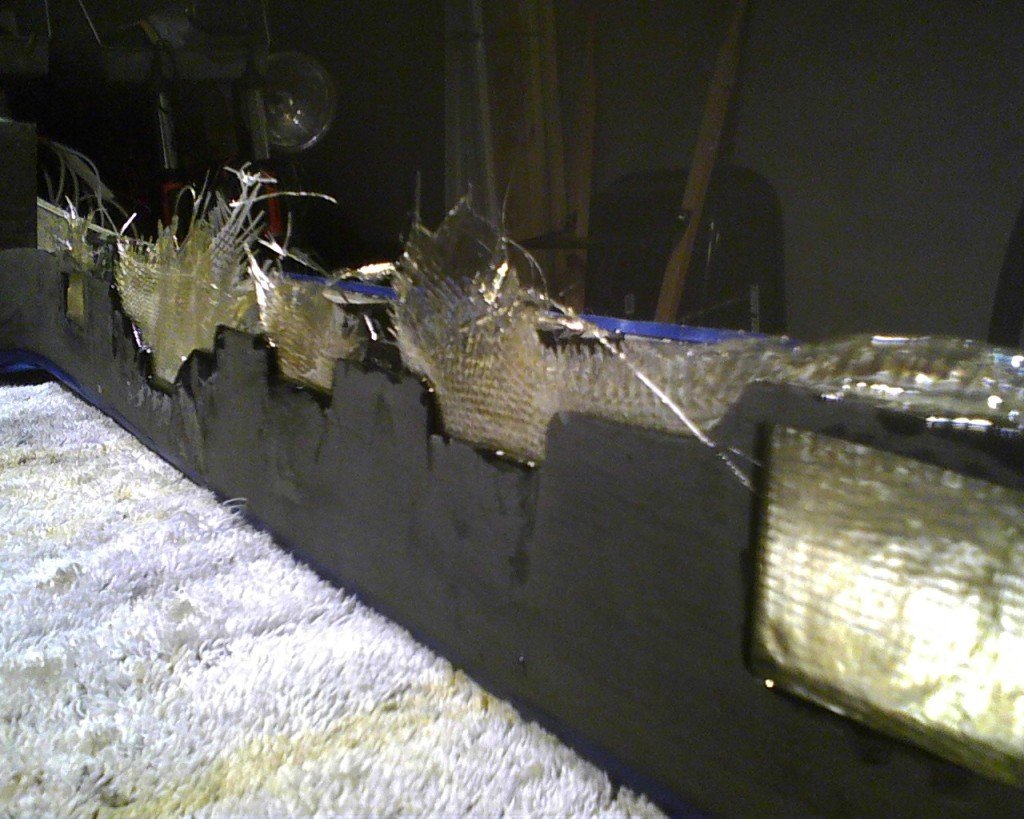

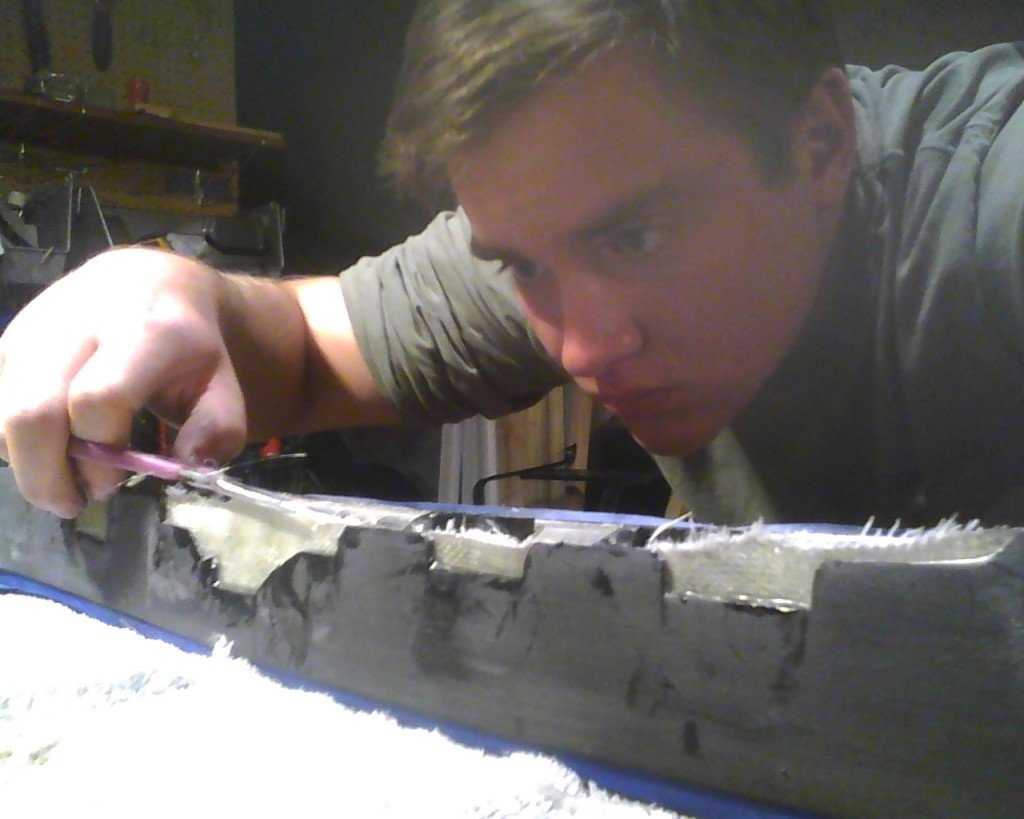

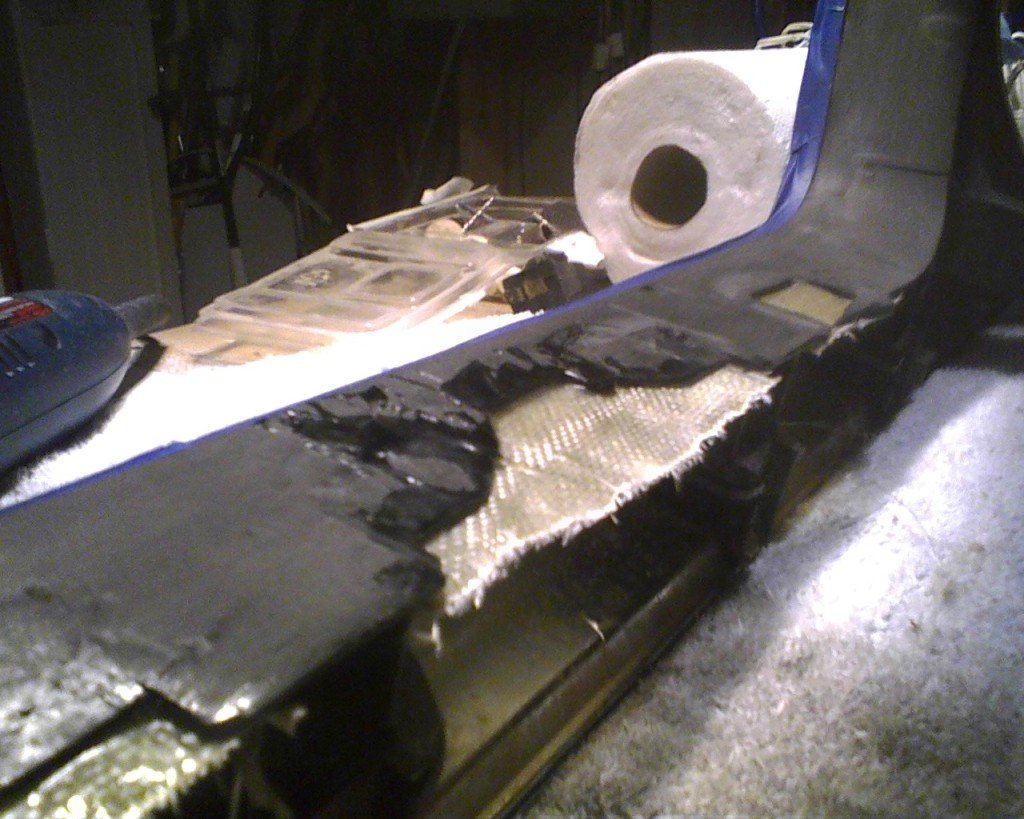

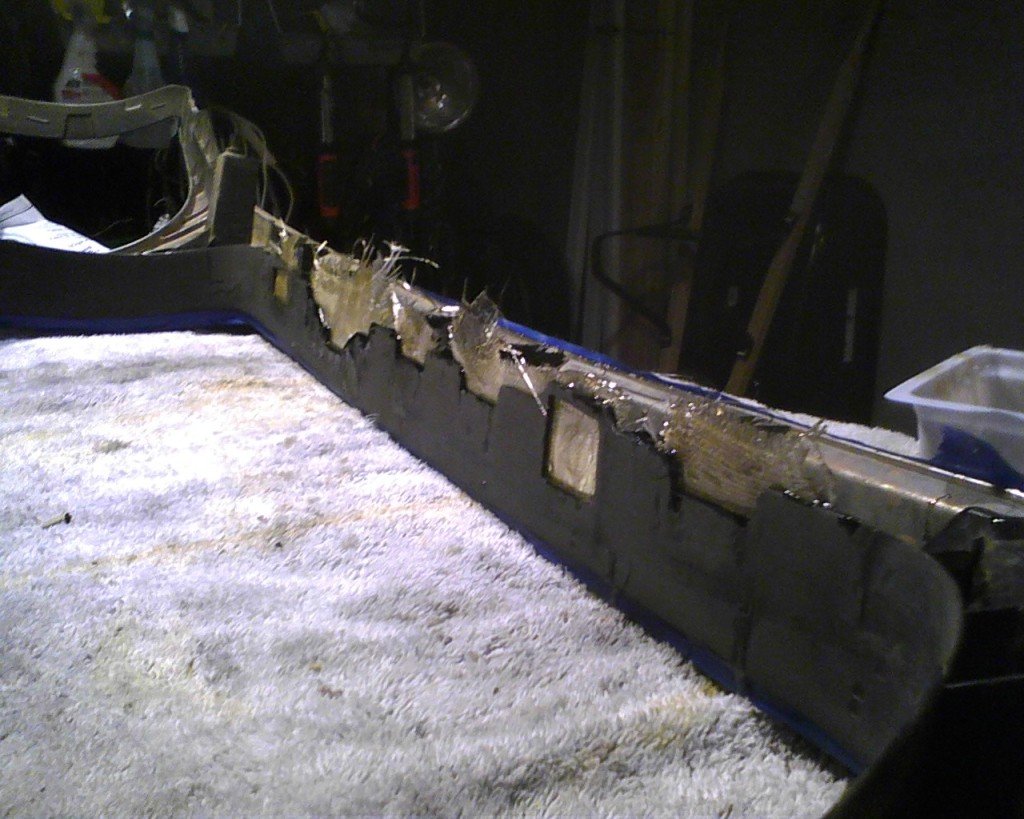

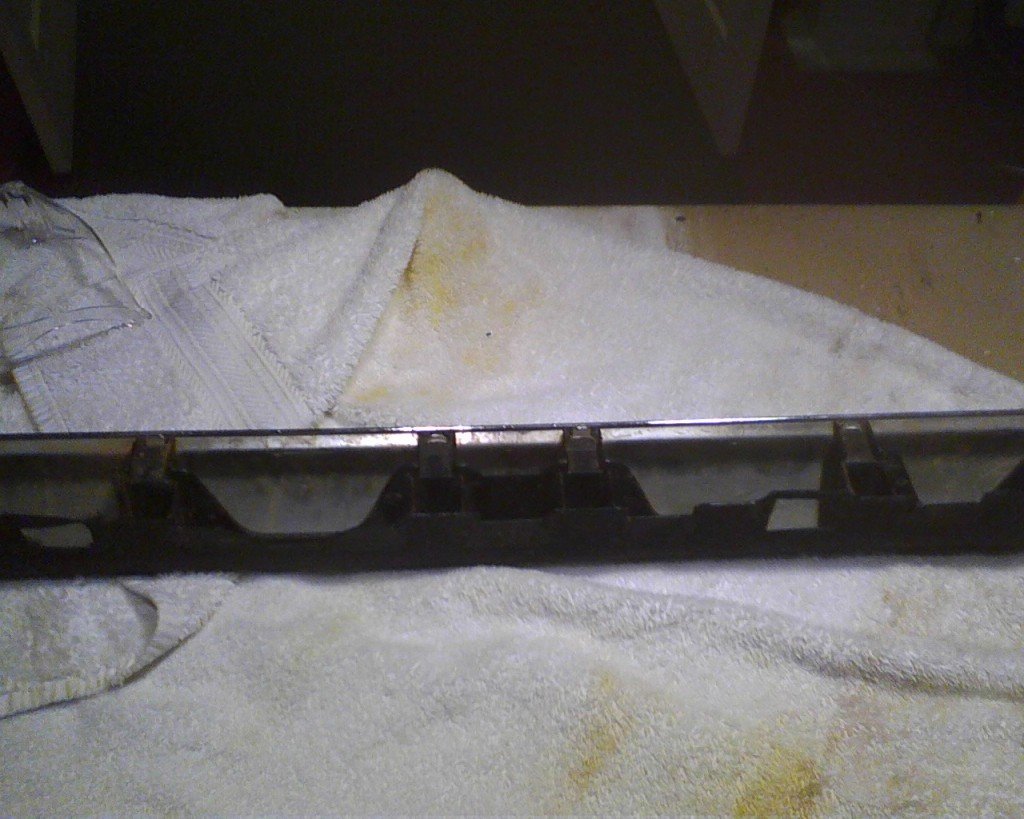

    cut away the extra fiberglass





    [​IMG]




    [​IMG]




    [​IMG]




    [​IMG]

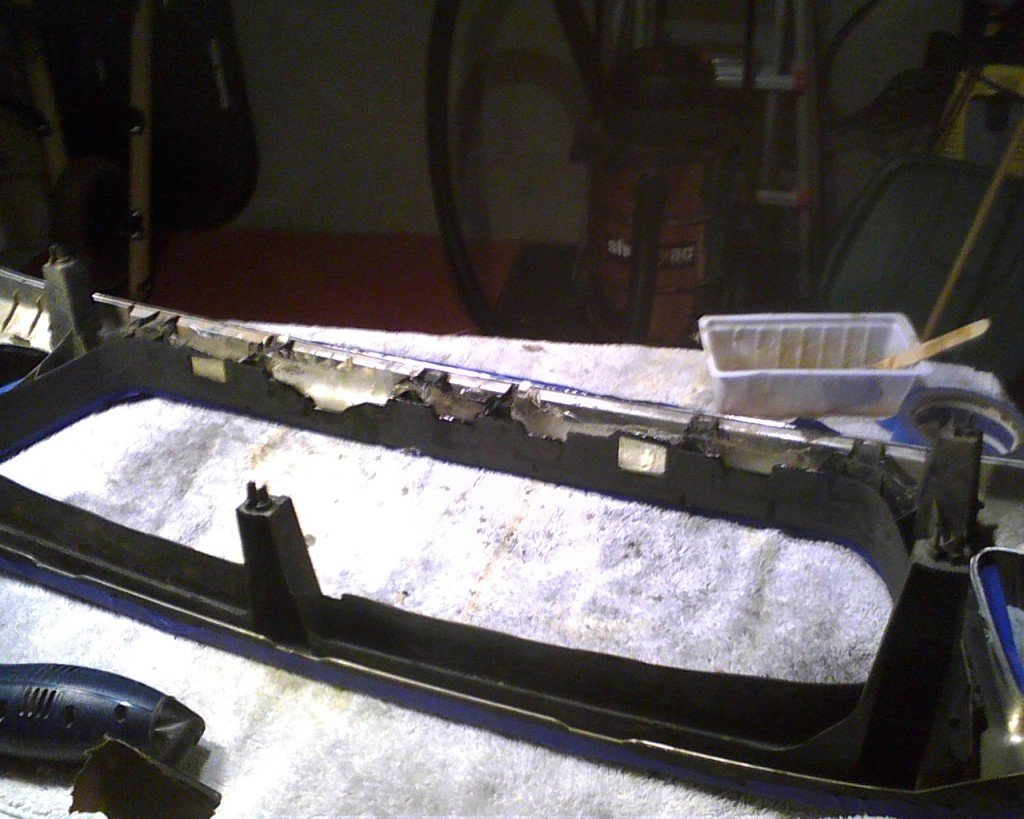

    Step 4: Bondo Application



    Supplies:

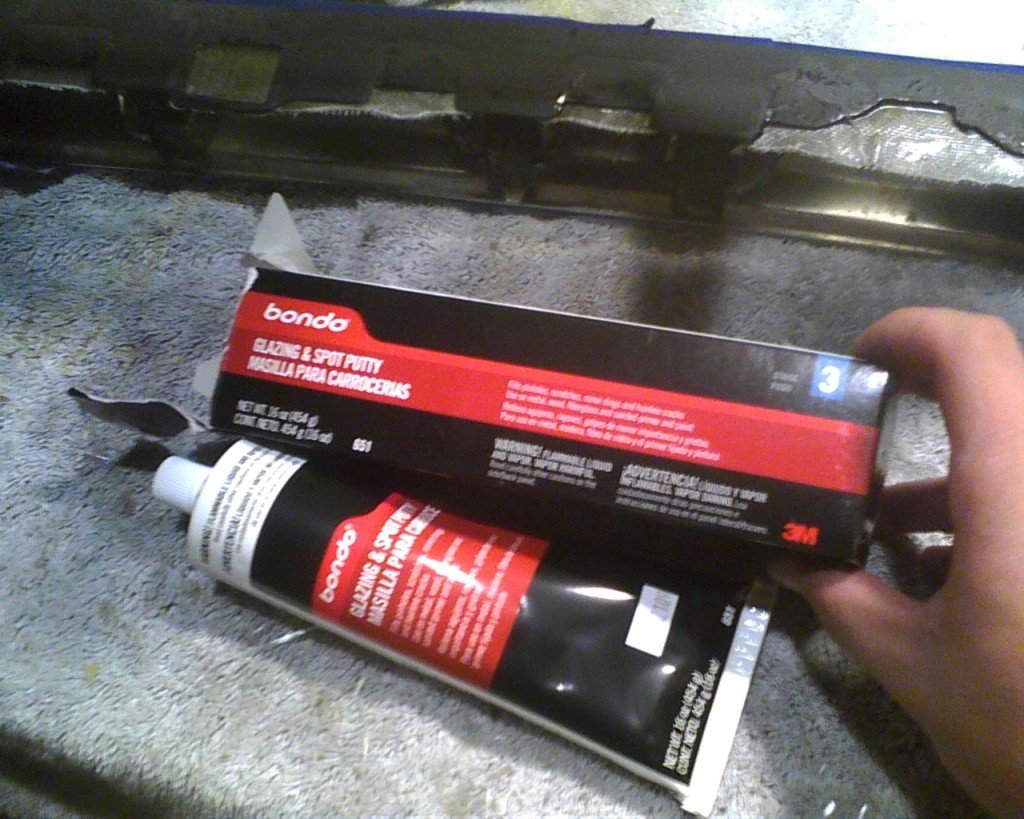

    Tube of Bondo = for filling in the areas that are backed with fiberglass

    sand paper = for smoothing out the bondo when dry

    flat edge = to smooth out the bondo

    a big fan = if you're as impatient as i am​

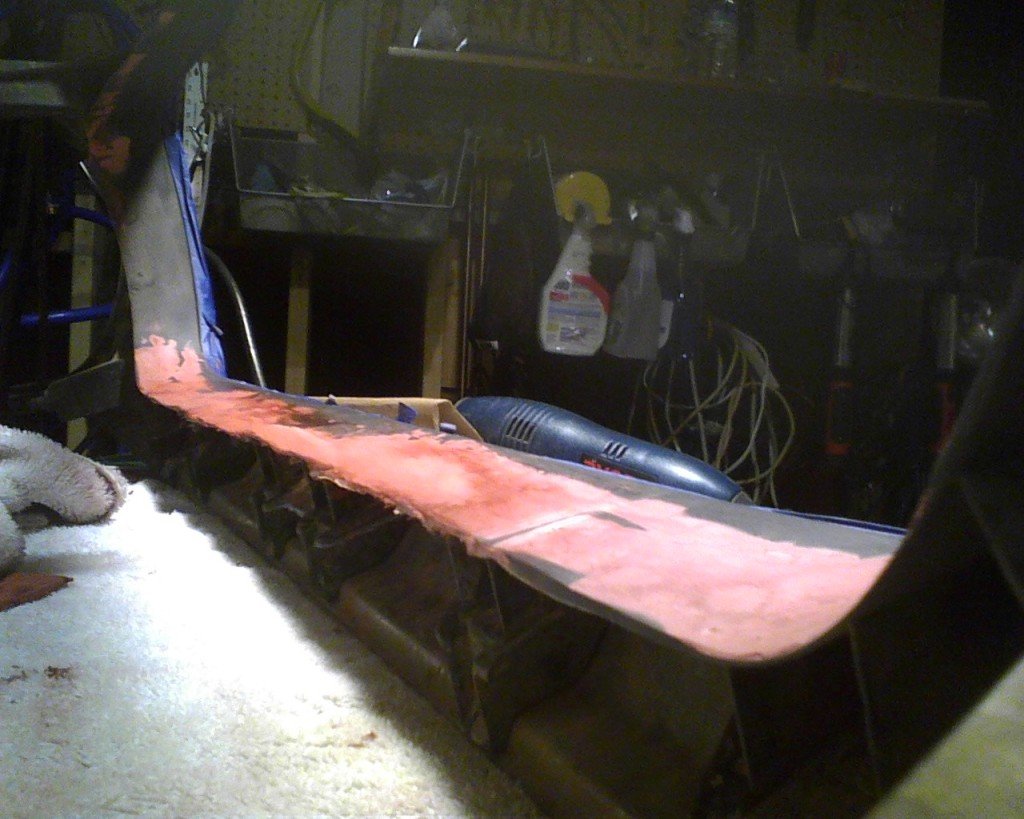

    [​IMG]

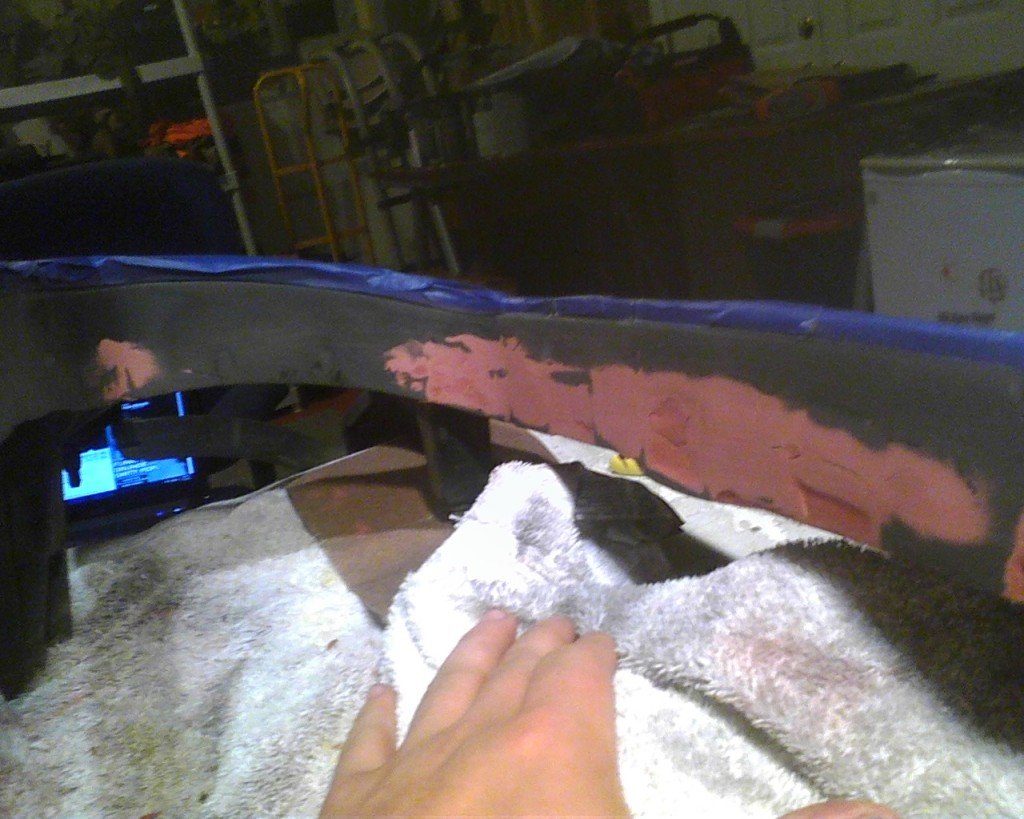

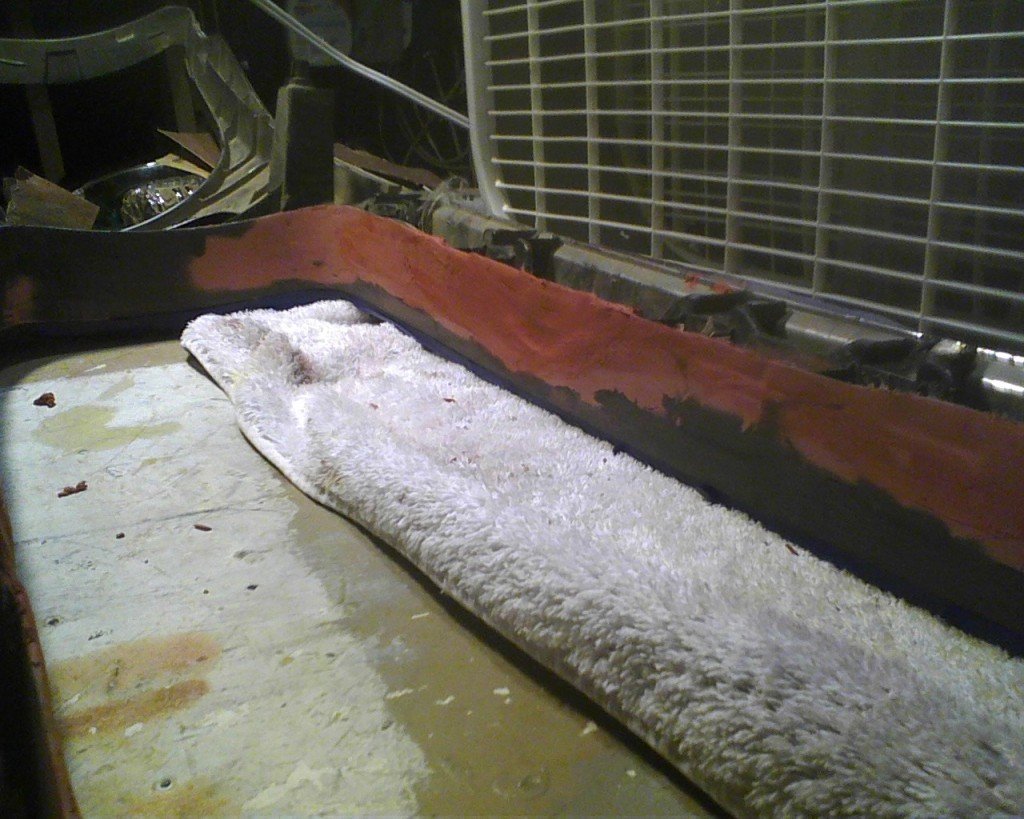

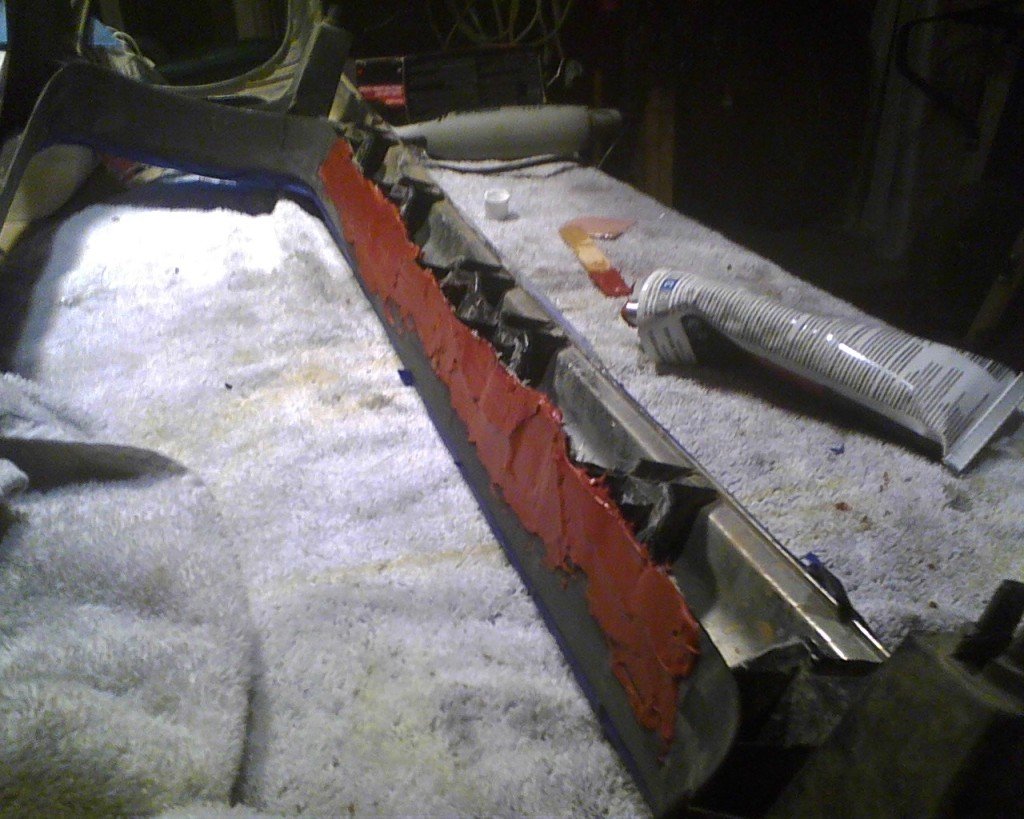

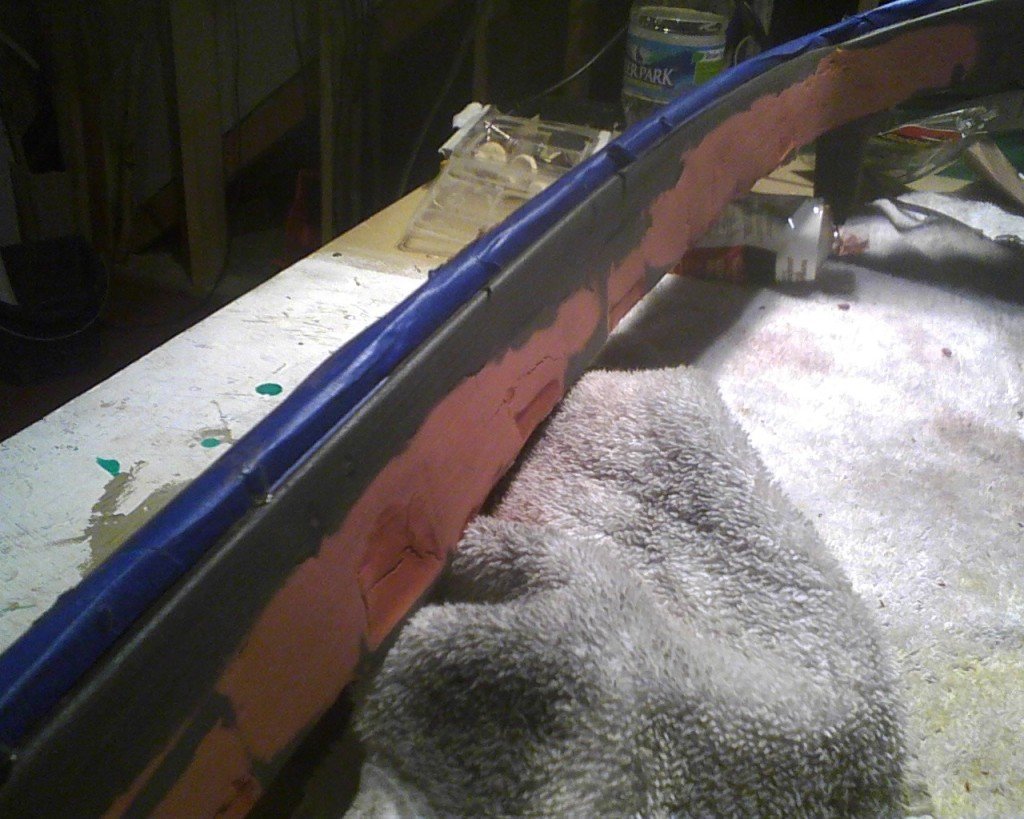

    apply the bondo



    [​IMG]





    [​IMG]




    [​IMG]











    to say the least, i didnt use the bondo sparingly! i used a lot but i wanted my inside edges really smooth :cool:







    sand it down







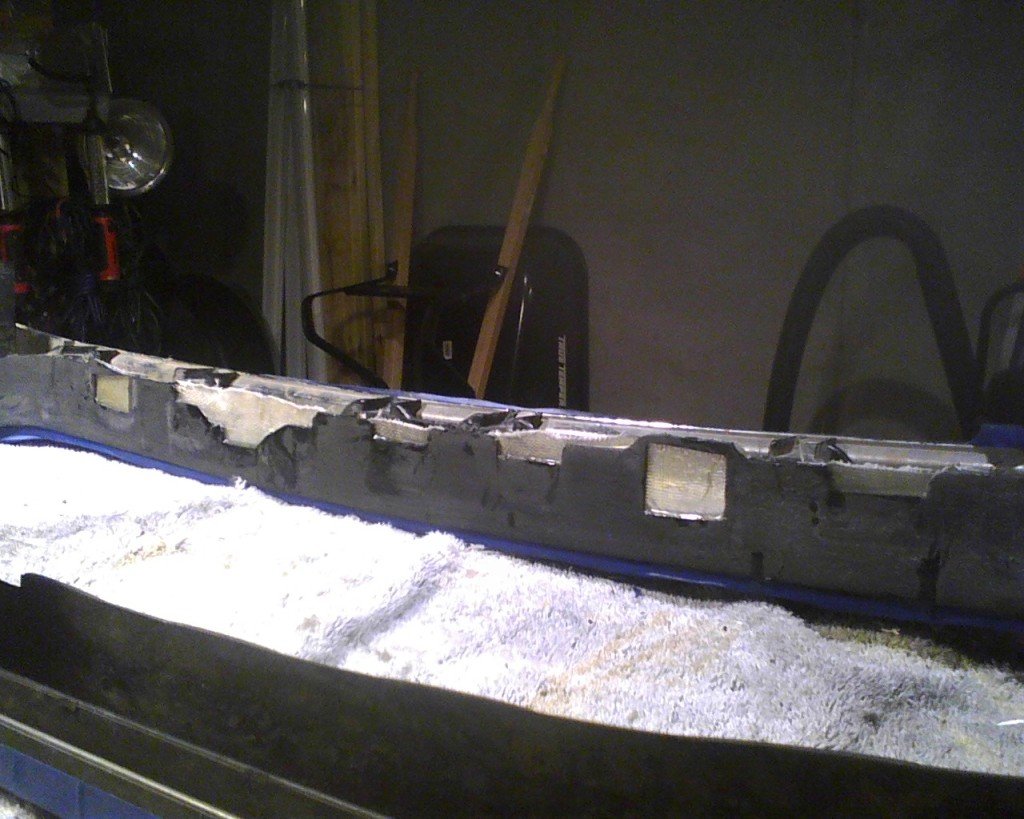

    [​IMG]


    [​IMG]




    [​IMG]

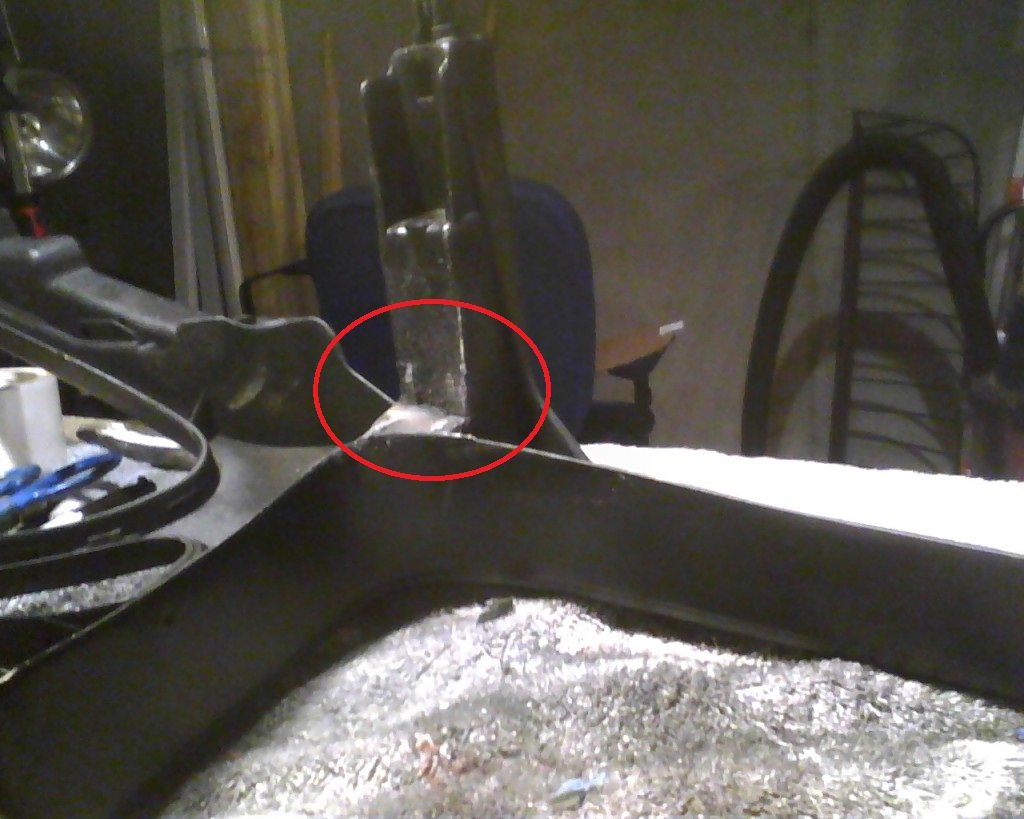

    If it shows signs of cracking you might want to reset that area and apply thinner layers of bondo.

    (i had to do this on one area)



    [​IMG]








    One more layer of bondo




    [​IMG]





    [​IMG]




    [​IMG]





    [​IMG]




    [​IMG]











    ALMOST DONE!!!!!!!!!!!!




    [​IMG]





















    Step 5: Spray Paint Application





    Supplies:


    Sand paper = more sanding! i sanded the entire grill to paint it all black (i used 220 grit for this)

    Filler Primer = spray your first coat on the inner rim on the grill with filler FIRST

    Spray Automotive Primer = spray the inner rim with normal primer too (and entire grill if you wish to do so)

    Desired color of spray paint = well... you do want to spray paint it so... pick a color

    painters tape = to tape off sections that are not being painted​












    Sand down everything you want spray painted with a high grit paper

    which for me, was everything

    more sanding...




    [​IMG]



    [​IMG]

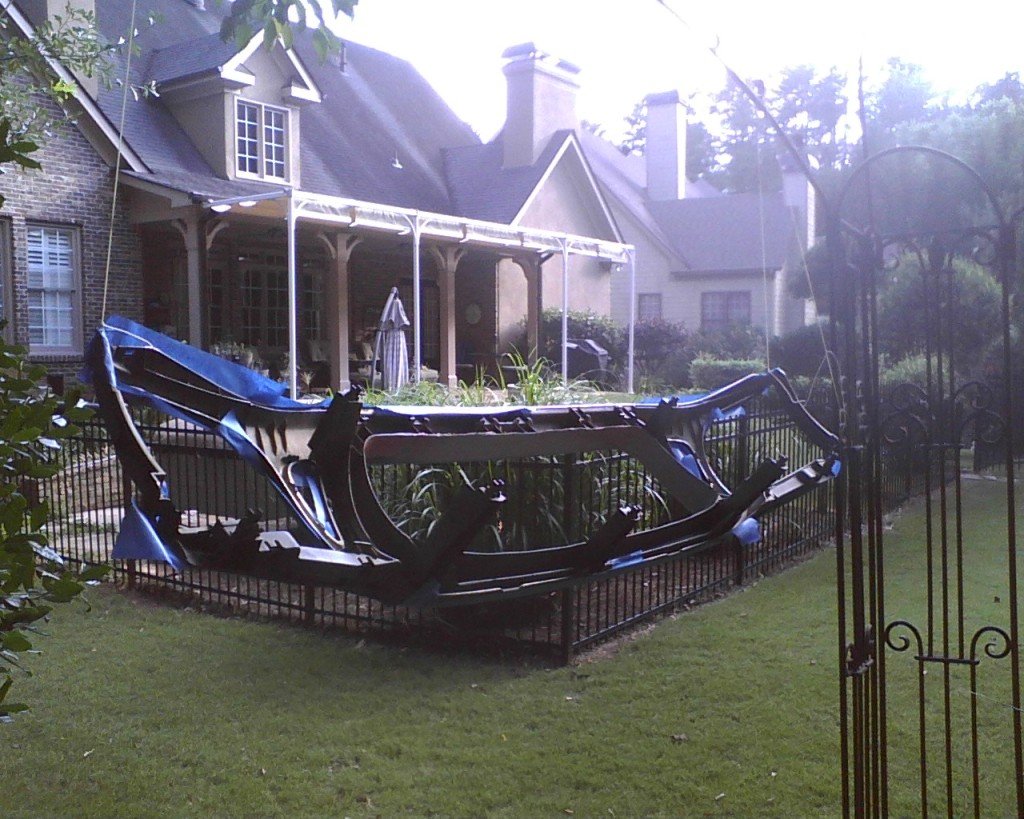

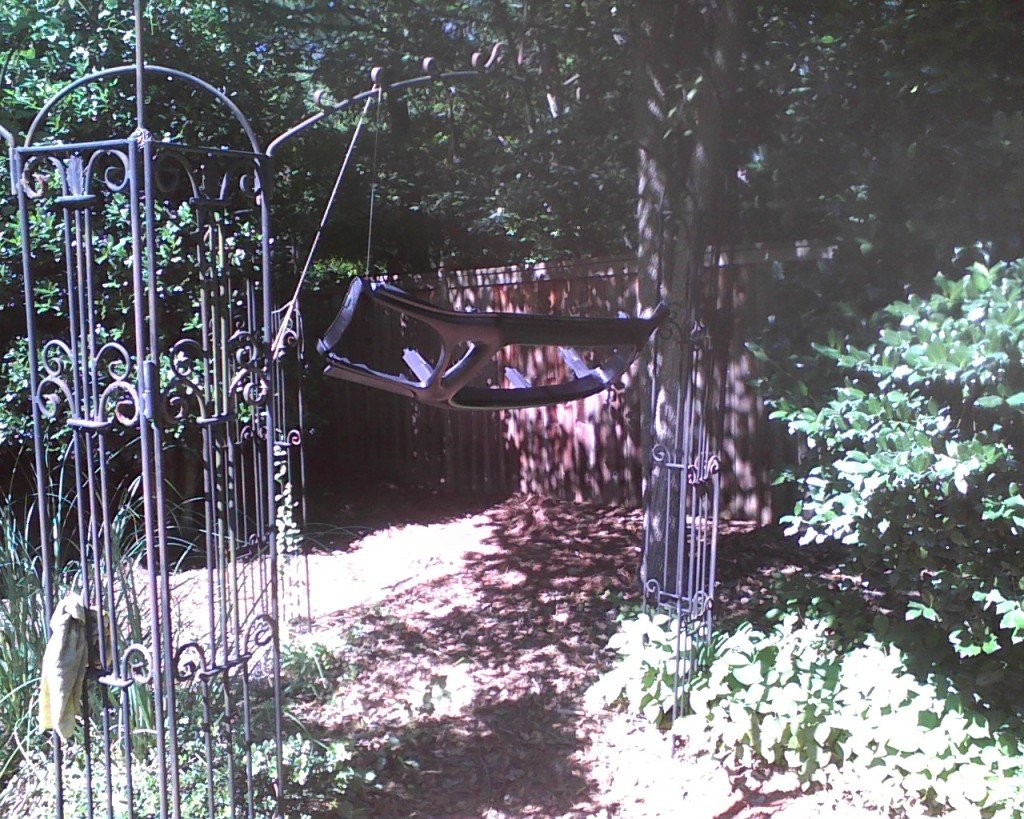

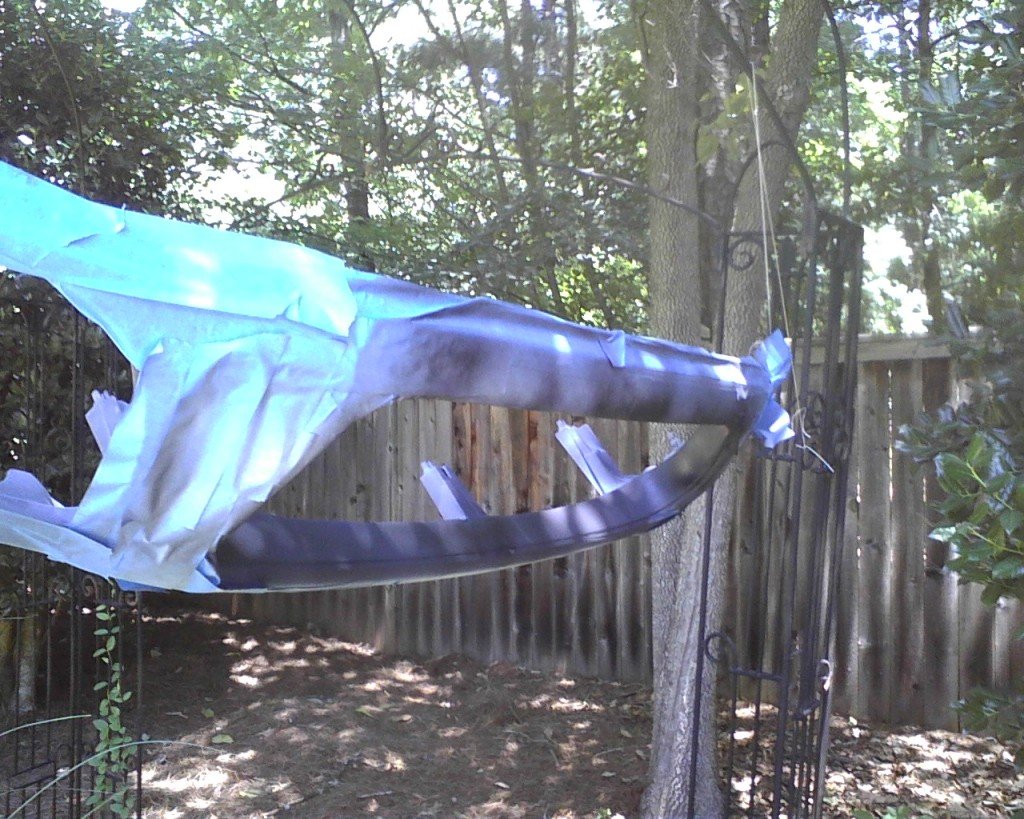

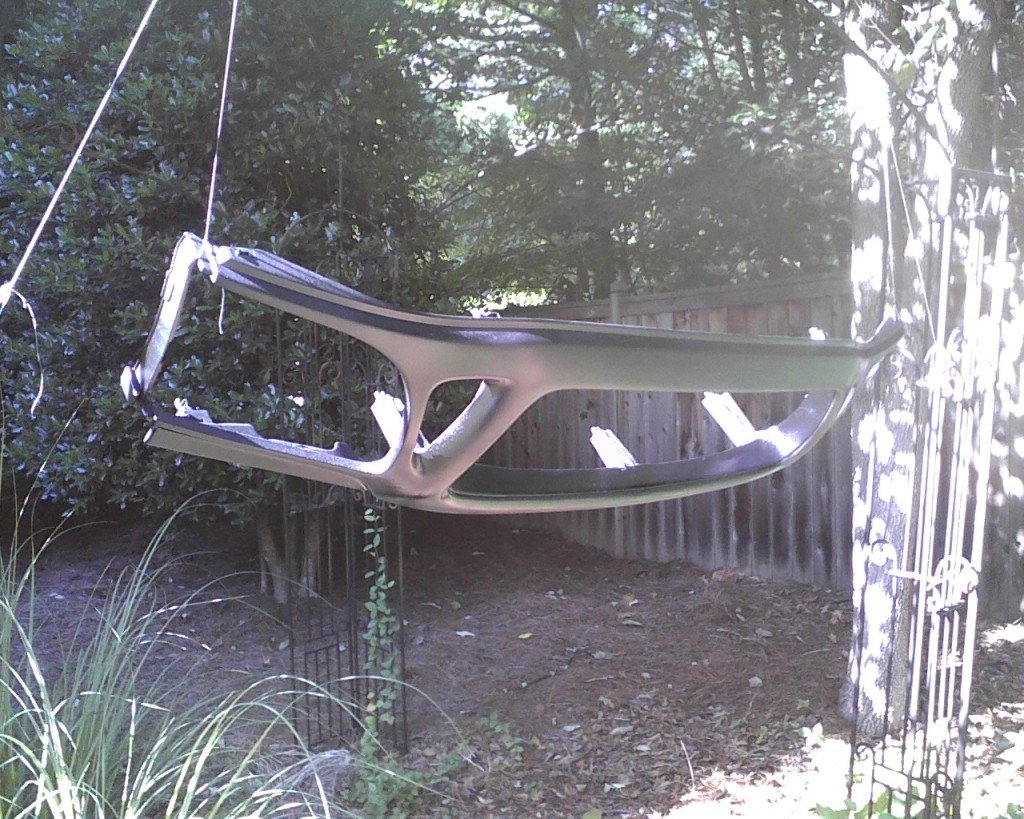

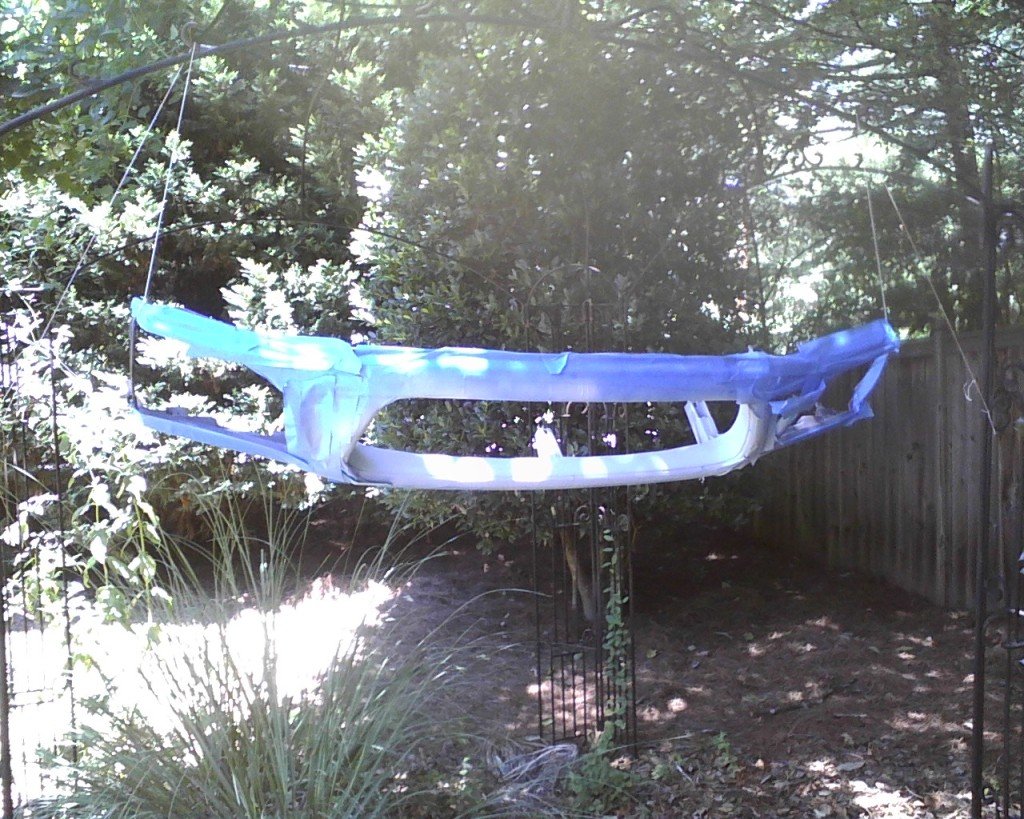

    I hung the grill up in my backyard on a trellis that is black, so it was perfect


    [​IMG]


    [​IMG]

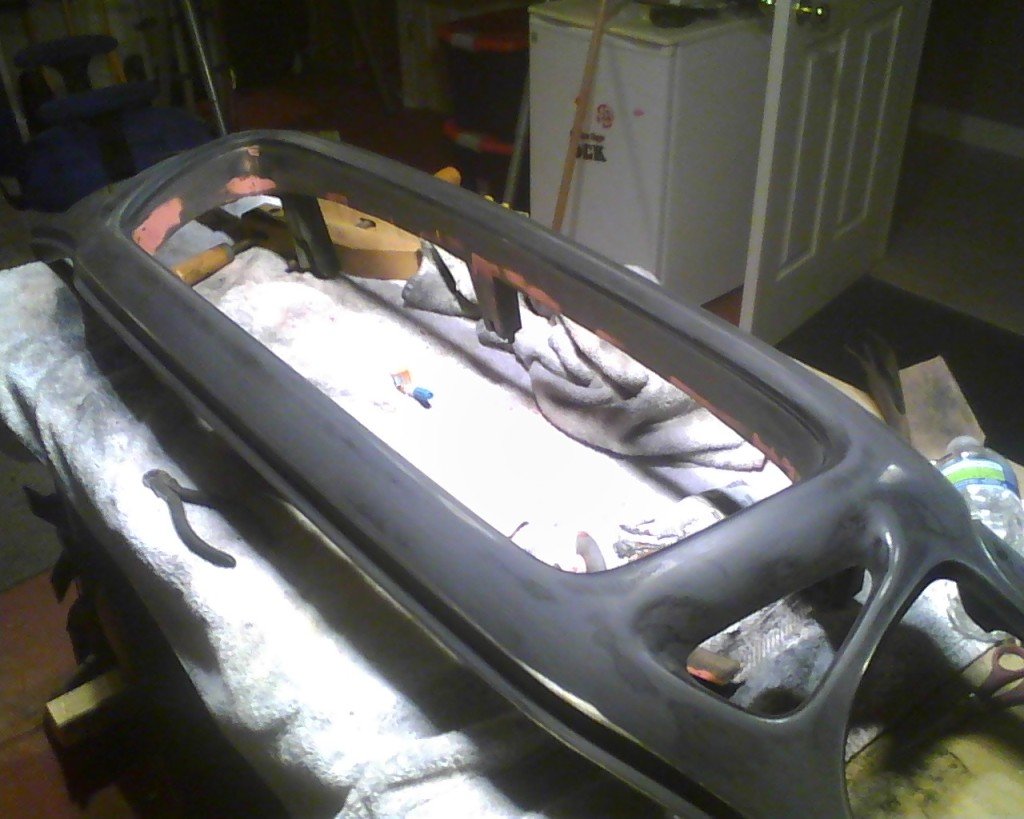

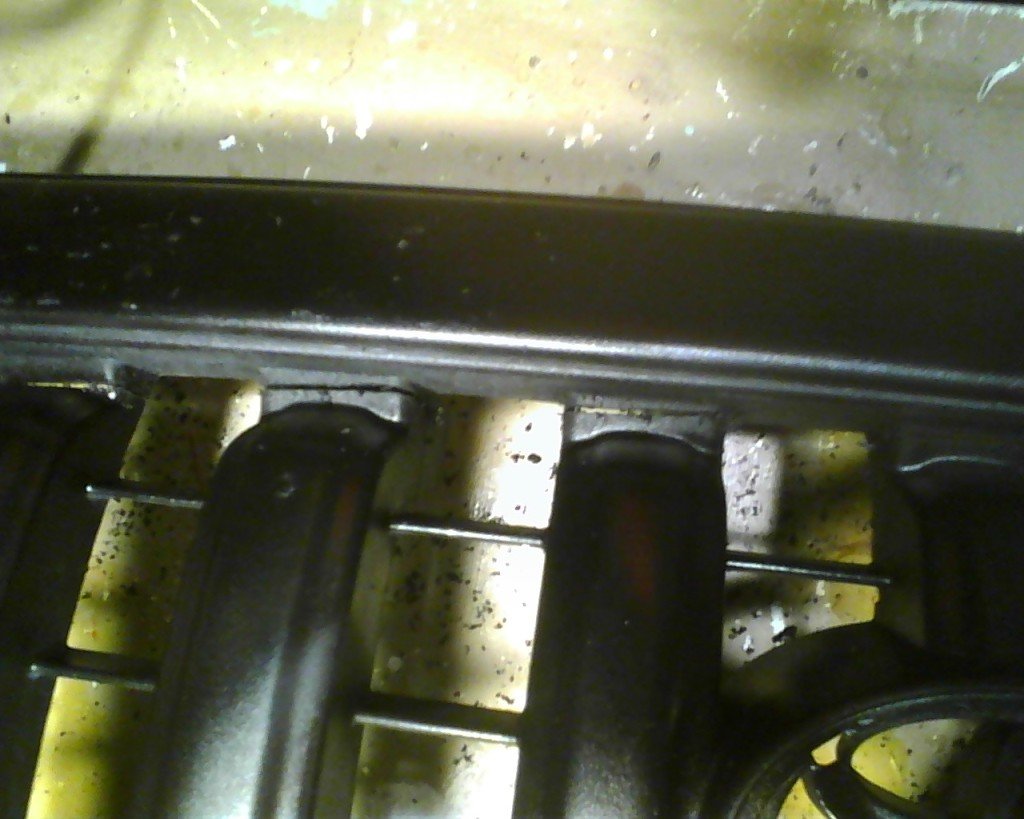

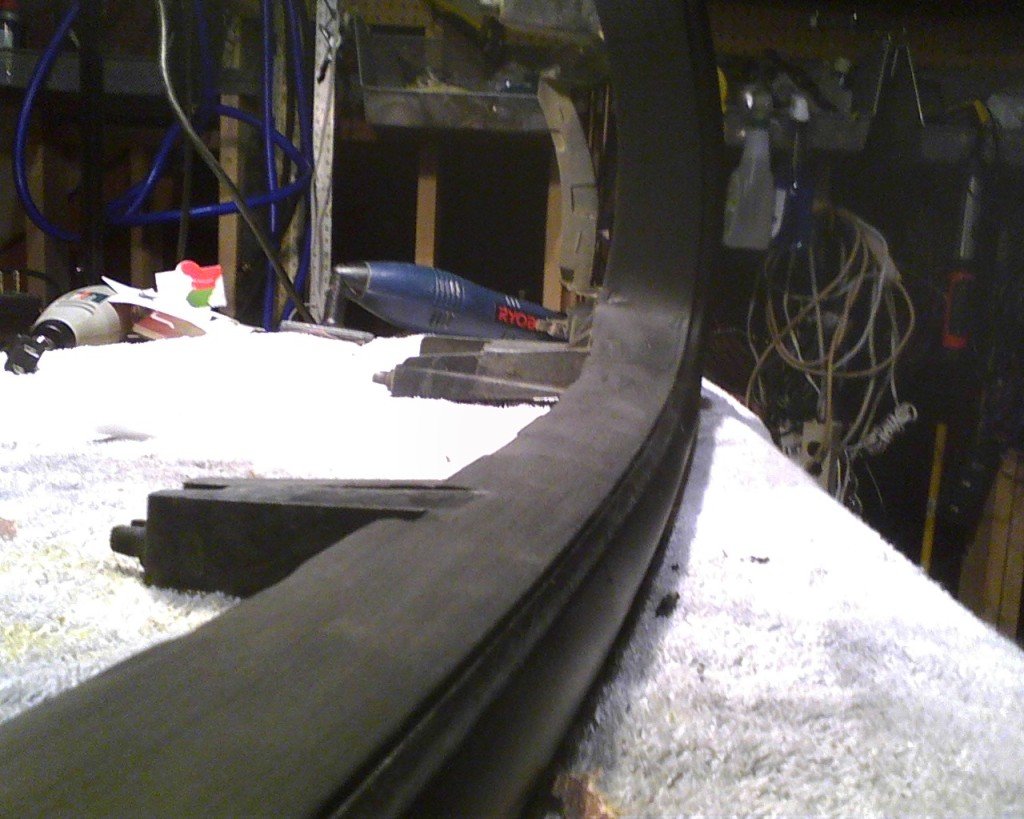

    first you'll want to apply the Filler Primer to the inner rim where you have bondo. I did the entire inner rim with two coats of filler primer



    [​IMG]










    after the filler primer apply the primer!


    [​IMG]

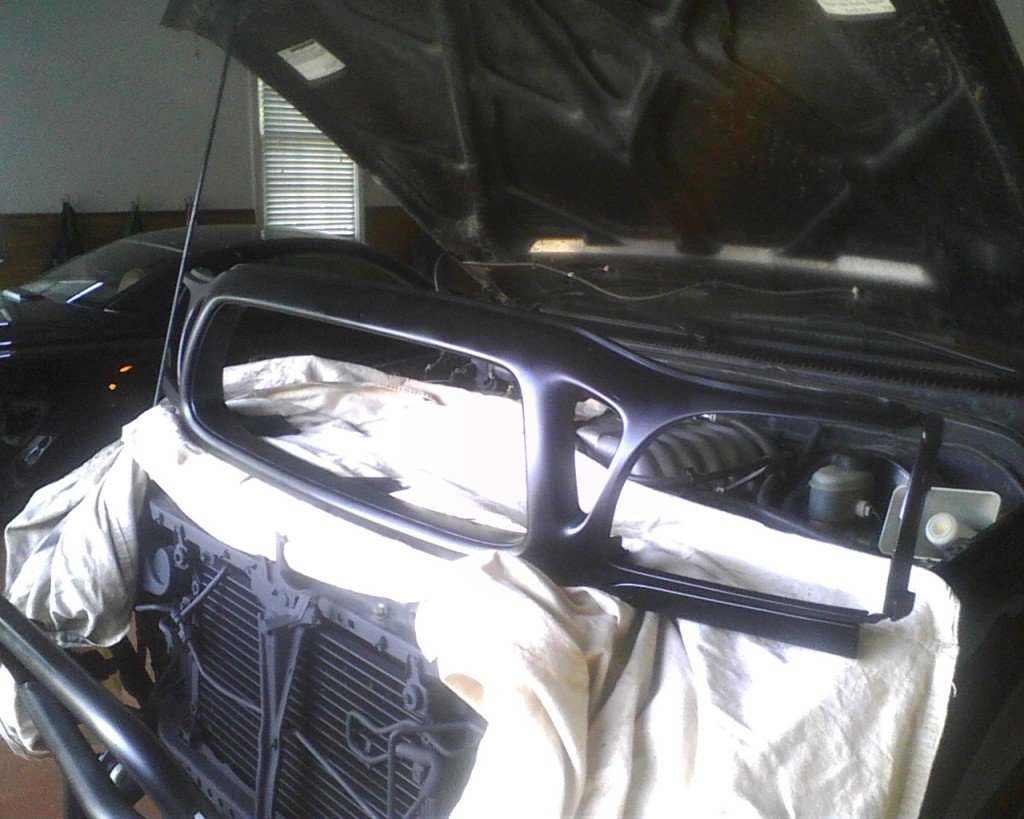

    After the primer was all dry i removed the painters tape and put on the 2 coat of primer to entire grill


    [​IMG]









    then applied 3 coats of semi-gloss rustoleum to the entire grill



    [​IMG]













    Letting it sit for the night in my basement and will mount it up tomorrow


    [​IMG]

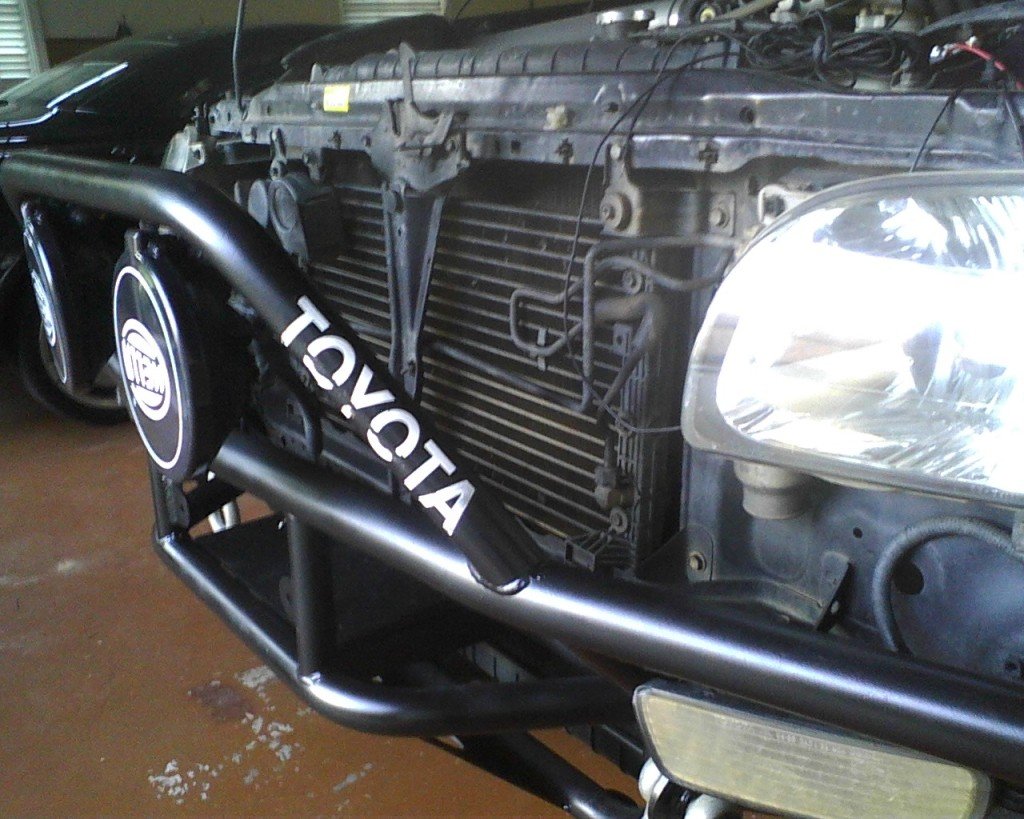

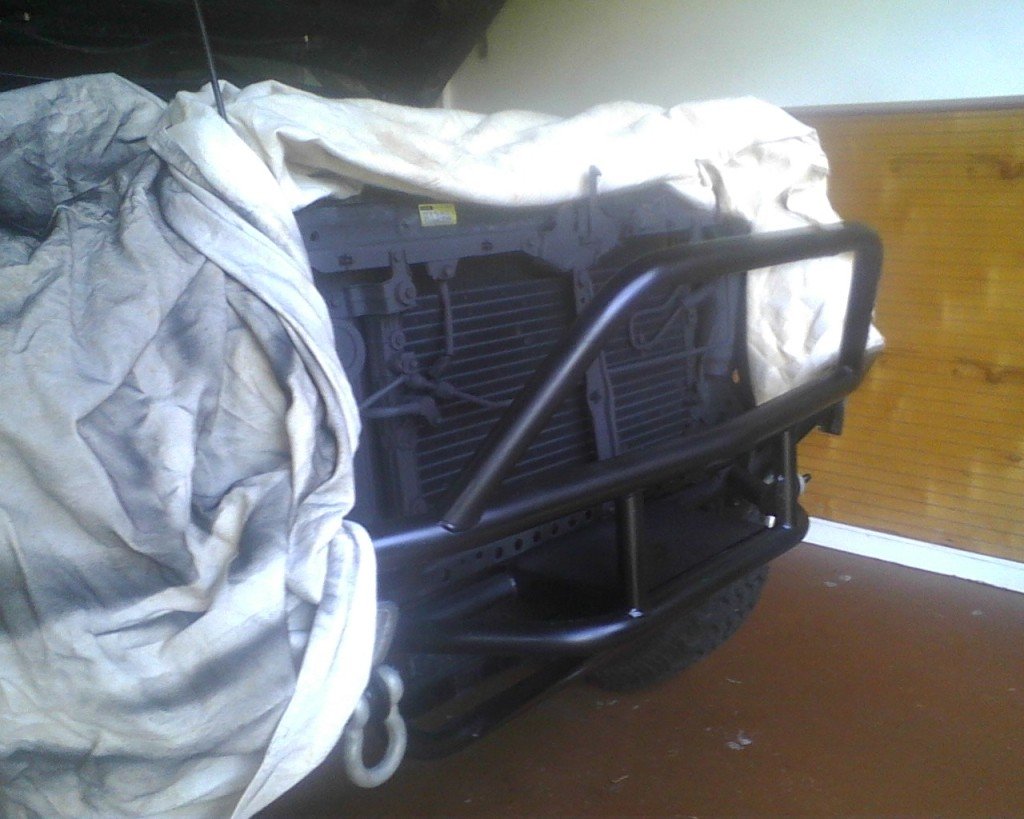

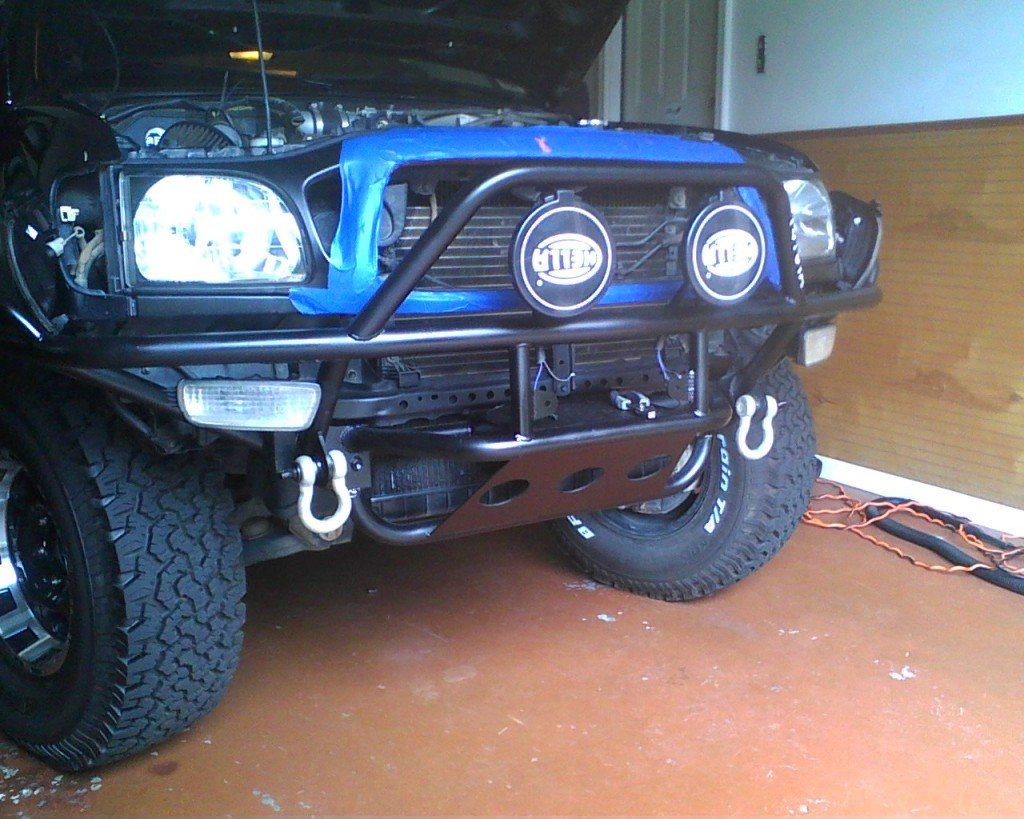

    Sprayed the Radiator and all the other junk that will be visible behind the grill with High Heat Resistant Spray Paint

    I also removed one of the horns that is right in front of the radiator. it will look ugly if i left it there. I may relocated it... eventually...

    [​IMG]


    [​IMG]








    OH BOY MY HOMERTACO MESH ARRIVED


    [​IMG]

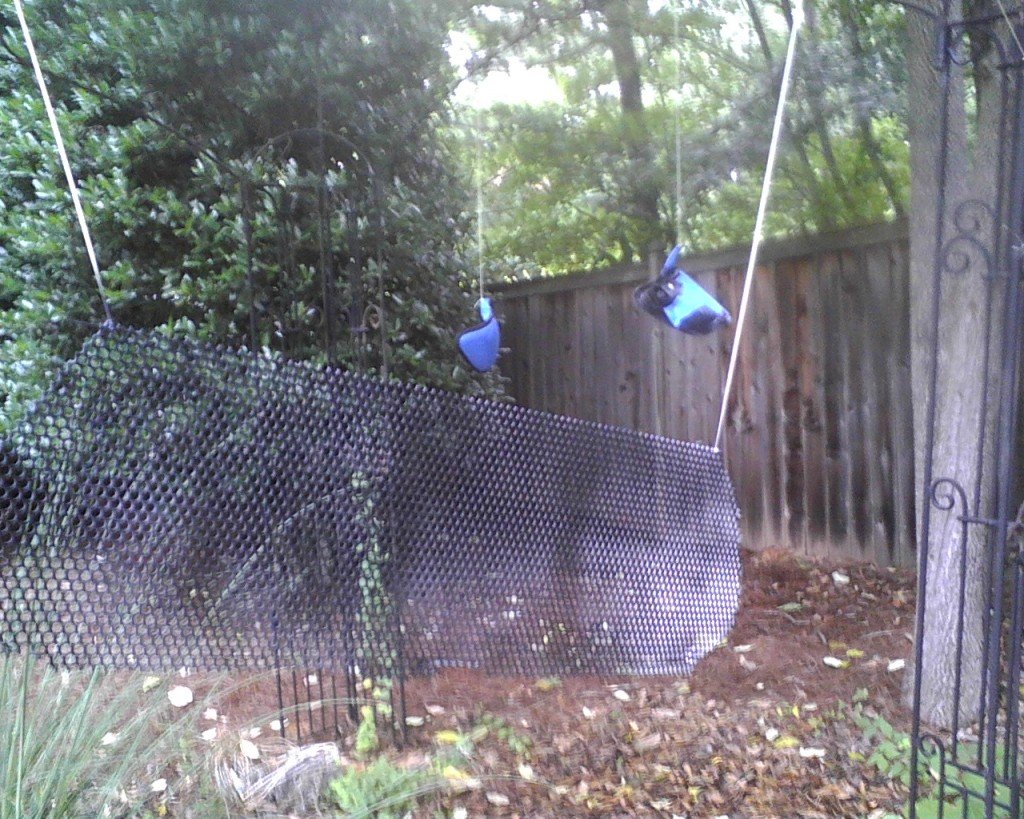

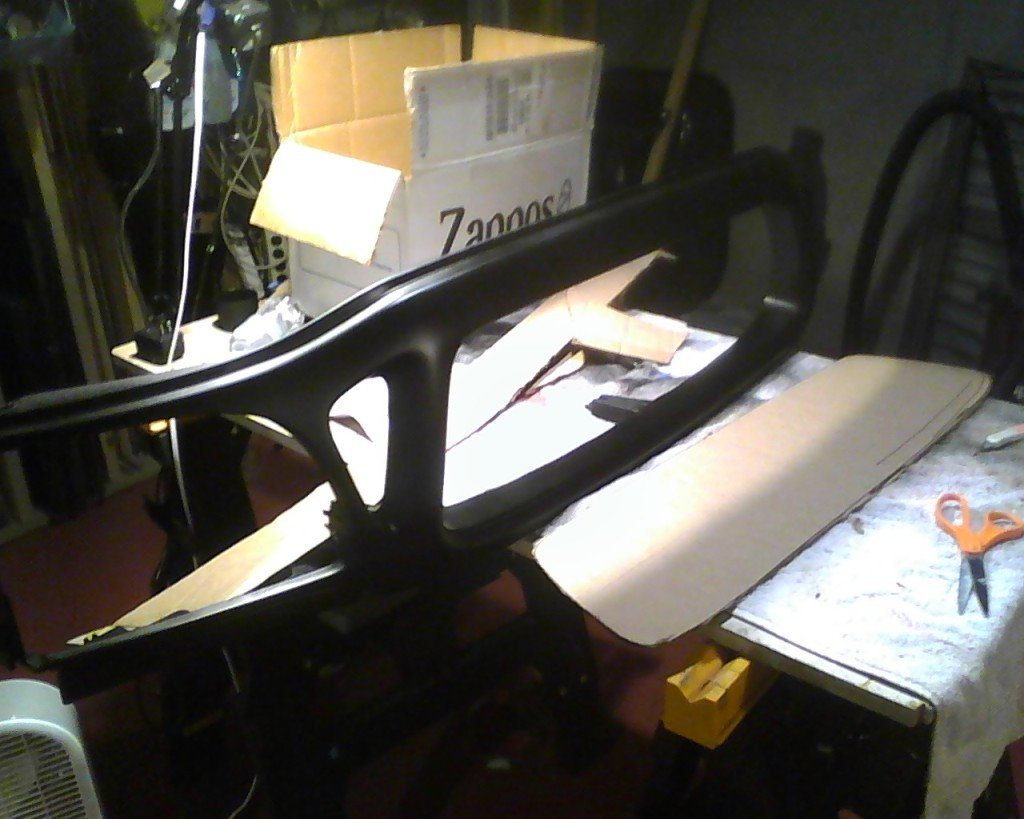

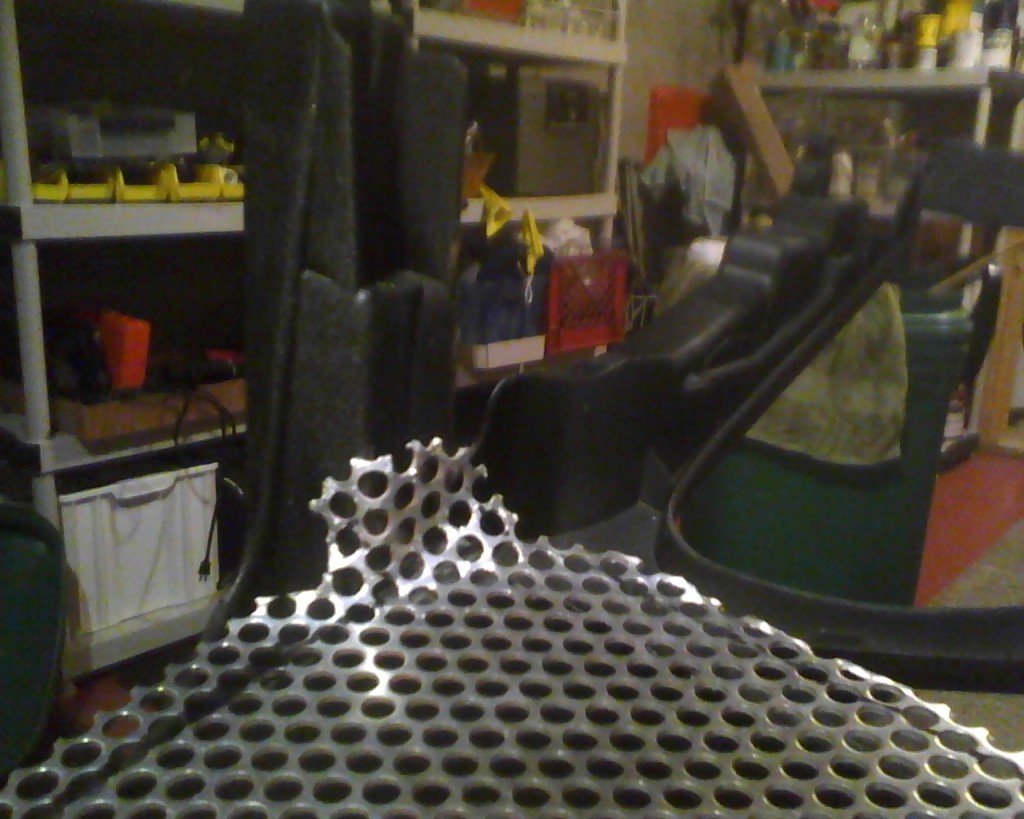

    SO. start by measuring out where you need to cut the mesh down to fit using cardboard to make a template



    [​IMG]


    [​IMG]

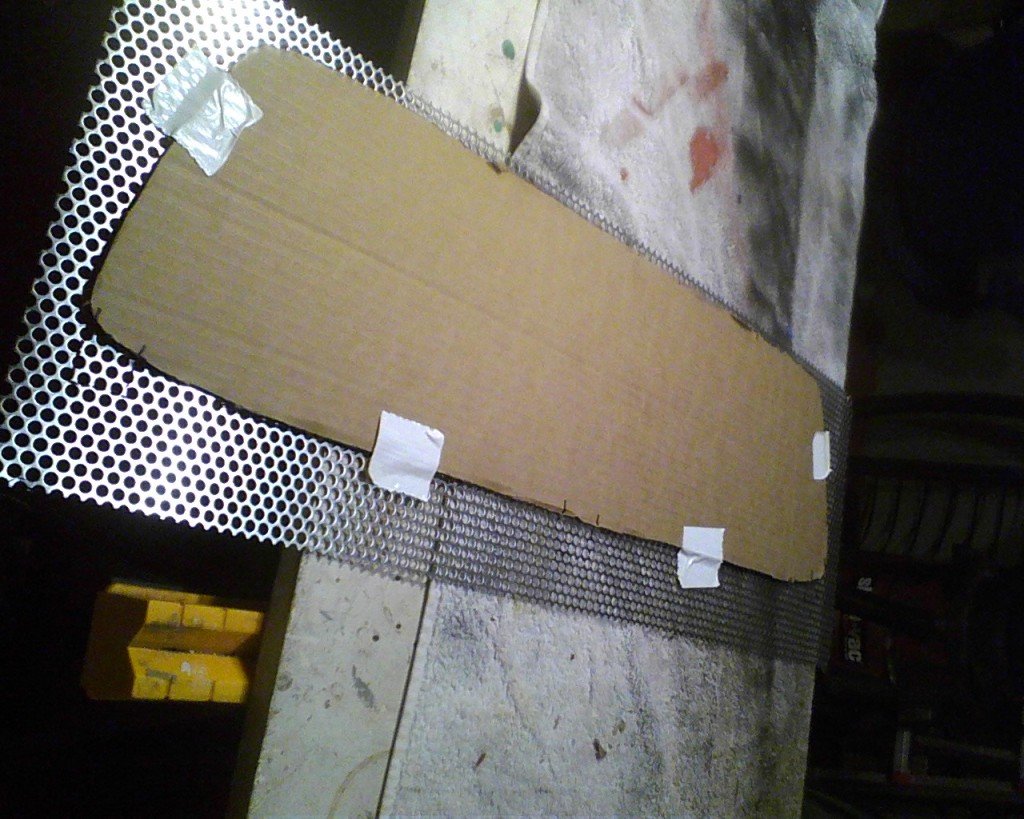

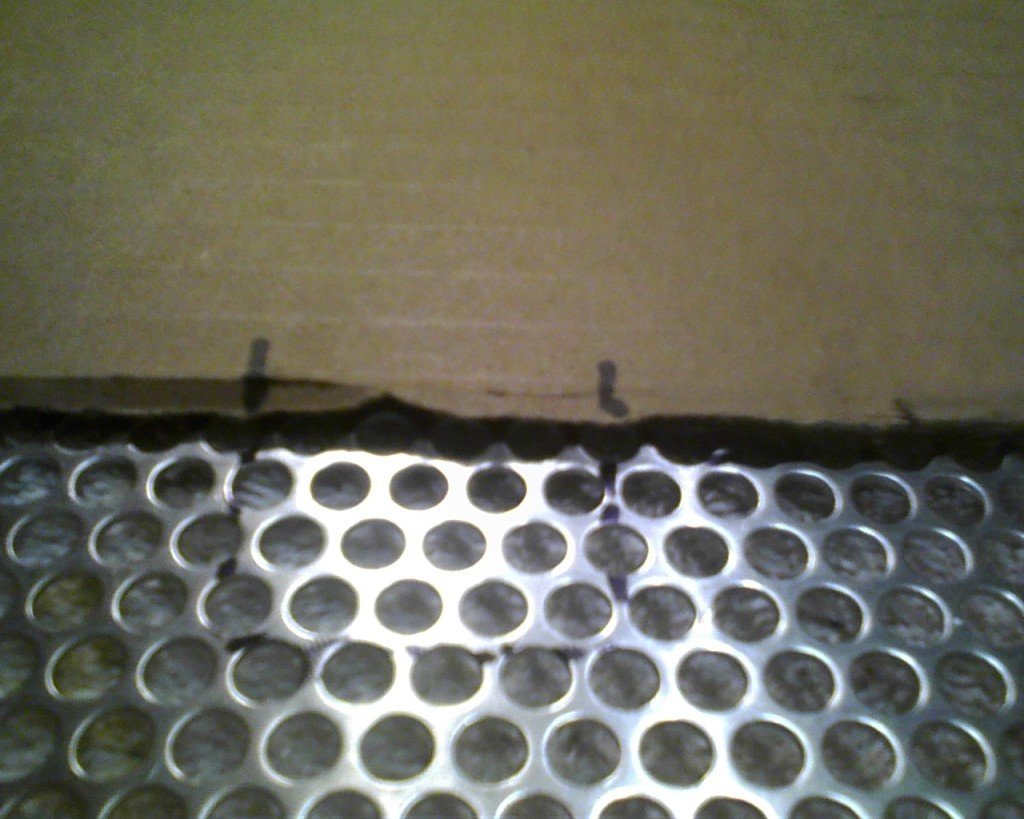

    Now using the template, trace (sharpie) where you need to cut. I cut a 1/4 inch away from the line i drew

    JUST IN CASE


    [​IMG]


    [​IMG]

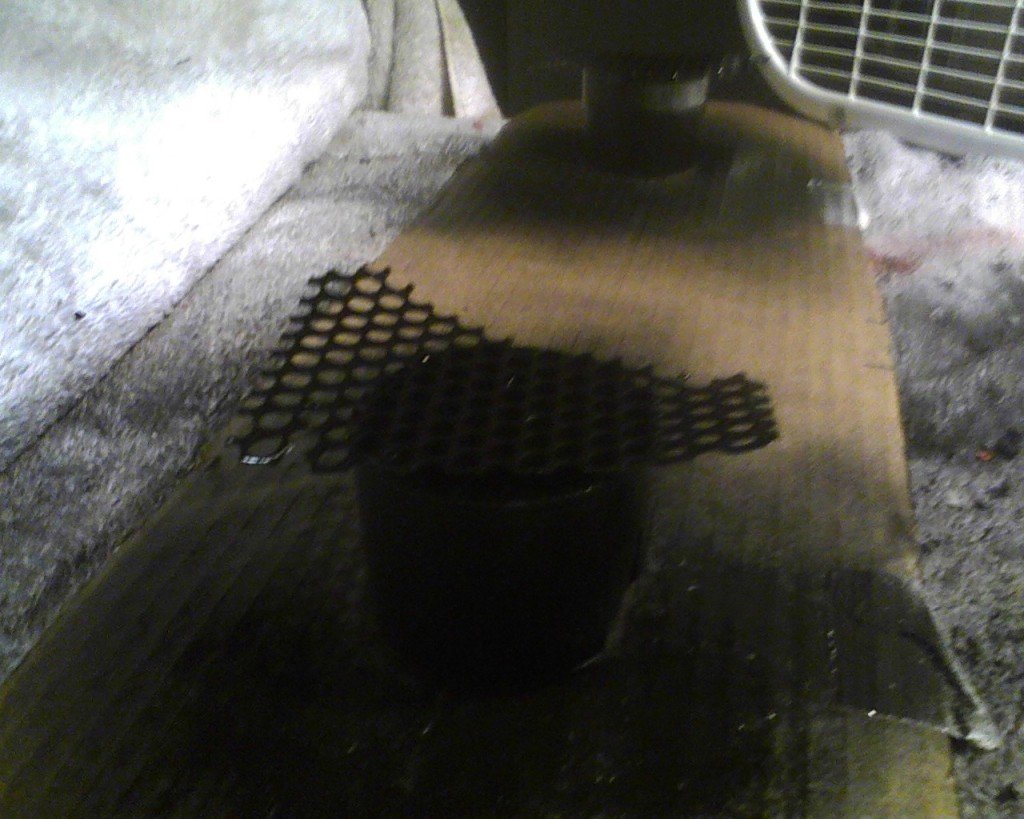

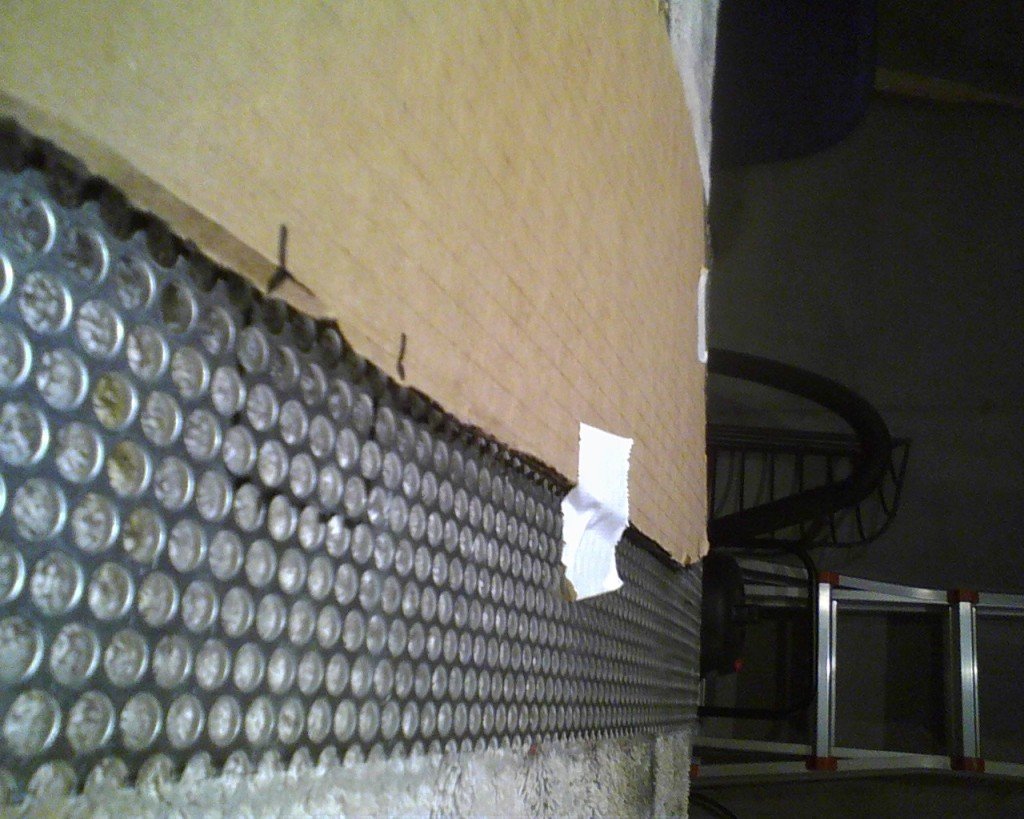

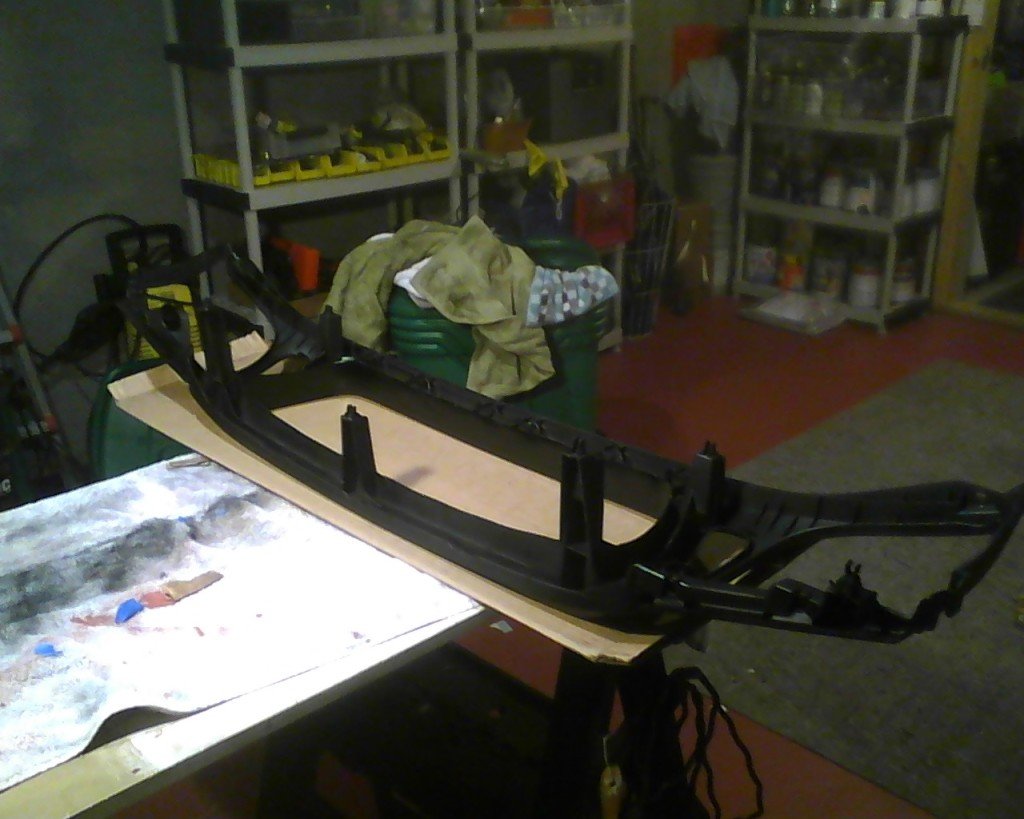

    Make marks on the card board where the towers are that extend out and connect the grill to the truck.

    you can utilize these towers as a area to anchor down the mesh grill with screws

    [​IMG]



    CUT and leave yourself some extra mesh so you have some room for fitting

    [​IMG]

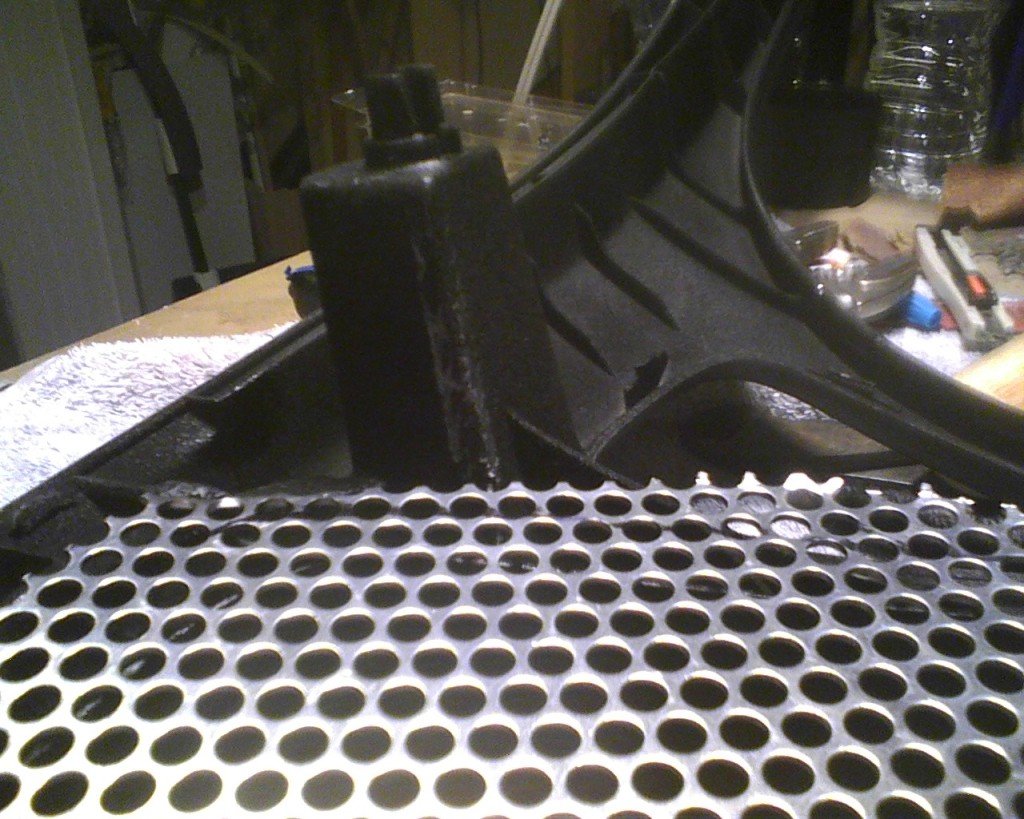

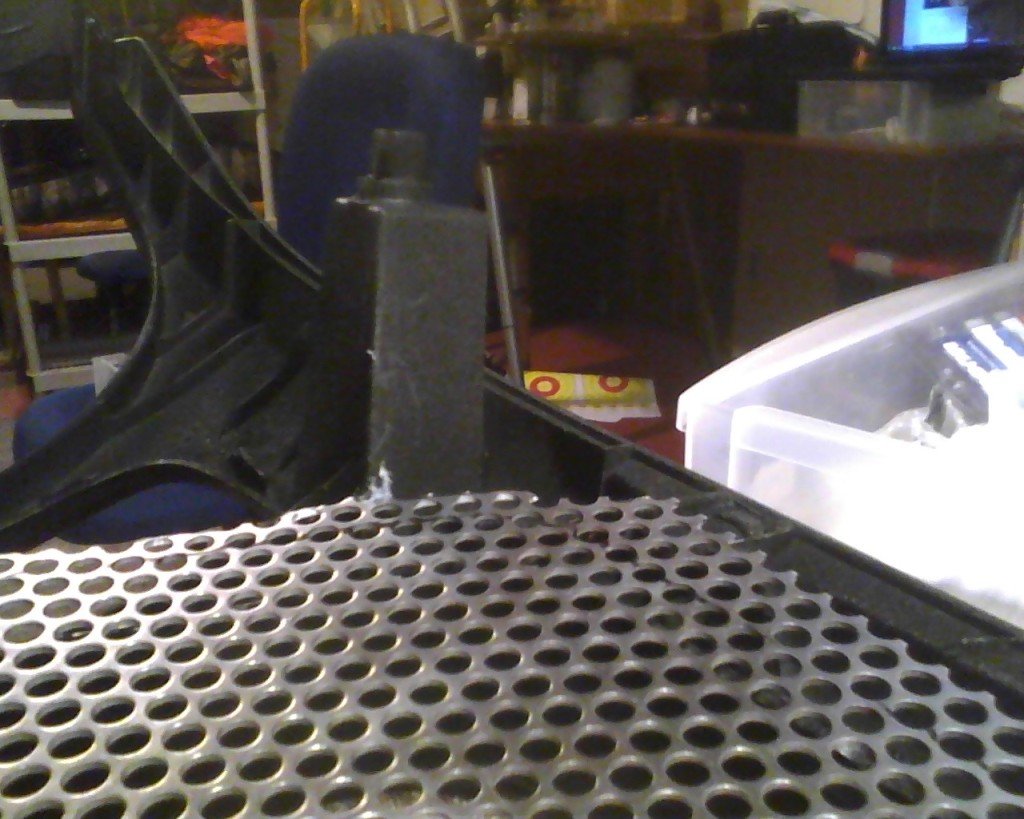

    I shaved the plastic off the bottom of both outside towers so the mesh would lay and fit easier

    [​IMG]

    [​IMG]

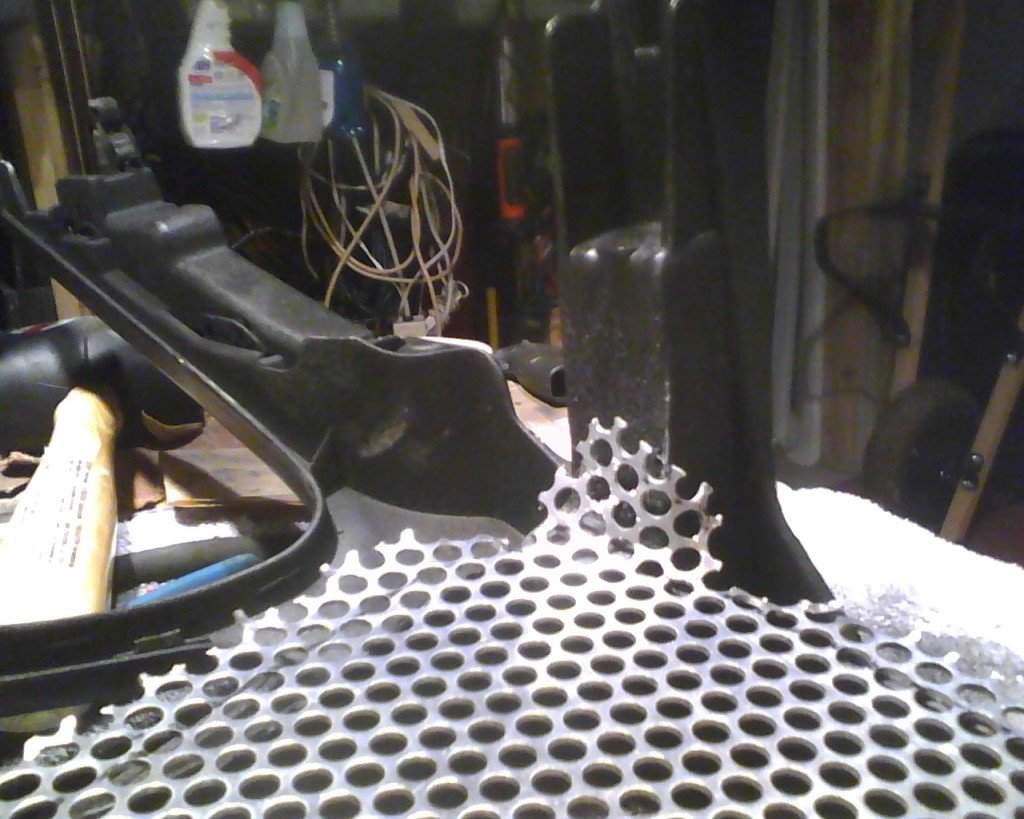

    then molded the mesh to fit around the towers so i can screw them in and secure the grill at the bottom



    [​IMG]


    [​IMG]


    [​IMG]


    [​IMG]


    [​IMG]

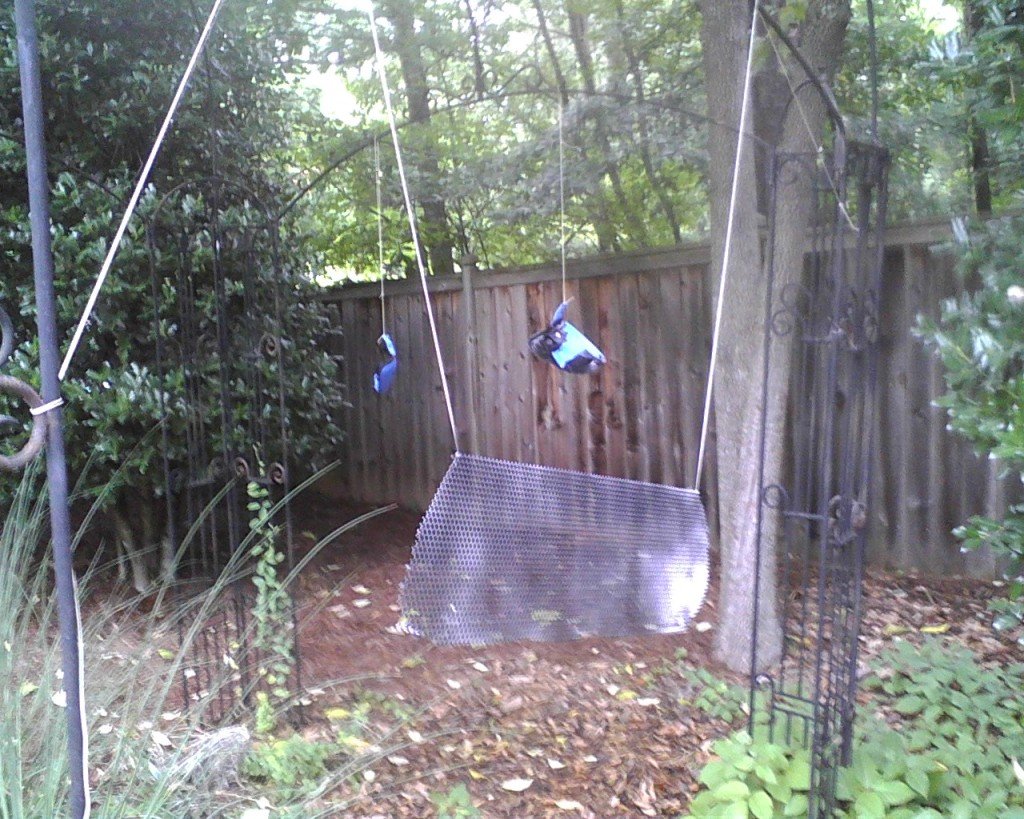

    NOW prime and paint it

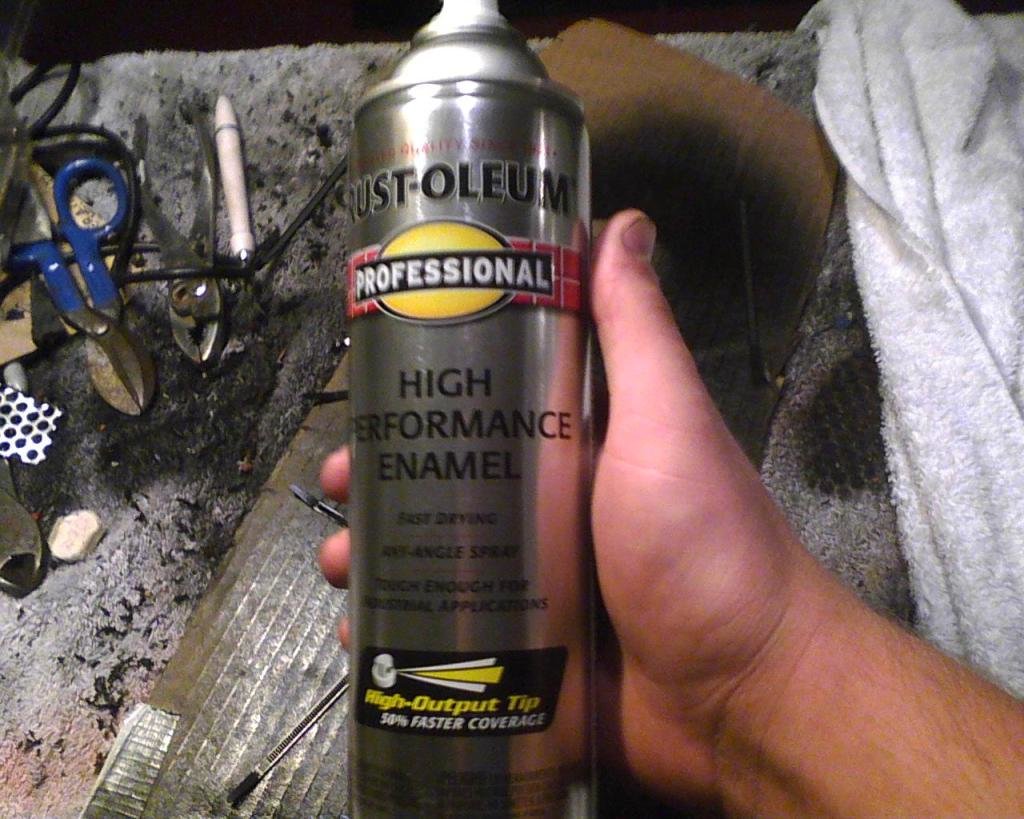

    I used this...



    [​IMG]


    [​IMG]


    [​IMG]

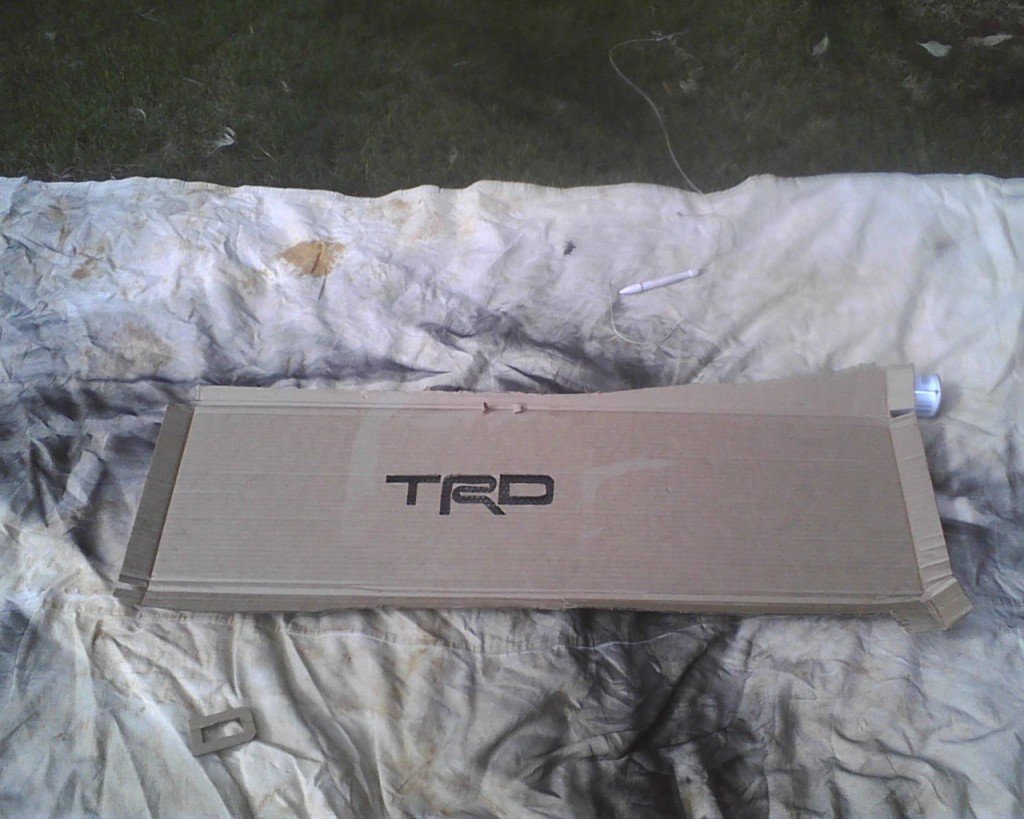

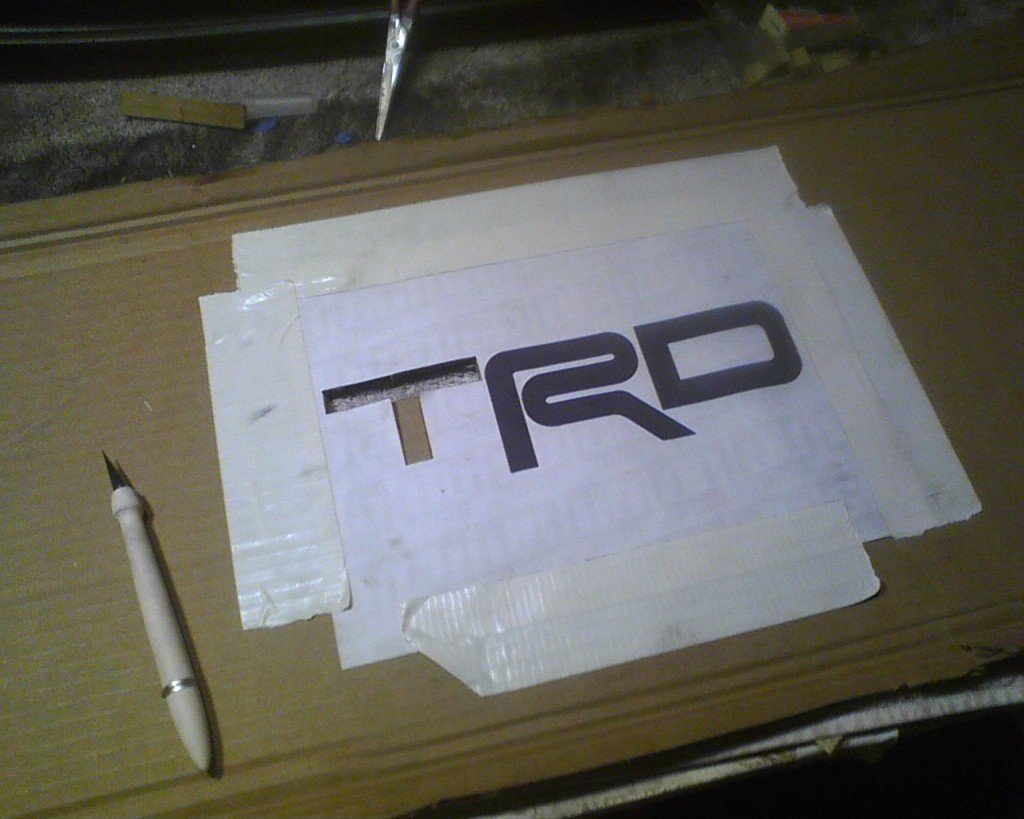

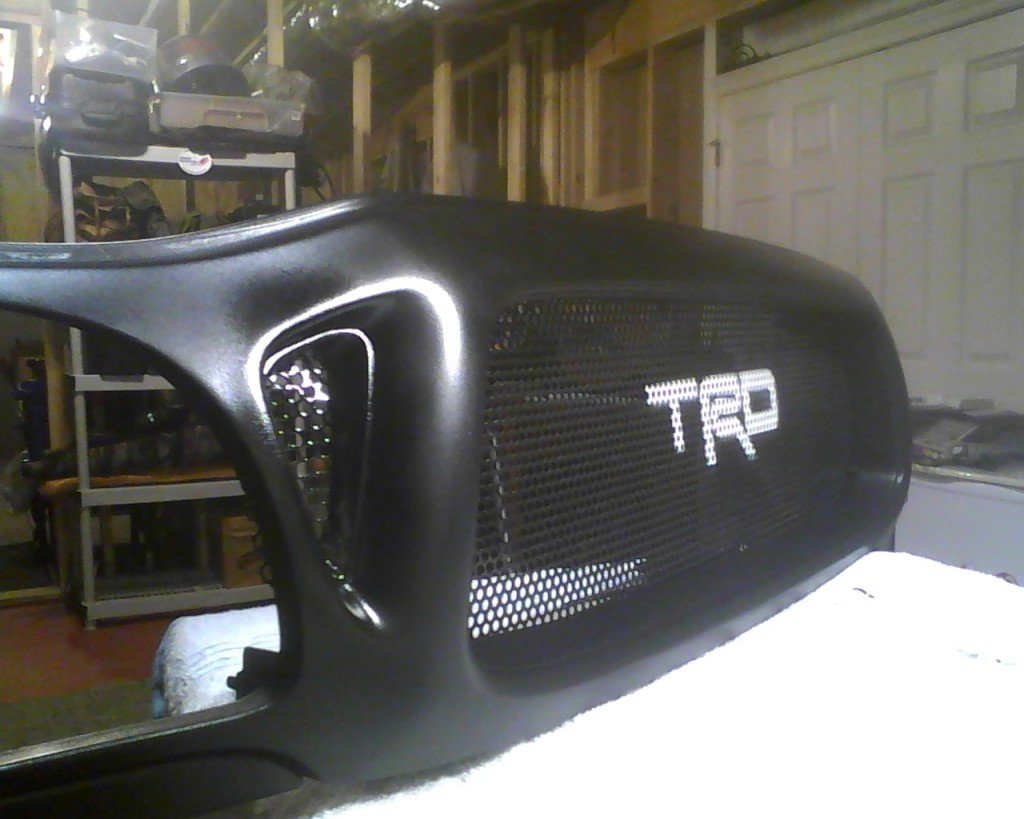

    I wanted the TRD symbol in the middle so i made a stencil with cardboard!


    [​IMG]

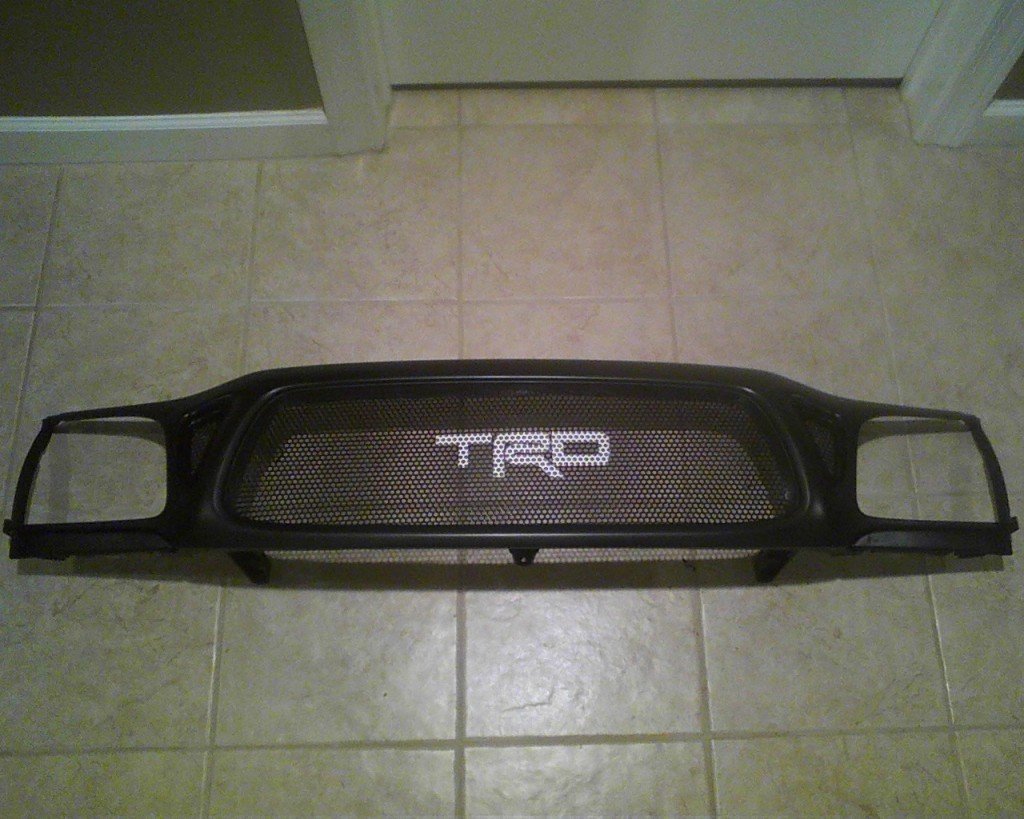

    And then spray the color of your choosing

    [​IMG]


    Sorry i dont have a picture of the mesh by itself. my phone battery began to die on me.






    Before you move on the next step (this is optional) finish the triangle cut outs and measure up the mesh for the triangles

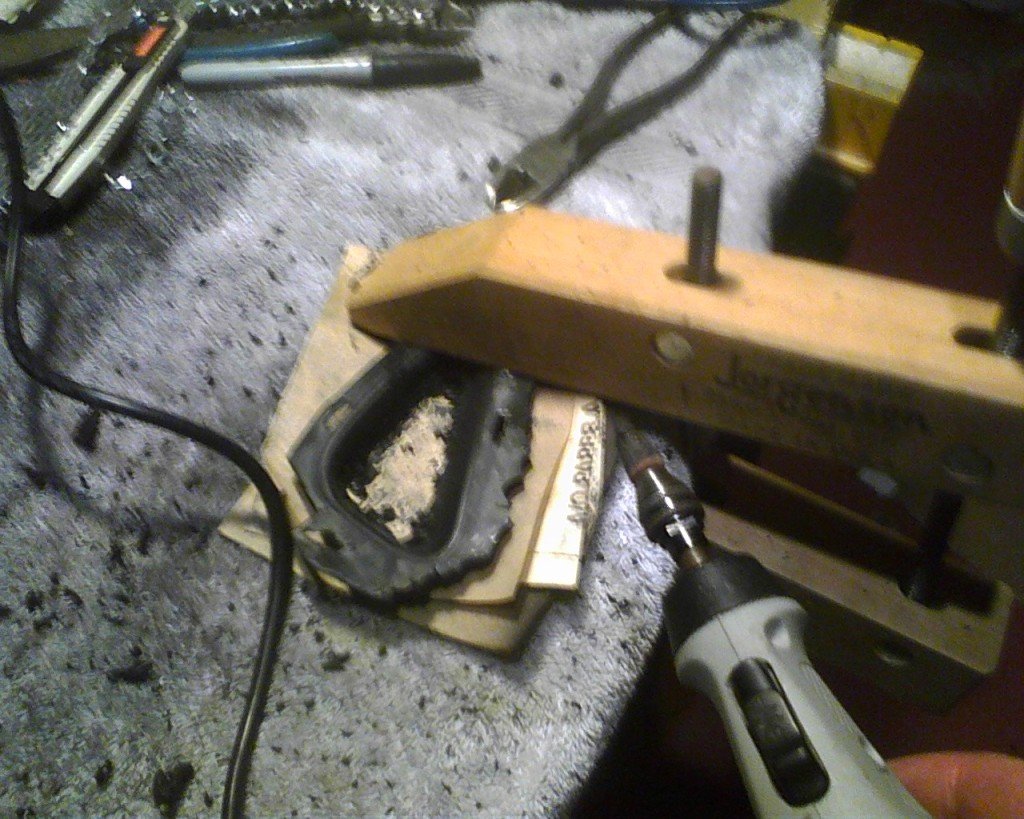

    Start by cutting out the middle of the triangle plastic



    [​IMG]

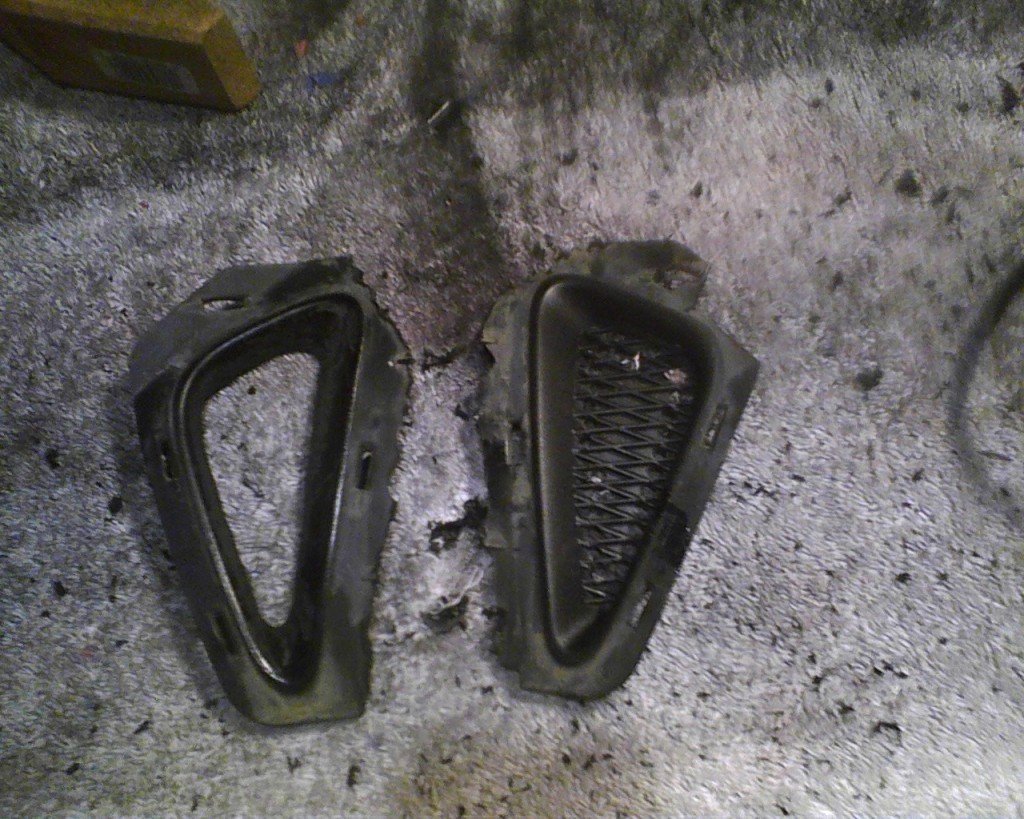

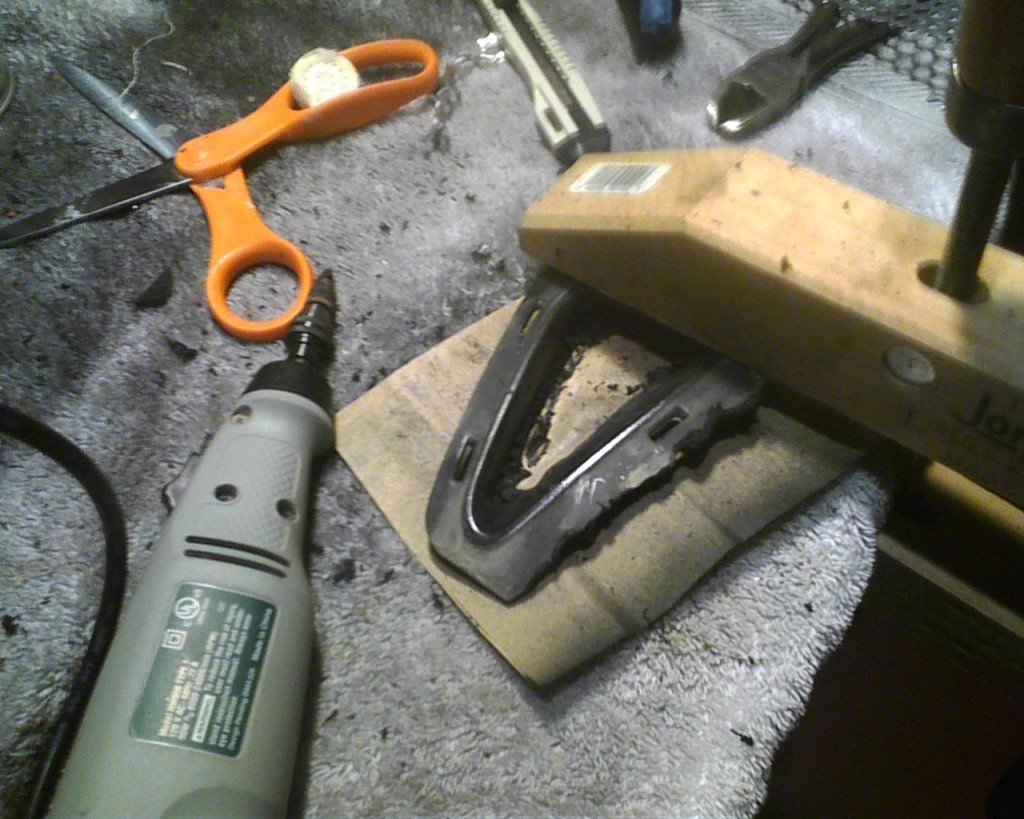

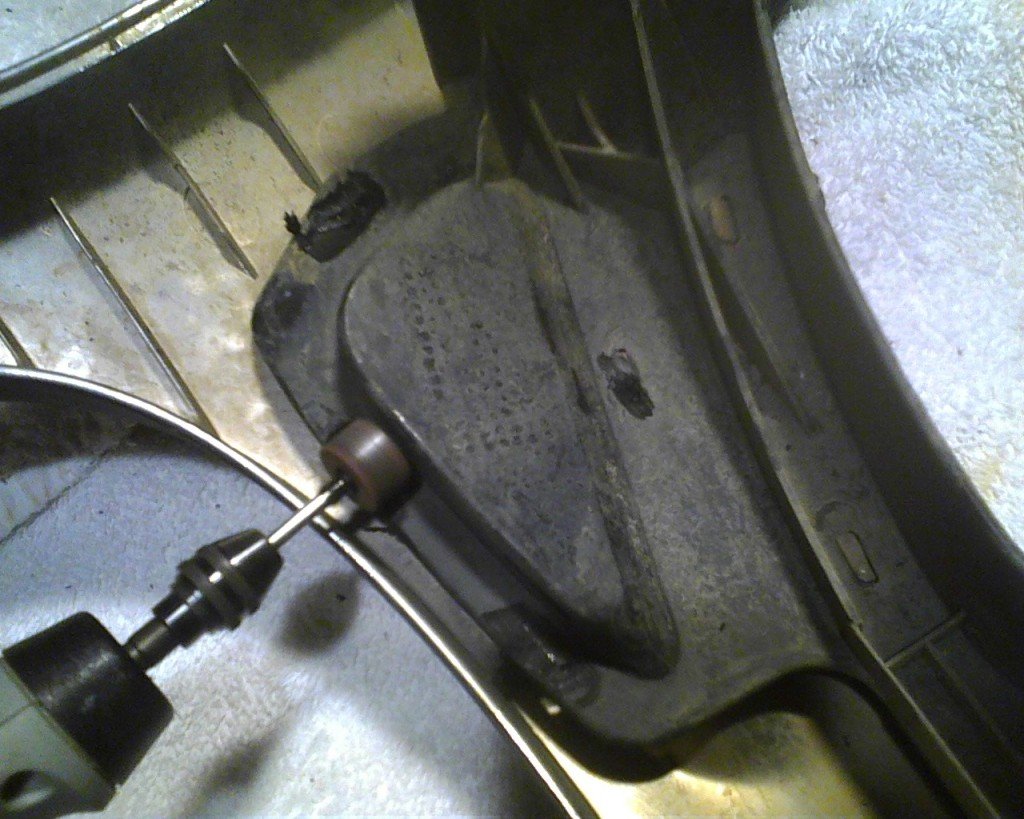

    then finish off the job with a dremel and smooth out the edged



    [​IMG]


    [​IMG]


    [​IMG]


    [​IMG]


    [​IMG]


    [​IMG]

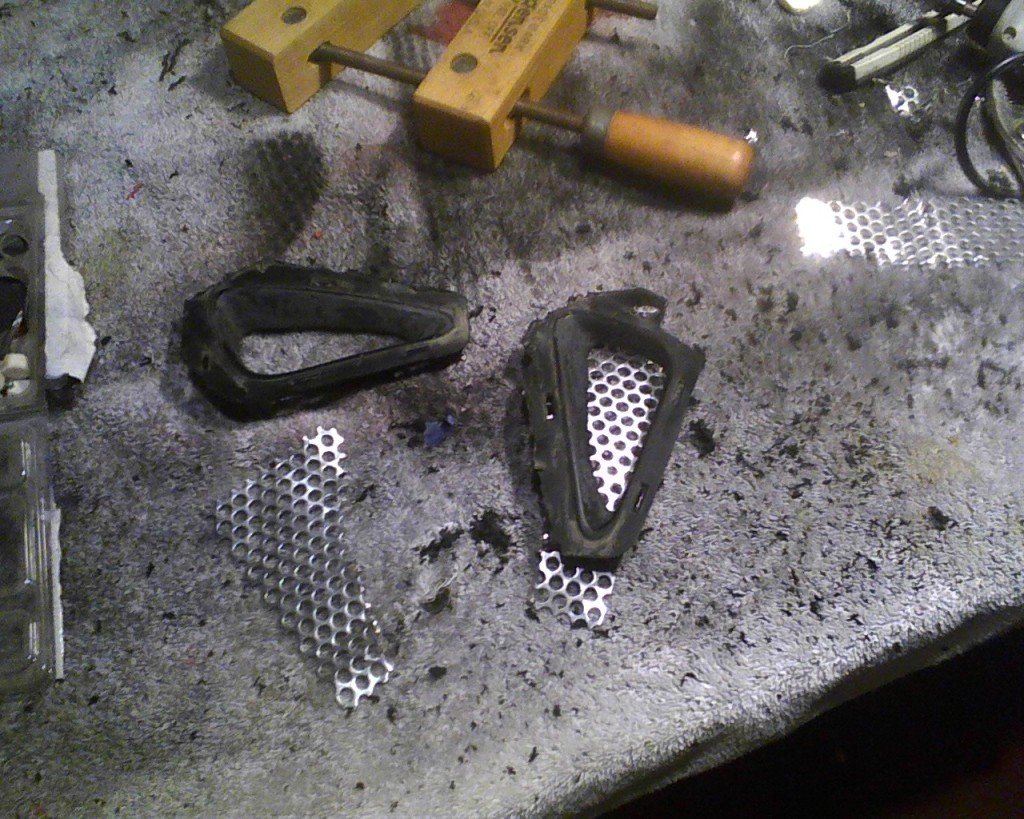

    measure up the mesh to the triangle so you can install it later


    [​IMG]

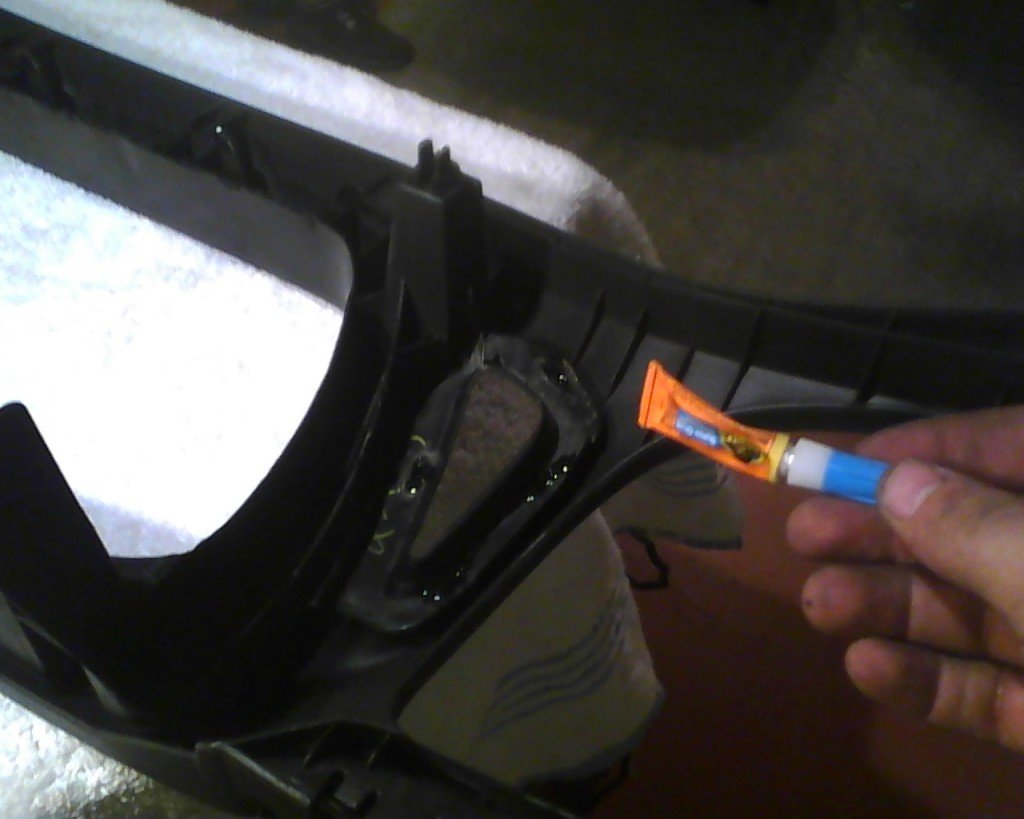

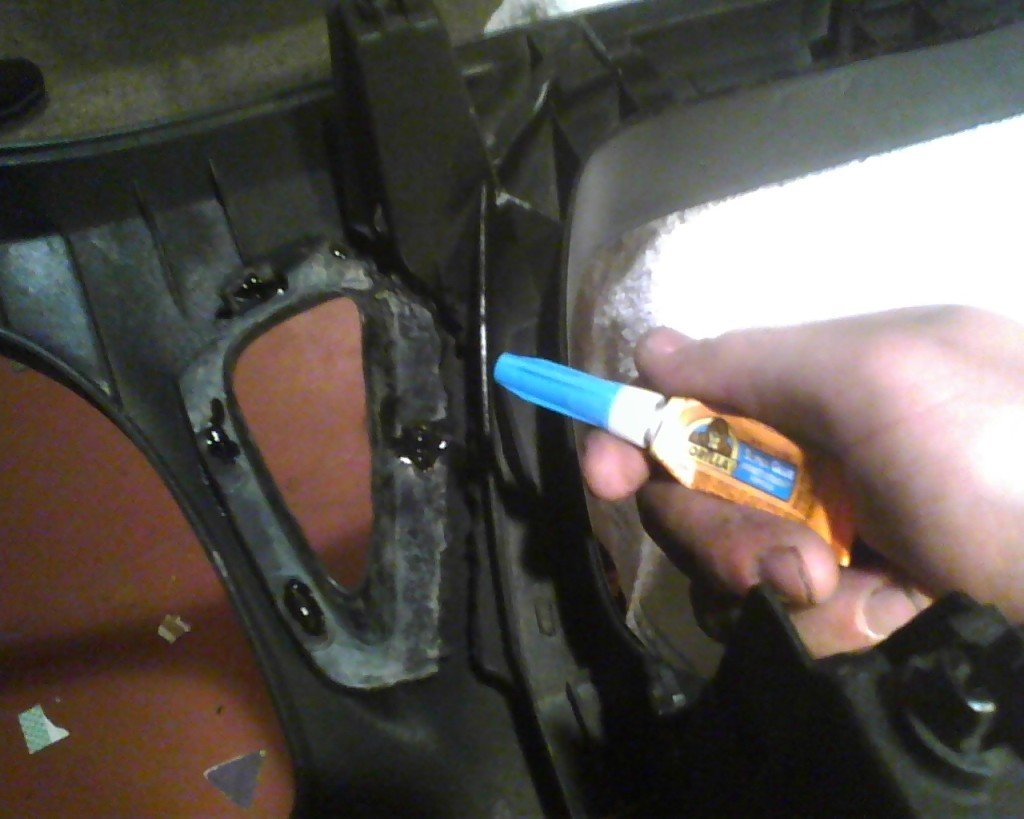

    Glue the plastic inserts back onto the grill. I used gorilla glue.


    [​IMG]


    [​IMG]

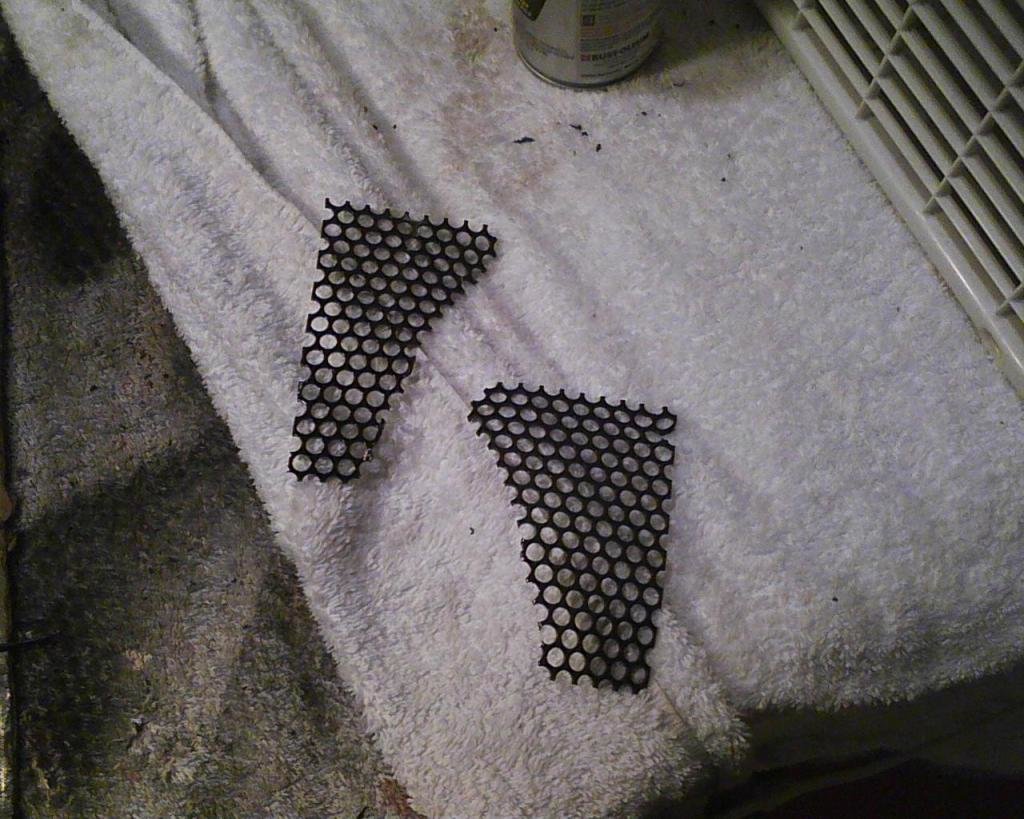

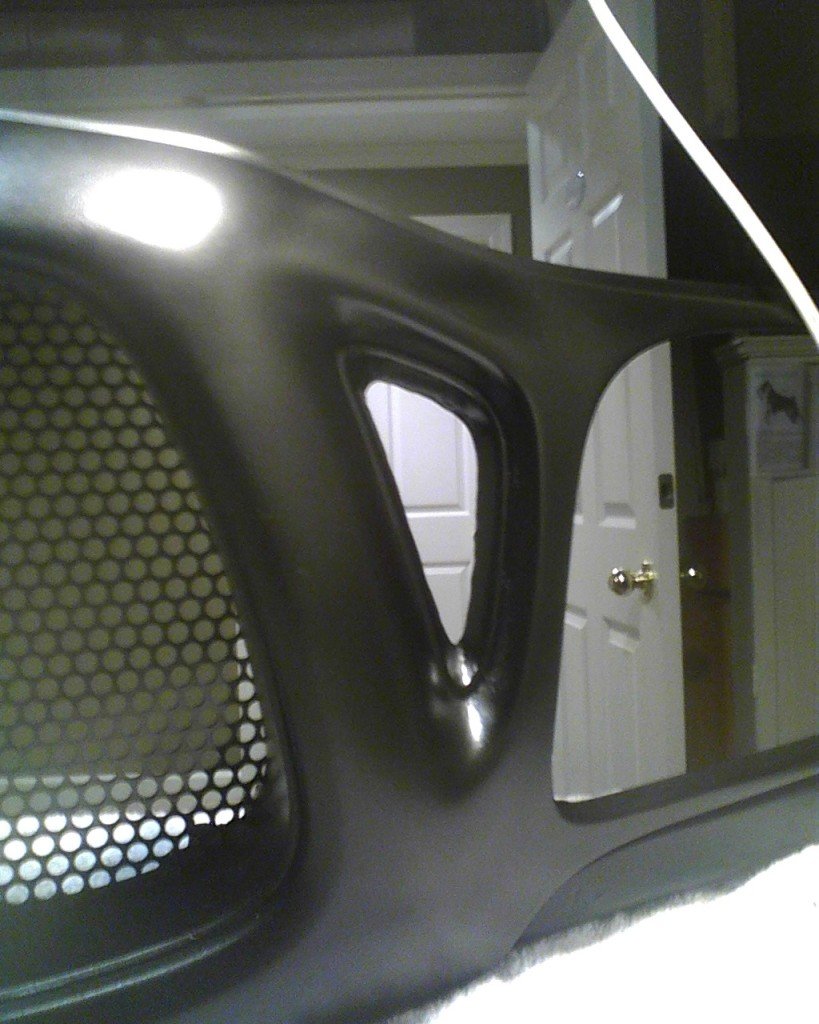

    Then Paint the Triangle mesh so they can be installed


    [​IMG]


    [​IMG]

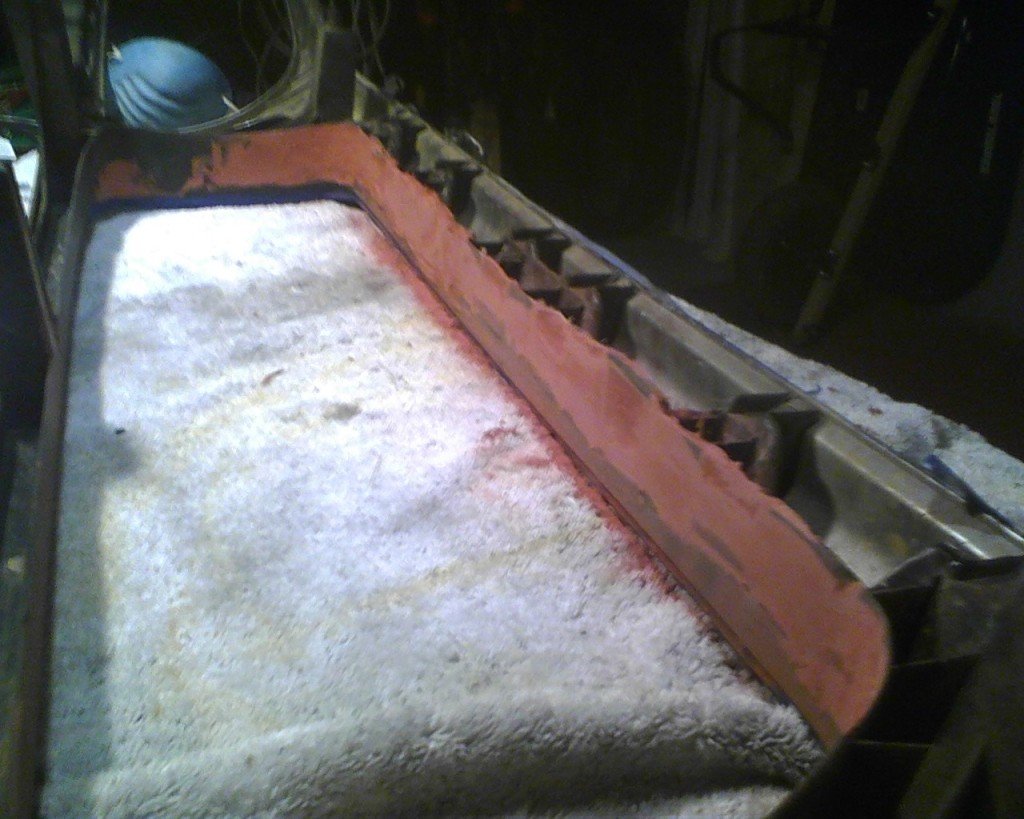

    Then spray paint the triangle plastic inserts to match the grill


    [​IMG]





    CONTINUED........ NEXT POST









    Last edited: Jun 25, 2013
  2. May 31, 2012 at 12:01 AM
    #2
    tacomarotto

    tacomarotto [OP] "Change is inevitable, but growth is optional."

    Joined:
    Jan 27, 2010
    Member:
    #30187
    Messages:
    3,657
    Gender:
    Male
    First Name:
    Jon
    New Orleans, LA
    Vehicle:
    FJ Cruiser 07'
    Bilstein 5100 (2.5") aFe short ram intake KC light bar PIAA halogen Lights Hella Lights on top Yakima Load Warrior
    Step 6:MESH Application






    Supplies:



    Drill = to make holes in the grill to install zip ties and also make holes for the three screws to secure the mesh

    Screwdriver = To screw in the screws that secure the grill at the bottom

    3 small plastic screws = to secure the grill at the tower points at the bottom

    Zip Ties = secure the mesh in various areas

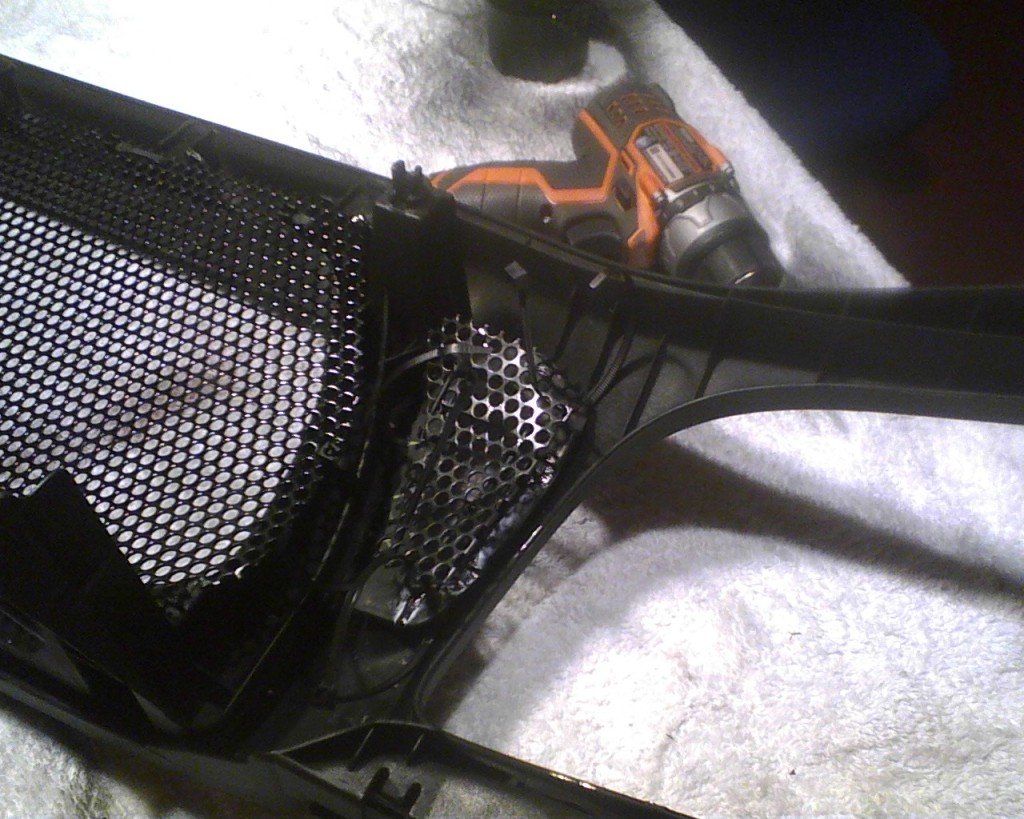

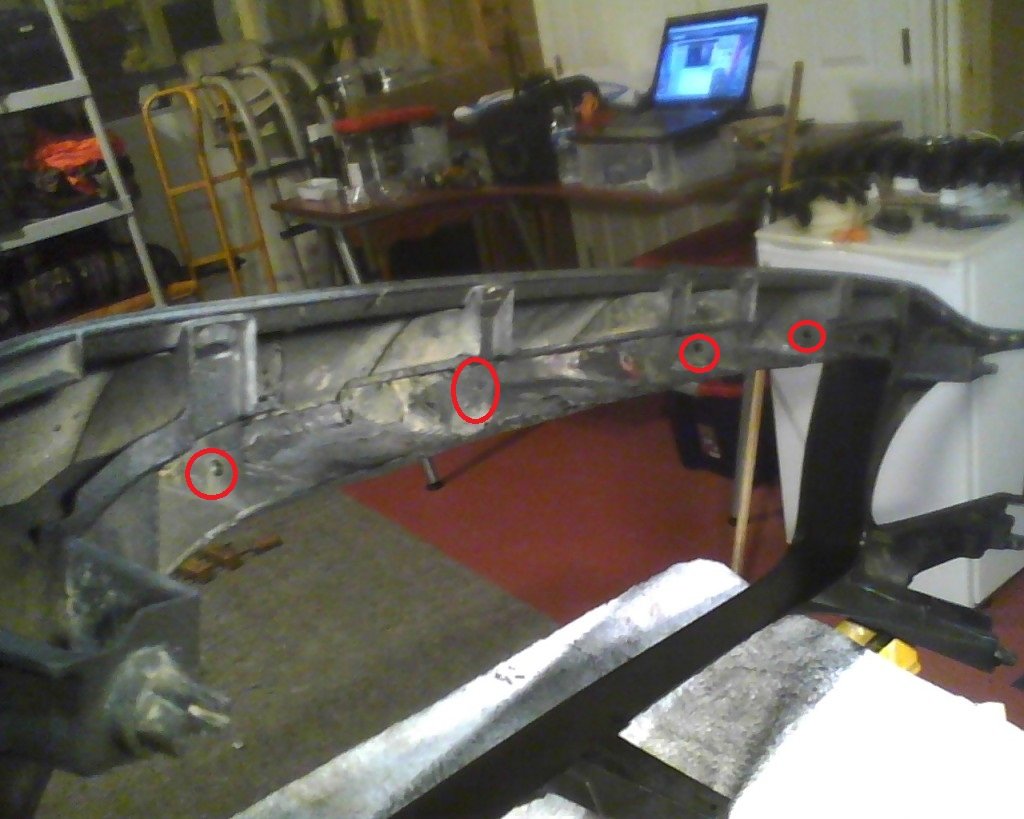

    Once your mesh is dry, prepare the grill to install the mesh. drill holes in the plastic where you will zip-tie as follows



    [​IMG]

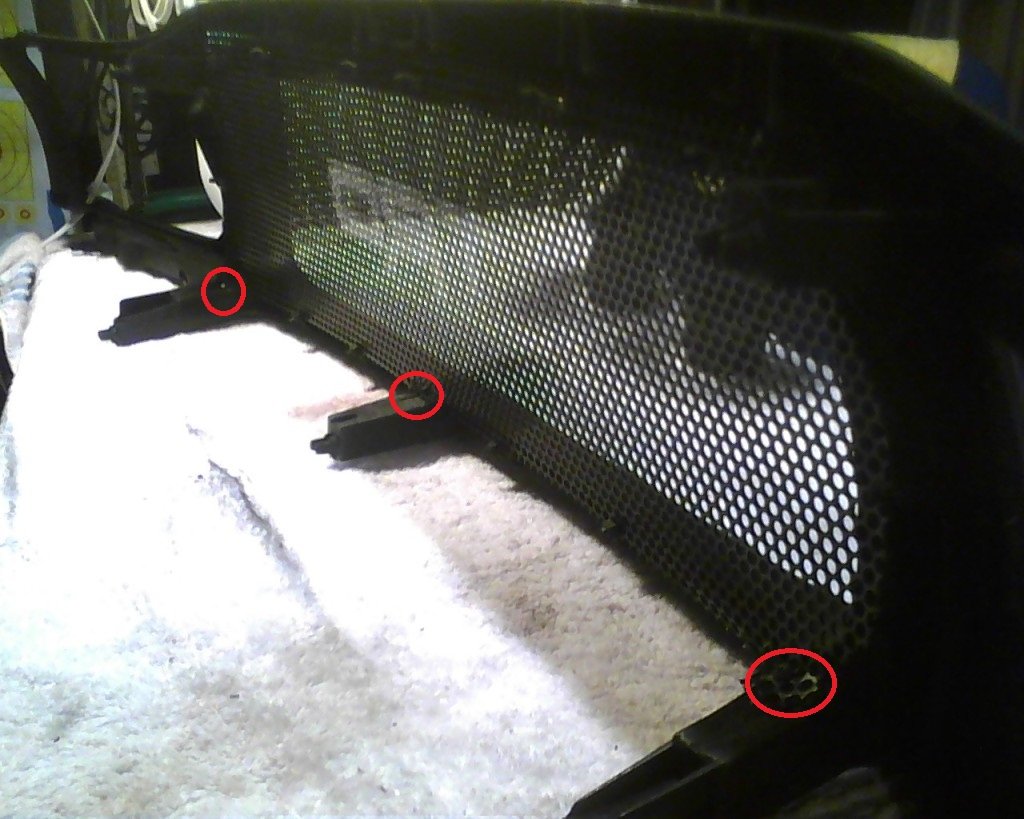

    Screw the Grill into place at the three areas shown


    [​IMG]









    you can make holes for zip ties where ever you see fit! i added a lot of holes. I wanted my grill to be VERY SNUG















    ALMOST DONE! hang in there. almost time for a ice cold beer

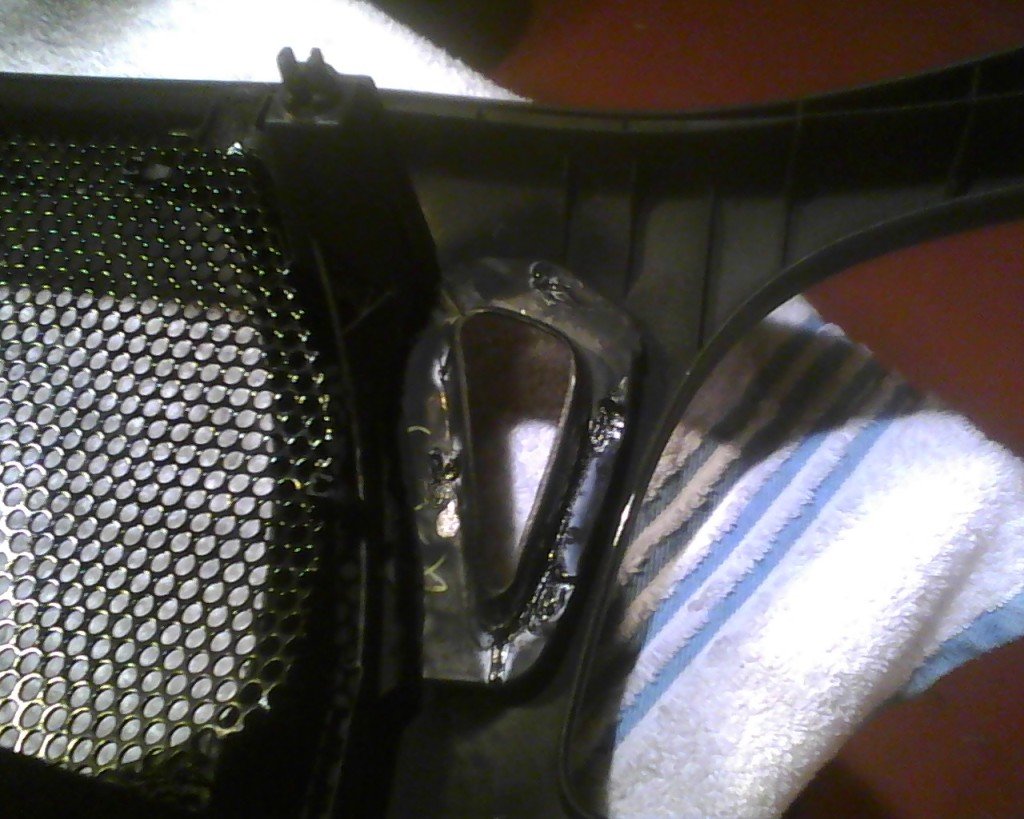

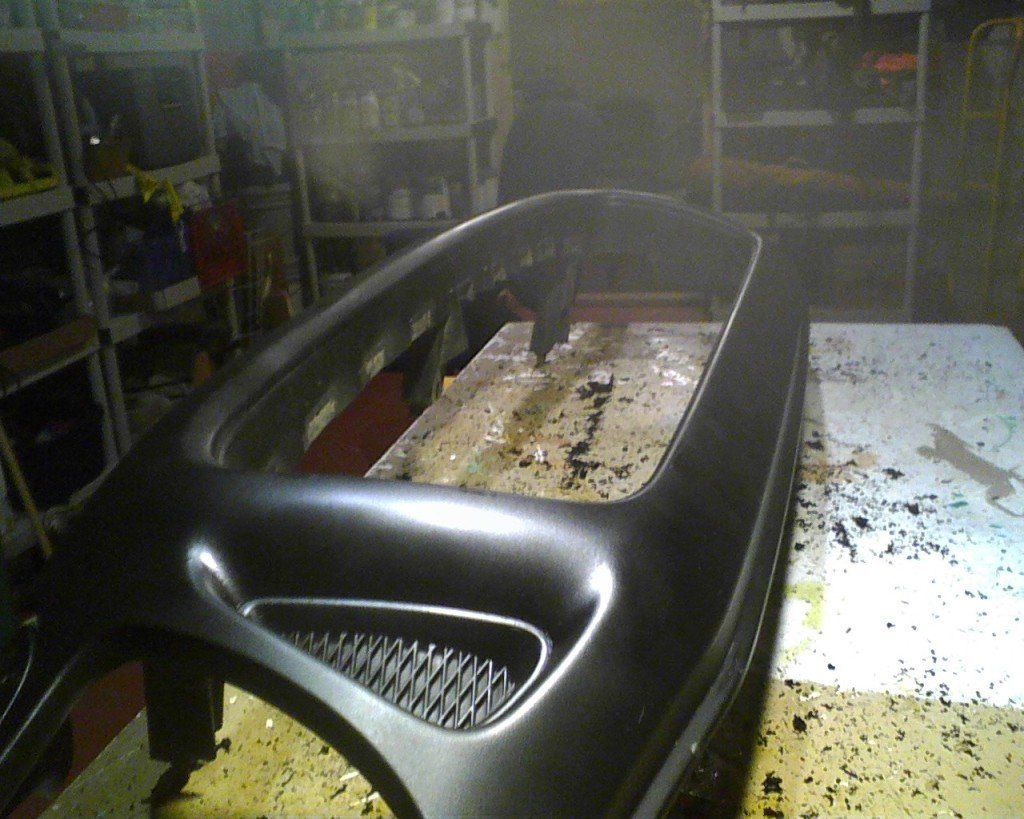

    Now to get the triangle mesh to cover these holes (remember the triangles are a optional step)



    [​IMG]

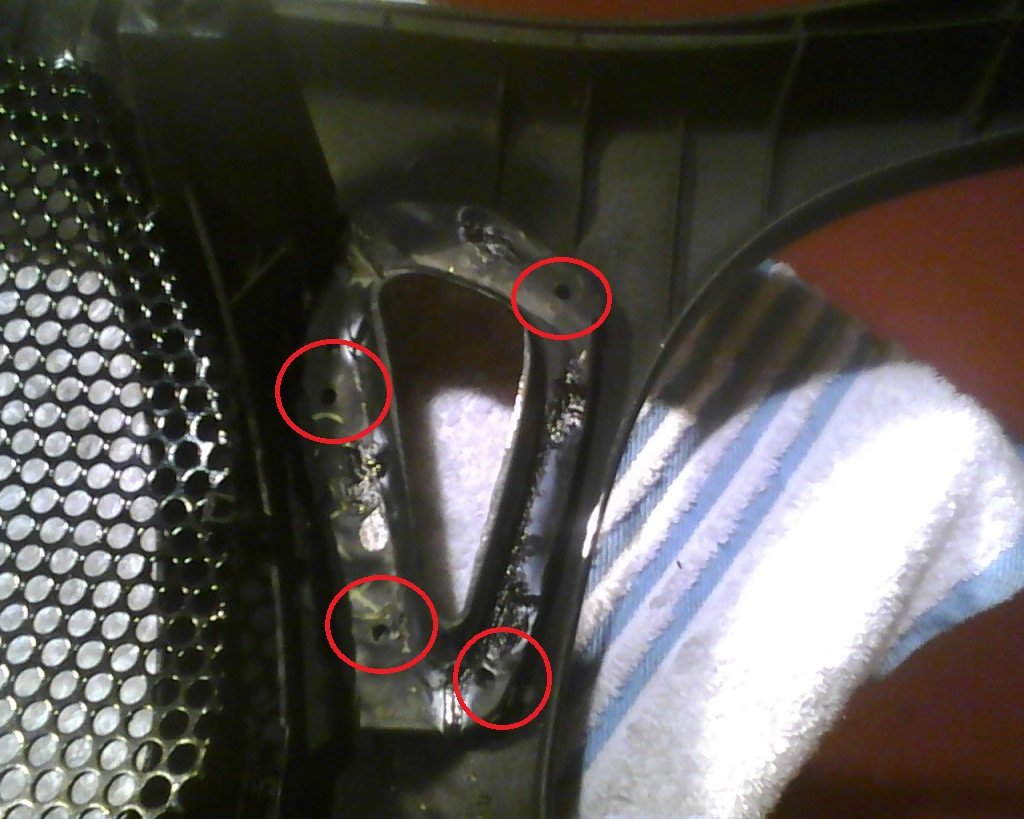

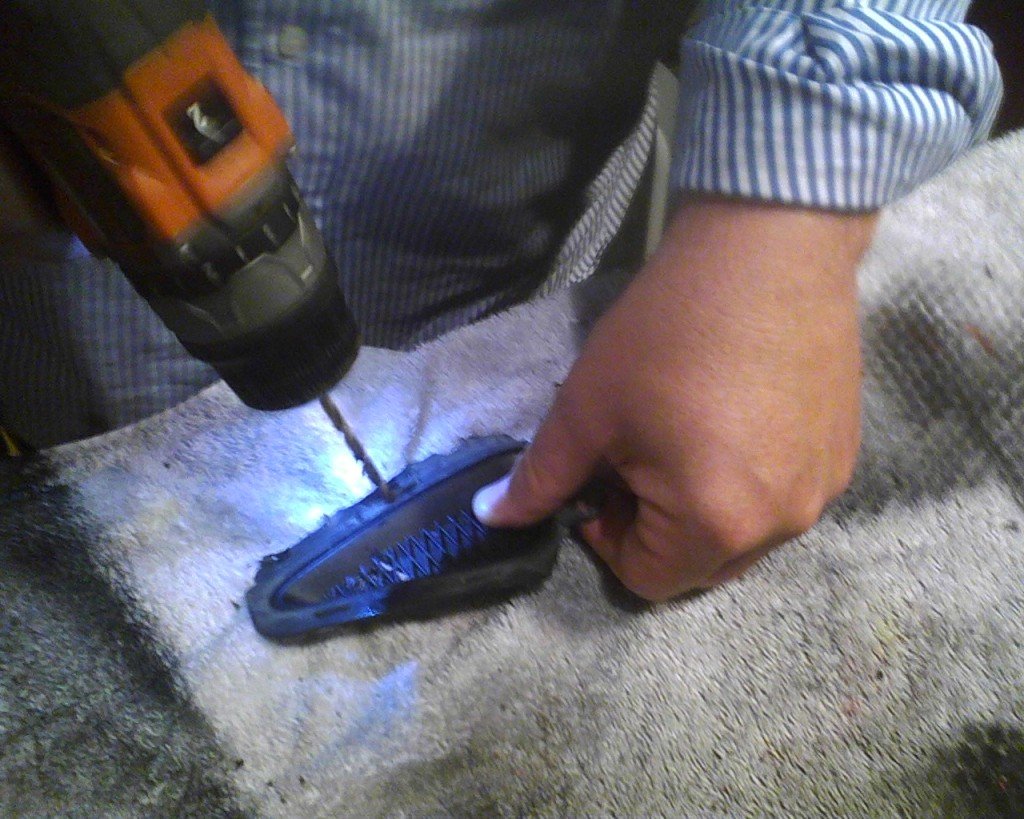

    Drill around the triangle area small holes to anchor it down with zip ties.

    I drilled 4 holes in areas i saw fit.


    [​IMG]




    thread the zipties through the mesh then through the hole. do not tighten the ziptie until you have all the others threaded as well


    [​IMG]







    tighten the zip ties alternately so one does not take all the pressure. distribute the pressure evenly.

    cut the excess and there you have it!


    [​IMG]





    DONE!!!


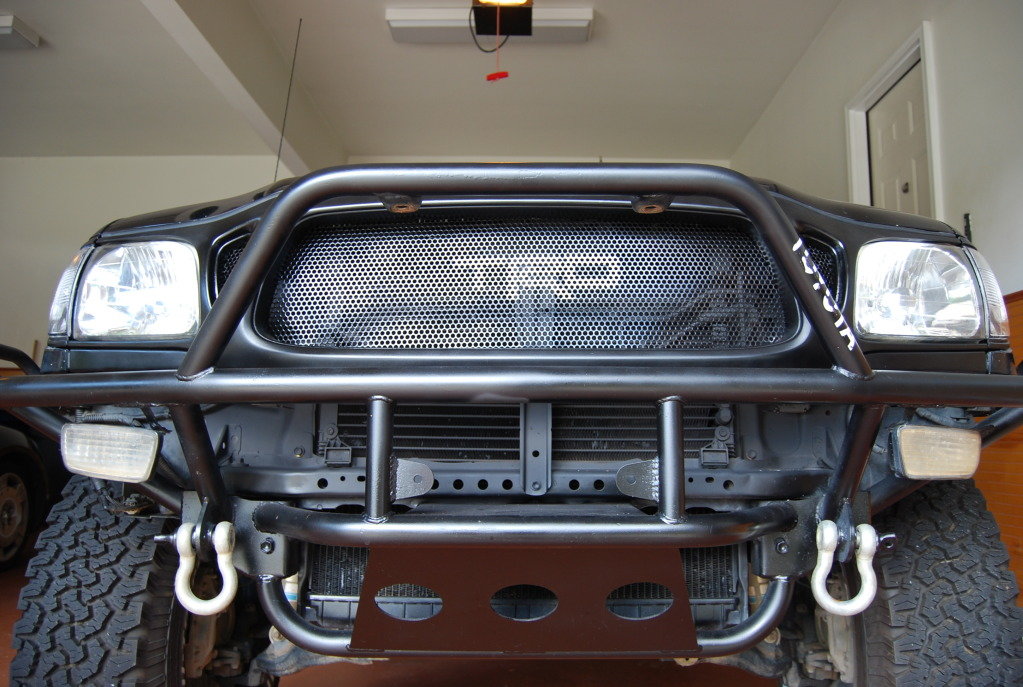

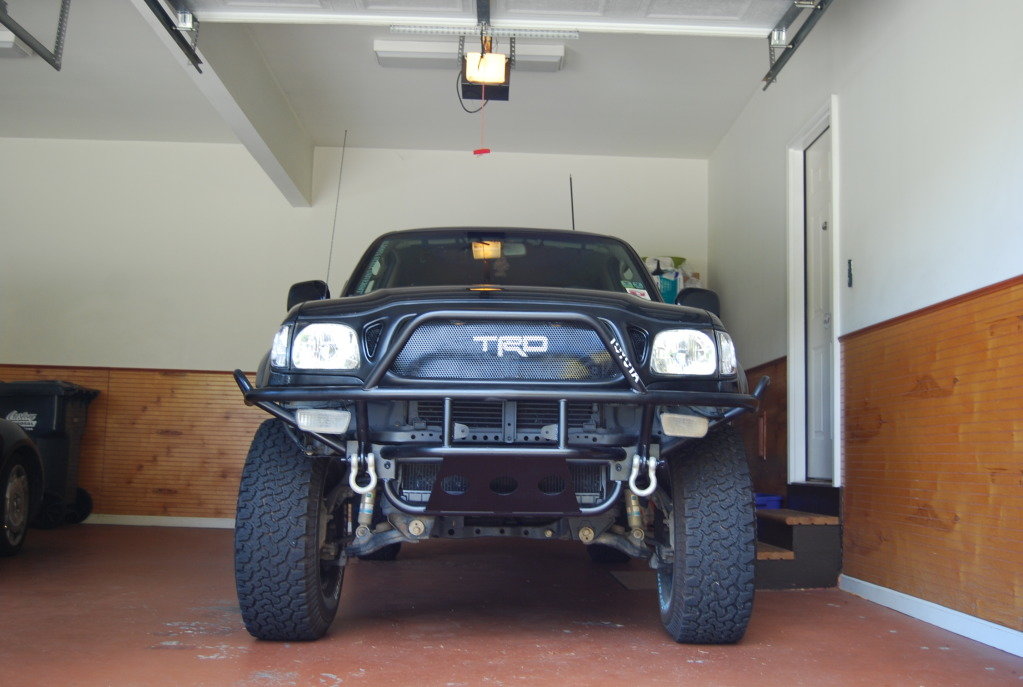

    [​IMG]





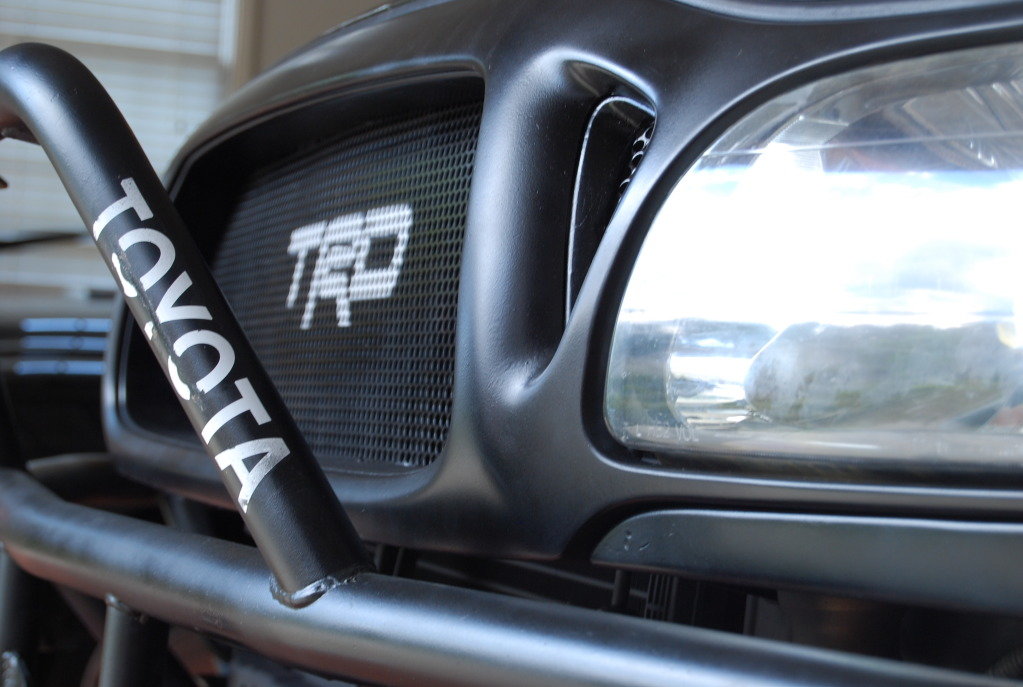

    put your satoshi grill on your truck!




    DO NOT HESITATE to PM or Post questions

    glad to help out.

    enjoy!

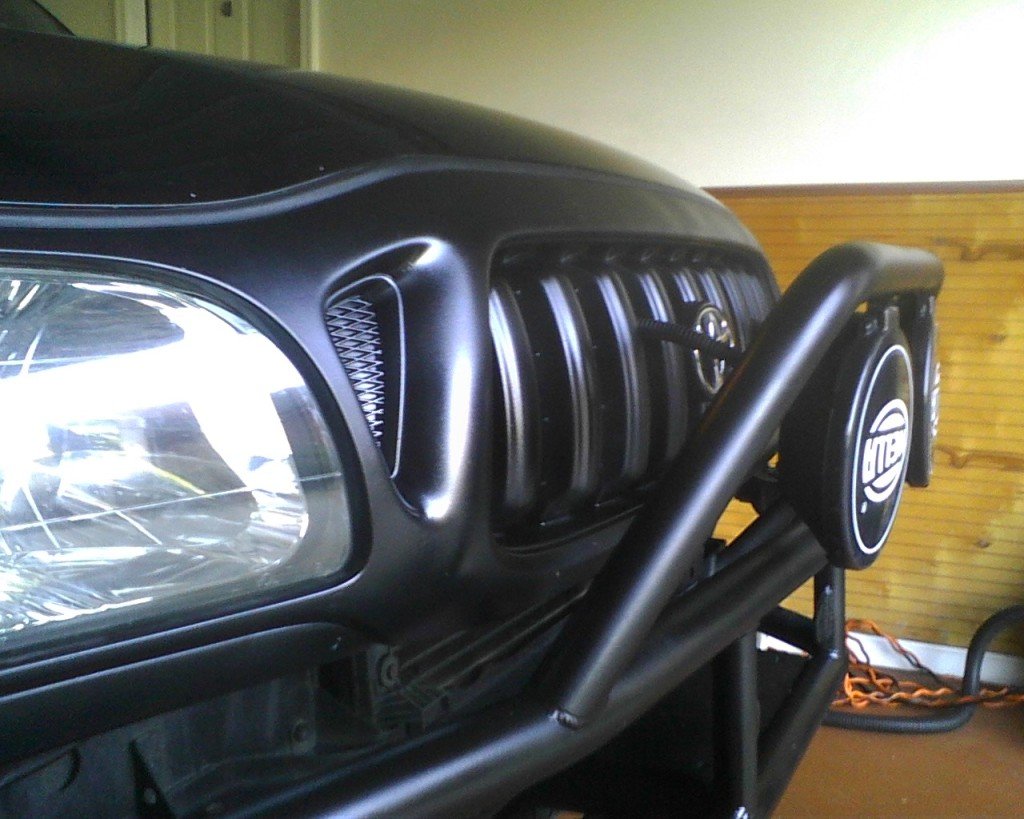

    [​IMG]
