SCUBA MOD - Relocating Front & Rear Diff, Tranny, Transfer Case and E-Locker Breather

Discussion in 'Off-Roading & Trails' started by Shadow-Warrior, Sep 24, 2008.

  1. Sep 9, 2010 at 6:38 PM
    #21
    snowmansgarage

    snowmansgarage Well-Known Member

    Joined:
    Jan 24, 2009
    Member:
    #12925
    Messages:
    82
    Gender:
    Male
    Portland, OR
    Vehicle:
    '06 TRD Offroad AC Tacoma

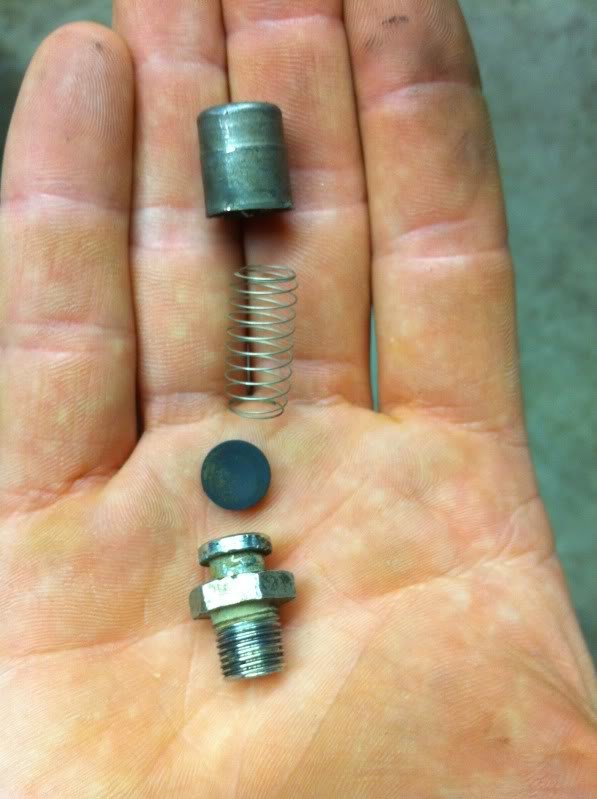

    Here is the factory diff breather taken apart:
    [​IMG]

  2. Sep 9, 2010 at 8:14 PM
    #22
    David K

    David K Well-Known Member

    Joined:
    Jun 27, 2009
    Member:
    #18969
    Messages:
    9,077
    Gender:
    Male
    San Marcos, Alta California
    Vehicle:
    2010 4WD Off Road DC
    Differential Breather Mod Light Bar: 2 Hella 4000 HID, 1 Cibie Halogen. Bilstein 5100s Ride Rite Air Bags
    Yup, it's a one way check valve that lets vapor out of the differential, but nothing back in.

    So, (apparently) our differentials get contaminated from air/ water/ mud slipping in from the axle seals when they go underwater and there is negative pressure inside the differential. Nature abhors a vacuum, afterall.

    Relocating the breather (with a 2 way one) high up allows the expanded gas to escape and also air back in when the gears cool... breaking the vacuum.

  3. Sep 9, 2010 at 9:01 PM
    #23
    gjbonner

    gjbonner Well-Known Member

    Joined:
    Nov 1, 2008
    Member:
    #10420
    Messages:
    1,287
    Gender:
    Male
    First Name:
    Guy
    Northern Idaho
    Vehicle:
    07 Tacoma Off Road TRD
    Rhino Lined exterior,Fab Tech 6", 1.25" SpiderTrax spacers, Wheels painted Rustoleum Hammered Black, All Pro front plate bumper, Warn 9.5 ti winch, BHLM, Cig lighter constant on, Door beep toggle switch, Locker mod, Lock/unlock beeper Mod, Rear tailights smoked, 750w inverter with the outlets and on/off switch wired to rear of the console, Blacked out badges, blacked out rear bumper.
    yeah i took that same pic and was going to post it when i update my build thread.

    you can just pull the silver cap off and remove the spring and valve cover and re install the silver cap:)

    when i finally get my pics up on my build thread i'll show how i routed all of them into the cab. let me tell you the tranny was a PITA! it took some work but worth it in the end.

  4. Sep 9, 2010 at 9:28 PM
    #24
    HBMurphy

    HBMurphy Ban Pending

    Joined:
    Jun 27, 2009
    Member:
    #18993
    Messages:
    5,745
    Gender:
    Male
    First Name:
    Paul
    So California Coast
    Vehicle:
    09 Off Road
    None
    Or you could get one of these...

    [​IMG]

  5. Sep 9, 2010 at 9:32 PM
    #25
    gjbonner

    gjbonner Well-Known Member

    Joined:
    Nov 1, 2008
    Member:
    #10420
    Messages:
    1,287
    Gender:
    Male
    First Name:
    Guy
    Northern Idaho
    Vehicle:
    07 Tacoma Off Road TRD
    Rhino Lined exterior,Fab Tech 6", 1.25" SpiderTrax spacers, Wheels painted Rustoleum Hammered Black, All Pro front plate bumper, Warn 9.5 ti winch, BHLM, Cig lighter constant on, Door beep toggle switch, Locker mod, Lock/unlock beeper Mod, Rear tailights smoked, 750w inverter with the outlets and on/off switch wired to rear of the console, Blacked out badges, blacked out rear bumper.
    yeah i seen those and liked em but i think they were 20 bucks right?? cant remember. I think a guy could fab something like that right?

    edit: dont they have those things for toy cars. the kids hit them and they make the car shoot down the track? i thought ive seen something like that before...

  6. Sep 9, 2010 at 10:14 PM
    #26
    HBMurphy

    HBMurphy Ban Pending

    Joined:
    Jun 27, 2009
    Member:
    #18993
    Messages:
    5,745
    Gender:
    Male
    First Name:
    Paul
    So California Coast
    Vehicle:
    09 Off Road
    None
    Good memory - trail gear $19

  7. Sep 9, 2010 at 10:35 PM
    #27
    NAYo2002

    NAYo2002 Well-Known Member

    Joined:
    Jan 16, 2009
    Member:
    #12655
    Messages:
    489
    Gender:
    Male
    Great Falls, MT
    Vehicle:
    '09 Tacoma 4x4 TRD Off Road
    Michelin LTX A/T2, TRD Skid Plate, WeatherTech DigiFit Liners, OEM Bed Extender, OEM Bed mat, Advantage TorzaTop Trifold Tonneau, Pop & Lock PL5300
    Do those things work just as well? Any field testers?

    Are there any issues with them? It just seems so much more convenient than routing tubes all over place.

  8. Sep 9, 2010 at 11:21 PM
    #28
    gjbonner

    gjbonner Well-Known Member

    Joined:
    Nov 1, 2008
    Member:
    #10420
    Messages:
    1,287
    Gender:
    Male
    First Name:
    Guy
    Northern Idaho
    Vehicle:
    07 Tacoma Off Road TRD
    Rhino Lined exterior,Fab Tech 6", 1.25" SpiderTrax spacers, Wheels painted Rustoleum Hammered Black, All Pro front plate bumper, Warn 9.5 ti winch, BHLM, Cig lighter constant on, Door beep toggle switch, Locker mod, Lock/unlock beeper Mod, Rear tailights smoked, 750w inverter with the outlets and on/off switch wired to rear of the console, Blacked out badges, blacked out rear bumper.
    cant see why they wouldnt work well... would just be more expensive seeings you have 5 breathers to deal with. the 2 in the engine bay could be combined though so you would need 3-4 depending on if you combined the tranny with the transfer case. thats 60 bucks! i would rather route mine with some inexpensive tubing and plastic unions and hose clamps.

  9. Sep 10, 2010 at 8:18 AM
    #29
    NAYo2002

    NAYo2002 Well-Known Member

    Joined:
    Jan 16, 2009
    Member:
    #12655
    Messages:
    489
    Gender:
    Male
    Great Falls, MT
    Vehicle:
    '09 Tacoma 4x4 TRD Off Road
    Michelin LTX A/T2, TRD Skid Plate, WeatherTech DigiFit Liners, OEM Bed Extender, OEM Bed mat, Advantage TorzaTop Trifold Tonneau, Pop & Lock PL5300
    I'm just not sure they will have enough space for expending gases. I have to see one in person I suppose.

    Update: wouldn't it be like holding a small balloon underwater? I'm guessing it will probably get ripped off the metal piece under water unless you put the clamp on pretty freking tight.

  10. Sep 11, 2010 at 8:12 AM
    #30
    gjbonner

    gjbonner Well-Known Member

    Joined:
    Nov 1, 2008
    Member:
    #10420
    Messages:
    1,287
    Gender:
    Male
    First Name:
    Guy
    Northern Idaho
    Vehicle:
    07 Tacoma Off Road TRD
    Rhino Lined exterior,Fab Tech 6", 1.25" SpiderTrax spacers, Wheels painted Rustoleum Hammered Black, All Pro front plate bumper, Warn 9.5 ti winch, BHLM, Cig lighter constant on, Door beep toggle switch, Locker mod, Lock/unlock beeper Mod, Rear tailights smoked, 750w inverter with the outlets and on/off switch wired to rear of the console, Blacked out badges, blacked out rear bumper.
    Ok so with the help of Shadow Warrior and other threads here I was able to get this done :) What a pain the discoery process was but all in all I could have done this in under 2 hours.

    My In Cab Breather Mod

  11. Sep 26, 2010 at 11:04 AM
    #31
    TanSR5x4

    TanSR5x4 Hold my beer and watch this

    Joined:
    Jul 24, 2010
    Member:
    #40669
    Messages:
    1,002
    Gender:
    Male
    First Name:
    William
    Houston TX
    Vehicle:
    00 Tacoma SR5 4x4
    Deckplate mod, black KC slimlight fogs, hurculined bed, NRA sticker mod, painted rear chrome bumper black, black fender flares and front grill surround, HIDs, All-pro rear leafs and UCAs, Eibach coilovers, billys all around, flat black pro comps, 31x10.5x15 BFG KM2s
    yo im tryin to do this today on my auto gen 1 and i was hopin maybe someone could help me out

    i just took out the center console and gear shifter and i believe i found one vent i think the tranny

    im tryin to get some pics up

    any info would be greatly appreciated

  12. Sep 26, 2010 at 3:52 PM
    #32
    gjbonner

    gjbonner Well-Known Member

    Joined:
    Nov 1, 2008
    Member:
    #10420
    Messages:
    1,287
    Gender:
    Male
    First Name:
    Guy
    Northern Idaho
    Vehicle:
    07 Tacoma Off Road TRD
    Rhino Lined exterior,Fab Tech 6", 1.25" SpiderTrax spacers, Wheels painted Rustoleum Hammered Black, All Pro front plate bumper, Warn 9.5 ti winch, BHLM, Cig lighter constant on, Door beep toggle switch, Locker mod, Lock/unlock beeper Mod, Rear tailights smoked, 750w inverter with the outlets and on/off switch wired to rear of the console, Blacked out badges, blacked out rear bumper.
    let the pics rip! Are you trying to put them in the cab?

  13. Oct 25, 2010 at 9:59 PM
    #33
    Leadgolem

    Leadgolem Well-Known Member

    Joined:
    Apr 13, 2010
    Member:
    #35238
    Messages:
    1,001
    Gender:
    Male
    First Name:
    Greg
    Littleton, CO
    Vehicle:
    98 Tacoma SR5 2.7L 4x4 stick
    Herculiner bed liner, White LED instrument lights, Custom painted hood, Homemade leather steering wheel wrap, Avic u310bt gps stereo, 1.5" bushwacker fender flares, 1.25" bilstein lift front, 1" shackle lift rear, rear bilstein 5100 shocks, ridiculous helper spring lift rear, wet okole seat covers, mutilated exhaust, boom mat under hood
    Awesome writeup. Anybody done this to a first gen? Any differences I should watch out for?

  14. Nov 28, 2010 at 1:11 PM
    #34
    bromagen25

    bromagen25 Well-Known Member

    Joined:
    Sep 16, 2009
    Member:
    #22869
    Messages:
    65
    Gender:
    Male
    First Name:
    Ryan
    Vehicle:
    Stock
    Rear Breather
    so is this mod for the 2.7 4cyl as well? i have done the rear diff just wondering about the others that need to be extended and if so are they located in the same spot as on the v6

  15. Jun 8, 2011 at 11:20 AM
    #35
    JLink

    JLink Well-Known Member

    Joined:
    May 9, 2010
    Member:
    #36795
    Messages:
    10,736
    Gender:
    Male
    First Name:
    Josh
    Ocean, NJ
    Vehicle:
    The "Big Nig"
    Lifted, Locked, Armored. Ready To Wheel.
    Nice

  16. Jun 12, 2011 at 2:29 PM
    #36
    Erik

    Erik That smells like pure gasoline

    Joined:
    Feb 26, 2011
    Member:
    #51865
    Messages:
    182
    Gender:
    Male
    First Name:
    Erik
    Nashua, NH
    Vehicle:
    10'TRD off-road
    Shrockworks bumper+ IFS skid, 4xInnovations rock sliders, Toytec Bilstein/Eibach 5100 @ 2.5", 3" All-pro leaf pack w/Bilstein 5100, PIAA 510SMR, PIAA 1500, Python LC3 2-way Auto-start, Fog lights on w/Parking lights, ATRAC Hack, Diff breather mod
    I will probably be extending all the breathers in the near future. I did not think I would be going through deep water ever, but after my second trip through the woods I found out that I would be going through some deep stuff more often than I thought.

    I did hear a funny noise, but it went away and I havent heard anything since so I think I'm good.

    Besides intake, breathers, cab plugs and possibly door seals, what else should be made water tight in order to do some deep water crossings? Is there any vulerable components in the engine compartment that might get water in them if the water comes in through the grille?


  17. Jun 12, 2011 at 4:49 PM
    #37
    gjbonner

    gjbonner Well-Known Member

    Joined:
    Nov 1, 2008
    Member:
    #10420
    Messages:
    1,287
    Gender:
    Male
    First Name:
    Guy
    Northern Idaho
    Vehicle:
    07 Tacoma Off Road TRD
    Rhino Lined exterior,Fab Tech 6", 1.25" SpiderTrax spacers, Wheels painted Rustoleum Hammered Black, All Pro front plate bumper, Warn 9.5 ti winch, BHLM, Cig lighter constant on, Door beep toggle switch, Locker mod, Lock/unlock beeper Mod, Rear tailights smoked, 750w inverter with the outlets and on/off switch wired to rear of the console, Blacked out badges, blacked out rear bumper.
    the only thing i can thinkof would maybe be sealing off your fuze bx under the hood by the battery.

  18. Jun 12, 2011 at 5:43 PM
    #38
    barlowrs

    barlowrs Well-Known Member

    Joined:
    Feb 12, 2010
    Member:
    #31230
    Messages:
    597
    Gender:
    Male
    First Name:
    Robert
    So Cal
    Vehicle:
    06 Toyota Tacoma Sport 4x4
    Build Thread: http://www.tacomaworld.com/forum/builds/74926-barlowrs-06-taco-expo-build-thread.html OME Lift, FJ SE Wheels, 255/85 KM2, Allpro Plate Bumper, 8K Winch, Synthetic Line, Yaesu FT-8800R, Custom Sliders Sockmonkey bedside decals, BHLM, base model grille, TRD offroad (black) trim

    Apply di-electric grease on all electrical connections you can get too. For really deep stuff (which you probably shouldn't using a gas engine anyway), seal or re-locate your ECU (I have sealed mine as the stock location is pretty high up to begin with).

    Also, look into an electric fan conversion, or carry a belt short enough to allow you to disconect your fan from the belt drive. (Electrical fan is MUCH easier.)

  19. Jun 13, 2011 at 9:54 AM
    #39
    BlueT

    BlueT Well-Known Member

    Joined:
    Mar 30, 2009
    Member:
    #15341
    Messages:
    4,554
    Gender:
    Male
    NorthEast
    Vehicle:
    07 Dbl Cab LB with LSD
    I moded 1999 Taco so much it had turned to Land Cruiser
    Well considering wheel bearings have very little (to none) grease in them I would say this is another item to be worry about.

  20. Jun 13, 2011 at 5:23 PM
    #40
    Erik

    Erik That smells like pure gasoline

    Joined:
    Feb 26, 2011
    Member:
    #51865
    Messages:
    182
    Gender:
    Male
    First Name:
    Erik
    Nashua, NH
    Vehicle:
    10'TRD off-road
    Shrockworks bumper+ IFS skid, 4xInnovations rock sliders, Toytec Bilstein/Eibach 5100 @ 2.5", 3" All-pro leaf pack w/Bilstein 5100, PIAA 510SMR, PIAA 1500, Python LC3 2-way Auto-start, Fog lights on w/Parking lights, ATRAC Hack, Diff breather mod
    What is the main advantage/purpose of converting to electric fan? So the fan will work when the belt slips?
