Some help with bumper reinforcement replacement

Discussion in '2nd Gen. Tacomas (2005-2015)' started by Mack83, Oct 9, 2020.

  1. Oct 9, 2020 at 8:59 AM
    #1
    Mack83

    Mack83 [OP] Well-Known Member

    Joined:
    Jan 21, 2011
    Member:
    #49646
    Messages:
    563
    Gender:
    Male
    First Name:
    Ryan
    Orlando
    Vehicle:
    2014 TRD OR DCSB Silver Streak Mica

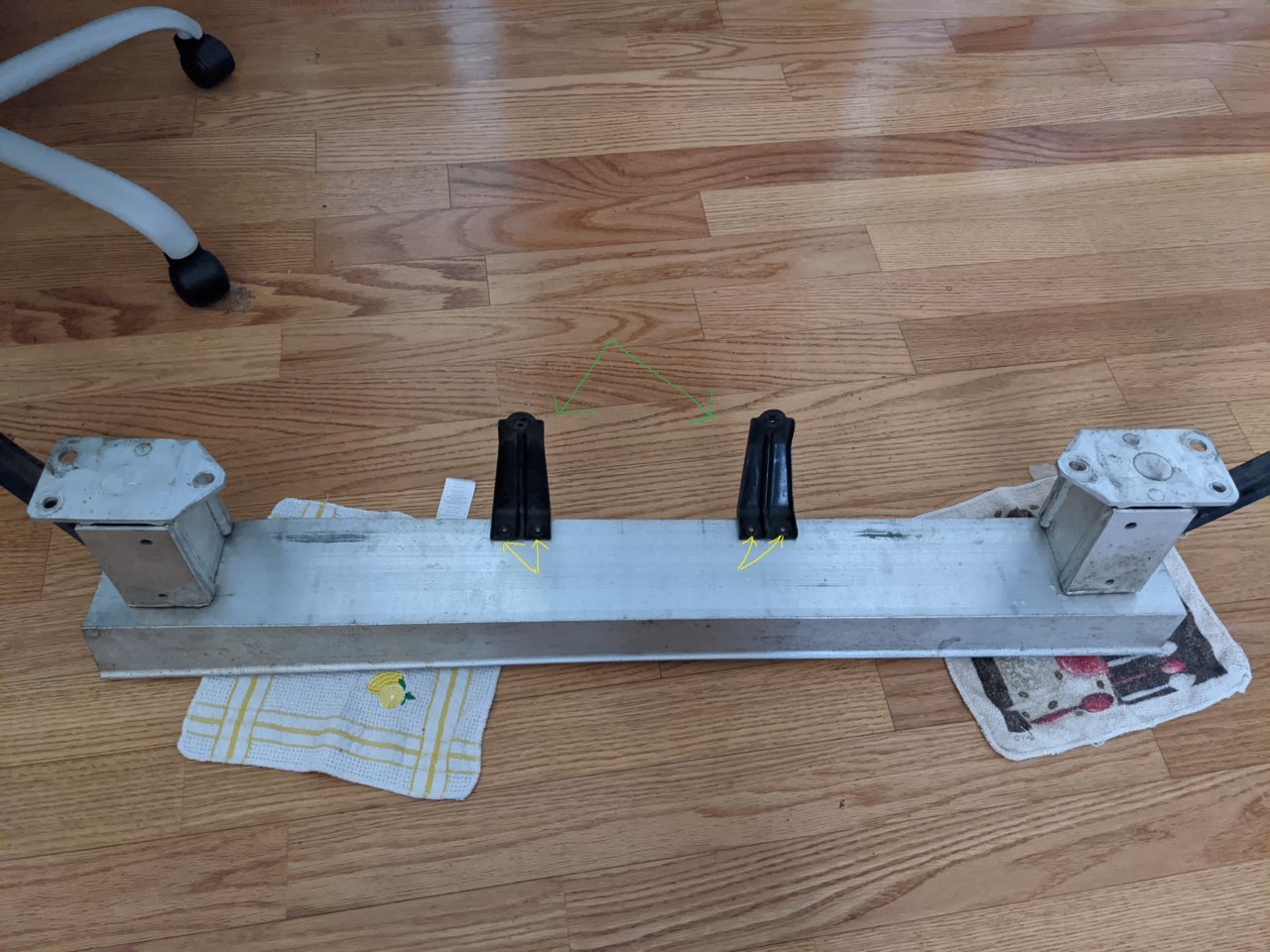

    So, here's...part of...what I've been working with the past couple of weeks. I rear ended someone and my bumper reinforcement is fucked (along with some other parts that I've already replaced).

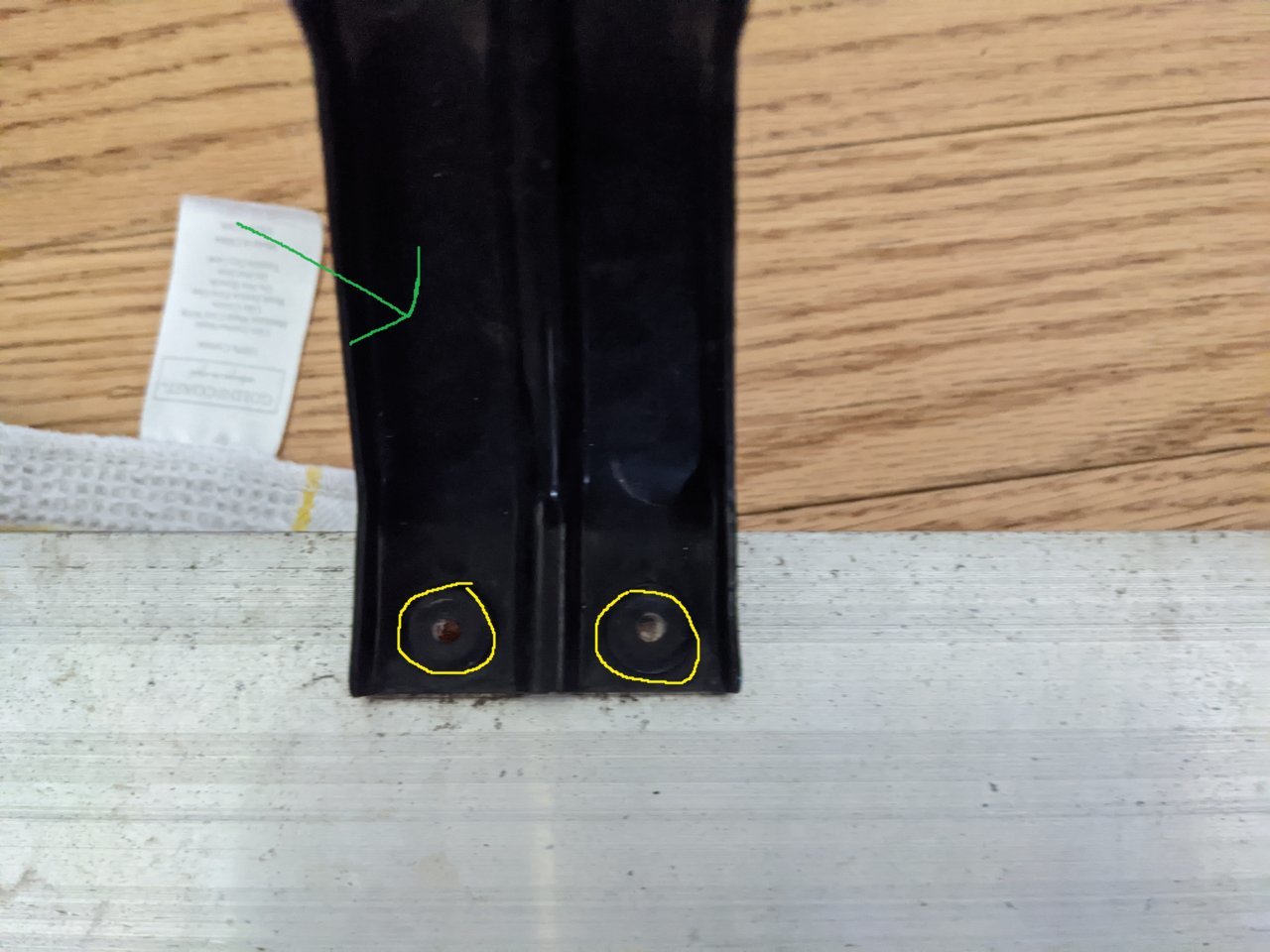

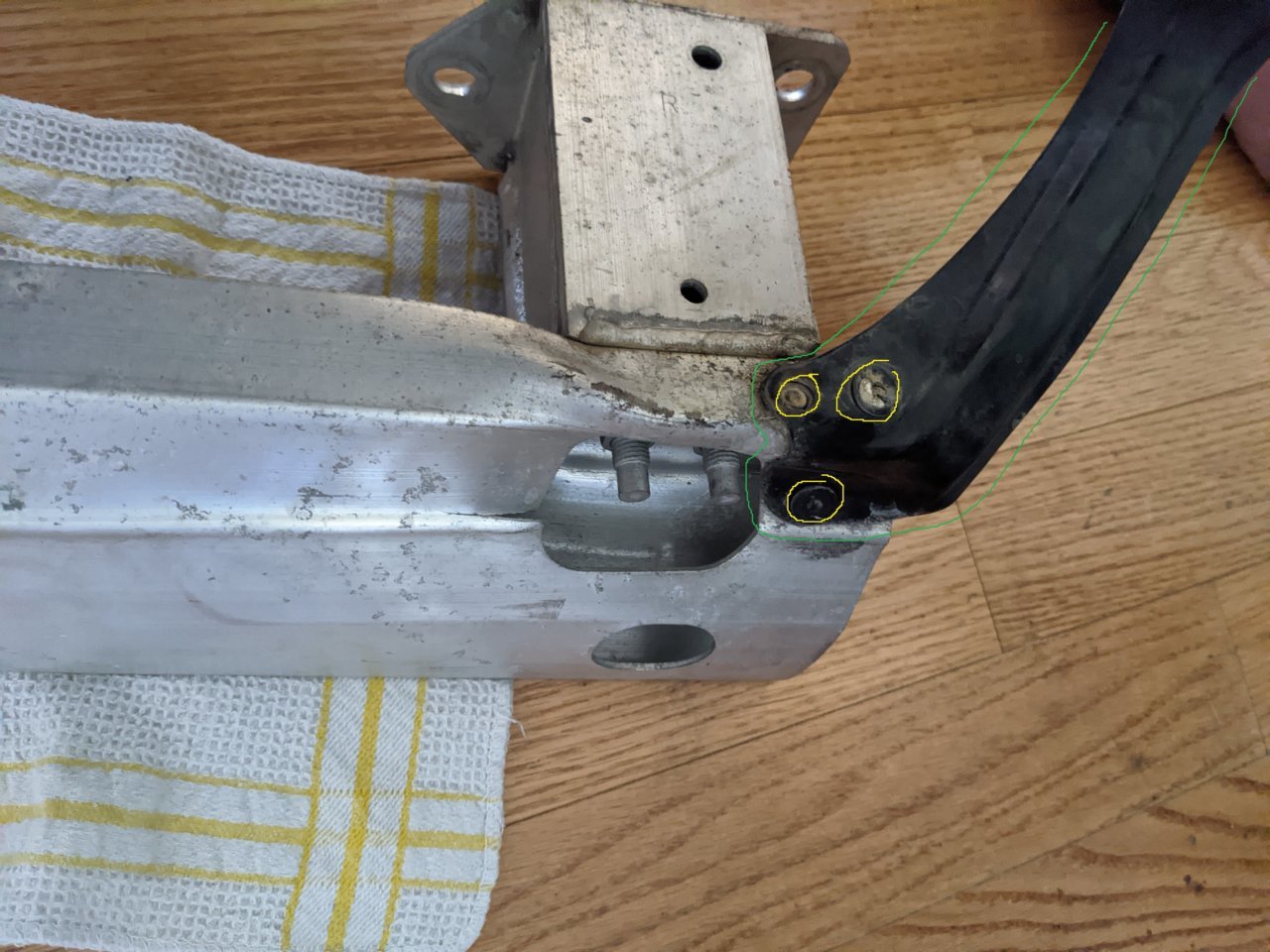

    This one is giving me trouble. I'll use a dremel with a cutting wheel to get the two aluminum pieces off because the deformation has jammed up the flange nuts, that's easy enough. But the four brackets (in green) are attached with rivets (in yellow). I'm thinking I should be able to just drill them out to get the brackets off and re-use them, but how should I re-attach them to the new bumper reinforcement bar?

    I was thinking just use a nut and bolt instead of a rivet, and I can do that for the ones on the ends but for the two brackets in the middle, I don't have a wrench long enough to reach inside to hold it so I can tight it down, and there are the bolts on inside at the ends that are in the way. Any ideas?




  2. Oct 9, 2020 at 9:07 AM
    #2
    YF_Ryan

    YF_Ryan Well-Known Member

    Joined:
    Feb 23, 2017
    Member:
    #211450
    Messages:
    2,210
    Gender:
    Male
    First Name:
    Ryan
    Kent, WA
    Vehicle:
    2011 Silver Tacoma TRD Offroad
    Icon Coil Overs. Deaver U402 Stage 3 Leafs w/ Bilstein 5160s. ARB Deluxe Bull Bar. Fuel Boost wheels w/ Wrangler Duratracs. Brute Force Fab Sliders & HC Rear Bumper w/swingout
    Could you just use self tapping screws instead of rivets?

  3. Oct 9, 2020 at 9:10 AM
    #3
    YF_Ryan

    YF_Ryan Well-Known Member

    Joined:
    Feb 23, 2017
    Member:
    #211450
    Messages:
    2,210
    Gender:
    Male
    First Name:
    Ryan
    Kent, WA
    Vehicle:
    2011 Silver Tacoma TRD Offroad
    Icon Coil Overs. Deaver U402 Stage 3 Leafs w/ Bilstein 5160s. ARB Deluxe Bull Bar. Fuel Boost wheels w/ Wrangler Duratracs. Brute Force Fab Sliders & HC Rear Bumper w/swingout
    Also, have you checked out Craigslist in your area? or on TacomaWorld Buy Sell groups to see if anyone has one to sell? They are quite commonly laying around since you replace it when going aftermarket on a bumper. I sold mine along with an entire front plastic bumper with fog lights for $200. It still had all those metal braces attached. I've seen plenty like that on here and CL.

    Grossomotto likes this.
  4. Oct 9, 2020 at 9:28 AM
    #4
    Mack83

    Mack83 [OP] Well-Known Member

    Joined:
    Jan 21, 2011
    Member:
    #49646
    Messages:
    563
    Gender:
    Male
    First Name:
    Ryan
    Orlando
    Vehicle:
    2014 TRD OR DCSB Silver Streak Mica
    I don't think self tapping would work, it's a hollow aluminum bumper that will have a hole where the rivet was. I did try CL and FB marketplace, called around the junkyards too when I first started this. Unfortunately I'm in in the Clearwater/St. Pete/Tampa area so there's not a lot to choose from. I could make a post in the buy/sell/trade but at this point I've already purchased all the parts I need, I just need to figure out how to attach them.

    YF_Ryan likes this.
  5. Oct 9, 2020 at 10:02 AM
    #5
    YF_Ryan

    YF_Ryan Well-Known Member

    Joined:
    Feb 23, 2017
    Member:
    #211450
    Messages:
    2,210
    Gender:
    Male
    First Name:
    Ryan
    Kent, WA
    Vehicle:
    2011 Silver Tacoma TRD Offroad
    Icon Coil Overs. Deaver U402 Stage 3 Leafs w/ Bilstein 5160s. ARB Deluxe Bull Bar. Fuel Boost wheels w/ Wrangler Duratracs. Brute Force Fab Sliders & HC Rear Bumper w/swingout

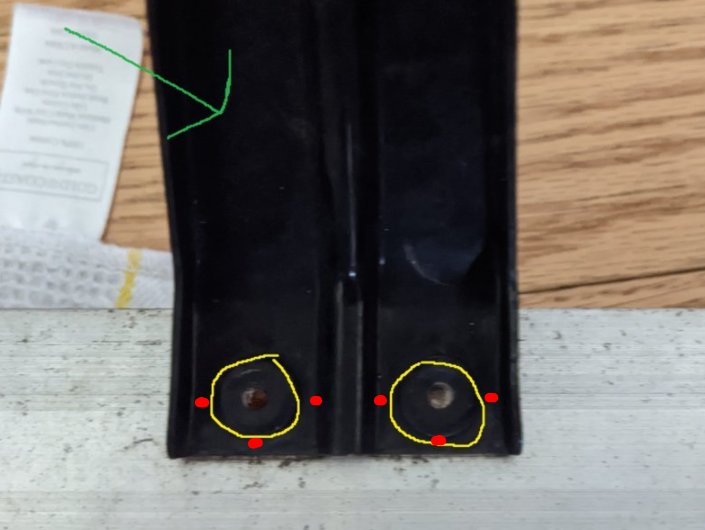

    I was thinking of just doing the self tappers to the left and right of each rivet hole. 4 total, maybe 6. more if possible or needed. Wouldn't need to be in the exact same hole. See red dots below.


  6. Oct 9, 2020 at 10:08 AM
    #6
    Mack83

    Mack83 [OP] Well-Known Member

    Joined:
    Jan 21, 2011
    Member:
    #49646
    Messages:
    563
    Gender:
    Male
    First Name:
    Ryan
    Orlando
    Vehicle:
    2014 TRD OR DCSB Silver Streak Mica
    Ah okay, I see what you mean now. Yeah I suppose that would work, only problem I could see is, with nothing holding the backs of the self-tapping screws in place, do you think they'd vibrate out?

  7. Oct 9, 2020 at 10:14 AM
    #7
    Mack83

    Mack83 [OP] Well-Known Member

    Joined:
    Jan 21, 2011
    Member:
    #49646
    Messages:
    563
    Gender:
    Male
    First Name:
    Ryan
    Orlando
    Vehicle:
    2014 TRD OR DCSB Silver Streak Mica
    DaveInDenver and YF_Ryan like this.
  8. Oct 9, 2020 at 10:29 AM
    #8
    YF_Ryan

    YF_Ryan Well-Known Member

    Joined:
    Feb 23, 2017
    Member:
    #211450
    Messages:
    2,210
    Gender:
    Male
    First Name:
    Ryan
    Kent, WA
    Vehicle:
    2011 Silver Tacoma TRD Offroad
    Icon Coil Overs. Deaver U402 Stage 3 Leafs w/ Bilstein 5160s. ARB Deluxe Bull Bar. Fuel Boost wheels w/ Wrangler Duratracs. Brute Force Fab Sliders & HC Rear Bumper w/swingout
    I think the self tappers would probably be fine. There isn't that much load on them, but yeah, the rivnuts would be great for that use.

    I have 12 of them in the side of my habitat holding my awning on.

  9. Oct 9, 2020 at 10:35 AM
    #9
    Mack83

    Mack83 [OP] Well-Known Member

    Joined:
    Jan 21, 2011
    Member:
    #49646
    Messages:
    563
    Gender:
    Male
    First Name:
    Ryan
    Orlando
    Vehicle:
    2014 TRD OR DCSB Silver Streak Mica
    YF_Ryan likes this.
  10. Oct 9, 2020 at 1:08 PM
    #10
    bb609

    bb609 O.F.

    Joined:
    Jun 16, 2009
    Member:
    #18509
    Messages:
    812
    Gender:
    Male
    NH
    Vehicle:
    '09 TRD Sport Access Cab
    FOX 2 1/2" CO's STOCK UCA's - They used to be Icons! Icons suck!!! TSB Rear w/Bilstein 5100's - Air Lift System - Leer 550 Bedcover - Ventshades - Yota Bed Mat - Sheepskins!!! - Weathertechs
    Mack83 [OP] and Grossomotto like this.
  11. Oct 9, 2020 at 5:23 PM
    #11
    Mack83

    Mack83 [OP] Well-Known Member

    Joined:
    Jan 21, 2011
    Member:
    #49646
    Messages:
    563
    Gender:
    Male
    First Name:
    Ryan
    Orlando
    Vehicle:
    2014 TRD OR DCSB Silver Streak Mica
    Yep, at the beginning of this I had a thought to maybe just get armor since I plan to eventually anyway. I decided not to because I want to upgrade my suspension first before I add the extra weight of the bumper. The parts I needed to replace weren't really all that expensive and it'll be a while before I remove it all when I get my offroad bumper.

  12. Oct 9, 2020 at 5:23 PM
    #12
    Muddinfun

    Muddinfun Well-Known Member

    Joined:
    Apr 17, 2017
    Member:
    #216500
    Messages:
    7,509
  13. Oct 9, 2020 at 5:25 PM
    #13
    DanaPtTaco

    DanaPtTaco Never-ending problems

    Joined:
    Mar 22, 2019
    Member:
    #287601
    Messages:
    419
    Gender:
    Male
    First Name:
    Thomas
    Orange County, CA
    Vehicle:
    07 ACLB Prerunner 4.0 AT

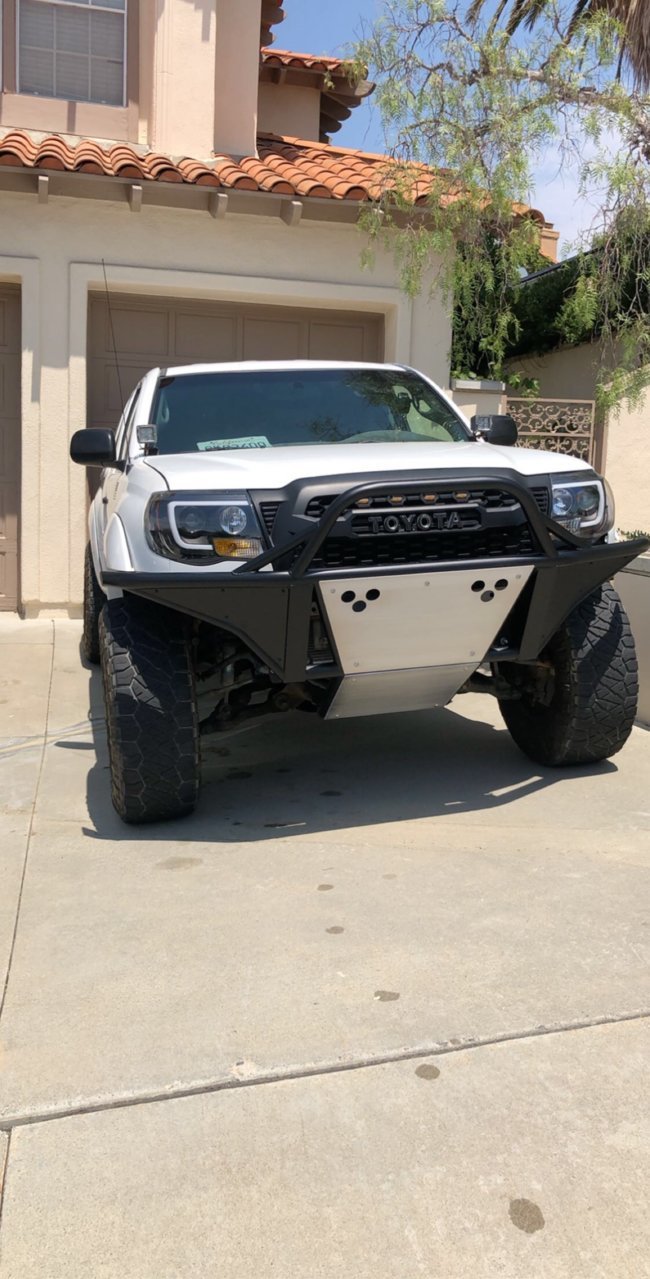

    personally, I prefer my collision damage solution

    TegoTaco and Mack83 [OP] like this.
  14. Oct 9, 2020 at 5:25 PM
    #14
    Mack83

    Mack83 [OP] Well-Known Member

    Joined:
    Jan 21, 2011
    Member:
    #49646
    Messages:
    563
    Gender:
    Male
    First Name:
    Ryan
    Orlando
    Vehicle:
    2014 TRD OR DCSB Silver Streak Mica
  15. Oct 9, 2020 at 5:26 PM
    #15
    Mack83

    Mack83 [OP] Well-Known Member

    Joined:
    Jan 21, 2011
    Member:
    #49646
    Messages:
    563
    Gender:
    Male
    First Name:
    Ryan
    Orlando
    Vehicle:
    2014 TRD OR DCSB Silver Streak Mica
    Me too. I'll get there, suspension first though.

    DanaPtTaco likes this.
  16. Oct 9, 2020 at 5:31 PM
    #16
    DanaPtTaco

    DanaPtTaco Never-ending problems

    Joined:
    Mar 22, 2019
    Member:
    #287601
    Messages:
    419
    Gender:
    Male
    First Name:
    Thomas
    Orange County, CA
    Vehicle:
    07 ACLB Prerunner 4.0 AT
    I went almost a year w/o a bumper on the truck to avoid paying for repairs when I knew I would eventually put the fabricated bumper on

    Mack83 [OP] likes this.
  17. Oct 9, 2020 at 5:34 PM
    #17
    NotUrTaco

    NotUrTaco Well-Known Member

    Joined:
    Apr 28, 2014
    Member:
    #128619
    Messages:
    222
    Gender:
    Male
    Richmond, VA
    Vehicle:
    2008 Silver 4x4 Access Cab
    Not enough
    ...or I just took mine off when I replaced my bumper. Sitting in the bed of the truck now. If you want to pay shipping, it's yours...but it sounds like you're well on your way to a solid fix.

    Mack83 [OP] likes this.
  18. Oct 9, 2020 at 5:39 PM
    #18
    MikefromCT

    MikefromCT Well-Known Member

    Joined:
    Oct 23, 2018
    Member:
    #270327
    Messages:
    1,521
    Gender:
    Male
    First Name:
    Mike
    CT
    Vehicle:
    2013 TRD OR DCSB; 2004 GMC Sierra 2500HD Regular Cab
    OME Bp-51; Relentless Armor
    Mack83 [OP] likes this.
  19. Oct 9, 2020 at 5:43 PM
    #19
    JaCado

    JaCado I make bad choices

    Joined:
    Aug 29, 2016
    Member:
    #195947
    Messages:
    38,269

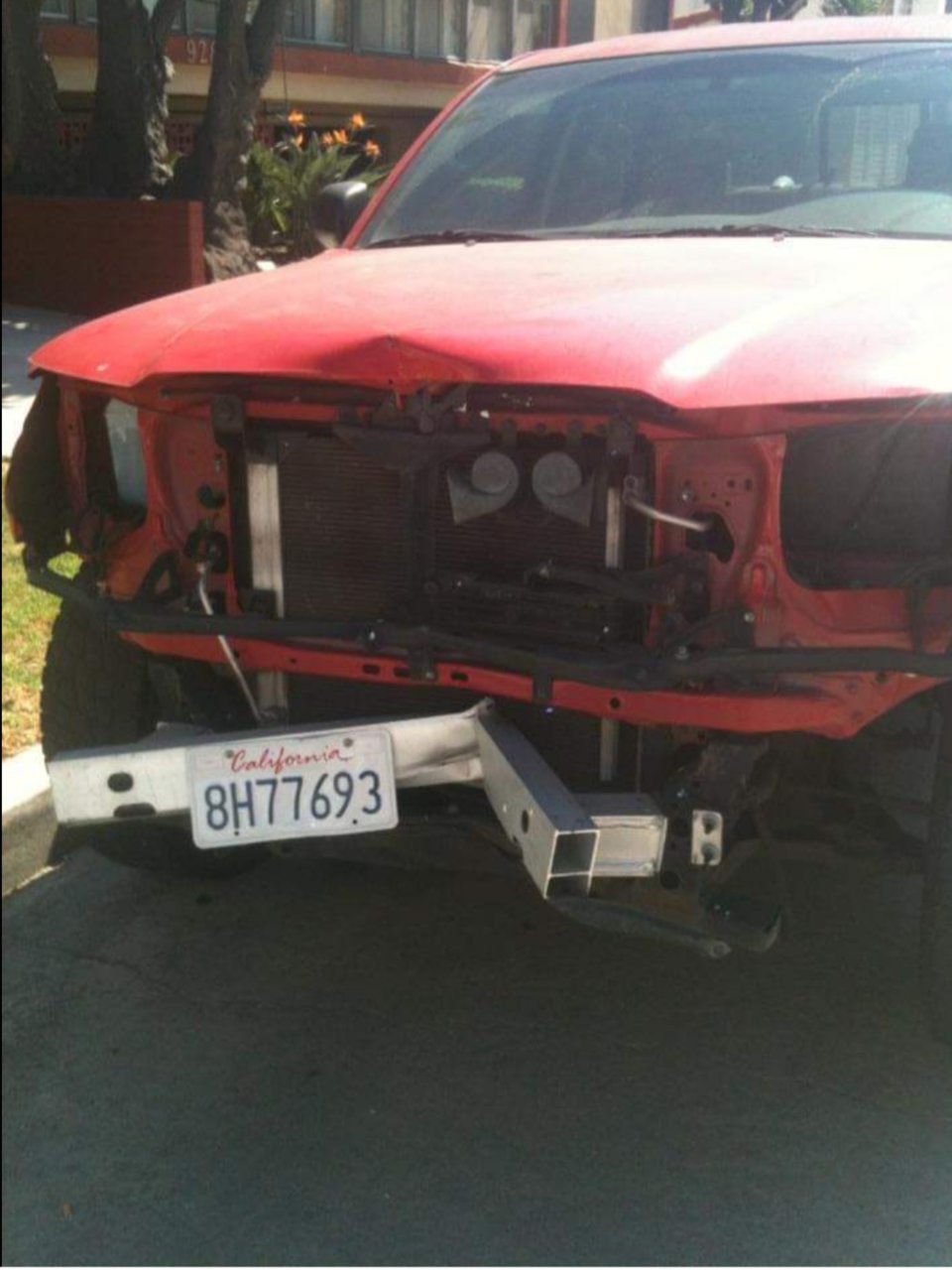

    This was mine, I drove it around for a year like that.
    Was 8k to repair back to stock

    DanaPtTaco likes this.
  20. Oct 9, 2020 at 5:48 PM
    #20
    Mack83

    Mack83 [OP] Well-Known Member

    Joined:
    Jan 21, 2011
    Member:
    #49646
    Messages:
    563
    Gender:
    Male
    First Name:
    Ryan
    Orlando
    Vehicle:
    2014 TRD OR DCSB Silver Streak Mica
    I appreciate the look, but yeah I'm almost there. I'm sure someone will be in a similar situation to mine. I'm also thinking in the future whenever, and if ever, I sell my truck, it'll be good to have the stock pieces when I part out. So I might just keep the stuff I'm buying now.
