    Last night I decided to start changing the LEDs on my stock stereo.
    I have no pics of how to take the HU off but you can check how to do it here:
    http://www.tacomaworld.com/forum/audio-video/571-stereo-upgrade-basic-how-2nd-gen.html#post3556

    Ok, so once I took the HU out, I took off this screw as well as the other one on the opposite side.

    [​IMG]

    Time to take the knobs out.

    [​IMG]

    Sorry I have no pics of how to take the front of the HU apart, it's really simple, looking at the unit from behind there's 1 plastic tab on each side (left and rght), 2 tabs on the top and 3 on the bottom. What I did was pulling the ones on the side first, then the top ones and finally the ones on the bottom.

    I ended up with this:

    [​IMG]

    Then proceed to take all the screws on the board out, they are 9, 3 of them holding a plastic bracket (you can see it on the third pic above):

    [​IMG]

    [​IMG]

    Once the screws are gone, I got the PCB free:

    [​IMG]

    Then proceed to take the stock LED's out, this pic just point the stock LED

    [​IMG]

    By the way, these are the LED's I used:
    Bought from here: http://www.oznium.com/plcc-2

    [​IMG]
    [​IMG]

    Left is stock, right is the new one:

    [​IMG]

    Ok, time start taking LED's off the board:
    I used a 40 Watt Weller, flux and wick.

    [​IMG]

    [​IMG]

    And solder the new ones on:

    [​IMG]

    [​IMG]

    The procedure of taking the LEDs off and soldering the new ones on is pretty much the same. I would really like to explain HOW to solder by showing you with pics, but the only way is doing it yourself.

    So after swapping 40 LEDs, I put the PBC back in place. (I didn't do the display cause it was late and I had to work the next morning)

    [​IMG]

    [​IMG]

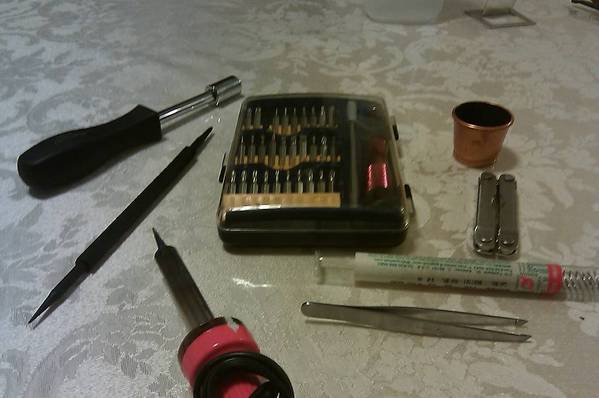

    This is what I used:

    [​IMG]

    OK... BEFORE:

    [​IMG]

    [​IMG]

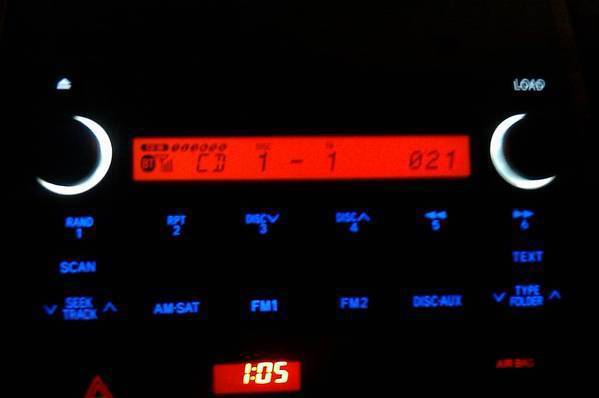

    AND AFTER:

    [​IMG]

    [​IMG]

    [​IMG]

    Questions? Comments?

  2. Oct 19, 2010 at 8:12 PM
    #2
    Viet2100

    Viet2100 Well-Known Member

    Joined:
    Jun 27, 2007
    Member:
    #1930
    Messages:
    2,519
    Gender:
    Male
    First Name:
    Viet
    Delray Beach, FL
    Vehicle:
    2007 Infiniti G35S
    Nice job. No flux?

  3. Oct 19, 2010 at 8:16 PM
    #3
    Rakso

    Rakso [OP] CeRaTi

    Joined:
    Feb 26, 2009
    Member:
    #14105
    Messages:
    4,088
    Gender:
    Male
    First Name:
    OsKaR
    California
    Vehicle:
    09 PreRunner SR5
    Icon Ext Travel Coils, Built right UCAs, nFab light bar, Fox 2.0 piggy backs, Demello Sliders, Weather Tech Liners, Wet Okole Seat Covers, AFE CAI, Magnaflow Mufler, 6000k HIDs Headlights, 3000K HIDs Fog Lights, Fogs Anytime Mod. Cluster LED Swap, HU LED Swap.
    yup, not on pic though.

  4. Oct 21, 2010 at 3:39 PM
    #4
    greasemonk

    greasemonk Active Member

    Joined:
    Oct 21, 2010
    Member:
    #45023
    Messages:
    28
    Gender:
    Male
    Houston
    Vehicle:
    08 Black PreRunner V6
    HIDs, debadged, 2012 taco tail lights, mud flaps removed, black grill emblem, JVC Radio
    Looks nice, I want to do the same to my truck one day. The white/blue combination looks real clean.

  5. Oct 21, 2010 at 3:47 PM
    #5
    flightcancled

    flightcancled Addicted

    Joined:
    Feb 7, 2010
    Member:
    #30917
    Messages:
    1,471
    Gender:
    Male
    Syracuse NY/ Nantucket MA
    Camper top with racks, Custom fogs behind lower bumper. Interior LED lighting, Rock Lights, Hella 500s with upraged bulbs behind black billet grill, AAL, Front 5100s
    No screen?

  6. Oct 21, 2010 at 3:49 PM
    #6
    The1youluv2hate

    The1youluv2hate Well-Known Member

    Joined:
    Sep 14, 2010
    Member:
    #43233
    Messages:
    2,699
    Gender:
    Male
    First Name:
    Peps
    SP... CaL
    Vehicle:
    11 TRD sPort
    5100's@1.75 Horns (Andres) Satoshi TRD cat back BHLM
    Nice job ...switch my LEDs

  7. Oct 21, 2010 at 4:02 PM
    #7
    PreRunnerSeth

    PreRunnerSeth Well-Known Member

    Joined:
    Aug 12, 2009
    Member:
    #21110
    Messages:
    4,183
    Gender:
    Male
    Apex, NC
    Vehicle:
    15 Black DC OR Prerunner
    The screen is a PITA! Good job.

  8. Oct 21, 2010 at 4:06 PM
    #8
    whippersnapper02

    whippersnapper02 Well-Known Member

    Joined:
    Dec 20, 2009
    Member:
    #27905
    Messages:
    35,243
    Gender:
    Male
    First Name:
    Christian
    Yorba Linda, CA
    Vehicle:
    10 MGM TRD OR 4wd Auto DCSB
    Banks Monster Exhaust, Pop n Lock tailgate lock, Hook-Ups tie down brackets, USA Spec Ipod adaptor, WO seat covers, color matched grill with Grillcraft insert, Tuffy locking bed box
    Looks great dude.

  9. Oct 21, 2010 at 11:29 PM
    #9
    Rakso

    Rakso [OP] CeRaTi

    Joined:
    Feb 26, 2009
    Member:
    #14105
    Messages:
    4,088
    Gender:
    Male
    First Name:
    OsKaR
    California
    Vehicle:
    09 PreRunner SR5
    Icon Ext Travel Coils, Built right UCAs, nFab light bar, Fox 2.0 piggy backs, Demello Sliders, Weather Tech Liners, Wet Okole Seat Covers, AFE CAI, Magnaflow Mufler, 6000k HIDs Headlights, 3000K HIDs Fog Lights, Fogs Anytime Mod. Cluster LED Swap, HU LED Swap.
    Thanks everybody! :)

  10. Oct 21, 2010 at 11:31 PM
    #10
    Rakso

    Rakso [OP] CeRaTi

    Joined:
    Feb 26, 2009
    Member:
    #14105
    Messages:
    4,088
    Gender:
    Male
    First Name:
    OsKaR
    California
    Vehicle:
    09 PreRunner SR5
    Icon Ext Travel Coils, Built right UCAs, nFab light bar, Fox 2.0 piggy backs, Demello Sliders, Weather Tech Liners, Wet Okole Seat Covers, AFE CAI, Magnaflow Mufler, 6000k HIDs Headlights, 3000K HIDs Fog Lights, Fogs Anytime Mod. Cluster LED Swap, HU LED Swap.
    Give me some money, buy the LEDs and ship me your HU along with the LEDs.
    LOL :D

  11. Oct 21, 2010 at 11:33 PM
    #11
    Rakso

    Rakso [OP] CeRaTi

    Joined:
    Feb 26, 2009
    Member:
    #14105
    Messages:
    4,088
    Gender:
    Male
    First Name:
    OsKaR
    California
    Vehicle:
    09 PreRunner SR5
    Icon Ext Travel Coils, Built right UCAs, nFab light bar, Fox 2.0 piggy backs, Demello Sliders, Weather Tech Liners, Wet Okole Seat Covers, AFE CAI, Magnaflow Mufler, 6000k HIDs Headlights, 3000K HIDs Fog Lights, Fogs Anytime Mod. Cluster LED Swap, HU LED Swap.
    No for now, I believe I have to take the display off to get to the LEDs underneath. But I'll do it for sure.

  12. Oct 22, 2010 at 2:03 AM
    #12
    Whitecloud

    Whitecloud Cloudy-fabricator of things

    Joined:
    Feb 24, 2010
    Member:
    #32031
    Messages:
    3,003
    Gender:
    Male
    First Name:
    Johnathan
    Albuquerque, New Mexico
    Vehicle:
    Superwhite 06 DCLB
    ICON Extended travel Coilovers, Custom leaf pack, custom sliders and F&R bumpers, 295 75 17 Toyo Open Country MT's, On-Board air with F+R connectors, On-Board water with quick disconnect shower.Trimmed fenders and body mount chop. LOTS of wiring, dual battery setup, Solar charging system, with some random lights spread around here and there.
    Looks good. I'd like to do mine at some point. How long did it take and how muck did it cost for the LED's?

  13. Oct 22, 2010 at 8:53 AM
    #13
    flightcancled

    flightcancled Addicted

    Joined:
    Feb 7, 2010
    Member:
    #30917
    Messages:
    1,471
    Gender:
    Male
    Syracuse NY/ Nantucket MA
    Camper top with racks, Custom fogs behind lower bumper. Interior LED lighting, Rock Lights, Hella 500s with upraged bulbs behind black billet grill, AAL, Front 5100s

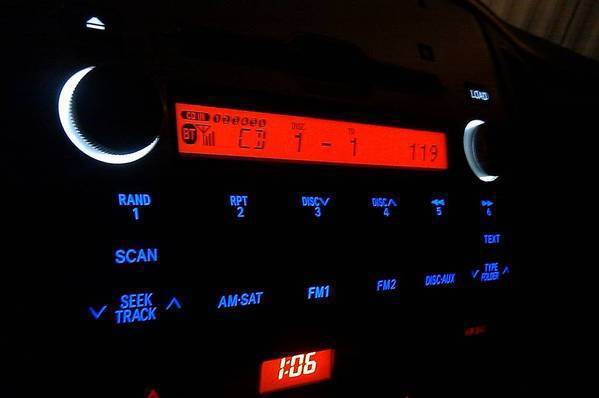

    Do it- it's worth it! Here's mine:
