Switch Kit and Ditch Lights

Discussion in '3rd Gen. Tacomas (2016+)' started by frodoz737, Mar 3, 2021.

  1. Mar 3, 2021 at 3:59 PM
    #1
    frodoz737

    frodoz737 [OP] TOP WRENCH

    Joined:
    May 7, 2018
    Member:
    #252793
    Messages:
    150
    Gender:
    Male
    Texas
    For reference please see this thread.

    https://www.tacomaworld.com/threads/real-dirt-on-2016-trd-off-road-suspension-upgrades.548028/page-2

    So...my Son is moving out of State soon to his new Crew in Oregon and purchased https://caliraisedled.com/products/vehicle-accessory-8-switch-control-system-blue-backlighting and a pair of Baja Design S2 Sport ditch lights (amber). He did this on his own, so please refrain from the normal forum woulda/shoulda/coulda critique as the info I seek is to work with the situation/parts given...thanks. So I will be driving about 4 hours to his current location to "assist" with the install and the ONLY thing I need to figure out before leaving is where to hook up power wire off the included fuse panel (not the battery terminal) to a "switched on" buss...so he doesn't "accidentally" kill his battery using these and other lights in the future off a hot battery buss. The kit is provided with a blade fuse adaptor and I would prefer to use it without piggy backing to another currently "used" fuse/circuit. Vehicle info is provided in the linked thread. Lots of info out there, but I'm time crunched between work tonight and leaving Thursday night/Friday morning.

    If someone would point me in the right direction so I don't have to tag the wire guy at the Dealership...it would be much appreciated.

    Mods feel free to move this to the more appropriate section if needed.

    Thanks.

    Last edited: Mar 4, 2021
  2. Mar 4, 2021 at 11:49 AM
    #2
    frodoz737

    frodoz737 [OP] TOP WRENCH

    Joined:
    May 7, 2018
    Member:
    #252793
    Messages:
    150
    Gender:
    Male
    Texas
    Just to clarify, looking for an ACC circuit (preferably unused) to tap/fuse into on a 2018 LBDC OR Premium so that his ditch lights "and future add-on lights" will only work when the vehicle is powered up.

    Thanks.

  3. Mar 4, 2021 at 1:11 PM
    #3
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    5,439
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,

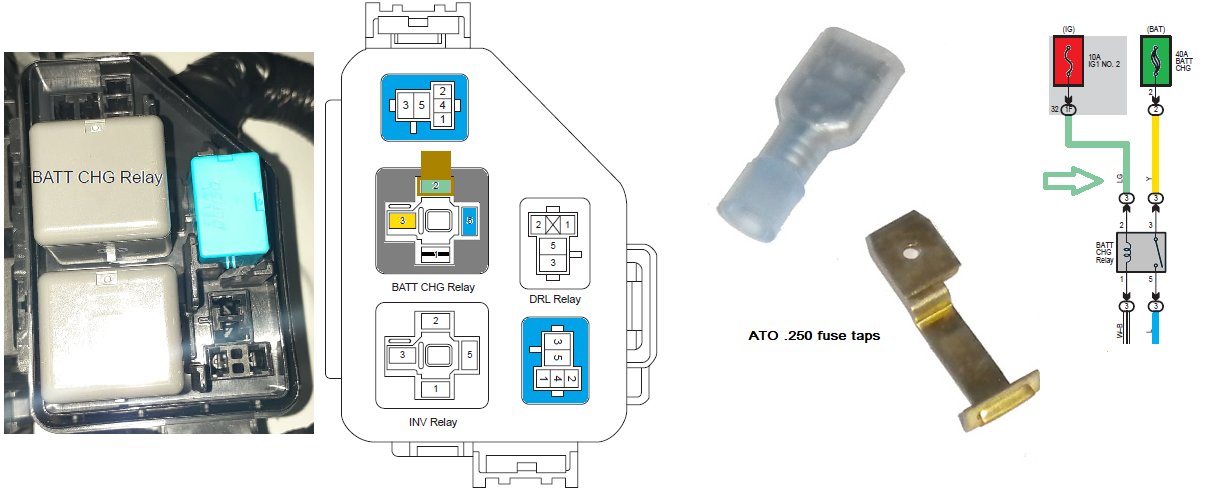

    If you have the trailer towing battery charger, remove the relay, place the tap (tape or heat shrink any metal exposed that the connector will not cover). Re-insert the relay, place the connector on the tap. Route the wire as you see fit.

    vicali likes this.
  4. Mar 4, 2021 at 2:10 PM
    #4
    frodoz737

    frodoz737 [OP] TOP WRENCH

    Joined:
    May 7, 2018
    Member:
    #252793
    Messages:
    150
    Gender:
    Male
    Texas

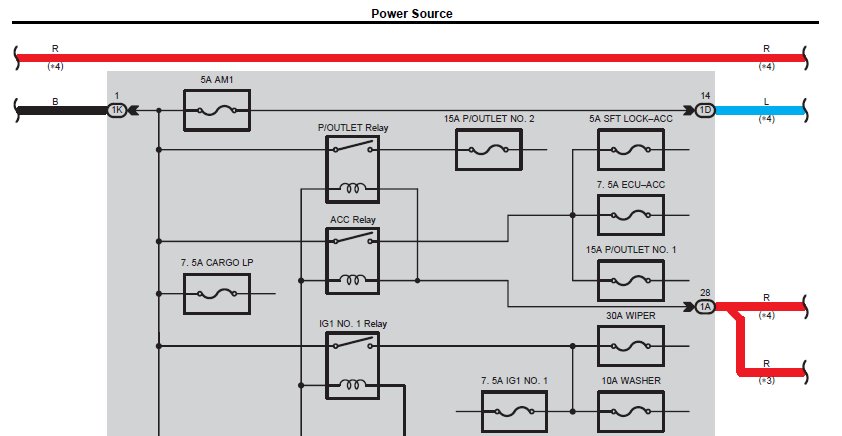

    Thank you. Looking in to it now. Got a print from my Service Dept showing the ACC relay and inside the interior C/B panel. Interesting your illustration shows tapping in to leg 2.

  5. Mar 4, 2021 at 2:16 PM
    #5
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    5,439
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    The ACC relay is soldered to a PCB (Junction Block) in the cab. Not an ideal location to tap.

  6. Mar 4, 2021 at 2:33 PM
    #6
    frodoz737

    frodoz737 [OP] TOP WRENCH

    Joined:
    May 7, 2018
    Member:
    #252793
    Messages:
    150
    Gender:
    Male
    Texas
    yep...that's the print I have. Don't know if he has the trailer towing battery charger you referenced above. Suggestions? I want to keep this install clean and professional.

  7. Mar 4, 2021 at 2:35 PM
    #7
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    5,439
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,

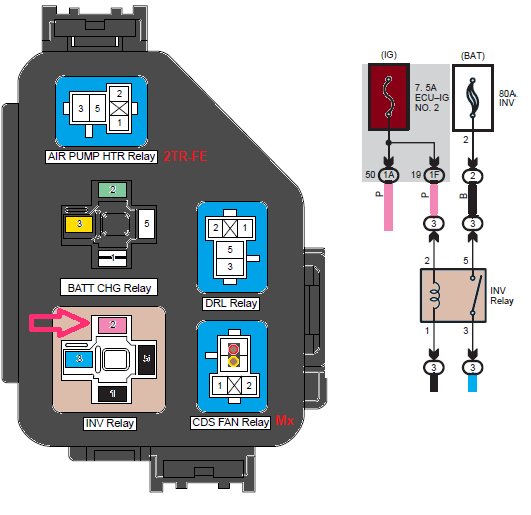

    Find out what the vehicle has first...another choice is the inverter relay right below the battery charger relay.

    Last edited: Mar 4, 2021
  8. Mar 4, 2021 at 2:39 PM
    #8
    frodoz737

    frodoz737 [OP] TOP WRENCH

    Joined:
    May 7, 2018
    Member:
    #252793
    Messages:
    150
    Gender:
    Male
    Texas
    I ordered this truck and know he does have the tow pkg...if that qualifies the vehicle having that relay.

  9. Mar 4, 2021 at 2:59 PM
    #9
    frodoz737

    frodoz737 [OP] TOP WRENCH

    Joined:
    May 7, 2018
    Member:
    #252793
    Messages:
    150
    Gender:
    Male
    Texas
  10. Mar 4, 2021 at 3:02 PM
    #10
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    5,439
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
  11. Mar 4, 2021 at 3:10 PM
    #11
    frodoz737

    frodoz737 [OP] TOP WRENCH

    Joined:
    May 7, 2018
    Member:
    #252793
    Messages:
    150
    Gender:
    Male
    Texas
    Thanks, but I need it tonight or tomorrow at the latest. Checking auto parts stores now.

  12. Mar 4, 2021 at 3:30 PM
    #12
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    5,439
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,

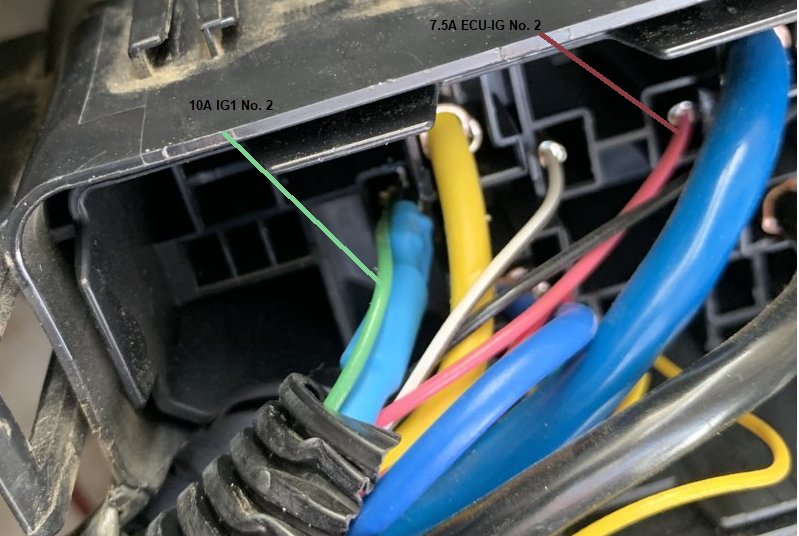

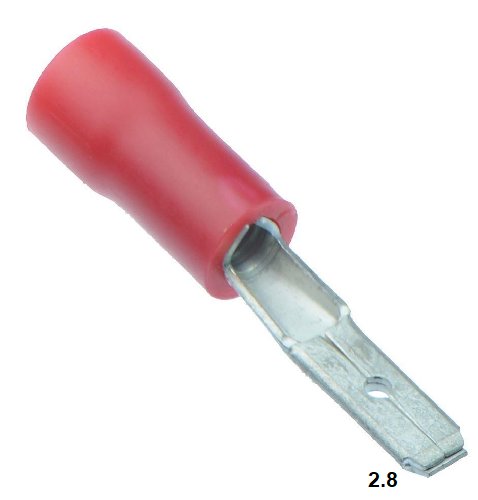

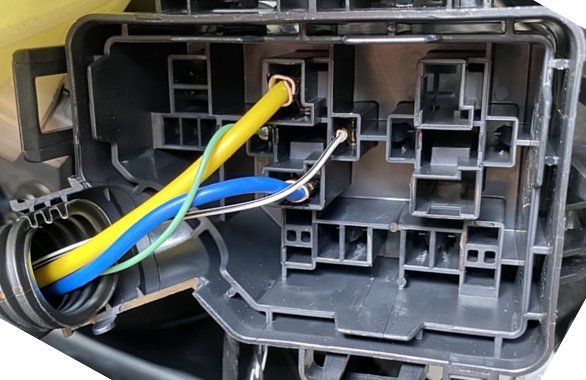

    You could strip the insulation and solder then insulate from below. Then route the added wire with rest of the original bundle.
    Or wedge a male crimped terminal into the space between the original relay connector and tape in place.(blue wire next to lime green one) Then run the wire out to where it's needed.

    Last edited: Mar 4, 2021
  13. Mar 4, 2021 at 3:39 PM
    #13
    frodoz737

    frodoz737 [OP] TOP WRENCH

    Joined:
    May 7, 2018
    Member:
    #252793
    Messages:
    150
    Gender:
    Male
    Texas
    It almost looks like I can use the "regular style" fuse tap and just bend it to clear the relay. Still searching.

    [​IMG]

  14. Mar 4, 2021 at 3:46 PM
    #14
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    5,439
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    Problem I see with those is they stretch the receiving connector, not that it would be regularly removed.

  15. Mar 4, 2021 at 3:49 PM
    #15
    frodoz737

    frodoz737 [OP] TOP WRENCH

    Joined:
    May 7, 2018
    Member:
    #252793
    Messages:
    150
    Gender:
    Male
    Texas
    Not to get personal, but you sound like wrench/sparky as well.

  16. Mar 4, 2021 at 4:13 PM
    #16
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    5,439
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    Many hats...

    Skydvrr likes this.
  17. Mar 4, 2021 at 6:07 PM
    #17
    frodoz737

    frodoz737 [OP] TOP WRENCH

    Joined:
    May 7, 2018
    Member:
    #252793
    Messages:
    150
    Gender:
    Male
    Texas
  18. Mar 5, 2021 at 5:02 AM
    #18
    frodoz737

    frodoz737 [OP] TOP WRENCH

    Joined:
    May 7, 2018
    Member:
    #252793
    Messages:
    150
    Gender:
    Male
    Texas
    Thanks again for all your help, but the clock is ticking and I have to get on the road. I hate doing ghetto, but for now I'm going to try P/OUTLET NO 1 or 2 inside with his kit supplied "tapafuse".

    Will check back later.

  19. Mar 5, 2021 at 5:17 AM
    #19
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    5,439
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
  20. Mar 5, 2021 at 5:29 AM
    #20
    Tacoma13_NC

    Tacoma13_NC Well-Known Member

    Joined:
    Oct 18, 2020
    Member:
    #344149
    Messages:
    792
    Gender:
    Male
    Vehicle:
    2013 Black Tacoma SR5 4x4 DCSB 4.0L
    Bilstein 5100's; OME 885's; Wheeler's 1.5" 3-Leaf AAL's w/ overload; OME CB drop; TRD Pro 4-Runner Wheels; BFG KO2's (265/70/17); Diode Dynamics SS3 Sport (Yellow) fogs; Go Rhino D2 step bars; CaliRaised 32" hidden light bar; New OEM headlight assemblies with upgraded HD harness; Unifilter mod; Rear-View mirror riser bracket; Truxedo Lo Pro tonneau cover; New OEM color-matched grille; Bumpershellz color-matched rear bumper cover; Pedal Commander; Ultra-Gauge MX 1.4 w/Spiker mount; Baja Designs S2 Sport Ditch Lights with SDHQ brackets; Fog Light Anytime Mod; 3rd Gen TRD Pro skid plate
    It's probably too late at this point, and I know you said you didn't want to tap into a used fuse, but I did almost the exact same setup using an add-a-fuse to the #3 TAIL light fuse and it's worked flawlessly. It doesn't get much easier than that.
