Tacoma Brakes - Swaps and Tech

Discussion in 'Technical Chat' started by Low Range Off-Road, Jan 4, 2017.

  1. Jan 4, 2017 at 3:17 PM
    #1
    Low Range Off-Road

    Low Range Off-Road [OP] Well-Known Member

    Joined:
    Jun 8, 2015
    Member:
    #156988
    Messages:
    180
    Ok I have been aware of all the different Calipers Toyota Made for the Tacoma's, 4Runners, Tundra's and so on and so forth. Whenever I revisit the question about up grading brakes on Tacoma's I forget everything. So I decided to make a Brake Bible for everyone. Here is a guideline for Swaps and Tech so we all know what to do at O'relly's or Autozone, as well what we need to make the best OE brake setup.

    All Brake Calipers Have the same Caliper Mounting Dimensions. So in theory they could be all interchangeable, Just need Rotors and Pads to Match. Need to confirm fitment with steering, Knuckle, and Wheel Size.

    Common Swaps

    1995.5-2004 Tacoma - S13WE | 13WL (YouTube Video Below)

    1996-2002 4Runner - S13WE | 13WL

    2005-Present Tacoma - S13WH | 14WA

    2003-2009 4Runner - S13WH | 14WA
    S12WE - 1995.5-2004 Tacoma | 1996-2002 4Runner

    Caliper Manufacture - Sumitomo | Advics
    Rotor Manufacture - Advics
    Pad Manufacture - Advics
    Caliper Size - 9-9/16" Inch
    Rotor Size - 296.8mm
    Rotor Thickness - 21.7mm
    Rotor Weight - 13.09 lbs
    Brake Pad Size -
    Piston Size - 43mm
    Wheel Size - 15"
    S13WM - 1996-2002 4Runner

    Caliper Manufacture - Sumitomo | Advics
    Rotor Manufacture - Advics
    Pad Manufacture - Advics
    Caliper Size - 9-9/16" Inch
    Rotor Size - 318.5mm
    Rotor Thickness - 21.8mm
    Rotor Weight - 14.59 lbs
    Brake Pad Size -
    Piston Size - 43mm
    Wheel Size - 15"
    S13WE - 2000-2002 Tundra | 2001-2002 Sequoia

    Caliper Manufacture - Sumitomo | Advics
    Rotor Manufacture - Advics
    Pad Manufacture - Advics
    Caliper Size - 9-9/16" Inch
    Rotor Size - 318.7mm
    Rotor Thickness - 28mm
    Rotor Weight - 20.48 lbs
    Brake Pad Size -
    Piston Size - 45mm
    Wheel Size - 16"
    13WL - 2003-2006 Tundra | 2002-2007 Sequoia

    Caliper Manufacture - Sumitomo | Advics
    Rotor Manufacture - Advics
    Pad Manufacture - Advics
    Caliper Size - 11-5/8" Inch
    Rotor Size - 318.7mm
    Rotor Thickness - 28mm
    Rotor Weight - 20.48 lbs
    Brake Pad Size -
    Piston Size - 45mm
    Wheel Size - 16"- 17"
    13WG - 2005-Present Toyota Tacoma | 2007-2014 Toyota FJ Cruiser | 2003-2009 4Runner

    Caliper Manufacture - Sumitomo | Advics
    Rotor Manufacture - Advics
    Pad Manufacture - Advics
    Caliper Size - 11-5/8" Inch
    Rotor Size - 319mm
    Rotor Thickness - 28mm
    Rotor Weight - 18.48 lbs
    Brake Pad Size -
    Piston Size - 45mm
    Wheel Size - 16" - 17"
    13WH - 2003-2009 4Runner | 2003-2009 GX470

    Caliper Manufacture - Sumitomo | Advics
    Rotor Manufacture - Advics
    Pad Manufacture - Advics
    Caliper Size - 11-5/8" Inch
    Rotor Size - 338mm
    Rotor Thickness - 27.5mm
    Rotor Weight - 20.11 lbs
    Brake Pad Size -
    Piston Size - 45mm
    Wheel Size - 17"
    14WA - 2010-Present 4Runner | 2010-Present GX460

    Caliper Manufacture - Advics
    Rotor Manufacture - Advics
    Pad Manufacture - Advics
    Caliper Size - ???
    Rotor Size - 338mm
    Rotor Thickness - 31.8mm
    Rotor Weight - 21.7 lbs
    Brake Pad Size -
    Piston Size - 48mm
    Wheel Size - 17"

    https://www.youtube.com/watch?v=UVybEXTC0TE

    Last edited: Mar 13, 2017
    Anton338, Hotdog, L8Shift and 9 others like this.
  2. Jan 4, 2017 at 8:43 PM
    #2
    757yotas

    757yotas Well-Known Member

    Joined:
    Feb 5, 2015
    Member:
    #147976
    Messages:
    2,109
    Gender:
    Male
    Virginia
    Vehicle:
    2007 TRD Sport
    ICI Magnum front bumer Rigid LED lighting OME lift 285/70 Nitto Exos 17" Fuel Hostage TRD Exhaust TonnauPro Cover Oil Catch Can Tint Pioneer Nav system Sound System LED lighting Euro headlights Paint
    Sticky

  3. Jan 13, 2017 at 12:22 PM
    #3
    Low Range Off-Road

    Low Range Off-Road [OP] Well-Known Member

    Joined:
    Jun 8, 2015
    Member:
    #156988
    Messages:
    180
    So for 2005-2017 Tacoma's a Good Upgrade is the 2014-Present 4Runner 14WA Calipers and Rotors.

    The calipers are slightly larger and have a upgraded 48mm Caliper Piston. 3mm Larger than the 13WG. The 14WA also has longer mounting ears to allow a larger rotor.

    The 4Runner Rotor is 19mm Larger in Diameter and 3mm Thicker. All this makes for better heat management as well as greater surface area for better stopping distances. If anyone with a 2005-Present Tacoma would like to make the swap or wants to upgrade there brakes Please DM me or Email me at lowrangebrycen@gmail.com. I can provide the parts for the swap at a discount in exchange of knowledge and review.

  4. Jan 25, 2017 at 9:55 PM
    #4
    RexsTaco

    RexsTaco Well-Known Member

    Joined:
    Jun 28, 2014
    Member:
    #132893
    Messages:
    1,008
    Gender:
    Male
    First Name:
    Vincent
    San Antonio
    Vehicle:
    06
    Maxtrac spindles Bilstein 5100 adjustable OME 885 coil JBA UCA's Custom leaf pack and Maxtrac extended shocks in the rear. 35x12.5 Atturo Trail blade M/T Moto Metal 18x12 -44 offset wheels.
    Will this work on a 2nd Gen???

  5. Jan 25, 2017 at 10:01 PM
    #5
    HAVVOKK

    HAVVOKK Well-Known Member

    Joined:
    Apr 1, 2015
    Member:
    #152280
    Messages:
    9,086
    Gender:
    Male
    First Name:
    John
    Vehicle:
    2014 DGAF Long Bed
    Fucking look it up
    I've been looking into swapping out the drums for rotors any idea what work is actually needed to do the swap. I'm aware of the parts but not sure how the swap goes into affect and how you mount the calipers and such

  6. Jan 25, 2017 at 10:20 PM
    #6
    SCRunner12

    SCRunner12 Tundra Troll

    Joined:
    Aug 8, 2011
    Member:
    #61363
    Messages:
    9,085
    Gender:
    Male
    First Name:
    Robert
    Santa Cruz, CA
    Vehicle:
    2006 Tundra DC, TRD, 4wd
    Great info, I was wondering if the 2nd gens and 13WL brakes were the same size rotors. This confirms it.

  7. Jan 26, 2017 at 11:24 AM
    #7
    Low Range Off-Road

    Low Range Off-Road [OP] Well-Known Member

    Joined:
    Jun 8, 2015
    Member:
    #156988
    Messages:
    180
    Yes this should work. The 14WA should fit on a second gen. But I want to find a guinea pig.

    nudavinci64 likes this.
  8. Jan 26, 2017 at 11:27 AM
    #8
    Low Range Off-Road

    Low Range Off-Road [OP] Well-Known Member

    Joined:
    Jun 8, 2015
    Member:
    #156988
    Messages:
    180
    Do you have a first or second gen? No one makes a Disc Brake kit for the 2 Gen. I was looking into 2003-Present Rear 4Runner Disc Brakes. These also have internal e-brakes. In theory they should bolt up. I was looking at the backing plate bolt pattern and they seem the same. Question is will the axles work?

    RexsTaco likes this.
  9. Jan 26, 2017 at 1:27 PM
    #9
    HAVVOKK

    HAVVOKK Well-Known Member

    Joined:
    Apr 1, 2015
    Member:
    #152280
    Messages:
    9,086
    Gender:
    Male
    First Name:
    John
    Vehicle:
    2014 DGAF Long Bed
    Fucking look it up
    2nd Gen so that sucks I hate drums and go too fast for them to work well anywhere haha

    RexsTaco likes this.
  10. Jan 26, 2017 at 4:28 PM
    #10
    buyobuyo

    buyobuyo Read The Fucking Manual

    Joined:
    Jan 24, 2008
    Member:
    #4417
    Messages:
    6,291
    Gender:
    Male
    First Name:
    Jeremy
    Camden, AR
    Vehicle:
    08 PreRunner SR5, I4, Manual, Silver
    A thing or two...
    SOS Performance makes a rear drum to disc conversion for 2nd gen Tacomas using 4Runner rear brakes. http://sosperformance.com/products/rear-disc-conversion-with-parking-brake-slash-tr-dot-ps2-dot-ta16
    They also make/sell StopTech big brake upgrades for the front.

  11. Feb 1, 2017 at 12:17 AM
    #11
    nudavinci64

    nudavinci64 Taco Outlaw

    Joined:
    Nov 14, 2013
    Member:
    #116533
    Messages:
    8,323
    Gender:
    Male
    First Name:
    Robert
    San Mateo/Cayucos, CA
    Vehicle:
    13 S/C TRD OffRoad 4x4
    Boosted Money Pit....
    sawjai526 likes this.
  12. Mar 7, 2017 at 10:13 PM
    #12
    nudavinci64

    nudavinci64 Taco Outlaw

    Joined:
    Nov 14, 2013
    Member:
    #116533
    Messages:
    8,323
    Gender:
    Male
    First Name:
    Robert
    San Mateo/Cayucos, CA
    Vehicle:
    13 S/C TRD OffRoad 4x4
    Boosted Money Pit....
    Ordered the kit mentioned. Should have it test fitttd soon. Given I can get the time to do the work. Thread or post to follow.

  13. Mar 9, 2017 at 4:14 PM
    #13
    Boozng

    Boozng I don't know what I'm doing here.

    Joined:
    Jan 10, 2015
    Member:
    #145999
    Messages:
    308
    Gender:
    Male
    First Name:
    Dave
    626, 661, 323, 310, 760
    Vehicle:
    MGM DCSB TRD Sport 4x4 Supercharged
    FOX 2.5/2.0, Camburg UCAs, 33" BFGs, Pelfreybilt Armor
    sub'd!

  14. Mar 9, 2017 at 4:16 PM
    #14
    Boozng

    Boozng I don't know what I'm doing here.

    Joined:
    Jan 10, 2015
    Member:
    #145999
    Messages:
    308
    Gender:
    Male
    First Name:
    Dave
    626, 661, 323, 310, 760
    Vehicle:
    MGM DCSB TRD Sport 4x4 Supercharged
    FOX 2.5/2.0, Camburg UCAs, 33" BFGs, Pelfreybilt Armor
  15. Mar 9, 2017 at 4:18 PM
    #15
    nudavinci64

    nudavinci64 Taco Outlaw

    Joined:
    Nov 14, 2013
    Member:
    #116533
    Messages:
    8,323
    Gender:
    Male
    First Name:
    Robert
    San Mateo/Cayucos, CA
    Vehicle:
    13 S/C TRD OffRoad 4x4
    Boosted Money Pit....

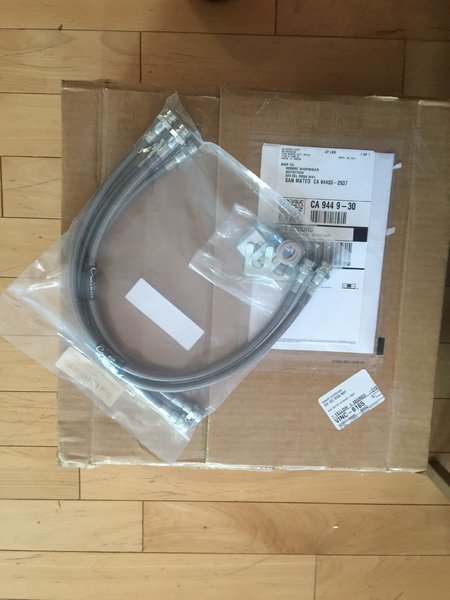

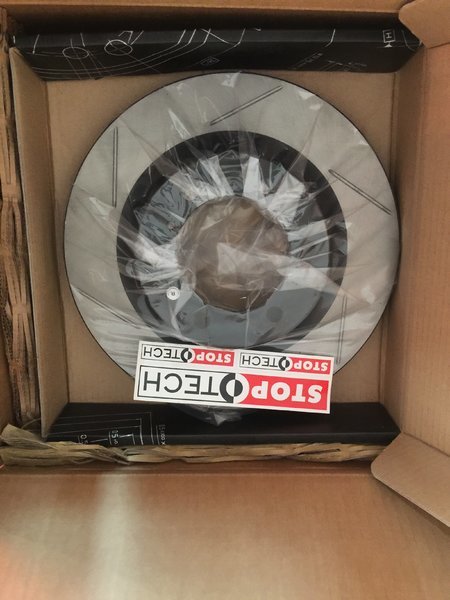

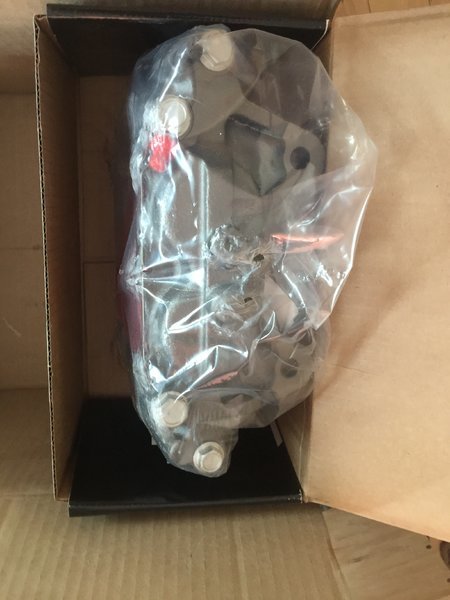

    Goods have arrived minus a couple items. Keep you all posted.

    IMG_5989.jpgIMG_5986.jpg IMG_5987.jpg

    ruffridha9 likes this.
  16. Mar 9, 2017 at 4:19 PM
    #16
    Boozng

    Boozng I don't know what I'm doing here.

    Joined:
    Jan 10, 2015
    Member:
    #145999
    Messages:
    308
    Gender:
    Male
    First Name:
    Dave
    626, 661, 323, 310, 760
    Vehicle:
    MGM DCSB TRD Sport 4x4 Supercharged
    FOX 2.5/2.0, Camburg UCAs, 33" BFGs, Pelfreybilt Armor
    Sweet! Good luck!

    nudavinci64 likes this.
  17. Mar 9, 2017 at 4:32 PM
    #17
    nudavinci64

    nudavinci64 Taco Outlaw

    Joined:
    Nov 14, 2013
    Member:
    #116533
    Messages:
    8,323
    Gender:
    Male
    First Name:
    Robert
    San Mateo/Cayucos, CA
    Vehicle:
    13 S/C TRD OffRoad 4x4
    Boosted Money Pit....
    Indeed, thanks!

  18. Mar 13, 2017 at 4:48 PM
    #18
    Low Range Off-Road

    Low Range Off-Road [OP] Well-Known Member

    Joined:
    Jun 8, 2015
    Member:
    #156988
    Messages:
    180
    Biscuits and SellyKlater like this.
  19. Mar 14, 2017 at 3:07 PM
    #19
    nudavinci64

    nudavinci64 Taco Outlaw

    Joined:
    Nov 14, 2013
    Member:
    #116533
    Messages:
    8,323
    Gender:
    Male
    First Name:
    Robert
    San Mateo/Cayucos, CA
    Vehicle:
    13 S/C TRD OffRoad 4x4
    Boosted Money Pit....

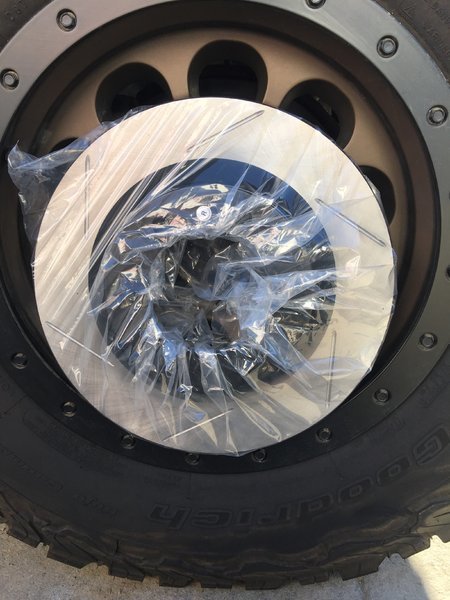

    Def an increase in size just by looking at it. Although not 6 piston the 4Runner calipers looks huge. Will compare them later.

  20. Mar 14, 2017 at 3:29 PM
    #20
    Boozng

    Boozng I don't know what I'm doing here.

    Joined:
    Jan 10, 2015
    Member:
    #145999
    Messages:
    308
    Gender:
    Male
    First Name:
    Dave
    626, 661, 323, 310, 760
    Vehicle:
    MGM DCSB TRD Sport 4x4 Supercharged
    FOX 2.5/2.0, Camburg UCAs, 33" BFGs, Pelfreybilt Armor
    Put it on already! Stop teasing us. Haha!
