Discussion in 'Suspension' started by Khaos, Jul 10, 2008.

Page 33 of 76
  1. Aug 9, 2013 at 6:19 PM
    #641
    RC4413

    #641
    RC4413 Well-Known Member

    Joined:
    Jun 13, 2013
    Member:
    #106210
    Messages:
    170
    Gender:
    Male
    Vehicle:
    2013 RC MGM 2.7 Manual 4x4
    Weathertech floor liners, Wet Okole seat covers, bed mat, Tinted windows, Dipped badges, AC drain extension, TRD skid, Avid sliders, Bilsteins 5100 x4 (front @ 1.75), TRD TT wheels, 265/75 16 Duratracs, OEM fogs and hitch.
    Im sorry if this has been answered before, i couldnt really get a clear answer ...... Can anyone give me there thought/experience with 5100's set at 1.75 and no AAL or TSB? They would be on a 2013 RC Tacoma 4x4. My concerns: Do I need new UCA's and do I need a differential drop? Any information will be very helpful. Thank you.

    Last edited: Aug 9, 2013
    RC4413, Aug 9, 2013
    #641
  2. Aug 9, 2013 at 6:23 PM
    #642
    Gaunt596

    #642
    Gaunt596 Well-Known Member

    Joined:
    Jun 19, 2013
    Member:
    #106627
    Messages:
    5,790
    Gender:
    Male
    First Name:
    Matthew
    Central Maryland
    Originally asked in another thread, but saw this and thought it is a better place. Is there any way to do a proper 1-1.5 lift without spacers? id like to increase the travel a bit but the truck is my DD so i cant have it eating cv's like popcorn either

    Gaunt596, Aug 9, 2013
    #642
  3. Aug 9, 2013 at 7:17 PM
    #643
    bjboucher

    #643
    bjboucher Mama says Tacoma World is da devil!

    Joined:
    Aug 8, 2012
    Member:
    #84371
    Messages:
    2,243
    Gender:
    Male
    First Name:
    Brad
    San Antonio, Texas
    Vehicle:
    Former 2012 DCLB 4x4 SR5 Texas Edition
    OME complete kit w/ 885s on Nitrocharger Sports, 1/4" spacers, Dakars w/ Nitrocharger Sports, LR UCAs, 265/70-17, Duratracs, G4 Elite tonneau, Weathertech Window Deflectors, Weathertech digital floor liners, factory JBL/Entune, rear differential breather relocate.
    Your best bet is probably to get 5100s and set them at .85. Any other coilovers I've seen with get you 2" or more of life. That would probably level the front with the back too and if you wanted to keep the stock rake you could throw an AAL in the back.

    bjboucher, Aug 9, 2013
    #643
  4. Aug 9, 2013 at 10:27 PM
    #644
    Gaunt596

    #644
    Gaunt596 Well-Known Member

    Joined:
    Jun 19, 2013
    Member:
    #106627
    Messages:
    5,790
    Gender:
    Male
    First Name:
    Matthew
    Central Maryland
    Ok, I was looking at that, my truck doesn't have the tsb, and the rear springs are flat anyway, I just can't seem to find springs that dont give any lift.....

    Gaunt596, Aug 9, 2013
    #644
  5. Aug 10, 2013 at 5:15 AM
    #645
    2007TacBorla4X4

    #645
    2007TacBorla4X4 Well-Known Member

    Joined:
    Nov 24, 2009
    Member:
    #26469
    Messages:
    353
    Gender:
    Male
    First Name:
    Bob
    Jax, FL
    Vehicle:
    TRD Sport 4X4 Short Bed
    Borla cat back, K&N cold air, Silver star bulbs, Nerf bars,NEW BFG, Weather teck windows, Flash light on the drivers seat, TRD off Road ft tow hook, Rear driving lights on bumper, Weather teck windows & ft bug guard, 4X4 switch glows, Windows tinted 20% sun shade
    I have mine set at 2.00 on the ft but I had the tsb done on the rear so the tk sits level ride is great. Get alignment done after

    2007TacBorla4X4, Aug 10, 2013
    #645
  6. Aug 10, 2013 at 8:10 AM
    #646
    Gaunt596

    #646
    Gaunt596 Well-Known Member

    Joined:
    Jun 19, 2013
    Member:
    #106627
    Messages:
    5,790
    Gender:
    Male
    First Name:
    Matthew
    Central Maryland
    thanks, i had just seen so much about lifts ii was starting to think you either got 3 inch or 6 inch, unless you got crazy with SAS or had spacers.....

    Gaunt596, Aug 10, 2013
    #646
  7. Aug 10, 2013 at 8:14 AM
    #647
    bjboucher

    #647
    bjboucher Mama says Tacoma World is da devil!

    Joined:
    Aug 8, 2012
    Member:
    #84371
    Messages:
    2,243
    Gender:
    Male
    First Name:
    Brad
    San Antonio, Texas
    Vehicle:
    Former 2012 DCLB 4x4 SR5 Texas Edition
    OME complete kit w/ 885s on Nitrocharger Sports, 1/4" spacers, Dakars w/ Nitrocharger Sports, LR UCAs, 265/70-17, Duratracs, G4 Elite tonneau, Weathertech Window Deflectors, Weathertech digital floor liners, factory JBL/Entune, rear differential breather relocate.
    Nah, there are more mild options. 5100s being the most popular with their adjust-ability on the front shocks.

    bjboucher, Aug 10, 2013
    #647
  8. Aug 10, 2013 at 8:35 AM
    #648
    YOTA LOVER

    #648
    YOTA LOVER Stay Calm, and Fire For Effect

    Joined:
    Jul 17, 2012
    Member:
    #82814
    Messages:
    4,165
    Gender:
    Male
    First Name:
    Chris
    NH
    Vehicle:
    2011 MGM Tacoma DCLB SR5
    A slew of pricey stuff my wife hates me for.
    I hate to agree with Mr. Boucher, but you will be happy with the 5100's up front. A lot of the members on TW run the 5100's set at zero and upgrade to aftermarket coils to achieve lift, with very good results. Stay away from spacers and blocks if at all possible. There are so many good reliable options for the rear, and the three links posted above will get you pointed in the right direction.

    The goal should always be affordable, trusted, and reliable.

    YOTA LOVER, Aug 10, 2013
    #648
  9. Aug 10, 2013 at 8:52 AM
    #649
    bjboucher

    #649
    bjboucher Mama says Tacoma World is da devil!

    Joined:
    Aug 8, 2012
    Member:
    #84371
    Messages:
    2,243
    Gender:
    Male
    First Name:
    Brad
    San Antonio, Texas
    Vehicle:
    Former 2012 DCLB 4x4 SR5 Texas Edition
    OME complete kit w/ 885s on Nitrocharger Sports, 1/4" spacers, Dakars w/ Nitrocharger Sports, LR UCAs, 265/70-17, Duratracs, G4 Elite tonneau, Weathertech Window Deflectors, Weathertech digital floor liners, factory JBL/Entune, rear differential breather relocate.
    You know deep down inside you get joy from agreeing with a zoomie!:D

    bjboucher, Aug 10, 2013
    #649
  10. Aug 10, 2013 at 5:00 PM
    #650
    Gaunt596

    #650
    Gaunt596 Well-Known Member

    Joined:
    Jun 19, 2013
    Member:
    #106627
    Messages:
    5,790
    Gender:
    Male
    First Name:
    Matthew
    Central Maryland
    okay, looks like aftermarket coil-overs and a set of custom springs are the way to go here, thanks guys

    Gaunt596, Aug 10, 2013
    #650
  11. Aug 11, 2013 at 8:28 AM
    #651
    aw10tacoma

    #651
    aw10tacoma backyard mechanic

    Joined:
    Sep 24, 2012
    Member:
    #87647
    Messages:
    889
    Gender:
    Male
    First Name:
    Andrew
    Northern New Jersey
    Vehicle:
    2011 AC Mgm
    -HomerTaco Grille -Aftermarket Headlights Halo Projectors -rear doors now have pioneer speakers -Kenwood DNX690HD -LED speedo gauge swap and faceplate along with painted needles - auto start and alarm from compustar -TRD painted on grille -Strobe lights in reverse lights -All bulbs are led -XD rims -arb bumper -S.O.S. Concept SLIDERS -OME 3inch suspension lift nitrocharger sport shocks dakar leafs -light racing ucas -toughtlight 22''dual led bar behind my homertaco grille -wet okale seat covers -trailer lights connection moved into bumper -tints -trd cold air intake -trd catback exhuast -total chaos lca skids -Budbuilt Skids -DT Long tubes -URD MAF SENSOR

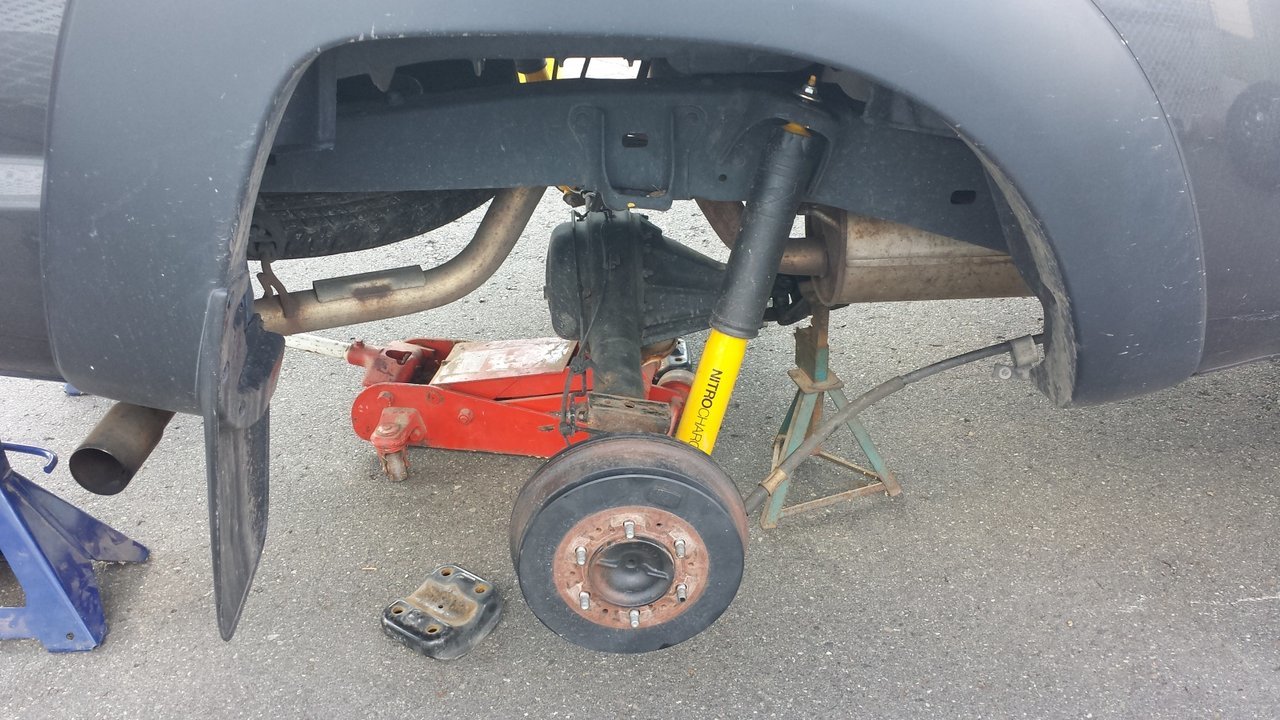

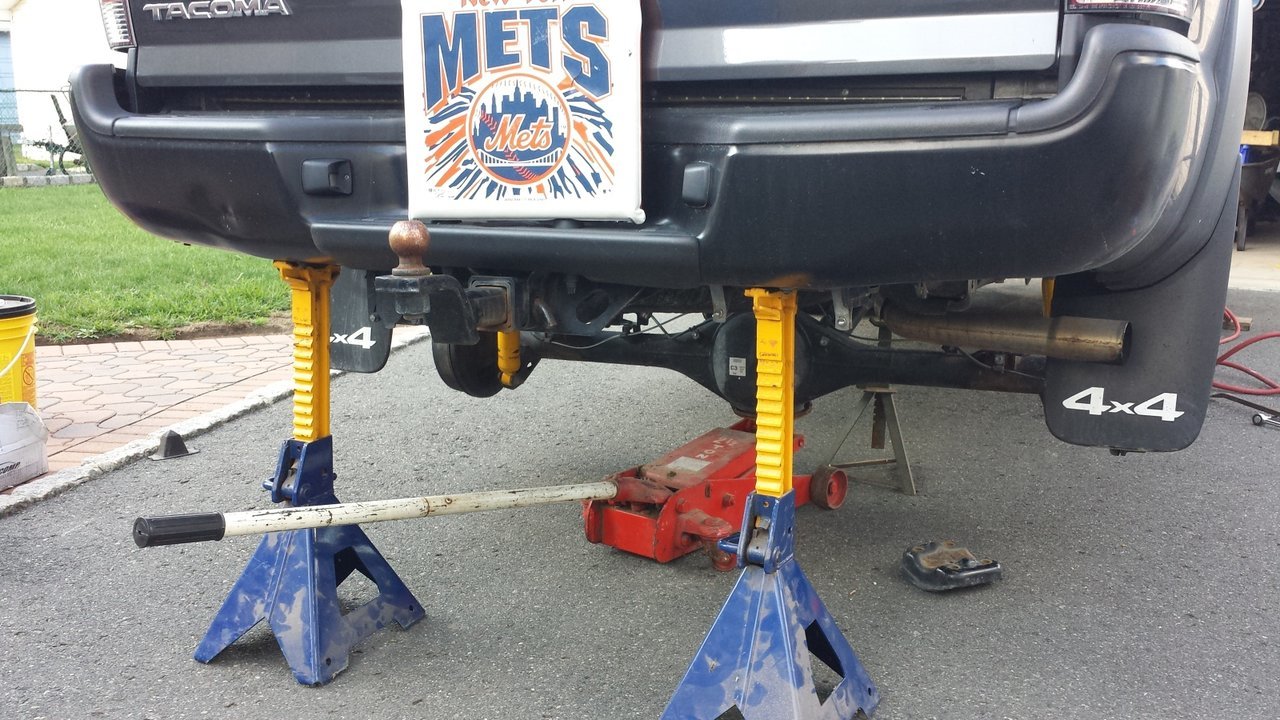

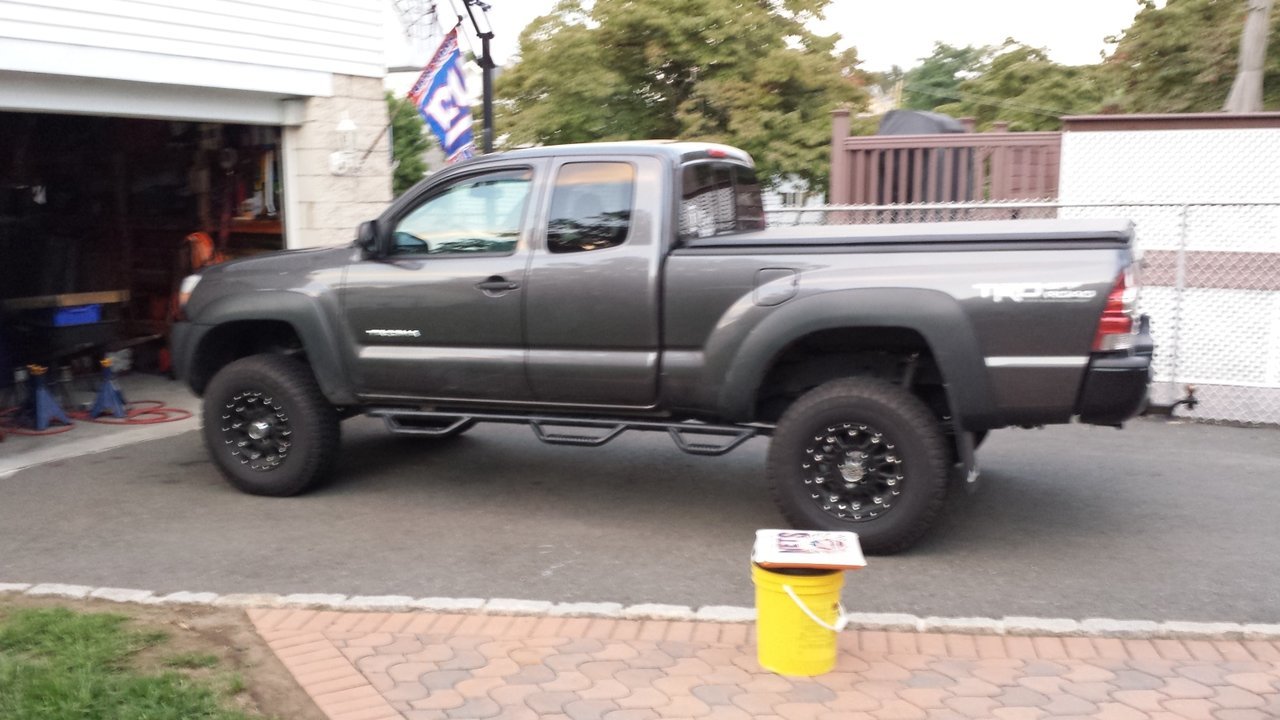

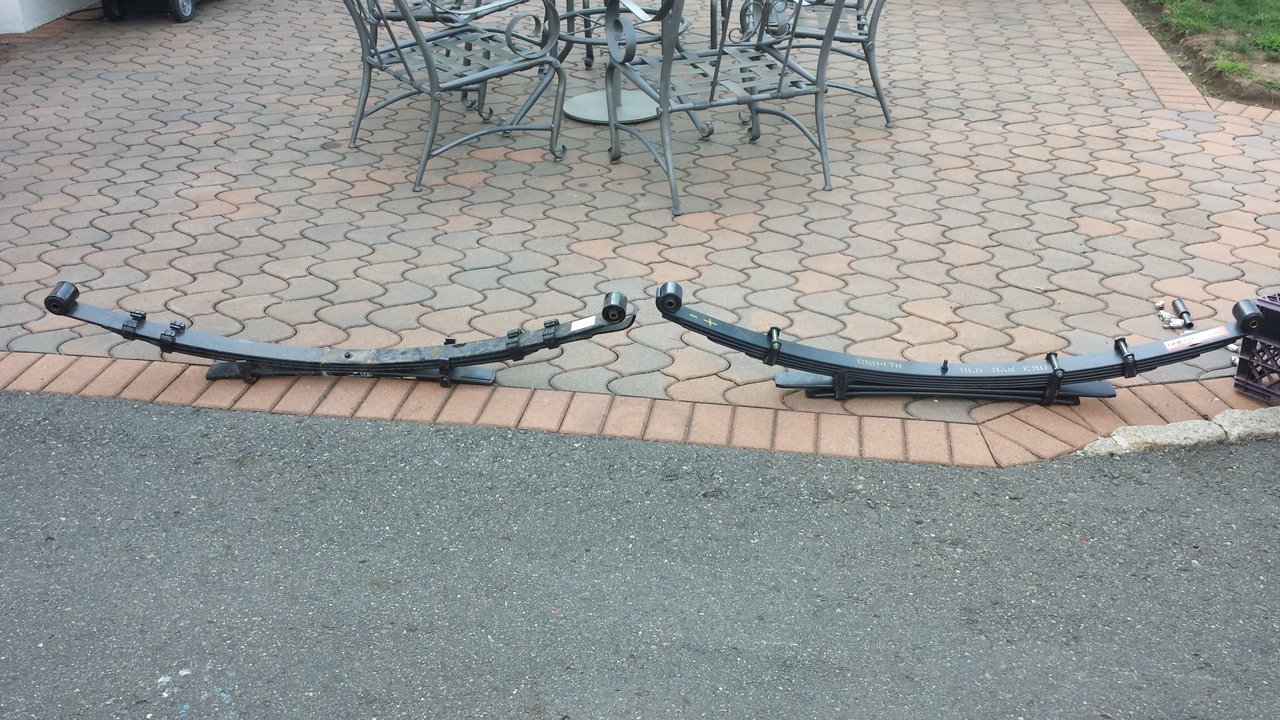

    finally finished installing the ome 3inch lift can't wait to get on the trails now

    aw10tacoma, Aug 11, 2013
    #651
  12. Aug 19, 2013 at 5:47 PM
    #652
    aw10tacoma

    #652
    aw10tacoma backyard mechanic

    Joined:
    Sep 24, 2012
    Member:
    #87647
    Messages:
    889
    Gender:
    Male
    First Name:
    Andrew
    Northern New Jersey
    Vehicle:
    2011 AC Mgm
    -HomerTaco Grille -Aftermarket Headlights Halo Projectors -rear doors now have pioneer speakers -Kenwood DNX690HD -LED speedo gauge swap and faceplate along with painted needles - auto start and alarm from compustar -TRD painted on grille -Strobe lights in reverse lights -All bulbs are led -XD rims -arb bumper -S.O.S. Concept SLIDERS -OME 3inch suspension lift nitrocharger sport shocks dakar leafs -light racing ucas -toughtlight 22''dual led bar behind my homertaco grille -wet okale seat covers -trailer lights connection moved into bumper -tints -trd cold air intake -trd catback exhuast -total chaos lca skids -Budbuilt Skids -DT Long tubes -URD MAF SENSOR
    anybody know why my front tires are cocked in after putting on the one 3inch lift??

    aw10tacoma, Aug 19, 2013
    #652
  13. Aug 19, 2013 at 6:02 PM
    #653
    YOTA LOVER

    #653
    YOTA LOVER Stay Calm, and Fire For Effect

    Joined:
    Jul 17, 2012
    Member:
    #82814
    Messages:
    4,165
    Gender:
    Male
    First Name:
    Chris
    NH
    Vehicle:
    2011 MGM Tacoma DCLB SR5
    A slew of pricey stuff my wife hates me for.
    Yeah, you just pushed the control arms 3" lower than their designed operating range, thus shitting on the emperors finely tuned geometry. Long story short, you need an alignment yesterday.

    YOTA LOVER, Aug 19, 2013
    #653
  14. Aug 19, 2013 at 6:42 PM
    #654
    bjboucher

    #654
    bjboucher Mama says Tacoma World is da devil!

    Joined:
    Aug 8, 2012
    Member:
    #84371
    Messages:
    2,243
    Gender:
    Male
    First Name:
    Brad
    San Antonio, Texas
    Vehicle:
    Former 2012 DCLB 4x4 SR5 Texas Edition
    OME complete kit w/ 885s on Nitrocharger Sports, 1/4" spacers, Dakars w/ Nitrocharger Sports, LR UCAs, 265/70-17, Duratracs, G4 Elite tonneau, Weathertech Window Deflectors, Weathertech digital floor liners, factory JBL/Entune, rear differential breather relocate.
    LOL, nice response. Smart ass. :D

    bjboucher, Aug 19, 2013
    #654
  15. Aug 19, 2013 at 6:52 PM
    #655
    YOTA LOVER

    #655
    YOTA LOVER Stay Calm, and Fire For Effect

    Joined:
    Jul 17, 2012
    Member:
    #82814
    Messages:
    4,165
    Gender:
    Male
    First Name:
    Chris
    NH
    Vehicle:
    2011 MGM Tacoma DCLB SR5
    A slew of pricey stuff my wife hates me for.
    What? I enjoy shitting all over the emperors flawless design :) like his crappy blower motor, weak leafs, lack of attention to detail. You know, all the stuff we need to upgrade/fix in the pursuit of vehicular perfection!

    YOTA LOVER, Aug 19, 2013
    #655
  16. Aug 20, 2013 at 5:06 PM
    #656
    Les Callahan

    #656
    Les Callahan Member

    Joined:
    Jun 11, 2010
    Member:
    #38775
    Messages:
    23
    Gender:
    Male
    First Name:
    Seahorse
    Orlando
    Vehicle:
    08 PreRunner SR5
    Billi 1500 front, Rear TSB , Grillcraft grill, NOBAMA bumper sticker, Wet Okole front seat covers, reversed floor mats (flipped them over, now have durable black mats)
    I have the Billy 5100 set at 1.75 and the rear tsb on a 2008 dbl cab pre runner.
    The truck is closer to level but still higher in the back. Any suggestions?

    Les Callahan, Aug 20, 2013
    #656
  17. Aug 20, 2013 at 5:54 PM
    #657
    bjboucher

    #657
    bjboucher Mama says Tacoma World is da devil!

    Joined:
    Aug 8, 2012
    Member:
    #84371
    Messages:
    2,243
    Gender:
    Male
    First Name:
    Brad
    San Antonio, Texas
    Vehicle:
    Former 2012 DCLB 4x4 SR5 Texas Edition
    OME complete kit w/ 885s on Nitrocharger Sports, 1/4" spacers, Dakars w/ Nitrocharger Sports, LR UCAs, 265/70-17, Duratracs, G4 Elite tonneau, Weathertech Window Deflectors, Weathertech digital floor liners, factory JBL/Entune, rear differential breather relocate.
    Some 1/4" top plate spacers will get you another 1/2" of lift in the front and shouldn't affect ride quality at all.

    bjboucher, Aug 20, 2013
    #657
  18. Aug 20, 2013 at 8:56 PM
    #658
    Les Callahan

    #658
    Les Callahan Member

    Joined:
    Jun 11, 2010
    Member:
    #38775
    Messages:
    23
    Gender:
    Male
    First Name:
    Seahorse
    Orlando
    Vehicle:
    08 PreRunner SR5
    Billi 1500 front, Rear TSB , Grillcraft grill, NOBAMA bumper sticker, Wet Okole front seat covers, reversed floor mats (flipped them over, now have durable black mats)
    Would that be preferable to raising my bilsteins to the 2.5 setting?

    Thanks,
    Les

    Les Callahan, Aug 20, 2013
    #658
  19. Aug 21, 2013 at 1:31 AM
    #659
    FATaco

    #659
    FATaco Meh

    Joined:
    Dec 6, 2010
    Member:
    #47239
    Messages:
    294
    Gender:
    Male
    First Name:
    Friends call me Ginger
    Fairbanks
    Vehicle:
    07' TRD DCSB
    Dakars w/AAL, OME/886's, All Pro Front Bumper, Rear bumper, IFS skid, and UCA's. Superwinch Tigershark. Magnaflow muffler... vrooom
    Sorry to butt in... getting conflicting info in different threads. I currently have 3 inch blocks in the rear and spacers up front. I run 285's with no problem. My plan is to buy the Dakars with overload spring for the rear and Kings for the front. From my understanding the Dakars should give me pretty much the same lift as the 3 inch block. I want the truck to still sit level but another guy posted that he got 5 inches of lift from the Dakars. Am I going the correct route? Thanks...

    FATaco, Aug 21, 2013
    #659
  20. Aug 21, 2013 at 4:59 AM
    #660
    FATaco

    #660
    FATaco Meh

    Joined:
    Dec 6, 2010
    Member:
    #47239
    Messages:
    294
    Gender:
    Male
    First Name:
    Friends call me Ginger
    Fairbanks
    Vehicle:
    07' TRD DCSB
    Dakars w/AAL, OME/886's, All Pro Front Bumper, Rear bumper, IFS skid, and UCA's. Superwinch Tigershark. Magnaflow muffler... vrooom
    Thanx....will do

    FATaco, Aug 21, 2013
    #660
