The Does Everything, but Sucks at Everything Build

Discussion in '2nd Gen. Builds (2005-2015)' started by tetten, Sep 28, 2016.

  1. Sep 28, 2016 at 10:23 PM
    #1
    tetten

    tetten [OP] Cynical Asshole

    Joined:
    Nov 2, 2014
    Member:
    #141581
    Messages:
    1,671
    First Name:
    Andy
    Socal

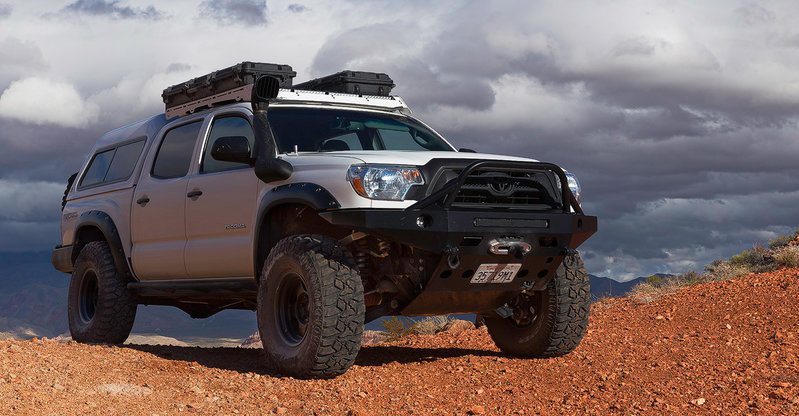

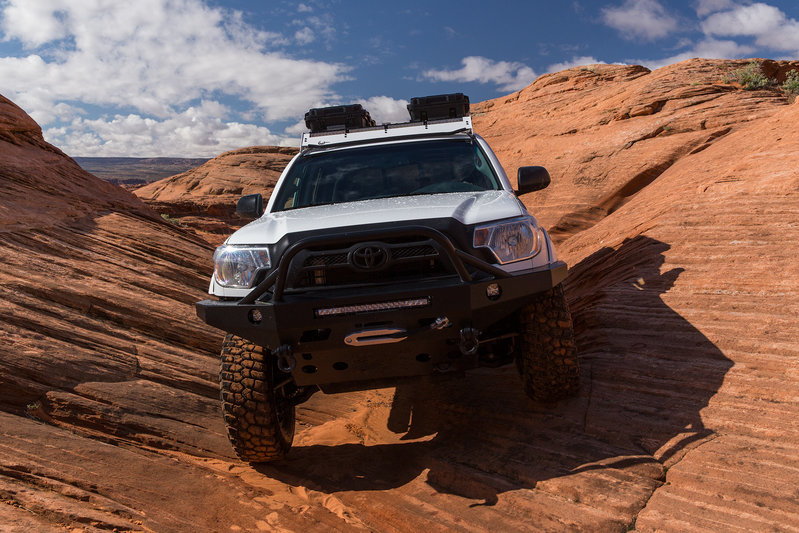

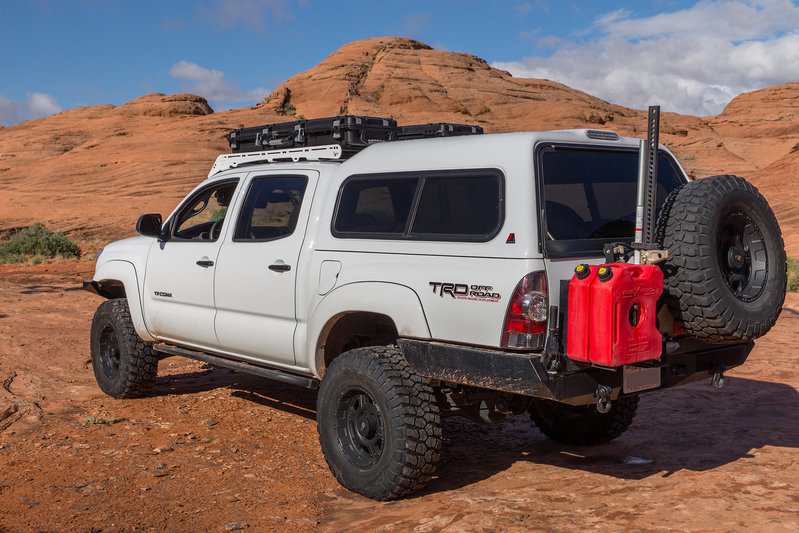

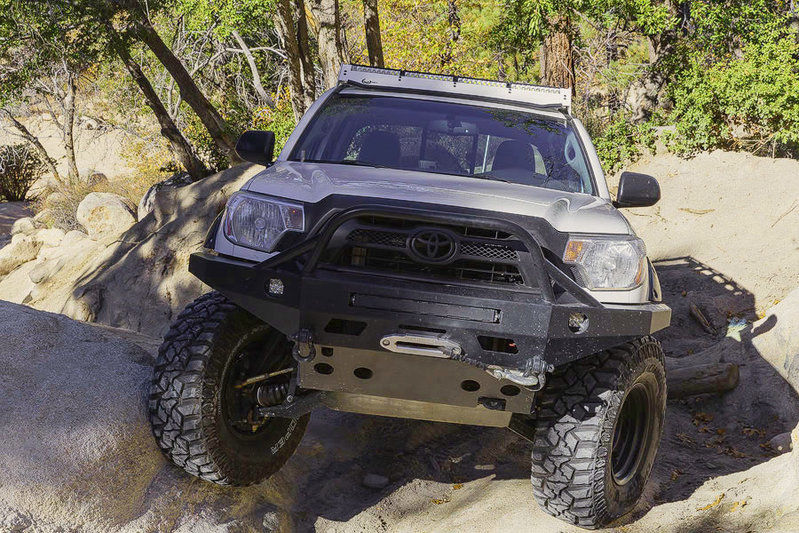

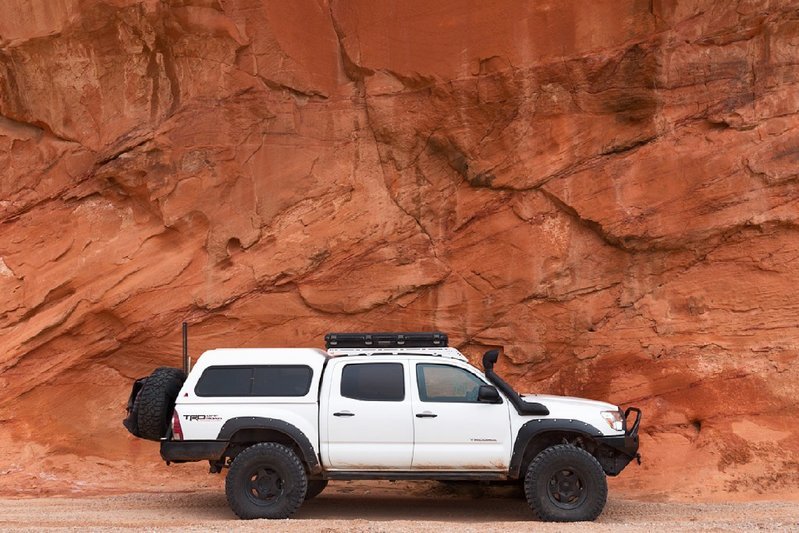

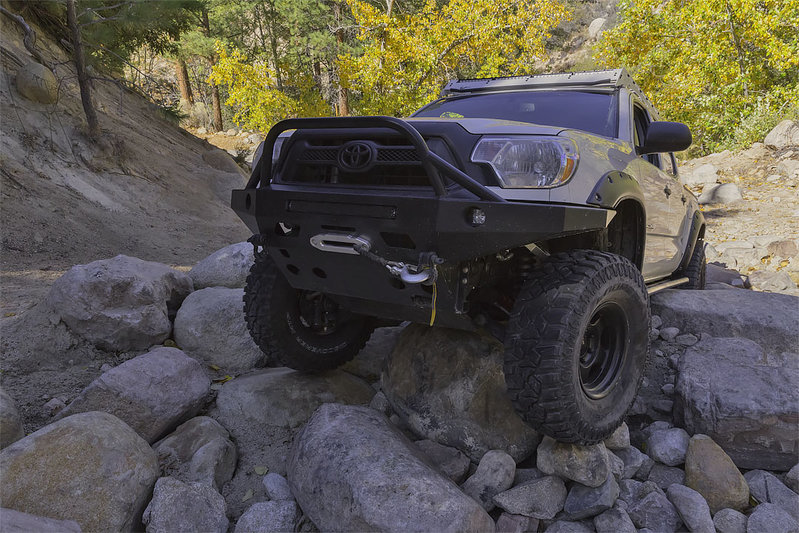

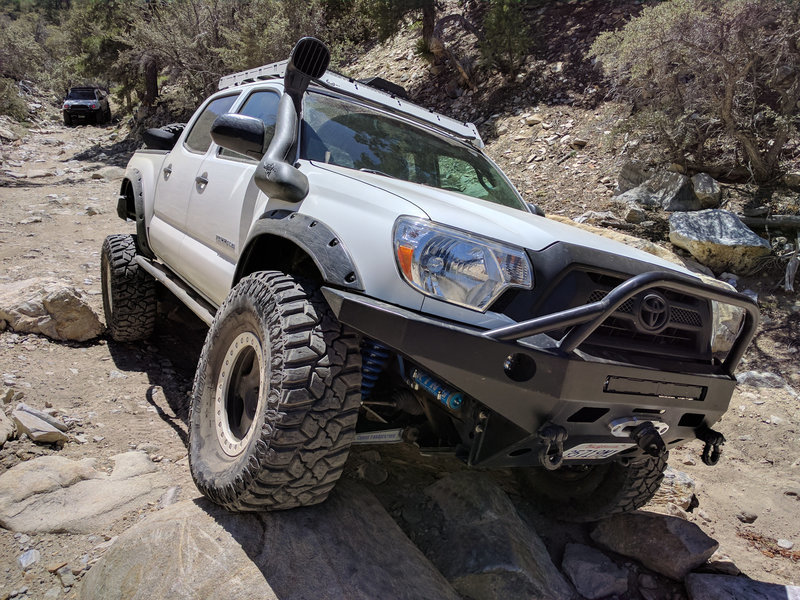

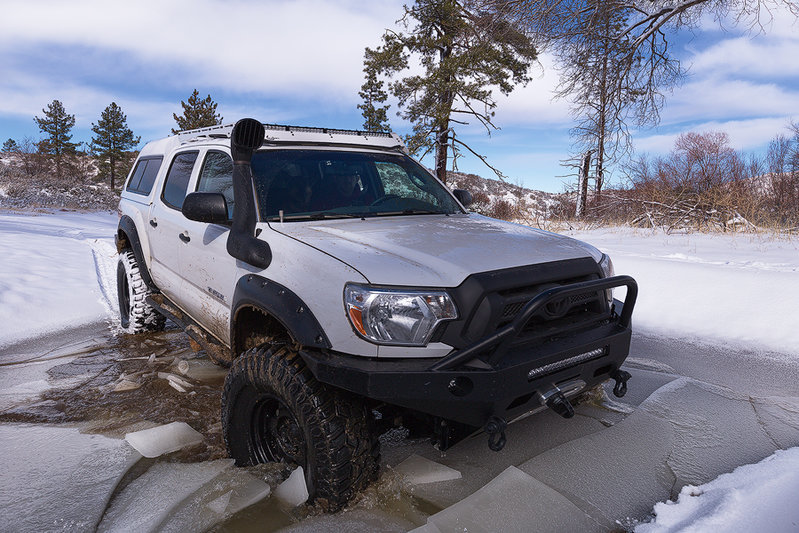

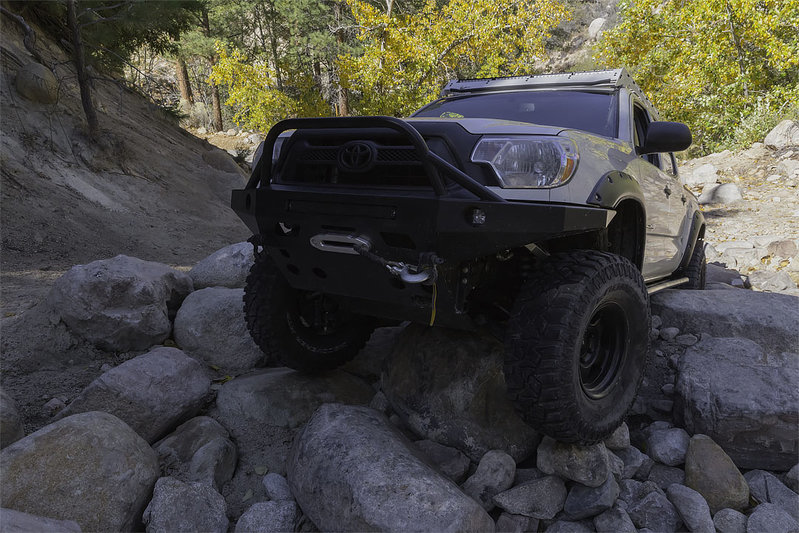

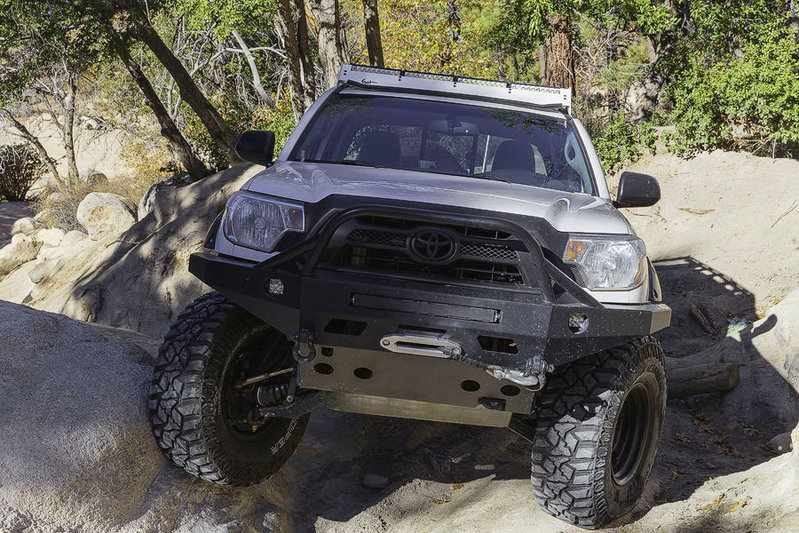

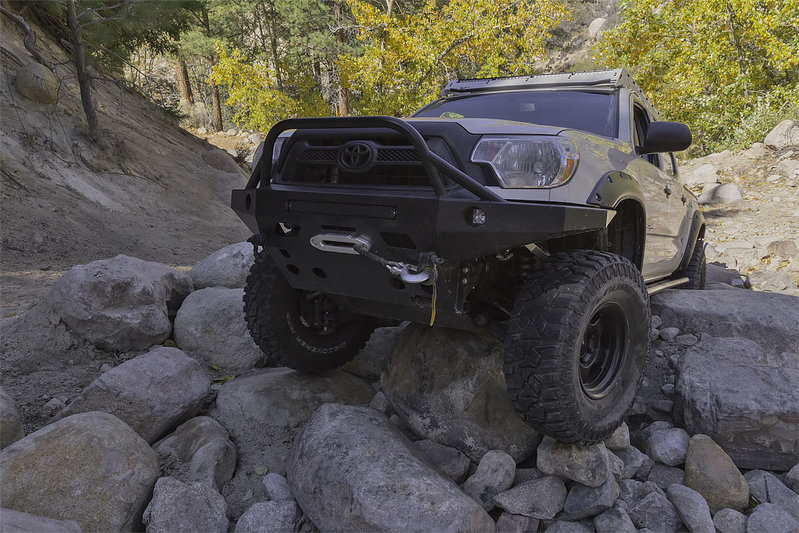

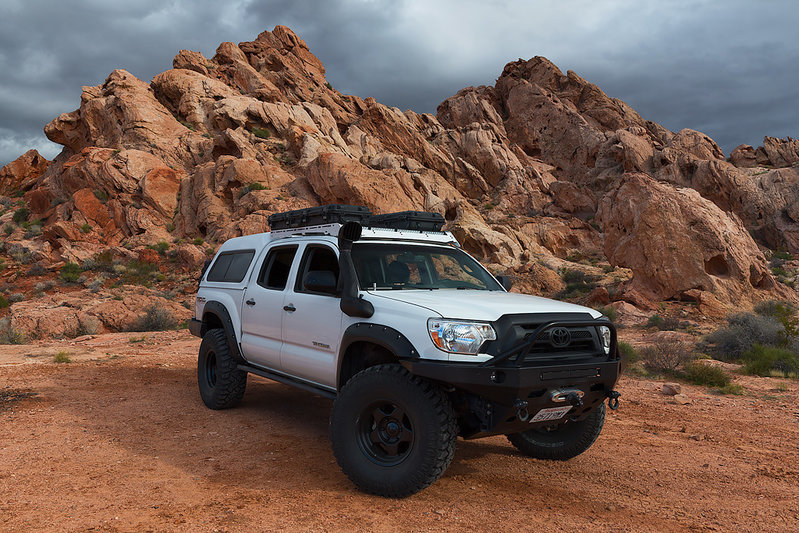

    IMG_20170423_124236 (1).jpg Toyota Tacoma 07.jpg Toyota Tacoma 04.jpg Toyota Tacoma 03.jpg Toyota Tacoma 02.jpg Toyota Tacoma 01.jpg andy offroad 02.jpg andy offroad.jpg _MG_0976.jpg _MG_0476.jpg _MG_0364-Edit.jpg
    2013 Toyota Tacoma Double Cab
    4x4
    TRD Offroad
    Automatic Transmission
    Short Bed
    V6
    Weight: A lot...

    The Front
    Total Chaos +2 Long Travel Kit w/ Heimed UCA #86002T-R-H
    King Long Travel Shocks #TC5119-03A
    Total Chaos Upper Coil Bucket Tower Gussets #59653
    Total Chaos LT 4WD 4340 +2 Extended Axles #86305T
    Total Chaos Secondary Shock Hoop
    King Triple Bypass shocks
    Limit Straps
    Cab Mount Chop w/ Relentless Plates
    Timbren Active Off-Road Front Bumpstop System
    ECGS built 4.56 Gears
    ECGS built ARB Airlocker RD121
    The Truck Shop Spindle Gussets
    Total Chaos Cam Tab Gussets

    CVJ Remanufactured Axles (REMOVED)
    Dirt King Stock Length Perfomance Lower Control arm (REMOVED)
    ICON 58735 Extended Travel Remote Reservoir Coilover Set w/ CDC (REMOVED)
    ICON 58550 Uniball Billet Aluminum Upper Control Arm Set (REMOVED)
    ICON 14" / 700LB Front Coil Spring (REMOVED)
    Total Chaos Lower Control Arm Skids (REMOVED

    Toytec Ultimate Lift Kit Front Shocks (REMOVED)
    SPC/Light Racing Adjustable Control Arms (REMOVED)

    Sway Bar (REMOVED)
    Total Chaos Non-sway bar spindle gussets(BROKEN & REMOVED)

    The Rear
    Deaver U402 Stage 3
    King 12" Triple Bypass Shocks
    Custom Shock Hoops
    Currie Rockjock 60 Axle
    Wheeler's Performance Rear Brake Line Set, +4"
    Icon 56503R-EXT 2" VS Series Remote Reservoir Rear Shock Set (Wheeler's Offroad)(REMOVED)
    Old Man Emu CS047R Dakar Leaf Spring Set(REMOVED)
    Timbren Rear Bumpstop Kit(REMOVED)
    All-Pro U-Bolt Flip Kit(REMOVED)
    ECGS built 4.56 Gears(REMOVED)
    Bilstein 5100 (REMOVED)
    Old Man Emu D29XL Extra Leaf Set (REMOVED)

    Bora Wheel Spacer 2" (removed)
    ARP 1007715 Wheel Stud Kit for Lexus (trimmed 1/4" for easy install) (REMOVED)

    Tires/Wheels
    OMF Beadlock Converted Stealth Custom Series F5 w/ 4.5" BS
    315/75/16 Goodyear MT/R
    Full Size Spare
    Spline Drive E/T Ultra Style Conical Lug Nuts
    Procomp 7089-6883 w/ 4.5" Backspacing (REMOVED)
    Stealth Custom Series F5 w/ 3.5" Backspacing (REMOVED)
    285/75/16 BFGoodrich Mud-Terrain T/A KM2 (REMOVED)
    265/70/16 BFGoodrich All-Terrain T/A KO (REMOVED)
    315/75/16 Cooper MTP (REMOVED)


    Armor
    Pelfreybilt Front Plate Bumper w/ Center Hoop
    Pelfreybilt Rear Hi Clearance Bumper w/ Swingout Tire Carrier (personal customizations)
    Pelfreybilt Rock Sliders
    BAMF 1/4" Steel IFS Skid
    BAMF 1/4" Steel Mid Skid
    BAMF 1/4" Steel Trans Skid
    Pelfreybilt Gas Tank Skid
    Pelfreybilt Steel IFS Skid (REMOVED)
    Pelfreybilt Steel Mid Skid (REMOVED)
    Pelfreybilt Steel Rear Trans Skid (REMOVED)

    Over the Top
    Plano 109540 Field Locker Double Long Mil-spec Hard Gun Case X2
    40" Wraith LED Lightbar
    Prinsu Toyota Tacoma CABRAC
    Custom Scepter MFC x3 Holder

    In the Bed
    Custom home built platform for sleeping
    Plano 171900 Medium Sportsman Trunk X4
    Commander XL Storage Bins X2
    Lucid 5" Gel Memory Foam Dual-Layered Queen Mattress (Trimmed)
    Extruded Solutions Ultimate Tailgate Seal
    Genuine Toyota Accessory PT580-35050-SB Bed Mat
    Signature Sleep 8" Memory Foam Queen Mattress (Trimmed) (Removed)

    Recovery
    Superwinch Tiger Shark 12v Winch w/ Aluminum Hawse & Synthetic Rope
    ARB Tree Saver
    ARB Snatch Strap
    ARB Snatch Block
    Shovel custom mounted on swing gate
    Hi-Lift Jack XT485 60" X-TREME
    Hi-Lift Jack Off-Road custom mounted on swing gate
    Hi-Lift Jack Handle-Keeper
    Hi-Lift Neoprene Jack Cover

    Miscellaneous
    Rexing V1 1080p Wide Angle Dashboard Camera
    Airflow Snorkel
    CB Radio w/ Firestik (INSTALLING SOON)
    Rigid Industries 98003 SR-Q Flush Mount Diffused Back-Up Light Kit
    Rigid Industries White Flood Duallies
    Rigid Industries 20" SR-Series Spot/Flood Combo Lightbar
    Rigid Industries Rock Lights 6 Light Kit + KC Cyclone x 4
    Rotopax 3gal Gas Can X2 with lock custom mounted on swing gate
    Scepter MFC 20l X3
    Pelfreybilt Backup Camera Relocate
    Pelfreybilt 2005+ Battery Cage
    Optima Bluetop Group 31m
    Bushwacker Pocket Style Fender Flares (Trimmed and modified)
    ARB CKMA12 On-Board High Performance 12-Volt Air Compressor
    ARB 10800472 Fridge Freezer
    Leer 180 Shell
    Birddawg Techdeck w/ various RAM Mount accessories
    Husky Liners 98951 WeatherBeater Series Black Front and 2nd Seat Floor Liner
    Trasharoo Spare Tire Trash Bag
    10lb CO2 Tank w/ non-adjustable high flow regulator
    Anti-Dark Underhood Lighting
    Redline Hood QuickLIFT Elite
    Factor 55 Prolink
    Sound Deadening Showdown full kit

    Camera Gear
    Canon 6D
    Canon EF 11-24mm f/4L USM Lens
    Canon EF 100-400mm f/4.5-5.6L IS II USM Lens
    Canon EF 24-70mm f/2.8L II USM Lens
    Canon SL1
    Really Right Stuff TVC-33 w/ BH-55 Ballhead & PC-LR Clamp
    Really Right Stuff TQC-14 w/ PG-01 Compact Pano-Gimbal Head
    Really Right Stuff Panorama Package
    Gitzo 0531 w/ Really Right Stuff BH-25 Ultra-Light Ballhead

    White Pocket 12.jpg


    Attached Files:

    Last edited: Jan 25, 2018
    rjbiii, bullaculla, 0uTkAsT and 16 others like this.
  2. Sep 28, 2016 at 10:23 PM
    #2
    tetten

    tetten [OP] Cynical Asshole

    Joined:
    Nov 2, 2014
    Member:
    #141581
    Messages:
    1,671
    First Name:
    Andy
    Socal
    Reserved for photos & notes on the way to 35s with my rudimentary fabricating skills.
    I will be continuously updating until I am finished with everything mechanically and aesthetically.

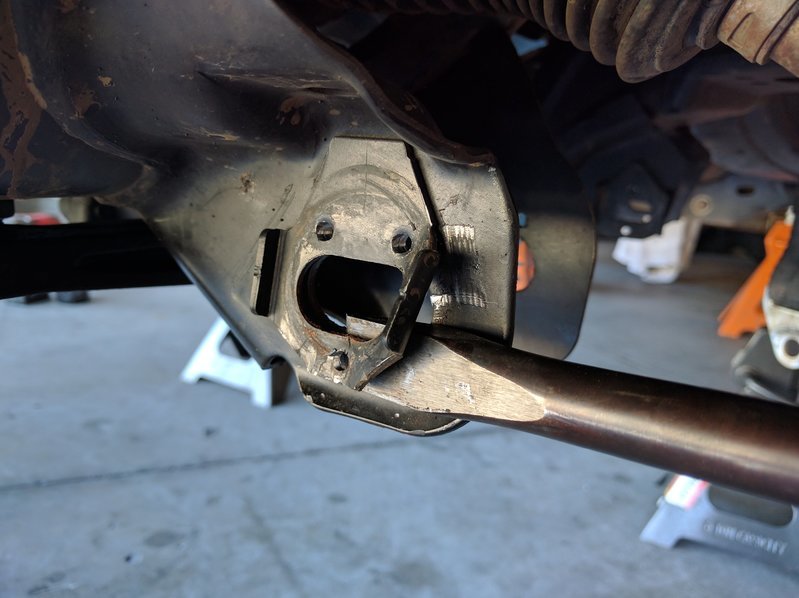

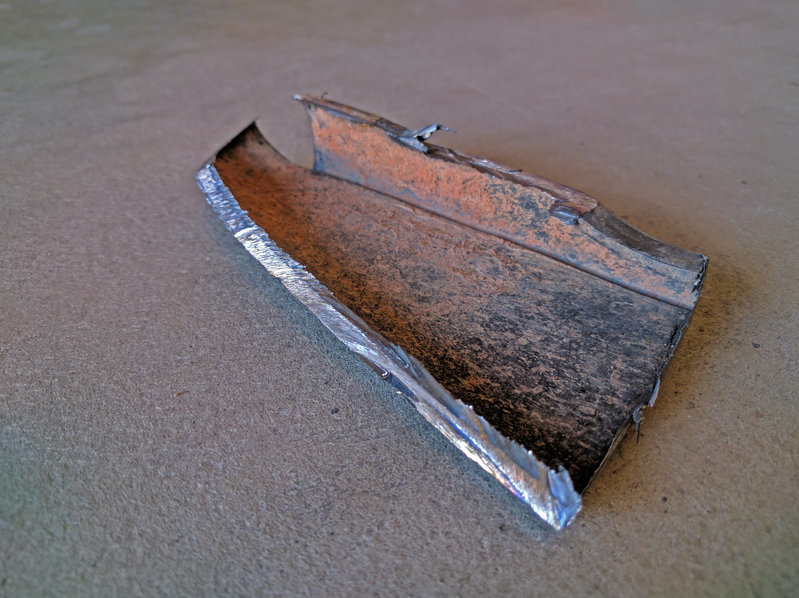

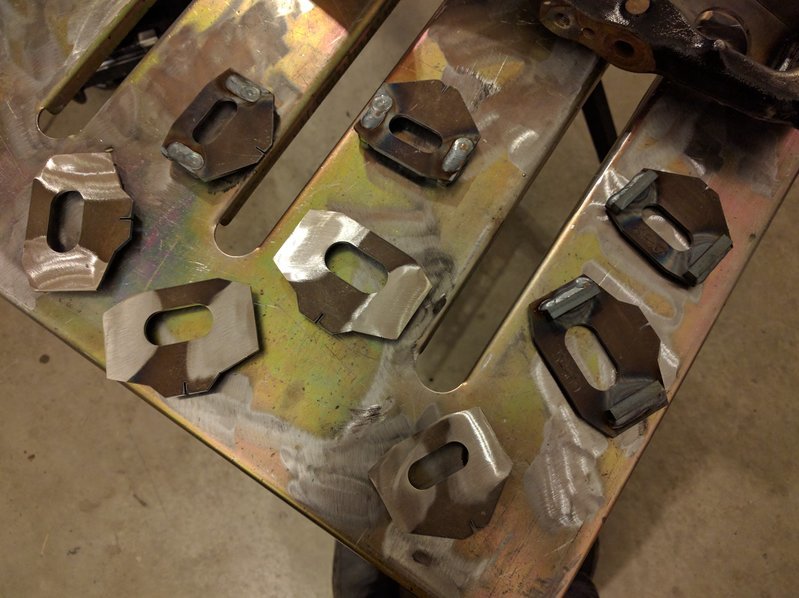

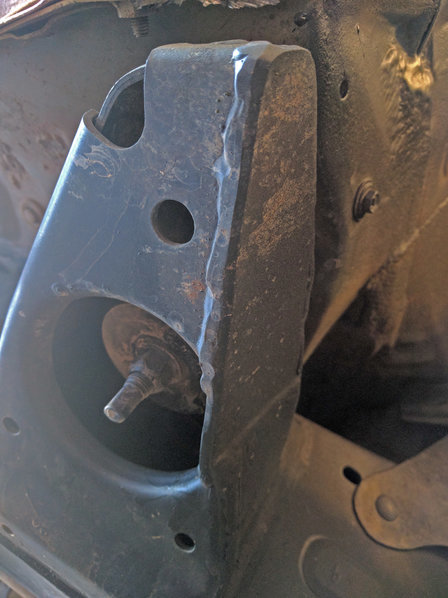

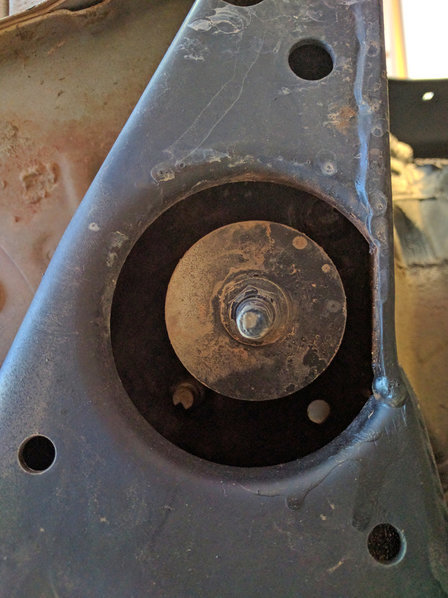

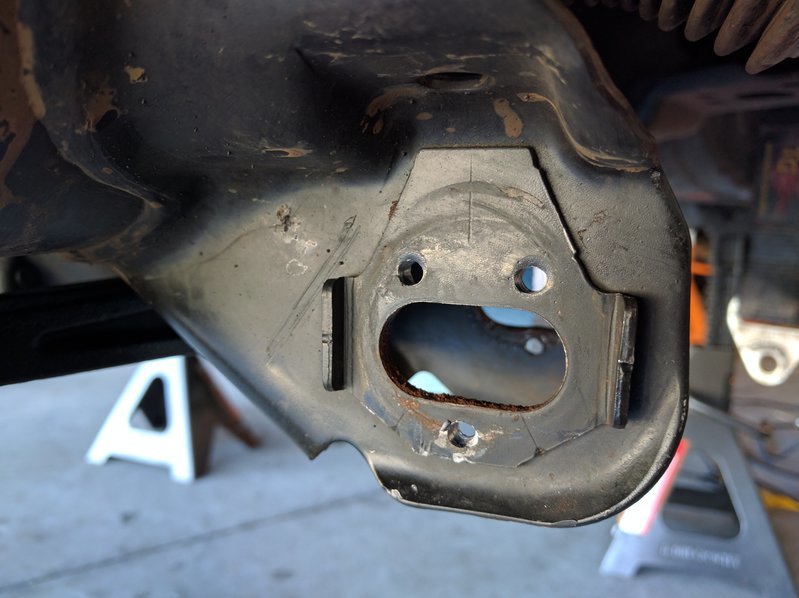

    First step I took on the 35s was the Cab Mount Chop, I wasn't rubbing on it on the 33 KM2s so I never did it, from what I've gathered for 35s its mandatory. I did the driver side first and cut too little. Ended up trimming and grinding a lot more off to get a decent amount removed. Learning from the mistakes on the driver side I gave the passenger side 1 good cut. Still have to flex the 35s and check for any rubbing, won't be a big deal if I have to modify the cab mount but hopefully I got enough off. After I verify no rubbing I'll go back and clean up the bottom weld more so its flush. Following pics are of the passenger side.cab mount chop 01.jpg

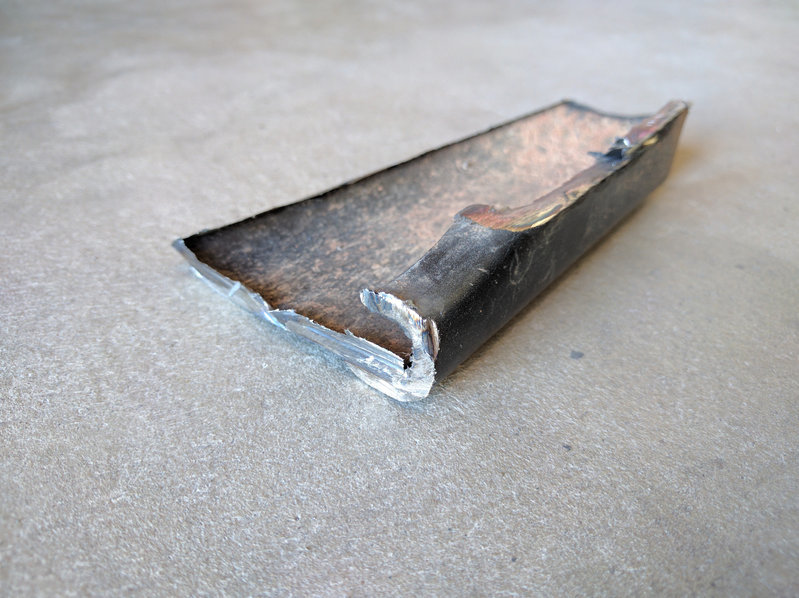

    cab mount chop 02.jpg
    cab mount chop 04.jpg
    cab mount chop 05.jpg

    Next step I took was removing the flares, hammering out the pinch weld to the outside of the wheel well, trimming, rattle-canning the inside of the wheel wells matte black(white wheel well behind the white fenders looked like absolute crap), spray on rubber sealant over the pinch weld, cleaning up and painting the cut edges, and lastly, installing trim over the cut edge.

    I trimmed off a lot, around 3", After I throw on the modified Bushwackers I'm going to make braces to help hold the fenders steady against highway wind.

    I bought a cheap-o Harbor Freight Metal Shear, but I have never used one and couldn't get the thing to keep cutting consistently. I switched it up to a jig saw with a fresh metal cutting blade and used a angle grinder with a cut-off wheel to make the starts of the cuts. I was pretty happy with the smoothness of the cuts with the jig saw, but the edge trim makes it look like the cut is a little jagged, I may need to try to reseat the edge trim to make it as smooth as the cuts. I need to take some better shots of these with a decent camera, the smartphone doesn't cut it with dynamic range between the wheel well and fenders.

    Driverside Front (center cap damage front Moab the week before)

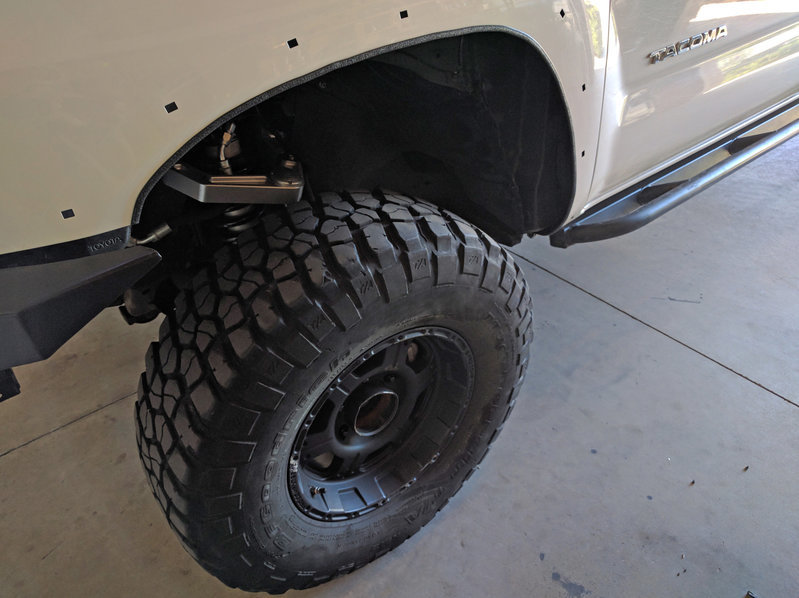

    front driver side trim.jpg

    Passenger side rear

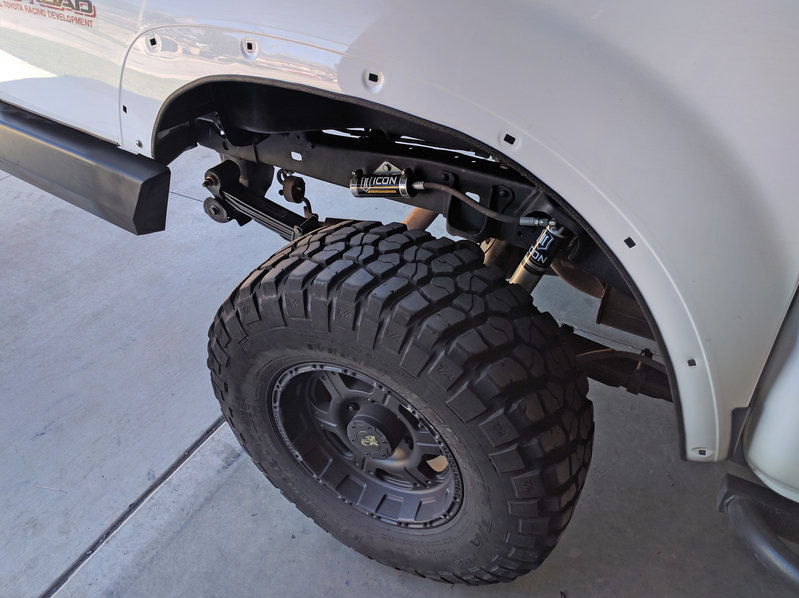

    rear fender cut with trim.jpg

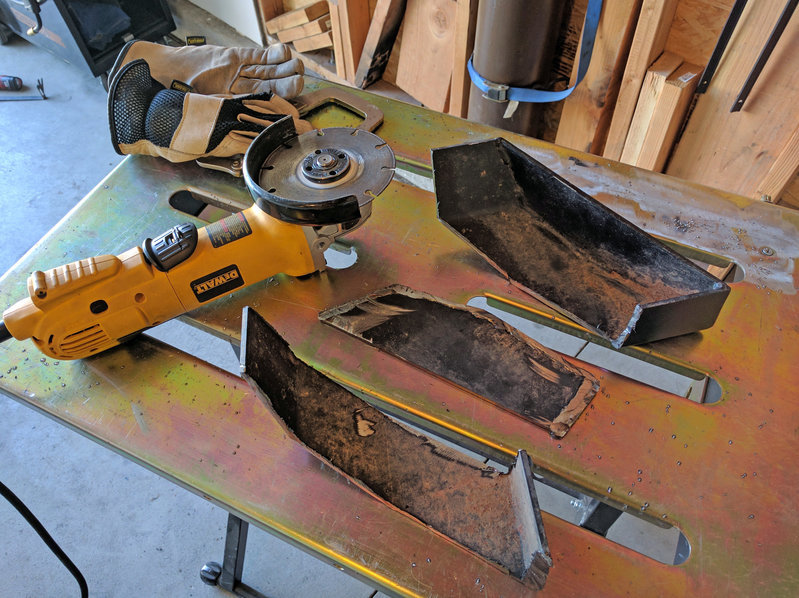

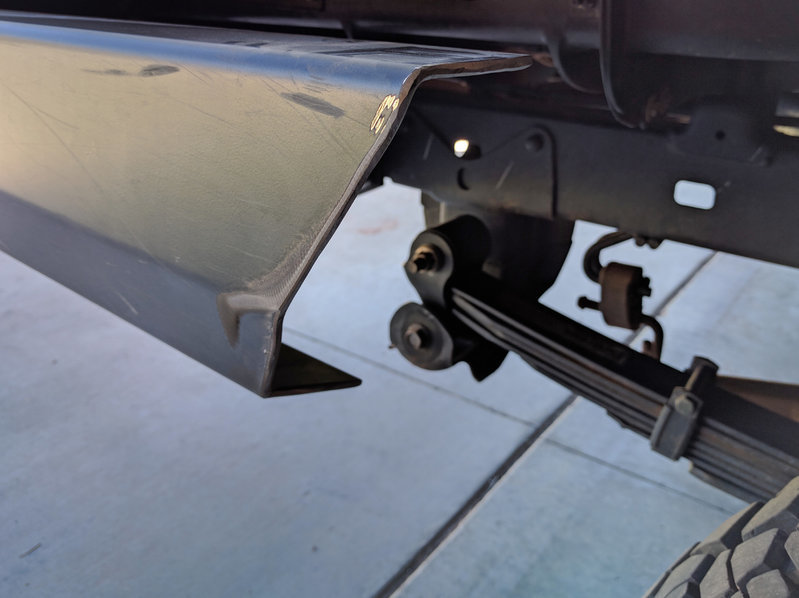

    Next was trimming the rear bumper. I ended up chopping off around 2.75", cut off the end caps, cleaned up all the cuts, welded them back on the ends of the bumper, and rattle canned them.

    passenger side bumper cut.jpg
    rear bumper trim 01.jpg
    bumper nubs.jpg
    read bumper trim 02.jpg

    With the wheel wells as ready as I could get them I had the tireshop mount the Cooper MTPs on the SCS F5s I had. I looked into a lot of the mud terrain tires and the MTPs were the lightest at 62# I could find and one of the narrower 35s at 11.9". They only have a 2-Ply sidewall, but I got the Discount Tire warranty, so if they start getting torn up, hopefully I won't have any issues getting new ones. Out of curiosity and since weight was one of the reasons I picked the MTPs I wanted to weigh the new tires against the old, the new set up with the 20lb F5 and the 62lb MTP weighed in exactly as advertised.

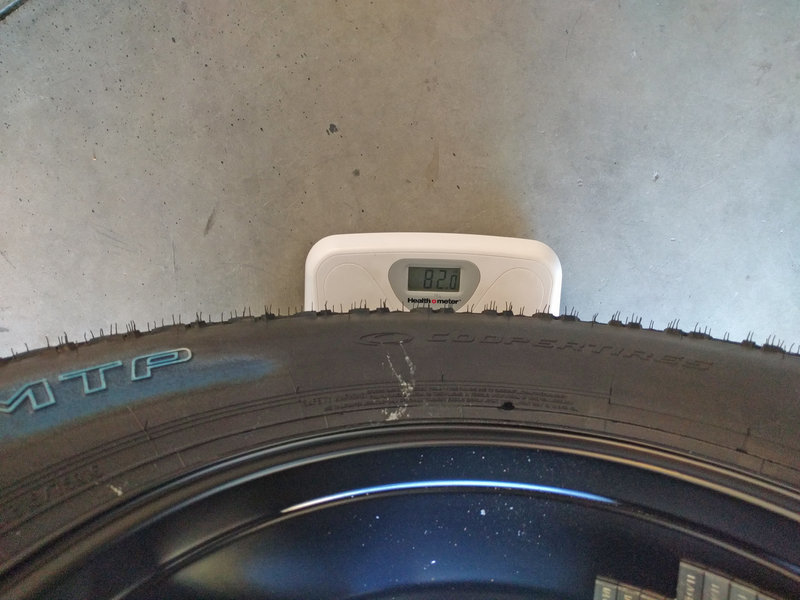

    Cooper weight.jpg

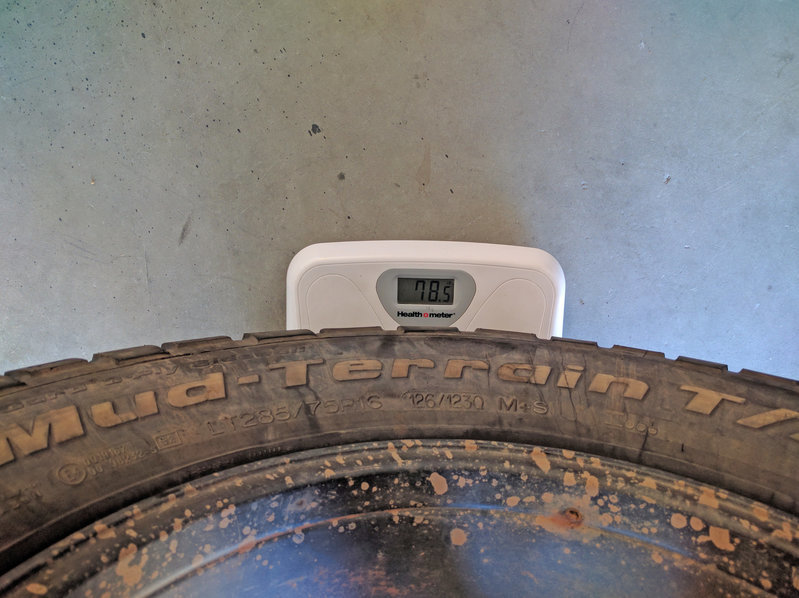

    My old KM2s turned out kind of odd, the Procomp 7089-6883 is supposed to weigh around 26lb, and the tire is supposed to weigh 59.7lb. But it came out to 78.5lb. There are only approximately 17,000 miles on these tires, and I seriously doubt theres even 7.2lb of tread on these, is the weight difference due to the rubber dehydrating perhaps?
    KM2 weight.jpg

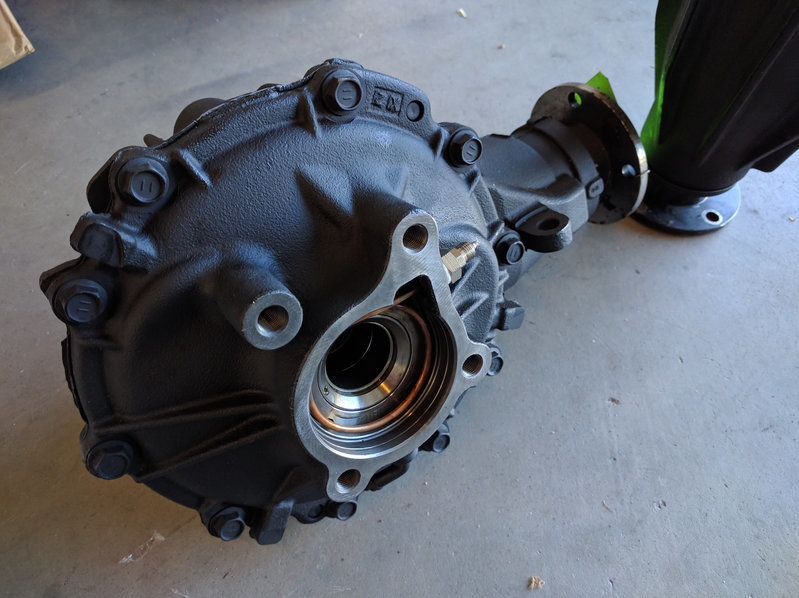

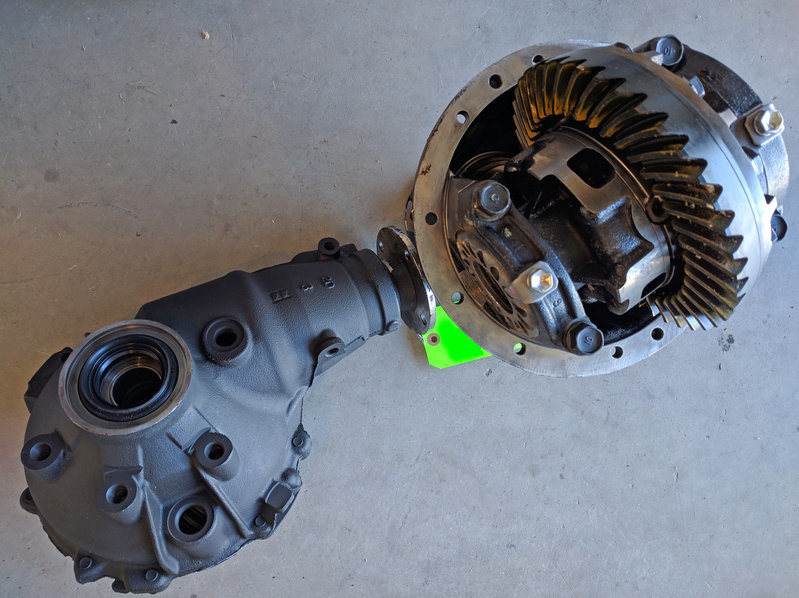

    I got the gears a couple days prior, the 3rd member teeth ripped through the box but luckily the teeth were not damaged. You can see the ripped cardboard remnants on the teeth.
    fresh rebuilt ECGS gears 02.jpg
    fresh rebuilt ECGS gears 03.jpg
    fresh rebuilt ECGS gears.jpg

    Reading up on all the information about gear break in I was curious to monitor the differentials as they break in via temperature. I ordered a infrared pyrometer off Amazon but their shipping team is really slacking ass and I won't get it until Thursday. Wednesday I wanted to start swapping things out. I wanted to get a baseline temperature for the differentials after they run, but having already cleared out the wheel wells, I'm not looking to suck a bunch of sand and dirt into the intake so I settled for just the rear with a stupid simple solution to not having a infrared pyrometer on hand that I discussed with a work buddy. This is about 30mi of driving on the 210 with a little bit of traffic, but mostly free flowing. I don't know if this would get hotter after an hours long road trip, but its a baseline to compare with. But unfortunately I realized late this might not be a good baseline......

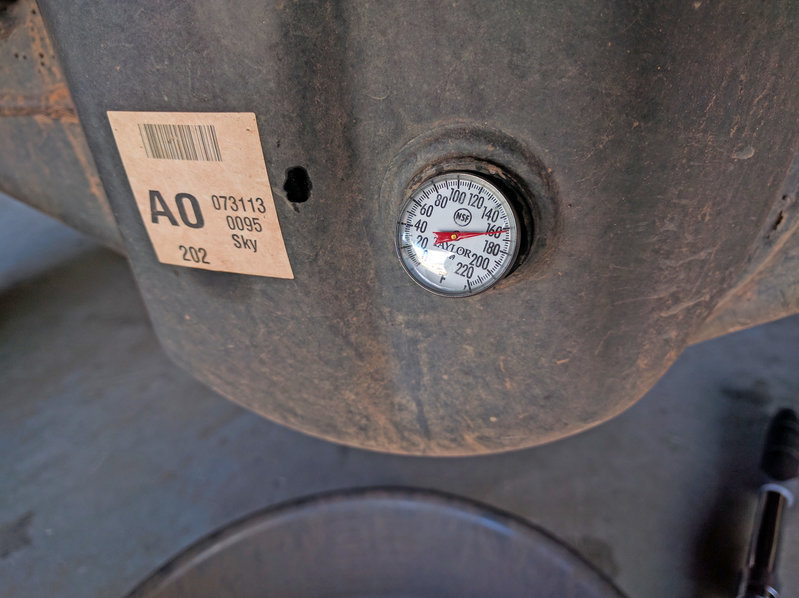

    rear differential temp after 30min on the 210.jpg

    So after I got the temperature (that I would later find unreliable) I pulled out the 3rd member, here are shots of the teeth, I know ECGS doesn't like synthetics and recommends Lucas Dyno, but with Redline 75w-85 GL-5 I don't think these look bad at all after 40,000mi. I will be following their recommendation of Lucas Oil 85w-140.

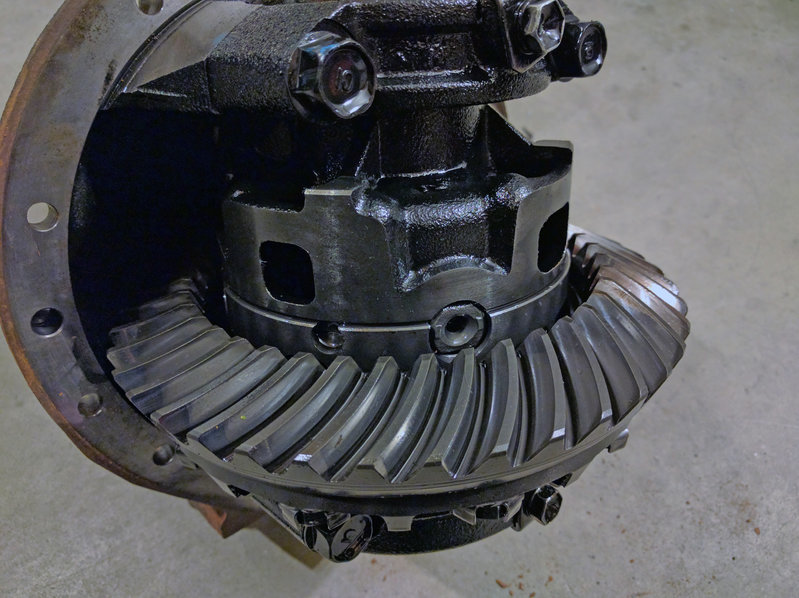

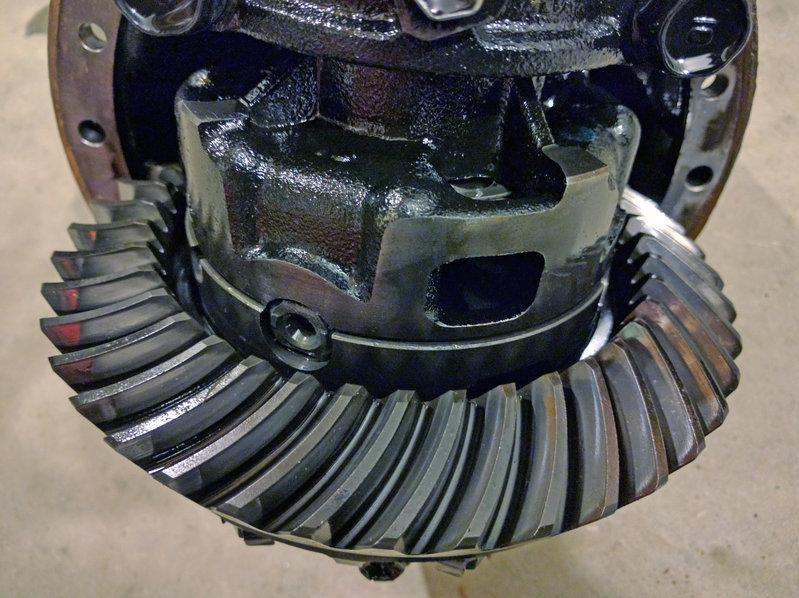

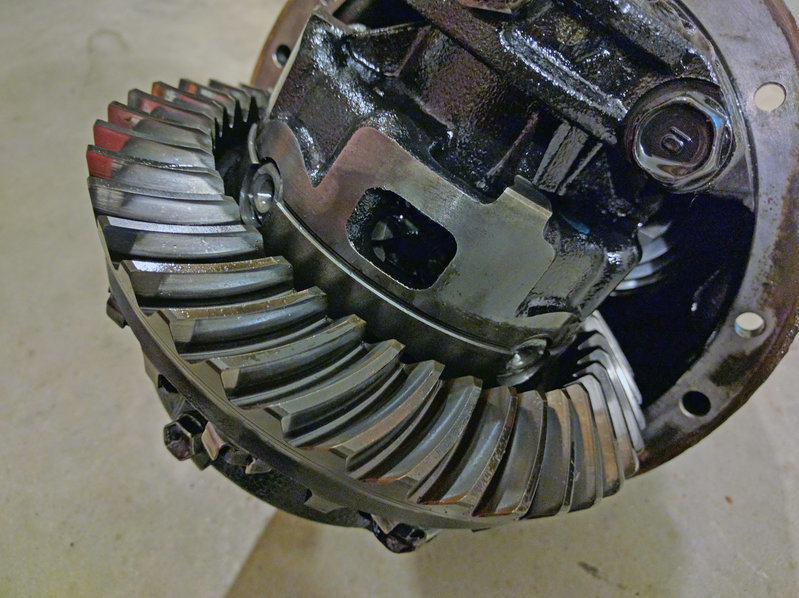

    old 3rd member 01.jpg
    old 3rd member 02.jpg
    old 3rd member 03.jpg

    Following Monkeyproofs great write up at
    https://www.tacomaworld.com/threads...d-installation-of-e-locker-3rd-member.193828/
    I ended up hitting a road block. Everything went well up until I pulled out the 3rd member and found this:
    broken deflector 03.jpg
    broken oil deflector 02.jpg
    broken oil deflector.jpg

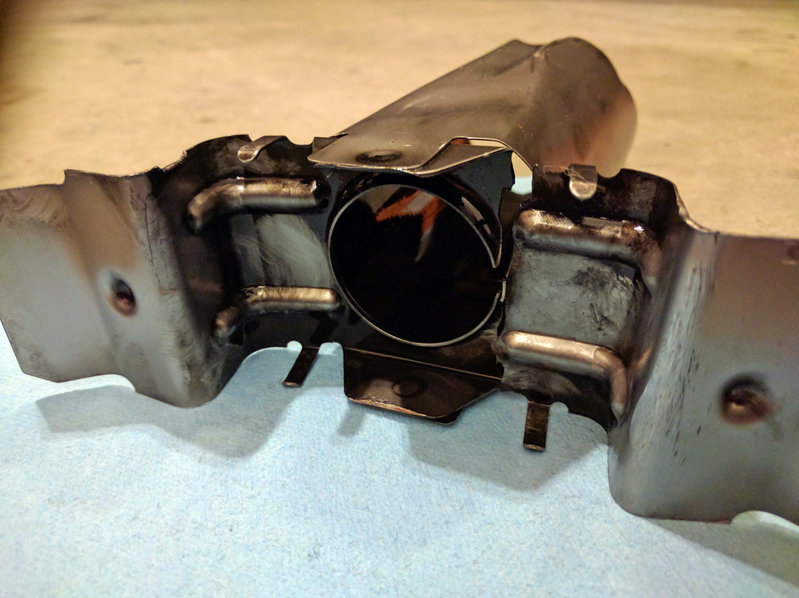

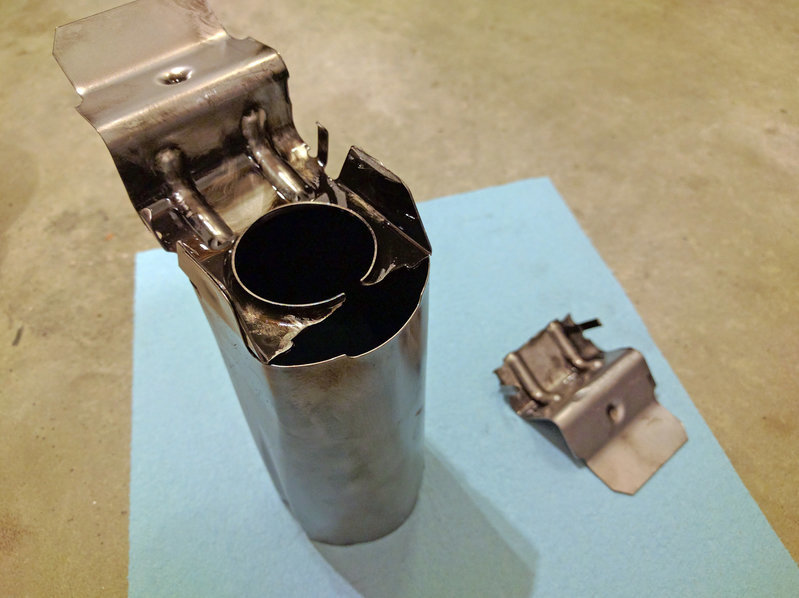

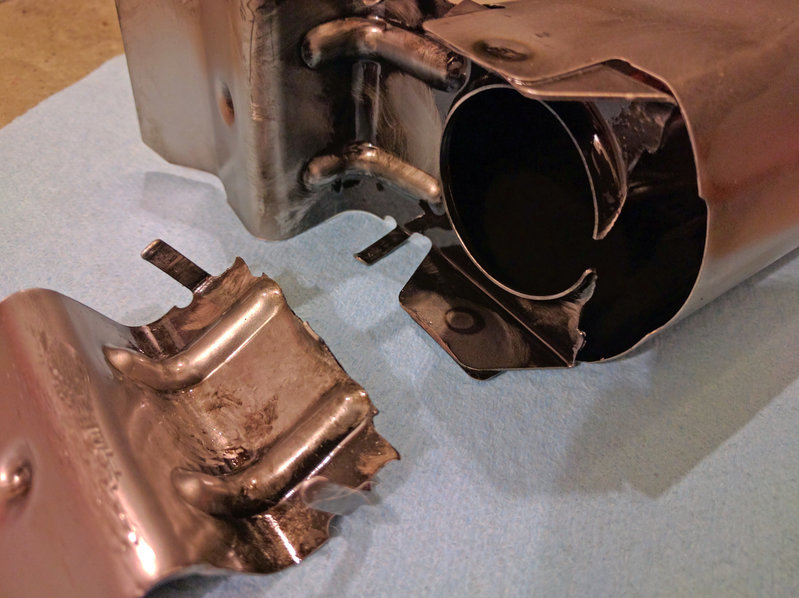

    A broken oil deflector with a perfectly symmetrical crack . I had a little trouble wiggling out the 3rd member due to the driver side axle not pulled out enough, but I seriously doubt I did this while removing it, I have no idea exactly when or how it happened, but that may have thrown off the temperature readings, and I am thinking I didn't cause it do to these damage marks:

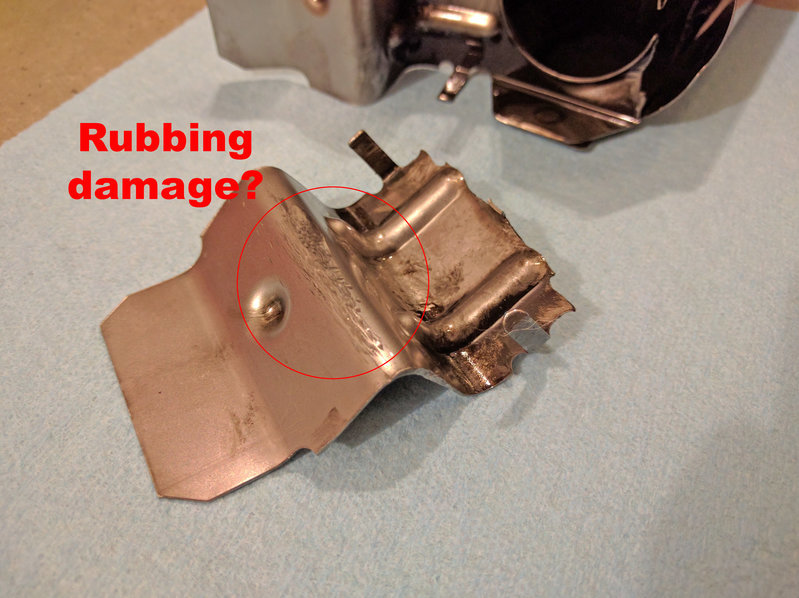

    rubbing damage.jpg
    Looks like it may have been broken recently and hit the 3rd member a couple times, I looked for any marks on the 3rd member but cannot find any, might have been the lock tabs on the bolts hitting the broken piece. I went ahead and ordered a new one, I'll start working on the front end while I am waiting for the parts to come in.

    Last edited: Sep 29, 2016
  3. Sep 28, 2016 at 10:34 PM
    #3
    Pirhett

    Pirhett Instagram @pirhett_ship

    Joined:
    Jan 29, 2015
    Member:
    #147498
    Messages:
    5,207
    Gender:
    Male
    First Name:
    Rhett
    San Diego
    Vehicle:
    2014 TRD Sport 4x4 DCLB MGM
    Stock...
    Dam, this build is so dope! How have you hiding it from the tw world! Im interested in seeing everything about to be done, get some picks of the inside of the shell man. Besides having hi lift mount on the rear bumper anything else? Also you sell those lca skids?

  4. Sep 28, 2016 at 10:40 PM
    #4
    tetten

    tetten [OP] Cynical Asshole

    Joined:
    Nov 2, 2014
    Member:
    #141581
    Messages:
    1,671
    First Name:
    Andy
    Socal
    Definitely going to get some pics of the oddball stuff, nothing ground breaking or unique, just variations of sleep system and some odd ball stuff in the cab, gonna have to wait on that though, the truck is on jack stands in the garage, tearing into the front suspension tomorrow and waiting on a replacement part for the rear, currently posting up pics of what I've already done.

  5. Sep 28, 2016 at 10:42 PM
    #5
    Pirhett

    Pirhett Instagram @pirhett_ship

    Joined:
    Jan 29, 2015
    Member:
    #147498
    Messages:
    5,207
    Gender:
    Male
    First Name:
    Rhett
    San Diego
    Vehicle:
    2014 TRD Sport 4x4 DCLB MGM
    Stock...
    No rush man, just can tell you have photography skills and can't wait to see whatcha been up to. Like how clean everything looks and Im stoked to see it transform into a beast. Just photograph the whole process man!

  6. Sep 28, 2016 at 10:43 PM
    #6
    Nicklovin

    Nicklovin Child Of The Church Of @ODNAREM

    Joined:
    Jun 24, 2015
    Member:
    #158071
    Messages:
    10,553
    Gender:
    Male
    First Name:
    Nick
    Socal
    Vehicle:
    Dirt Devil
    Copious amount of horsepower gains through stickers, decals and a mustache
    Awesome truck man!
    Have any photos of the sleeping platform? Been thinking about making one in the future

  7. Sep 28, 2016 at 11:40 PM
    #7
    alvinfromhawaii

    alvinfromhawaii Well-Known Member

    Joined:
    Mar 23, 2015
    Member:
    #151598
    Messages:
    529
    Gender:
    Male
    Northern California
    Vehicle:
    2015 MGM Tacoma DCSB V6 TRD Offroad
    Supercharged, Magnaflow, Volant,
    Cool, very interested to see what it takes to fit 35s into a 3" lift. Been playing with the around with the idea and would love to see what I am getting myself into.

  8. Sep 29, 2016 at 12:48 AM
    #8
    Jmad1997

    Jmad1997 Well-Known Member

    Joined:
    Feb 17, 2016
    Member:
    #178521
    Messages:
    850
    Gender:
    Male
    Vehicle:
    2005 TRD sport long bed 6" fab tech lift
    I'm interested in the sleeping platform aswell

  9. Sep 29, 2016 at 1:17 AM
    #9
    tetten

    tetten [OP] Cynical Asshole

    Joined:
    Nov 2, 2014
    Member:
    #141581
    Messages:
    1,671
    First Name:
    Andy
    Socal
    It's nothing unique, just a variation on ideas already in use, and it only sleeps 1 in the back of a short bed.

  10. Sep 29, 2016 at 1:28 AM
    #10
    Jmad1997

    Jmad1997 Well-Known Member

    Joined:
    Feb 17, 2016
    Member:
    #178521
    Messages:
    850
    Gender:
    Male
    Vehicle:
    2005 TRD sport long bed 6" fab tech lift
    Drawer system? And anything mounting in the shell?

  11. Sep 29, 2016 at 8:24 AM
    #11
    tetten

    tetten [OP] Cynical Asshole

    Joined:
    Nov 2, 2014
    Member:
    #141581
    Messages:
    1,671
    First Name:
    Andy
    Socal
    No drawers, I think they take up too much space and aren't as easy to remove as bins. My setup is just some, welded up aluminum stands that across the bed, similar to how some people are laying down 2x6s in the slots in the beds, just higher for a large storage space increase, which of course leads to less space for sleeping, but I don't mind it, it's like sleeping in a rack when I was in the Navy.

  12. Oct 2, 2016 at 9:11 PM
    #12
    tetten

    tetten [OP] Cynical Asshole

    Joined:
    Nov 2, 2014
    Member:
    #141581
    Messages:
    1,671
    First Name:
    Andy
    Socal

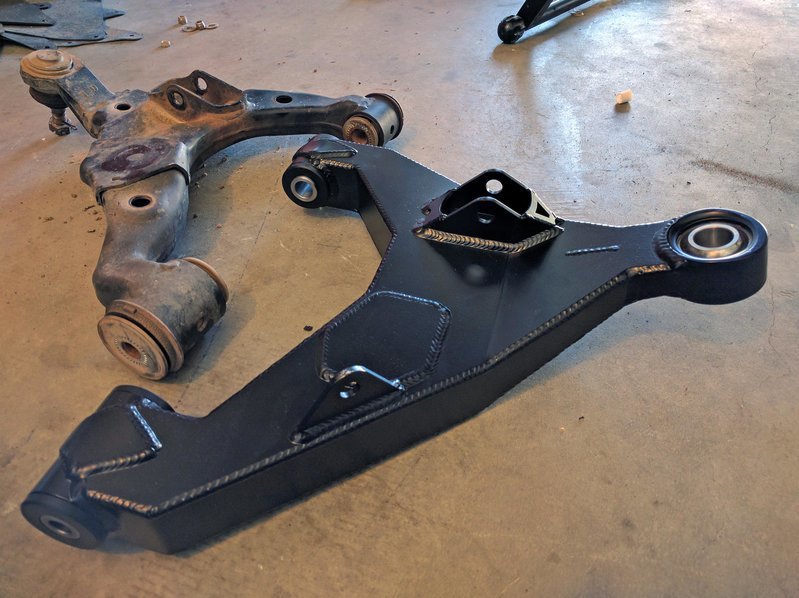

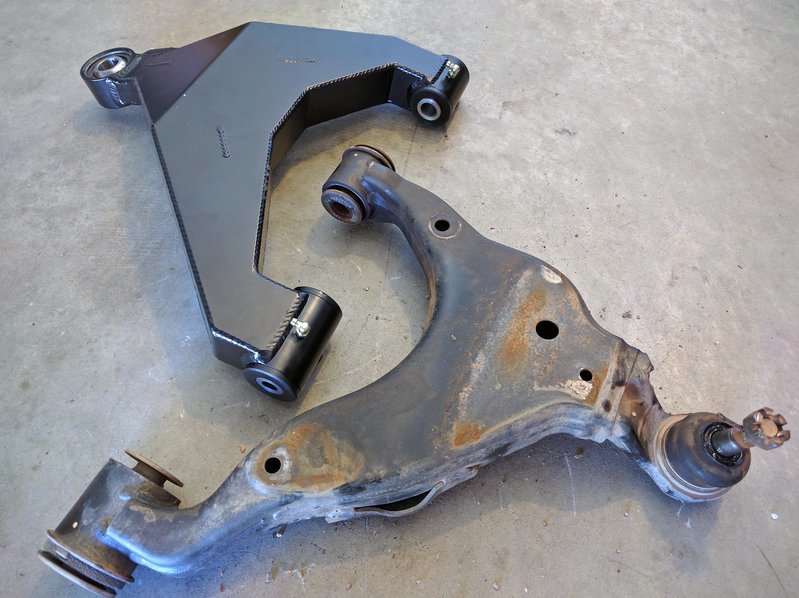

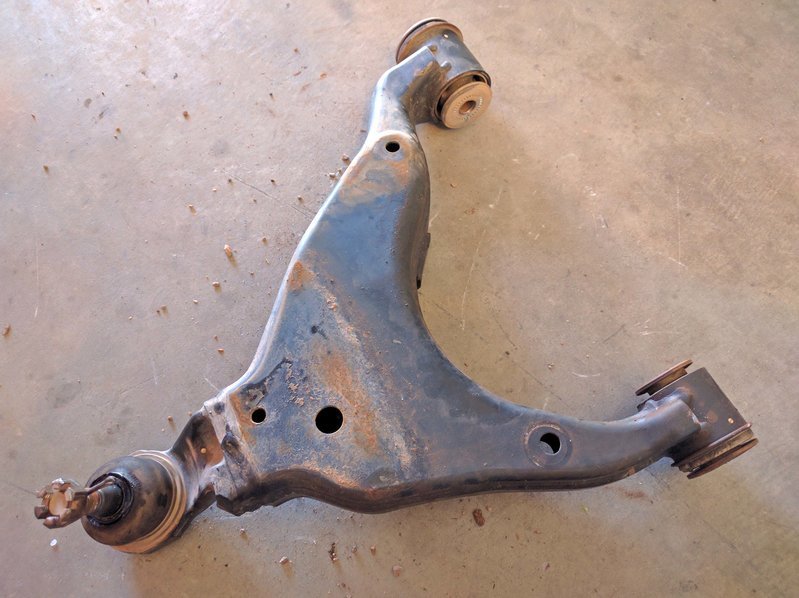

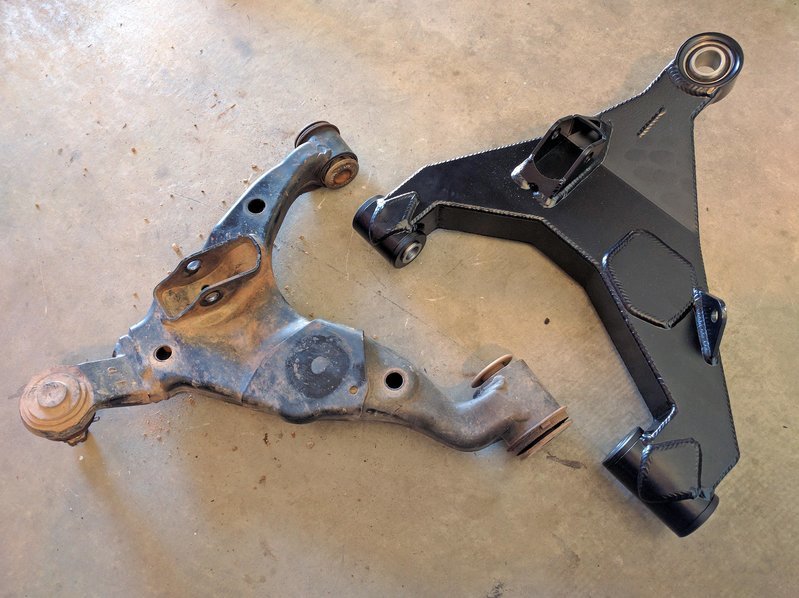

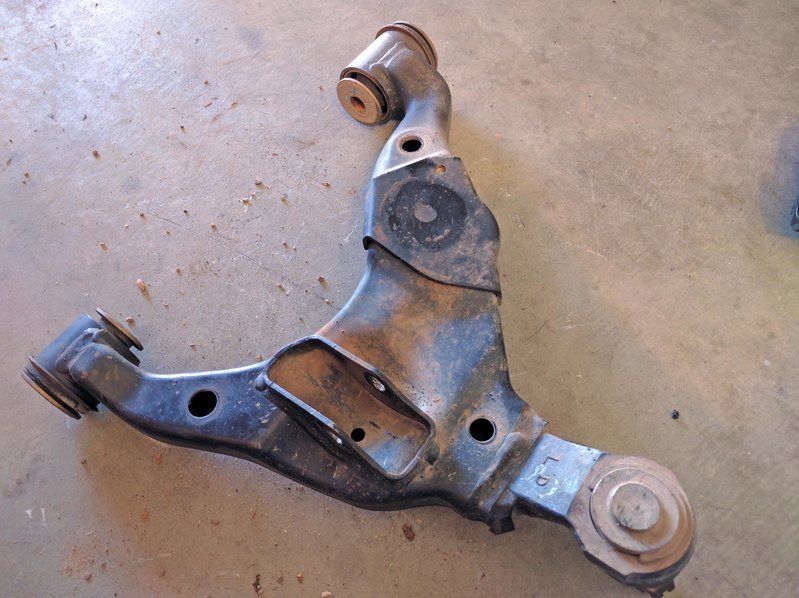

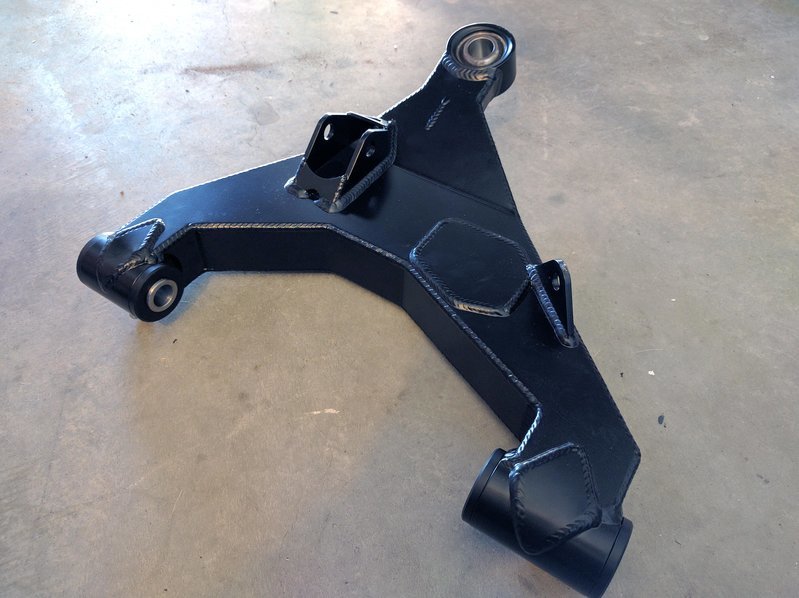

    Stock LCA to Dirt King stock length LCA comparison photos:
    LCA comparison 01.jpg LCA comparison 02.jpg LCA comparison 03.jpg LCA comparison 04.jpg LCA comparison 05.jpg LCA comparison 06.jpg LCA comparison 07.jpg LCA comparison 08.jpg

    They are quite a bit beefier than the stock LCAs, have greasable cam bushings, limit strap mount, and a uniball. Are they worth it? Depends on who you ask, but damn they are nice. Not a fan of having their name plastered across the front of it, I'll probably Plastidip the name plate to make it less obnoxious.

    ChadsPride, Crom and Pirhett like this.
  13. Oct 6, 2016 at 8:16 PM
    #13
    tetten

    tetten [OP] Cynical Asshole

    Joined:
    Nov 2, 2014
    Member:
    #141581
    Messages:
    1,671
    First Name:
    Andy
    Socal

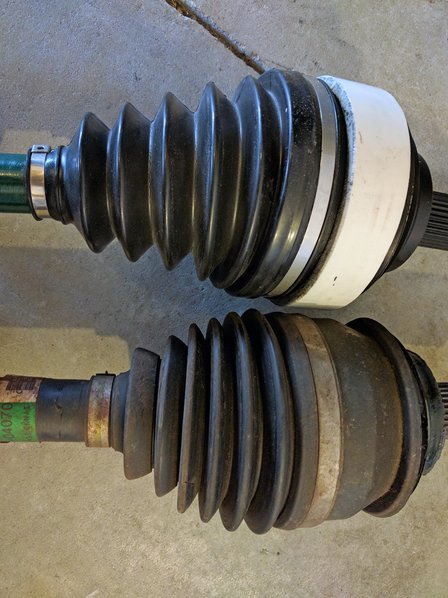

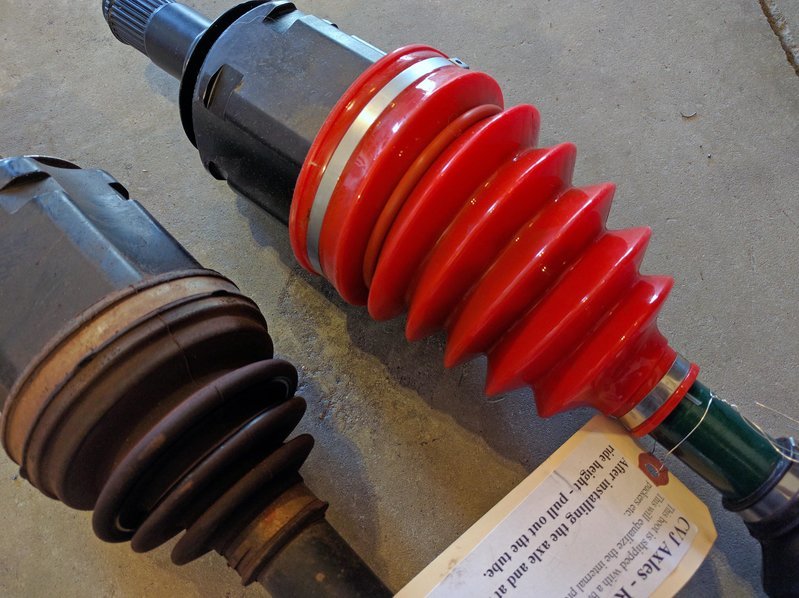

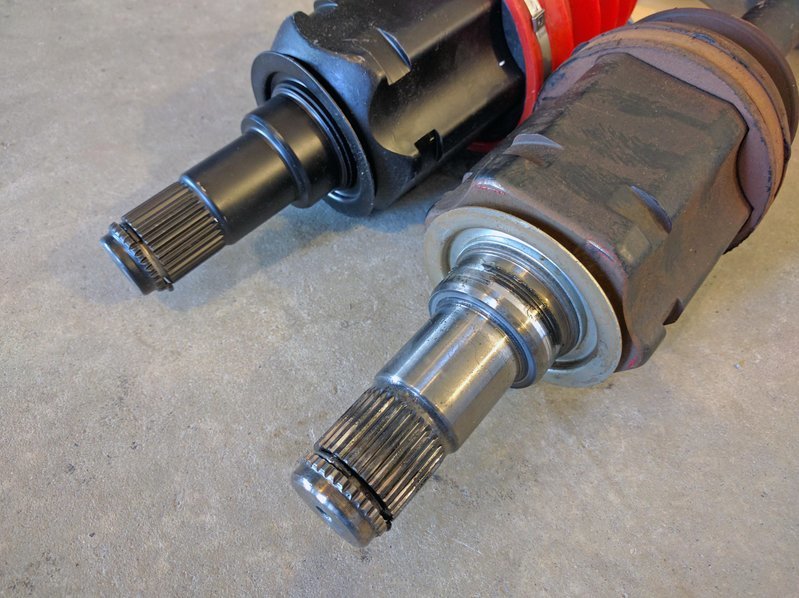

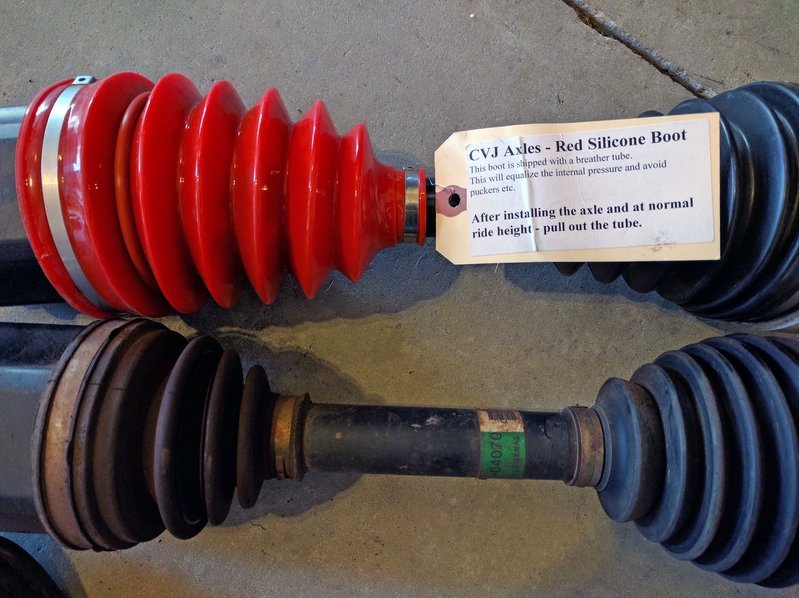

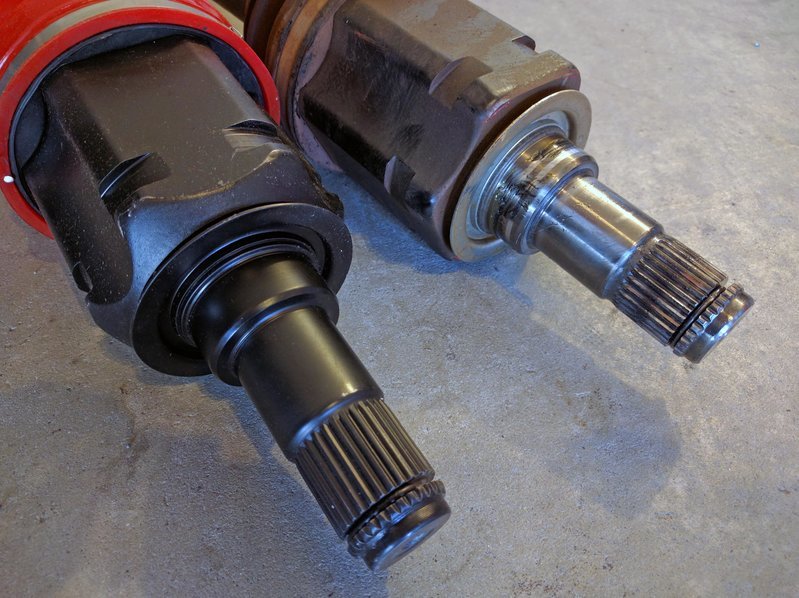

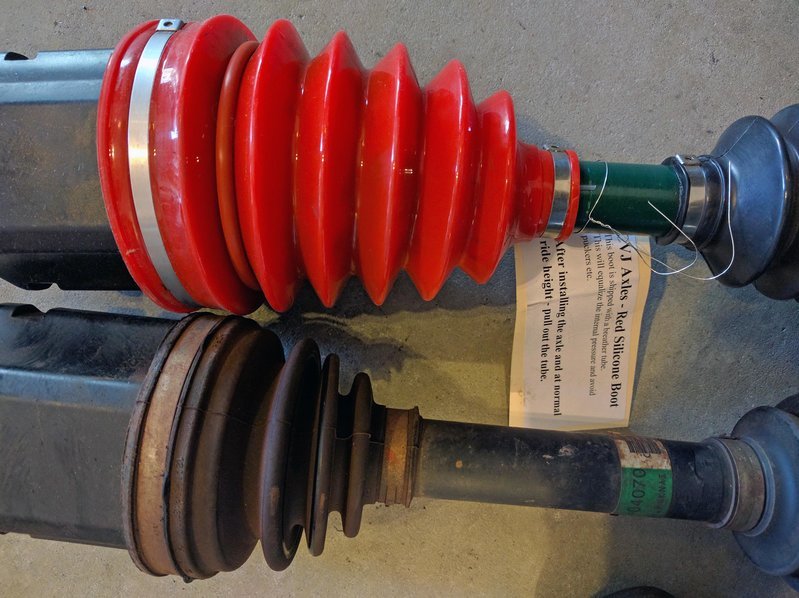

    CVJ Re-manufactured axles VS stock axles. The CVJ come with silicone boots, if I was to order them again I would request the red boots for the inside and OEM boots for the outside. I had some clearance issues with the black silicone boots on the outside.

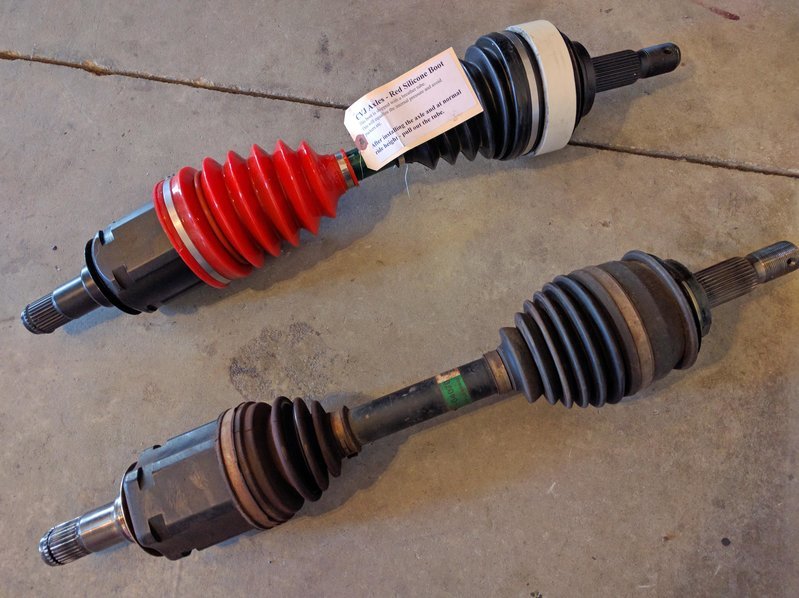

    cvj-stock comparison 01.jpg
    cvj-stock comparison 02.jpg
    cvj-stock comparison 03.jpg
    cvj-stock comparison 04.jpg
    cvj-stock comparison 05.jpg
    cvj-stock comparison 06.jpg
    cvj-stock comparison 07.jpg
    cvj-stock comparison 08.jpg

  14. Oct 7, 2016 at 11:51 AM
    #14
    R09ster

    R09ster Well-Known Member

    Joined:
    Apr 6, 2013
    Member:
    #101482
    Messages:
    580
    Gender:
    Male
    First Name:
    Josh
    OK
    Vehicle:
    06 SSM DCSB TRD Sport
    debadged, Bilstein 5100 all around (fronts at 1.75" sport coils), Skyjacker softride 1.5" AAL, Firestone Ride Right Airbags, 17X8.5 Method NVs, 285/70/r17 Falken Wildpeak AT3W, US Offroad hidden winch mount, grillcraft grill, Sypder Auto projector headlights, blackedout LED taillights, bed extender, bedrack w/CVT Mt Shasta tent,
    Very nice build!

  15. Oct 7, 2016 at 12:01 PM
    #15
    socalktk

    socalktk Well-Known Member

    Joined:
    Oct 28, 2015
    Member:
    #167972
    Messages:
    1,515
    Gender:
    Male
    First Name:
    Kalvin
    City of Industry, CA
    Vehicle:
    2016 DCLB TRD: OR
    Kings, Pelfreybilt skids, mobtown sliders, dakars, SCS
    What do you store in the plano cases over the prinsu?

    And pics of sleeping arrangements!

  16. Oct 7, 2016 at 8:15 PM
    #16
    tetten

    tetten [OP] Cynical Asshole

    Joined:
    Nov 2, 2014
    Member:
    #141581
    Messages:
    1,671
    First Name:
    Andy
    Socal
    Camera tripods, panoramic rig equipment, cooking stuff, extra food, dog food/bowl, and anything else I don't want cluttering up the cab. They are the biggest cases Plano makes, so they can help get quite a bit of loose items out of the cab.

    socalktk and sawbladeduller like this.
  17. Oct 14, 2016 at 7:25 AM
    #17
    americantaco

    americantaco Member

    Joined:
    Jan 11, 2016
    Member:
    #174642
    Messages:
    11
    Gender:
    Male
    First Name:
    Blake
    Vehicle:
    2005 Blue Tacoma Prerunner
    What does your camping set up look like?

  18. Oct 15, 2016 at 11:50 AM
    #18
    tetten

    tetten [OP] Cynical Asshole

    Joined:
    Nov 2, 2014
    Member:
    #141581
    Messages:
    1,671
    First Name:
    Andy
    Socal
    I'm still working through all the little issues that popped up on the work I did, after I get it all cleared up I'll start posting up photos of everything.

    americantaco likes this.
  19. Nov 18, 2016 at 10:19 AM
    #19
    tetten

    tetten [OP] Cynical Asshole

    Joined:
    Nov 2, 2014
    Member:
    #141581
    Messages:
    1,671
    First Name:
    Andy
    Socal

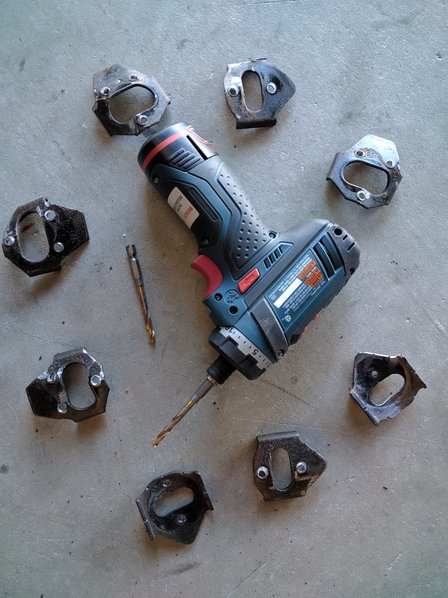

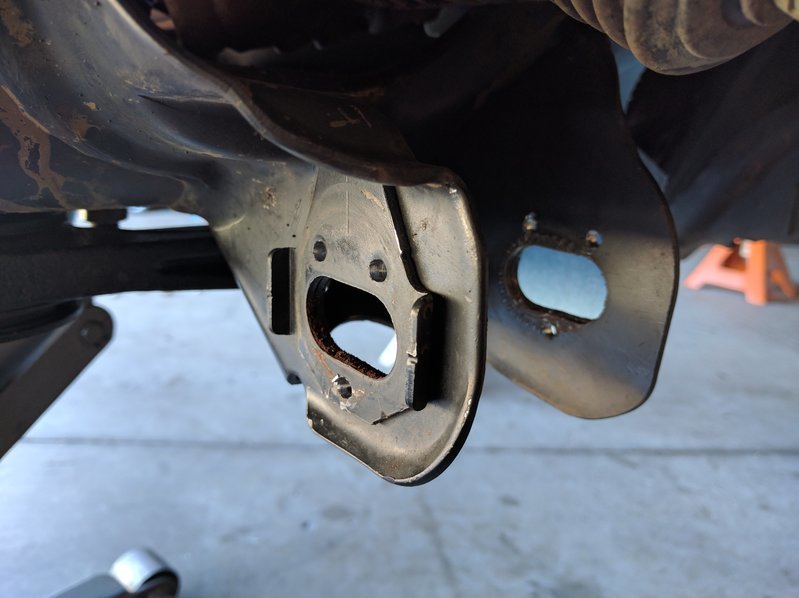

    Cam Tab Removal, have to drill out the welds and then knock them off, a chisel and hammer knocked them off easily. I just used a small drill and 2 drill bits swapping between them when one of them got hot.
    IMG_20161001_150334.jpg IMG_20161001_150340.jpg IMG_20161001_150417.jpg IMG_20161001_150753.jpg

    ChadsPride and Pirhett like this.
  20. Nov 18, 2016 at 10:22 AM
    #20
    tetten

    tetten [OP] Cynical Asshole

    Joined:
    Nov 2, 2014
    Member:
    #141581
    Messages:
    1,671
    First Name:
    Andy
    Socal

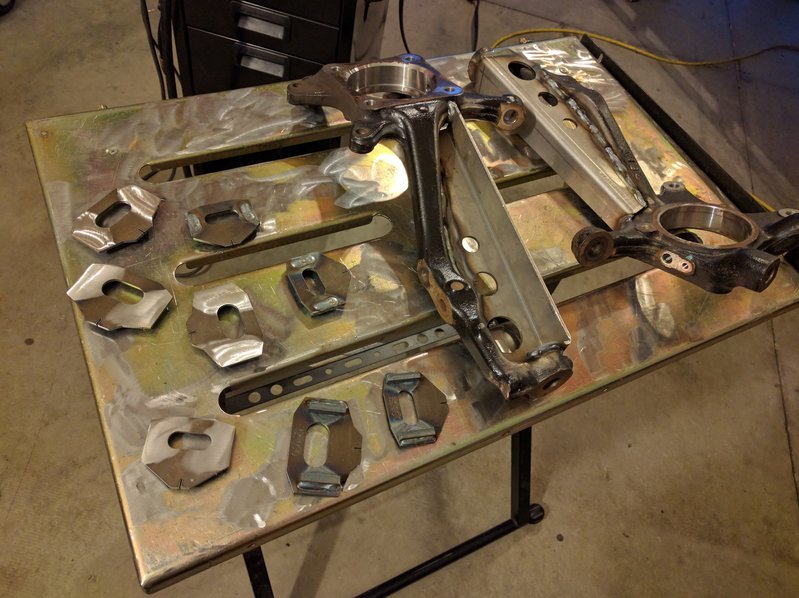

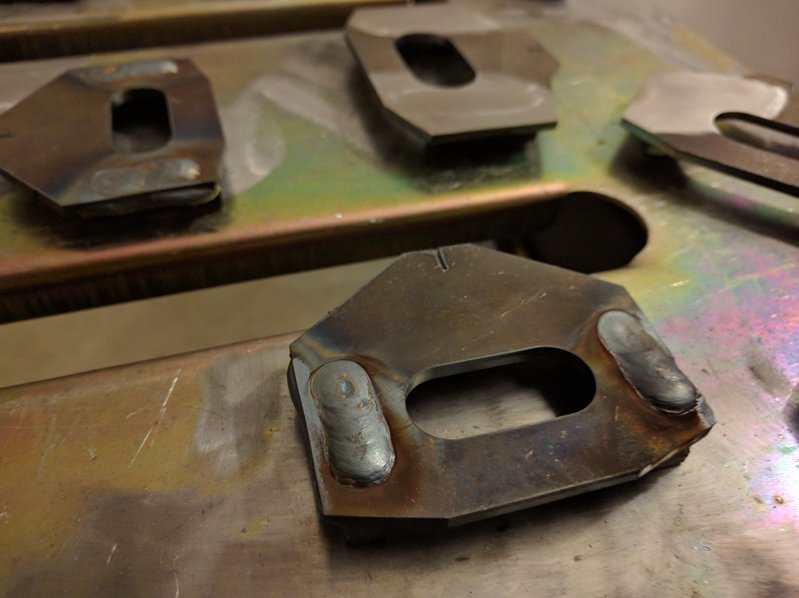

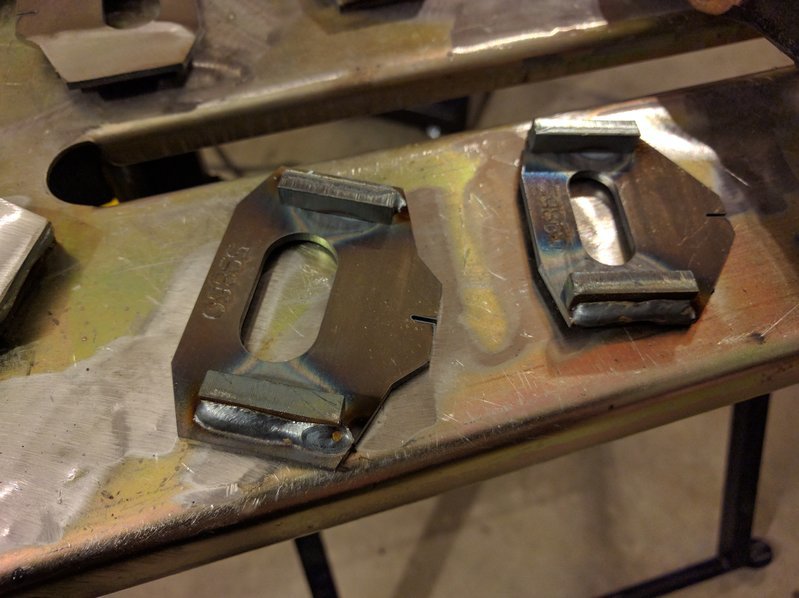

    Prepping cam tab pieces, I've seen some people tack the ends of the gussets, I saw some pictures on Total Chaos's website that didn't have tacks on the end so I didn't put them on there either, but I can't see why tacking the ends would hurt, I just opted not to.
    IMG_20161001_184727.jpg IMG_20161001_184733.jpg IMG_20161001_184738.jpg IMG_20161001_184745.jpg IMG_20161001_184756.jpg IMG_20161001_184932.jpg

    Last edited: Nov 18, 2016
    ChadsPride and Acerwin like this.

Products Discussed in

To Top
