The Torque Spec. Guide

Discussion in '2nd Gen. Tacomas (2005-2015)' started by Benson X, Mar 1, 2014.

  1. May 23, 2018 at 11:31 AM
    #241
    scottalot

    scottalot X

    Joined:
    Jun 1, 2013
    Member:
    #105349
    Messages:
    112,500
    First Name:
    Stockalot
    The Right Coast
    Vehicle:
    2018 tea four arghh Offroad 4x4 White LoveMachine
    Bone stock like Chicken in the Crock Pot .Dakkars,305/70/16 MT's, Extended length Fox Coilovers, Fox RR rear Shocks, Total Chaos UCA's, Dakar Leaf packs, LED Map and Dome, Breather relocate, Slimer from Ghost-busters starut up screen, Vent Visors, LED Pod's on Ditch Brackets soon, Level 8 Strike 6 Wheels, New MT Tars - Fierce Attitude, SOS front bumper -steel, SOS bed rack, LED white marker lights, LED reverse, TRD exhaust, Wheelers Super Bumps up front, SOS sliders bolt on with fill plates, Csjummper2003 White/Amber DTRL and white parking led bulbs, RTT rack basket Sold 2013, sold 2014 Tacoma. All listed stuff was on the '14 Bed Mat, WeatherTech Rain Guards, Ultra Gauge, TW Sticker amongst others, Useless Free OEM Bug Deflector, Flyzeye, OME Kit with 885's and Dakar and Nitro Shocks front and Rear . Tailgate mod, SOS Concepts 1/4" Skid Plate, White LED's interior Dome and Maps, Goodyear Wrangler MTR Kevlar 275/70/17, Wet Okole Seat Covers - full piping in Charcoal Grey, Lamin-X Green Fog light film, 17"x8 -10 offset Level 8 MK6 wheels in Gun Metal Finish, SOS Concepts Sliders W/ Kickout 12/21/14, Stubby antenna, LED reverse lights, lift removed 2/20/15 - making changes and trying to make up my mind
    :woot: Thank ya sir - this is a great thread - I used a ton of info form it this past weekend :thumbsup:

    DoorDing and Benson X [OP] like this.
  2. May 23, 2018 at 11:36 AM
    #242
    tyfoon11

    tyfoon11 Drifting...

    Joined:
    Jul 7, 2014
    Member:
    #133462
    Messages:
    3,244
    Gender:
    Male
    First Name:
    J
    Concord, Ca
    Vehicle:
    14 DCLB Trd Sprt 4x4 MGM Trail Limo
    so far.... ADS 2.5 ext travel RR coilovers with clickers ADS 2.5 10" piggybacks ADS 2.125 hydro bumps All-Pro Expo leafs with u-bolt flip Wheelers front Superbumps JBA HD HC Upper Control Arms TRD Off Road Beadlock Style Wheels with 255/85R16 MAXXIS Bighorns BAMF Bolt on Sliders, behind grill light bar and CB mounts TRD Cat Back Exhaust (with crossover re-route and circumcision) TRD Air Filter, Shift knob and Oil Filler Cap Rear Diff breather mod, Front mud flap delete, trimmed 2" off rears Badge and Decal Delete Tacoma Roof Rack, All Weather Floor Mats, Bed Mat, Extra D-Rings in bed Spare Tire Lock, Cabinet locks on bed storage compartments Toyota RS3200+ Alarm with Glass Break Sensor Roll-X Bed cover Custom dents, scratches and pin striping
    I use this thread all the time, thanks Ben

    DoorDing and Benson X [OP] like this.
  3. May 23, 2018 at 11:41 AM
    #243
    TacoTRD78

    TacoTRD78 Well-Known Member

    Joined:
    Jul 27, 2015
    Member:
    #160390
    Messages:
    5,796
    Gender:
    Male
    First Name:
    John
    Stuart,fl
    Vehicle:
    15 tacoma trd off road
    4X Innovations Sliders Tech deck Bilstein 5100's OME 885 CB radio install Rear diff breather mod After market front bumper lights Redline hood struts Shorty antenna door seal protectors Glove box/ Center console motion light Trailer harness plug relocation mod/Edit SOS HC rear bumper Ditch mount Lights with CBI brackets morimoto fog lights
    Many thanks

    DoorDing likes this.
  4. May 23, 2018 at 12:46 PM
    #244
    Benson X

    Benson X [OP] My build thread sucks...

    Joined:
    Nov 13, 2010
    Member:
    #46123
    Messages:
    5,330
    Gender:
    Male
    First Name:
    Ben
    Olympia, WA
    Vehicle:
    '11 MGM DC/LB
    If you don't draw blood, you're doing it wrong!
    No problem! Thanks to @tcBob for letting me/us host it on his site and to the original Engineers/Authors who put it together...if you've looked at some other manufacturer's FSMs or a Haynes/Chiltons - you'll know how fortunate we are to have these awesome exploded diagrams and torque details.

    I still use it almost every time I work on my truck. I have memorized at least some of the torque specs after 7 years, though! :)

  5. May 23, 2018 at 12:48 PM
    #245
    scottalot

    scottalot X

    Joined:
    Jun 1, 2013
    Member:
    #105349
    Messages:
    112,500
    First Name:
    Stockalot
    The Right Coast
    Vehicle:
    2018 tea four arghh Offroad 4x4 White LoveMachine
    Bone stock like Chicken in the Crock Pot .Dakkars,305/70/16 MT's, Extended length Fox Coilovers, Fox RR rear Shocks, Total Chaos UCA's, Dakar Leaf packs, LED Map and Dome, Breather relocate, Slimer from Ghost-busters starut up screen, Vent Visors, LED Pod's on Ditch Brackets soon, Level 8 Strike 6 Wheels, New MT Tars - Fierce Attitude, SOS front bumper -steel, SOS bed rack, LED white marker lights, LED reverse, TRD exhaust, Wheelers Super Bumps up front, SOS sliders bolt on with fill plates, Csjummper2003 White/Amber DTRL and white parking led bulbs, RTT rack basket Sold 2013, sold 2014 Tacoma. All listed stuff was on the '14 Bed Mat, WeatherTech Rain Guards, Ultra Gauge, TW Sticker amongst others, Useless Free OEM Bug Deflector, Flyzeye, OME Kit with 885's and Dakar and Nitro Shocks front and Rear . Tailgate mod, SOS Concepts 1/4" Skid Plate, White LED's interior Dome and Maps, Goodyear Wrangler MTR Kevlar 275/70/17, Wet Okole Seat Covers - full piping in Charcoal Grey, Lamin-X Green Fog light film, 17"x8 -10 offset Level 8 MK6 wheels in Gun Metal Finish, SOS Concepts Sliders W/ Kickout 12/21/14, Stubby antenna, LED reverse lights, lift removed 2/20/15 - making changes and trying to make up my mind

    :bowdown: Amen!! It's super helpful and while I love everyone's opinion on what to torque to I feel a lot better when I see it on an actual legit diagram

    TacoTRD78 likes this.
  6. May 23, 2018 at 12:59 PM
    #246
    la0d0g

    la0d0g Its 4 o’clock somewhere

    Joined:
    Jan 25, 2011
    Member:
    #49903
    Messages:
    15,651
    Gender:
    Male
    First Name:
    Matt
    running for the hills
    Vehicle:
    For crawling not hauling
    26 ft lbs all day long!

    TacoTRD78 likes this.
  7. May 23, 2018 at 2:50 PM
    #247
    Benson X

    Benson X [OP] My build thread sucks...

    Joined:
    Nov 13, 2010
    Member:
    #46123
    Messages:
    5,330
    Gender:
    Male
    First Name:
    Ben
    Olympia, WA
    Vehicle:
    '11 MGM DC/LB
    If you don't draw blood, you're doing it wrong!

    Follow those U-Bolt torque specs! :thumbsup:
    :p

    tyfoon11, TacoTRD78 and la0d0g like this.
  8. May 23, 2018 at 3:26 PM
    #248
    la0d0g

    la0d0g Its 4 o’clock somewhere

    Joined:
    Jan 25, 2011
    Member:
    #49903
    Messages:
    15,651
    Gender:
    Male
    First Name:
    Matt
    running for the hills
    Vehicle:
    For crawling not hauling
    Holy balls I'm late to the game and have never seen that! Cringe worthy for sure.

  9. May 23, 2018 at 3:28 PM
    #249
    Chipskip

    Chipskip N7MCS

    Joined:
    Aug 31, 2010
    Member:
    #42519
    Messages:
    11,405
    Gender:
    Male
    First Name:
    Chip
    Phoenix / Payson, AZ
    Vehicle:
    98 Tacoma & 02 Sequoia
    Deck Plate, '17 rims, Tundra Brake Upgrade, All-Pro Expo Leaf Packs, 01-04 Center Console, Ultragauge, LED interior lights, HO alternator...
  10. May 27, 2018 at 4:15 PM
    #250
    Bravisimo

    Bravisimo So many mods, so little money.

    Joined:
    Nov 17, 2014
    Member:
    #142575
    Messages:
    545
    Gender:
    Male
    First Name:
    Joe
    Santa Clarita, CA
    Vehicle:
    2014 Tacoma PreRunner SR5 DCLB
    Tint, headlights wrapped & rear lights smoked, power outlet mod., grill & rear bumper wrapped, Falken A/T 3W,
    tried to find the torque spec for the bed. I took the bolts out and I hand cranked them down. Is it even on here?

    Also, trying to figure out on the diagrams what the numbers mean. Can someone explain. Im guessing thy are torque specs? If so, I dont now which number to use.

  11. May 27, 2018 at 4:37 PM
    #251
    Bravisimo

    Bravisimo So many mods, so little money.

    Joined:
    Nov 17, 2014
    Member:
    #142575
    Messages:
    545
    Gender:
    Male
    First Name:
    Joe
    Santa Clarita, CA
    Vehicle:
    2014 Tacoma PreRunner SR5 DCLB
    Tint, headlights wrapped & rear lights smoked, power outlet mod., grill & rear bumper wrapped, Falken A/T 3W,
    Yeah i think ur right @DoorDing on the bed bolts.

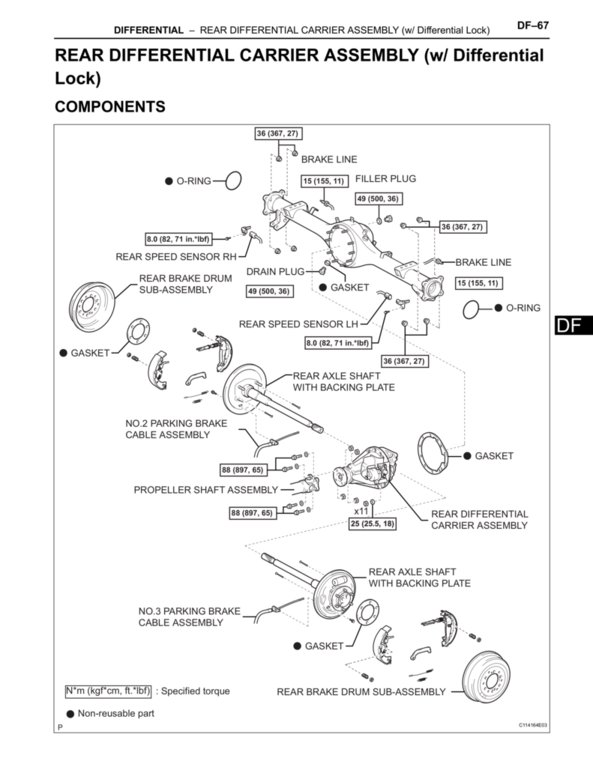

    For example, the filler plug has a 49,500, and 36 number. What do these numbers mean?




  12. May 27, 2018 at 4:43 PM
    #252
    mountainmonkey

    mountainmonkey Well-Known Member

    Joined:
    Mar 30, 2014
    Member:
    #126570
    Messages:
    3,700
    Gender:
    Male
    Colorado
    Vehicle:
    '13 Double Cab TRDOR DCSB
    Never enough
    Those numbers are all torque specs for that filler in different units. The legend is in the box at the lower left of that image. If you’re looking for ft lbs it’s the 2nd number in the parentheses.

    Bravisimo and DoorDing like this.
  13. May 27, 2018 at 5:16 PM
    #253
    Bravisimo

    Bravisimo So many mods, so little money.

    Joined:
    Nov 17, 2014
    Member:
    #142575
    Messages:
    545
    Gender:
    Male
    First Name:
    Joe
    Santa Clarita, CA
    Vehicle:
    2014 Tacoma PreRunner SR5 DCLB
    Tint, headlights wrapped & rear lights smoked, power outlet mod., grill & rear bumper wrapped, Falken A/T 3W,
    Thanks @DoorDing ! I have applied anti seize compound already. And thank you for your help. Now i understand how to read the diagram.

    DoorDing likes this.
  14. Jun 27, 2018 at 1:56 PM
    #254
    Ma da tacos

    Ma da tacos Member

    Joined:
    Jun 27, 2018
    Member:
    #257679
    Messages:
    5
    Gender:
    Male
    First Name:
    Jay
    Vehicle:
    2013 Tacoma 4.0L
  15. Jul 6, 2018 at 7:46 PM
    #255
    05tacomabro

    05tacomabro will work for truck parts...

    Joined:
    Jul 14, 2015
    Member:
    #159436
    Messages:
    2,767
    Gender:
    Male
    First Name:
    Alex
    Tucson
    Vehicle:
    05 dcsb trd off road
    Icon ex. Travel co's, spc uca's, bamf lca skids, 1" body, all pro heavy duty sliders, expo springs, fox 2.0, ifs skid, transmission skid, t-case skid(modified by @jeepandrew for exhaust reroute and more beef), custom k&n intake, flowmaster, diff breather mod, stereo with nav/speakers/subs, coverking tactical ballistic seat covers, Baja utility rack, lots of bed liner, anytime fog mod and steel braided brake lines, energy suspension rad support bushings, abs kill switch, cali raised ditch lights, Lots of plans, little money....
    @r@tb@st@rd

  16. Jul 17, 2018 at 1:38 PM
    #256
    Slamuel

    Slamuel Jesus is King!

    Joined:
    Jun 23, 2018
    Member:
    #257264
    Messages:
    351
    Gender:
    Male
    First Name:
    Sam
    Kekistan
    Vehicle:
    Black TRD
    Things n Stuff
    Can someone verify that the UCA thru-bolt is 85 lb*ft? I’m reading this correctly? Seems kind of high for that..

  17. Jul 17, 2018 at 1:48 PM
    #257
    BudMan

    BudMan knee scooters R us

    Joined:
    Jan 30, 2013
    Member:
    #96465
    Messages:
    5,251
    Gender:
    Male
    First Name:
    Bret
    Alameda, CA, (Bay Area)
    Vehicle:
    06 TRD Sport DC 4x4
    stuff
    Yes UCA through bolt is 85 ft/lbs :thumbsup:

    Speedo, Slamuel and TACOVRD like this.
  18. Jul 31, 2018 at 10:42 AM
    #258
    taco_tallua

    taco_tallua Well-Known Member

    Joined:
    Nov 20, 2017
    Member:
    #236530
    Messages:
    205
    Gender:
    Male
    Anaheim, CA
    Vehicle:
    2016 Toyota Tacoma SR5
    -Fox Shocks 2.5 Front/2.0 Rear -Total Chaos UCA -Method Wheels Grid 17x8.5 -Toyo Tires 265/70/17 -Exhaust: aFe Power -Lights: Baja Designs
    Would these numbers still be accurate for 3rd gens as well?

  19. Aug 31, 2018 at 11:51 AM
    #259
    Dlakerguy13

    Dlakerguy13 Well-Known Member

    Joined:
    Jul 7, 2018
    Member:
    #258637
    Messages:
    118
    Gender:
    Male
    So I replaced my rear shocks and used this guide for the proper torque specs. I could get the bottom bolts no problem. The top bolts, I couldn't get the torque wrench to fit due to the angle and location of where the bolts were. So I just used a regular combination wrench. On one side as I was tightening it, I hear a pop at one point. The nut didn't seem super tight at that moment. I am not sure if a washer cracked or what it was. But beyond that, everything in view seems fine and I was able to tighten the nut a bit more until it felt pretty snug. Any thoughts as to what the "pop" could have been?

  20. Aug 31, 2018 at 12:20 PM
    #260
    xJuice

    xJuice My spoon is too Big!

    Joined:
    Oct 24, 2007
    Member:
    #3208
    Messages:
    9,477
    Gender:
    Male
    First Name:
    Josh
    North DFW
    Vehicle:
    07 DCSB Sport 2wd
    5100s @ 0.85, Grom iPod/Bluetooth adapter, mud flaps removed, clear turn signal bulbs, two extra D-rings, debadged, fog light anytime, OEM bed mat, Undercover classic, Falken Wildpeak A/T3W, Fumoto valve
    One of the thin washers has a lip on the inside circumference that helps center everything on the frame mount. Maybe that was slightly off kilter and 'popped' into place?

    Dlakerguy13 likes this.
