Total Chaos Bed Stiffener CB setup?

Discussion in '3rd Gen. Tacomas (2016+)' started by liquidhazelnuts, Aug 17, 2017.

  1. Aug 17, 2017 at 11:46 AM
    #1
    liquidhazelnuts

    liquidhazelnuts [OP] Well-Known Member

    Joined:
    May 3, 2017
    Member:
    #218066
    Messages:
    64
    Gender:
    Male
    Vehicle:
    2017 Tacoma TRD Off Road Quicksand
    Hey guys, sort of new to the whole CB world but I'm trying to mount my antenna to the TC bed stiffener. Was wondering if anyone else is running the same setup and if so, did you have to ground the antenna or is the stiffener already grounded from the bed bolts? Any tips or advice would be a huge help! I ordered a Cobra 75WXST 40-Channel CB Radio, Firestik SS-3H Heavy Duty Stainless Steel Antenna Spring, 18' RG-58A/U Coaxial Cable With Pl-259 Connectors, and a FS-4BK 4' Firestik(r) Ii Fs Series Tunable Tip Cb Antenna - 900 Watts Black. Anything I'm missing? I plan on ordering an SWR meter soon so I can tune the antenna.

    WileECoyote likes this.
  2. Aug 17, 2017 at 5:07 PM
    #2
    liquidhazelnuts

    liquidhazelnuts [OP] Well-Known Member

    Joined:
    May 3, 2017
    Member:
    #218066
    Messages:
    64
    Gender:
    Male
    Vehicle:
    2017 Tacoma TRD Off Road Quicksand
    Bump since everyone is off work now. lol

    WileECoyote likes this.
  3. Aug 17, 2017 at 5:12 PM
    #3
    EatSleepTacos

    EatSleepTacos Well-Known Member

    Joined:
    Mar 24, 2015
    Member:
    #151688
    Messages:
    53,049
    Gender:
    Male
    First Name:
    Randy
    Hampton Roads, VA
    Vehicle:
    4x4 2005 SR5 AC 6MT
    You still need the actual stud, to attach the coax to the spring and an SWR meter to tune it.

    https://www.amazon.com/Firestik-K-4...e=UTF8&qid=1503015012&sr=8-2&keywords=cb+stud

    https://www.amazon.com/ASTATIC-PDC1...UTF8&qid=1503015084&sr=8-5&keywords=SWR+METER

    Make sure you grind paint off where the antenna will mount, and around the bolt that runs into the bed to get the best contact.

    WileECoyote likes this.
  4. Aug 17, 2017 at 5:14 PM
    #4
    liquidhazelnuts

    liquidhazelnuts [OP] Well-Known Member

    Joined:
    May 3, 2017
    Member:
    #218066
    Messages:
    64
    Gender:
    Male
    Vehicle:
    2017 Tacoma TRD Off Road Quicksand
    Appreciate the links! The antenna didn't come with any nylon insulator washers,https://www.amazon.com/gp/product/B000X3C91W/ref=ox_sc_act_title_2?smid=A1AUFI5NHGNZ61&psc=1 will I need to use one of these at the base of the antenna or will that kill my ground?

  5. Aug 17, 2017 at 5:17 PM
    #5
    EatSleepTacos

    EatSleepTacos Well-Known Member

    Joined:
    Mar 24, 2015
    Member:
    #151688
    Messages:
    53,049
    Gender:
    Male
    First Name:
    Randy
    Hampton Roads, VA
    Vehicle:
    4x4 2005 SR5 AC 6MT
    One of those will come with the stud I linked, and it's a vital component to it working properly. This post is courtesy of @WileECoyote

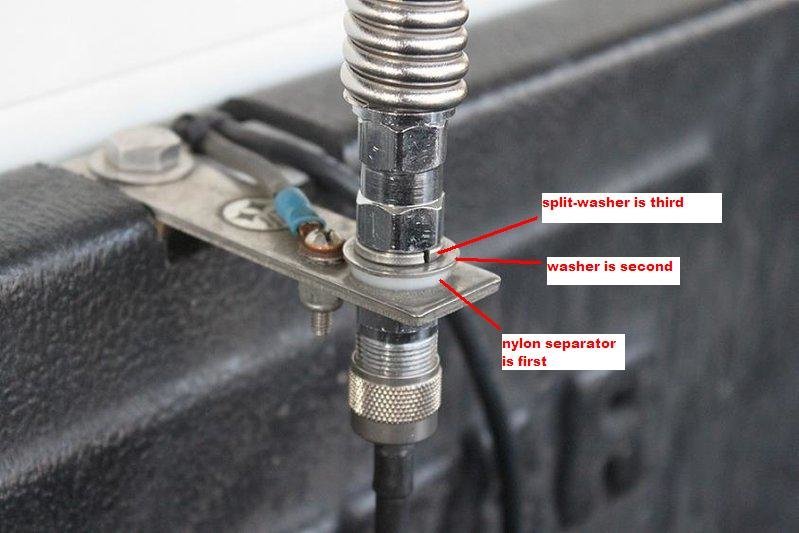

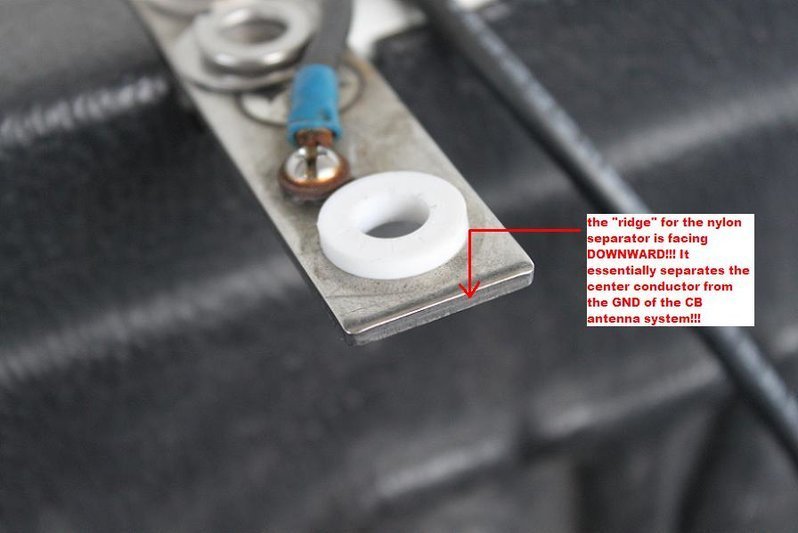

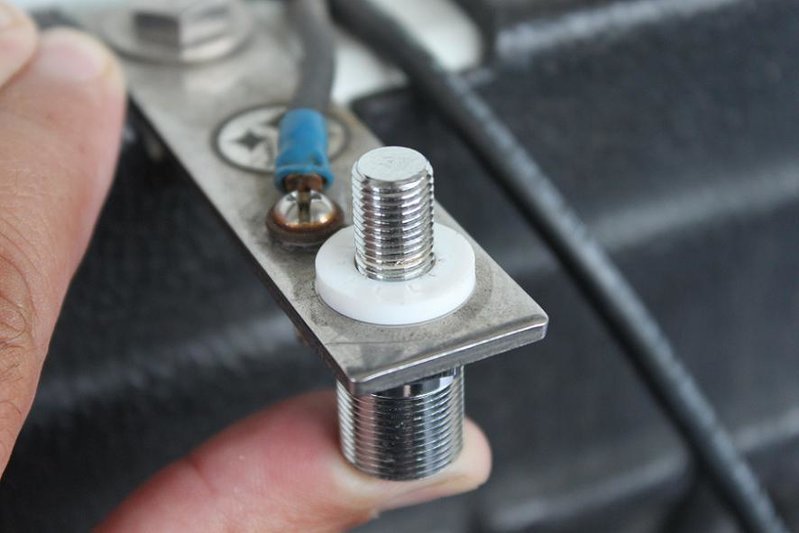

    Just asking and I don't mean to sound like I'm starting a fight/arguement, why do you need to be "sealing the grommet"? It is a plastic type spacer that comes with the lug/bolt assembly that should have come with the CB bolt/lug assembly? Unless, I'm assuming, it got lost somehow and that is the only thing left that you are able to do? IF that is the case, just make sure that the "bolt threaded part, the 'male' part if you will" does NOT come in contact with the "ground part" of the assembly. Here are some pictures that I did that I hope will help?

















    I can hardly wait for your results and hope everything goes well with your final setup!!! Btw, ALWAYS check your SWR of your CB/antenna setup if you are able to!!! You could still be TX'ing, but have a pretty HIGH SWR that will eventually destroy your finals in your CB radio (i.e. the finals is the RF amplifier stage of the radios circuit)!!! Your SWR should be 3 and lower... hopefully lower than the 3!!! A SWR of 2 and lower downto around 1.5 is pretty typical, that I know of. My setup happens to be around 1.5-1.7, so I am very content with that setting!!! If you're sitting at a 2 or just above, you should be fine as well. A 3 and ABOVE, I would recommend taking a look at your cable lash-up assembly!!! Hope this all helps in your endeavors!!! :fingerscrossed:

    Happy Wheel'n :thumbsup::fistbump::mudding:

    WileECoyote likes this.
  6. Aug 17, 2017 at 5:18 PM
    #6
    EatSleepTacos

    EatSleepTacos Well-Known Member

    Joined:
    Mar 24, 2015
    Member:
    #151688
    Messages:
    53,049
    Gender:
    Male
    First Name:
    Randy
    Hampton Roads, VA
    Vehicle:
    4x4 2005 SR5 AC 6MT
    WileECoyote likes this.
  7. Aug 17, 2017 at 5:39 PM
    #7
    liquidhazelnuts

    liquidhazelnuts [OP] Well-Known Member

    Joined:
    May 3, 2017
    Member:
    #218066
    Messages:
    64
    Gender:
    Male
    Vehicle:
    2017 Tacoma TRD Off Road Quicksand
    WileECoyote and EatSleepTacos like this.
  8. Aug 17, 2017 at 5:40 PM
    #8
    EatSleepTacos

    EatSleepTacos Well-Known Member

    Joined:
    Mar 24, 2015
    Member:
    #151688
    Messages:
    53,049
    Gender:
    Male
    First Name:
    Randy
    Hampton Roads, VA
    Vehicle:
    4x4 2005 SR5 AC 6MT
    Good luck!

    WileECoyote likes this.
  9. Aug 17, 2017 at 9:26 PM
    #9
    WileECoyote

    WileECoyote Well-Known Member

    Joined:
    Sep 22, 2014
    Member:
    #138864
    Messages:
    5,649
    Gender:
    Male
    SoCal
    Vehicle:
    1st Gen 4WD 2.7L RegCab
    Yaesu FT-1900R w/ 2m/70cm Comet SBB-224 antenna, Cobra 19 DX IV w/ 4ft Francis CB24 Hot Rod antenna, Uniden Bearcat BC355N 800Mhz mobile scanner (analog), an external BNC mount routed to inside the cab for a handheld fire/police scanner or HAM HT's, Rancho RS5000 front struts and rear shocks, 6in KC Daylighter (pencil beam), 15x7 Black Rock Wheels Series 942, 31x10.50R15 Firestone Destination AT, fog lights, COBRA antenna hood mount (this is used to mount the GoPro on to)

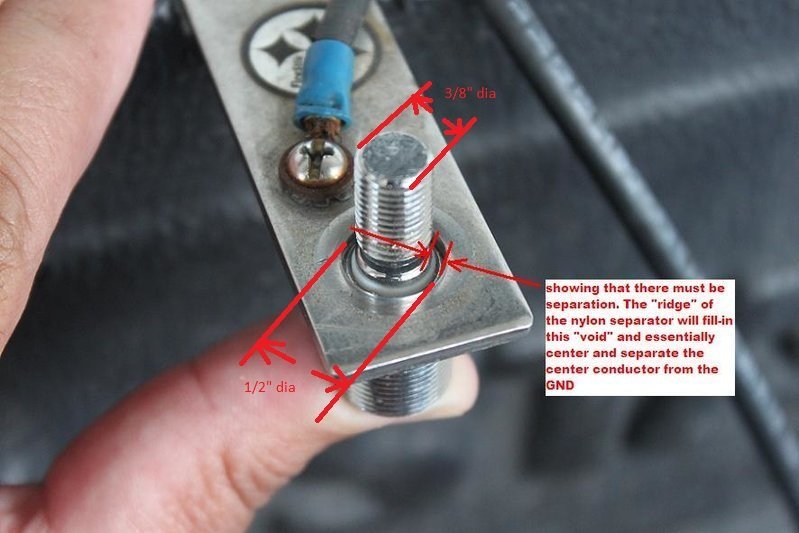

    I hope I'm not too late to the party? Here are the hole diameters for the CB lug/bolt assembly as well as the hole for the mount. (see picture)

    Just make sure when drilling the hole for the CB lug/bolt assembly that it is a 1/2" because the plastic nylon washer is going to "fit" in that 1/2" hole. (see picture)





    Make sure that whatever "bracket" you're hooking your antenna to is GROUNDED to the frame of the truck!!! I hear that some of these beds are "plastic" in many areas so don't assume that it is grounded?! A DVM is your best friend for checking GND!!! :thumbsup:
    I hope this helps? :thumbsup::fistbump:

    @EatSleepTacos I'm very happy that I'm able to help people out with my posts!!! :thumbsup::fistbump::cheers:

    Last edited: Aug 17, 2017
    James_Bond and EatSleepTacos like this.
  10. Aug 17, 2017 at 10:15 PM
    #10
    WileECoyote

    WileECoyote Well-Known Member

    Joined:
    Sep 22, 2014
    Member:
    #138864
    Messages:
    5,649
    Gender:
    Male
    SoCal
    Vehicle:
    1st Gen 4WD 2.7L RegCab
    Yaesu FT-1900R w/ 2m/70cm Comet SBB-224 antenna, Cobra 19 DX IV w/ 4ft Francis CB24 Hot Rod antenna, Uniden Bearcat BC355N 800Mhz mobile scanner (analog), an external BNC mount routed to inside the cab for a handheld fire/police scanner or HAM HT's, Rancho RS5000 front struts and rear shocks, 6in KC Daylighter (pencil beam), 15x7 Black Rock Wheels Series 942, 31x10.50R15 Firestone Destination AT, fog lights, COBRA antenna hood mount (this is used to mount the GoPro on to)
    To the OP, if everything is really good, say a 1.5 or better SWR, you SHOULD be able to actually TX 5-6mi. It was a while back, but I was in an "urban setting" (i.e. buildings, trees, power lines, etc) and I was actually making contact with someone approx. 4mi from my position... maybe just over 4mi. I know this simply because of where he was relative to me and it was about that distance... roughly. Another pretty good test was a friend and me were driving opposite directions on the freeway (he had a 3ft magmount and I have a 4ft whip) and we both estimated that we were easily 5-6mi away from each other by the time I couldn't hear him. Definitely 5mi for sure. It was not really "line of sight" either. Anyways, those have been my personal experiences. :thumbsup:
