Tweeter wiring colors on my 2nd gen

Discussion in '2nd Gen. Tacomas (2005-2015)' started by nd4spdbh, Mar 19, 2016.

  1. Mar 19, 2016 at 10:22 AM
    #1
    nd4spdbh

    nd4spdbh [OP] Well-Known Member

    Joined:
    Oct 7, 2013
    Member:
    #114055
    Messages:
    11,312
    Gender:
    Male
    SoCal
    Vehicle:
    13 DCSB TRD OR v6 Auto
    Maybe this will get more exposure here.



    Alright all. I am in the process of upgrading the stock tweeters and speakers in the front doors.

    I understand how the tweeters and front speakers are wired. The 4 pin plug to the tweeter simply combines like colors to run the tweeter in parallel connection with the main speaker.

    What i DO NOT get is the coloring. On the tweeter side its "standard" red and black. You would assume its + for red, and - for black. but that seems to be the opposite.

    The coloring on the harness side is Green and blue. Everything (including toyota factory service manuals) state that Green is POSITIVE, and blue is NEGATIVE (for the front right door) But look at the picture below, the red and blacks are flip flopped!!!! That is the green (positive on the harness side) goes to black, and blue (Negative on the harness side) goes to red.

    W T F.

    I have not moved any pins on the plug changed the configuration of how the wires were connected together. I simply chopped off the tweeter and crimped on connectors for my new ones.


    I am just wondering if the colors on the tweeter side of the factory front door tweeters are backwards!


  2. Mar 19, 2016 at 11:21 AM
    #2
    Jimmyh

    Jimmyh Well-Known Member

    Joined:
    May 16, 2012
    Member:
    #78991
    Messages:
    12,256
    Gender:
    Male
    SC
    Vehicle:
    2012 Prerunner SR5

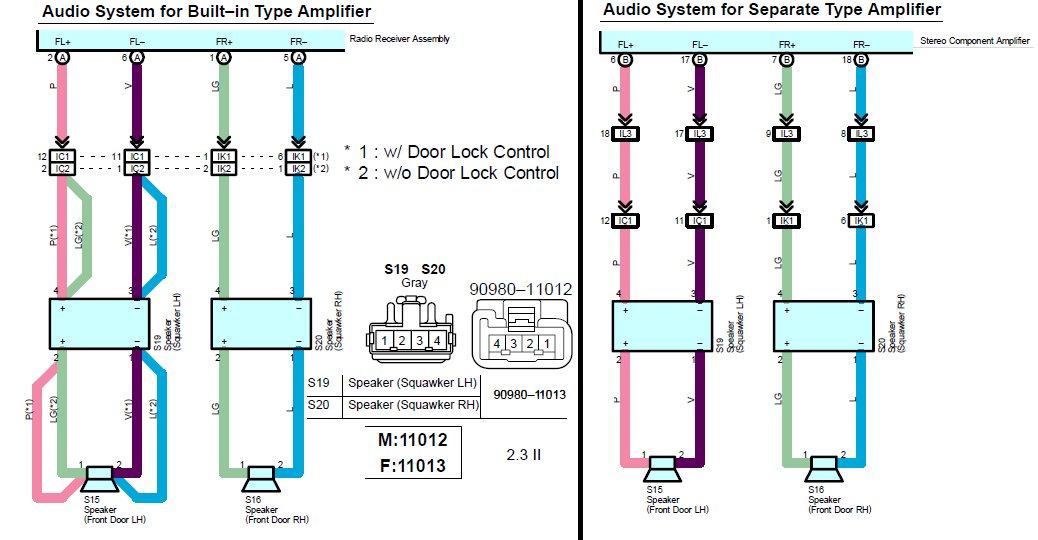

    My prints from the field service manual says that Green is positive and Lavender is negative in the passenger door regardless of the model. And Pink is positive and Violet is Negative for the driver door on the Double Cab and Green is positive and Lavender is negative on the Access Cab.


    HolyGhost_Yota and MolonLabeTaco like this.
  3. Mar 19, 2016 at 5:29 PM
    #3
    nd4spdbh

    nd4spdbh [OP] Well-Known Member

    Joined:
    Oct 7, 2013
    Member:
    #114055
    Messages:
    11,312
    Gender:
    Male
    SoCal
    Vehicle:
    13 DCSB TRD OR v6 Auto
    yeah i ended up disregarding the colors on the tweeter side of the stock harness and did the positive of the new tweeters to the positive (green and pink on right n left doors)

  4. Feb 6, 2019 at 7:37 PM
    #4
    tbird95

    tbird95 Well-Known Member

    Joined:
    Mar 7, 2013
    Member:
    #99215
    Messages:
    399
    Gender:
    Male
    British Columbia, Canada
    Vehicle:
    TRD sport SR5 V6 DC, LB, 4x4, Tow package
    4runner heated, signal, courtesy light side mirrors, rearview mirror w/compass, temp & backup cam w/ pop luck PL 5400, Interior lights/gauges, BHLM, grillcraft MX black. Third brake light LED swap, rear tail lights LED swap from 2011. 3" Toytec (Boss) Coil overs, rear TSB AAL Bilsteins, Light Racing UCA. TRD grill badge, VIPER Smart Start.
    Trying to figure out exactly what you did here? I get what you were looking for in the colors but why? Did you tap into existing wiring to add aftermarket? Im trying to add the subaru kicker tweeters into second gen. Its not plug n play like the third gens. Ideally if i could get a male plug for a taco, 4runner or subaru i could just splice it in now that i know the colors.

  5. Feb 6, 2019 at 8:24 PM
    #5
    nd4spdbh

    nd4spdbh [OP] Well-Known Member

    Joined:
    Oct 7, 2013
    Member:
    #114055
    Messages:
    11,312
    Gender:
    Male
    SoCal
    Vehicle:
    13 DCSB TRD OR v6 Auto

    pull the stock tweeter off the truck. Note the positve and negative colors of the wires left on the door harness that go to the tweeter plug and main speaker plug. Now note how on the tweeter side of the plug the positive wire that goes to the main speaker is actually the black (or negative) for the tweeter. Chop that plug off the stock tweeter with some extra so you can wire in your aftermarket tweeter, but disregard the general idea that black is negative and red is positive as its backwards in reference to the door harness and main speaker. (they flip it like this with the stock tweeter to create a larger sound space)

  6. Feb 6, 2019 at 8:34 PM
    #6
    tbird95

    tbird95 Well-Known Member

    Joined:
    Mar 7, 2013
    Member:
    #99215
    Messages:
    399
    Gender:
    Male
    British Columbia, Canada
    Vehicle:
    TRD sport SR5 V6 DC, LB, 4x4, Tow package
    4runner heated, signal, courtesy light side mirrors, rearview mirror w/compass, temp & backup cam w/ pop luck PL 5400, Interior lights/gauges, BHLM, grillcraft MX black. Third brake light LED swap, rear tail lights LED swap from 2011. 3" Toytec (Boss) Coil overs, rear TSB AAL Bilsteins, Light Racing UCA. TRD grill badge, VIPER Smart Start.
    The plug is integrated and soldered to the tweeter. I literally need a factory male plug from a tacoma, 4 runner or subaru. But i understand now what was happening in this thread lol. Thanks. If you hear that anyone cut out their male harness from 2016+ taco point them my way i need 2.

  7. Feb 7, 2019 at 8:08 AM
    #7
    nd4spdbh

    nd4spdbh [OP] Well-Known Member

    Joined:
    Oct 7, 2013
    Member:
    #114055
    Messages:
    11,312
    Gender:
    Male
    SoCal
    Vehicle:
    13 DCSB TRD OR v6 Auto
    Ah, the plug of the subaru tweeter is integrated into it? Good luck.

    Just do what i did grab some of these

    https://www.amazon.com/Pioneer-TS-T...id=1549555656&sr=8-2&keywords=pioneer+tweeter

    and use the plug off the original tweeter to plug into the harness.

  8. Aug 4, 2019 at 9:09 AM
    #8
    TXTaco211

    TXTaco211 Well-Known Member

    Joined:
    Aug 4, 2019
    Member:
    #301160
    Messages:
    94
    Gender:
    Male
    First Name:
    Jason
    Corpus Christi, Tx
    Vehicle:
    13 Pyrite Mica TRD Sport DCSB
    Kicker Speakers, 5100's with HS coils and HS AAL, Caliraised 30" LED light bar
    what did you end up doing did you get this figured out I am in the same predicament as you were.

  9. Aug 4, 2019 at 9:11 AM
    #9
    tbird95

    tbird95 Well-Known Member

    Joined:
    Mar 7, 2013
    Member:
    #99215
    Messages:
    399
    Gender:
    Male
    British Columbia, Canada
    Vehicle:
    TRD sport SR5 V6 DC, LB, 4x4, Tow package
    4runner heated, signal, courtesy light side mirrors, rearview mirror w/compass, temp & backup cam w/ pop luck PL 5400, Interior lights/gauges, BHLM, grillcraft MX black. Third brake light LED swap, rear tail lights LED swap from 2011. 3" Toytec (Boss) Coil overs, rear TSB AAL Bilsteins, Light Racing UCA. TRD grill badge, VIPER Smart Start.
    Sent mine back. Still using factory.

  10. Aug 4, 2019 at 9:13 AM
    #10
    TXTaco211

    TXTaco211 Well-Known Member

    Joined:
    Aug 4, 2019
    Member:
    #301160
    Messages:
    94
    Gender:
    Male
    First Name:
    Jason
    Corpus Christi, Tx
    Vehicle:
    13 Pyrite Mica TRD Sport DCSB
    Kicker Speakers, 5100's with HS coils and HS AAL, Caliraised 30" LED light bar
    damn not what I wanted to here.

  11. Sep 17, 2019 at 6:43 AM
    #11
    BEE-ROCK

    BEE-ROCK Well-Known Member

    Joined:
    Sep 27, 2017
    Member:
    #231281
    Messages:
    215
    Gender:
    Male
    First Name:
    Brock
    Dallas, TX
    Vehicle:
    2013 Tacoma TRD Sport
    TRD Pro Grille, TRD Pro Headlights, Bilstein 5100's and 5125’s.
  12. Sep 17, 2019 at 8:48 AM
    #12
    Corny Taco

    Corny Taco The Sauce

    Joined:
    Dec 22, 2016
    Member:
    #205478
    Messages:
    414
    Gender:
    Male
    First Name:
    Blake
    Columbus/Carrollton Georgia
    Vehicle:
    06 Tacoma SR5 DCSB prerunner
    -33 inch General Grabber x3s -18 inch fuel kranks -Bilstein 5100s -OME normal duty dakars -Toytec/Eibach coils -Magnaflow off-road pro exhaust -Prinsu roof rack -nfab rock guards (temp) -EBay Fake Trd Pro Grille -rApToR lIgHtS durrrrr -12 inch 600w Skar Audio subwoofer running at 750w at 1ohm in ported box replacing single seat -Skar Audio 80w coaxial door speakers running at 120w -Skar Audio Spx-t 40w tweeters running on headunit power -750w Skar Audio amp powering sub -1000w Skar Audio amp powering door speakers (yes, I know it is overpowered)
    Lol, when I installed my Skar tweets, I just snipped and wired to what was there. I gave no fucks and it miraculously turned out perfectly.

    stonybrook likes this.
  13. Feb 13, 2021 at 4:39 AM
    #13
    Ttfran1t

    Ttfran1t Active Member

    Joined:
    Apr 25, 2018
    Member:
    #251620
    Messages:
    44
    Gender:
    Male
    First Name:
    Tim
    Mentor, Ohio
    Vehicle:
    2013 Grey Tacoma Sport Extended cab
    nothing as of yet
    So all you did wa
    So all you did was plug in these tweeters to factory harness? Can you explain how want to get better sound out of my tweeters cause replacing 6x9 soon thanks

  14. Feb 13, 2021 at 4:53 AM
    #14
    Larzzzz

    Larzzzz Grande' Ricardo

    Joined:
    Aug 23, 2009
    Member:
    #21609
    Messages:
    2,579
    Gender:
    Male
    First Name:
    Larry
    MA
    Vehicle:
    '06 dclb 300+ kmiles
    Aux back up lights, Bed lights, Re-located trailer plug, Good dooby, a.k.a. jumper cable mod, Heated seats, back up camera,
    The Tweeter wiring is backwards because the capacitor that is the crossover for the tweeter inverts the signal. Positive in, negative out. The wiring is reversed so that all driver's are moving in the same direction with the music input.

  15. Feb 13, 2021 at 4:54 AM
    #15
    gearcruncher

    gearcruncher Well-Known Member

    Joined:
    Nov 1, 2012
    Member:
    #90305
    Messages:
    6,394
    Gender:
    Male
    First Name:
    Canadain bumper technician
    Great white North 51.0333° N, 93.8333° W
    Vehicle:
    2010.TRD.SportDCLB4x4Limited leather package
    TRD Sport Rally -5 speed automatic Limited ,Factory heated leather seats ,chrome package,Super white with front windows tinted to 35 % Dick Cepek DC-2 wheels Summer tires - Good year silent armor P265/65R17 Winter tires - Good year P265/65R17 Ultra Ice studded Illuminated 4x4 switch TRD 3rd brake light cover ($20) TRD seat belt shoulder protectors (5). ($50) TRD ...B pillar emblems ($20) TRD rear slider sticker with devil horns ( $6) TRD summer floor matts ($60) TRD steering wheel emblem ($20) TRD floor pedals .($95) TRD shorty antenna ($14) TRD front Windshield emblems ($17) TRD head pillows .($60) TRD head rest protectors TRD door scuff protection $20 TRD floor matt emblems ($40) TRD tow plug emblem . ($40) TRD cigarette lighter with LED.($35) TRD tissue dispenser ($12) TRD front bezel emblems ($9) TRD door emblems ($6) TRD lanyards($9) TRD lisence plates with TRD bolts($50) TRD fender emblems TRD center caps Part Number:PT904-35070-CC ($80) TRD cd
  16. Apr 24, 2021 at 5:57 PM
    #16
    Dmeezy333

    Dmeezy333 Well-Known Member

    Joined:
    Jan 17, 2019
    Member:
    #279681
    Messages:
    368
    Gender:
    Male
    Vehicle:
    2015 White Tacoma TRD Sport
    I'm guessing you are just reusing the stock harness clip?

  17. Apr 25, 2021 at 8:22 AM
    #17
    ace96

    ace96 Well-Known Member

    Joined:
    Sep 1, 2010
    Member:
    #42591
    Messages:
    3,134
    Gender:
    Male
    Western KY
    Vehicle:
    '11 SWB DC TRD SPORT
    AVS bug deflector, Weathertech digital fit floor mats, TRD skid plate w/ Sockmonkey decal, SOS Cocept sliders w/ Line-x, Pioneer 3500, Hybrid Audio Technology Mirus 6X9s & 6.5s, back up cam mod, Wet Okoles-front & rear, TRD exhaust, 17X9 XD Spy w/ Falken Wildpeaks, Avid light bar
  18. Apr 25, 2021 at 9:33 AM
    #18
    Dmeezy333

    Dmeezy333 Well-Known Member

    Joined:
    Jan 17, 2019
    Member:
    #279681
    Messages:
    368
    Gender:
    Male
    Vehicle:
    2015 White Tacoma TRD Sport
    Thanks bro. I did find some on Amazon.

  19. Apr 25, 2021 at 9:55 AM
    #19
    gearcruncher

    gearcruncher Well-Known Member

    Joined:
    Nov 1, 2012
    Member:
    #90305
    Messages:
    6,394
    Gender:
    Male
    First Name:
    Canadain bumper technician
    Great white North 51.0333° N, 93.8333° W
    Vehicle:
    2010.TRD.SportDCLB4x4Limited leather package
    TRD Sport Rally -5 speed automatic Limited ,Factory heated leather seats ,chrome package,Super white with front windows tinted to 35 % Dick Cepek DC-2 wheels Summer tires - Good year silent armor P265/65R17 Winter tires - Good year P265/65R17 Ultra Ice studded Illuminated 4x4 switch TRD 3rd brake light cover ($20) TRD seat belt shoulder protectors (5). ($50) TRD ...B pillar emblems ($20) TRD rear slider sticker with devil horns ( $6) TRD summer floor matts ($60) TRD steering wheel emblem ($20) TRD floor pedals .($95) TRD shorty antenna ($14) TRD front Windshield emblems ($17) TRD head pillows .($60) TRD head rest protectors TRD door scuff protection $20 TRD floor matt emblems ($40) TRD tow plug emblem . ($40) TRD cigarette lighter with LED.($35) TRD tissue dispenser ($12) TRD front bezel emblems ($9) TRD door emblems ($6) TRD lanyards($9) TRD lisence plates with TRD bolts($50) TRD fender emblems TRD center caps Part Number:PT904-35070-CC ($80) TRD cd
    i disconnected the front tweeters and used high power wiring from the cross overs and amp . the factory tweeter wiring cant handle 5000 watts
