UltraGauge 1st Gen ABS Issue Fix

Discussion in 'Technical Chat' started by zero4, Sep 12, 2010.

  1. Sep 12, 2010 at 8:22 PM
    #1
    zero4

    zero4 [OP] Metal Cutter

    Joined:
    Sep 10, 2006
    Member:
    #31
    Messages:
    440
    Gender:
    Male
    First Name:
    Will
    Northridge, CA
    Vehicle:
    01' DCab 3.4L TRD
    Donahoe CO, Donahoe Rear Resi, Deaver J59, 16" Pro Comp, 33" BFG AT, Hayden Trans Oil Cooler, Oil Filter Relocator, FM 40, ES Bushings, Beefed CB Drop, Deckplate, K&N Drop-In, DO Bed Bar, Cobra 75 WXST, Firestik Firefly, Philips D1R, Clarion Remote Start, Husky Liners
    Posting this here to compile this info from different threads as I know the info may get buried in the GB thread like all the other great info that people miss.

    References:
    http://www.tacomaterritory.com/forum/showthread.php?p=1998825#post1998825
    http://www.tacomaworld.com/forum/1st-gen-tacomas/111669-abs-light.html#post2153065
    http://www.tacomaworld.com/forum/gr...auge-group-buy-55-shipped-49.html#post2164012

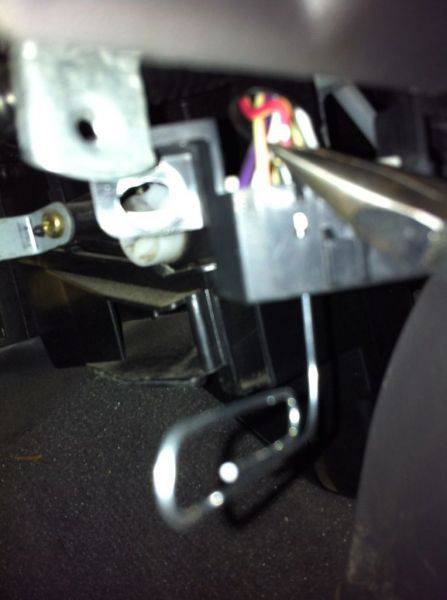

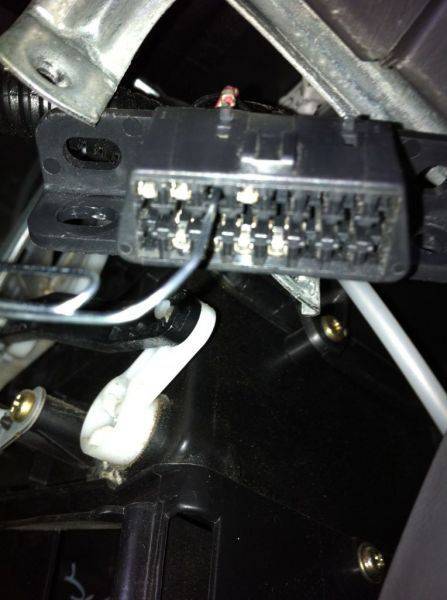

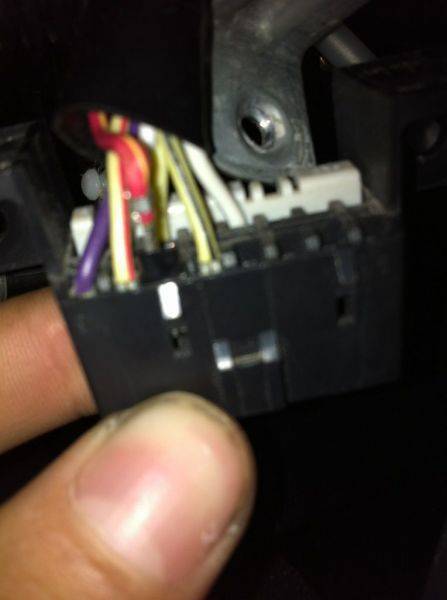

    snobord552 did a good job at confirming disconnecting pin 14 of the OBDII port does resolve the ABS light issue. He extracted the pin from the port as I suggested so there would not be any permanent modifications.

    Another idea I posted is to get an OBDII port extension cable like this: http://www.amazon.com/OBD2Cables-144201-OBD-Extension-Cable/dp/B000SBCHCA

    Modify the cable to disconnect pin 14, then you will not have to worry about any permanent modifications to the truck or the UG & still be 100% plug & play.

    Now you guys can enjoy your UG like the rest of us. If you need help I'm more than willing or post here.



  2. Sep 12, 2010 at 8:56 PM
    #2
    JAG

    JAG Well-Known Member

    Joined:
    Oct 9, 2008
    Member:
    #9847
    Messages:
    1,753
    Good job dude! You got mad skillz.

    [​IMG]

  3. Sep 12, 2010 at 8:58 PM
    #3
    zero4

    zero4 [OP] Metal Cutter

    Joined:
    Sep 10, 2006
    Member:
    #31
    Messages:
    440
    Gender:
    Male
    First Name:
    Will
    Northridge, CA
    Vehicle:
    01' DCab 3.4L TRD
    Donahoe CO, Donahoe Rear Resi, Deaver J59, 16" Pro Comp, 33" BFG AT, Hayden Trans Oil Cooler, Oil Filter Relocator, FM 40, ES Bushings, Beefed CB Drop, Deckplate, K&N Drop-In, DO Bed Bar, Cobra 75 WXST, Firestik Firefly, Philips D1R, Clarion Remote Start, Husky Liners
    ^^ :laugh:

    Credit goes to snobord552. ;)

  4. Sep 12, 2010 at 11:04 PM
    #4
    DIRT YOTA

    DIRT YOTA Aka EL ROJO

    Joined:
    Jun 22, 2010
    Member:
    #39302
    Messages:
    6,227
    Gender:
    Male
    First Name:
    Cory
    Camarillo, CA
    And the clouds parted, rays of sunlight surround my ultragauge :)

  5. Dec 16, 2010 at 9:26 PM
    #5
    kmok

    kmok Plastidipped ma Hootus!

    Joined:
    Jul 18, 2008
    Member:
    #8007
    Messages:
    2,350
    Gender:
    Male
    First Name:
    Kyle
    Columbus, Ohio
    Vehicle:
    2005 Subaru Outback XT 5MT
    Quick, somewhat stupid question, with the extender cable when looking at it I would be braking off pin 11 so no pin would go into 14? Just making sure before I snap off a pin on this extender cable. I think I'm making this more complicated than it really is...lol :eek:

    This would be like looking at the extender
    [​IMG]

    This would be like looking at the port on the truck
    [​IMG]

  6. Jul 24, 2011 at 9:03 AM
    #6
    Norton

    Norton Well-Known Member

    Joined:
    Mar 10, 2011
    Member:
    #52729
    Messages:
    2,742
    Gender:
    Male
    First Name:
    Steve
    Monument, CO
    Vehicle:
    2013 Access Cab 4x4 V6 6MT, TRD OR & Tow Packages
    ARE Z-Series Topper, OME 885 Coils, Dakar Leafs, NitroCharger Sports; TRD Quickshifter; TRD Exhaust; aFe POWER Magnum FLOW Pro DRY S Air Filter; Goodridge SS Brake Lines; Cooper Discoverer A/T3s on FJ SE Anthracite Rims; N-Fab 6-Step Nerf Bars; MetalMiller TRD Skid; jsi's Locker Anytime & ramonortiz55's Always on Power Outlet Relay Mods; crashnburn80's Ultimate Headlight & Fog Light Upgrades (RallyLights Harnesses, Osram 85/80W H4 & Flösser 90W H11 Bulbs); ND4's Fog Light Anytime Mod; Interior & Reverse LEDs; AudioControl LC2i LOC, JL Audio XD200/2v2 Amp, Focal PS165V1 Spkrs, Sound Ordnance B-8PTD Sub, Hushmat & Foam Insulation; Ltd Auto-Dim/Compass/Temp/Backup Camera/Homelink mirror; 4Runner 4X4 & FJ Fog Light Switches; Husky Floor Liners; UltraGauge EM; Redline Tuning QuickLIFT Elite; Mobtown Offroad Locking Bed Storage Doors; Toyota Bed Mat; Toyota Bed Extender; Pop & Lock Power Tailgate Lock; SolarGard Tint; CravenSpeed Stubby Antenna; Amsoil Lubricants; Adam's Detailing Supplies
    I apologize for reviving an ancient thread but, having finally bought an UG and an ODBII extension cable, I want to confirm which pin(s) I need to modify and kmok's pics are no longer showing up.

    Based on what I've read here, and in the linked posts, I understand I need to disable connectivity to my truck's (female) ODBII pin 14 which corresponds to the extension cable's (male) ODBII pin 11. Can anyone confirm?

    I've also seen anecdotal reports of possible Airbag issues on the truck's (female) ODBII pin 6, which I believe corresponds to the extension cable's (male) ODBII pin 3. Is this really a problem, or can I leave pin 3 intact?


    Attached Files:

  7. Jul 26, 2011 at 9:54 PM
    #7
    Norton

    Norton Well-Known Member

    Joined:
    Mar 10, 2011
    Member:
    #52729
    Messages:
    2,742
    Gender:
    Male
    First Name:
    Steve
    Monument, CO
    Vehicle:
    2013 Access Cab 4x4 V6 6MT, TRD OR & Tow Packages
    ARE Z-Series Topper, OME 885 Coils, Dakar Leafs, NitroCharger Sports; TRD Quickshifter; TRD Exhaust; aFe POWER Magnum FLOW Pro DRY S Air Filter; Goodridge SS Brake Lines; Cooper Discoverer A/T3s on FJ SE Anthracite Rims; N-Fab 6-Step Nerf Bars; MetalMiller TRD Skid; jsi's Locker Anytime & ramonortiz55's Always on Power Outlet Relay Mods; crashnburn80's Ultimate Headlight & Fog Light Upgrades (RallyLights Harnesses, Osram 85/80W H4 & Flösser 90W H11 Bulbs); ND4's Fog Light Anytime Mod; Interior & Reverse LEDs; AudioControl LC2i LOC, JL Audio XD200/2v2 Amp, Focal PS165V1 Spkrs, Sound Ordnance B-8PTD Sub, Hushmat & Foam Insulation; Ltd Auto-Dim/Compass/Temp/Backup Camera/Homelink mirror; 4Runner 4X4 & FJ Fog Light Switches; Husky Floor Liners; UltraGauge EM; Redline Tuning QuickLIFT Elite; Mobtown Offroad Locking Bed Storage Doors; Toyota Bed Mat; Toyota Bed Extender; Pop & Lock Power Tailgate Lock; SolarGard Tint; CravenSpeed Stubby Antenna; Amsoil Lubricants; Adam's Detailing Supplies
    Bueller? Bueller?

  8. Jul 26, 2011 at 10:57 PM
    #8
    DIRT YOTA

    DIRT YOTA Aka EL ROJO

    Joined:
    Jun 22, 2010
    Member:
    #39302
    Messages:
    6,227
    Gender:
    Male
    First Name:
    Cory
    Camarillo, CA
    Not sure but I got my ug back in the gb....I have an obdII extension but still haunt hooked it up, lol. I'm lazy.

  9. Jul 26, 2011 at 11:17 PM
    #9
    kmok

    kmok Plastidipped ma Hootus!

    Joined:
    Jul 18, 2008
    Member:
    #8007
    Messages:
    2,350
    Gender:
    Male
    First Name:
    Kyle
    Columbus, Ohio
    Vehicle:
    2005 Subaru Outback XT 5MT
    Let me see if I can find those pics or I'll pull my cable out and see which prong I took off.

  10. Jul 26, 2011 at 11:24 PM
    #10
    kmok

    kmok Plastidipped ma Hootus!

    Joined:
    Jul 18, 2008
    Member:
    #8007
    Messages:
    2,350
    Gender:
    Male
    First Name:
    Kyle
    Columbus, Ohio
    Vehicle:
    2005 Subaru Outback XT 5MT
    Pin 11 is correct, that's all I pulled on mine and I've had no issues with it.

  11. Jul 27, 2011 at 12:36 AM
    #11
    Norton

    Norton Well-Known Member

    Joined:
    Mar 10, 2011
    Member:
    #52729
    Messages:
    2,742
    Gender:
    Male
    First Name:
    Steve
    Monument, CO
    Vehicle:
    2013 Access Cab 4x4 V6 6MT, TRD OR & Tow Packages
    ARE Z-Series Topper, OME 885 Coils, Dakar Leafs, NitroCharger Sports; TRD Quickshifter; TRD Exhaust; aFe POWER Magnum FLOW Pro DRY S Air Filter; Goodridge SS Brake Lines; Cooper Discoverer A/T3s on FJ SE Anthracite Rims; N-Fab 6-Step Nerf Bars; MetalMiller TRD Skid; jsi's Locker Anytime & ramonortiz55's Always on Power Outlet Relay Mods; crashnburn80's Ultimate Headlight & Fog Light Upgrades (RallyLights Harnesses, Osram 85/80W H4 & Flösser 90W H11 Bulbs); ND4's Fog Light Anytime Mod; Interior & Reverse LEDs; AudioControl LC2i LOC, JL Audio XD200/2v2 Amp, Focal PS165V1 Spkrs, Sound Ordnance B-8PTD Sub, Hushmat & Foam Insulation; Ltd Auto-Dim/Compass/Temp/Backup Camera/Homelink mirror; 4Runner 4X4 & FJ Fog Light Switches; Husky Floor Liners; UltraGauge EM; Redline Tuning QuickLIFT Elite; Mobtown Offroad Locking Bed Storage Doors; Toyota Bed Mat; Toyota Bed Extender; Pop & Lock Power Tailgate Lock; SolarGard Tint; CravenSpeed Stubby Antenna; Amsoil Lubricants; Adam's Detailing Supplies
    THANK YOU!

  12. Feb 2, 2012 at 7:34 PM
    #12
    tacomaforlife

    tacomaforlife Well-Known Member

    Joined:
    Jul 27, 2009
    Member:
    #20265
    Messages:
    2,435
    Gender:
    Male
    First Name:
    Robbie
    AIKEN, SC
    Vehicle:
    Its a Toyota what more is there to say.....
    TRD S/C 3" sky jacker suspension lift,33" kumho road venture mt kl71's 16" 320c pacer wheels,billet grill,EBC slotted and dimpled rotors,super 44 muffler with gutted cat,smoked l.e.d. tail lights, deck plate mod with K&N filter,fog/blinker mod,cobra cb with 4' firestick antenna/100W PA,clear corners with l.e.d bulbs,55w back up lights,urd O2 sim., blue l.e.d bulbs behind gauge cluster.
  13. Apr 25, 2012 at 5:31 PM
    #13
    sean266

    sean266 #ThinBlueLine Moderator

    Joined:
    Mar 21, 2011
    Member:
    #53447
    Messages:
    21,392
    Gender:
    Male
    Does this disengage ABS as well?

  14. Apr 25, 2012 at 6:45 PM
    #14
    tacomaforlife

    tacomaforlife Well-Known Member

    Joined:
    Jul 27, 2009
    Member:
    #20265
    Messages:
    2,435
    Gender:
    Male
    First Name:
    Robbie
    AIKEN, SC
    Vehicle:
    Its a Toyota what more is there to say.....
    TRD S/C 3" sky jacker suspension lift,33" kumho road venture mt kl71's 16" 320c pacer wheels,billet grill,EBC slotted and dimpled rotors,super 44 muffler with gutted cat,smoked l.e.d. tail lights, deck plate mod with K&N filter,fog/blinker mod,cobra cb with 4' firestick antenna/100W PA,clear corners with l.e.d bulbs,55w back up lights,urd O2 sim., blue l.e.d bulbs behind gauge cluster.
    no.

  15. Apr 25, 2012 at 6:55 PM
    #15
    Norton

    Norton Well-Known Member

    Joined:
    Mar 10, 2011
    Member:
    #52729
    Messages:
    2,742
    Gender:
    Male
    First Name:
    Steve
    Monument, CO
    Vehicle:
    2013 Access Cab 4x4 V6 6MT, TRD OR & Tow Packages
    ARE Z-Series Topper, OME 885 Coils, Dakar Leafs, NitroCharger Sports; TRD Quickshifter; TRD Exhaust; aFe POWER Magnum FLOW Pro DRY S Air Filter; Goodridge SS Brake Lines; Cooper Discoverer A/T3s on FJ SE Anthracite Rims; N-Fab 6-Step Nerf Bars; MetalMiller TRD Skid; jsi's Locker Anytime & ramonortiz55's Always on Power Outlet Relay Mods; crashnburn80's Ultimate Headlight & Fog Light Upgrades (RallyLights Harnesses, Osram 85/80W H4 & Flösser 90W H11 Bulbs); ND4's Fog Light Anytime Mod; Interior & Reverse LEDs; AudioControl LC2i LOC, JL Audio XD200/2v2 Amp, Focal PS165V1 Spkrs, Sound Ordnance B-8PTD Sub, Hushmat & Foam Insulation; Ltd Auto-Dim/Compass/Temp/Backup Camera/Homelink mirror; 4Runner 4X4 & FJ Fog Light Switches; Husky Floor Liners; UltraGauge EM; Redline Tuning QuickLIFT Elite; Mobtown Offroad Locking Bed Storage Doors; Toyota Bed Mat; Toyota Bed Extender; Pop & Lock Power Tailgate Lock; SolarGard Tint; CravenSpeed Stubby Antenna; Amsoil Lubricants; Adam's Detailing Supplies
    Does what disengage the ABS?

  16. Apr 26, 2012 at 6:27 AM
    #16
    sean266

    sean266 #ThinBlueLine Moderator

    Joined:
    Mar 21, 2011
    Member:
    #53447
    Messages:
    21,392
    Gender:
    Male
    The mod

  17. Apr 26, 2012 at 7:18 PM
    #17
    Norton

    Norton Well-Known Member

    Joined:
    Mar 10, 2011
    Member:
    #52729
    Messages:
    2,742
    Gender:
    Male
    First Name:
    Steve
    Monument, CO
    Vehicle:
    2013 Access Cab 4x4 V6 6MT, TRD OR & Tow Packages
    ARE Z-Series Topper, OME 885 Coils, Dakar Leafs, NitroCharger Sports; TRD Quickshifter; TRD Exhaust; aFe POWER Magnum FLOW Pro DRY S Air Filter; Goodridge SS Brake Lines; Cooper Discoverer A/T3s on FJ SE Anthracite Rims; N-Fab 6-Step Nerf Bars; MetalMiller TRD Skid; jsi's Locker Anytime & ramonortiz55's Always on Power Outlet Relay Mods; crashnburn80's Ultimate Headlight & Fog Light Upgrades (RallyLights Harnesses, Osram 85/80W H4 & Flösser 90W H11 Bulbs); ND4's Fog Light Anytime Mod; Interior & Reverse LEDs; AudioControl LC2i LOC, JL Audio XD200/2v2 Amp, Focal PS165V1 Spkrs, Sound Ordnance B-8PTD Sub, Hushmat & Foam Insulation; Ltd Auto-Dim/Compass/Temp/Backup Camera/Homelink mirror; 4Runner 4X4 & FJ Fog Light Switches; Husky Floor Liners; UltraGauge EM; Redline Tuning QuickLIFT Elite; Mobtown Offroad Locking Bed Storage Doors; Toyota Bed Mat; Toyota Bed Extender; Pop & Lock Power Tailgate Lock; SolarGard Tint; CravenSpeed Stubby Antenna; Amsoil Lubricants; Adam's Detailing Supplies
    In that case, I agree with tacomaforlife's answer of NO. This mod does nothing to your ABS functionality. (I'm pretty sure allowing the Ultragauge to place your ABS into what I understand to be a "diagnostic mode," however, DOES impact ABS functionality.)

  18. Dec 26, 2013 at 8:14 AM
    #18
    zacharypaul89

    zacharypaul89 Eat right, be fit, die anyway

    Joined:
    Sep 15, 2010
    Member:
    #43297
    Messages:
    11,304
    Gender:
    Male
    First Name:
    Zach
    Georgia
    Vehicle:
    2003 TRD 4WD 3.4 V6 Supercharged w/ Locker

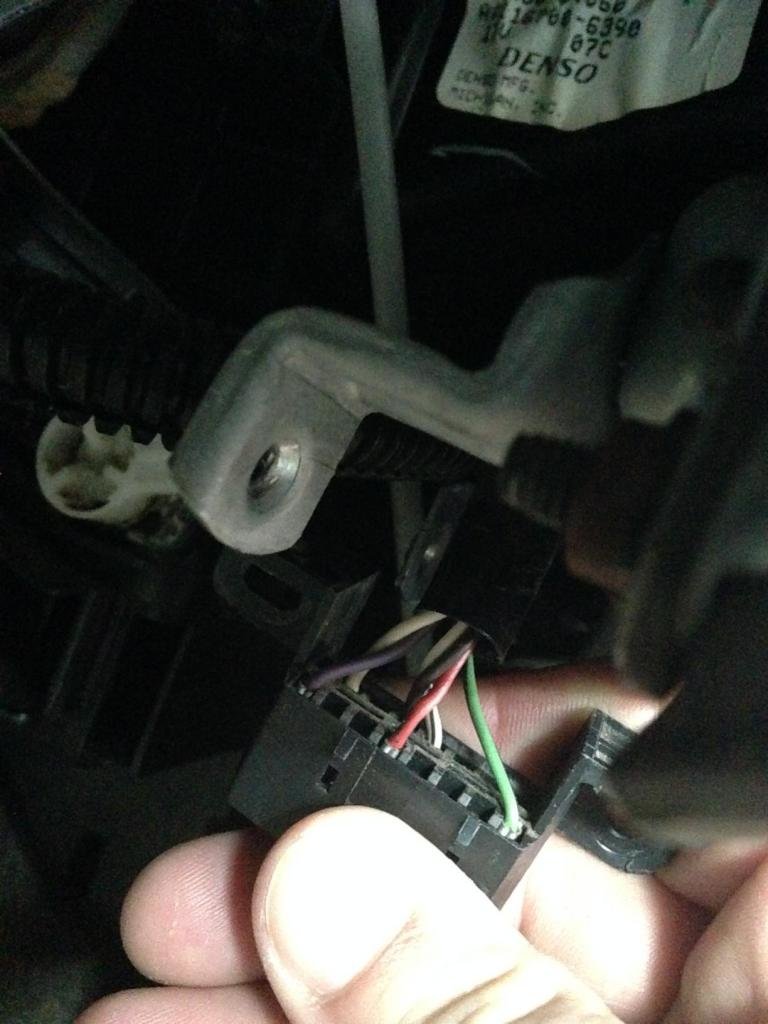

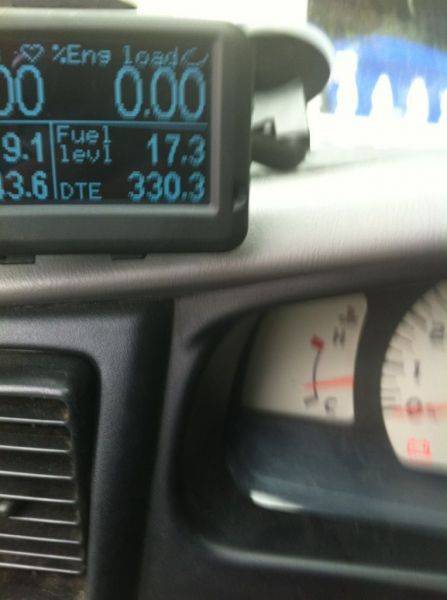

    I hate to revive a dead thread, but I got my Ultragauge for Christmas yesterday and am having some issues connecting it. I connected and rode about a mile and the ABS light didn't come on or anything, but the Ultragauge kept beeping and saying error or something. Also, when I connected it and it scanned, it said there was a 9141 Protocol. I don't know if that's got anything to do with the ABS or what, but when I tried to follow the instructions on this thread, I noticed that my OBDII isn't configured like the one in the pictures. PLEASE HELP!!!!

    [​IMG]

  19. Jan 26, 2014 at 9:37 PM
    #19
    MedicMutt

    MedicMutt Purveyor of Useless Info

    Joined:
    Oct 2, 2013
    Member:
    #113680
    Messages:
    518
    Gender:
    Male
    First Name:
    Josh
    Northshore, LA
    Vehicle:
    '03 DC PreRunner TRD
    ARE Tonneau cover, GoRhino "Grille Guard", Ultragauge
    Sub'd for reference. Getting in on the current GB.

  20. Jan 27, 2014 at 1:19 PM
    #20
    Chipskip

    Chipskip N7MCS

    Joined:
    Aug 31, 2010
    Member:
    #42519
    Messages:
    8,778
    Gender:
    Male
    First Name:
    Chip
    Phoenix / Payson, AZ
    Vehicle:
    98 Tacoma Limited
    Deck Plate, '17 rims, Tundra Brake Upgrade, All-Pro Expo Leaf Packs, 01-04 Center Console, Ultragauge, LED interior lights, HO alternator...
