VIMTY-05 and front/rear cameras

Discussion in '3rd Gen. Tacomas (2016+)' started by KENNY, Jan 5, 2017.

  1. Jan 5, 2017 at 11:43 AM
    #1
    KENNY

    KENNY [OP] Non pro grille edition

    Joined:
    Jan 13, 2011
    Member:
    #49232
    Messages:
    855
    Gender:
    Male
    Austin, TX
    Vehicle:
    '17 4X Sport
    Was curious if anyone was succesful in running switches with the vimty harness? My goal would be to bypass the screen audio, av buttons/steering controls and just have seperate front and rear rocker switches for the cameras, to function with the oem screen. I've also read about the 3rd gen rear camera anytime mod with the diode, but wasn't sure to do this with the harness.. Anyone with first hand experience with any of this have any input, would be appreciated :thumbsup:

    Also does everyone else get the ebrake alarm when pressing the 5 button pad while driving?

  2. Jan 8, 2017 at 8:08 PM
    #2
    yub

    yub Member

    Joined:
    Aug 18, 2016
    Member:
    #194917
    Messages:
    15
    Gender:
    Male
  3. Jan 16, 2017 at 7:52 AM
    #3
    KENNY

    KENNY [OP] Non pro grille edition

    Joined:
    Jan 13, 2011
    Member:
    #49232
    Messages:
    855
    Gender:
    Male
    Austin, TX
    Vehicle:
    '17 4X Sport
    Bump.

    I went head and did the rear anytime mod with a switch, but still curious how to do a front anytime on switch mod. Anyone?

  4. Mar 10, 2018 at 11:49 AM
    #4
    muchostacos

    muchostacos Member

    Joined:
    Mar 17, 2016
    Member:
    #181584
    Messages:
    20
    Gender:
    Male
    Houston, TX
    Vehicle:
    2016 White DCLB TRD Off road

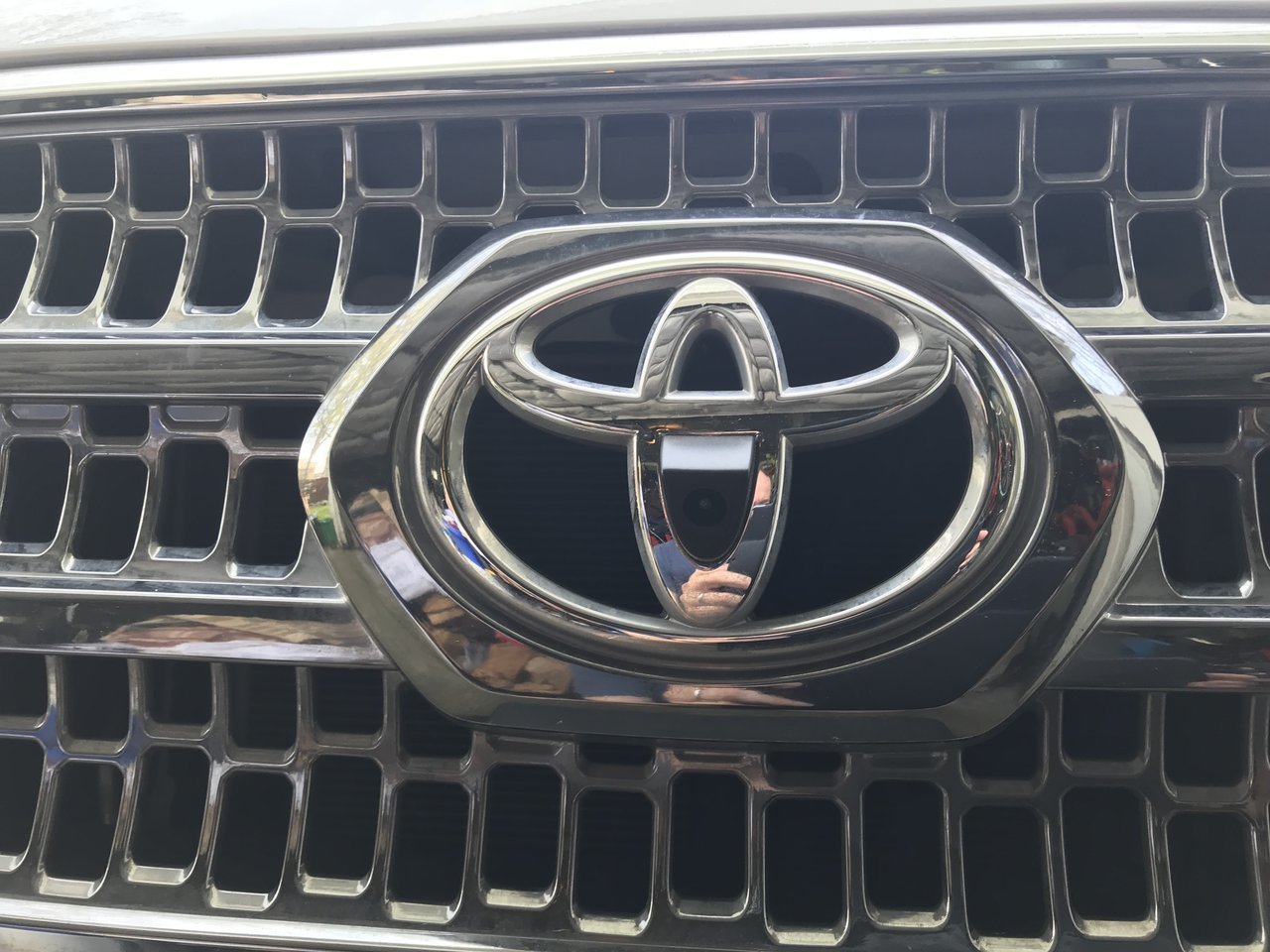

    I used the VIMTY-05 and the Inewcow logo camera.

    iNewcow Car Front View Logo Embeded Camera For Toyota with CCD Waterproof IP67 Wide Degree (Middle) $30 iNewcow Car Front View Logo Embeded Camera For Toyota with CCD Waterproof IP67 Wide Degree (Middle)https://www.amazon.com/dp/B00P2EN5J2/ref=cm_sw_r_cp_tai_CidPAbHENAJGN

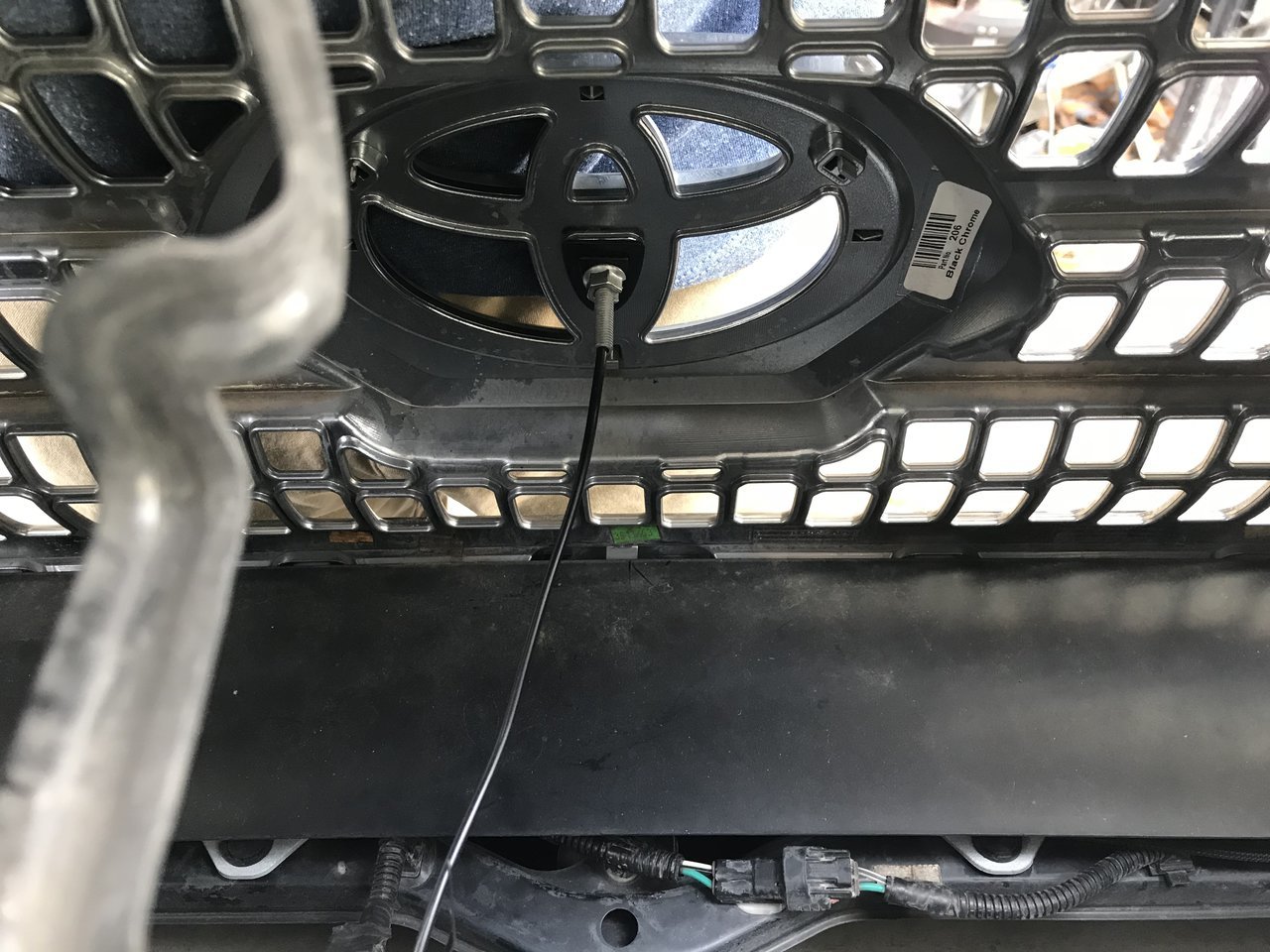

    The little bracelet that holds it to the logo is cheap so I just did a hand tighten it.

    The first cable from the camera almost got to the cabin.

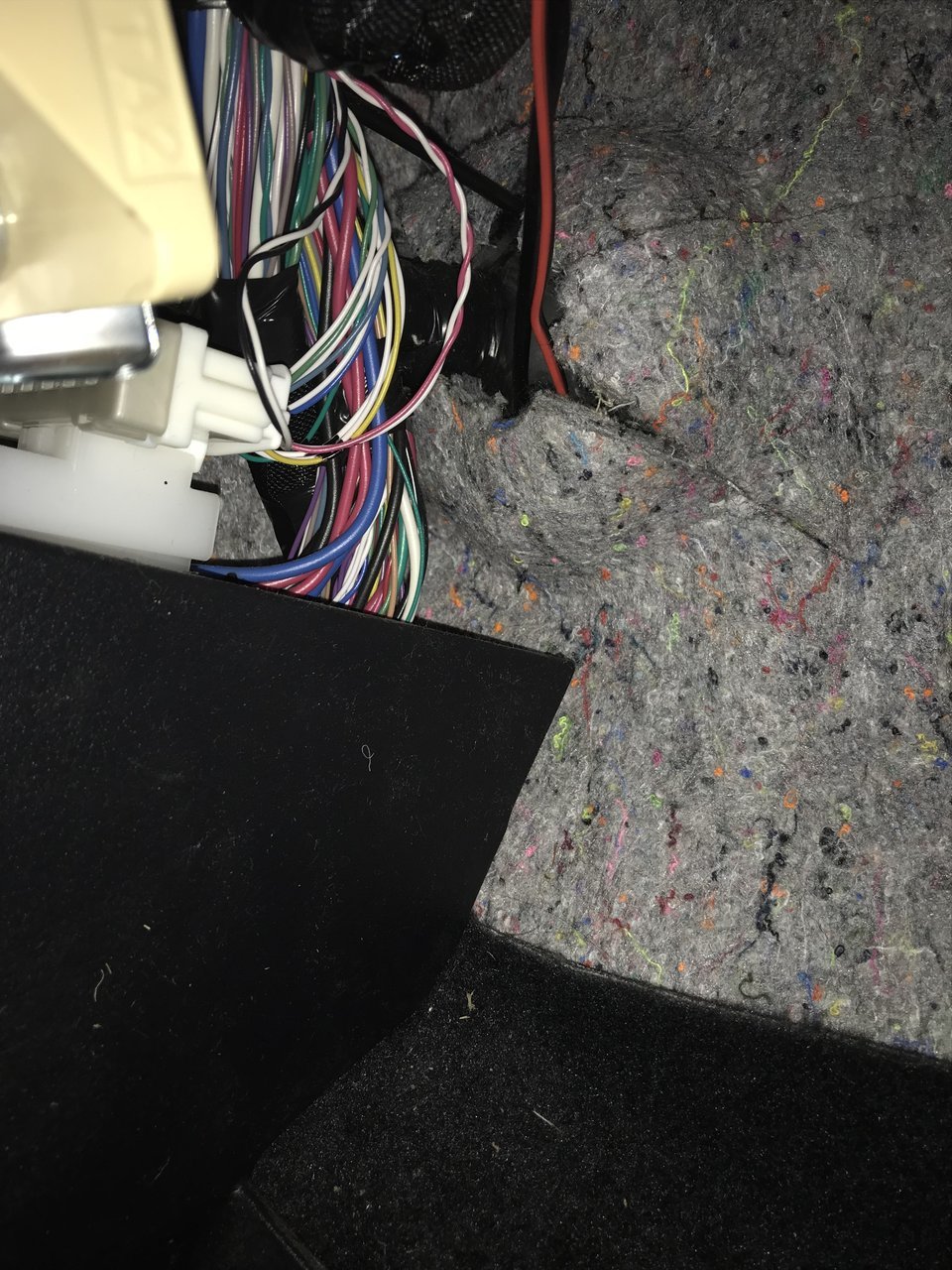

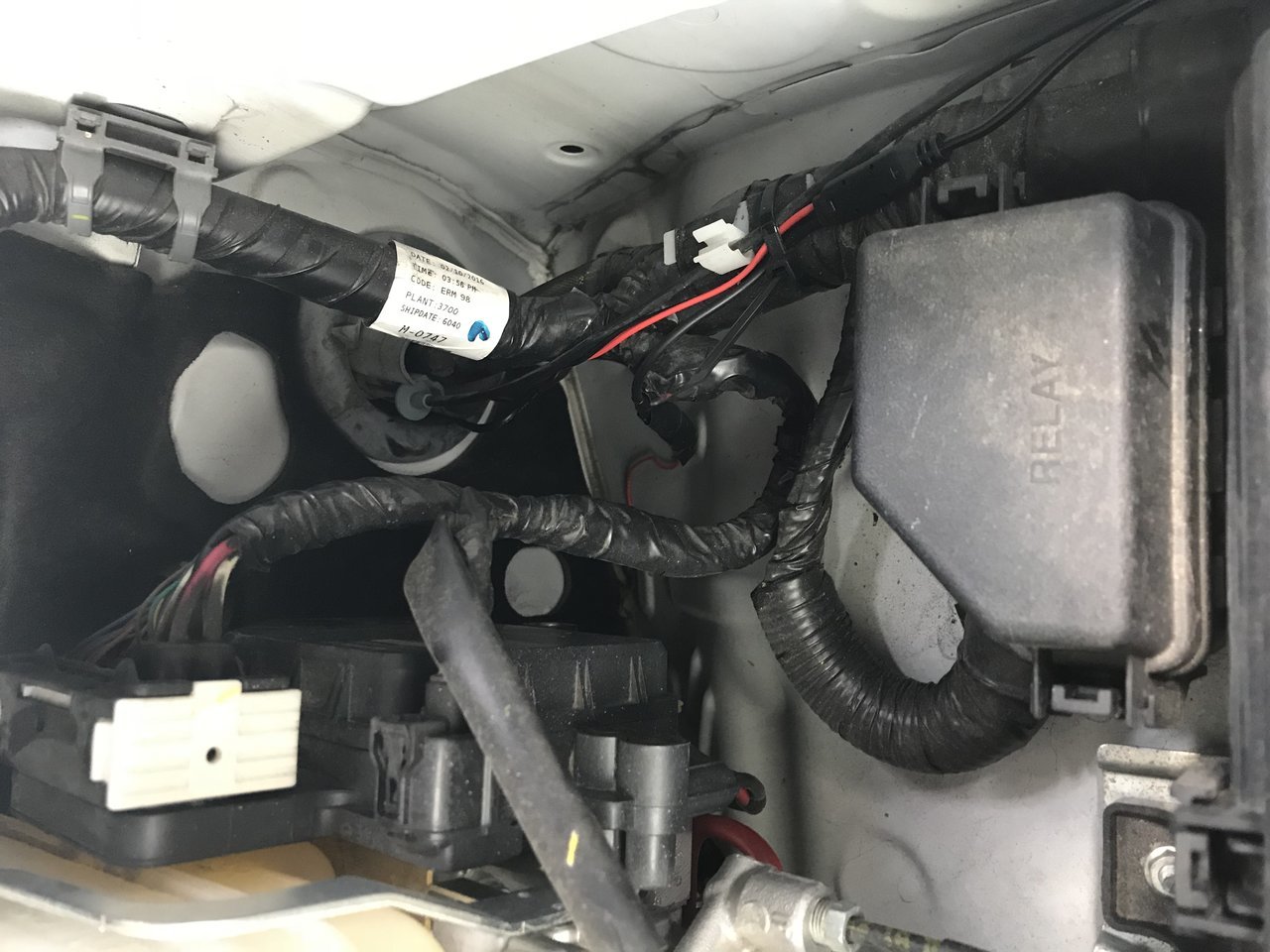

    I ran it through the firewall where the main wiring was.

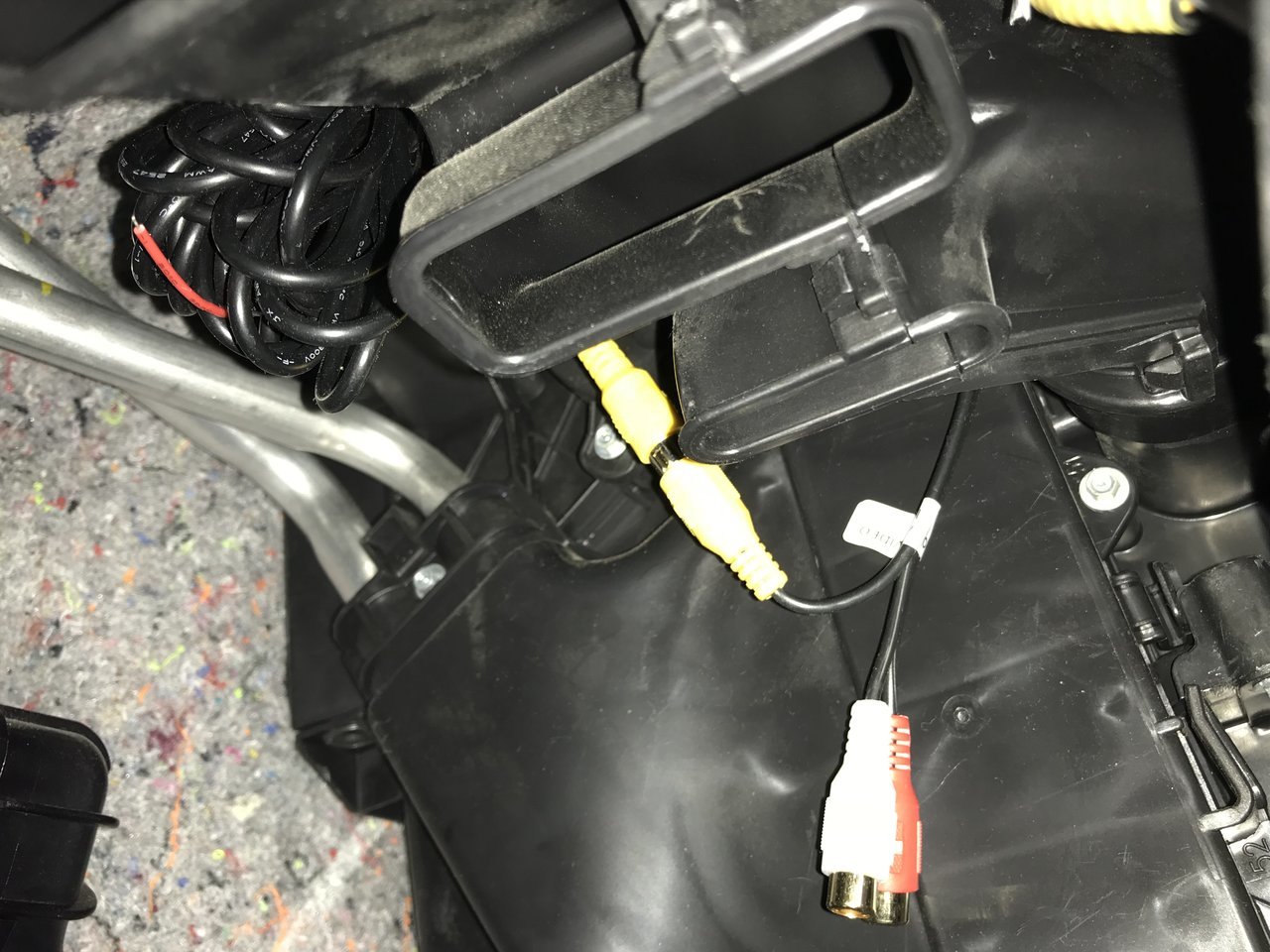

    I ran the power and ground to the VIMTY-05. The 10 pin connector has accessory power and a ground. No need to power it when the truck is off. I connected the RCAs on the driver’s side because it was easier to reach.

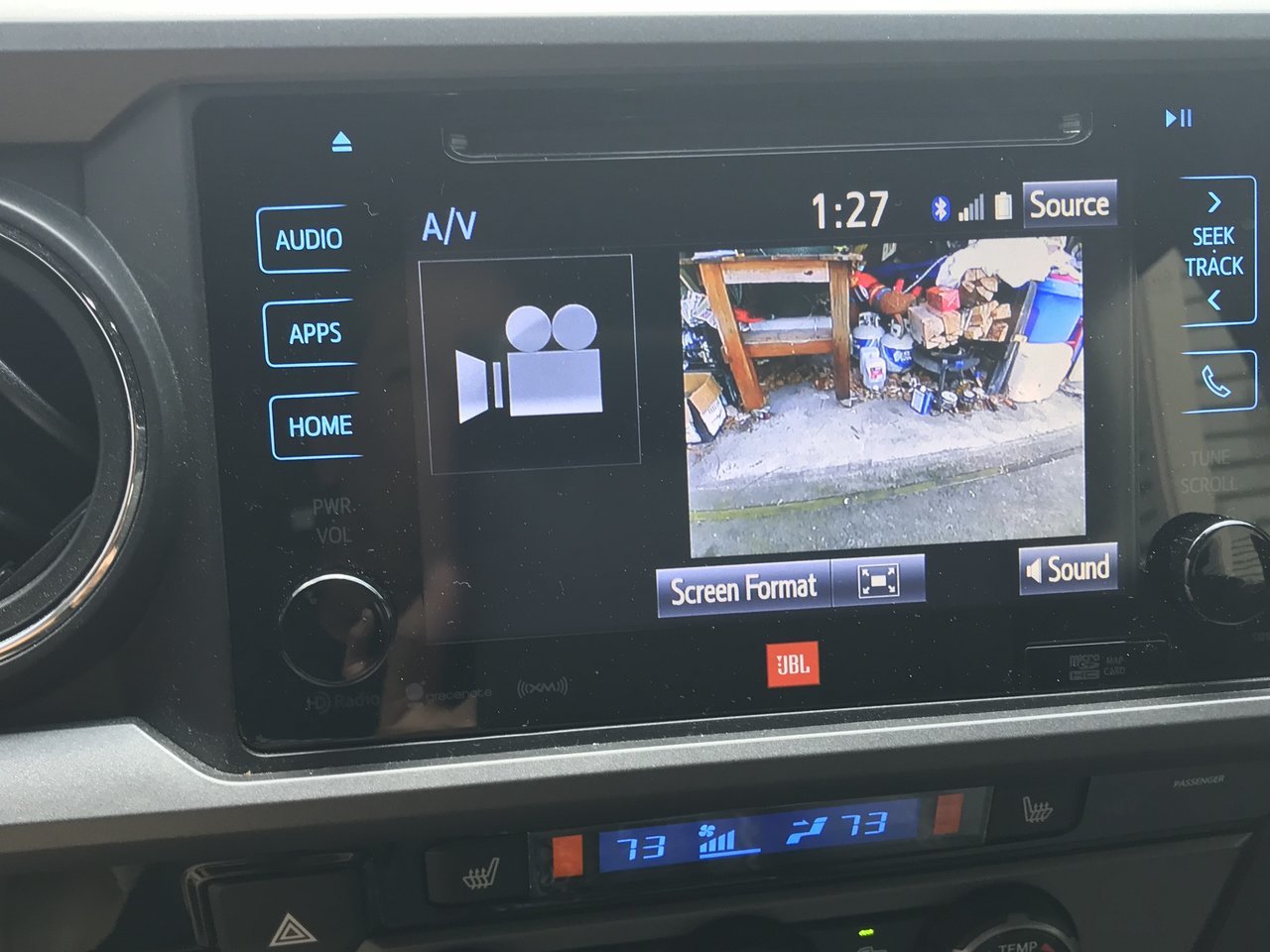

    The results were pretty good. The VIMTY-05 adds an A/V source. To activate the camera in motion, you select the A/V source and just hold the Seek Up button on the steering wheel for 5 seconds.

    I am probably going to add an A/V switch and hook up the backup camera so I can switch between the two.

    doublethebass likes this.
  5. Mar 10, 2018 at 1:47 PM
    #5
    BigWhiteTRD

    BigWhiteTRD Well-Known Member

    Joined:
    May 24, 2017
    Member:
    #219848
    Messages:
    376
    Gender:
    Male
    First Name:
    Ted
    Treasure/Space Coast Florida
    Vehicle:
    2017 AC TRD OR Auto, 4wd w/2 whl Lo mod
    I just made homegrown harness '

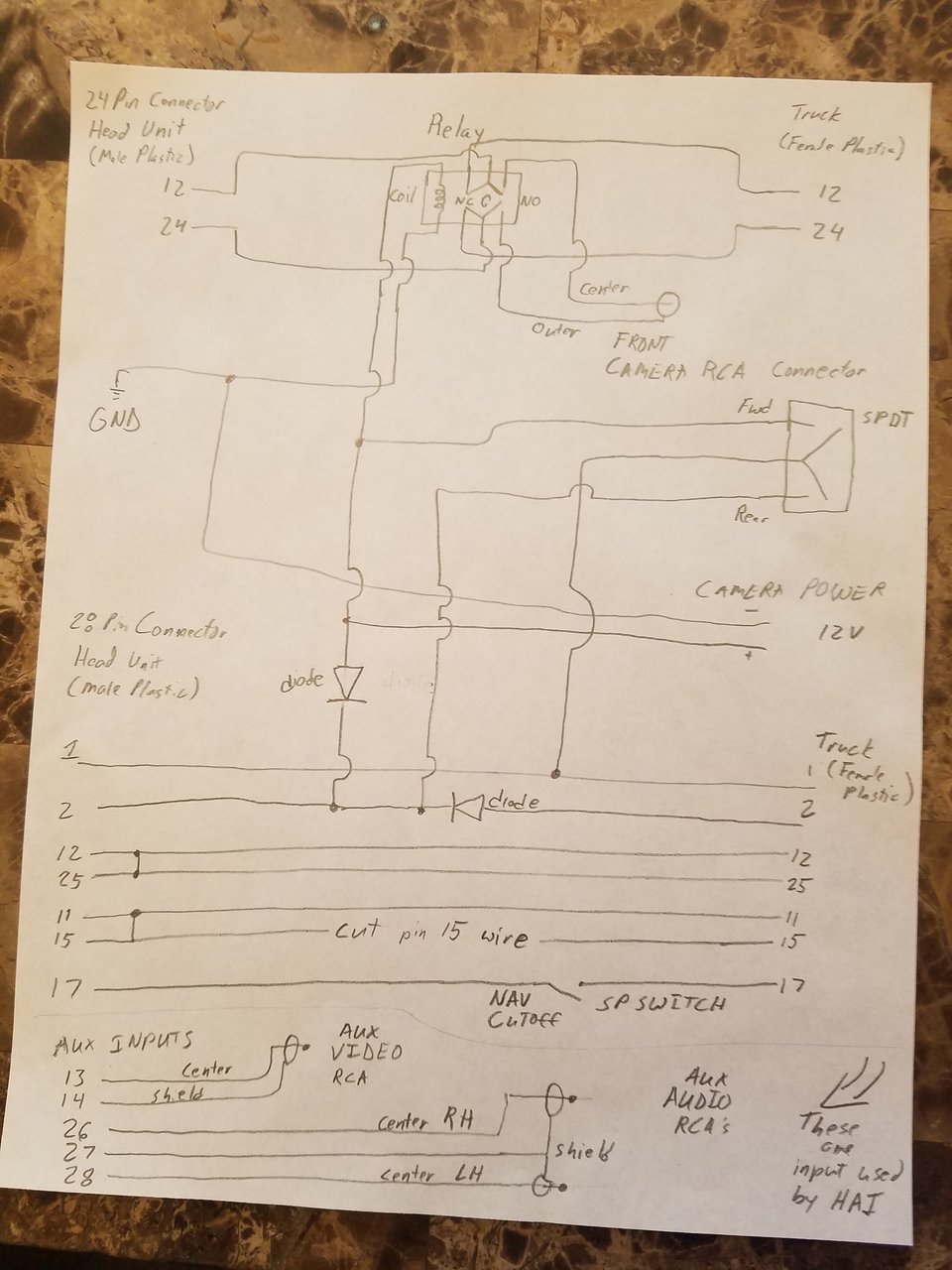

    THis schematic is for a SPDT toggle switch type solution.
    [​IMG]


    This 28 pin connector https://www.tacomaworld.com/threads...ter-and-oem-style-camera-gps-switches.458293/
    AND
    This 24 pin connector (or any similar vendor) AX-TOYCAM3 $15 Axxess AX-TOYCAM3 Back-up Camera Retention/Add-On Harness for 2013-2016 Toyotahttps://www.ebay.com/itm/Axxess-AX-...08AAOSwhQhY5~FH:sc:USPSFirstClass!32909!US!-1

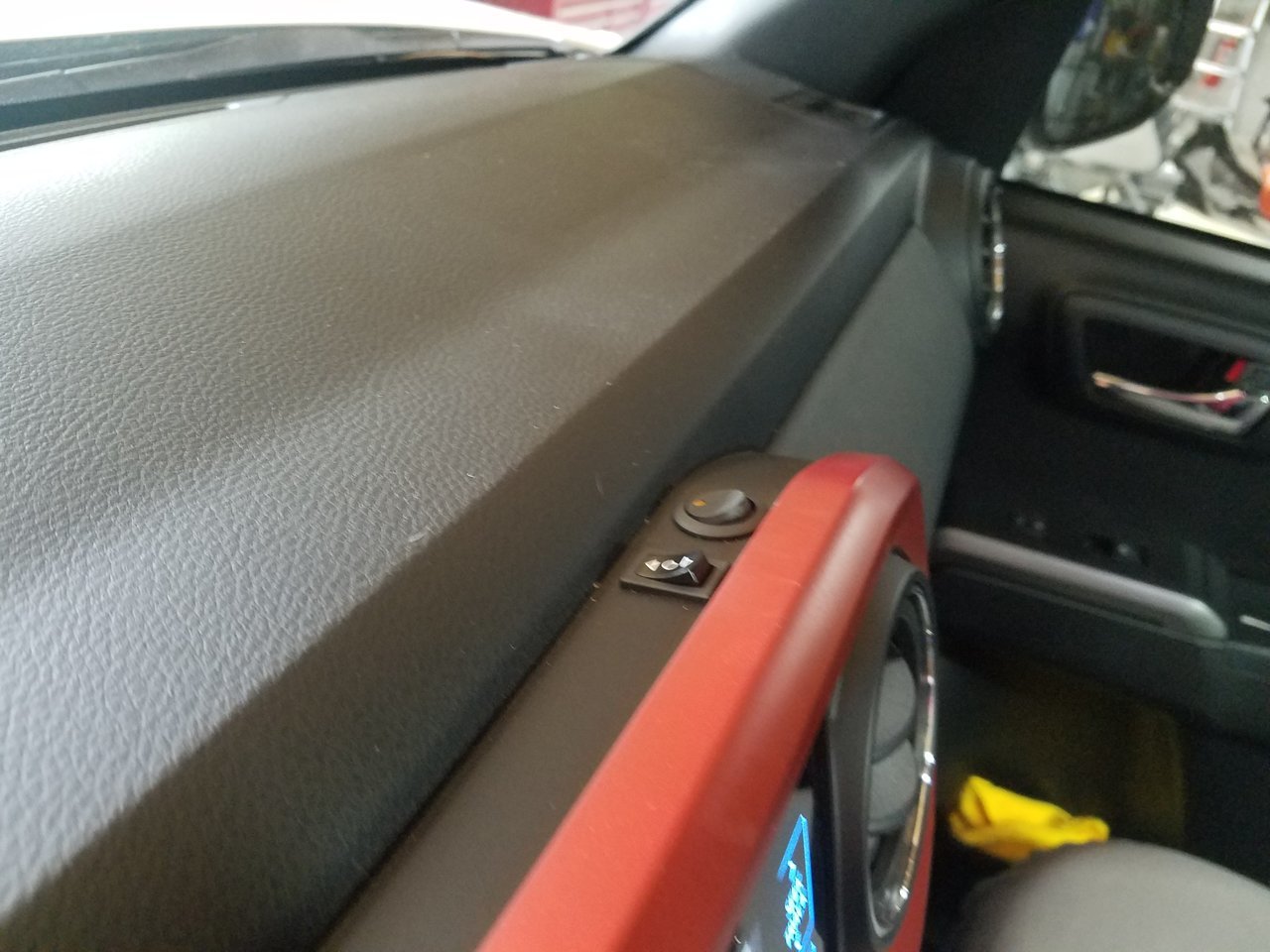

    SPDT switch for normal, front camera override, rear camera override. Separate switch for Nav override.
    [​IMG]

    doublethebass likes this.
  6. Mar 13, 2018 at 11:58 AM
    #6
    KENNY

    KENNY [OP] Non pro grille edition

    Joined:
    Jan 13, 2011
    Member:
    #49232
    Messages:
    855
    Gender:
    Male
    Austin, TX
    Vehicle:
    '17 4X Sport
    How did you override for the front camera/what did you have to tap into?

    I did the diode for the rear, but not sure what do do for the front that is connected to the VIMTY for a switch?

  7. Mar 21, 2018 at 10:16 PM
    #7
    UplandExplorer

    UplandExplorer Level of crazy: Chukar Hunter

    Joined:
    Jan 31, 2018
    Member:
    #243051
    Messages:
    161
    Gender:
    Male
    First Name:
    Turbine Tommy aka Mr.Pickles
    Nor Cal
    Vehicle:
    2017 White TRD OR DCSB
    mud, bugs, feathers, and dog hairs.

    Mind reposting your schematic? The image doesnt seam to work for me...(iphone problem maybe?)

  8. Mar 22, 2018 at 10:05 AM
    #8
    BigWhiteTRD

    BigWhiteTRD Well-Known Member

    Joined:
    May 24, 2017
    Member:
    #219848
    Messages:
    376
    Gender:
    Male
    First Name:
    Ted
    Treasure/Space Coast Florida
    Vehicle:
    2017 AC TRD OR Auto, 4wd w/2 whl Lo mod
    Don't know, but I will try posting it again.

    UplandExplorer likes this.
  9. Mar 22, 2018 at 10:08 AM
    #9
    UplandExplorer

    UplandExplorer Level of crazy: Chukar Hunter

    Joined:
    Jan 31, 2018
    Member:
    #243051
    Messages:
    161
    Gender:
    Male
    First Name:
    Turbine Tommy aka Mr.Pickles
    Nor Cal
    Vehicle:
    2017 White TRD OR DCSB
    mud, bugs, feathers, and dog hairs.
    Sweet thanks!

  10. Mar 22, 2018 at 10:11 AM
    #10
    BigWhiteTRD

    BigWhiteTRD Well-Known Member

    Joined:
    May 24, 2017
    Member:
    #219848
    Messages:
    376
    Gender:
    Male
    First Name:
    Ted
    Treasure/Space Coast Florida
    Vehicle:
    2017 AC TRD OR Auto, 4wd w/2 whl Lo mod
    UplandExplorer likes this.
  11. Mar 22, 2018 at 10:41 AM
    #11
    UplandExplorer

    UplandExplorer Level of crazy: Chukar Hunter

    Joined:
    Jan 31, 2018
    Member:
    #243051
    Messages:
    161
    Gender:
    Male
    First Name:
    Turbine Tommy aka Mr.Pickles
    Nor Cal
    Vehicle:
    2017 White TRD OR DCSB
    mud, bugs, feathers, and dog hairs.
    Totally understand....ive been compiling all the data i can find. Appreciate it.
