Winch wiring: Input needed

Discussion in 'Recovery' started by Roberto123, Mar 18, 2021.

  1. Mar 18, 2021 at 5:16 AM
    #1
    Roberto123

    Roberto123 [OP] Well-Known Member

    Joined:
    Feb 21, 2021
    Member:
    #356865
    Messages:
    65
    Gender:
    Male
    First Name:
    robert
    Vehicle:
    2018 Tarcoma SR 4X4 Dbl Cab
    Greetings,

    I have a gen 3 stock Tacoma.

    I installed:
    The winch leads look to be 2/0 AWG.

    For wiring front and back, I am thinking of making my own cables using:
    I am still looking for a proper battery connection. Also, looking into if I need to update stock battery. The winch has max amperage of 300A. When I look at the Warn chart, most of the time I will be using 150-175 amps for short pulls.

    Do I need any additional parts?

    Other: There seems to be a lot of people using smaller diameter cable for this sort of hook up. How are they getting away with this? The max 300 amp needs the 2/0 especially for the back as it is a longer cable.

    The parts I need, listed above are going to run about $250. This seems a bit excessive but I do not see a way around it.

    Thank you in advance for any input!

    Bastek likes this.
  2. Mar 18, 2021 at 5:21 AM
    #2
    Sandman614

    Sandman614 Snarky TWSS elf, Travis #hotsavannahdotcom, LRGRNR

    Joined:
    Oct 26, 2010
    Member:
    #45273
    Messages:
    34,758
    Gender:
    Male
    First Name:
    Tim
    Garner, NC/Boone, NC
    Vehicle:
    '06 SR5 Off Road
    ARB Front Bumper, Projector Headlights w/Slimcubby 4300K HID's, Oznium LED's, LED taillights, DIY Washable Cabin Moose Filter, Sockmonkey SR5 Off Road, Aux Audio plug, OME 886x, OME Nitrochargers, Wheelers 3 Leaf Progressive AAL, ImMrYo Rear-View Mirror Lift Bracket, Dodge D-Rings
    I have my MM8000 winch connected with 2 AWG wire, the cables that come on winches from the manufacturers are usually 4awg or 2awg. I like to run a breaker, there is someone that has had their winch control short out and the hook ended up shooting into an intersection.

    Your battery should be fine if you winch with the truck running. You might notice it getting weaker because the extra load if you actually use your winch but I haven't, I also don't run a factory battery.

    Last edited: Mar 18, 2021
    Roberto123 [OP] likes this.
  3. Mar 18, 2021 at 6:34 AM
    #3
    Roberto123

    Roberto123 [OP] Well-Known Member

    Joined:
    Feb 21, 2021
    Member:
    #356865
    Messages:
    65
    Gender:
    Male
    First Name:
    robert
    Vehicle:
    2018 Tarcoma SR 4X4 Dbl Cab
    Thank you for the quick reply Sandman. You made me see a major mistake I was about to make. I am glad I put the question to the board. I almost ordered everything last night.

    • Issue resolved: Your response made me wonder if I was measuring the winch leads diameter wrong. I realized I was incorrectly including wire insulation in my measurement which made it about 3/8. After measuring again I see that 1 or 2 AWG is the true size (not the 2/0 I initially thought).
    • Breaker: Can you share the breaker that you use? I plan to keep the winch disconnected using the quick connect near the battery when not in use. Maybe in the future, I will add a batt switch.
    • Should I wire the cable at the battery end directly to the post-tightening nuts? Or is there a different option?

  4. Mar 18, 2021 at 6:41 AM
    #4
    Sandman614

    Sandman614 Snarky TWSS elf, Travis #hotsavannahdotcom, LRGRNR

    Joined:
    Oct 26, 2010
    Member:
    #45273
    Messages:
    34,758
    Gender:
    Male
    First Name:
    Tim
    Garner, NC/Boone, NC
    Vehicle:
    '06 SR5 Off Road
    ARB Front Bumper, Projector Headlights w/Slimcubby 4300K HID's, Oznium LED's, LED taillights, DIY Washable Cabin Moose Filter, Sockmonkey SR5 Off Road, Aux Audio plug, OME 886x, OME Nitrochargers, Wheelers 3 Leaf Progressive AAL, ImMrYo Rear-View Mirror Lift Bracket, Dodge D-Rings
    I use a circuit breaker similar to this. If you look up the datasheet for them there are graphs showing how long they can handle an overload, something like 3x up to 30secs. It can be tripped manually to be used like a battery switch too.
    https://www.amazon.com/Tocas-Circuit-Switchable-Waterproof-Flush-Mount/dp/B06Y4172LP/

    https://www.amazon.com/Manual-Resettable-Circuit-Breaker-CB-200A/dp/B01CH34FEY

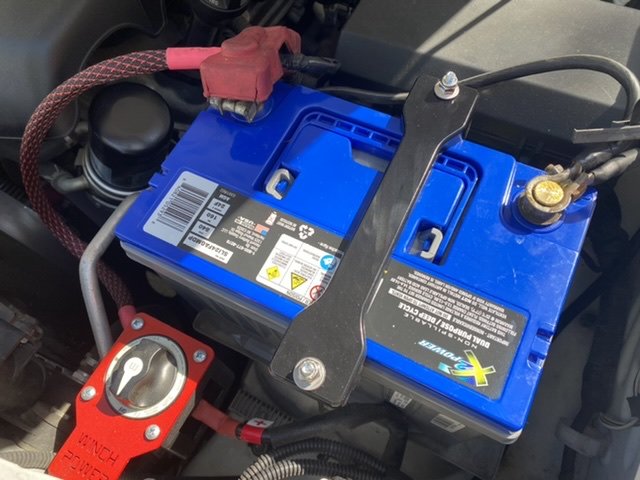

    I use these "military" battery terminals for more room to add things. If your factory bolt has enough room that is fine, or if you have a marine or other battery with secondary posts that is fine too.
    [​IMG]

    jbrandt and Roberto123 [OP] like this.
  5. Mar 18, 2021 at 7:40 AM
    #5
    Grossomotto

    Grossomotto Complete 3rd Member

    Joined:
    Mar 13, 2018
    Member:
    #247175
    Messages:
    7,679
    39.9526° N, 75.1652° W
    Vehicle:
    2017 4WDV6LB6MT
    What's your take on the cheaper breakers? I've read some negative reviews on them. They're really not that much cheaper than Bussmann.

    https://www.amazon.com/gp/customer-...f=cm_cr_arp_d_rvw_ttl?ie=UTF8&ASIN=B06Y4172LP

    https://powerwerx.com/eaton-187f-waterproof-circuit-breaker-surface-mount


  6. Mar 18, 2021 at 7:47 AM
    #6
    Sandman614

    Sandman614 Snarky TWSS elf, Travis #hotsavannahdotcom, LRGRNR

    Joined:
    Oct 26, 2010
    Member:
    #45273
    Messages:
    34,758
    Gender:
    Male
    First Name:
    Tim
    Garner, NC/Boone, NC
    Vehicle:
    '06 SR5 Off Road
    ARB Front Bumper, Projector Headlights w/Slimcubby 4300K HID's, Oznium LED's, LED taillights, DIY Washable Cabin Moose Filter, Sockmonkey SR5 Off Road, Aux Audio plug, OME 886x, OME Nitrochargers, Wheelers 3 Leaf Progressive AAL, ImMrYo Rear-View Mirror Lift Bracket, Dodge D-Rings
    Roberto123 [OP] and Grossomotto like this.
  7. Mar 18, 2021 at 7:54 AM
    #7
    JMcFly

    JMcFly Well-Known Member

    Joined:
    Aug 11, 2020
    Member:
    #337348
    Messages:
    695
    Vehicle:
    2012 Tacoma SR5 4x4
  8. Mar 18, 2021 at 7:58 AM
    #8
    Sandman614

    Sandman614 Snarky TWSS elf, Travis #hotsavannahdotcom, LRGRNR

    Joined:
    Oct 26, 2010
    Member:
    #45273
    Messages:
    34,758
    Gender:
    Male
    First Name:
    Tim
    Garner, NC/Boone, NC
    Vehicle:
    '06 SR5 Off Road
    ARB Front Bumper, Projector Headlights w/Slimcubby 4300K HID's, Oznium LED's, LED taillights, DIY Washable Cabin Moose Filter, Sockmonkey SR5 Off Road, Aux Audio plug, OME 886x, OME Nitrochargers, Wheelers 3 Leaf Progressive AAL, ImMrYo Rear-View Mirror Lift Bracket, Dodge D-Rings
    Roberto123 [OP] and Grossomotto like this.
  9. Mar 18, 2021 at 8:13 AM
    #9
    Grossomotto

    Grossomotto Complete 3rd Member

    Joined:
    Mar 13, 2018
    Member:
    #247175
    Messages:
    7,679
    39.9526° N, 75.1652° W
    Vehicle:
    2017 4WDV6LB6MT
    Me too, I was just curious. Bussmann 285 series highest amp is 150 and the cheaper knock offs are up to 200 amps and even 300. I'd never trust one of these cheaper ones on a $1200+ winch.

    https://www.ebay.com/itm/30-300AMP-...Marine-Stereo-Audio-FuseInverter/184488734569


  10. Mar 18, 2021 at 8:15 AM
    #10
    Sandman614

    Sandman614 Snarky TWSS elf, Travis #hotsavannahdotcom, LRGRNR

    Joined:
    Oct 26, 2010
    Member:
    #45273
    Messages:
    34,758
    Gender:
    Male
    First Name:
    Tim
    Garner, NC/Boone, NC
    Vehicle:
    '06 SR5 Off Road
    ARB Front Bumper, Projector Headlights w/Slimcubby 4300K HID's, Oznium LED's, LED taillights, DIY Washable Cabin Moose Filter, Sockmonkey SR5 Off Road, Aux Audio plug, OME 886x, OME Nitrochargers, Wheelers 3 Leaf Progressive AAL, ImMrYo Rear-View Mirror Lift Bracket, Dodge D-Rings
  11. Mar 18, 2021 at 8:20 AM
    #11
    Grossomotto

    Grossomotto Complete 3rd Member

    Joined:
    Mar 13, 2018
    Member:
    #247175
    Messages:
    7,679
    39.9526° N, 75.1652° W
    Vehicle:
    2017 4WDV6LB6MT
  12. Mar 18, 2021 at 8:31 AM
    #12
    Sandman614

    Sandman614 Snarky TWSS elf, Travis #hotsavannahdotcom, LRGRNR

    Joined:
    Oct 26, 2010
    Member:
    #45273
    Messages:
    34,758
    Gender:
    Male
    First Name:
    Tim
    Garner, NC/Boone, NC
    Vehicle:
    '06 SR5 Off Road
    ARB Front Bumper, Projector Headlights w/Slimcubby 4300K HID's, Oznium LED's, LED taillights, DIY Washable Cabin Moose Filter, Sockmonkey SR5 Off Road, Aux Audio plug, OME 886x, OME Nitrochargers, Wheelers 3 Leaf Progressive AAL, ImMrYo Rear-View Mirror Lift Bracket, Dodge D-Rings
    Haha you didn't have to advertise, I knew what brand you bought. :notsure: to each their own. I trust my winch and have used it many times. I bought it used and broken, then fixed it. Could buy a dozen more for that "Gemstone" price.

    *Can we turn this thread into a dumpster fire yet?

    Grossomotto likes this.
  13. Mar 18, 2021 at 8:34 AM
    #13
    Grossomotto

    Grossomotto Complete 3rd Member

    Joined:
    Mar 13, 2018
    Member:
    #247175
    Messages:
    7,679
    39.9526° N, 75.1652° W
    Vehicle:
    2017 4WDV6LB6MT
    Ok we'll talk about wiring, no worries. It wasn't meant as an attack on anyone or any brand they use new or used. As for the breakers I actually bought one of the cheaper ones when I was putting in my compressor. Had a lengthy discussion with the guy who makes the comp and he suggested not to use the cheaper breakers for a myriad of reasons. Was just pointing out some owners may have issues with these no matter the component cost.


    Last edited: Mar 18, 2021
  14. Mar 18, 2021 at 2:14 PM
    #14
    JMcFly

    JMcFly Well-Known Member

    Joined:
    Aug 11, 2020
    Member:
    #337348
    Messages:
    695
    Vehicle:
    2012 Tacoma SR5 4x4

    Its well worth it

  15. Mar 18, 2021 at 2:55 PM
    #15
    JEEPNIK

    JEEPNIK Well-Known Member

    Joined:
    May 5, 2020
    Member:
    #326895
    Messages:
    1,634
    Gender:
    Male
    Vehicle:
    2020 Voodoo Blue TRD Sport
    OP, sounds like you have a pretty good handle on what’s needed.

    A couple of things. One check the max amps recommended for the winch motor and size your breaker accordingly. I’ve seen burnt motors from using too high a rated breaker.

    Second while good plug connections the plastic is a bit brittle. Drop them on a hard surface they crack and chip. I used some heat shrink on my second set. Problem solved.

  16. Mar 22, 2021 at 4:52 PM
    #16
    aceman4

    aceman4 Well-Known Member

    Joined:
    Dec 8, 2017
    Member:
    #237956
    Messages:
    61
    Gender:
    Male
    South FL
    Vehicle:
    2018 DCSB 4x4 Off Road - Cement
  17. Mar 24, 2021 at 11:52 AM
    #17
    jbrandt

    jbrandt Made you look

    Joined:
    Feb 12, 2011
    Member:
    #51038
    Messages:
    16,481
    Gender:
    Male
    First Name:
    Justin
    El Dorado, CA (NOT El Dorado Hills)
    Vehicle:
    '04 TRD Tacoma 4x4 DC
    Kings, J59's Total Chaos UCAs Custom skids Sticker mod
    To use a breaker or to not use a breaker....

    This is a question that people often ask, and has been discussed at length many times. Opinions are all over the board on this one.

    Firstly, you can't burn up a winch unless it's internal heat protections are not functioning properly. If you are over-working a winch, it will shut itself off, there is no need to use a breaker to "protect" it.

    2nd, Warn tells you to connect your winch directly to the battery. I tend to opt to their guidance here. They kinda know what they're talking about.

    3rd, IIRC my VR10 can pull ~400 amps. And you want to put a <300 amp breaker on it? I guess if you want to prevent your winch from reaching its max potential...

    Thhat said, Warn does sell a power interrupt kit that uses a solenoid. And it has a remote switch you can locate anywhere you want.

    IMO this is a better solution if you want to use something thatdisconnects the power.
    https://www.warn.com/power-interrupt-kit-62132

    Last edited: Mar 24, 2021
    Grossomotto likes this.
  18. Mar 25, 2021 at 10:46 AM
    #18
    Grossomotto

    Grossomotto Complete 3rd Member

    Joined:
    Mar 13, 2018
    Member:
    #247175
    Messages:
    7,679
    39.9526° N, 75.1652° W
    Vehicle:
    2017 4WDV6LB6MT
    I've been told both from reputable sources. I know there's quite a few owners and Warn themselves who suggest wiring it directly to the battery.

    This is why I put in a 200A breaker, suggested from their site




    "A circuit breaker is an automatically operated electrical switch designed to protect an electrical circuit from damage caused by overload or short circuit. The basic function is to detect a fault condition and then interrupt the current flow.

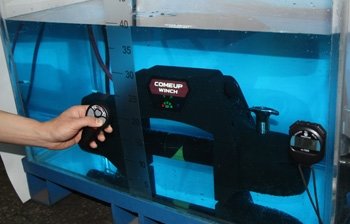

    To choose the correct circuit breaker amperage rating for you COMEUP winch, we need to know the current draw at full load. For example Seal Gen2 9.5rs, the current draw at 9,500lbs is 380A

    [​IMG]

    We want to choose a circuit breaker that will allow full load current draw for a set period of time. The circuit breaker manufacturer will provide a chart similar to the one shown below. The opening of a circuit breaker is not determined only by the amperage rating, but by the amount of time and the percentage over its amperage rating at which it is being operated. The higher the percent of the load current to amperage rating, the faster the circuit protector will trip. This chart is for reference only, you should refer to the circuit breaker manufacturer’s chart for the specific unit you are considering.[​IMG]





    [​IMG]

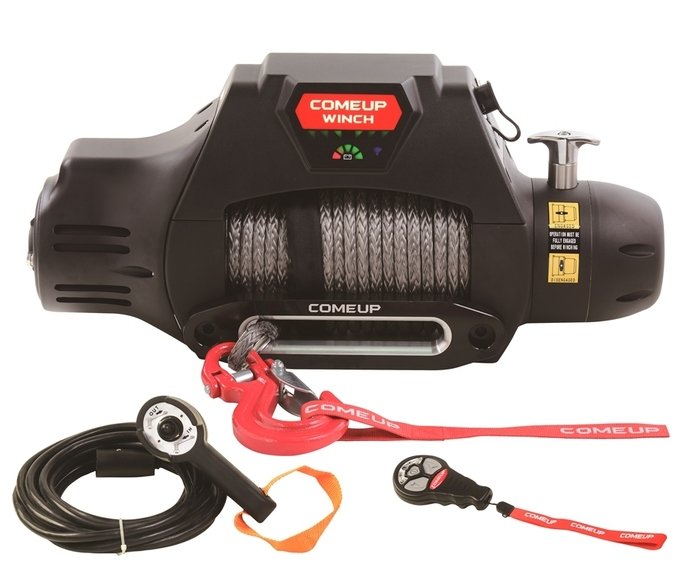

    For our Seal Gen2 9.5 winch, a 190A circuit breaker would be ideal because it can hold full load current of 380A for 30 seconds."





    TheCochese and jbrandt like this.
