Wiring

Discussion in '2nd Gen. Tacomas (2005-2015)' started by Chris(NJ), Dec 8, 2010.

  1. Dec 8, 2010 at 7:55 PM
    #1
    Chris(NJ)

    Chris(NJ) [OP] Well-Known Member

    Joined:
    Jan 21, 2010
    Member:
    #29777
    Messages:
    2,884
    Gender:
    Male
    First Name:
    Chris
    Usually in Central Jersey
    Vehicle:
    08 Indigo 4x4 DC OR
    Debadged, GC Mesh Grill, Yellow Fogs, Color Matched Headlights w/ Retros, Diff Breather Mod; mickey thompson classic IIs, 5100s, toytec springs, Dakar Leaf pack, ss brake lines, Lots more...just check the build page.

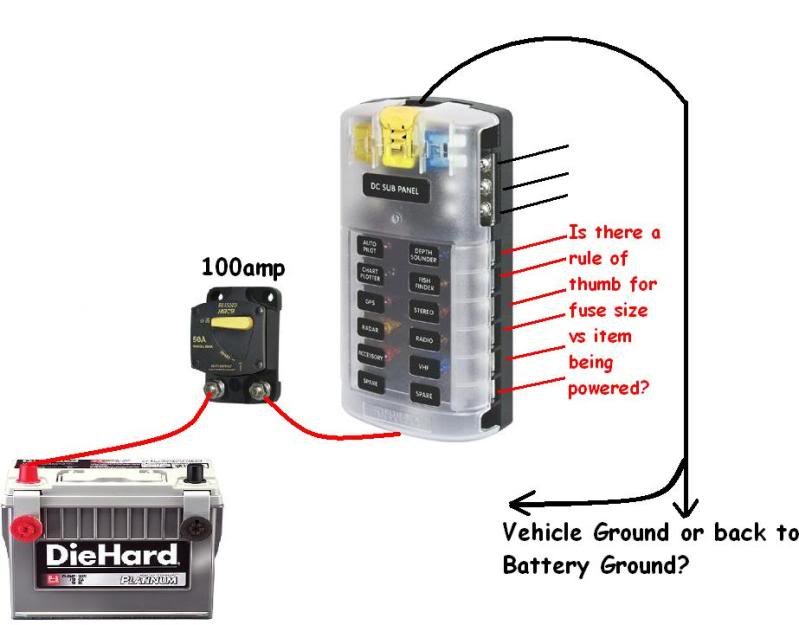

    Dont laugh, I dont dabble in vehicle wiring that often :eek: I'm much better w/ more mechanical shit, lol. BUT, as I plan ahead, and in an effort to keep the setup clean, I want to add a fuse block setup. Can you guys help out? Does this look right? What can/should be added to this? Anything? Should I go back to the battery or use a ground on the vehicle for the ground coming out of the block? And whats the general rule of thumb for fuse sizes? For instance, my 2 oznium LED under hood lights. What size fuse would be best if they're 1watt each (Current (mA) 154.7).

    Hope this doesnt sound too elementary of a question. I just want to make sure I'm getting it right. :)

    [​IMG]

  2. Dec 8, 2010 at 8:00 PM
    #2
    Trap

    Trap Well-Known Member

    Joined:
    May 26, 2010
    Member:
    #37878
    Messages:
    901
    Gender:
    Male
    Vehicle:
    Indego Ink TRD OR
    Electric Tail Gate Lock, EZ Down + Cable Mod, Galvanized Underbody, DK 9000, CloudRider SS Grill insert. BakFlip HD, Cabin Air Filter mod, Alarm, Zero Rust !
  3. Dec 8, 2010 at 8:02 PM
    #3
    paintdiddy

    paintdiddy Machine gun shits

    Joined:
    Oct 12, 2008
    Member:
    #9924
    Messages:
    10,307
    Gender:
    Male
    First Name:
    shithead
    nj and not from "the jersey shore"
    Vehicle:
    silver bullet
    wouldnt you rather grab an acc wire instead of batt??? not to thread jack a little

  4. Dec 8, 2010 at 9:00 PM
    #4
    Chris(NJ)

    Chris(NJ) [OP] Well-Known Member

    Joined:
    Jan 21, 2010
    Member:
    #29777
    Messages:
    2,884
    Gender:
    Male
    First Name:
    Chris
    Usually in Central Jersey
    Vehicle:
    08 Indigo 4x4 DC OR
    Debadged, GC Mesh Grill, Yellow Fogs, Color Matched Headlights w/ Retros, Diff Breather Mod; mickey thompson classic IIs, 5100s, toytec springs, Dakar Leaf pack, ss brake lines, Lots more...just check the build page.
    I did :( I guess I pretty much understand how to get the proper fuse sizes, but that thread kinda loses me as it gets more invovled w/ the relays.

    From what I'm seeing though, the ground from the new fuse block should go back to the battery, correct?

    Once it comes to switching lights up front, I'll have to dive deeper in to relays. I pulled this diagram from a different site, which, like the diagrams Larry posted, are helpful as I gain a basic understanding for the wiring.
    [​IMG]

  5. Dec 8, 2010 at 10:04 PM
    #5
    switch

    switch Active Member

    Joined:
    Oct 12, 2009
    Member:
    #24216
    Messages:
    27
    Gender:
    Male
    Vehicle:
    2006 taco

    First off, you probably don't need a negative buss. Blue Sea makes fuse blocks that don't have a negative bus. I'd suggest you use a factory service manual to locate factory ground points and use those rather than running ground wires back to a fuse block. Here is an example of a fuse block that does not have a f negative fuse block: http://bluesea.com/category/5/21/products/5034

    You can place your fuse block in a plastic project box to keep the dust and water out and have a more professional looking finish. Here is an example of that: http://www.ttora.com/forum/showthread.php?t=67738

    For fuse sizes just learn what Volts, Amps, and Watts mean and how they are related. Then you can figure out what fuse you need without taking anybody's word for it. A related topic is choosing the right gague wire.
    Here is a link to a wire size calculator (scroll down almost to the end of this page) http://www.bcae1.com/wire.htm It helps to read the explanation when using this calculator.

    Lastly, consider using glue impregnated heat shrink and split conduit tubing for your connections and wire runs. This will help prevent lose wires and abrasion of wires that can result in short circuits or fire.
