12-15 climate control in a 05-11 truck wiring guide

Discussion in 'Lighting' started by 3378jakesr5, Jan 20, 2016.

  1. Apr 19, 2020 at 7:35 AM
    #181
    cromag27

    cromag27 THE insurance expert - licensed in all 50 states

    Joined:
    Jul 10, 2018
    Member:
    #258888
    Messages:
    947
    Gender:
    Male
    First Name:
    dexter morgan (matt)
    phx-ish
    Vehicle:
    2011 trd off road dcsb
    i just have one spare set, sorry guys!

  2. Apr 19, 2020 at 11:55 AM
    #182
    theolee

    theolee www.nickleecreations.com

    Joined:
    Jul 15, 2014
    Member:
    #134025
    Messages:
    5,877
    Gender:
    Male
    First Name:
    Theo
    SAN DIEGO
    Vehicle:
    Black 09 Tacoma SR5 Pre-Runner AC 4.0
    Now worries! Just to clear, your holding on to that spare or giving it to other member?

  3. Apr 19, 2020 at 11:59 AM
    #183
    cromag27

    cromag27 THE insurance expert - licensed in all 50 states

    Joined:
    Jul 10, 2018
    Member:
    #258888
    Messages:
    947
    Gender:
    Male
    First Name:
    dexter morgan (matt)
    phx-ish
    Vehicle:
    2011 trd off road dcsb
    going to @Goosie0080 because he was the first one to ask.

    theolee[QUOTED] likes this.
  4. Apr 19, 2020 at 12:14 PM
    #184
    theolee

    theolee www.nickleecreations.com

    Joined:
    Jul 15, 2014
    Member:
    #134025
    Messages:
    5,877
    Gender:
    Male
    First Name:
    Theo
    SAN DIEGO
    Vehicle:
    Black 09 Tacoma SR5 Pre-Runner AC 4.0
    I'll keep searching, Thanks Jacob :thumbsup:

  5. Apr 22, 2020 at 4:16 AM
    #185
    theolee

    theolee www.nickleecreations.com

    Joined:
    Jul 15, 2014
    Member:
    #134025
    Messages:
    5,877
    Gender:
    Male
    First Name:
    Theo
    SAN DIEGO
    Vehicle:
    Black 09 Tacoma SR5 Pre-Runner AC 4.0
    Hey @svonavja

    Sorry to bug again but could you direct me to which website you used to order the male and female connectors from? I found a few websites but they come off a bit shady.
    Thanks :thumbsup:

  6. Apr 29, 2020 at 11:20 AM
    #186
    Goosie0080

    Goosie0080 Well-Known Member

    Joined:
    Sep 11, 2019
    Member:
    #305024
    Messages:
    277
    Gender:
    Male
    North East
    Vehicle:
    07 Tacoma Access Cab 4x4 base
    i have a 2007 tacoma.
    i am about to take this on and id like to verify where the AC wire would go in my new A33 connector. right now the pdf says the GREY AC wire goes to pin 16. Since i have an 07, the AC wire would go to pin 13 instead? thanks for any help TW can provide ;)

    supkillah808 likes this.
  7. May 14, 2020 at 1:15 PM
    #187
    Fiend13

    Fiend13 Well-Known Member

    Joined:
    Jul 3, 2012
    Member:
    #81853
    Messages:
    4,706
    Gender:
    Male
    First Name:
    Chad
    Waddell/Phoenix area
    Vehicle:
    08 TRD O/R DC Prerunner
    Have you been able to get this to work? I've tried multiple times with mine and nothing. I always had problems with either blowing fuses, ac stayin on but once turned off it would never turn back on, etc. I've been trying to do this swap into my '08

  8. May 18, 2020 at 10:55 PM
    #188
    theolee

    theolee www.nickleecreations.com

    Joined:
    Jul 15, 2014
    Member:
    #134025
    Messages:
    5,877
    Gender:
    Male
    First Name:
    Theo
    SAN DIEGO
    Vehicle:
    Black 09 Tacoma SR5 Pre-Runner AC 4.0
    Anyone have an issue with the LEDs that illuminate the rings not lighting up? Everything else is working perfect after the swap. The AC and air circulation lights are working fine. Any insight would be appreciated.

    Last edited: May 19, 2020
  9. Nov 8, 2020 at 12:12 AM
    #189
    taco_jacko

    taco_jacko Active Member

    Joined:
    Apr 12, 2019
    Member:
    #289973
    Messages:
    42
    Gender:
    Male
    First Name:
    Jackson
    BC
    Vehicle:
    2022 TRD Sport DCLB
    Bilstein 6112 & 1/2” Spacer Bilstein 5160, 2 1/2” AAL & 1/2” block KMC Impact (17x9, -12mm) Toyo Open Country 285/75/17 JBA HC UCA
    Anyone still have a 16P025 NH female connector?

  10. Sep 4, 2021 at 4:52 PM
    #190
    airkewled

    airkewled Well-Known Member

    Joined:
    Jan 25, 2016
    Member:
    #176025
    Messages:
    129
    Gender:
    Male
    First Name:
    Kevin
    Moab
    Vehicle:
    2006 Tacoma DCSB
    PSA
    If you do this, you may need to switch two traces on the hot/cold control, else when you want cold air, you have to put the dial on hot and vice versa.
    Extra details

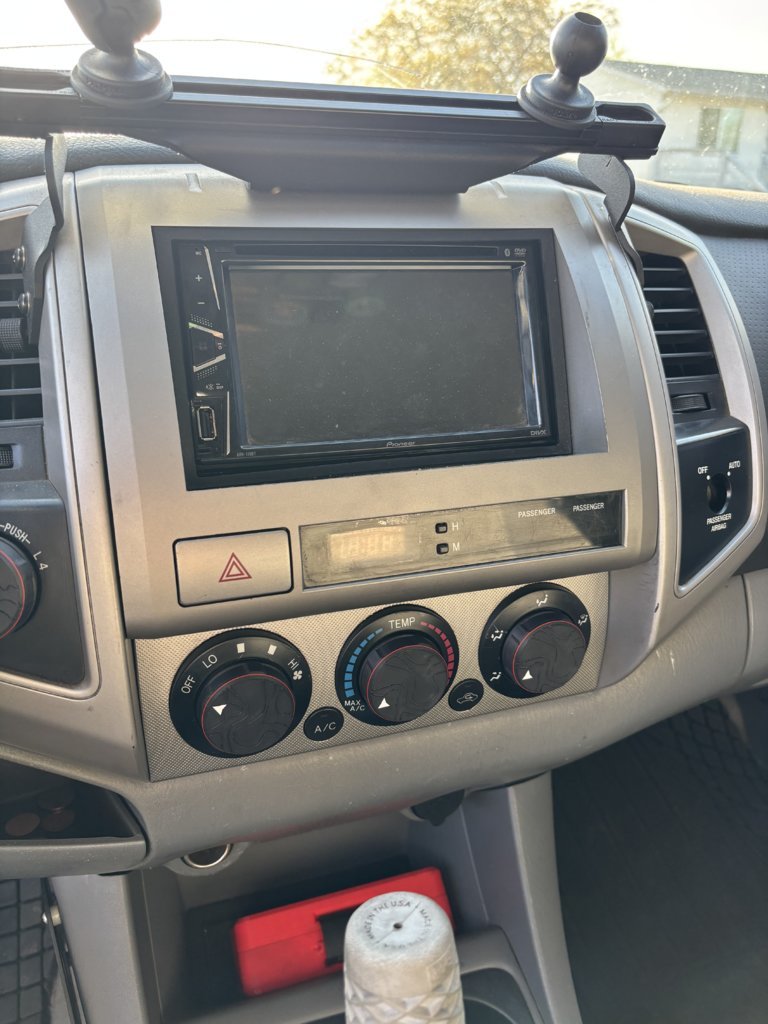

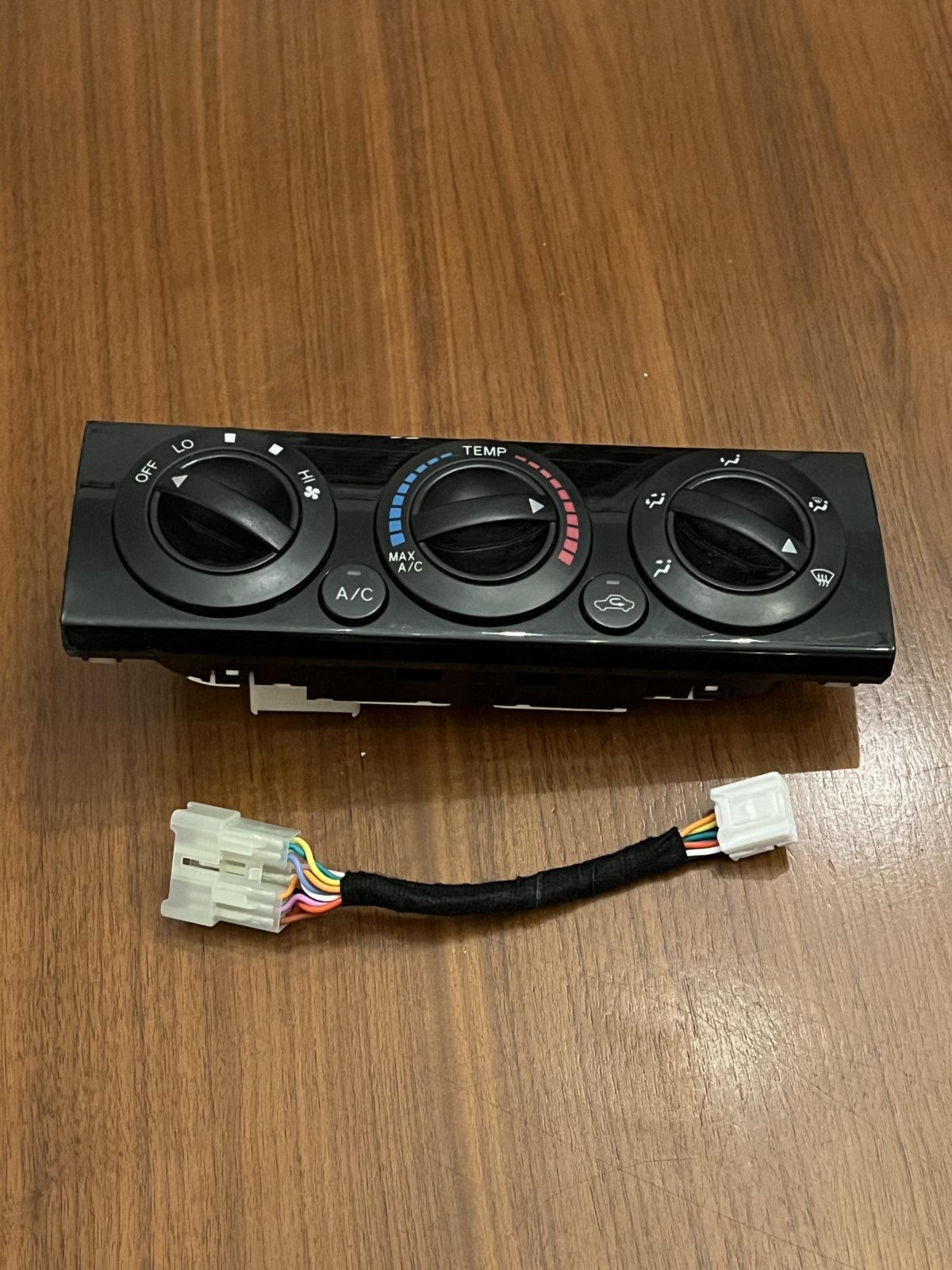

    [​IMG]

  11. Jan 10, 2023 at 8:09 AM
    #191
    Awsome57

    Awsome57 Well-Known Member

    Joined:
    Mar 5, 2016
    Member:
    #180296
    Messages:
    96
    Gender:
    Male
    First Name:
    Kevin
    did you find the fix to this I am having the same problem

  12. Jan 10, 2023 at 12:27 PM
    #192
    theolee

    theolee www.nickleecreations.com

    Joined:
    Jul 15, 2014
    Member:
    #134025
    Messages:
    5,877
    Gender:
    Male
    First Name:
    Theo
    SAN DIEGO
    Vehicle:
    Black 09 Tacoma SR5 Pre-Runner AC 4.0
    Yup! Make sure the harness/terminals are making contact. If I remember correctly, the - or + illumination wire wasn't seated properly.

  13. Mar 26, 2024 at 12:17 PM
    #193
    ZFred1007

    ZFred1007 Member

    Joined:
    Jul 31, 2023
    Member:
    #430208
    Messages:
    18
    Gender:
    Male
    Looking at tackling this mod. I noticed there are two P/N’s for the HVAC Controls on the 12-15.

    55900-04070 - Glossy Black W/ Bluetooth
    55900-04090 - Matte Black W/O Bluetooth

    I want to make sure that either one of these will wire up without issue if I purchase. Does anyone have insight on this?

    Thanks in advance.
