2.7L to 3.5L Oil Filter Mod

Discussion in '2nd Gen Tacoma Parts Marketplace (2005-2015)' started by 05Taco4x4, Mar 3, 2018.

  1. Mar 3, 2018 at 5:08 PM
    #1
    05Taco4x4

    05Taco4x4 [OP] ToyotaHubs

    Joined:
    Jun 29, 2011
    Member:
    #59085
    Messages:
    5,273
    Gender:
    Male
    Vehicle:
    2TR-FE Enthusiast
    FJ Tcase, Manual Hubs, 2017 Head unit, Mirror Riser
    2.7L to 3.5L Oil Filter Bracket

    :yay:

    $175
    $14 Shipping USA




    Bracket only, parts to left in picture are listed in post #2​

    Last edited: Dec 12, 2019
  2. Mar 4, 2018 at 10:49 AM
    #2
    05Taco4x4

    05Taco4x4 [OP] ToyotaHubs

    Joined:
    Jun 29, 2011
    Member:
    #59085
    Messages:
    5,273
    Gender:
    Male
    Vehicle:
    2TR-FE Enthusiast
    FJ Tcase, Manual Hubs, 2017 Head unit, Mirror Riser
    ***Installation***
    3/8" Ratchet
    12mm Deep Socket

    04152-YZZA1 Filter
    15620-31060 Filter Holder
    90301-17017 Filter Holder Gasket
    15692-75011 Filter Holder Gasket B
    15643-31050 Drain Plug (not needed if do Fumoto mod)
    96723-35028 Drain Plug Gasket (not needed if do Fumoto mod)

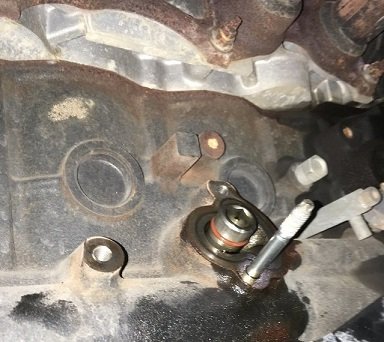

    1. Remove two bolts and one nut.
    2. Install new gaskets
    3. Bolt new housing on, reusing same hardware (18 lb ft)
    1-Removal.jpg 2-Installation.jpg

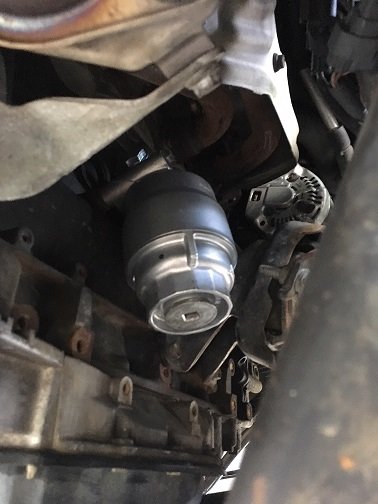

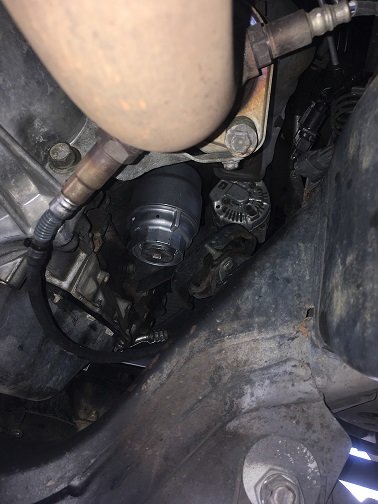

    IMG_0314.jpg IMG_0310.jpg



    Oil change with Cartridge Conversion

    Last edited: Aug 8, 2020
    blu92in99 and 09 Redneck like this.
  3. Mar 4, 2018 at 11:43 AM
    #3
    TacomaCody

    TacomaCody STOAA VIP Platinum Member

    Joined:
    Feb 27, 2017
    Member:
    #211792
    Messages:
    2,298
    Gender:
    Male
    First Name:
    Cody
    Iowa City, Iowa
    Vehicle:
    2012 Tacoma silver SR5 Off Road 4x4
    Body Armor 4x4 front bumper, running boards, cherry bomb vortex, 2" supreme suspension wheel spacers, Pro comp rock crawler wheels, 2017 off road full suspension, leer camper shell
    Does it relocate it to facing up??

  4. Mar 4, 2018 at 11:44 AM
    #4
    TacomaCody

    TacomaCody STOAA VIP Platinum Member

    Joined:
    Feb 27, 2017
    Member:
    #211792
    Messages:
    2,298
    Gender:
    Male
    First Name:
    Cody
    Iowa City, Iowa
    Vehicle:
    2012 Tacoma silver SR5 Off Road 4x4
    Body Armor 4x4 front bumper, running boards, cherry bomb vortex, 2" supreme suspension wheel spacers, Pro comp rock crawler wheels, 2017 off road full suspension, leer camper shell
    nvm just watched the video, that's awesome!

    05Taco4x4 [OP] likes this.
  5. Mar 4, 2018 at 2:29 PM
    #5
    GDT

    GDT Well-Known Member

    Joined:
    Jul 19, 2016
    Member:
    #192398
    Messages:
    616
    Gender:
    Male
    Vehicle:
    '09 Tacoma 4x4 access base 2.7l 5spd
    Oh, wow!

    05Taco4x4 [OP] likes this.
  6. Mar 5, 2018 at 3:20 PM
    #6
    Kick

    Kick Well-Known Member

    Joined:
    Mar 7, 2016
    Member:
    #180467
    Messages:
    102
    Gender:
    Male
    Vehicle:
    2013 base cab 4x4
    Jba uca's, bilstein's 6112 and 5125 Alcan 2" rear springs, wheeler's super bumpstops. Michelins defenders 265/75/16
    Looks like more work

  7. Mar 6, 2018 at 11:46 AM
    #7
    05Taco4x4

    05Taco4x4 [OP] ToyotaHubs

    Joined:
    Jun 29, 2011
    Member:
    #59085
    Messages:
    5,273
    Gender:
    Male
    Vehicle:
    2TR-FE Enthusiast
    FJ Tcase, Manual Hubs, 2017 Head unit, Mirror Riser
    Screwing the Canister on is easier than the conventional filter, I always had a problem getting it started.

    I consider cleaning up an oily mess more work than unscrewing a drain plug.

    Last edited: Mar 6, 2018
  8. Mar 6, 2018 at 1:03 PM
    #8
    GDT

    GDT Well-Known Member

    Joined:
    Jul 19, 2016
    Member:
    #192398
    Messages:
    616
    Gender:
    Male
    Vehicle:
    '09 Tacoma 4x4 access base 2.7l 5spd
    Wait, I thought this system eliminated all the spilt oil?

  9. Mar 6, 2018 at 2:07 PM
    #9
    Clearwater Bill

    Clearwater Bill Sometimes when I close my eyes, I can't see.

    Joined:
    Oct 11, 2014
    Member:
    #140097
    Messages:
    17,830
    Gender:
    Male
    First Name:
    Billy
    Largo Florida
    Vehicle:
    '13 5 lug base AC w/convenience package
    A few OE parts from fancy trucks
    I once converted a '67 283 from OE cartridge to a 'modern' spin on. :D

    This looks like a neat arrangement as far as the parts used goes.

    But for $300 up front and the delta on the filters, I'll stick with the spin on. I don't have enough mess to fret over. :fingerscrossed:

    Last edited: Mar 9, 2018
    Jimmyh, T@co_Pr3runn3r and GDT like this.
  10. Mar 6, 2018 at 2:16 PM
    #10
    05Taco4x4

    05Taco4x4 [OP] ToyotaHubs

    Joined:
    Jun 29, 2011
    Member:
    #59085
    Messages:
    5,273
    Gender:
    Male
    Vehicle:
    2TR-FE Enthusiast
    FJ Tcase, Manual Hubs, 2017 Head unit, Mirror Riser
    I understand if it’s not for you, but a lot of people have been praying for a solution.

    I don’t mind conventional filters if they are horizontal or like the 1GR's, but the 2TR’s filter orientation is a pain.

    Did your ‘67 283 cartridge have a drain?

    Last edited: Mar 6, 2018
  11. Mar 6, 2018 at 2:46 PM
    #11
    Clearwater Bill

    Clearwater Bill Sometimes when I close my eyes, I can't see.

    Joined:
    Oct 11, 2014
    Member:
    #140097
    Messages:
    17,830
    Gender:
    Male
    First Name:
    Billy
    Largo Florida
    Vehicle:
    '13 5 lug base AC w/convenience package
    A few OE parts from fancy trucks
    Not that I can recall. I think it was just a shell you dropped off then pulled the cartridge out.

    [​IMG]

    My '59 6 cyl. didn't even come with a filter. Mine had an add on that was u-bolted around the intake manifold and plumbed to the engine, kinda like a turbo. It was a cartridge too. Kinda like one of these.

    [​IMG]

    But the truck also came with an oil bath air cleaner, which was pretty common in the day.

    [​IMG]


    Like I said, your package really looks nicely done. If it met a need for me, I'd buy it in a heartbeat. I like things that look OE or are like the OE could have done it to begin with.

    Last edited: Mar 6, 2018
    05Taco4x4 [OP] likes this.
  12. Mar 6, 2018 at 3:00 PM
    #12
    GDT

    GDT Well-Known Member

    Joined:
    Jul 19, 2016
    Member:
    #192398
    Messages:
    616
    Gender:
    Male
    Vehicle:
    '09 Tacoma 4x4 access base 2.7l 5spd
    Now I'm confused. The oil filter orientation is vertical with the open end up. How could that be better? I always top off the new filter with oil before installing. I hold it vertically so it doesn't be spill and screw it on. Easy as pie. It helps to have long arms I guess.

    T@co_Pr3runn3r likes this.
  13. Mar 6, 2018 at 3:16 PM
    #13
    GDT

    GDT Well-Known Member

    Joined:
    Jul 19, 2016
    Member:
    #192398
    Messages:
    616
    Gender:
    Male
    Vehicle:
    '09 Tacoma 4x4 access base 2.7l 5spd
    Huh?

  14. Mar 6, 2018 at 3:21 PM
    #14
    GDT

    GDT Well-Known Member

    Joined:
    Jul 19, 2016
    Member:
    #192398
    Messages:
    616
    Gender:
    Male
    Vehicle:
    '09 Tacoma 4x4 access base 2.7l 5spd
    :facepalm:

    And I'm saying that the orientation is already as good as it gets. You're saying that it would be better if it's upside down?

  15. Mar 6, 2018 at 3:36 PM
    #15
    GDT

    GDT Well-Known Member

    Joined:
    Jul 19, 2016
    Member:
    #192398
    Messages:
    616
    Gender:
    Male
    Vehicle:
    '09 Tacoma 4x4 access base 2.7l 5spd
    Nah, I'm fine with it. I've seen people complain about it on here and I think it must be mostly user error, or people just like to complain. Either that or they have so much money that they have to invent problems so they can solve them with that extra $300 that they didn't know what to do with.

  16. Mar 6, 2018 at 6:00 PM
    #16
    GDT

    GDT Well-Known Member

    Joined:
    Jul 19, 2016
    Member:
    #192398
    Messages:
    616
    Gender:
    Male
    Vehicle:
    '09 Tacoma 4x4 access base 2.7l 5spd
    Well, there must be a huge market for this kit then. Good luck with your venture.

  17. Mar 7, 2018 at 4:57 AM
    #17
    T@co_Pr3runn3r

    T@co_Pr3runn3r XXXXXXXXXXXXXXXXXXX

    Joined:
    Jan 20, 2009
    Member:
    #12767
    Messages:
    14,126
    Gender:
    Male
    <----------------->
    Vehicle:
    08 RC Prerunner SR5
    I get to do this cartridge thing with the RAV4 and spillage no issue with a pan under it on the truck so the price of this will keep me from it even tho just buying same cartridges for RAV & truck would be convenient...........maybe GB prices would be more tempting. Part numbers for the cartridge holder a secret?

  18. Mar 9, 2018 at 11:40 AM
    #18
    05Taco4x4

    05Taco4x4 [OP] ToyotaHubs

    Joined:
    Jun 29, 2011
    Member:
    #59085
    Messages:
    5,273
    Gender:
    Male
    Vehicle:
    2TR-FE Enthusiast
    FJ Tcase, Manual Hubs, 2017 Head unit, Mirror Riser
    Last edited: Apr 15, 2018
  19. Apr 8, 2018 at 12:25 PM
    #19
    Nitori

    Nitori Well-Known Member

    Joined:
    May 3, 2016
    Member:
    #186058
    Messages:
    4,044
    Maricopa AZ
    Vehicle:
    2021 T4R SR5

    This looks pretty neat! I already have a Fumoto valve on the oil pan, and that's wonderful. It makes the only messy part the filter change, and while my method of holding a cut-open milk jug under the filter while I unscrew keeps my arm dry and 90% of the mess away, it is still annoying because I still end up having to wipe down the stuff that dribbles off the flange.

    A few questions though. This will fit a 3rd gen 2TR, right? There's no reason it shouldn't, I don't think that mounting flange has changed since the 3RZ...

    Second, what is this bit:
    [​IMG]
    Is that for the oil pressure sensor or something?

    Third: Country of Origin? I see there are some Toyota OE parts but is the adapter made in the USA, or overseas somewhere?

    And finally... is there a group buy coming up? :D

    05Taco4x4 [OP] and 09 Redneck like this.
  20. Apr 8, 2018 at 12:41 PM
    #20
    05Taco4x4

    05Taco4x4 [OP] ToyotaHubs

    Joined:
    Jun 29, 2011
    Member:
    #59085
    Messages:
    5,273
    Gender:
    Male
    Vehicle:
    2TR-FE Enthusiast
    FJ Tcase, Manual Hubs, 2017 Head unit, Mirror Riser
    Yes, I believe it’s still the same block for the 3rd Gen.
    Those are on your truck now- there’s one pre and post filter. Guys use the post filter location to source oil for their turbo.
    It’s made in Japan
