Anytimebackupcamera.com Install- Front and Rear Cameras

Discussion in '3rd Gen. Tacomas (2016+)' started by Papadave418, Sep 7, 2018.

  1. Dec 7, 2018 at 6:43 PM
    #341
    n6vmo

    n6vmo Well-Known Member

    Joined:
    Jan 1, 2018
    Member:
    #239972
    Messages:
    558
    Gender:
    Male
    Vehicle:
    2018 DCLB OR AT Super "Priviledged"
    Bilstein 6112, ICON UCAs, 5160, AAL, 265/75/16 Falken Wildpeaks

    Is the camera now wired directly to the battery or an ignition switched source of power?

  2. Dec 8, 2018 at 6:45 PM
    #342
    Onemorodeo

    Onemorodeo Well-Known Member

    Joined:
    Sep 29, 2018
    Member:
    #267772
    Messages:
    203
    Gender:
    Male
    OC SoCal
    Vehicle:
    ‘18 dclb TRD Sport 4wd Cement
    It's now wired directly to the battery.

  3. Dec 8, 2018 at 6:58 PM
    #343
    cruxx

    cruxx Well-Known Member

    Joined:
    Apr 20, 2017
    Member:
    #216831
    Messages:
    857
    Gender:
    Male
    First Name:
    Huy
    Vehicle:
    2017 TRD Sport
    You could also just tap any power wire, ignition or constant

  4. Dec 9, 2018 at 11:18 AM
    #344
    Onemorodeo

    Onemorodeo Well-Known Member

    Joined:
    Sep 29, 2018
    Member:
    #267772
    Messages:
    203
    Gender:
    Male
    OC SoCal
    Vehicle:
    ‘18 dclb TRD Sport 4wd Cement
    Thanks, my plan is to spend some time going through all my connections and clean up all the excess wire. I'm also adding an auxiliary fuse block so I'll probably end up writing it to that.

  5. Dec 9, 2018 at 2:33 PM
    #345
    cruxx

    cruxx Well-Known Member

    Joined:
    Apr 20, 2017
    Member:
    #216831
    Messages:
    857
    Gender:
    Male
    First Name:
    Huy
    Vehicle:
    2017 TRD Sport
    I need to do an auxiliary block as well as i got lots of electrical mods, but not sure how to proceed about cleaning it all up. A separate thread dedicated to that would be very helpful to many taco owners!!!! Make it happen!!!

  6. Dec 9, 2018 at 3:18 PM
    #346
    RushT

    RushT Well-Known Member

    Joined:
    Dec 10, 2017
    Member:
    #238171
    Messages:
    1,750
    Gender:
    Male
    North Texas
    Vehicle:
    Inferno DCSB OffRoad
    That was my logic too: truck deserves a good camera, and, I’d rather spend another $20 in hopes I didn’t have to replace it due to premature failure.

    Papadave418 [OP] likes this.
  7. Dec 9, 2018 at 9:16 PM
    #347
    Papadave418

    Papadave418 [OP] Well-Known Member

    Joined:
    Jul 17, 2017
    Member:
    #224251
    Messages:
    1,343
    Gender:
    Male
    First Name:
    Dave
    Ripon, Ca
    Vehicle:
    2018 TRD Off-Road Premium Package DCSB Silver Sky
    Ray 10’s & Center Console Organizer!!
    I wired up an aux box and put it right on top of my aux fuse box under the hood. It has worked great and was easy to do.

  8. Dec 9, 2018 at 10:52 PM
    #348
    cruxx

    cruxx Well-Known Member

    Joined:
    Apr 20, 2017
    Member:
    #216831
    Messages:
    857
    Gender:
    Male
    First Name:
    Huy
    Vehicle:
    2017 TRD Sport
    A dedicated thread with pictures and instructions would be nice

  9. Dec 10, 2018 at 8:10 AM
    #349
    Papadave418

    Papadave418 [OP] Well-Known Member

    Joined:
    Jul 17, 2017
    Member:
    #224251
    Messages:
    1,343
    Gender:
    Male
    First Name:
    Dave
    Ripon, Ca
    Vehicle:
    2018 TRD Off-Road Premium Package DCSB Silver Sky
    Ray 10’s & Center Console Organizer!!
    There are many threads on fuse boxes, some simple and some very complex. It all depends on how many accessories you plan to use. I almost opted for an SPOD to do switches and power but it was mode than I really needed.

    Complex Aux Fuse Panel Build Thread
    https://www.tacomaworld.com/threads...bussmann-rtmr-fuse-relay-block.399454/page-36

    Everything Aux Fuse Panel Build Thread
    https://www.tacomaworld.com/threads/show-off-your-aux-fuse-panels.308677/

    cruxx likes this.
  10. Dec 10, 2018 at 8:47 AM
    #350
    Papadave418

    Papadave418 [OP] Well-Known Member

    Joined:
    Jul 17, 2017
    Member:
    #224251
    Messages:
    1,343
    Gender:
    Male
    First Name:
    Dave
    Ripon, Ca
    Vehicle:
    2018 TRD Off-Road Premium Package DCSB Silver Sky
    Ray 10’s & Center Console Organizer!!

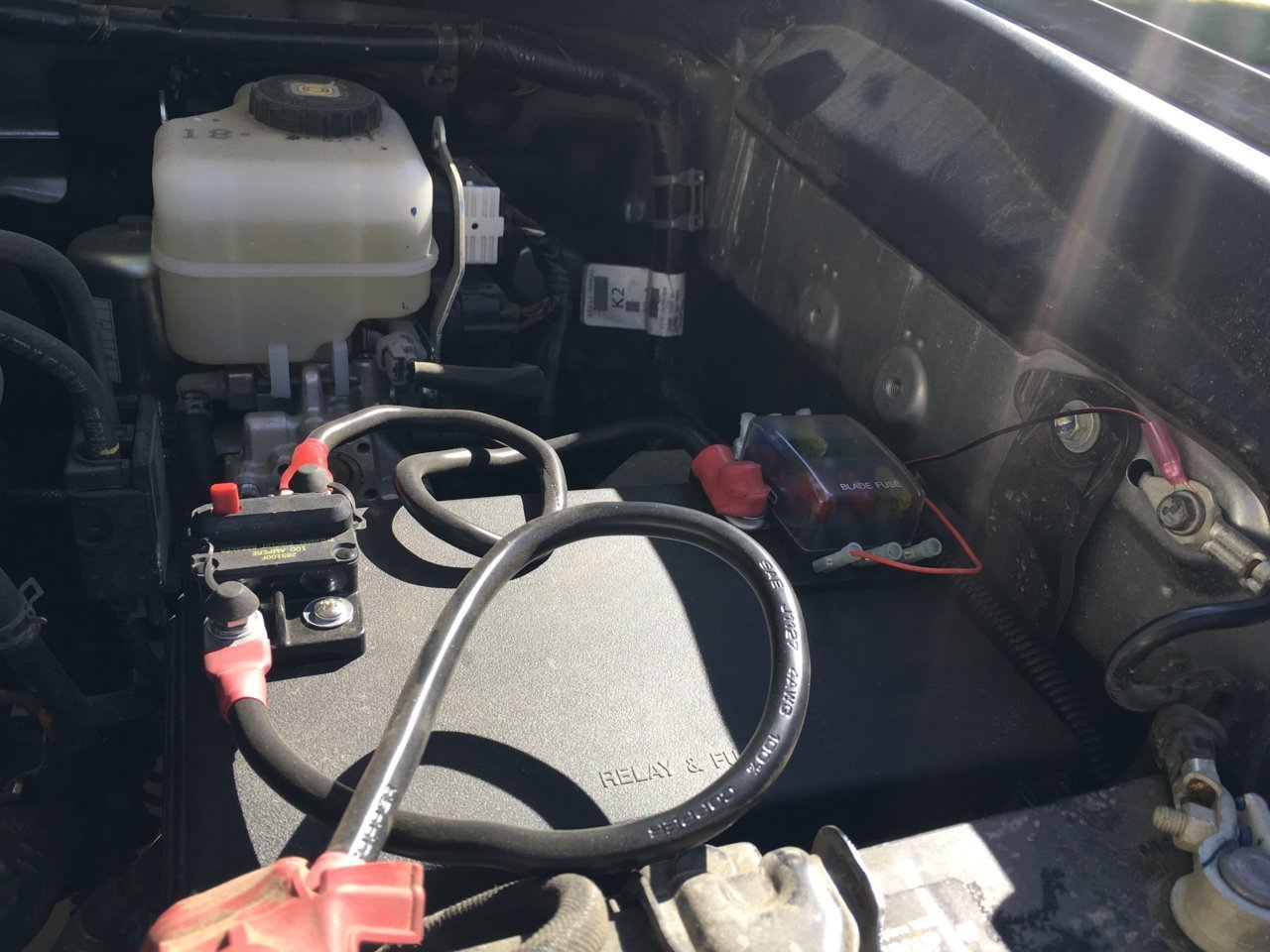

    Regarding Aux Fuse Panels-
    In my original post I included this picture of my set up. I opted for a simple system with some key components. I did not go with a Blue Sea fuse panel, though they are popular. I got a simple 6 blade option off Amazon that allows me to swap in standard auto fuses in various amp loads. I purchased a 100A circuit breaker which I highly recommend for a couple reasons. First it that it protects the entire fuse panel from ever being overloaded. Secondly, and my main reason for it, is that I can easily throw the switch (red button sticking up) to open the circuit and work on any of my accessories without having to unplug or unscrew any power leads. I purchased 2 jumper battery leads from an auto parts store to move the positive power from the battery terminal to the circuit breaker, then to the fuse panel. Each accessory, with this set up, has its ground wired locally or right next to the fuse panel where the factory ground is. Some panels allow you to ground back to the panel. I looked at different mounting options but decided to mount right to the top of the engine fuse lid, just be sure to take it off and check that your screws don’t interfere when the lid is closed. If you do this option you’ll want the extra slack in the jumper leads and aux devices so you can still remove the lid to access underneath. Not fancy, but this set up has been rock solid for me.


    Badderup and Onemorodeo like this.
  11. Dec 11, 2018 at 12:57 PM
    #351
    Black1Tacoma

    Black1Tacoma #TRUKTOY

    Joined:
    Jun 27, 2017
    Member:
    #222509
    Messages:
    421
    Gender:
    Male
    Carlsbad
    Vehicle:
    2017 Black Tacoma TRD OffRoad 4x4
    Did the tan circuit work to light it up. I have mine all wired up but it does not have light to it YET. Is #7 and tan wire the way to go?

  12. Dec 11, 2018 at 3:05 PM
    #352
    cruxx

    cruxx Well-Known Member

    Joined:
    Apr 20, 2017
    Member:
    #216831
    Messages:
    857
    Gender:
    Male
    First Name:
    Huy
    Vehicle:
    2017 TRD Sport
    All i remember is black in the middle
    Dont think the illumination was ever mentioned. In that location, cant see it anyways


  13. Dec 11, 2018 at 3:09 PM
    #353
    Papadave418

    Papadave418 [OP] Well-Known Member

    Joined:
    Jul 17, 2017
    Member:
    #224251
    Messages:
    1,343
    Gender:
    Male
    First Name:
    Dave
    Ripon, Ca
    Vehicle:
    2018 TRD Off-Road Premium Package DCSB Silver Sky
    Ray 10’s & Center Console Organizer!!

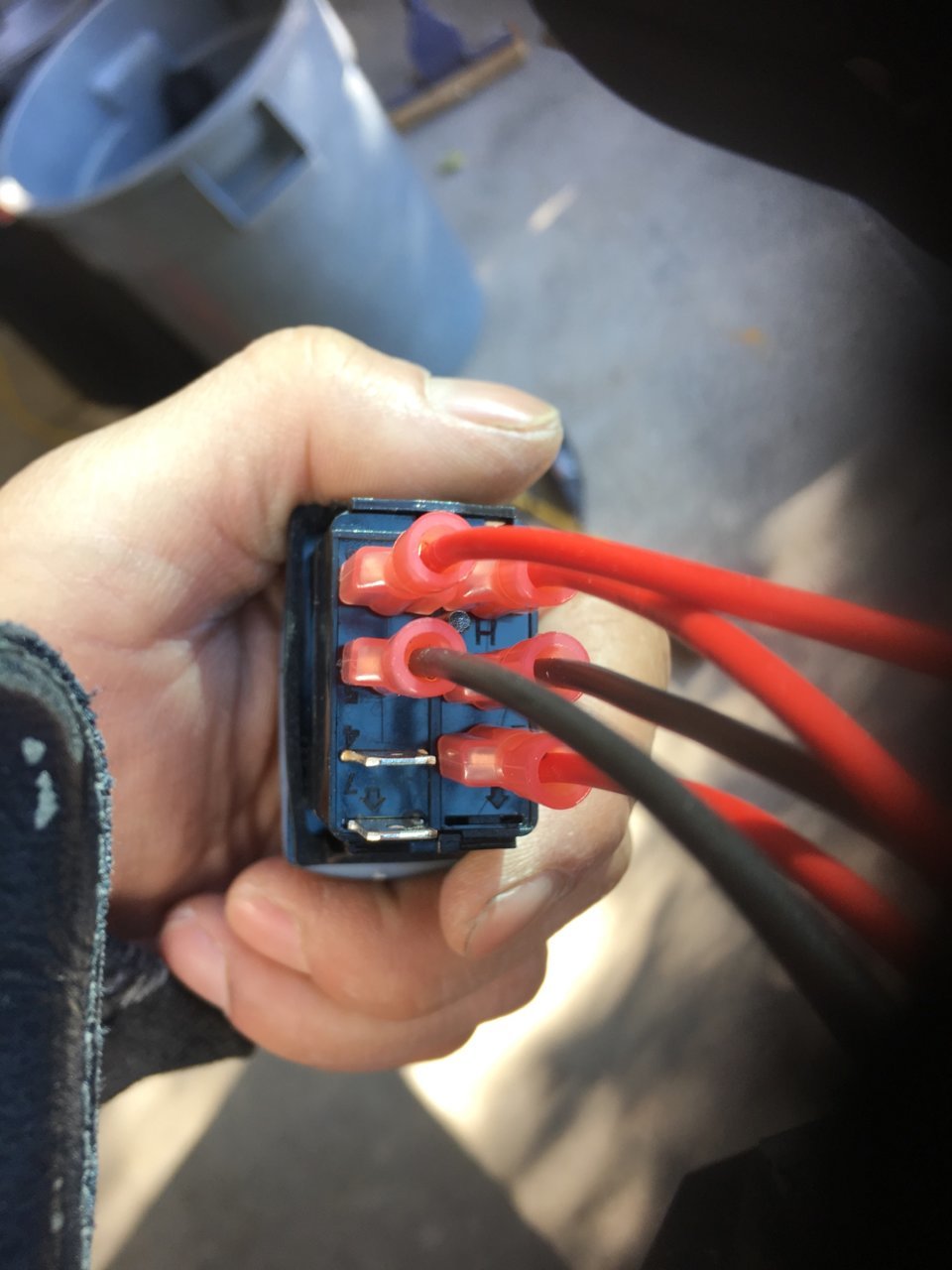

    The tan wire off the rear bed light switch will give you dash lights but as to your specific switch I’m not sure. I didn’t wire up my DPDT

  14. Dec 11, 2018 at 3:13 PM
    #354
    Black1Tacoma

    Black1Tacoma #TRUKTOY

    Joined:
    Jun 27, 2017
    Member:
    #222509
    Messages:
    421
    Gender:
    Male
    Carlsbad
    Vehicle:
    2017 Black Tacoma TRD OffRoad 4x4
    Thanks I just tapped into the tan and it worked but only when the headlights lights are actually switched on. It also only illuminated front camera rear camera letters when switched into that direction. I have the toggle switch seen in previous pics. Does anyone know how to make the camera icon only light up in the on neutral position? Or does it even light up.

  15. Dec 12, 2018 at 6:40 AM
    #355
    ohioboater

    ohioboater Well-Known Member

    Joined:
    Dec 5, 2017
    Member:
    #237692
    Messages:
    87
    Gender:
    Male
    Vehicle:
    2017 DCLB 4x4 Sport
    What high res camera did you have the best luck with? I'm realizing these things are probably like generic Arduino boards, where they're all very similar on paper, but the quality control can be all over the map from one manufacturer to the next.

    The company that made my original camera is sending me a new one, but I'm leaning toward just putting that in the parts bin and getting a camera with a better field of view and resolution that is similar to the factory reverse camera.

    Speaking of which, does anyone know what the factory camera's resolution is, or what the max resolution is for the head unit?

  16. Dec 12, 2018 at 11:16 AM
    #356
    Papadave418

    Papadave418 [OP] Well-Known Member

    Joined:
    Jul 17, 2017
    Member:
    #224251
    Messages:
    1,343
    Gender:
    Male
    First Name:
    Dave
    Ripon, Ca
    Vehicle:
    2018 TRD Off-Road Premium Package DCSB Silver Sky
    Ray 10’s & Center Console Organizer!!
    Not sure on the HU resolution, but I’ve been happy with my camera and clarity. I used it for 6 days straight in Death Valley, I just kept it on as I navigated off road to spot my line and tight turns
    https://www.amazon.com/dp/B072KQG664/ref=cm_sw_r_cp_tai_hez6Bb07RYKPW

    doublethebass likes this.
  17. Dec 17, 2018 at 4:13 AM
    #357
    okichewy1

    okichewy1 Just chuggin' along!

    Joined:
    Feb 16, 2018
    Member:
    #244589
    Messages:
    524
    Gender:
    Male
    First Name:
    Ken
    Kimberly, Idaho
    Vehicle:
    2018 DCSB TRD Sport Quicksand
    Ultra Flex bed cover, TRD PRO Grille, 32" LED light under grille, Pop n' Lock on tailgate, OCD organizer for center console and glove box, LED bed lights, OEM bed mat, black TACOMA tailgate letters, LED illumination light package, black vinyl overlays for badges, OEM bed step, plasti-dipped front valance and mirrors, 15% tinted windows and sun strip, vinyl letters on dash, vinyl letters on tailgate handle and door sill protectors, TRD Pro shift knob, home-link rear view mirror, mountain vinyl decal above Tacoma on door, FN FX pro wheels, AVS bug deflector, AVS in-channel window vents, front bed rail, red line hood struts, LED interior lights, TRD Pro skid plate, slim line front license plate holder, CaliRaised LED Ditch light brackets with LED lights, Bilstein 5100's, OME 888's, Dakar HD leaf springs, cubby covers, CaliRaised LED Fog light kit,

    Great write up, I actually used it to do mine yesterday. I have the Chuanganzhuo camera (think its the same as yours). How did you get the camera to flip the image? Mine shows backwards when turned on due to being on the front of the vehicle.

  18. Dec 17, 2018 at 4:19 AM
    #358
    okichewy1

    okichewy1 Just chuggin' along!

    Joined:
    Feb 16, 2018
    Member:
    #244589
    Messages:
    524
    Gender:
    Male
    First Name:
    Ken
    Kimberly, Idaho
    Vehicle:
    2018 DCSB TRD Sport Quicksand
    Ultra Flex bed cover, TRD PRO Grille, 32" LED light under grille, Pop n' Lock on tailgate, OCD organizer for center console and glove box, LED bed lights, OEM bed mat, black TACOMA tailgate letters, LED illumination light package, black vinyl overlays for badges, OEM bed step, plasti-dipped front valance and mirrors, 15% tinted windows and sun strip, vinyl letters on dash, vinyl letters on tailgate handle and door sill protectors, TRD Pro shift knob, home-link rear view mirror, mountain vinyl decal above Tacoma on door, FN FX pro wheels, AVS bug deflector, AVS in-channel window vents, front bed rail, red line hood struts, LED interior lights, TRD Pro skid plate, slim line front license plate holder, CaliRaised LED Ditch light brackets with LED lights, Bilstein 5100's, OME 888's, Dakar HD leaf springs, cubby covers, CaliRaised LED Fog light kit,
    Was wondering about it being reversed when I installed it yesterday. Will have to cut the green wire today and see.

  19. Dec 17, 2018 at 7:56 AM
    #359
    Papadave418

    Papadave418 [OP] Well-Known Member

    Joined:
    Jul 17, 2017
    Member:
    #224251
    Messages:
    1,343
    Gender:
    Male
    First Name:
    Dave
    Ripon, Ca
    Vehicle:
    2018 TRD Off-Road Premium Package DCSB Silver Sky
    Ray 10’s & Center Console Organizer!!
    For that camera the post needs to be horizontal and facing backwards, not vertical for the orientation to work. Even cutting the green wire won’t work. I ammended my original thread post awhile back saying that I changed out my camera and put a link at the bottom of that first post.

    This camera has a toggle button and you kept switching it till you finally get the correct image. This camera has the post going up vertically through the grille. That other camera I had to put inside the O of my TOYOTA pro grille.
    https://www.amazon.com/dp/B072KQG664/ref=cm_sw_r_cp_tai_hez6Bb07RYKPW

  20. Dec 17, 2018 at 9:30 AM
    #360
    okichewy1

    okichewy1 Just chuggin' along!

    Joined:
    Feb 16, 2018
    Member:
    #244589
    Messages:
    524
    Gender:
    Male
    First Name:
    Ken
    Kimberly, Idaho
    Vehicle:
    2018 DCSB TRD Sport Quicksand
    Ultra Flex bed cover, TRD PRO Grille, 32" LED light under grille, Pop n' Lock on tailgate, OCD organizer for center console and glove box, LED bed lights, OEM bed mat, black TACOMA tailgate letters, LED illumination light package, black vinyl overlays for badges, OEM bed step, plasti-dipped front valance and mirrors, 15% tinted windows and sun strip, vinyl letters on dash, vinyl letters on tailgate handle and door sill protectors, TRD Pro shift knob, home-link rear view mirror, mountain vinyl decal above Tacoma on door, FN FX pro wheels, AVS bug deflector, AVS in-channel window vents, front bed rail, red line hood struts, LED interior lights, TRD Pro skid plate, slim line front license plate holder, CaliRaised LED Ditch light brackets with LED lights, Bilstein 5100's, OME 888's, Dakar HD leaf springs, cubby covers, CaliRaised LED Fog light kit,
    Thanks will order one of these today.
