Compass Temp gauge overhead console in a (2.7) 4 cylinder possible ?

Discussion in '4 Cylinder' started by litegide24, Aug 2, 2012.

  1. Aug 2, 2012 at 8:40 PM
    #1
    litegide24

    litegide24 [OP] Well-Known Member

    Joined:
    Mar 29, 2009
    Member:
    #15292
    Messages:
    264
    I have 2011 4 cylinder, its a double cab Prerunner SR5 (non TRD).

    I bought a used console (from a 2011). I have seen some posts about this but nothing for a confirmed successful console installation is a 2009-2011 model with a 2.7.

    Can anyone say for sure if the wiring is in place in the (non TRD 2.7) 2009-2011, I guess I'd need the wiring in the headliner and a temperature sensor and wiring already installed, is the sensor on the radiator?

    Have my doubts about wiring in place, made some previous modifications in hopes of existing wiring harness... Like for fog lights and there was no wiring so had to install my own but now all looks factory (the 2.7 didnt come with fog lamps). Although many thought the harness was installed because they were speaking of examples of existing wiring in 6 cylinder models. I'd look myself but of town at the moment but will try to make sure this weekend.

    I sure hope I can make it work. Today on eBay I purchased an OEM 2011 temp display console from an existing 2011 TRD (6 cylinder) truck. The guy had some roof damage and when the shop that did the repairs pulled his headliner to make they forgot to plug the compass back in, the technician tried to pop out the plastic in one of the sections and put a couple tiny marks on the gray plastic before they realized it didn't come out like that, even though barely noticable the owner requested a new $900 unit be ordered since he had an almost brand new truck, believe he installed it and got to keep the one that was in his truck.

    However first I'll have to overcome wiring modifications, any useful information would be great.

    Thanks

  2. Aug 4, 2012 at 6:52 AM
    #2
    litegide24

    litegide24 [OP] Well-Known Member

    Joined:
    Mar 29, 2009
    Member:
    #15292
    Messages:
    264
    Well the wires are there, now I just hope it works.

    I have a 2011 Prerunner SR5 Double Cab (2.7 4cylinder), it is a Non TRD truck.

    A couple of days ago I saw a console for a newer 2011 TRD truck show up on eBay (for $257 shipped) So i bought it. Have not received it yet but thats where i am now. Waiting to see if it will work in a 4 cylinder Prerunner.

    Here is what my 2011 (2.7 Prerunner) harness looks like (and sensor), I don't have very good lighting in these pictures.

    I thought I was good to go then I read a post (with a 4cyl truck) who borrowed a 2009 console from a TRD truck and it didn't work... so not enough information to confirm. I know the swap to a 2009 SR5 6 cylinder truck SR5 from 2009 TRD worked flawlessly. The is an outstanding older post by forum member Kevinva and another by RLEngineer that helps solidify some of the questions to make it all happen.

  3. Aug 6, 2012 at 8:25 PM
    #3
    litegide24

    litegide24 [OP] Well-Known Member

    Joined:
    Mar 29, 2009
    Member:
    #15292
    Messages:
    264
    Was pretty excited, Was a fun and fast install, click click for the two plugs was good to go.

    I turned the ignition key and I got a F --- NW, I had the choice of F or C. The compass appeared to be working without ever calibrating.

    Not sure which direction to go, the console has a 10/28/2010 build date on it As well as an accurate part number for the 2009-2011 displays.

    Has anybody confirmed the install on a 2.7 ever?

  4. Aug 10, 2012 at 4:19 AM
    #4
    litegide24

    litegide24 [OP] Well-Known Member

    Joined:
    Mar 29, 2009
    Member:
    #15292
    Messages:
    264
    See the photo above with the harness wires.

    The 2011 console oesnt work in the 4 cylinder. Now know that for sure.

    Does anybody know what two wires I could cut (or splice - going to added sensor)? I say cut because guess need two wires for the added sensor, would be easier cut the yellow (other wire not sure) before the female harness plug so I'd have the two pigtails left from the harness that gets plugged directly into the console.

    I'd cap the two wire ends going back to wherever they go in the truck.

    Some of you guys have the pins numbered...I'm not sure where to start counting pins :confused:

    I believe the yellow for sure but not sure about the 2nd wire routed to the new (additional) temperature sensor... If somebody knows about 2nd wire or has a wiring diagram for a 2011 4 cylinder that would be very helpful.

    Thanks

  5. Aug 10, 2012 at 4:41 AM
    #5
    T@co_Pr3runn3r

    T@co_Pr3runn3r XXXXXXXXXXXXXXXXXXX

    Joined:
    Jan 20, 2009
    Member:
    #12767
    Messages:
    10,363
    Gender:
    Male
    <----------------->
    Vehicle:
    08 RC Prerunner SR5
    I'm about to have some overhead console fun too but different from yours. I have reg cab so I'll be cutting the headliner and running wiring for the other overhead console, the one with just map lights, cubby for garage door opener & cubby for glasses in it. I have the console and even scored the metal mounting bracket that is attached to the roof from a partout. Good luck on your project................

  6. Aug 10, 2012 at 7:52 AM
    #6
    Tunngavik

    Tunngavik Well-Known Member

    Joined:
    Oct 14, 2009
    Member:
    #24328
    Messages:
    543
    Gender:
    Male
    First Name:
    Jason
    Alberta, Canada
    Vehicle:
    2010 Access Cab SR5 4x4 5speed I4
    Fog lights, Heated mirrors with OEM switch, Heated seats, Cab sound deadening, Lighted 4x4 switch, URD short shifter, Rear backup camera, 2012 rear view mirror with compass, outdoor temperature and backup video mirror, Leer 100XL camper shell
    In my experience it will not work. I've tried everything including the following:


    • Direct plug and play of 2010 console in my 2010 truck - Temp and compass did not work
    • Install of a 2005-2008 console, additional install of an ambient temp sensor at front of the truck, run wires from the sensor to the gauge - Temp and compass did not work
    • Direct plug and play of a 2012 backup video, temp, compass mirror in my 2010 truck - Temp did not work but compass and camera did. The temp display could be removed through setting options in the mirror so at least you don't have a null value where the temp display would be. This is the option I currently have on my truck.

    I'm not saying this is impossible but I think you would have to have a lot of knowledge of electronics to do so. I'll see later on today if there are some links I can post that I used when trying to figure out the problem.

  7. Aug 10, 2012 at 11:02 AM
    #7
    Tunngavik

    Tunngavik Well-Known Member

    Joined:
    Oct 14, 2009
    Member:
    #24328
    Messages:
    543
    Gender:
    Male
    First Name:
    Jason
    Alberta, Canada
    Vehicle:
    2010 Access Cab SR5 4x4 5speed I4
    Fog lights, Heated mirrors with OEM switch, Heated seats, Cab sound deadening, Lighted 4x4 switch, URD short shifter, Rear backup camera, 2012 rear view mirror with compass, outdoor temperature and backup video mirror, Leer 100XL camper shell
    Here are a couple of threads that may help:

    Install of Overhead Console into 2009-2011 Trucks

    Here is a thread I started a few months back on this topic:

    Install of 2012 Mirror in 2009-2011 4 Cyl

    If you ever get this to work please post it here and you will have my eternal gratitude. I would love to have a working temperature gauge that is stock for my I4.

  8. Aug 10, 2012 at 8:51 PM
    #8
    litegide24

    litegide24 [OP] Well-Known Member

    Joined:
    Mar 29, 2009
    Member:
    #15292
    Messages:
    264
    Tunngavik thanks for all of the insight to this. After re-reading some of the familiar links I think the mod is going to be difficult. One of your posts I actually participated back in 2011, I had some confidence in the one A+post http://www.tacomaworld.com/forum/2nd-gen-tacomas/121050-need-your-interpretation-guys-spelling-grammar-installing-overhead-console.html that looked promising by Fortech (at least for an '08 console).

    After some helpful information from some knowledgeable members on this Kevinva, RL_Engineer, Jassco and yourself it confirms the 2008 or the current model ('09-'11) console are going to be a challenge in the 4 cylinder 2009-2011 vehicle.

    This may be a dumb question but have not seen it before. Do we know what each of the 5 wires going into the "09-"11 console do? I know it was discussed about the pins, the ac amplifer, ground and 12v power... that only leaves a few. Since we can't get it to work in the truck, what about on a bench? I know this is an expensive component to be experimenting with and I"m no engineer but would think this circuit could be duplicated... Although doubt an internal wiring schematic exists for the temp/compass, then again it probably does exist but would be hard to get a hold of... The post you provided on the home-link mirror by blackseven was an impressive tutorial on Toyotas electronics. Another thought is the key component in the 4.0 L trucks, we know that even installing an additional (6 cyl part) sensor it doesn't work on the '08 consoles. Would be interesting to also compare two wiring diagrams from the 4 cylinder 6 cylinder and see how the harness or ac amplifier went from 6 down to 5 wires. Acquiring whatever missing piece and stashing it under the hood or up in the dash, so the one component missing gets put in that circuit.

    During my short exposure to this console swap, I wanted to test it before fitting it back in the headliner. I used long plastic tywraps to hold the new console to see it come on. When it didnt work except a F ---- N I thought to just run my own wires to an added sensor. Prior to running for a Toyota sensor planned on using cheap walmart sensor, just cutting the thermistor off and try it. Never got that far because it finally sunk in that nobody knew what to use for the 2nd sensor wire on the '09-'11 console.

    Tunngavik thanks again for summarizing your proven experiences with the three different devices, sharing the links also helped me look back on a variety of great discussion by some smart members.

  9. Aug 11, 2012 at 9:04 AM
    #9
    Tunngavik

    Tunngavik Well-Known Member

    Joined:
    Oct 14, 2009
    Member:
    #24328
    Messages:
    543
    Gender:
    Male
    First Name:
    Jason
    Alberta, Canada
    Vehicle:
    2010 Access Cab SR5 4x4 5speed I4
    Fog lights, Heated mirrors with OEM switch, Heated seats, Cab sound deadening, Lighted 4x4 switch, URD short shifter, Rear backup camera, 2012 rear view mirror with compass, outdoor temperature and backup video mirror, Leer 100XL camper shell
    The idea of trying a bench mock up / connection to get the thing to work is a good one. I was actually thinking of that myself but then recognized that my lack of knowledge in electronics was going to prevent me from getting any useful information. When it comes to electronics and electrical I am good at following instructions and determining live wires and the such but beyond that (e.g. resistance in wires ect) I have no clue.

    I know Blackseven was looking at getting the 2012 wiring 6cyl diagram to compare it to the 2009-2011 4 cyl diagram. It seems he had knowledge of reading those.

    He mentioned that the 2012 diagram was not yet available. I did let him know that once he finds one that I would be willing to throw in some money to get it. This would be to get the 2012 mirror working in the 2009-2011 I4's but the information probably could be used to get the console to work in the trucks as well.

    I think the only way of really getting this done is to have the wiring diagrams from the trucks and someone who is very knowledgeable in automotive electronics to try to figure it out.

  10. Aug 15, 2012 at 12:19 PM
    #10
    jassco

    jassco Well-Known Member

    Joined:
    Aug 3, 2009
    Member:
    #20568
    Messages:
    557
    Gender:
    Male
    Boston
    Vehicle:
    2010 Access Cab 2.7L SR5 5spd, 4x4
    5100 set to .85 w/ rear TSB, 2012 Rear-view Mirror, Grillecraft, Team Trails FJ Wheels, TPMS canister, Rear headrest delete, Rear console delete, Valley Hitch, Frame undercoat, $2.99 Tailgate hose clamp lock, Avid light bar, 4x4 lighted switch ala Biceman.
    Really puzzled at this one. It would seem that this console is designed to work this way with the sensor, but is somehow routed through the dash and perhaps some form of relay given the different color wires. I remember there not being a connection down in the foot panel for one of the wires, but running a new set of wires as you have indicated seems to get around that worry.

  11. Aug 18, 2012 at 11:52 AM
    #11
    litegide24

    litegide24 [OP] Well-Known Member

    Joined:
    Mar 29, 2009
    Member:
    #15292
    Messages:
    264
    Still need to locate the connectors shown on the diagram (for the yellow circuit) for the wire that runs between the harness in the headliner and the ac amplifier. This diagram is for the '09-'11 temp/compass display. It shows what it needs to work. Although its not a 4 cylinder specific drawing. Toyota was busy but they gave me this so it's a start. If I go back on Monday night they'll try to pull up the 4 cylinder wiring.

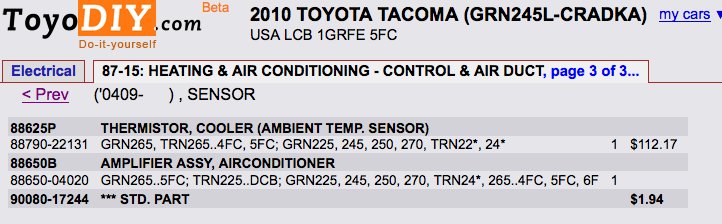

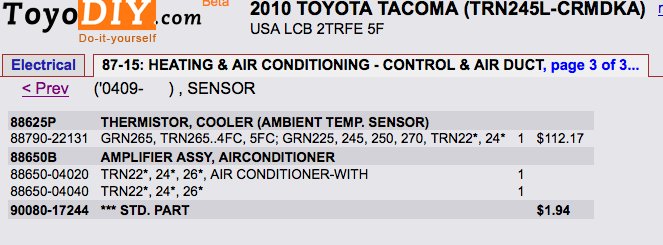

    Just wondering if the amplifiers are different part numbers between the 4 and 6 cylinder's. Also could another amplifier be added to feed this component.

    On Toyotas system this compass/temperature assembly is called the "Accessory Meter". The dealership also gave me the sheets for the pin configurations that are shown on the wiring diagram.

    My scanner doesnt work so here are some jpegs of what I have. The close up shots are from the same drawing but you'll have to piece it together, you may need to see the big picture at the same time to see how the puzzle fits together. Once album is open click view all or slideshow (options fast), the full drawing are at the end and not on 1st page for some reason so you may want to skip through.

    The accessory meter (A28 harness) also shows the yellow leaving the headliner and going to A14 (or AC amplifier).

    It appears that there are two more locations before it hits the A14 (Amplifier). The wire is the yellow (temp) does go to three junction connectors before it gets to A14 amplifier.

    - Connector IP2 (10 pin connection)
    - Connector IN1 (14 pin connection)
    - Connector IN2 (14 pin connection)

    All before the yellow lands on the A 14 (pin 27) on the amplifier...

    Actually not sure where the above wires go after they leave the A28 console. Although believe the A14 amplifier is behind the glove box? Maybe the IP2, IN1 and IN2 connectors are loacted near by.

    The diagram is in color, they also provided 3 other pages that show the connectors listed on the diagram (configuration and numbers) for each.

    I called the dealer and inquired about AC amplifier part numbers for both the 4 cylinder truck and the 6 cylinder truck, they had trouble trying to locate any part number for the amplifier... They said in the evenings they'll have more time to look. I think the problem with the console Temp reading may be the same problem that Tunngavik s is having with the 2012 mirror by Genex (which I believe is OEM on some new Tacoma trucks). Not sure why this console is plug and play with the 6 cylinders.

  12. Aug 18, 2012 at 12:40 PM
    #12
    BlackSeven

    BlackSeven Grab your helmet, this shits about to get retarded

    Joined:
    Jan 29, 2012
    Member:
    #71733
    Messages:
    474
    Gender:
    Male
    First Name:
    Mike
    Maryland
    Vehicle:
    '10 Reg Cab 4x4
    Toytec Ultimate Lift kit, Toytec Rear AAL, 4.88 Gears, ARB Rear locker, Doug Thorley header, Volant Cold Air Intake, Demello Offroad front high clearance bumper, ARB On board Air compressor, BLHM, Wet Okoles, 2011 Color matched grill, Weathertech mats, 4x Innovations Sliders, ATO Engine Skid plate, ATO High lift bed mounts.
    Those connectors I believe are down by the fuse box, but that's irrelevant. You can run your own wire down A-pillar on the passenger side to the A/C Amplifier, that's what I did. Shit still doesn't work, but it's all hooked up.

    Bottom line, the 2012 Gentex back up mirror is expecting a different input then what the A/C amplifier is sending out. I'm almost certain this is the problem.

  13. Aug 18, 2012 at 12:57 PM
    #13
    litegide24

    litegide24 [OP] Well-Known Member

    Joined:
    Mar 29, 2009
    Member:
    #15292
    Messages:
    264
    I believe you are correct. How big (physically) is the AC amplifier?. I'll try and confirm that the amplifier has a different part numbers between the 4 and 6 cylinders. Have no idea what the cost is or if the 6 cylinder amplifier could be added into the circuit...

  14. Aug 18, 2012 at 1:23 PM
    #14
    BlackSeven

    BlackSeven Grab your helmet, this shits about to get retarded

    Joined:
    Jan 29, 2012
    Member:
    #71733
    Messages:
    474
    Gender:
    Male
    First Name:
    Mike
    Maryland
    Vehicle:
    '10 Reg Cab 4x4
    Toytec Ultimate Lift kit, Toytec Rear AAL, 4.88 Gears, ARB Rear locker, Doug Thorley header, Volant Cold Air Intake, Demello Offroad front high clearance bumper, ARB On board Air compressor, BLHM, Wet Okoles, 2011 Color matched grill, Weathertech mats, 4x Innovations Sliders, ATO Engine Skid plate, ATO High lift bed mounts.
    It's not large. What you need are the repair splices that plug into the harness on each end. My thread has the part numbers you need. Since you're going 2011 to 2011, I can't imagine you'll have a problem. I only had a problem cause I wanted to use the 2012 Backup mirror with my 2010 Truck.

  15. Aug 18, 2012 at 1:29 PM
    #15
    Rich91710

    Rich91710 Well-Known Member

    Joined:
    Feb 23, 2012
    Member:
    #73470
    Messages:
    16,477
    Gender:
    Male
    First Name:
    Rich
    Los Angeles
    Vehicle:
    08 Base
    Satoshi with FJ badge, factory cruise, factory intermittent wipers, Redline Tuning hood-lift struts, Hellwig Swaybar, Rosen DVD-Nav
    Just spend $100 on a Gentex/Donnley mirror.
    Temp, compass, and automatic dimming.

  16. Aug 18, 2012 at 2:23 PM
    #16
    litegide24

    litegide24 [OP] Well-Known Member

    Joined:
    Mar 29, 2009
    Member:
    #15292
    Messages:
    264
    Back up camera?! It's pretty cool and I do use it.

  17. Aug 18, 2012 at 2:54 PM
    #17
    jassco

    jassco Well-Known Member

    Joined:
    Aug 3, 2009
    Member:
    #20568
    Messages:
    557
    Gender:
    Male
    Boston
    Vehicle:
    2010 Access Cab 2.7L SR5 5spd, 4x4
    5100 set to .85 w/ rear TSB, 2012 Rear-view Mirror, Grillecraft, Team Trails FJ Wheels, TPMS canister, Rear headrest delete, Rear console delete, Valley Hitch, Frame undercoat, $2.99 Tailgate hose clamp lock, Avid light bar, 4x4 lighted switch ala Biceman.
    Pretty sure an older thread stated they are different part numbers.

  18. Aug 18, 2012 at 3:11 PM
    #18
    jassco

    jassco Well-Known Member

    Joined:
    Aug 3, 2009
    Member:
    #20568
    Messages:
    557
    Gender:
    Male
    Boston
    Vehicle:
    2010 Access Cab 2.7L SR5 5spd, 4x4
    5100 set to .85 w/ rear TSB, 2012 Rear-view Mirror, Grillecraft, Team Trails FJ Wheels, TPMS canister, Rear headrest delete, Rear console delete, Valley Hitch, Frame undercoat, $2.99 Tailgate hose clamp lock, Avid light bar, 4x4 lighted switch ala Biceman.
    We want to retain backup camera functions of the 2012 mirrors we have.

  19. Aug 18, 2012 at 3:25 PM
    #19
    TacomaBuzz

    TacomaBuzz Manual Transmission Enthusiast

    Joined:
    Mar 7, 2010
    Member:
    #32764
    Messages:
    1,178
    Gender:
    Male
    First Name:
    Matt
    Connecticut
    Vehicle:
    2011 RegCab Manual 5 lug
    Hose clamp mod, Bench>Buckets swap,6-Speed center console,Secondary air filter removed,AFE pro dry s,Weathertech mats,TRD seat covers,Sirius,Pop N Lock, Bed Mat,Int Wiper switch, Bugflector,Yellow Fog lights,Ventvisors,back-rack.
    Definitely interested in seeing the outcome of this. As with most of these technical one-off mods, there always has to be a guinea pig willing to put in the money, time and research. I'm looking forward to seeing a full DIY write-up when this is complete !

  20. Aug 18, 2012 at 3:29 PM
    #20
    BlackSeven

    BlackSeven Grab your helmet, this shits about to get retarded

    Joined:
    Jan 29, 2012
    Member:
    #71733
    Messages:
    474
    Gender:
    Male
    First Name:
    Mike
    Maryland
    Vehicle:
    '10 Reg Cab 4x4
    Toytec Ultimate Lift kit, Toytec Rear AAL, 4.88 Gears, ARB Rear locker, Doug Thorley header, Volant Cold Air Intake, Demello Offroad front high clearance bumper, ARB On board Air compressor, BLHM, Wet Okoles, 2011 Color matched grill, Weathertech mats, 4x Innovations Sliders, ATO Engine Skid plate, ATO High lift bed mounts.
    The gentex mirror still requires temp input from the truck. I have it and it its awesome aside from the temp not working.
