Dash cams

Discussion in '3rd Gen. Tacomas (2016+)' started by Rafael1911, Mar 27, 2017.

  1. Mar 27, 2017 at 1:06 AM
    #1
    Rafael1911

    Rafael1911 [OP] Member

    Joined:
    Mar 27, 2017
    Member:
    #214488
    Messages:
    6
    Gender:
    Male
    First Name:
    Rafael
    Vehicle:
    2017 silver sky tacoma trd sport
    What dash cams are you running?
    How much trouble to hide the wires?

    Crodell6 and moe2o4 like this.
  2. Mar 27, 2017 at 6:26 AM
    #2
    gpb

    gpb Well-Known Member

    Joined:
    Aug 24, 2016
    Member:
    #195408
    Messages:
    5,944
    Gender:
    Male
    Atlanta
    Vehicle:
    2017 White DCSB TRDOR 4x4
    Optimaltaco likes this.
  3. Mar 27, 2017 at 6:38 AM
    #3
    Optimaltaco

    Optimaltaco Well-Known Member

    Joined:
    Dec 27, 2016
    Member:
    #205798
    Messages:
    241
    Gender:
    Male
    First Name:
    Dave
    Cochrane, AB
    Vehicle:
    '17 Tacoma DCSB TRD Off-Road
    TRD Pro - Grill and Rear Tail-Lights OEM Roof Rack FN overland 17x8.5” -6 BFG KO2 Morimoto 2 stroke LED headlights 30” auxbeam light bar Custom built Canopy Readylift 3" spacer kit Deaver 1.5-2" AAL Amber hazard strobe lighting
    I haven't put one in the Tacoma yet but my RSX Type S has the thinkware F550 (front only) it's a great unit. The new thinkware' are even nicer. I also put a blackview DR3500-FHD in my girlfriends pathfinder and it's got good video quality but has a flashing blue light on the side that faces the driver I put some vinyl over that because it was really annoying at night time.


    That's the thinkware F550. Doesn't have a built in monitor but I find that it's better to view on your phone or computer anyways. Hard wire is the way to go so you have "parking mode". Constant 12V, switched 12V (ignition) and ground that way it can record even when the car is turned off.
    Hiding the wire is only as hard as you make it. In my RSX I have my dashcam wire, remote start antenna, Pioneer microphone all in roughly the same area all going down the driver A pillar. It takes time but is not overly difficult.

    outlawtacoma and gpb like this.
  4. Mar 27, 2017 at 7:00 AM
    #4
    wjrichardson

    wjrichardson Well-Known Member

    Joined:
    Oct 31, 2016
    Member:
    #201165
    Messages:
    419
    Gender:
    Male
    WI
    Vehicle:
    2017 TRD/OR/AC
    I did the GoPro knock off right onto the GoPro mount. took 5 minutes to hide the wires. I'll put a pic up later when I get home.

    Edit: had a pic on my phone:

    Optimaltaco and gpb like this.
  5. Mar 27, 2017 at 8:04 AM
    #5
    Scruffie

    Scruffie Well-Known Member

    Joined:
    Oct 30, 2015
    Member:
    #168154
    Messages:
    255
    Gender:
    Male
    First Name:
    Arsie
    Surrey B.C Canada
    Vehicle:
    2016 QuickSand Access TRD OR Manual
    265/75/16Dura,SSO Hybrid,X20,CruisinSliders,Skids
  6. Mar 27, 2017 at 9:25 AM
    #6
    gilcrestk

    gilcrestk Well-Known Member

    Joined:
    Dec 25, 2016
    Member:
    #205657
    Messages:
    72
    Gender:
    Male
    Vehicle:
    2016 Tacoma TRD O/R DCSB
    Honestly, I took my GoPro Hero 3 and use that as the dash cam. Bought a 12 ft charging cable and ran it through the A-pillar town into the passenger area and plugged it in to the 12v outlet as the USB port didn't supply enough power. works fine for what I need it for, cover my ass if ever in an accident.

  7. Mar 27, 2017 at 9:33 AM
    #7
    scornwel

    scornwel Well-Known Member

    Joined:
    Nov 13, 2015
    Member:
    #169496
    Messages:
    559
    Gender:
    Male
    Fort Worth
    Vehicle:
    2016 White TRD OR 4x4
    None
    Amazon sells a mirror tap that goes into the back of your mirror and plugs into a micro USB, which is the most widely used interface.

    I used a MateCam.

    BSK and CCFIGHTER like this.
  8. Mar 27, 2017 at 9:36 AM
    #8
    scornwel

    scornwel Well-Known Member

    Joined:
    Nov 13, 2015
    Member:
    #169496
    Messages:
    559
    Gender:
    Male
    Fort Worth
    Vehicle:
    2016 White TRD OR 4x4
    None
  9. Mar 27, 2017 at 9:42 AM
    #9
    outlawtacoma

    outlawtacoma Well-Known Member

    Joined:
    Sep 25, 2007
    Member:
    #2796
    Messages:
    3,317
    Gender:
    Male
    W. TN
    Vehicle:
    2018 T4RTRDOR
  10. Mar 27, 2017 at 9:55 AM
    #10
    Scruffie

    Scruffie Well-Known Member

    Joined:
    Oct 30, 2015
    Member:
    #168154
    Messages:
    255
    Gender:
    Male
    First Name:
    Arsie
    Surrey B.C Canada
    Vehicle:
    2016 QuickSand Access TRD OR Manual
    265/75/16Dura,SSO Hybrid,X20,CruisinSliders,Skids
    I have tried my Hero 3 in my Tacoma. It's okay for occasional use. But nowhere as good functionally, as my old $70.00 GT680 Dashcam that's been mounted in my other truck for a couple years. A cheapy dedicated dash cam would be a lot nicer to use, you may find.

    https://dashcameras.net/gopro-as-dashcam/

    Can read whole article from link provided as this is only the summary
    SUMMARY
    GoPros are great at what they’re made to do: film action sports. You might be able to use one to record short clips of scenic road trips, but when it comes to regular dash camera use, GoPros just can’t compare. They are a good option for a daily motorcycle rider who wants to have the safety and security of video footage of their daily commute, as they can mount it to their helmets, where a traditional dashcam would not work well. But for your car, the downsides far outweigh the benefits, and when you look at the price, you’ll be able to get a lot more value out of a dash camera. There have been many DIY people who have created their own GoPro dashcam mounts to attach to their car windshield and other mods to make it a more user friendly dashcam, but these efforts take many hours and extra money to achieve these results. With nearly all new dashcams coming with HD video and tons of safety features, often for prices well under $100, you’re better off getting a dedicated dash camera designed for this very purpose.

  11. Mar 27, 2017 at 10:12 AM
    #11
    Sagebrush

    Sagebrush Well-Known Member

    Joined:
    Apr 2, 2016
    Member:
    #183141
    Messages:
    419
    Gender:
    Male
    Vehicle:
    2016 Silver Double Cab Tacoma OR
    Stock plus a topper
    I really like the A118C Novatek 1080 HD cameras. You can see my install using the mirror taps here:
    https://www.tacomaworld.com/threads/dash-camera-choices.415173/page-7

    I just put one in my wife's Honda and purchased it off eBay for $38. A remarkable deal. (or $60 on Amazon) Plus $10 for a 5V converter, $20 for the mirror tap (that's ridiculous) and $10 for the memory card.

    Here's a review. (His install sticks out. You've got to look extra hard to see mine.)

    http://the-gadgeteer.com/2015/04/10/a118-c-novatek-1080p-hd-dashcam-review/

    SB

    CCFIGHTER likes this.
  12. Mar 27, 2017 at 11:50 AM
    #12
    gilcrestk

    gilcrestk Well-Known Member

    Joined:
    Dec 25, 2016
    Member:
    #205657
    Messages:
    72
    Gender:
    Male
    Vehicle:
    2016 Tacoma TRD O/R DCSB
    The GoPro works for me. I've changed the setting to capture footage and maximize memory space. I use it daily and have had very little issues. I've had the GoPro for years so the only extra cost to me was $50 for the skeleton case and $10 for the cord, plus 30 minutes to install.

  13. Mar 27, 2017 at 11:53 AM
    #13
    DRJ1014

    DRJ1014 Well-Known Member

    Joined:
    Sep 11, 2015
    Member:
    #164009
    Messages:
    1,272
    Gender:
    Male
    Fullerton, CA
  14. Mar 28, 2017 at 11:42 AM
    #14
    Jeffaz1

    Jeffaz1 Well-Known Member

    Joined:
    Jun 15, 2014
    Member:
    #132032
    Messages:
    357
    Gender:
    Male
    Phoenix, AZ
    Vehicle:
    2020 Tacoma TRD Pro MGM
    As I think back to some of the threads I've seen recently on this board, from the guy who had the tailgate on his brand new TRD Pro stolen to the guy who parked on the street outside of a hockey arena only to come back and find his tailgate damaged, and everyone was arguing about whether it was from getting hit by a big truck with a lift kit or from a guy trying to pry open his tonneau cover with a pry bar.... I definitely want a front AND rear cam which can record while parked. At the same time, I'd still like to be able to power slide my rear window open.

  15. Mar 28, 2017 at 12:13 PM
    #15
    gpb

    gpb Well-Known Member

    Joined:
    Aug 24, 2016
    Member:
    #195408
    Messages:
    5,944
    Gender:
    Male
    Atlanta
    Vehicle:
    2017 White DCSB TRDOR 4x4

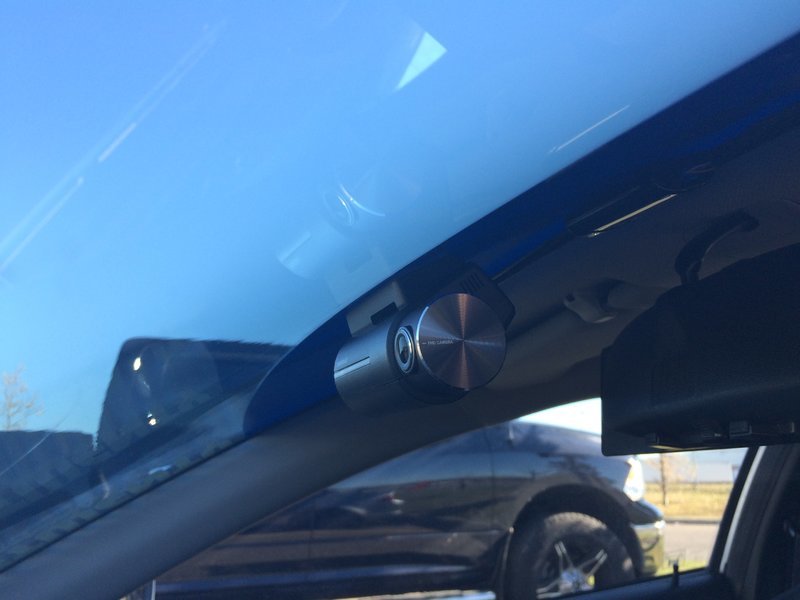

    Just be careful when mounting the rear facing camera. Window slides to the passenger side, mount the camera on the driver side as close to the closed sliding window as you can. (note: F770 rear camera is right-side-up when the writing is upside down... go figure)

    [​IMG]

    Being slightly off-center isn't a big deal when the window isn't curved.

    https://vimeo.com/198914466

  16. Mar 28, 2017 at 5:40 PM
    #16
    Jeffaz1

    Jeffaz1 Well-Known Member

    Joined:
    Jun 15, 2014
    Member:
    #132032
    Messages:
    357
    Gender:
    Male
    Phoenix, AZ
    Vehicle:
    2020 Tacoma TRD Pro MGM
    Thanks! Very helpful.

    gpb likes this.
  17. Mar 28, 2017 at 5:58 PM
    #17
    gunn_runner

    gunn_runner www.gunnphotoservices.com

    Joined:
    Apr 15, 2013
    Member:
    #102157
    Messages:
    1,491
    Gender:
    Male
    Rocky River, OH
    Vehicle:
    2013 DCLB TRD
    OME 886 & Dakars. 35" Mickey Thompson Baja Boss
  18. Mar 29, 2017 at 12:41 PM
    #18
    Donatodellapi

    Donatodellapi Well-Known Member

    Joined:
    Jan 25, 2017
    Member:
    #208641
    Messages:
    89
    Gender:
    Male
    I have the Blackvue DR650GW-2ch (front and rear) with the power magic pro which lets the camera film while the car is off using the battery, but has a fail safe, so if it dips to 22v or its been filming for 72H, it shuts off. I love it. The wires were super simple to tuck along the weather stripping and headliner.

    [​IMG]

    [​IMG]

    [​IMG]

  19. Mar 29, 2017 at 1:06 PM
    #19
    gunn_runner

    gunn_runner www.gunnphotoservices.com

    Joined:
    Apr 15, 2013
    Member:
    #102157
    Messages:
    1,491
    Gender:
    Male
    Rocky River, OH
    Vehicle:
    2013 DCLB TRD
    OME 886 & Dakars. 35" Mickey Thompson Baja Boss

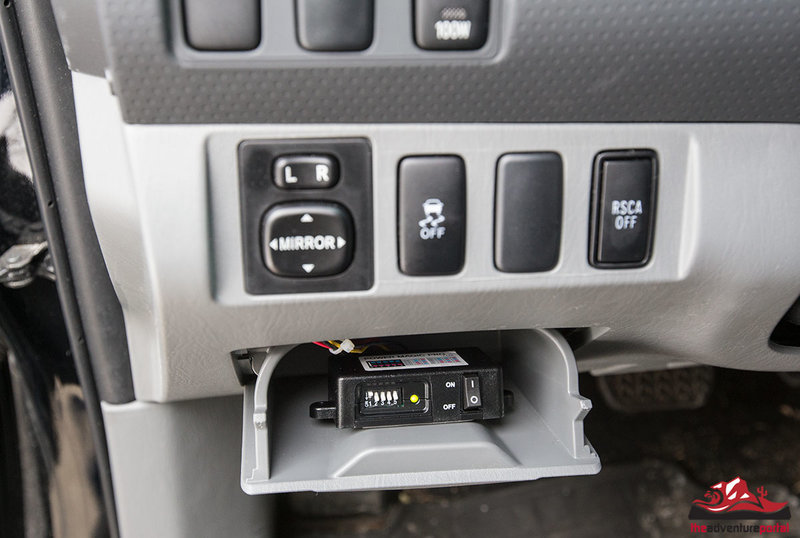

    Here's my Power Magic Pro mounting location...


    Donatodellapi likes this.
  20. Mar 29, 2017 at 3:40 PM
    #20
    wildbf

    wildbf Member

    Joined:
    Mar 22, 2017
    Member:
    #214078
    Messages:
    5
    Anyone have any videos of doing an install on a dashcam that runs when the car runs? Kinda like gpb's. Excuse my ignorance on the subject. Videos are a little easier to follow than words and pictures.
