DIY Garage Door Opener (non-homelink) - $10

Discussion in '3rd Gen. Tacomas (2016+)' started by cafereef, Apr 11, 2017.

  1. Apr 11, 2017 at 5:55 PM
    #1
    cafereef

    cafereef [OP] Well-Known Member

    Joined:
    Apr 3, 2017
    Member:
    #215206
    Messages:
    373
    Gender:
    Male
    Vehicle:
    2017 MGM Tacoma TRD Sport
    TRD Sport Exahust, OEM roof Rack, Predator Pro side steps.
    Hi all,
    I picked up my 17 TRD Sport MGM last week from the dealership. So far it's been great, learned a lot on this forum so far so thank you to everyone. One thing that I really felt was lacking and frustrating was for being an almost $40k pickup, the lack of a homelink garage door opener was upsetting. So I decided to add my own. Since I have a sport, the blanks in the overhead console were calling to me. So I ordered a push button, used some wire I had around the house and soldered together myself an external switch. Here is my write up. I know others have done it and wired the remote to a power source, but as simple as it is to remove the console, it's easy for me to swap a battery when it dies (which should be years). I also plan to add a second switch for my third car garage, I just only ordered the one as proof of concept at this point.

    Parts to order:

    -momentary switch: $8 Link
    -Any 20-22 AWG wire will work (couple bucks tops) , If you want to have wire disconnects like I used, you can order these: Link
    -spare garage door opener

    Tools:
    -drill
    -5/8" drill bit
    -zip ties
    -soldering iron
    -solder


    Wiring the external button to the garage door remote:
    1) remove the cover from your garage door opener

    [​IMG]

    2) Identify which contacts will initiate the garage door to open. To do this I simply screwed the wires into the terminals on the momentary switch and held the wire ends to the terminals and pressed the button until the door opened. This told me which contacts to solder too. Once You have identified the contacts to solder to, remove the battery

    3) flip the remote board over and solder to the contacts on the under side (this was easier for me with my remote, your mileage my vary)

    [​IMG]

    4) remount the board inside the remote case, and cut a small hole in the corner of the case for the wire to pass through.

    [​IMG]

    Mounting in the console:
    1) First step is to remove the overhead console from your pickup. It is held in place by 4 red plugs, simply pull down gently and the panel will remove. There is a single wire harness for the lights that must be disconnected to remove completely.

    2) Identify the two square holes on the back of the console, inside these two holes is the middle blank on the face of the panel.

    [​IMG]

    3) Pushing gently from inside these two holes on the backside of the console on this blank, on the edge closest to the lights, the panel will pop loose. There is a middle bracket that will need to be accounted for. With the panel wedged in place mark where this middle bracket is.

    [​IMG]

    4) I centered my spot for the momentary switch on the panel between the middle bracket on the console and the lip on the side that holds the blank in place. This gave me a clean mounting point that is even. Once marked, with a 5/8" drill bit (I recommend a forstner bit) drill your hole for the momentary switch.

    in the picture you can see my mark points that I made for determining where I wanted to drill
    [​IMG]

    5) Mount the momentary switch, feed the wire over the middle bracket and through the holes on the back of the console and reinsert the blank into the console. There is a tab that aligns with the console that must be put in first, then the panel will snap in almost like a closing door.

    [​IMG]
    [​IMG]
    [​IMG]

    6) Run zip ties under the bracket that is between the two holes on the back of the console, and zip tie the garage door opener to this spot. (I had to move the yellow wire loom and cut the tab that holds the wire so that the garage door opener wood fit snug, this is your decision)

    [​IMG]

    7) Job complete, you can now reinstall the console in your Taco. I recommend testing before reinstalling the console :)

    [​IMG]

    Here is a video of it functioning for me

    https://www.youtube.com/watch?v=lLHYHnZJIEA

    Enjoy this cheap DIY.

    Last edited: Apr 12, 2017
    SconnieTaco, opentang, nDub and 15 others like this.
  2. Apr 11, 2017 at 5:56 PM
    #2
    Xperivent

    Xperivent Well-Known Member

    Joined:
    Sep 13, 2015
    Member:
    #164147
    Messages:
    136
    Gender:
    Male
    Vehicle:
    '04 Impulse Red DC 4x4 TRD
    Was about to go out and do something like this... thanks!
    Yours is much slick.

    Last edited: Apr 11, 2017
  3. Apr 11, 2017 at 6:05 PM
    #3
    obz

    obz Well-Known Member

    Joined:
    Nov 8, 2016
    Member:
    #201908
    Messages:
    512
    Gender:
    Male
    Utah
    Vehicle:
    2017 Silver Sky TRD Sport 4x4
    Super cool OP!

  4. Apr 11, 2017 at 7:08 PM
    #4
    t0mf

    t0mf Well-Known Member

    Joined:
    Jan 27, 2017
    Member:
    #208775
    Messages:
    72
    Gender:
    Male
    Vehicle:
    2017 SR5 DCSB Super White
    Awesome! I might give this a try.

  5. Apr 11, 2017 at 7:35 PM
    #5
    Beerpayzdabillz

    Beerpayzdabillz Well-Known Member

    Joined:
    Jul 28, 2016
    Member:
    #193169
    Messages:
    1,110
    Gender:
    Male
    Nor Cal
    Vehicle:
    2016 DCSB 4x4 sport
    Nice Job. Looks clean.

  6. Apr 11, 2017 at 7:44 PM
    #6
    Captqc

    Captqc Well-Known Member

    Joined:
    Mar 5, 2017
    Member:
    #212458
    Messages:
    2,485
    Gender:
    Male
    Tigard, OR
    Vehicle:
    2017 Tacoma 4x4 TRD AC Off Road

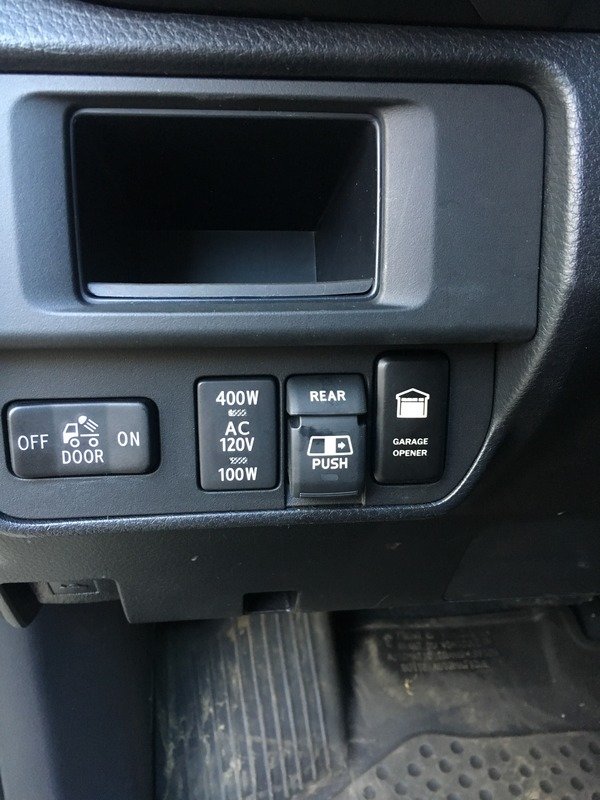

    Just did a similar mod to mine. Took the remote apart and hard wired it in. Bought the switch from Air On Board.


  7. Apr 11, 2017 at 7:50 PM
    #7
    cafereef

    cafereef [OP] Well-Known Member

    Joined:
    Apr 3, 2017
    Member:
    #215206
    Messages:
    373
    Gender:
    Male
    Vehicle:
    2017 MGM Tacoma TRD Sport
    TRD Sport Exahust, OEM roof Rack, Predator Pro side steps.
    Nice! I looked for one but couldn't find one. Guess I didnt look long enough. Oh well, I'm still happy

  8. Apr 11, 2017 at 7:56 PM
    #8
    Captqc

    Captqc Well-Known Member

    Joined:
    Mar 5, 2017
    Member:
    #212458
    Messages:
    2,485
    Gender:
    Male
    Tigard, OR
    Vehicle:
    2017 Tacoma 4x4 TRD AC Off Road
    Your switch cost less than mine!

  9. Apr 12, 2017 at 8:26 AM
    #9
    Nautilus50

    Nautilus50 Member

    Joined:
    Dec 5, 2016
    Member:
    #204107
    Messages:
    6
    Gender:
    Male
    First Name:
    Rod
    Vehicle:
    2017 Grey Tacoma 4X4
    Upgraded rear view mirror to Homelink Version. Running Boards.
    Hi guys,

    I went onto ebay and found a replacement mirror with homelink for $64.00 with free shipping.

  10. Apr 12, 2017 at 8:36 AM
    #10
    HawkShot99

    HawkShot99 Well-Known Member

    Joined:
    Oct 20, 2015
    Member:
    #167182
    Messages:
    1,723
    Gender:
    Male
    Poughkeepsie, NY
    Vehicle:
    13' Silver DCLB TRD Sport
    If you are going to go through the effort to hide your clicker, why would you want to label the button to it?

    I did this on my motorcycle and it works great. I just have a basic switch hidden on the bike to activate the clicker.

  11. Apr 12, 2017 at 9:17 AM
    #11
    Salty_Dog

    Salty_Dog Armchair Anarchist

    Joined:
    Mar 6, 2017
    Member:
    #212502
    Messages:
    5,687
    Gender:
    Male
    First Name:
    Tim
    Fredericksburg, VA
    Vehicle:
    2015 Tacoma Double Cab, Off-Road Edition
    AJT Designs Shifter AJT Designs Battery Hold-Down ARB Twin Compressor w/ Slee Offroad Mounting Bracket Avid Brush Bar Avid Step Bars BFGoodrich All-Terain T/A Tires Black Rock Wheels Series 997 Type 8 Circuit Breaker/Relay Panel Custom TRD Decals Bulletproof Fabricating Raptor Grill Bulletproof Fabricating Cooling Panel Bulletproof Fabricating Tow Hook Exhaust Breather Mod eBay Special 3-Gallon Air Tank EZ Down tailgate damper Flagpole Mounts, Dual Foglight Mod Hella Supertone Horns Icon Dynamics Stage 3 Suspension Katskin Leather Interior LED Bed Lights LED Interior Lights Pop-N-Lock Tailgate Handle Prinsu CabRack Prinsu-like Shell Rack Redline Tuning Hood Struts Rigid Industries Ditch Lights Rigid Industries Spotlights Toyota Bed Step Treat-A-Pet Dog Hammock Vixen Air Horns, Four-Trumpet Whole bunch of decals worth about 5HP each.
  12. Apr 12, 2017 at 9:30 AM
    #12
    Captqc

    Captqc Well-Known Member

    Joined:
    Mar 5, 2017
    Member:
    #212458
    Messages:
    2,485
    Gender:
    Male
    Tigard, OR
    Vehicle:
    2017 Tacoma 4x4 TRD AC Off Road
    I made no effort to hid the clicker, if someone goes through the trouble to break into my garage I doubt they will be pushing the button on the truck dash to open the garage door, besides it was mounted on the visor before I did this mod. Also, If you have a home Link mirror the buttons are in plain sight.

    Idig63 likes this.
  13. Apr 12, 2017 at 9:31 AM
    #13
    Captqc

    Captqc Well-Known Member

    Joined:
    Mar 5, 2017
    Member:
    #212458
    Messages:
    2,485
    Gender:
    Male
    Tigard, OR
    Vehicle:
    2017 Tacoma 4x4 TRD AC Off Road
    I looked into that but I'm a little OCD so the homelink mirror with blue backlit buttons is $229 which is too rich for me.

  14. Apr 12, 2017 at 9:35 AM
    #14
    JdevTac

    JdevTac Bawnjourno

    Joined:
    Jan 8, 2012
    Member:
    #70234
    Messages:
    4,691
    Gender:
    Male
    First Name:
    Josh
    GA/MD
    Vehicle:
    2013 DC TRD-OR 4x4 Pyrite Mica
    $20 homelink modules off eBay are another option and have positive/neg terminals for easy hardwiring so no batteries to worry about.

  15. Apr 12, 2017 at 9:40 AM
    #15
    cafereef

    cafereef [OP] Well-Known Member

    Joined:
    Apr 3, 2017
    Member:
    #215206
    Messages:
    373
    Gender:
    Male
    Vehicle:
    2017 MGM Tacoma TRD Sport
    TRD Sport Exahust, OEM roof Rack, Predator Pro side steps.
    I did the same thing on my motorcycle as well. I wired it into my high beams, I would trigger my opener by flashing my high beam. Worked well. I don't know if its necessarily to "hide" the remote, as much as a way to integrate into the vehicle.

    Roxanne16 and Idig63 like this.
  16. Apr 12, 2017 at 1:41 PM
    #16
    4x4engr

    4x4engr Well-Known Member

    Joined:
    Jan 15, 2017
    Member:
    #207648
    Messages:
    55
    Gender:
    Male
    First Name:
    Pete
    Vehicle:
    2017 Quicksand TRDOR 4x4
    AOB switches ftw. Decided not to wire the button with the dash lights because I'm OCD and they don't match lol


    SconnieTaco likes this.
  17. Apr 12, 2017 at 1:44 PM
    #17
    4x4engr

    4x4engr Well-Known Member

    Joined:
    Jan 15, 2017
    Member:
    #207648
    Messages:
    55
    Gender:
    Male
    First Name:
    Pete
    Vehicle:
    2017 Quicksand TRDOR 4x4
    Not so much hiding the button. Just wanted a cleaner solution than clipping it on the visor and it didn't quite fit in the square above the switches

    Idig63 likes this.
  18. Apr 12, 2017 at 2:03 PM
    #18
    Idig63

    Idig63 Well-Known Member

    Joined:
    Mar 3, 2017
    Member:
    #212185
    Messages:
    54
    Gender:
    Male
    Seattle
    Vehicle:
    2017 TRD OR 4X4 DCLB BLACK
    Do you have a direct link to the one you installed? Thanks.

  19. Apr 12, 2017 at 2:20 PM
    #19
    JdevTac

    JdevTac Bawnjourno

    Joined:
    Jan 8, 2012
    Member:
    #70234
    Messages:
    4,691
    Gender:
    Male
    First Name:
    Josh
    GA/MD
    Vehicle:
    2013 DC TRD-OR 4x4 Pyrite Mica
    Sorry OP for the brief thread jack

    Bought one like this:
    http://www.ebay.com/itm/HOMELINK-RO...ash=item1c81d7b1f5:g:9EAAAOSw8n1XMPeD&vxp=mtr

    just search "Homelink rolling code" on ebay and you will find a ton of them listed for ~$20. I bought one that looked to be in the best condition.

    If you want to keep it simple here is a relative DIY thread:
    https://www.tacomaworld.com/threads/how-to-install-a-homelink-garage-opener-w-pictures.132996/


    If you want to rig it up to a discreet toggle switch or something, just like the OP, you have to solder a wire to either side of the switch button on the circuit board but that's all that is required. Then depending if the one you buy has wires coming off of it, one will be power and one ground so you can hardwire to ignition power so someone can't just press it and get in your garage with the vehicle off (I know its circumventable but better than nothing, and my truck is always in the garage).

    Here is a thread DIY on how to do the soldering if that is your preference to run an external switch:
    https://www.tacomaworld.com/threads/how-to-install-a-homelink-garage-opener-w-pictures.132996/page-3

    Idig63 likes this.
  20. Apr 18, 2017 at 8:02 PM
    #20
    DST75

    DST75 Well-Known Member

    Joined:
    Sep 13, 2016
    Member:
    #197170
    Messages:
    221
    Gender:
    Male
    Omaha, NE
    Vehicle:
    2017 BBP TRD Sport DCSB w/ JBL
    Hmmm...might have to have some beers this weekend and have a little Tacoma garage door opener mod party. I'll have to check yours out at the office OP.
