DTRL toggle switch mod (stealth mode)

Discussion in 'Lighting' started by Crom, Apr 4, 2010.

  1. Sep 30, 2010 at 8:43 PM
    #21
    BGrutter

    BGrutter Well-Known Member

    Joined:
    Aug 9, 2010
    Member:
    #41476
    Messages:
    378
    Gender:
    Male
    First Name:
    Baron
    Kansas City, MO
    Vehicle:
    2010 4x4 DCSB TRD OR
    Rear-View Camera Mod, Anti-theft Tailgate, No Mud-Flaps, Diff Breather Mod, Color-matched Mirror/Handle covers, Front Valance mod, Phone/GPS/Camera mount, and Illuminated 4x4 Switch ToyTec Ultimate Lift Light Racing UCAs
    Old thread, but very helpful.

  2. Nov 27, 2010 at 5:32 AM
    #22
    river rat

    river rat Tool Geek

    Joined:
    Feb 23, 2008
    Member:
    #4910
    Messages:
    116
    Gender:
    Male
    Midwest
    Vehicle:
    '11 Timberland Mica regular cab.
    You rock! Thanks!
    I just got a new Taco and my old one didn't have these annoying DTR things.
    I wouldn't mind so much if they just came on in gear in the daytime, but idling in the driveway at night, they scream..."look everyone an unoccupied truck with the keys in it!"

    Rob

  3. Nov 27, 2010 at 8:13 AM
    #23
    bmet bob

    bmet bob Member

    Joined:
    Nov 26, 2010
    Member:
    #46731
    Messages:
    11
    Gender:
    Male
    First Name:
    Bob
    Colorado Springs
    Vehicle:
    2011 access cab 4x4
    Thanks for the great mod thread. This is the solution to my number one nagging dislike on my new Taco. Going to try it this weekend.

    [​IMG]

  4. Nov 28, 2010 at 6:01 AM
    #24
    river rat

    river rat Tool Geek

    Joined:
    Feb 23, 2008
    Member:
    #4910
    Messages:
    116
    Gender:
    Male
    Midwest
    Vehicle:
    '11 Timberland Mica regular cab.
    Well I followed the directions and did it successfully yesterday. Only difference was I found it easier to disconnect the connector from the black relay(?) box that is attached to the passenger side of the under-dash fuse block.
    Then I followed the wire harness from that disconnected connector up to where it was electrical taped to a wire holder clip near the center back of the fuse block. Be cutting the tape I was able to get enough slack to work on the harness from a sitting position.
    Carefully cut some tape off the harness near the disconnected connector to get at the light green/red tracer wire. Cut that wire and soldered and taped a pair to a switch I put on the dash. Taped things back up and reconnected the harness to the black box. (I used a small screwdriver to depress the release tab on the connector which is on the passenger side of the connector--it unplugs kind of tight but it should come off the balck box)

    This is on a 2011 model.

  5. Nov 28, 2010 at 7:10 AM
    #25
    bmet bob

    bmet bob Member

    Joined:
    Nov 26, 2010
    Member:
    #46731
    Messages:
    11
    Gender:
    Male
    First Name:
    Bob
    Colorado Springs
    Vehicle:
    2011 access cab 4x4
    Is that connector located on the whole box located under the drivers side dash but the connector is on the passenger side of that box? And where you able to do it without dismantling dash??? Looked at mine yesterday and just didn't seem to be enough room to get in there.

  6. Nov 28, 2010 at 1:23 PM
    #26
    river rat

    river rat Tool Geek

    Joined:
    Feb 23, 2008
    Member:
    #4910
    Messages:
    116
    Gender:
    Male
    Midwest
    Vehicle:
    '11 Timberland Mica regular cab.
    If you get on your back and look up at the underside of the fuse block, there is a black box attached to the passenger side of the fuse block. There is a connector off the bottom of that box. I didn't disassemble anything except I unclipped the OBD connector and slid it out of my way.

    Definitely need a flashlight and you will get scratched up. :D

  7. Nov 28, 2010 at 3:04 PM
    #27
    bmet bob

    bmet bob Member

    Joined:
    Nov 26, 2010
    Member:
    #46731
    Messages:
    11
    Gender:
    Male
    First Name:
    Bob
    Colorado Springs
    Vehicle:
    2011 access cab 4x4
    very nice. Thanks for the info. Unfortunately got called in to work so looks like i'll have to put this one off until next weekend

  8. Nov 28, 2010 at 7:37 PM
    #28
    river rat

    river rat Tool Geek

    Joined:
    Feb 23, 2008
    Member:
    #4910
    Messages:
    116
    Gender:
    Male
    Midwest
    Vehicle:
    '11 Timberland Mica regular cab.
    I carried a pager for years. I feel for ya.

    [​IMG]

  9. Nov 28, 2010 at 7:41 PM
    #29
    MMazz365

    MMazz365 Well-Known Member

    Joined:
    Nov 7, 2009
    Member:
    #25564
    Messages:
    649
    Gender:
    Male
    First Name:
    Michael
    NY
    Vehicle:
    TRD Off Road
    -flowmaster dual side exit exhaust -3 inch lift -cb radio -scanner -DTRL's -Fogs Anytime -Truxedo Soft Tonnahu Cover -eyelids -grillcraft upper and lower -fogs behind the grill
    do you NEED a switch????? bec i did the DTRL mod to my truck today without a switch and now im seeing all this switch shit for it

  10. Nov 29, 2010 at 2:23 AM
    #30
    ETAV8R

    ETAV8R 4th MAW

    Joined:
    Feb 20, 2008
    Member:
    #4832
    Messages:
    1,290
    Gender:
    Male
    Republik of Kalifornia
    Vehicle:
    MGM 09 AC 4WD V6 TRD-OR w/ 2013 FWC Finch
    Grillcraft, Demello Sliders, OME Front and Rear suspension
    Me likes this thread/DIY!

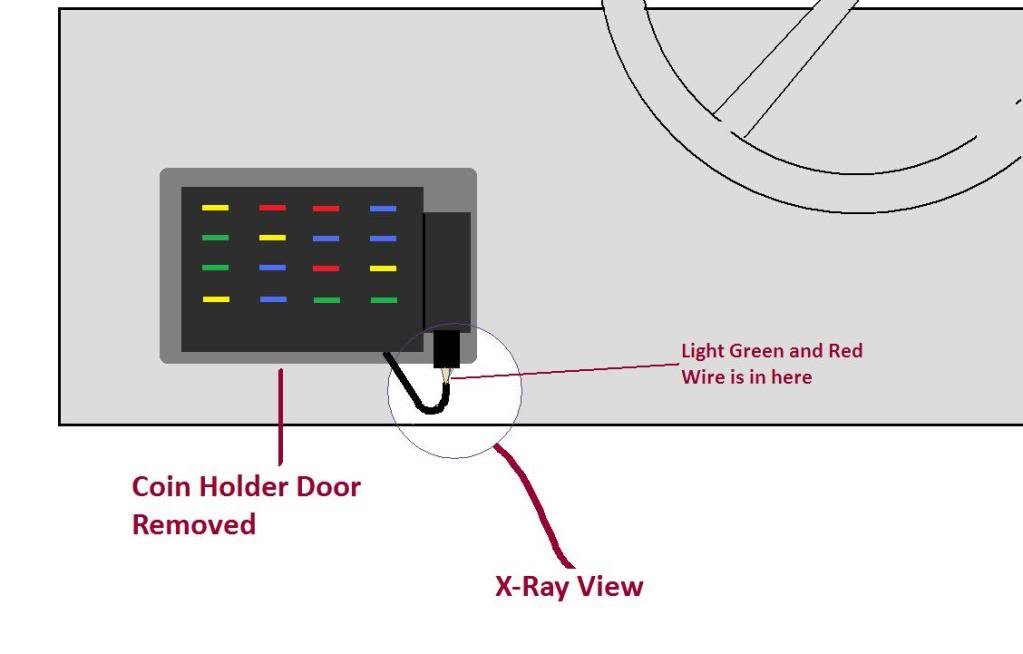

    Still a bit confused on the 'spliced' pic and what it should look like when finished.
    Thank you.

  11. Nov 29, 2010 at 4:26 AM
    #31
    river rat

    river rat Tool Geek

    Joined:
    Feb 23, 2008
    Member:
    #4910
    Messages:
    116
    Gender:
    Male
    Midwest
    Vehicle:
    '11 Timberland Mica regular cab.
    The light green with the red tracer wire is cut, and an on/off switch is wired in to make and break that wire's now cut connection.

    I suppose you can just cut and tape the wire ends if you never want the DTRs to come on. I put in a switch so I can usually have them, but turn them off when I don't want them. Easy peasy once you know which wire and how to get to it...thanks to the OP.

  12. Nov 30, 2010 at 3:03 PM
    #32
    bmet bob

    bmet bob Member

    Joined:
    Nov 26, 2010
    Member:
    #46731
    Messages:
    11
    Gender:
    Male
    First Name:
    Bob
    Colorado Springs
    Vehicle:
    2011 access cab 4x4
    Wow, not only a super tacoma modifier, but you also have x ray vision?????????????????????????

  13. Nov 30, 2010 at 3:39 PM
    #33
    river rat

    river rat Tool Geek

    Joined:
    Feb 23, 2008
    Member:
    #4910
    Messages:
    116
    Gender:
    Male
    Midwest
    Vehicle:
    '11 Timberland Mica regular cab.
    I'd be in Las Vegas right now if I did....:)

  14. Dec 3, 2010 at 6:21 PM
    #34
    ETAV8R

    ETAV8R 4th MAW

    Joined:
    Feb 20, 2008
    Member:
    #4832
    Messages:
    1,290
    Gender:
    Male
    Republik of Kalifornia
    Vehicle:
    MGM 09 AC 4WD V6 TRD-OR w/ 2013 FWC Finch
    Grillcraft, Demello Sliders, OME Front and Rear suspension
    I'm itchin to do this but just not sure I'd be able to pull it off.

    On a side note does anyone have a link on how to hook up a light in my shell/topper to the rear lights? TIA

  15. Dec 7, 2010 at 8:31 AM
    #35
    toyoda

    toyoda Active Member

    Joined:
    Nov 4, 2010
    Member:
    #45717
    Messages:
    44
    Gender:
    Male
    Vehicle:
    2010 SR5
    I got my test light out and checked the electricity coming to the wires. The green and red one never has fire coming to it. The black and red one does when the dtrl are on and flashes when the blinker is on. So it's the one that actually has the electricity coming to it, and if I interrupt power to it I won't have blinkers.

    Like I said the other wire has no electricity coming to it, so how will cutting it affect anything?

  16. Dec 7, 2010 at 10:11 AM
    #36
    Crom

    Crom [OP] Time is precious; use it wisely

    Joined:
    Jun 22, 2009
    Member:
    #18782
    Messages:
    4,343
    Gender:
    Male
    First Name:
    Mr. Sir
    San Diego, CA
    Vehicle:
    2009 Double Cab 4x4 Off Road
    A.R.E. MX Shell & Yakima Rack, Stubbs HD-SKO Rock Sliders, JBA HD UCA's & OME 885 Coils and nitrochargers, Dakar leaf packs, u-bolt flip, Flat BajaRack, Kenwood VHF/UHF Radio, Aux Battery, Solar Panels, L-Track everywhere, Goodyear Duratracs, Secured tailgate, 7-pin relocation, Inverter 400W all time, In-cab 110v outlets, Rear-seat 12v outlets., Steering shaft TSB, anytime fogs, DTRL toggle switch, aux turn signals, Diff Breather, ImMrYo mirror bracket, ABS Kill switch, (2) Kid Car Seats, and a Glock 23 with night sights.
    Your post is very confusing. You need to consult a wiring diagram for your year truck and make sure nothing has changed. The instructions I wrote work perfectly for the 2009 model truck with the DTRL feature.

    I used a 2007 wiring diagram for reference before doing this mod. The links below *may* help you.

    Reference electrical diagram here:
    http://www.tacomaworld.com/forum/tec...le-switch.html

    EDIT(5-20-10): I found a similar thread by 007Tacoma here: http://www.tacomaworld.com/forum/tec...le-switch.html
    He took out the harness and he has some good pics.

  17. Dec 7, 2010 at 11:59 AM
    #37
    toyoda

    toyoda Active Member

    Joined:
    Nov 4, 2010
    Member:
    #45717
    Messages:
    44
    Gender:
    Male
    Vehicle:
    2010 SR5
    Sorry for the confusion. I was trying to say I took out my electric test light and crawled underneath the dash, found the harness, etc. and that's where I got confused.

    The reason I was confused is that the green/red wire, the one you said to cut, never had any electricity going to it so I didn't see what snipping it would accomplish. the wire next to it, being black/red, DID have electricity. when the lights were on it didn't, when they were off (and therefore the DTRL were on) it did have electricity. It also had electricity going to it (and flashing) when the blinkers were on. I knew I'd found the wire going to the DTRL/blinkers, but I also kew if I cut it I'd be cutting that light off completely and wouldn't have my turn signal.

    I took a blind leap of faith and went by your instructions, and thank god the 2010 is wired just like your 09. Cutting the green/red wire did work (wasn't going to add a switch but I said what the hell and did it anyway). I guess it just goes to that relay or something.. Still sort of confusing that it never has electricity going to it though. Either way it works so I'm not complaining.

    Thanks again! The truck looks much better now.

  18. Dec 7, 2010 at 1:09 PM
    #38
    river rat

    river rat Tool Geek

    Joined:
    Feb 23, 2008
    Member:
    #4910
    Messages:
    116
    Gender:
    Male
    Midwest
    Vehicle:
    '11 Timberland Mica regular cab.
    It worked on my 2011 too.
    Maybe the green-red wire id a ground signal. I didn't test it. It works on the new truck and thank you. :D

    Since the turn signal is a separate lamp from brakes, the center brake light on the topper on mine was just run of the driver's side brake lamp filament circuit, and the topper interior light was off the parking light circuit.

  19. Dec 7, 2010 at 1:27 PM
    #39
    Crom

    Crom [OP] Time is precious; use it wisely

    Joined:
    Jun 22, 2009
    Member:
    #18782
    Messages:
    4,343
    Gender:
    Male
    First Name:
    Mr. Sir
    San Diego, CA
    Vehicle:
    2009 Double Cab 4x4 Off Road
    A.R.E. MX Shell & Yakima Rack, Stubbs HD-SKO Rock Sliders, JBA HD UCA's & OME 885 Coils and nitrochargers, Dakar leaf packs, u-bolt flip, Flat BajaRack, Kenwood VHF/UHF Radio, Aux Battery, Solar Panels, L-Track everywhere, Goodyear Duratracs, Secured tailgate, 7-pin relocation, Inverter 400W all time, In-cab 110v outlets, Rear-seat 12v outlets., Steering shaft TSB, anytime fogs, DTRL toggle switch, aux turn signals, Diff Breather, ImMrYo mirror bracket, ABS Kill switch, (2) Kid Car Seats, and a Glock 23 with night sights.
    Awesome! You're welcome. I understand what you're saying now and that makes sense. The green/red wire carries a signal (probably a ground wire, like river rat said) between the body ECU and the signal flasher. By interrupting the signal we can control when the DTRL are on or not on at all.

    Here is what the electrical diagram looked like:

    [​IMG]

    You're welcome! Good to know that the 2011's are still the same. Thanks. :)

  20. Dec 22, 2010 at 7:57 PM
    #40
    Hunter500ky

    Hunter500ky Well-Known Member

    Joined:
    Dec 2, 2010
    Member:
    #47031
    Messages:
    2,523
    Gender:
    Male
    E-Town Ky
    Vehicle:
    06 Tacoma 4x4 SR5
    Weathertech Mats, Toolbox, 6k HID fogs, Hardwire Escort 8500 x50,

    Awesome Questions, awesome answers thanks!!!

    I'll be doing this mod tomorrow not sure if I'm going to run a switch or not, I dont think I will EVER use them. If I want lights I'll just turn on the low beams....

    However since I will already be there I might switch it up.

    Just wanted to say thanks for a great write up!
