Fog light mod

Discussion in '1st Gen. Tacomas (1995-2004)' started by taco21122, Jul 24, 2019.

  1. Jul 24, 2019 at 1:34 PM
    #1
    taco21122

    taco21122 [OP] Taco2.7

    Joined:
    Sep 14, 2016
    Member:
    #197277
    Messages:
    142
    Gender:
    Male
    North Carolina
    Vehicle:
    2002 tacoma DC Prerunner 2.7l
    5% tint 32” LED bar New DEPO headlights Pioneer radio Kicker speakers Bilstein 5100’s 20x10 fuel turbos 295/55/20 toyo rts
    I am wanting to change my turn signals to fog lights on my 2002 tacoma. I know there’s a lot of write ups on this but can someone walk me through step by step with pictures on how to do this?

  2. Jul 24, 2019 at 2:02 PM
    #2
    devinzz1

    devinzz1 Well-Known Member

    Joined:
    Jun 28, 2014
    Member:
    #132892
    Messages:
    5,828
    Gender:
    Male
    First Name:
    devin
    lewisporte Newfoundland
    Vehicle:
    96 extended cab sr5
    cxracing turbo, fic6, methanol injection, 5100s/eibachs, skyjacker leafs, rear 5125s, no-slip rear locker, 35" grabber x3, magnaflow muffler, throttle body spacer, retrofit headlights, trans cooler, bed lined exterior, excessive stereo etc...
    just swap the positive wires. harness is behind the park lights themselves. cant remember colours but youl be able to see them anyways

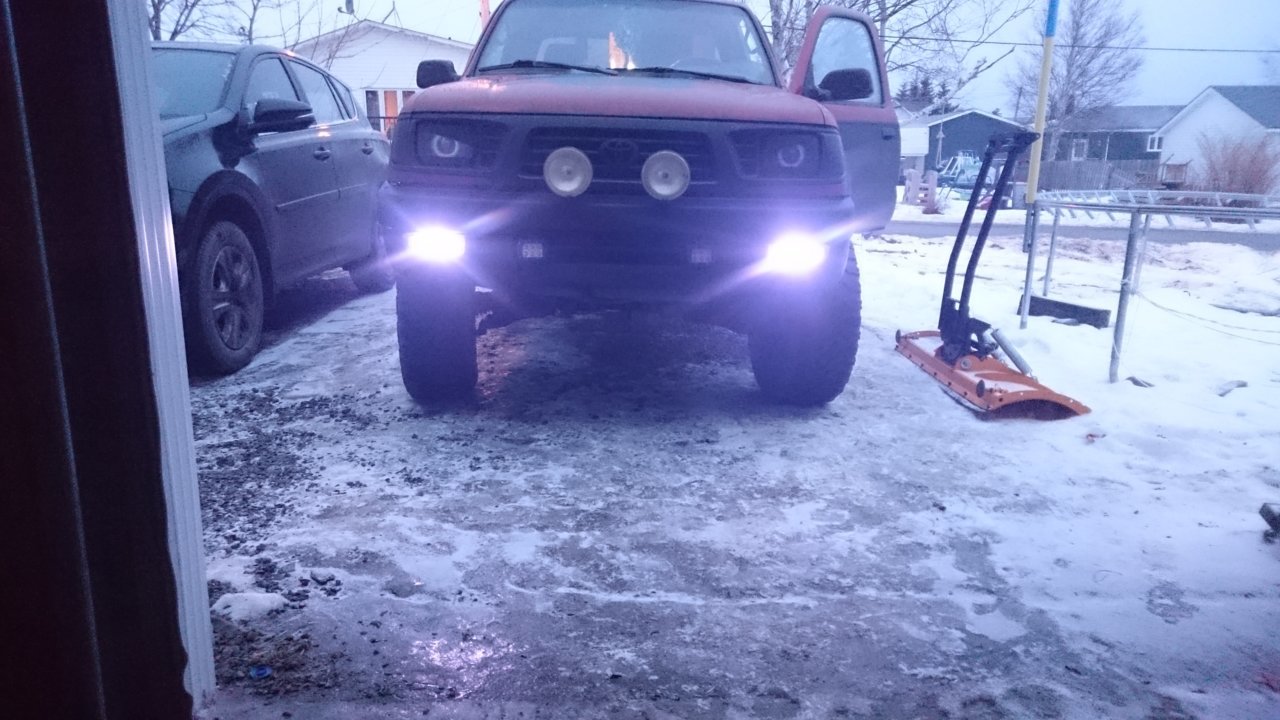

    i used some projector led bulbs in aftermarket clear housings


    Last edited: Jul 24, 2019
    kdxrider199 likes this.
  3. Jul 24, 2019 at 2:03 PM
    #3
    RysiuM

    RysiuM Well-Known Member

    Joined:
    Oct 18, 2015
    Member:
    #167004
    Messages:
    2,378
    Gender:
    Male
    First Name:
    Rysiu
    Was Golden State, now Poland EU
    Vehicle:
    1995 4x4 LX Ext Cab, I4 2.7, MT, 320K miles
    DD Deck+backup camera, LED DRL, All LED except H4 Hella
    I have a good news and bad news for you
    Good news: First you need to do blinkers (turn signal) relocation mod. Done successfully by many.
    Bad news: Stock turn signal lamp (reflector) will not work as a fog light. The light pattern is different and really terrible to be used in foggy conditions. It will make things worse.

    However stock turn signals can work as a DRL (the pattern is acceptable for DRL functionality). Just keep in mind: Day Time Running Lights (emphasis is on DAY), they will be blinding (and illegal) to run at night.

    Finally the last resort for you will be dumping stock blinkers and find any Fog Light lamp (aftermarket or adopted from different vehicle) that will fit into holes (I have not see a perfect fit yet).
    Or, forget the whole modification, but just get a decent aftermarket fog lights and install them on the bumper leaving all existing lighting as is. If you do decent job, the truck will not look like crap and will be 100% functional and legal.

    1997tacomav6 likes this.
  4. May 18, 2020 at 8:53 AM
    #4
    kdxrider199

    kdxrider199 Active Member

    Joined:
    Jun 5, 2019
    Member:
    #295459
    Messages:
    30
    Gender:
    Male
    First Name:
    Mike
    Vehicle:
    02 Stocko 4wd SR5 TRD
    None Yet
    Devinz - Will swapping the positive wires leave them on at all times? Or will that have them come on with the headlights or parking lights setting? Would they still blink when you use the indicators?

    I am asking because I am interested in setting up my stock signals with LED white/amber switchback bulbs so they could operate as additional white DRLs/weak fog lights but also blink amber as a signal. I know the bulbs exist, but curious what I would need to change from a wiring perspective.

    Thanks!

  5. May 18, 2020 at 12:53 PM
    #5
    devinzz1

    devinzz1 Well-Known Member

    Joined:
    Jun 28, 2014
    Member:
    #132892
    Messages:
    5,828
    Gender:
    Male
    First Name:
    devin
    lewisporte Newfoundland
    Vehicle:
    96 extended cab sr5
    cxracing turbo, fic6, methanol injection, 5100s/eibachs, skyjacker leafs, rear 5125s, no-slip rear locker, 35" grabber x3, magnaflow muffler, throttle body spacer, retrofit headlights, trans cooler, bed lined exterior, excessive stereo etc...
    they come on as the park lights (first turn of the stalk). they dont blink since those positive wires are going to what were the park lights. you could run those wires to the switchbacks though

    kdxrider199 likes this.
  6. May 18, 2020 at 4:11 PM
    #6
    kdxrider199

    kdxrider199 Active Member

    Joined:
    Jun 5, 2019
    Member:
    #295459
    Messages:
    30
    Gender:
    Male
    First Name:
    Mike
    Vehicle:
    02 Stocko 4wd SR5 TRD
    None Yet
    Thanks, that makes sense. I am guessing somewhere on here there is one of those fancy fold out colorful wiring diagrams.

  7. May 18, 2020 at 4:44 PM
    #7
    frizzman

    frizzman Well-Known Member

    Joined:
    Sep 25, 2013
    Member:
    #113212
    Messages:
    4,580
    Gender:
    Male
    Pittsburgh, PA
    Vehicle:
    04 XCab 4x4 TRD/OR
    OME 3", Tundra 17's, Cooper S/T Maxx 255/75-17, hitch w/ 7-pin, Leer cap, JVC head unit w/BT, LED lights

    be careful when doing switchbacks. Tacoma 01-04 uses a 3157/4157 CK style bulb that has different contacts than normal 3157. that's why there is usually only one + wire so no chance of messing it up. running switchbacks requires you to "wire" up that 3rd spot in the harness or buy new harnesses with all 3 wires present (I have these from fleabay)

    You can either buy the CK version of the switchback, or get a replacement housing that has the 1157 style and use it instead (it's what I have)


    kdxrider199 likes this.
  8. May 18, 2020 at 4:55 PM
    #8
    frizzman

    frizzman Well-Known Member

    Joined:
    Sep 25, 2013
    Member:
    #113212
    Messages:
    4,580
    Gender:
    Male
    Pittsburgh, PA
    Vehicle:
    04 XCab 4x4 TRD/OR
    OME 3", Tundra 17's, Cooper S/T Maxx 255/75-17, hitch w/ 7-pin, Leer cap, JVC head unit w/BT, LED lights
    let's see if this works


    1997tacomav6, Saiko and kdxrider199 like this.
  9. May 18, 2020 at 5:06 PM
    #9
    kdxrider199

    kdxrider199 Active Member

    Joined:
    Jun 5, 2019
    Member:
    #295459
    Messages:
    30
    Gender:
    Male
    First Name:
    Mike
    Vehicle:
    02 Stocko 4wd SR5 TRD
    None Yet
  10. May 18, 2020 at 5:26 PM
    #10
    frizzman

    frizzman Well-Known Member

    Joined:
    Sep 25, 2013
    Member:
    #113212
    Messages:
    4,580
    Gender:
    Male
    Pittsburgh, PA
    Vehicle:
    04 XCab 4x4 TRD/OR
    OME 3", Tundra 17's, Cooper S/T Maxx 255/75-17, hitch w/ 7-pin, Leer cap, JVC head unit w/BT, LED lights
    I have not tried those. I got the Toyota plug ones similar to this but the ones I bought two years ago are not longer listed

    https://www.ebay.com/itm/Gray-3-way...For-Toyota-Turn-Signal-Headlight/362992677031

    I then just cut and soldered them in.

    I have DEPO brand housings because I needed new ones anyway cause they all leaked from the connector and ruined the reflective chrome inside

    kdxrider199 likes this.
  11. May 18, 2020 at 6:15 PM
    #11
    kdxrider199

    kdxrider199 Active Member

    Joined:
    Jun 5, 2019
    Member:
    #295459
    Messages:
    30
    Gender:
    Male
    First Name:
    Mike
    Vehicle:
    02 Stocko 4wd SR5 TRD
    None Yet
    Ahhh gotcha, I actually have a set of the DEPO replacements too (smoked) and they came with the 1157 twist in bulb holder pieces (harness?) and the connection on there is the 3 prong style like you sent so that makes sense. :thumbsup:

    Assuming you added your own resistors? I have never had any luck with that so I was looking at the "error-proof" (aka excuse to overcharge)/CANbus switch-backs.

  12. May 19, 2020 at 10:34 PM
    #12
    frizzman

    frizzman Well-Known Member

    Joined:
    Sep 25, 2013
    Member:
    #113212
    Messages:
    4,580
    Gender:
    Male
    Pittsburgh, PA
    Vehicle:
    04 XCab 4x4 TRD/OR
    OME 3", Tundra 17's, Cooper S/T Maxx 255/75-17, hitch w/ 7-pin, Leer cap, JVC head unit w/BT, LED lights
    no resistors, just bought the flasher module from SBL (www.superbrightleds.com) and no issues

    kdxrider199 likes this.
  13. May 20, 2020 at 7:25 AM
    #13
    frizzman

    frizzman Well-Known Member

    Joined:
    Sep 25, 2013
    Member:
    #113212
    Messages:
    4,580
    Gender:
    Male
    Pittsburgh, PA
    Vehicle:
    04 XCab 4x4 TRD/OR
    OME 3", Tundra 17's, Cooper S/T Maxx 255/75-17, hitch w/ 7-pin, Leer cap, JVC head unit w/BT, LED lights
    also, the "sockets" already have 3 conductor spots, it's the plug that is missing the 3rd wire. not sure about 95-00 though

    kdxrider199 likes this.
  14. May 20, 2020 at 8:33 AM
    #14
    nzbrock

    nzbrock Well-Known Member

    Joined:
    Jan 6, 2013
    Member:
    #94572
    Messages:
    2,351
    Gender:
    Male
    First Name:
    Noah
    San Marcos, TX
    Vehicle:
    99 TRD Prerunner 3RZ
    SAW 2.0 Coilovers Wheeler's 5 Leaf + 3 AAL Bilstein 5100s LCE long tube header Flowmaster Delta 50 Muffler FJ Trail Team Wheels 255/85/16 Cooper ST Maxx 4Runner overhead sunglass console 4Runner leather seats All LED lights Red/Clear Tail Light Tundra Brakes HID Projector Retrofits 4Runner Auto Up/Down Windows Bullet Liner Cargo tie down system E-locker axle swap w/4.56 Gears ARE MX Cap Prinsu Toprac Custom heated turn signal/puddle light mirrors Volant Intake Tube
    kdxrider199 likes this.
  15. May 20, 2020 at 8:53 AM
    #15
    mattvivsound

    mattvivsound Well-Known Member

    Joined:
    Nov 24, 2009
    Member:
    #26445
    Messages:
    416
    Gender:
    Male
    First Name:
    Matt
    Southern MD
    Vehicle:
    '01 Tacoma TRD, 4x4, V6
  16. May 20, 2020 at 9:20 AM
    #16
    04tacoma trd

    04tacoma trd Well-Known Member

    Joined:
    Oct 16, 2014
    Member:
    #140466
    Messages:
    351
    Gender:
    Male
    Link to the "turn signal mod" thread?

  17. May 20, 2020 at 9:52 AM
    #17
    frizzman

    frizzman Well-Known Member

    Joined:
    Sep 25, 2013
    Member:
    #113212
    Messages:
    4,580
    Gender:
    Male
    Pittsburgh, PA
    Vehicle:
    04 XCab 4x4 TRD/OR
    OME 3", Tundra 17's, Cooper S/T Maxx 255/75-17, hitch w/ 7-pin, Leer cap, JVC head unit w/BT, LED lights
  18. May 20, 2020 at 10:17 AM
    #18
    Ridgerunner

    Ridgerunner Well-Known Member

    Joined:
    Mar 14, 2008
    Member:
    #5269
    Messages:
    5,003
    Gender:
    Male
    First Name:
    Frank
    San Francisco
    Vehicle:
    2001 prerunner doublecab limited
    2001 with; cat-back side-swept twin exhaust, elbow mod, Westin bullbar with Hella 450 driving lights, Snugtop XTR camper shell, TRD off-road 2x4-black beauty.
    This thread strikes me that the OP doesn't want "extra lighting" on his truck. But if done well, an extra set of lights isn't tacky nor overstated.
    I say get a bullbar, a modest one like mine with ONE single bar and not a bushwhacker, and mount a pair on it. Way less work, no altering of stock wiring, no cutting, no overloading of electrical.
    I did mine way back in '06 with zero ensuing problems. And my Hella 450s are subdued and in my opinion, quite fitting for the front end.


  19. May 20, 2020 at 12:43 PM
    #19
    frizzman

    frizzman Well-Known Member

    Joined:
    Sep 25, 2013
    Member:
    #113212
    Messages:
    4,580
    Gender:
    Male
    Pittsburgh, PA
    Vehicle:
    04 XCab 4x4 TRD/OR
    OME 3", Tundra 17's, Cooper S/T Maxx 255/75-17, hitch w/ 7-pin, Leer cap, JVC head unit w/BT, LED lights
  20. May 20, 2020 at 1:57 PM
    #20
    RysiuM

    RysiuM Well-Known Member

    Joined:
    Oct 18, 2015
    Member:
    #167004
    Messages:
    2,378
    Gender:
    Male
    First Name:
    Rysiu
    Was Golden State, now Poland EU
    Vehicle:
    1995 4x4 LX Ext Cab, I4 2.7, MT, 320K miles
    DD Deck+backup camera, LED DRL, All LED except H4 Hella

    This would be the best approach to additional lighting. If anyone wants to use switchback in blinker housing and act them as a DRL the power wire for the "white" LED must not come from corner marker circuit. It is actually opposite - that white LED must be turned off when corner marker comes on - i.e. DRL lights must be turned off at night time, otherwise they will be incredibly blinding to other drivers. With additional lamps (like Hella 450 Fog in the example quoted) you will get the correct functionality (correct light pattern) for fog and of course you will wire it to be powered by separate switch/circuit.

    I don't care much for fog, but for my truck DRL is a must. In Europe blinker housing would not pass for DRL. It is not certified. So instead of messing with blinkers I just installed dedicated OSRAM LED DRL (certified and legal) under the headlights.

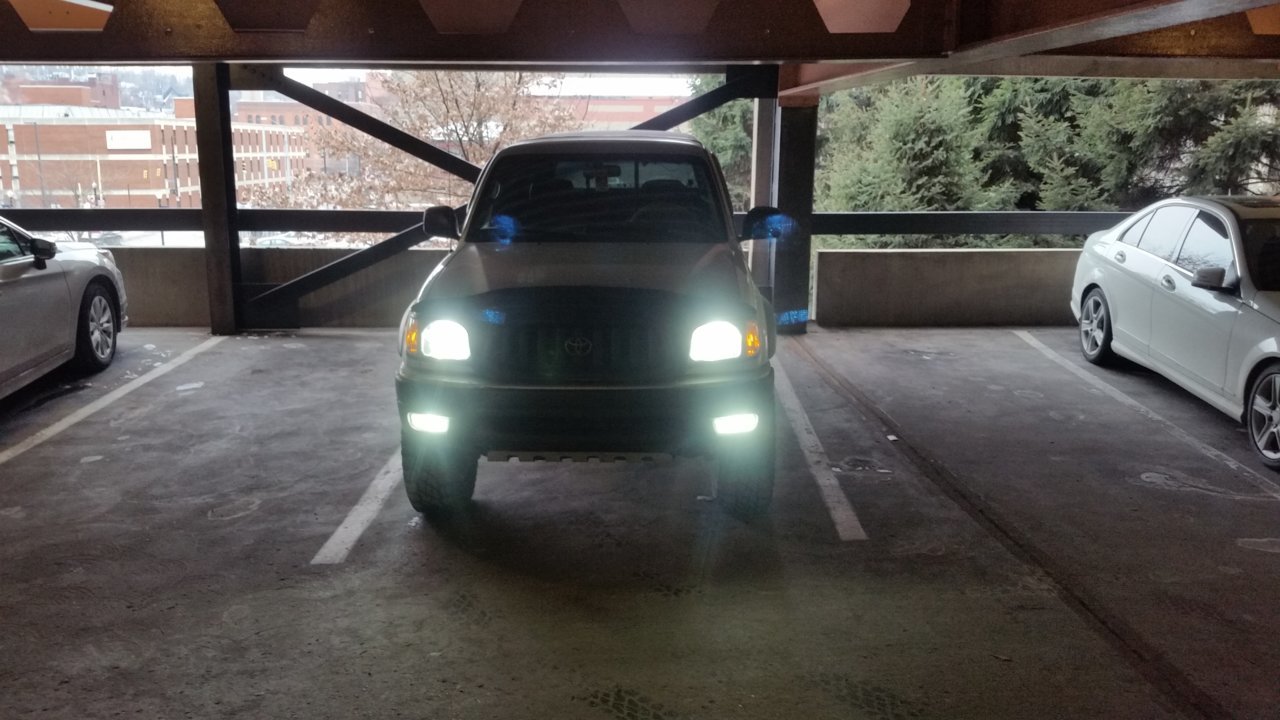

    [​IMG]
