McNeil Racing 05-15 To 16 Tacoma Conversion Kit.

Discussion in '2nd Gen. Tacomas (2005-2015)' started by NastyBogging, Mar 28, 2021.

  1. Mar 28, 2021 at 3:21 AM
    #1
    NastyBogging

    NastyBogging [OP] Well-Known Member

    Joined:
    Jul 6, 2017
    Member:
    #223282
    Messages:
    177
    Gender:
    Male
    First Name:
    Justin
    Vehicle:
    2013 MGM DCSB Tacoma Sport.
    Hey TW,

    I know I'm probably going to catch some shit for this, but I'm converting my 2nd Gen into a 3rd Gen. The two main reasons I'm doing this conversion is because I want long travel my Tacoma and I like the look of 3rd Gen LT setups better than 2nd Gens. Also I want to change up the look of the truck. My goal of writing this, is so anyone who wants to install this kit can follow along and have a guide on how to do so.

    I ordered the front and rear conversion kits sold by McNeil Racing. The front end kit comes with a hood, fenders, headlight fillers and a bracket. You will need to source a grille, headlights, and a bumper.
    For the Rear end, it only comes with the bedsides. They currently only offer this in a short bed version at the time of writing this. You will need to source a tailgate, tail lights and a bumper. It will not accept any factory bumper.

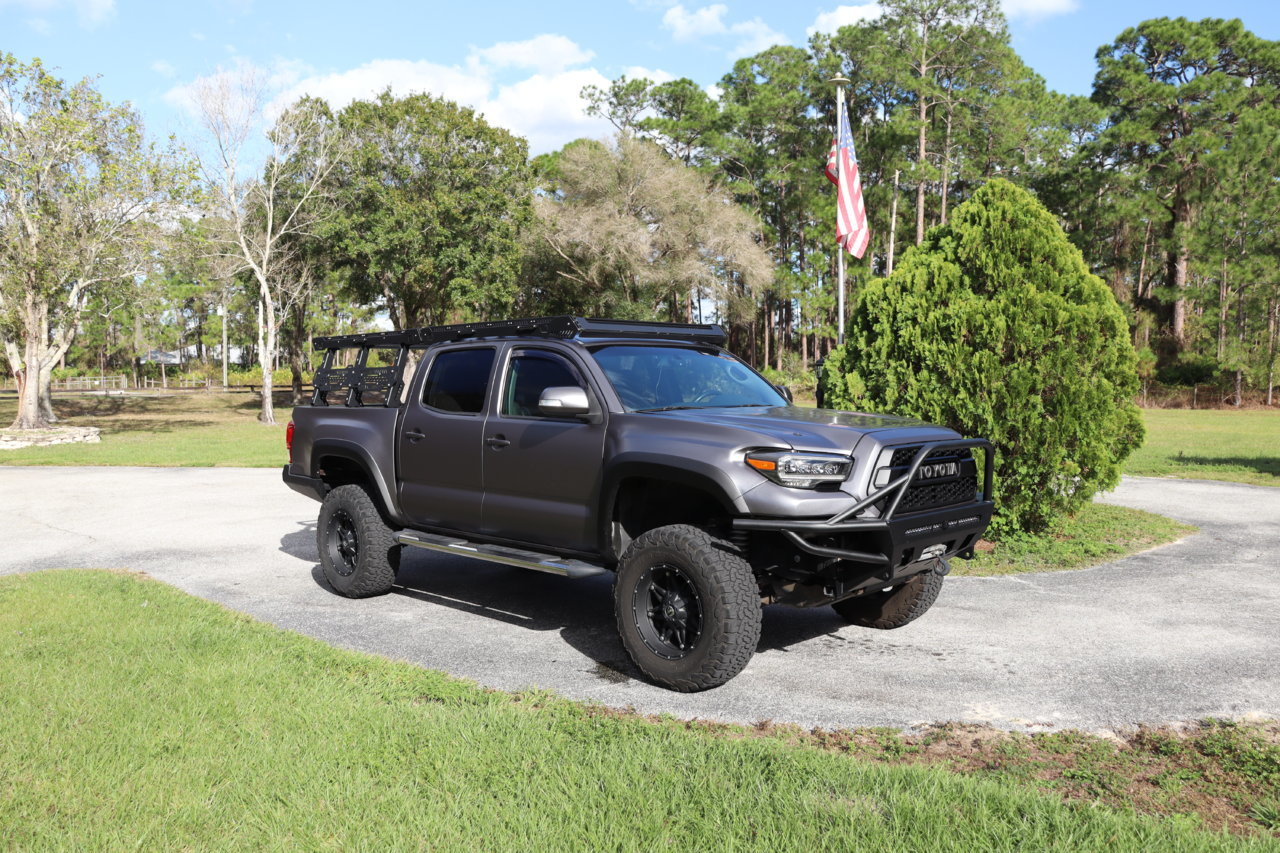

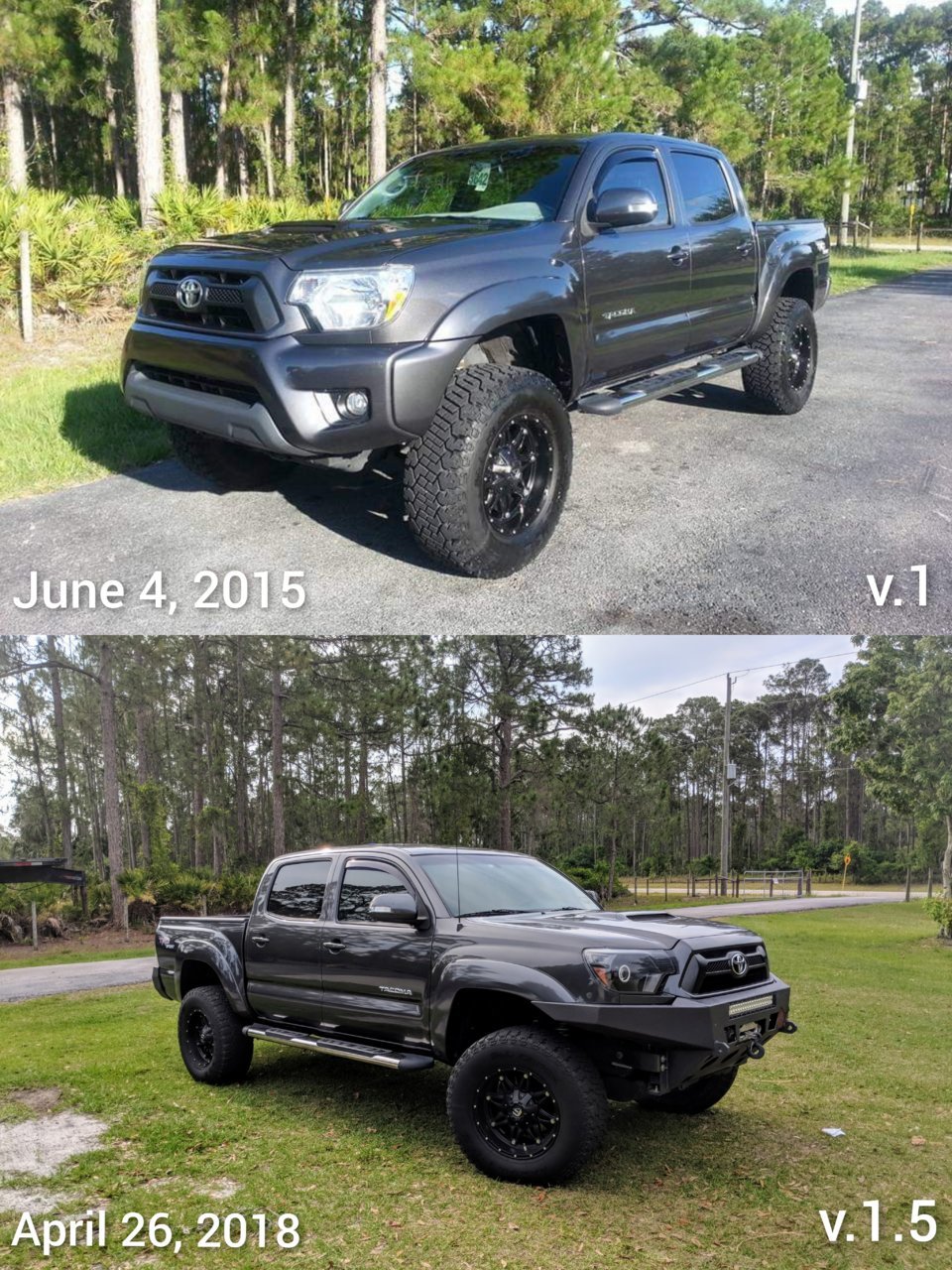

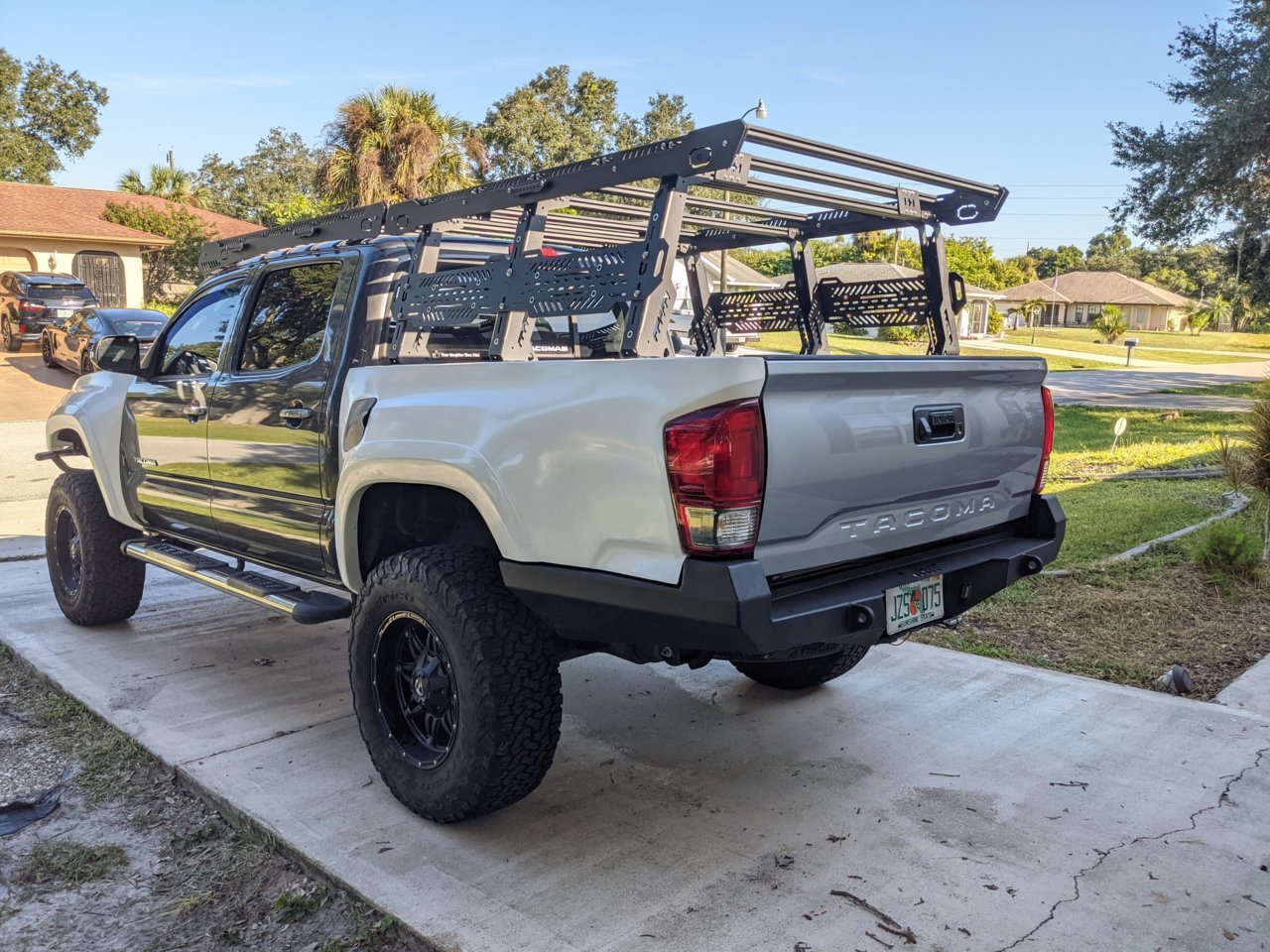

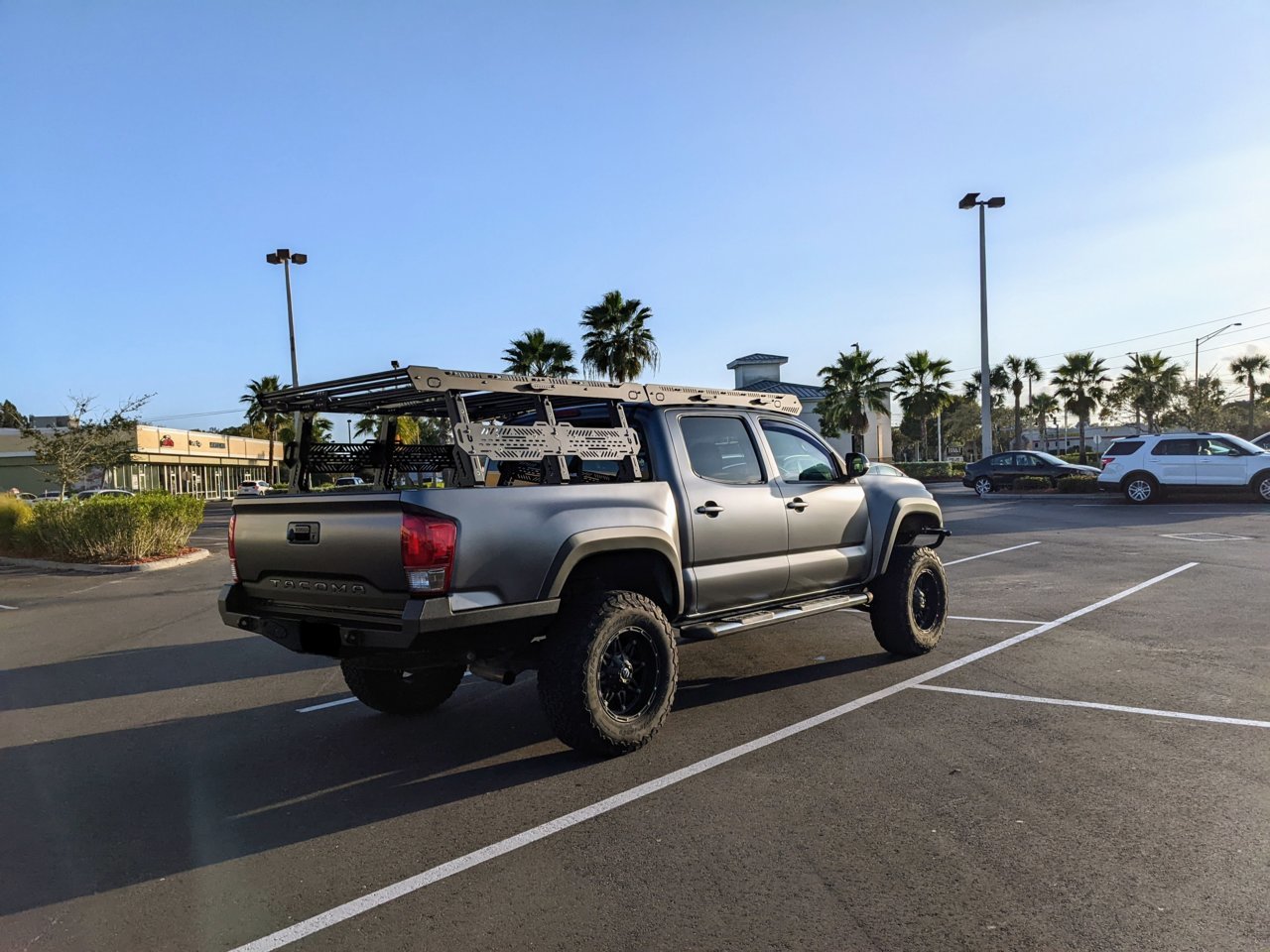

    I'm still currently working on this but I will update as I go long. Here it is currently.


    Links to both kits:
    https://www.mcneilracinginc.com/pro...-road-fiberglass-bedsides?variant=32366809866
    https://www.mcneilracinginc.com/products/05-15-toyota-tacoma-conversion-2016-short-bed-bedsides

    Tools Needed:
    10mm socket
    12mm socket
    14mm socket
    19mm socket
    T30 socket
    T40 socket
    T55 socket
    Impact
    Drill
    Breaker bar (If the bed bolts are rusted)
    Ratchet
    Flat head screwdriver
    Side cutters
    Wire strippers
    Soldering iron
    Heat gun or lighter

    Parts Used:
    Here is a list of parts I used to complete this build.
    Front End:
    2016+ Grille assembly
    2016+ Headlights non factory LED DRL version (with bulb sockets)
    Side Marker Connector Toyota part# 90980-10598
    Dorman H8/H11 Connector Dorman part# 84401 (this is for the low beam)
    Dorman H9 Connector Dorman part# 84402 (this is for the high beam)
    C4 Tacoma Hybrid Front Bumper 3rd Gen 2016+
    Rear End:
    2016-2019 Tailgate (in 2020, Toyota changed the Backup Camera connector)
    2016+ Tail lights (with bulb sockets)
    4runner Fuel Hose Toyota part# 77213-35370
    2016+ Fuel door for the 5ft bed.
    2016+ Fuel panel for the 5ft bed.
    Tail light wiring harness connectors. (I sourced these from a junkyard and cut the connectors off the wiring harness)
    T3 High Clearance Rear Bumper

    Shortcuts:
    Front End conversion: https://www.tacomaworld.com/threads...6-tacoma-conversion-kit.714522/#post-25419927
    Rear End conversion:
    https://www.tacomaworld.com/threads...6-tacoma-conversion-kit.714522/#post-25419928
    Wiring:
    https://www.tacomaworld.com/threads...6-tacoma-conversion-kit.714522/#post-25419929

    Last edited: Apr 4, 2021
  2. Mar 28, 2021 at 3:22 AM
    #2
    NastyBogging

    NastyBogging [OP] Well-Known Member

    Joined:
    Jul 6, 2017
    Member:
    #223282
    Messages:
    177
    Gender:
    Male
    First Name:
    Justin
    Vehicle:
    2013 MGM DCSB Tacoma Sport.
    I haven't touched the front end yet. I plan on doing that this coming weekend.

    Front End Removal:
    First start by disassembling everything.
    The Grille is held on by two 10mm screws and two plastic clips.

    The Headlight Filler is held on by two plastic clips. To remove, slow pull towards you on the portion closest to the grill. Once the first clip releases, you can then rock the piece up and down and pull towards the grill opening.

    The Headlights are secured in place by three 10mm screws. Two screws are on top and one is by the fender. Once all the screws are removed, the headlight can be pulled off. The headlight clips into a channel by the grill opening.

    The Hood is held on by two bolts on each hinge. I recommend having someone help you remove the Hood.

    For the front bumper, I had an aftermarket one and only had to remove the six 14mm bolts holding the factory crash bar on. Here’s a thread on how to remove the factory bumper cover. It should be a similar process on a 12-15 Tacoma.
    https://www.tacomaworld.com/threads/05-11-front-bumper-removal.211867/

    Removing the fenders

    Install Front End:

  3. Mar 28, 2021 at 3:22 AM
    #3
    NastyBogging

    NastyBogging [OP] Well-Known Member

    Joined:
    Jul 6, 2017
    Member:
    #223282
    Messages:
    177
    Gender:
    Male
    First Name:
    Justin
    Vehicle:
    2013 MGM DCSB Tacoma Sport.
    Rear End Removal:
    Most of the bolts in the rear are 10mm unless stated otherwise. If your bed bolts are rusted, I recommended hitting them with some penetrating oil and letting them soak while you start the process to remove the fenders. I used PB Blaster but any quality penetrating oil should do.

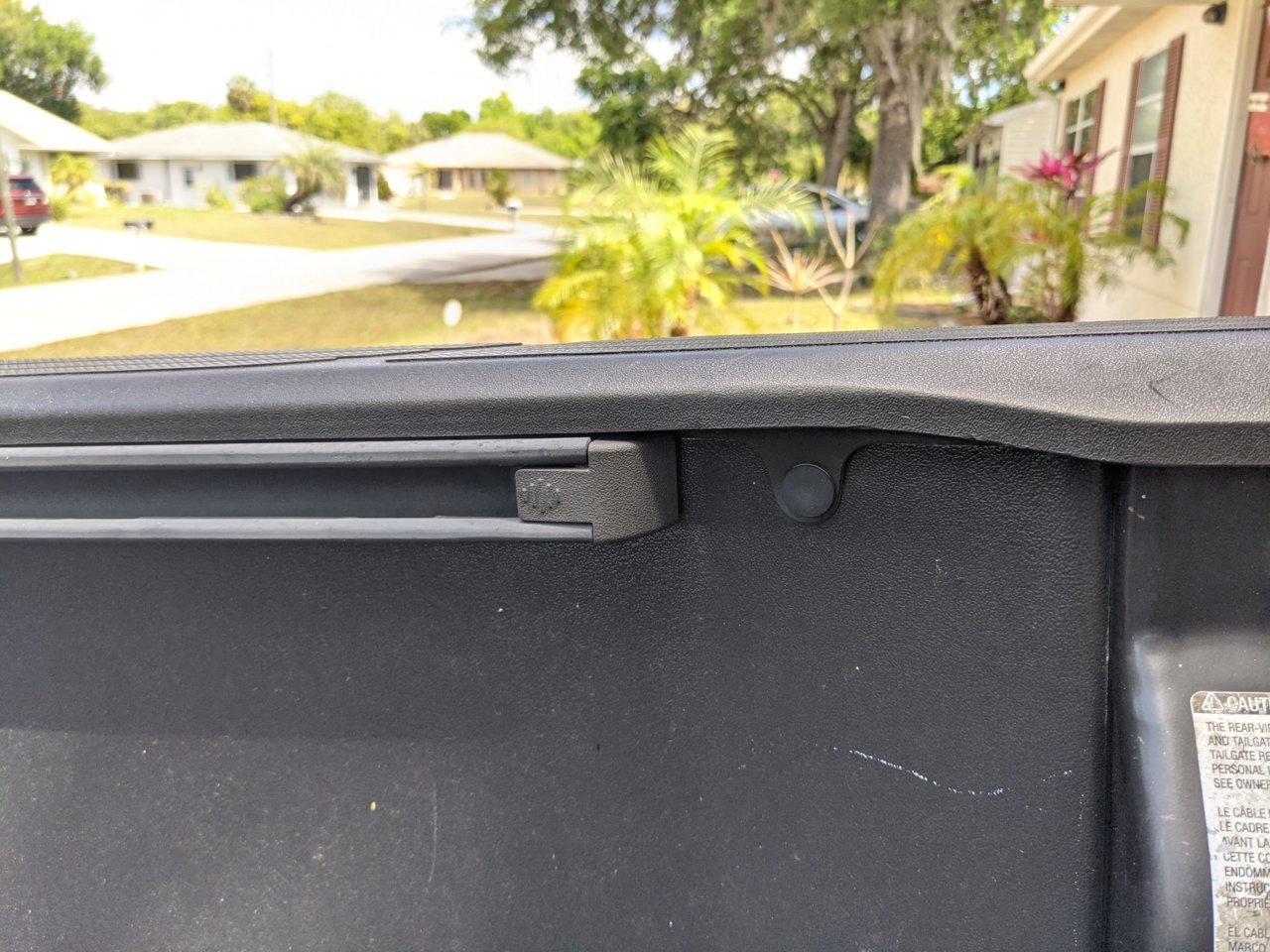

    To remove the Bed Caps, remove the two plastic pins connecting them to the inside of the bed. Use a flathead to slowly pry them out. After removing the pins, grab the Bed caps by the tail light and slowly lift upward. Its held on by approximately 16 clips.

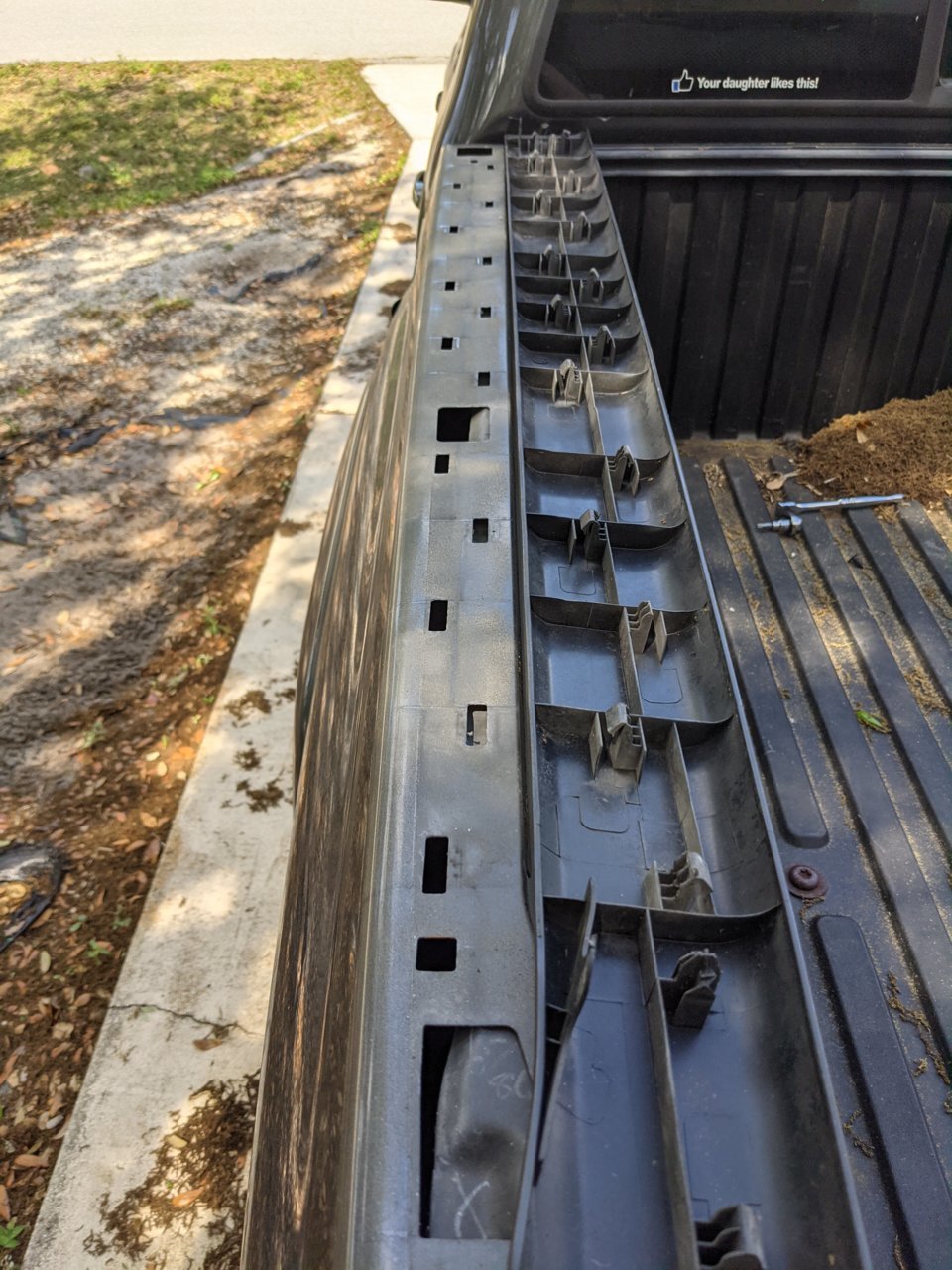

    Here's what it looks like once removed.

    The Bed Rails are held on by 4, T30 bolts, simply unbolt them.

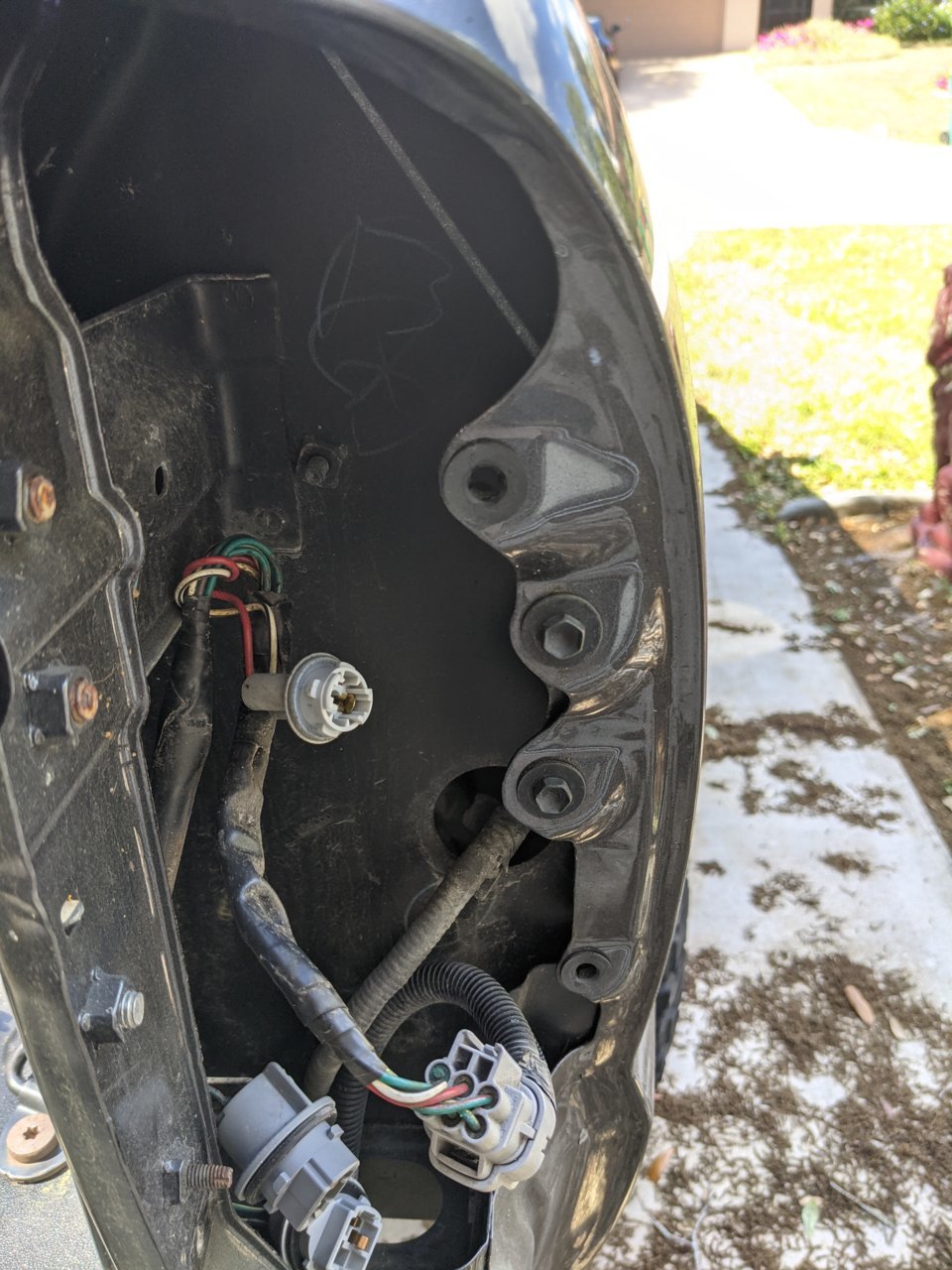

    To remove the tail lights, open the tailgate to expose the two bolts holding them in.


    Once the bolts are removed, pull the tail lights out of their channel. They’re two tabs on the back of the tail light that hold them into place. Once the tail light is removed, remove the two bolts behind the light and the two plastic clips that hold the tail light taps.

    Also unclip and remove the wiring harness for tail lights.

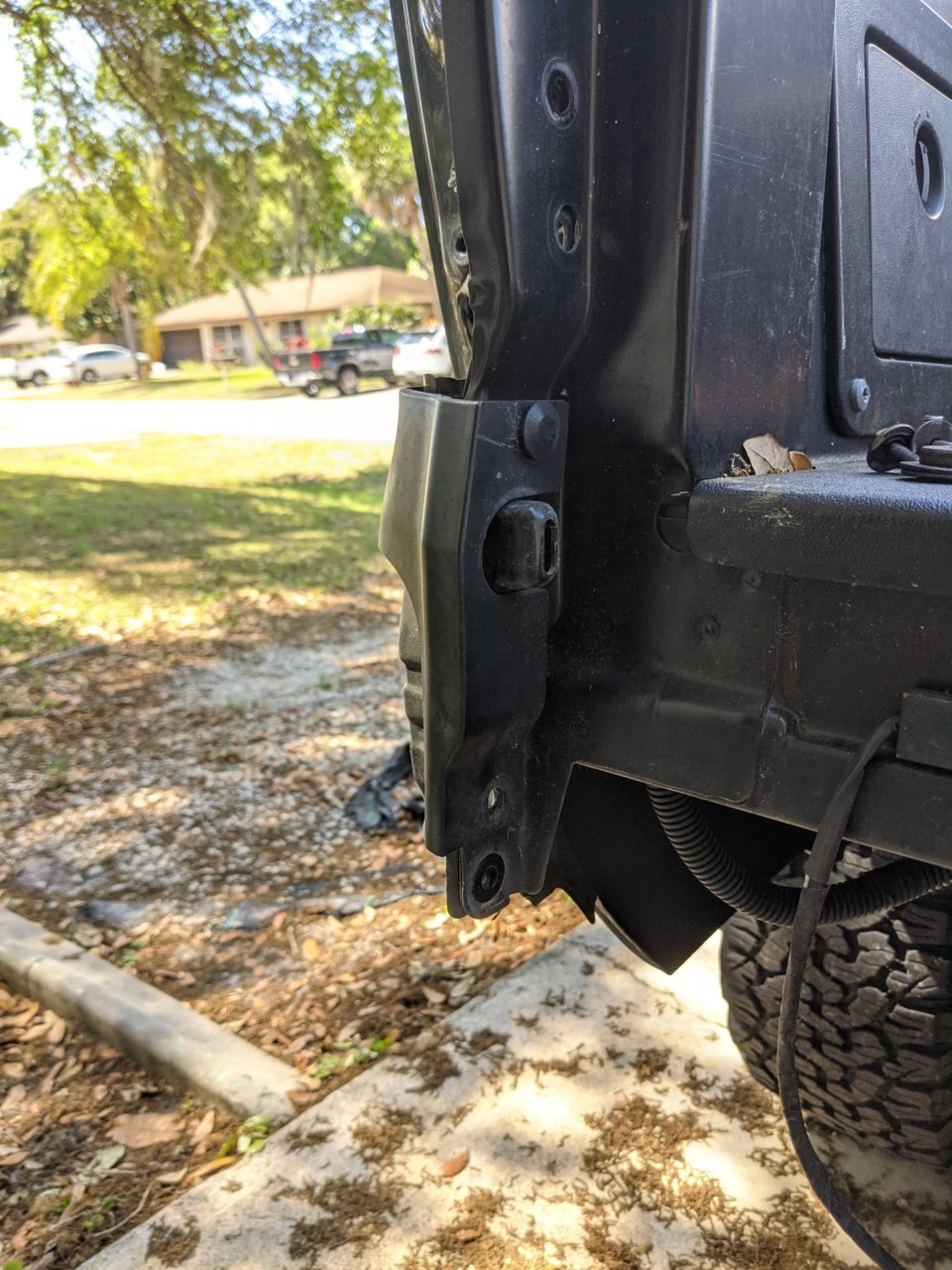

    Remove the tailgate and the latches holding the tailgate on. The two bolts holding the latch on is 12mm and the bolt that would be holding the cable on is a T40.


    I have an Aftermarket rear bumper. Here is a link on how to remove the factory one.
    https://www.tacomaworld.com/threads/removal-installation-of-rear-bumper.41023/

    Once the bumper is removed, remove the plastic trim and the bolt behind it.

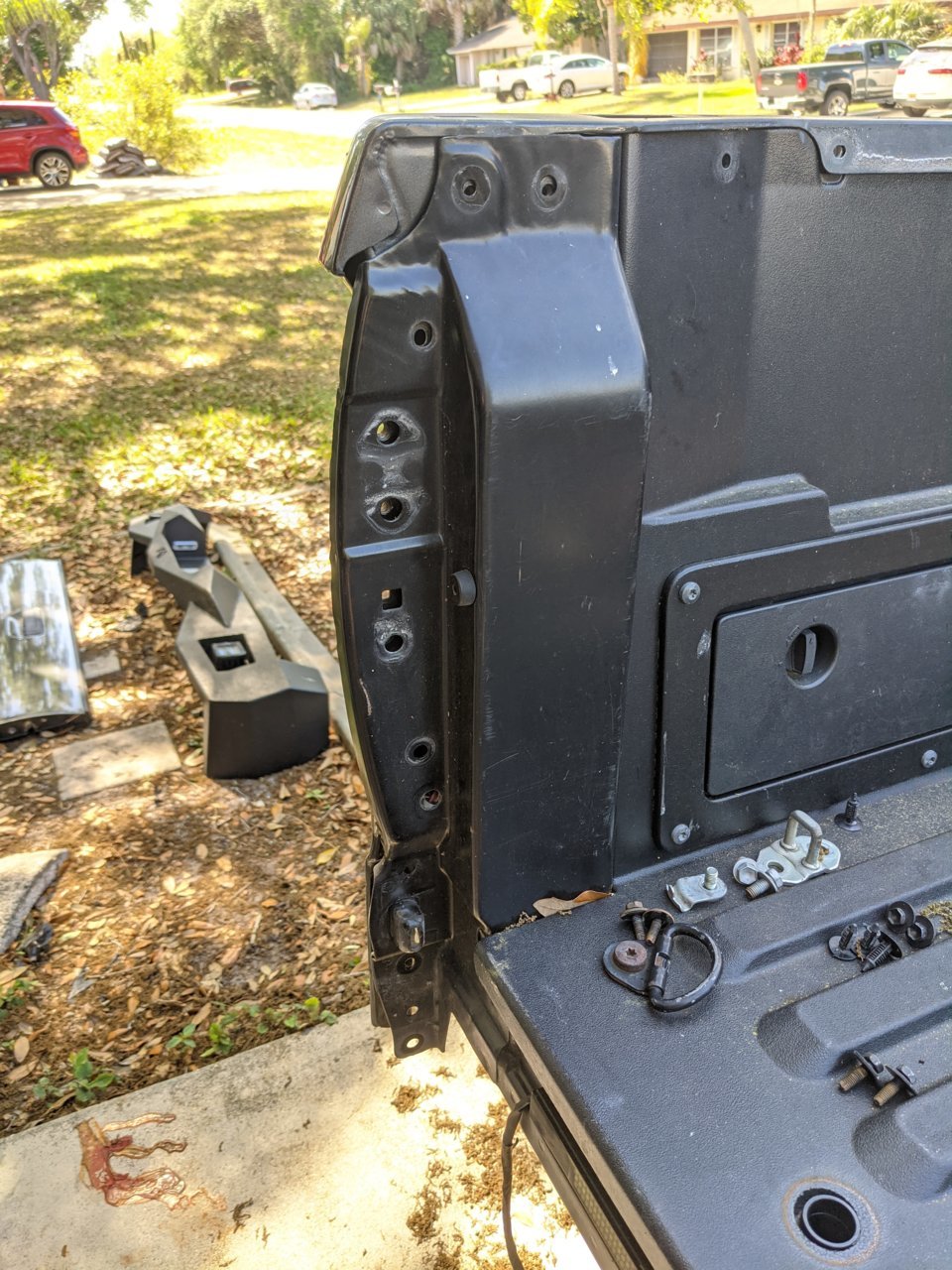

    At this point remove any bolts still in the channel and the two bolts at the top of the channel.

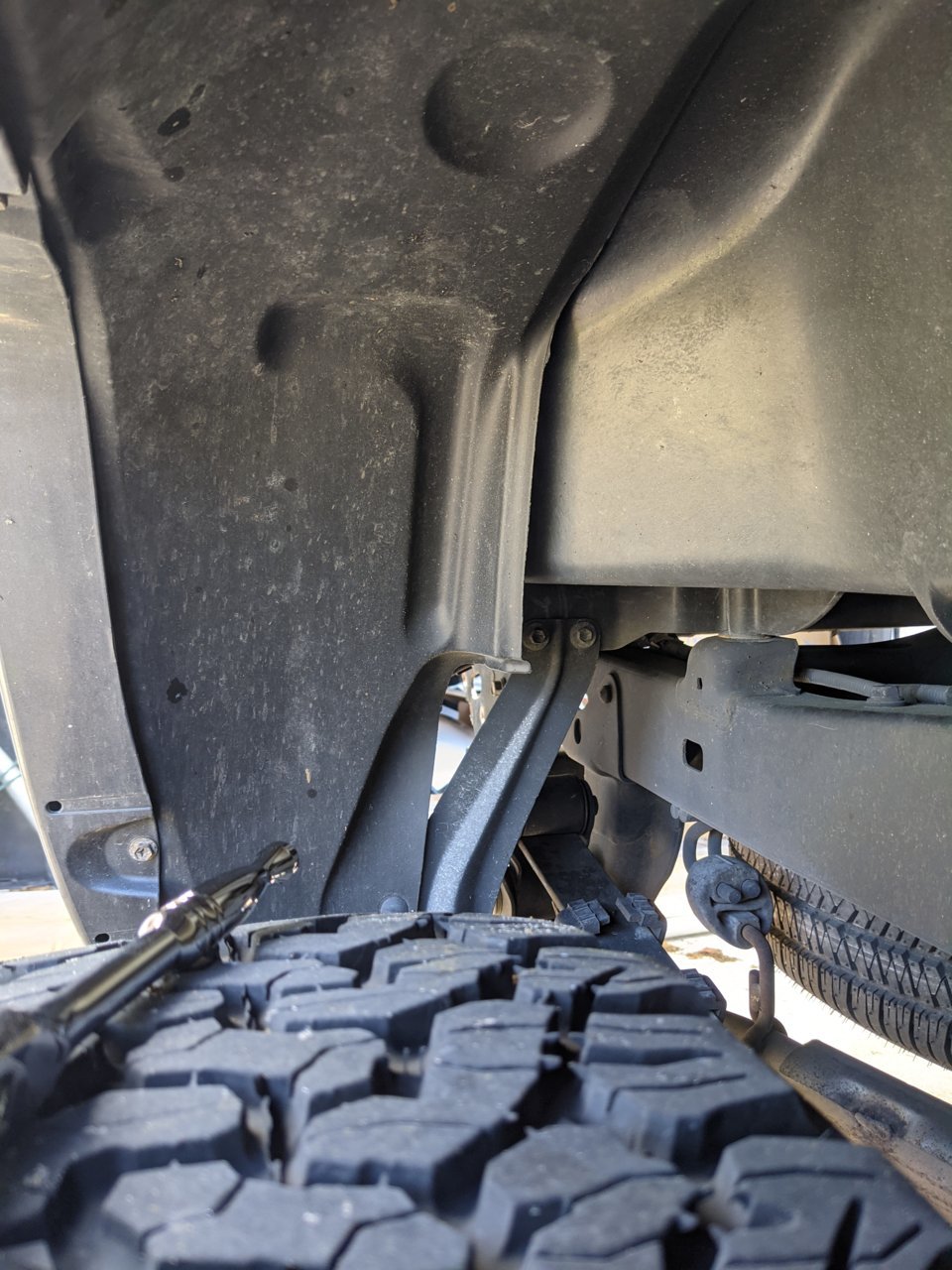

    For the rear fender support, remove the two bolts attaching it to the bed.

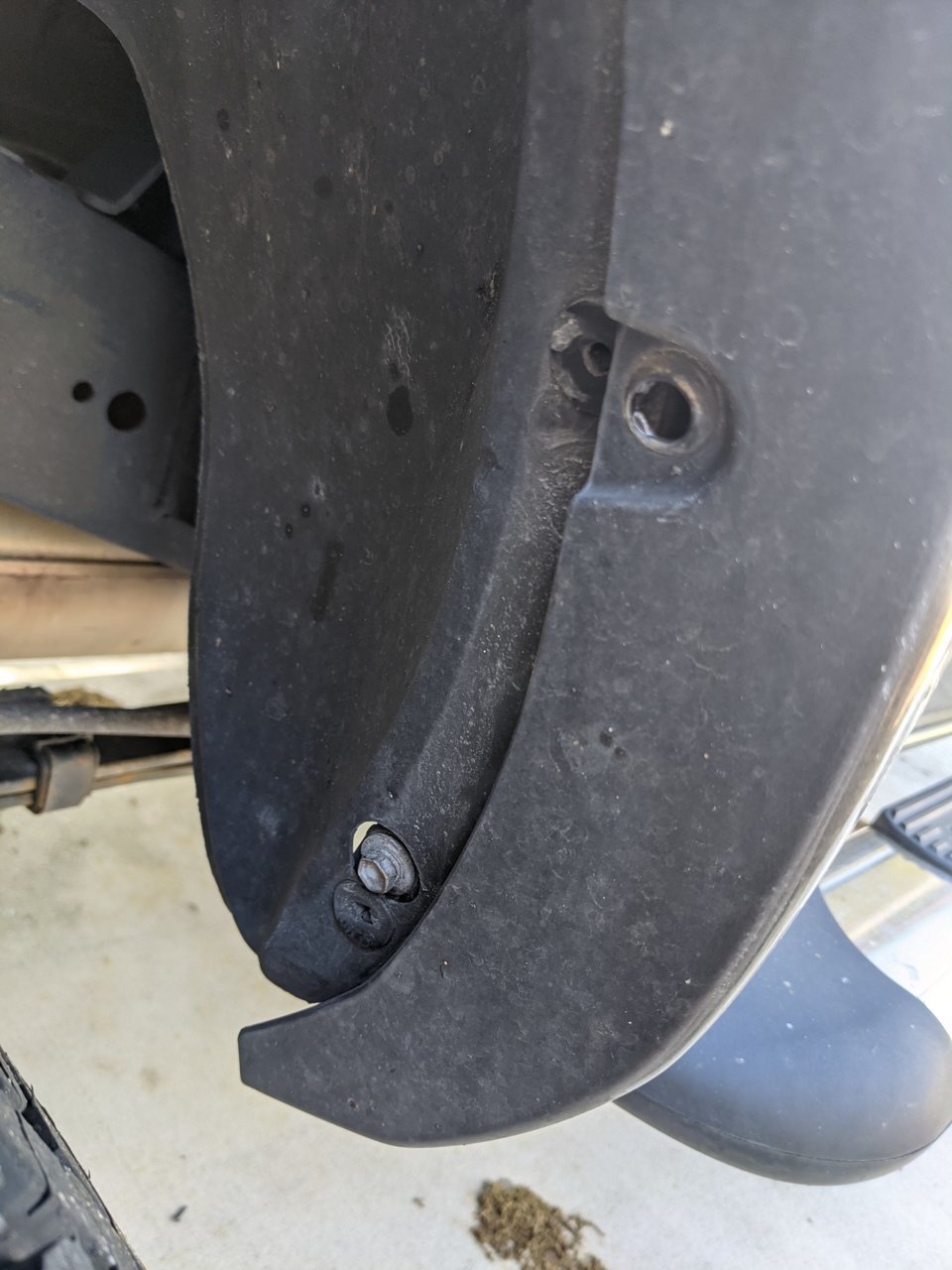

    For the front fender support, remove the two bolts at the bottom of the fender near the cab. Remove the lower screw holding the fender flare on and pull the flare out of the way to reveal another bolt. Remove the newly revealed bolt and the bottom of the fender should be free from the support.

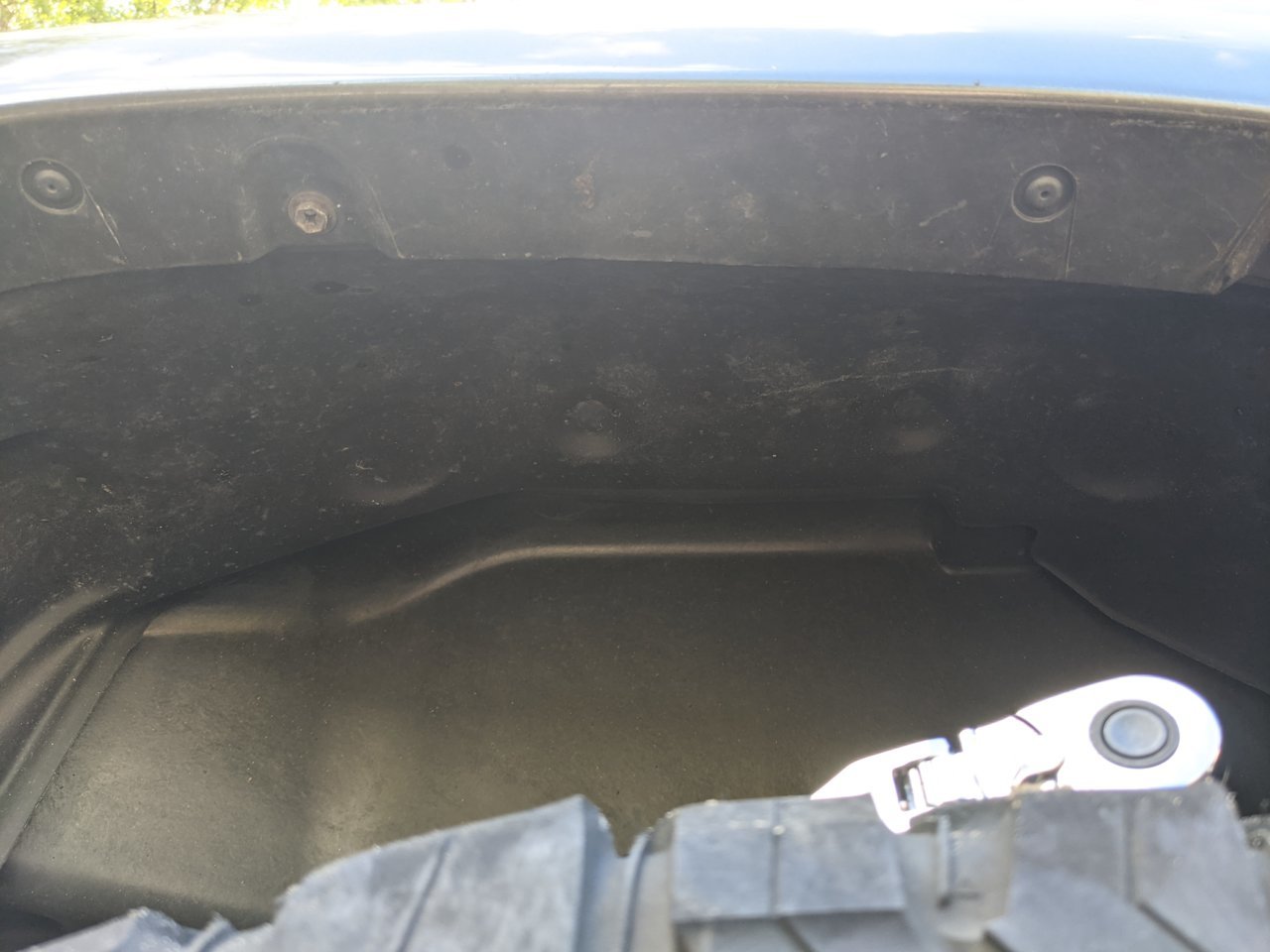

    The wheel well is attached to the fender except for two plastic pins at the top of the fender.

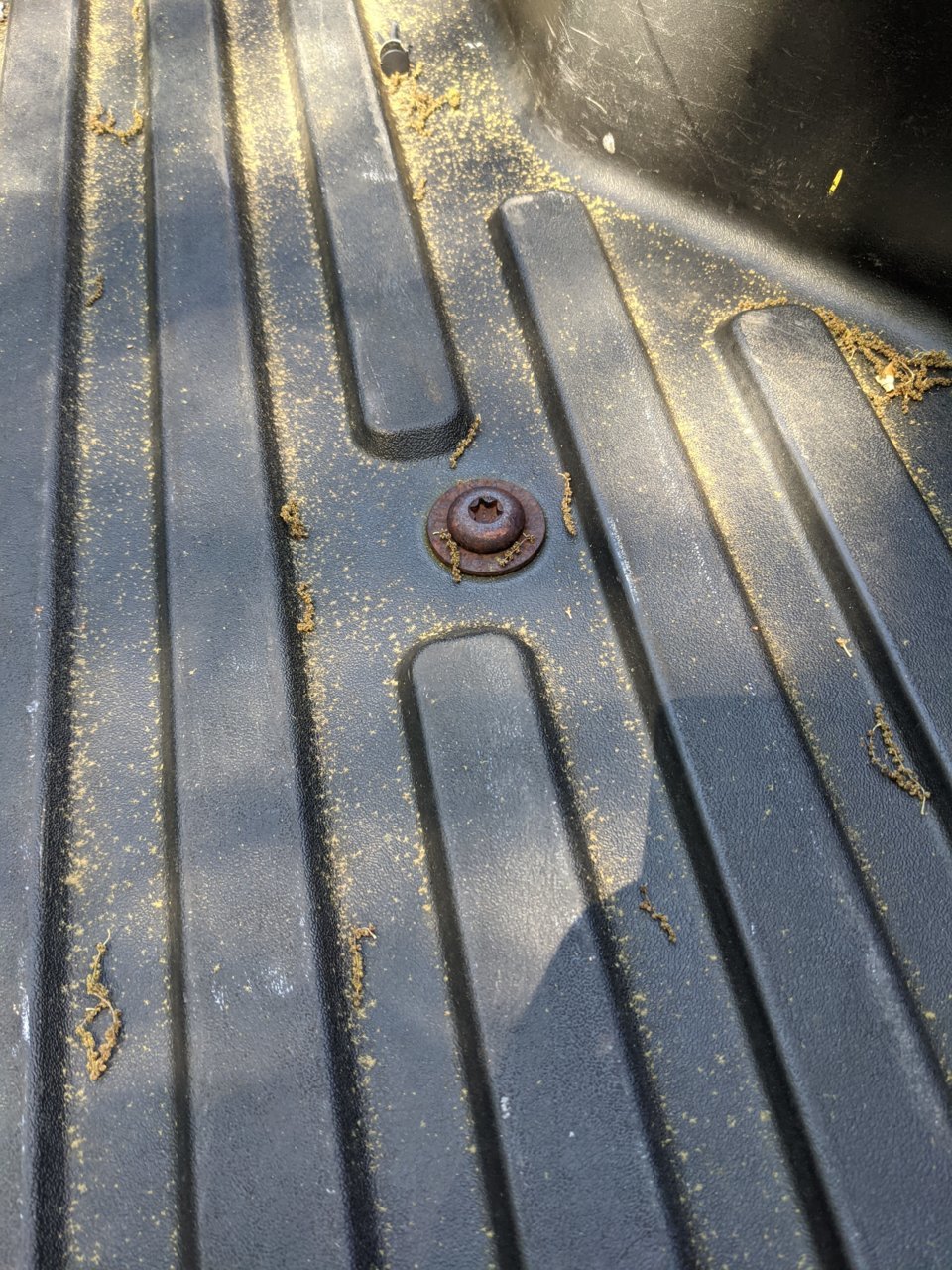

    Now is where the fun begins, remove the six, T55 bolts holding the bed on. Three out of the six were rusted and were a pain to remove. Open the fuel door and undo the gas cap. You don't have to remove the bed, but it makes it easier to install the fenders. I just slide the bed back.

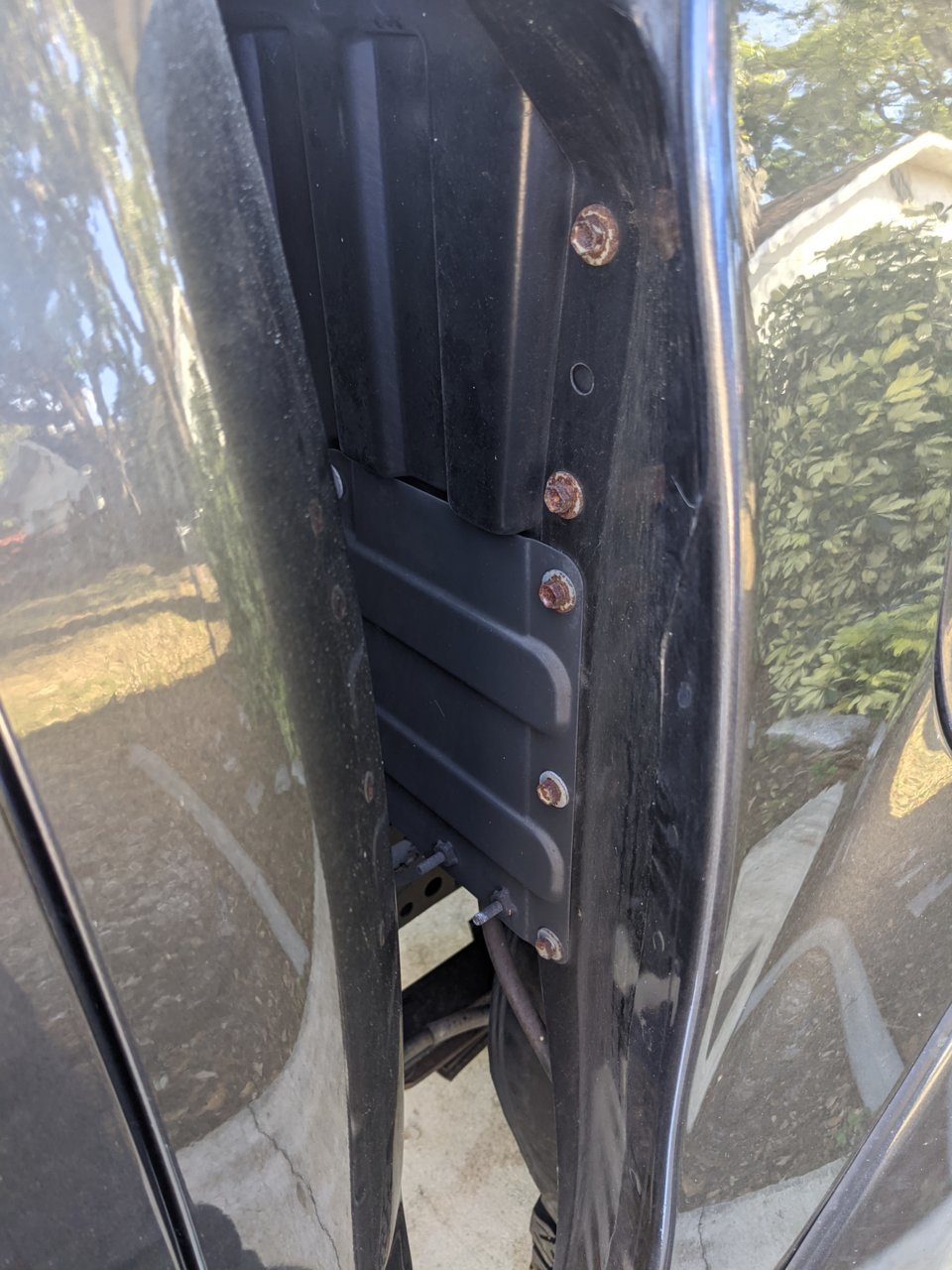

    Finally remove the five bolts holding the front of the fender to the bed.

    The fenders should now be able to be removed.

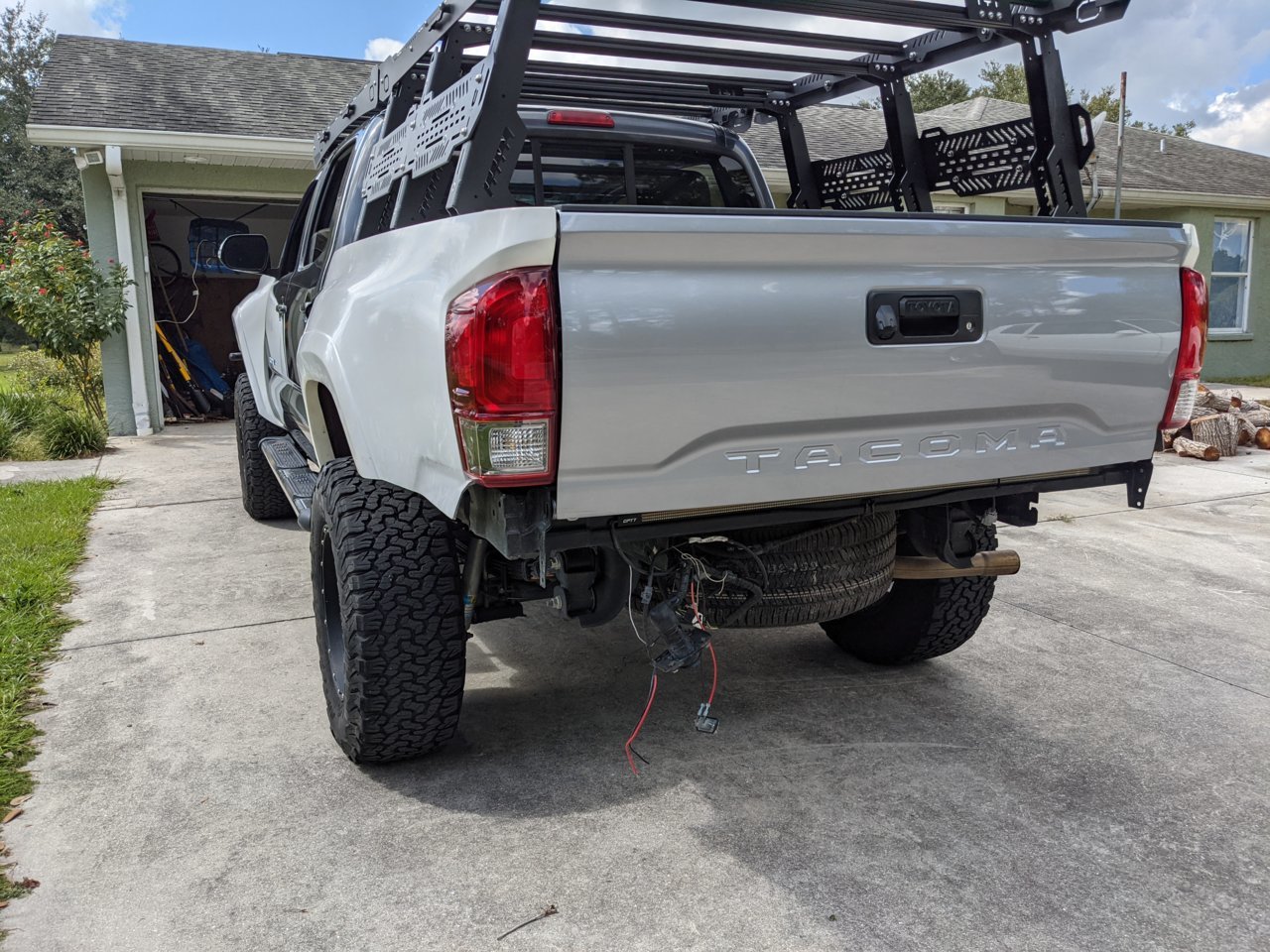

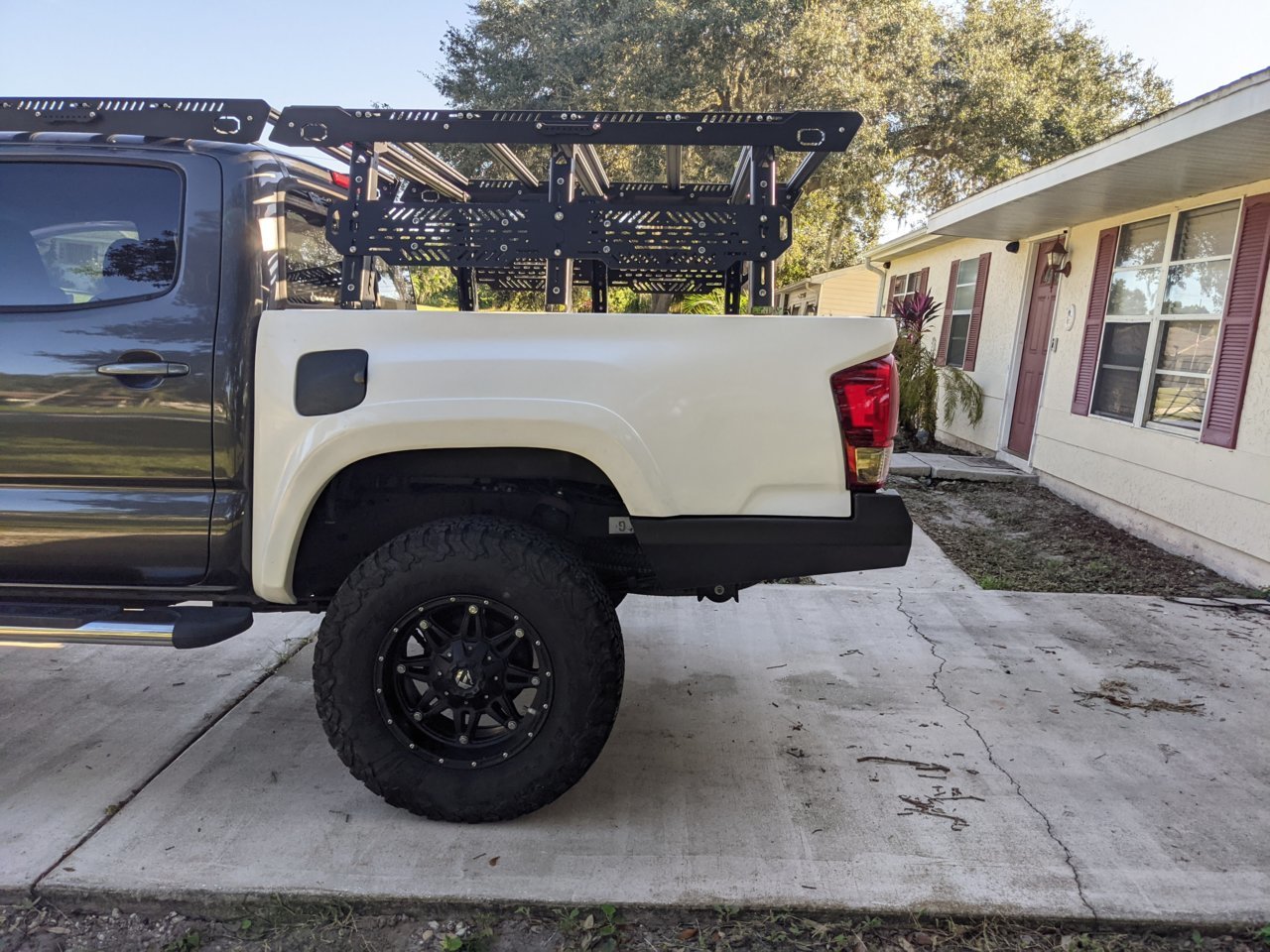

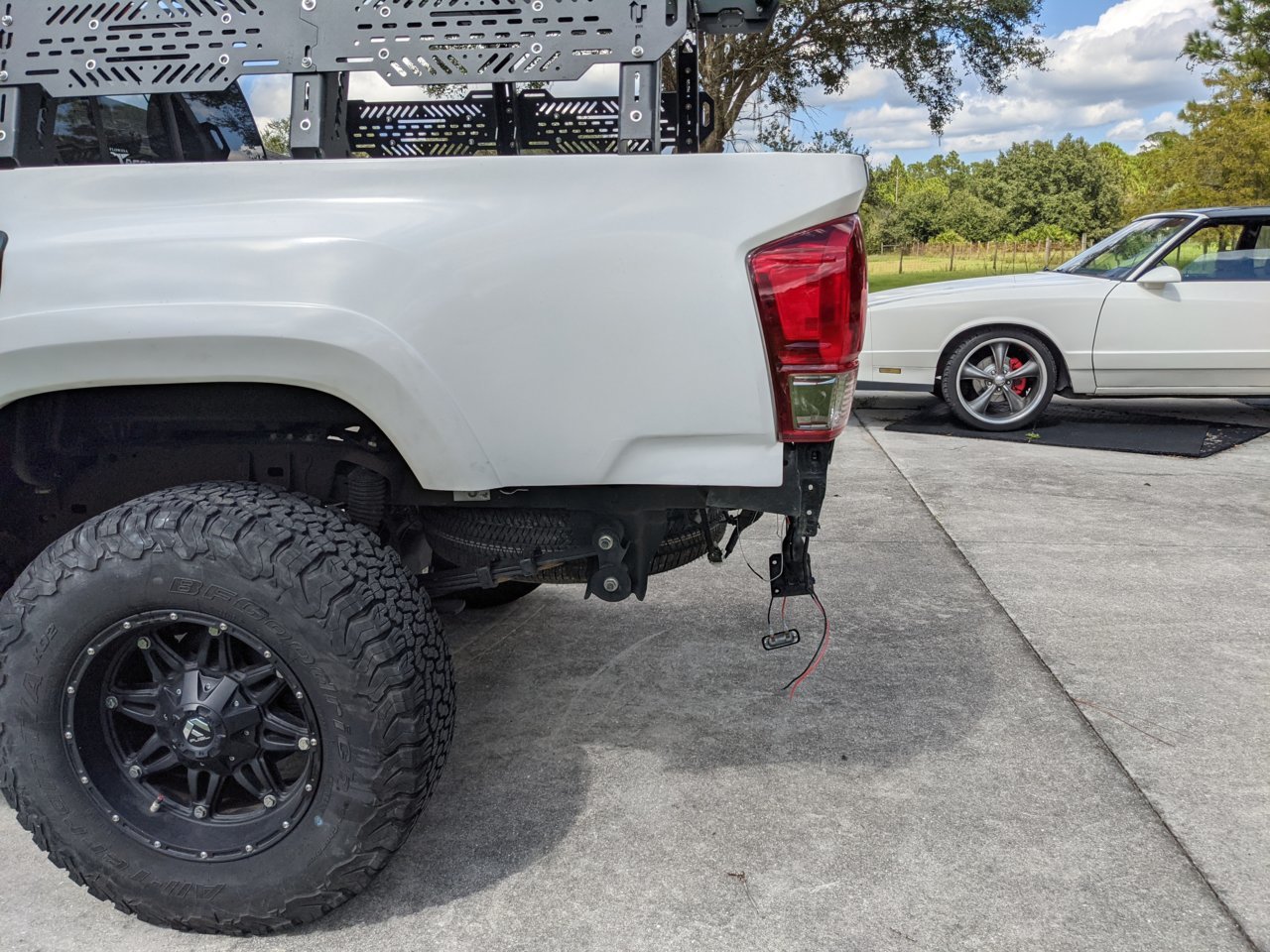

    Install Rear End:
    I wanted to write a detailed step by step guide on how to install these fenders, but I now understand why there aren't real descriptive guides on how to do so.

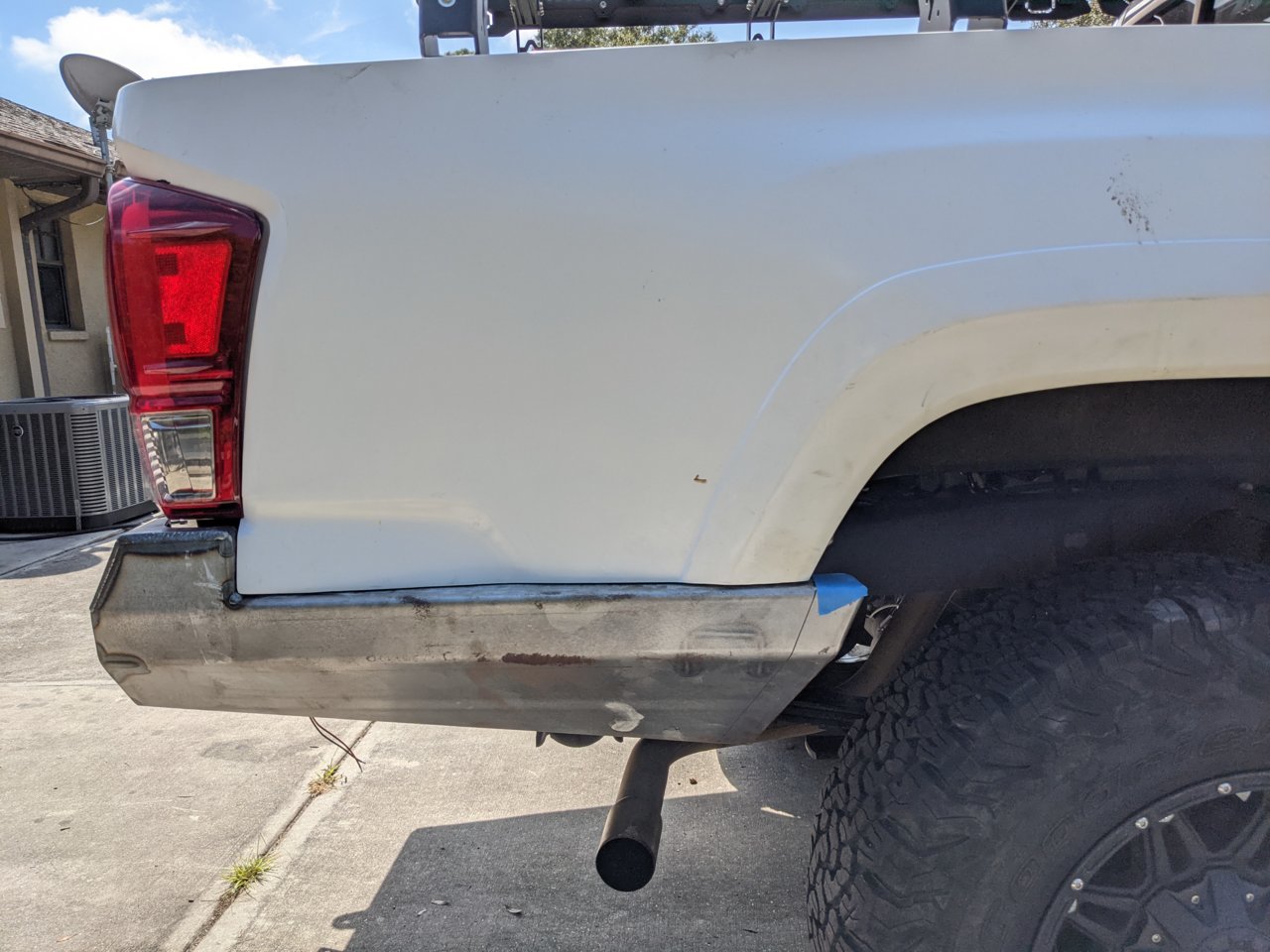

    Getting the rear fenders to line up and sit right was a bitch. The fenders have divets to mark were to drill. One fender was pretty close I just had to make some of the holes a bit bigger to light up. The other fender was about an inch off on some of the drill marks. I started with getting the tailgate and tail lights lined up and worked from there.
    The tailgate will not not simply swap over due to the hinge on the right side being different. The hinge from the old tailgate will not fit on the new tailgate because it's about an inch too short. So I cut both mounts and welded part of the old hinge to the new one. I added a quarter inch steel plate under the mount to give it more height.

    I may buy a new hinge for the 3rd gen tailgate and the tailgate dampener to install into the truck but for now the tailgate works.

    Plan on making wheel well liners so it's easier to clean.

    Last edited: Apr 4, 2021
  4. Mar 28, 2021 at 3:22 AM
    #4
    NastyBogging

    NastyBogging [OP] Well-Known Member

    Joined:
    Jul 6, 2017
    Member:
    #223282
    Messages:
    177
    Gender:
    Male
    First Name:
    Justin
    Vehicle:
    2013 MGM DCSB Tacoma Sport.
    Wiring:

    Headlight wiring:
    Big thanks to @caribe makaira for making the diagrams! Link to his post.
    https://www.tacomaworld.com/threads/help-w-headlight-pigtails.709142/#post-25202161

    For Turn Signal/DRL, the 3rd gen uses the same connector. Just need to de-pin and repin the wires.
    The Side Marker has to be de-pinned and installed into the new connector Side Marker Connector. (Toyota part# 90980-10598)

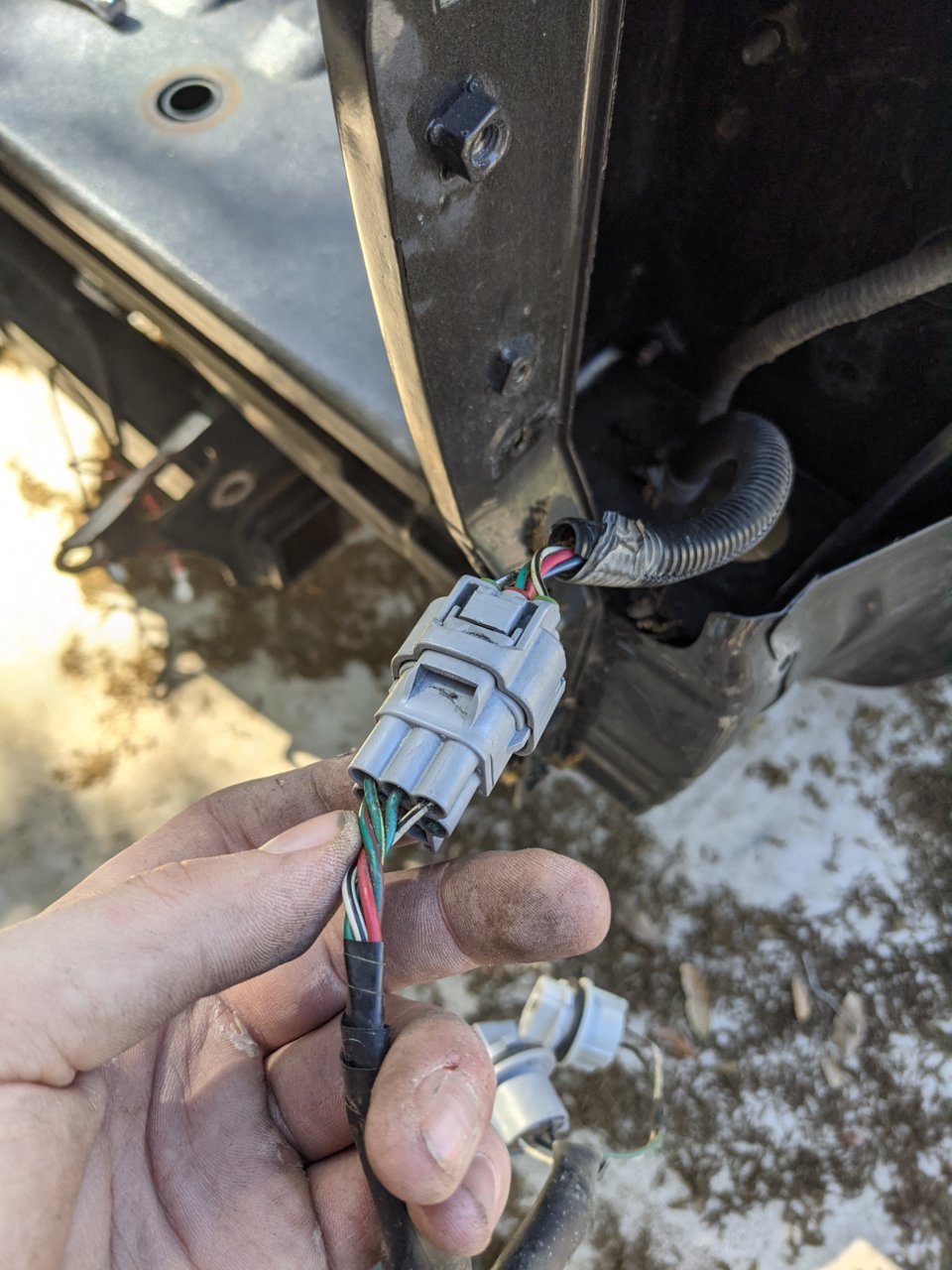

    Tail Light wiring:

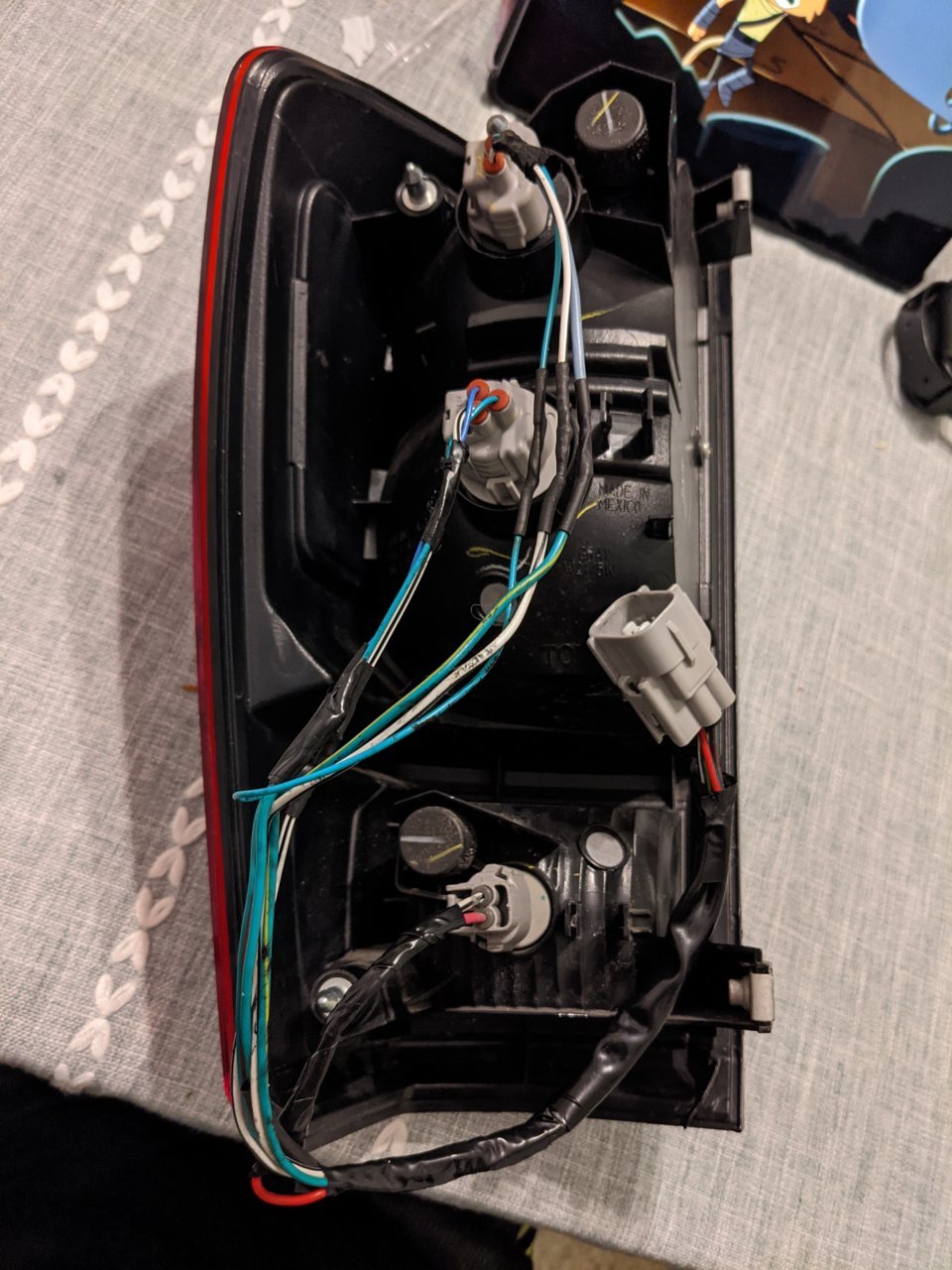

    After removing the tail lights wiring harness, cut off the three connectors for the tail light. Solder the 3rd gen connectors on.
    The three White wires w/ black stripes are the ground wires. Solder one to each white wire on the connectors.
    The Red wire is the positive for the backup light, solder it to the red wire on the backup light connector.
    Green wire w/ red stripe is for the brake light. It needs to be soldered to the blue wire on the brake light connector.
    Green wire w/ yellow stripe is for the turn signal. Depending on the turn signal connector, this will either go to a yellow or light blue wire.
    Solid green wire is for the parking light, this needs to go to the green wire on both the turn signal and brake light connectors.
    Before installing the tail lights, plug the wiring harness into the truck and test the lights.

    Backup Camera Wiring:
    On the 2020 Tacoma, the backup camera connector changed. The tailgate I ordered was suppose to be from a 2019 but was the newer version. No big deal, I ordered a new connector for the tailgate and soldered it on. The only issue I had was the new camera has built in guidelines, where the other camera didn't and the lines were built into the mirror. Now I'm getting double guidelines. Im going to move the backup camera from the mirror to the head unit to fix this issue.

    I've noticed an improvement in the picture quality from the new 2020 camera compared to my stock 2013. Overall the image seems sharper while trying to backup during both day and night.
    Link to connector
    https://www.ebay.com/itm/153905175658

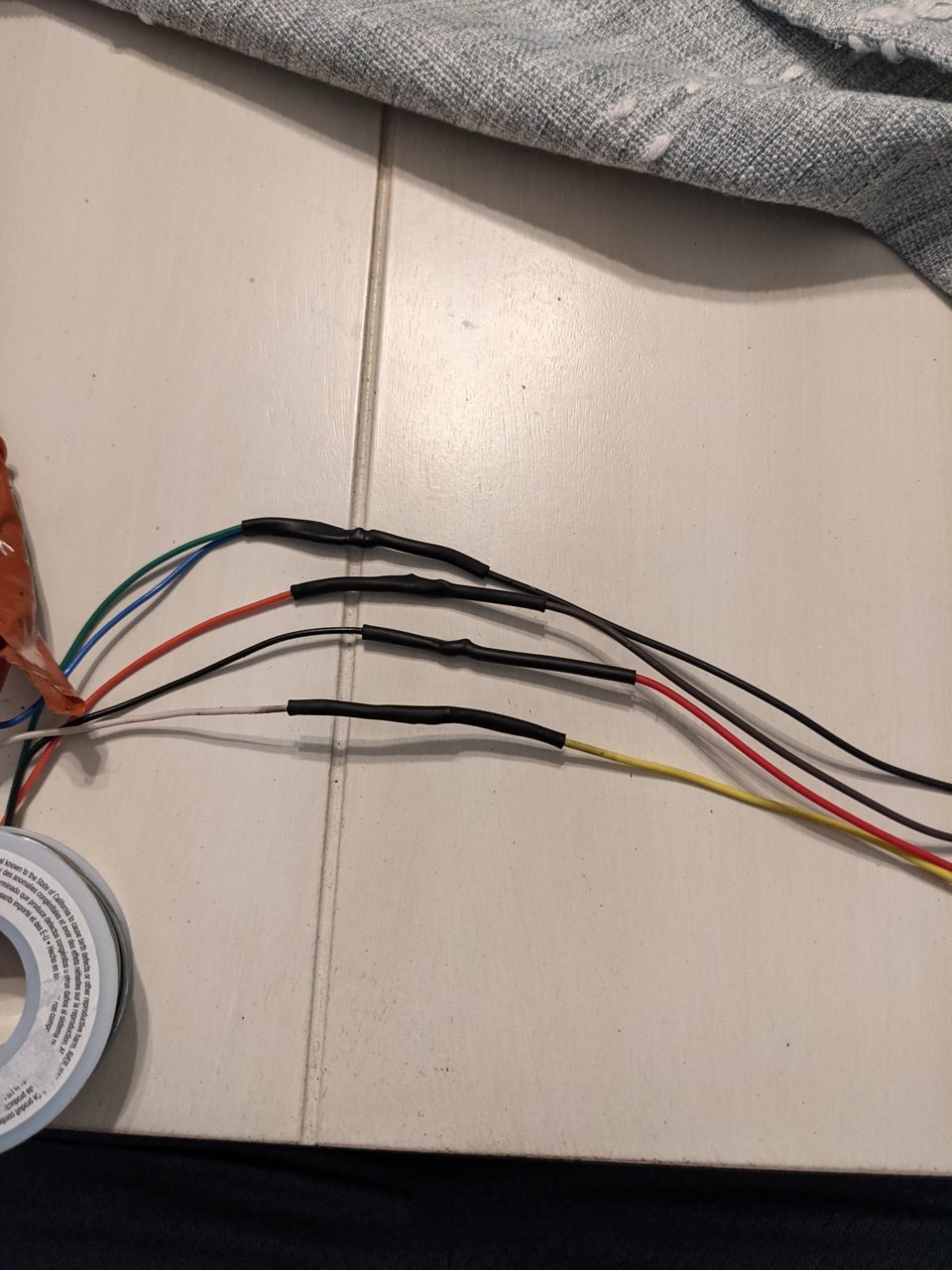

    The Black wire from the connector is the ground and needs to be connected to the green and blue wire from the camera.
    The Gray wire is a 1.4v video signal. Solder it to the red wire from the camera.
    The Yellow wire is a 1.4v video signal. Solder it to the white wire from the camera.
    The Red wire from the connector is the 6v hot, solder it to the black wire from the camera.

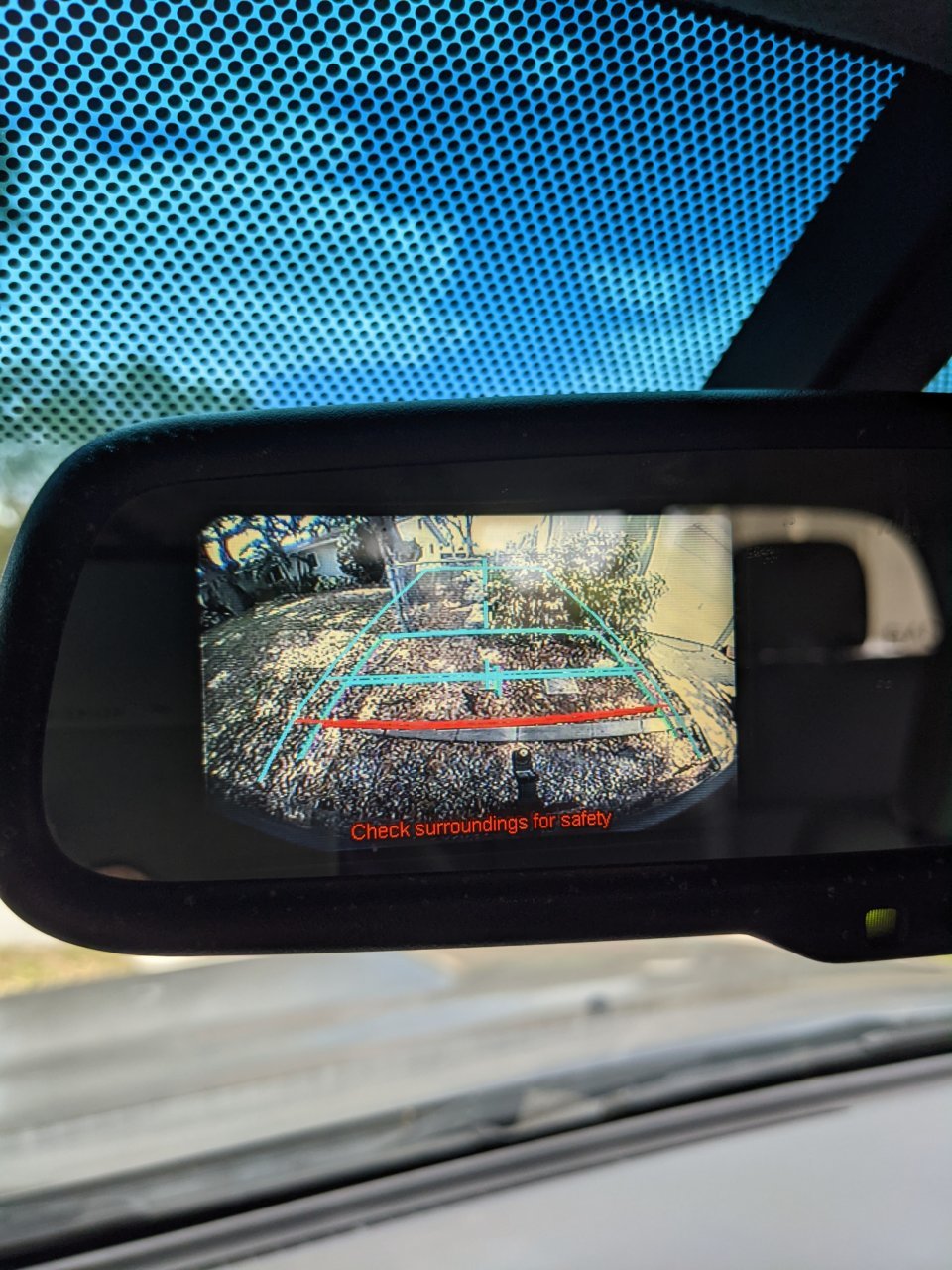

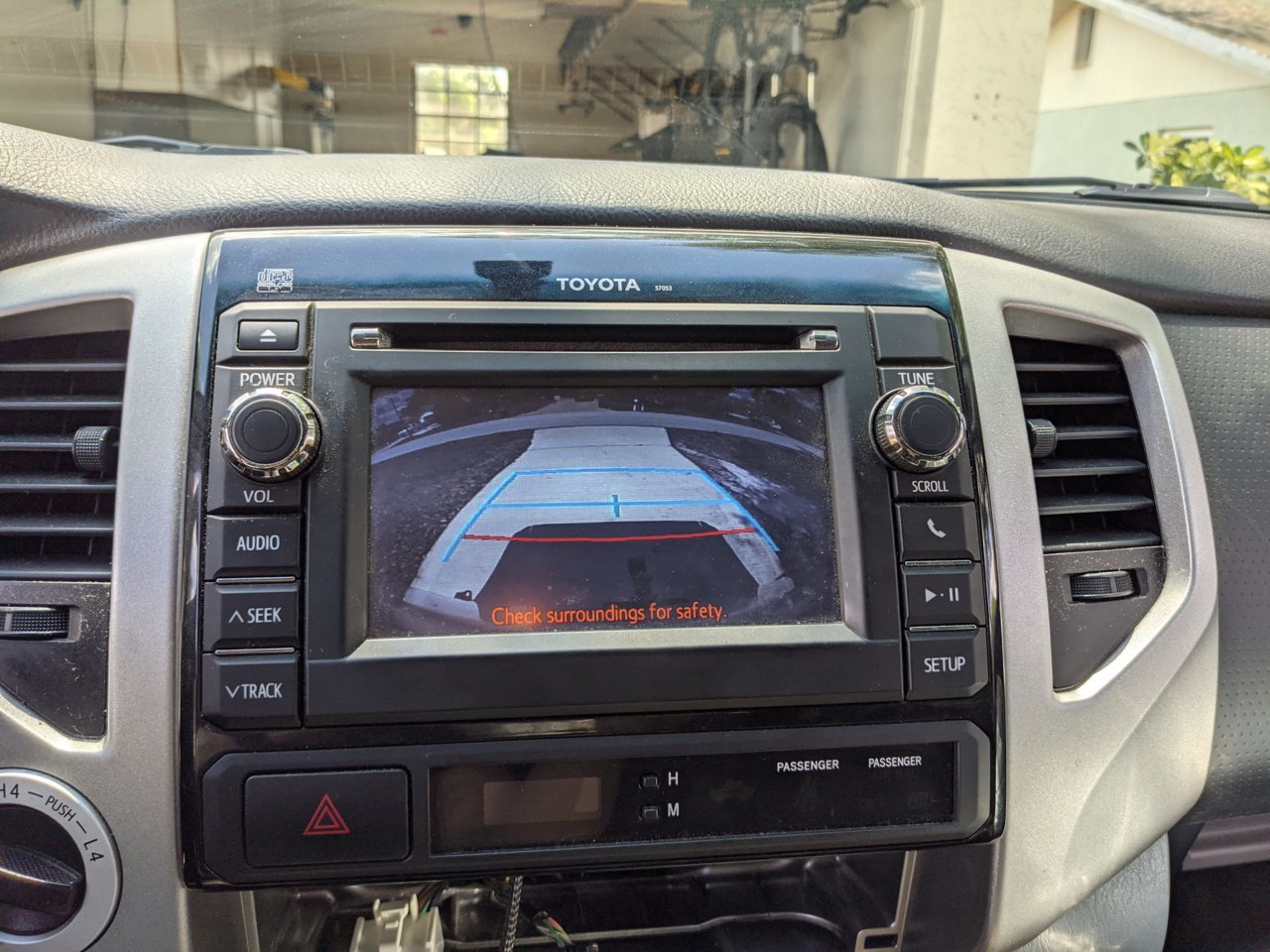

    It's not the best image but I removed the wiring harness for the backup camera so I could have an easier time trying to get it working.

    I tried removing, combining, and swapping the gray or yellow to see if it would remove the lines. Nothing I tried worked, anything other the above combination would result in the camera not working.

    Last edited: Mar 28, 2021
  5. Mar 28, 2021 at 5:49 AM
    #5
    Larzzzz

    Larzzzz Grande' Ricardo

    Joined:
    Aug 23, 2009
    Member:
    #21609
    Messages:
    2,557
    Gender:
    Male
    First Name:
    Larry
    MA
    Vehicle:
    '06 dclb 300+ kmiles
    Aux back up lights, Bed lights, Re-located trailer plug, Good dooby, a.k.a. jumper cable mod, Heated seats, back up camera,
    This is quite the project you've undertaken.

    Good luck in getting everything lined up. No sarcasm there. I'm genuinely curious to see how this all comes together.

    Good luck :thumbsup:

    NastyBogging [OP] likes this.
  6. Mar 28, 2021 at 9:21 AM
    #6
    ace96

    ace96 Well-Known Member

    Joined:
    Sep 1, 2010
    Member:
    #42591
    Messages:
    3,105
    Gender:
    Male
    Western KY
    Vehicle:
    '11 SWB DC TRD SPORT
    AVS bug deflector, Weathertech digital fit floor mats, TRD skid plate w/ Sockmonkey decal, SOS Cocept sliders w/ Line-x, Pioneer 3500, Hybrid Audio Technology Mirus 6X9s & 6.5s, back up cam mod, Wet Okoles-front & rear, TRD exhaust, 17X9 XD Spy w/ Falken Wildpeaks, Avid light bar
    Sweet. Good luck.

    NastyBogging [OP] likes this.
