Nate's build

Discussion in '2nd Gen. Builds (2005-2015)' started by Nate87, Oct 2, 2014.

  1. Oct 2, 2014 at 2:10 PM
    #1
    Nate87

    Nate87 [OP] Well-Known Member

    Joined:
    May 7, 2013
    Member:
    #103748
    Messages:
    751
    Gender:
    Male
    First Name:
    Nate
    CONUS
    Vehicle:
    2013 AC TRD OR


    [​IMG]

    [​IMG]

    Vehicle
    2013 Pyrite Mica TRD Off Road
    Access cab V6 Auto 4x4

    Inside
    -Marathon seat covers
    -Weather tech floor liners
    -Removed rear jump seats and headrests
    -Dog/gear platform
    -@ImMrYo review mirror relocate bracket
    -Tint
    -Viair air pressure gauge in 4x4 switch location

    Outside
    -Weather tech LampGard clear headlight covers
    -Softopper
    -Pelfreybilt Front 3 hoop bumper
    -Pelfreybilt IFS and Mid skid
    -Relentless Fabrication bolt on sliders with "half kick" out
    -Relentless Fabrication Rear High Clearance bumper with swing out: Dual Jerry cans, Hi-Lift mounted under tire carrier, rear tire carrier canted forward, Poly Performance Synergy swing out latch, Rigid SR-M cutout, hidden hitch behind license plate, relocated trailer plug behind license plate
    -B.A.M.F. L&R tailgate CB mounts
    -Scepter Fuel and Water Jerry cans
    -High-Lift Xtreme 60"
    -BOLT Lock key matched Padlock and Cable lock
    -Base Tacoma fender flares with 2" removed
    -Prinsu AccessRack
    -Safari Snorkel

    Drivetrain
    -Marlin Crawler Taco Box with HD and treated 4.7 gears & added crawler crossmember
    -RST Twin Stick FJ Cruiser manual transfer case
    -One piece drive shaft
    -Triple drilled driveline flanges
    -Nitro 4.56 front and rear gears with solid spacer purchased from ECGS installed by Yotamasters in Corona CA
    -ARB Front Air locker from ECGS and installed by Yotamasters
    -BORA .75" black hub centric wheel spacers in front with 106mm to 108mm
    -BORA 15mm black hub centric wheel spacers in rear with 106mm to 108mm
    -A.R.P. extended wheels studs in the rear
    - Suspension
    Front
    -Icon tubular UCA from DSM
    -BAMF 8" ORI struts
    - Rear
    - - -King 12" 2.0 smoothie with compression adjuster remote reservoir anodized black from DSM
    -BAMF shock tower relocation brackets installed by Demello Offroad in Riverside CA
    -ATO shackle flip
    -Sway bar removed

    Wheels & Tires
    -Method 16x8 NV's
    -Goodyear MTR 315/75/16

    Electrical
    -Custom fuse and relay panel behind rear interior panel
    -Dual battery setup Interstate AGM Group34
    -Blue Sea ML-ACR
    -Blue Sea 12 fuse block
    -Warn Zeon 10S with 78" contactor relocation kit
    -Rigid SR-20 Hyperspot
    -Rigid Dually D2 Amber fog lights
    -Rigid SR-M Aux reverse lights
    -Kawell LED floods on roof rack X4
    -Overhead OTRATTW switch panels
    -ARB 50qt fridge/freezer
    -ARB Twin compressor and manifold OBA setup
    -LED strip bed lights
    -E-Locker anytime
    -Fog light anytime

    Misc
    -Redline hood struts
    -AVS 5 gallon aluminum air tank for OBA
    -Nitrogen tank with QuickFist mount
    ----------

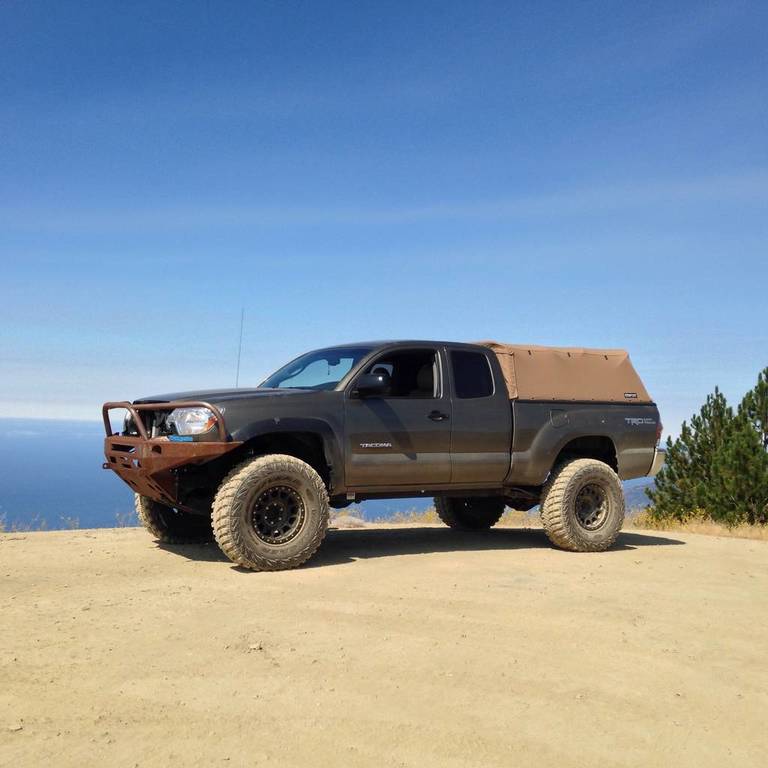

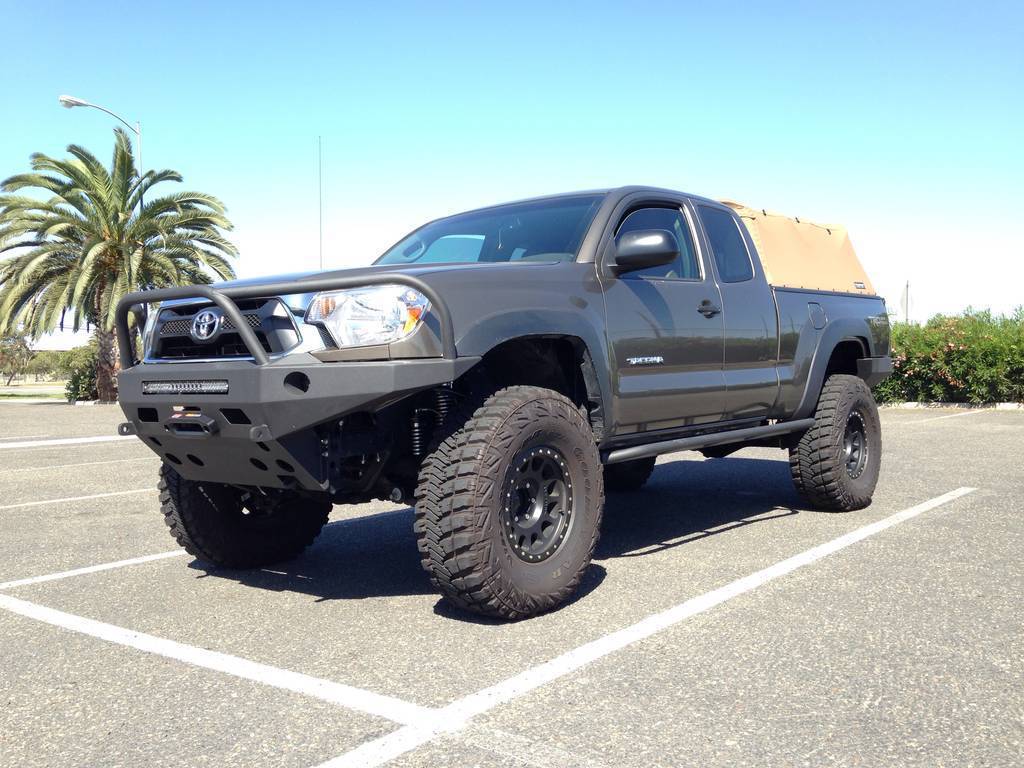

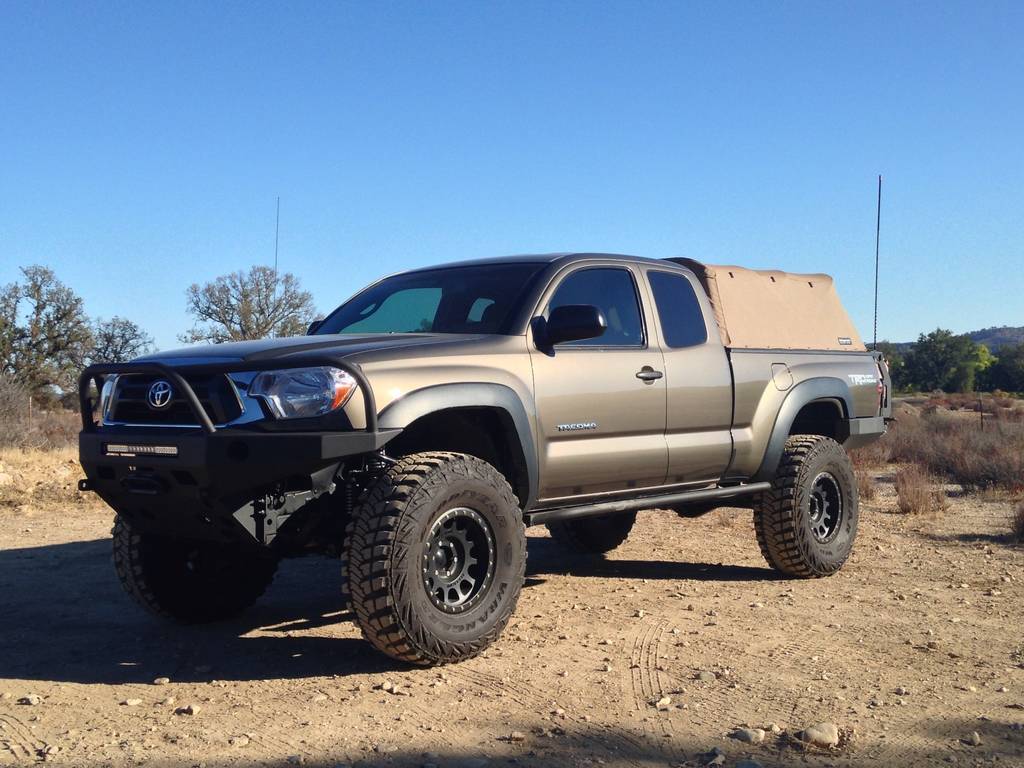

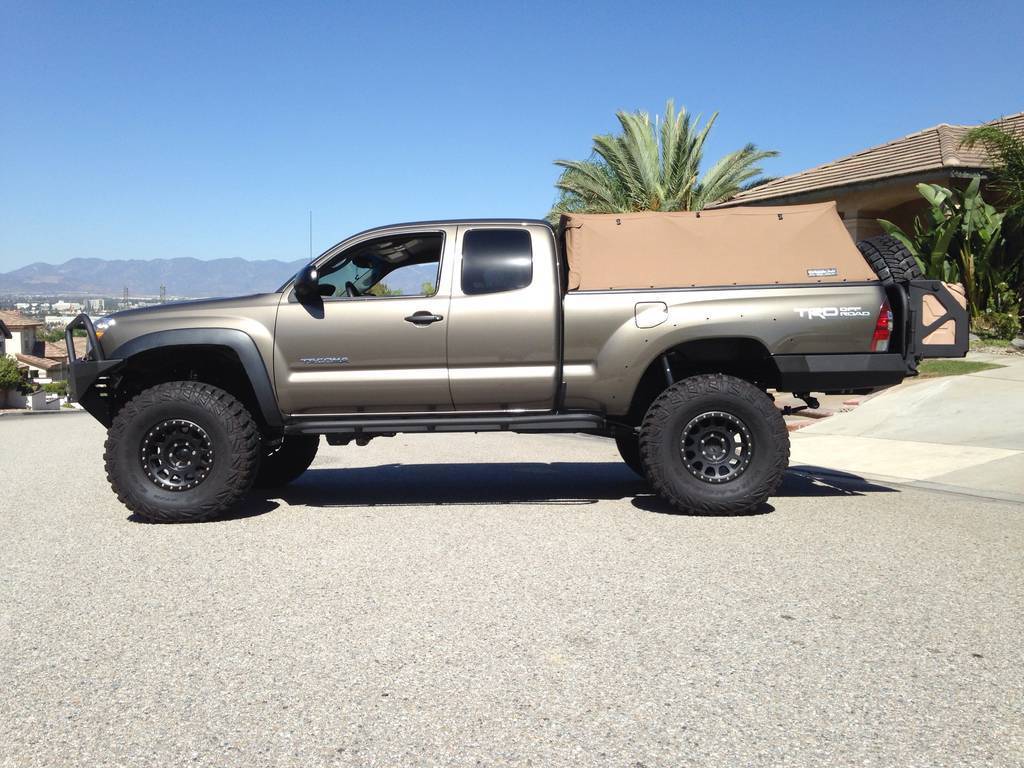

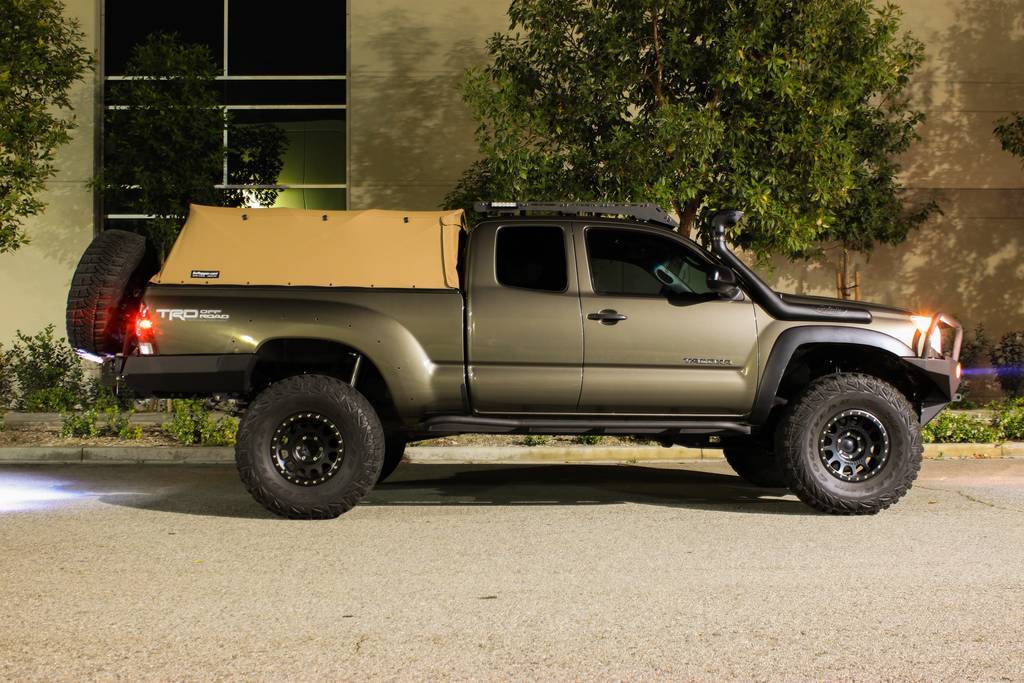

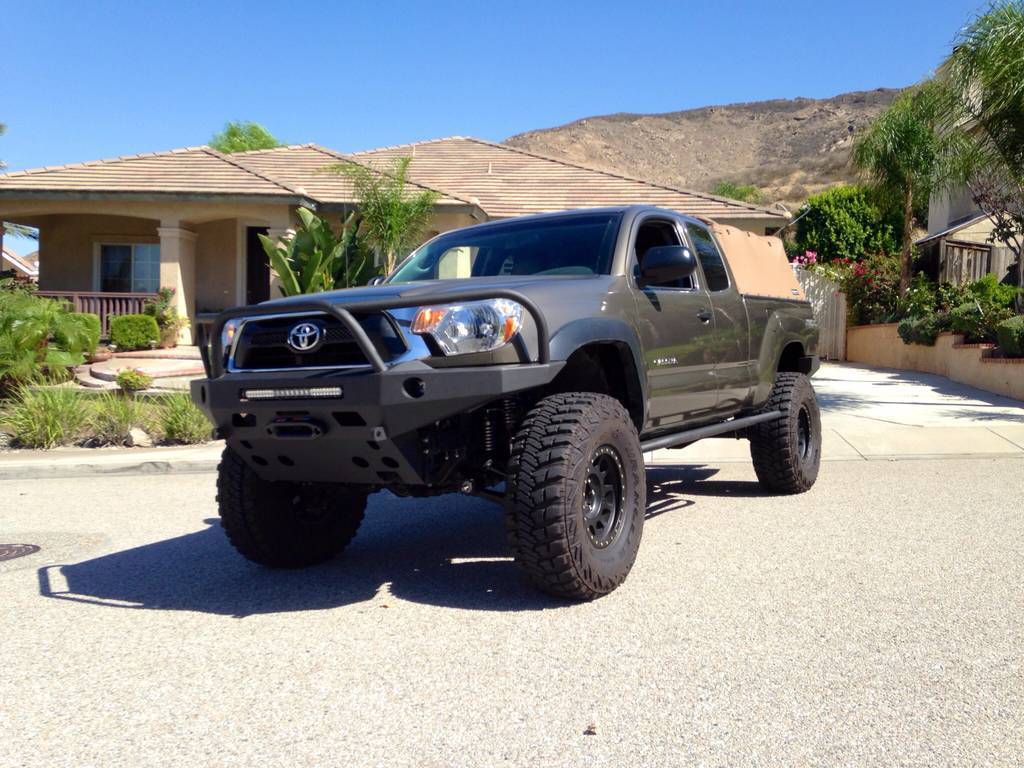

    Most recent shots of the truck:
    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]
    ----------

    So I finally decided to put together a build thread and document the progress and changes made with hopes of helping others with their trucks. TacomaWorld has been a huge help and a great source of information that has helped me along the way. I'd like to thank the many members that have helped with with information, products and advice along the way as well as the many badass trucks that have been a source of inspiration for my build.

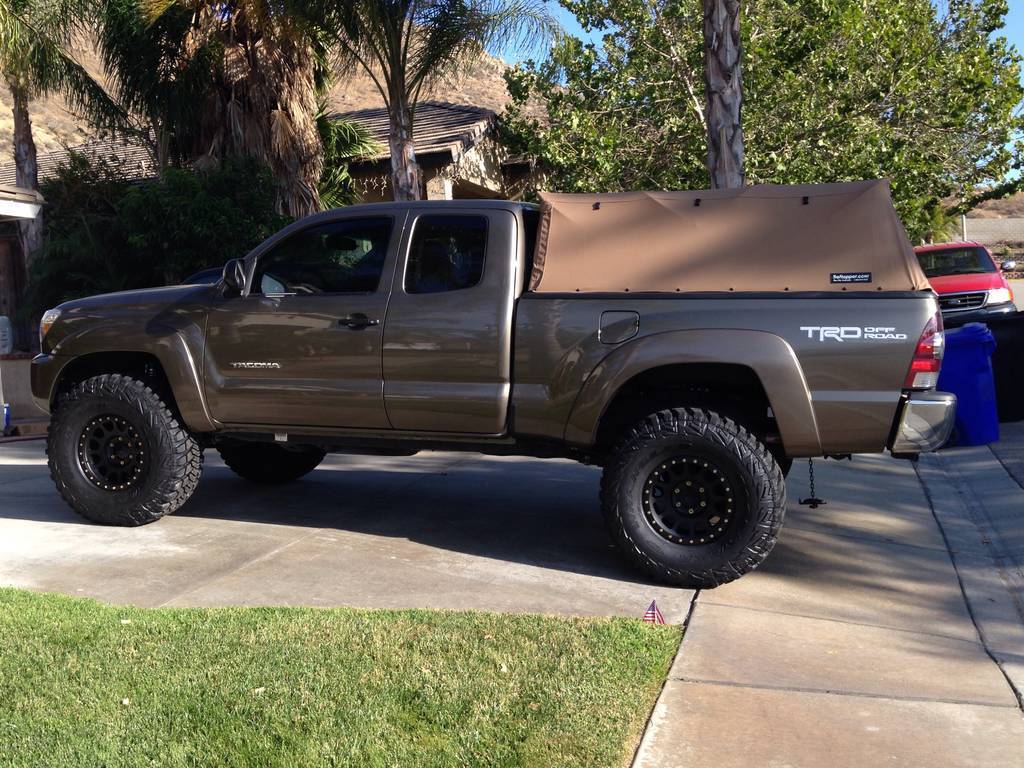

    Here it is new on the lot
    [​IMG]

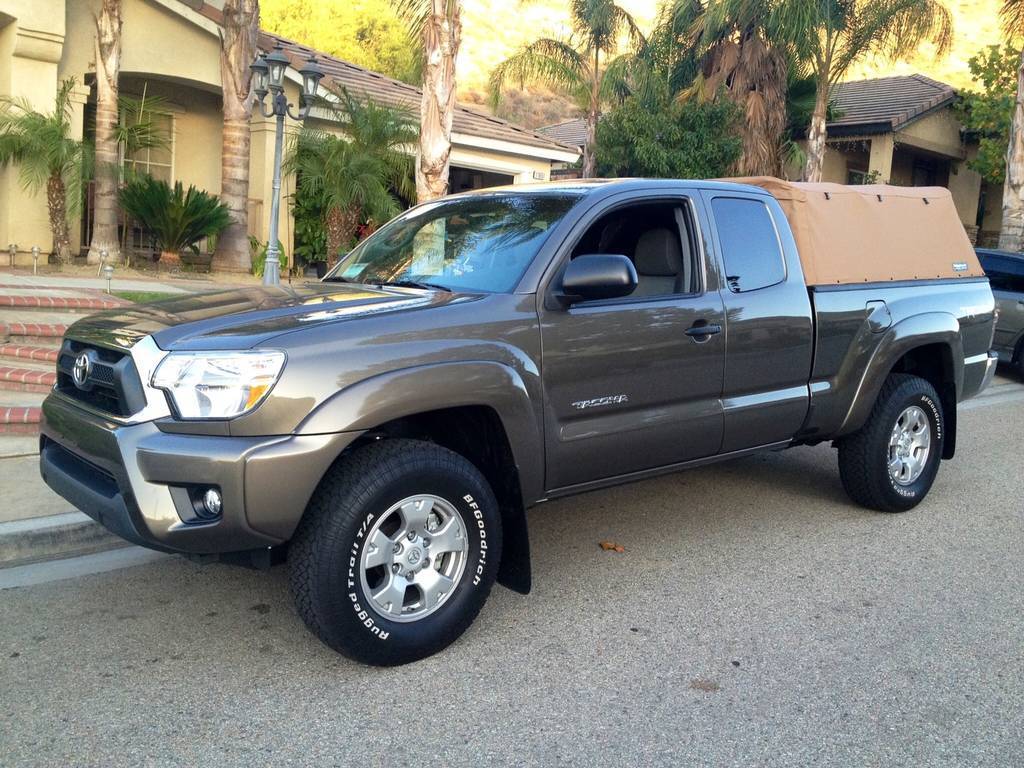

    Another of the few pictures of the truck before anything went on it.
    [​IMG]

    Right off the bat I did the tailgate clamp mod to prevent anyone from walking away with the tailgate. Used a keyed hose clamp with heat shrink.
    [​IMG]

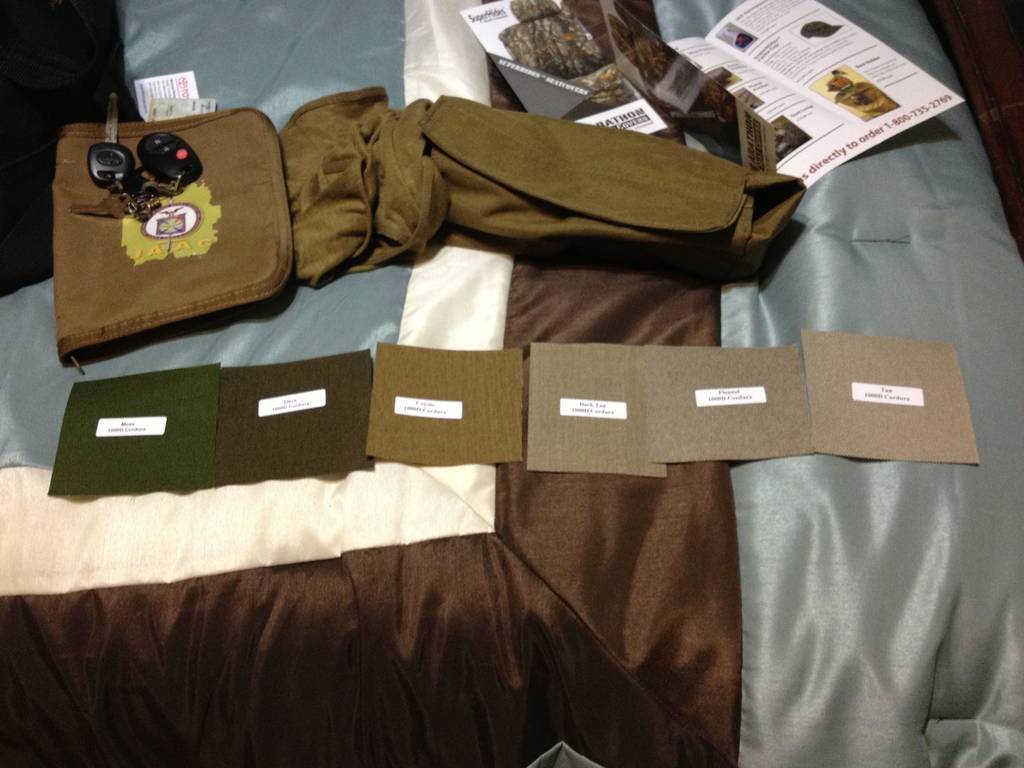

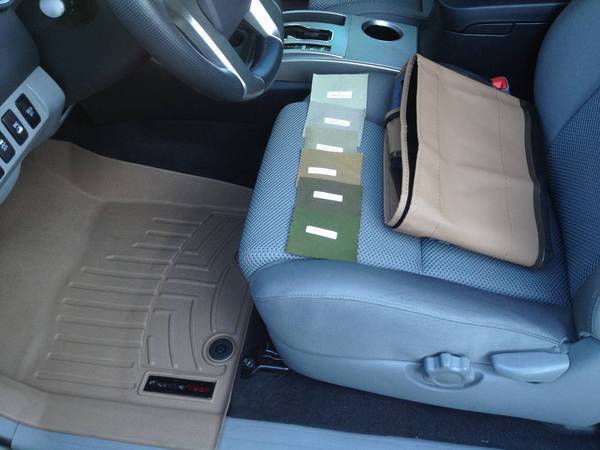

    Next was a call to Marathon Seat covers for a few samples then placed an order for Weathertech floor liners. Both of these items have made the biggest difference. I would reccomend them to anyone who gets a truck.
    [​IMG]

    Trying to get the military tan color theme going
    [​IMG]

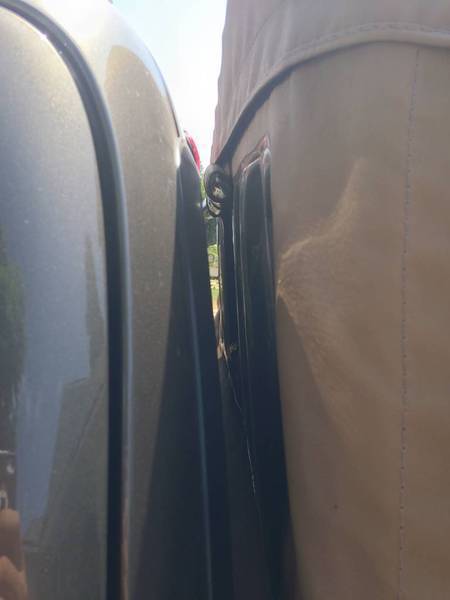

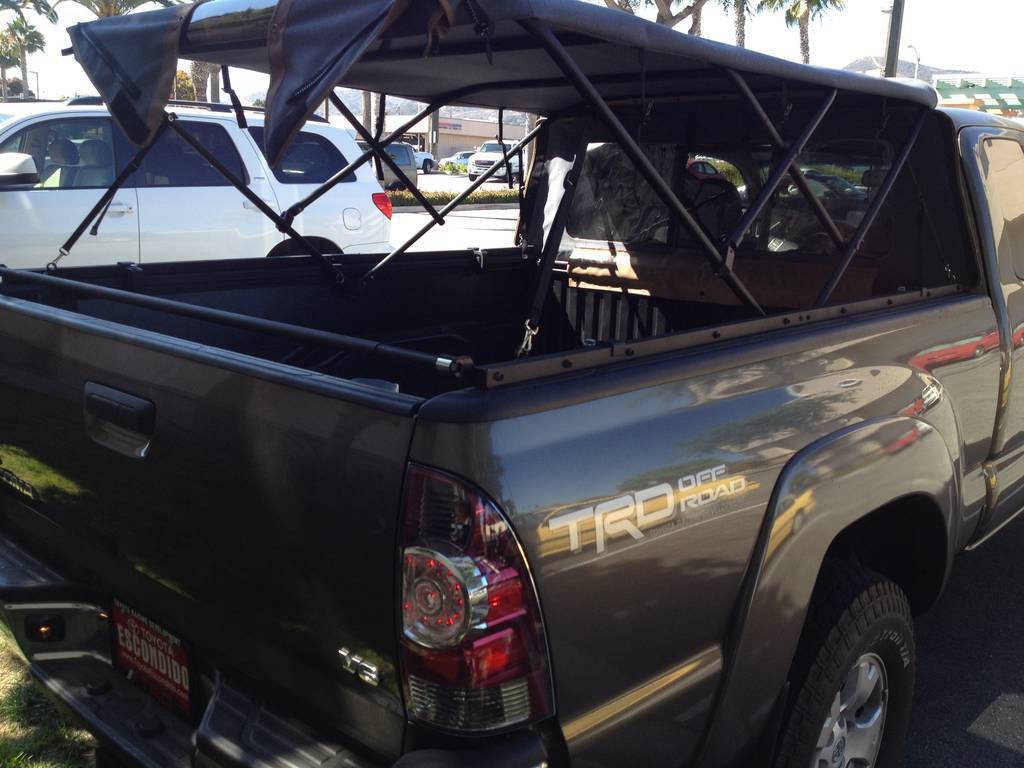

    Around that time I also ordered a tan Softopper with doggie window in the front and extra rear mesh window.

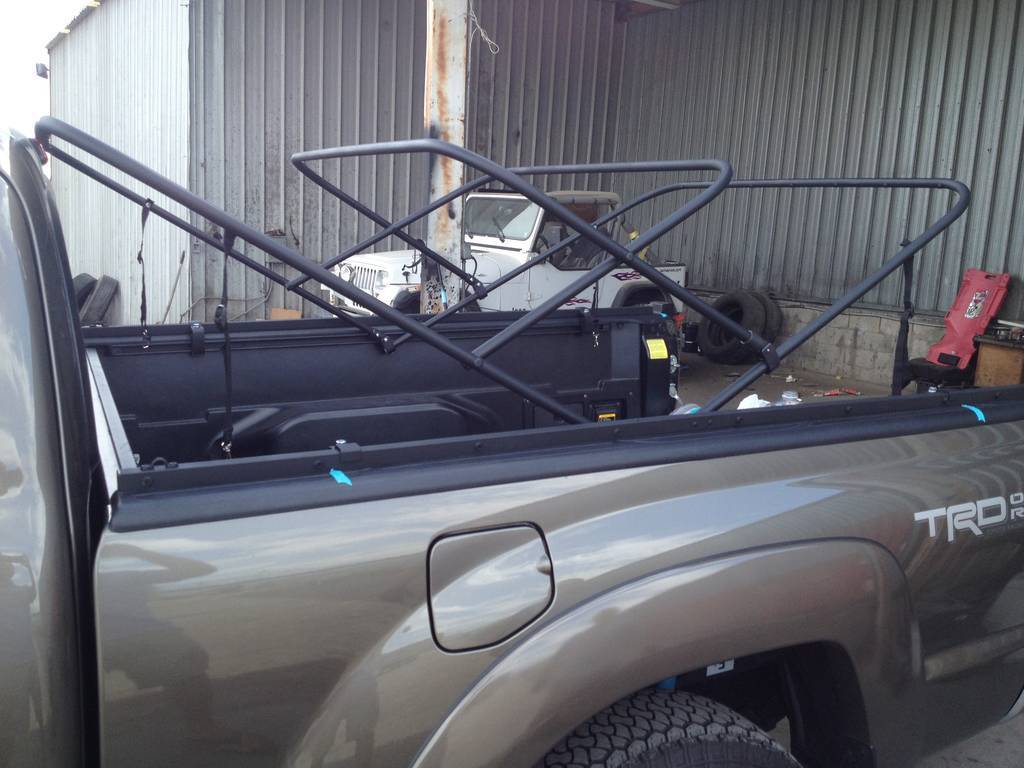

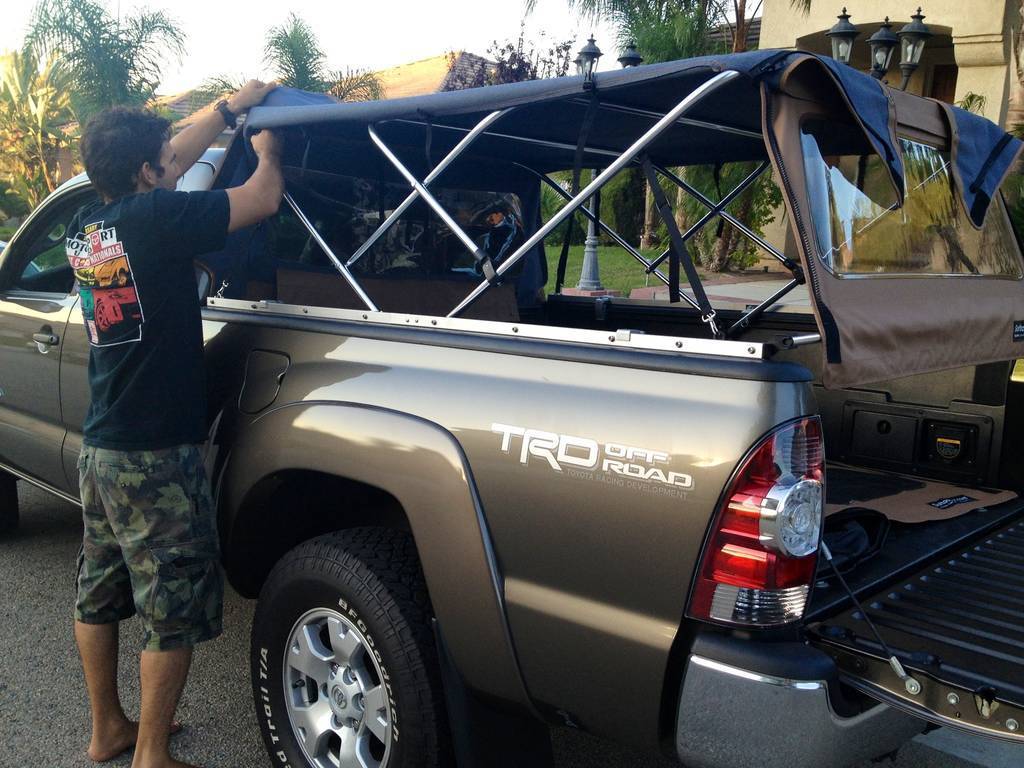

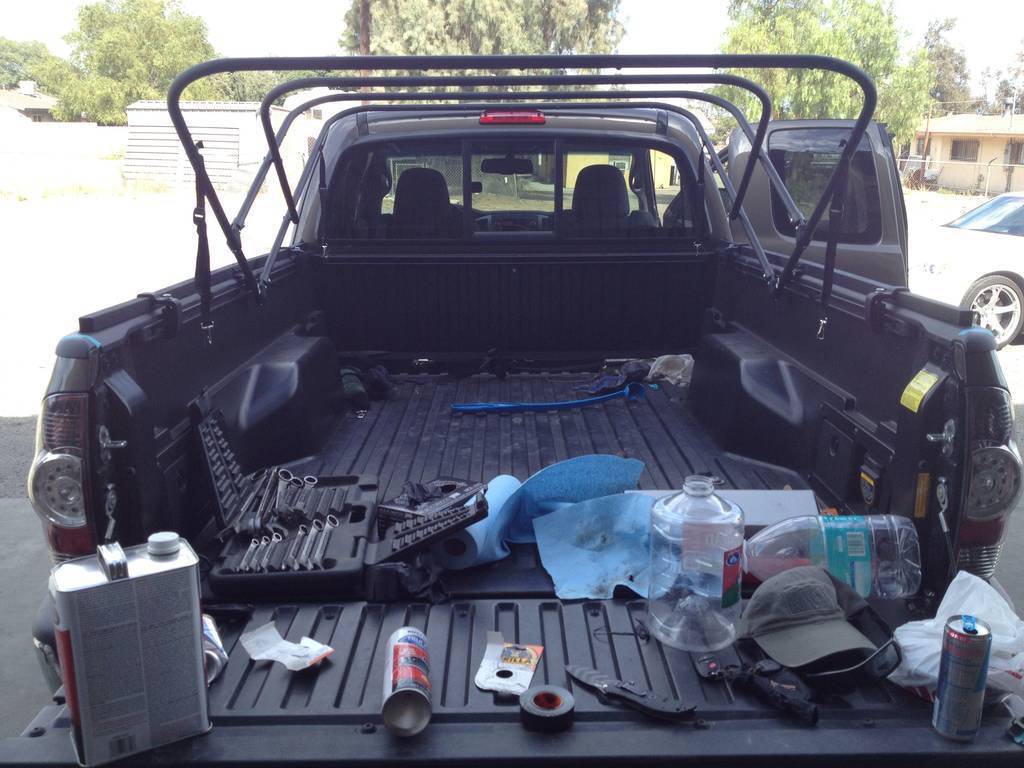

    Installing the topper
    [​IMG]

    [​IMG]

    [​IMG]

    Folded down. I wasn't a fan of the bare aluminum so that had to change.
    [​IMG]

    Taped everything off not to be painted. Sanded all metal then wiped clean with acetone before spraying a layer of primer then used a few coats of Rustoleum Spray on Bedliner. It came out looking good. Much better than the bare metal look against the black bed. If you plan on doing this, make sure you take the time to prep the surfaces. The first time I tried just spraying as is and it peeled off rather easily.
    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

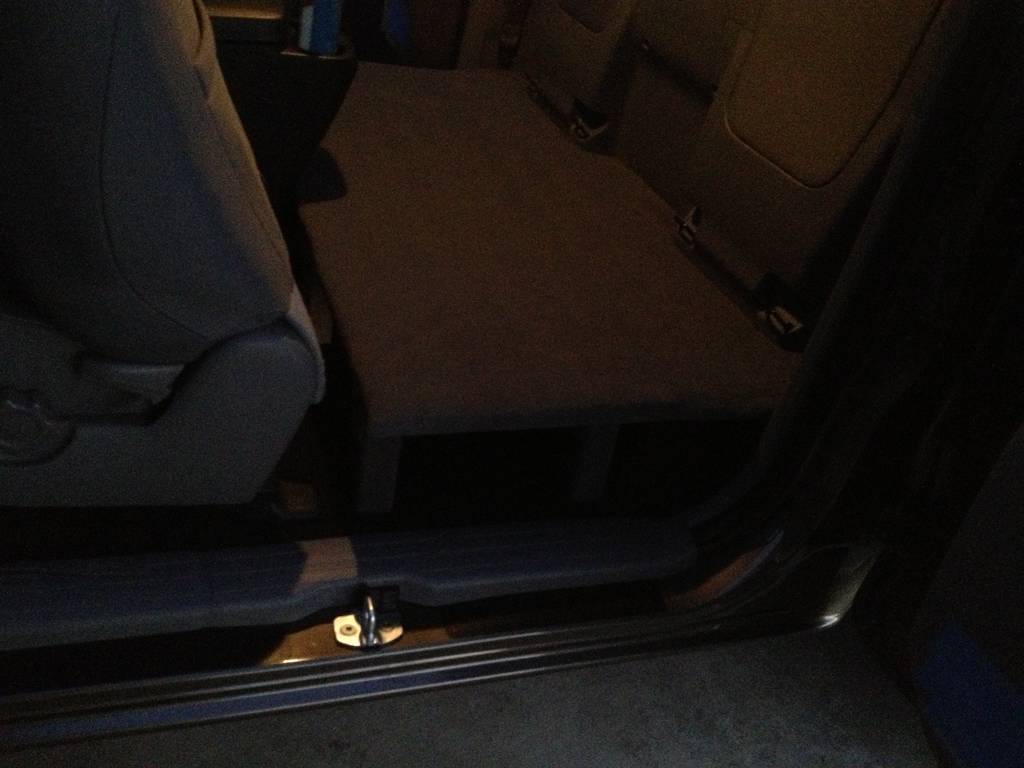

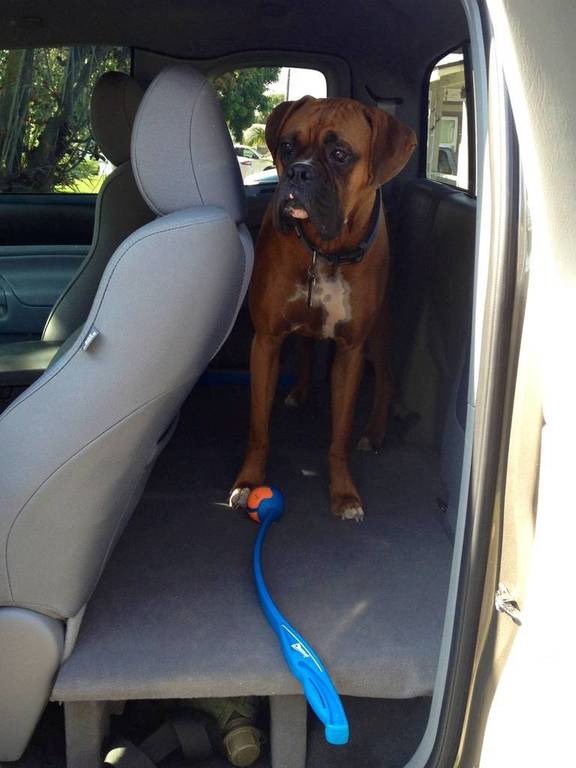

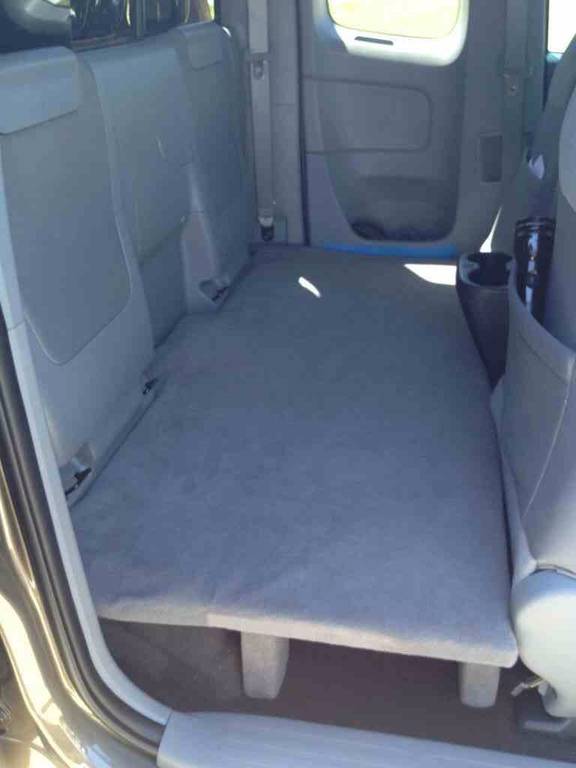

    I also took out the rear jump seats and head rests then built a platform for the dog and gear. Sorry for the bad photo.
    [​IMG]

    He still preferred the front seat
    [​IMG]

    When I got the floor liners I also got the weathertech headlight covers. I jacked them all up and would not do them again. They are the kind that you have to heat up and carefully put on the headlight. Due to the shape of the headlight, I ended up with creases that wouldn't contour the headlight and had to cut a portion of the cover off to fit. Kind of looks like crap. Ohh well. Lesson learned.

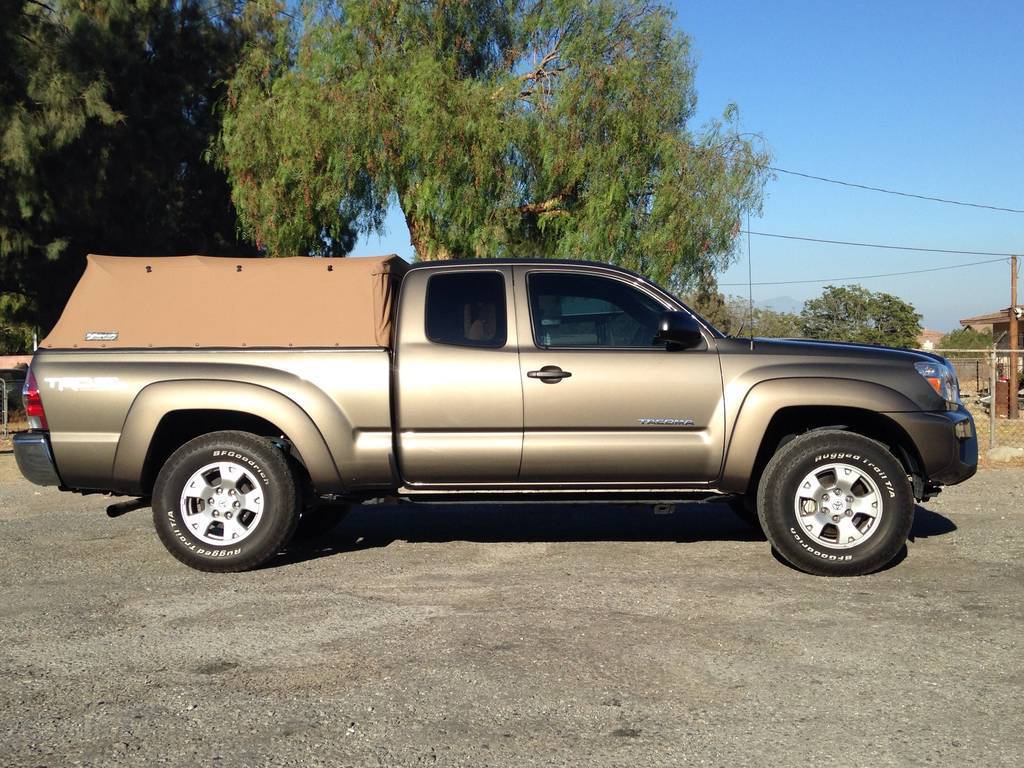

    Here was the truck before I went mod crazy a few months ago.
    [​IMG]

    I didn't plan on doing anything to the truck other than basic add ons since I already had a project I was working on. A 1970 Datsun 240Z. But, long story short, it is now gone and my project attention, money and time had to shift somewhere. The Tacoma was next in line so here we are.

    I started researching and saving for a build since the truck was purchased. I went through countless threads figuring out exactly how the build would come together and have a good idea of how it will turn out. I can be pretty particular on how things are done and try to have attention to detail with the things I do. A hard lession I learned with doing the 240Z restoration is to take the time and do things right the first time even if that means waiting longer to save up for quality stuff. Too much time and money was wasted doing things twice or even three or four times over. So the Tacoma was a chance to get it right.

    I have a lot planned for the truck. Lots of camping, off roading and road trips to come. Thanks again to all the TW members for their threads that have helped guide my build. There is more to come.

    Here is glimps of what's to come
    [​IMG]

    Nate

    Last edited: Jul 9, 2016
    tcBob, quis23, 300AACTaco and 4 others like this.
  2. Oct 2, 2014 at 10:17 PM
    #2
    Nate87

    Nate87 [OP] Well-Known Member

    Joined:
    May 7, 2013
    Member:
    #103748
    Messages:
    751
    Gender:
    Male
    First Name:
    Nate
    CONUS
    Vehicle:
    2013 AC TRD OR

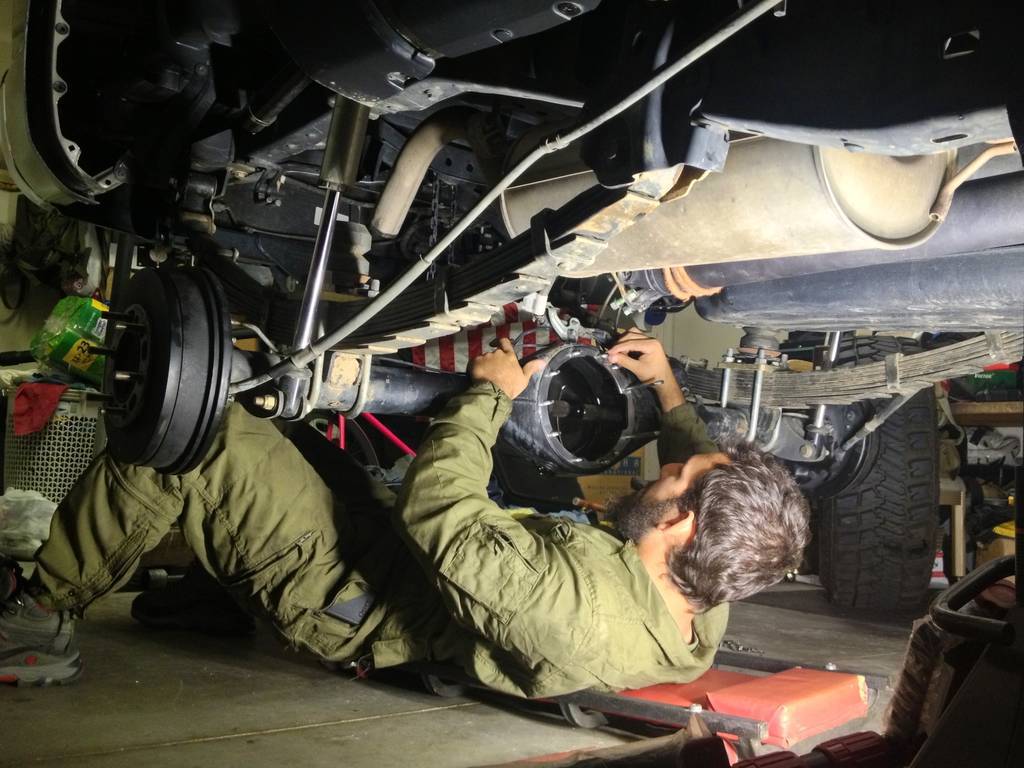

    Some random progress shots...
    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    Last edited: Apr 28, 2015
  3. Oct 3, 2014 at 1:58 AM
    #3
    ThatguyJZ

    ThatguyJZ Instagram: thatguyjz

    Joined:
    Apr 30, 2013
    Member:
    #103173
    Messages:
    754
    Gender:
    Male
    First Name:
    Jim
    TRIAD, NC
    Vehicle:
    2014 MGM DCSB 4x4 TRD Off Road
    A TRD OR built into a Baja/PRO hybrid
    Nice looking truck! Have any other pics of how the seat covers turned out?

  4. Oct 3, 2014 at 5:01 AM
    #4
    sixspeedlife

    sixspeedlife Well-Known Member

    Joined:
    Aug 13, 2014
    Member:
    #136072
    Messages:
    199
    Gender:
    Male
    First Name:
    Braden
    MB, Canada
    Vehicle:
    05 TRD OFFROAD Six speed
    Leveled, BHLM, Black mesh grill, black skid plate
    Subd. Good looking coma man, any better pics of the rear seat mod?

  5. Oct 3, 2014 at 9:31 AM
    #5
    Nate87

    Nate87 [OP] Well-Known Member

    Joined:
    May 7, 2013
    Member:
    #103748
    Messages:
    751
    Gender:
    Male
    First Name:
    Nate
    CONUS
    Vehicle:
    2013 AC TRD OR
    I'll try and snap a few more for you today.

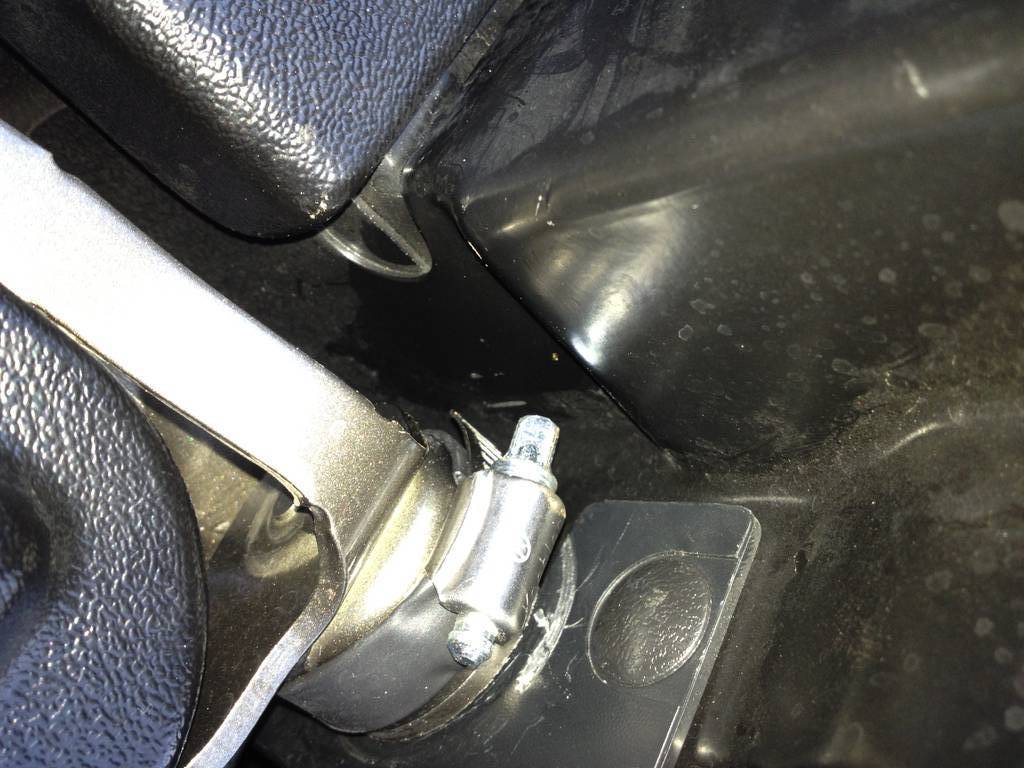

    I just starting unbolting and removing panels till I had access to remove the rear seat bottoms and headrest. Hope this photo works. Sometimes it appears sideways.
    [​IMG]

    If you need more photos of any other part let me know. I'll be glad to take them for you. This thread has more information on how others made the platform.
    http://www.tacomaworld.com/forum/2nd-gen-tacomas/72761-access-cab-dog-platform-udpate-pics-5.html

    Nate

    Edit: Photo added
    [​IMG]

    Last edited: Oct 5, 2014
    josem3 likes this.
  6. Oct 3, 2014 at 9:33 AM
    #6
    Large

    Large Red

    Joined:
    Sep 10, 2011
    Member:
    #63268
    Messages:
    22,432
    Gender:
    Male
    Nice, running ORIs in the front?

  7. Oct 3, 2014 at 9:35 AM
    #7
    mromeo

    mromeo Well-Known Member

    Joined:
    Aug 26, 2013
    Member:
    #111209
    Messages:
    558
    Gender:
    Male
    First Name:
    Mike
    Atlanta GA
    Vehicle:
    2016 DCSB TRD OR
    None yet
    Looks SICK. Love the softtopper

  8. Oct 3, 2014 at 10:05 AM
    #8
    Nate87

    Nate87 [OP] Well-Known Member

    Joined:
    May 7, 2013
    Member:
    #103748
    Messages:
    751
    Gender:
    Male
    First Name:
    Nate
    CONUS
    Vehicle:
    2013 AC TRD OR
    Yes. I'll be posting photos and info of them soon.

  9. Oct 3, 2014 at 11:12 AM
    #9
    chyknees

    chyknees nomadic wanderer

    Joined:
    Dec 22, 2008
    Member:
    #11801
    Messages:
    374
    Gender:
    Male
    So Cal
    Vehicle:
    05 Tacoma TRD 4x4
    TRD, Total Chaos, Fox, Volk, BFHoodrich
    Sweet rig! Do you have a pic of the softopper front dog window? Curious to see how that looks.

  10. Oct 3, 2014 at 12:46 PM
    #10
    Nate87

    Nate87 [OP] Well-Known Member

    Joined:
    May 7, 2013
    Member:
    #103748
    Messages:
    751
    Gender:
    Male
    First Name:
    Nate
    CONUS
    Vehicle:
    2013 AC TRD OR

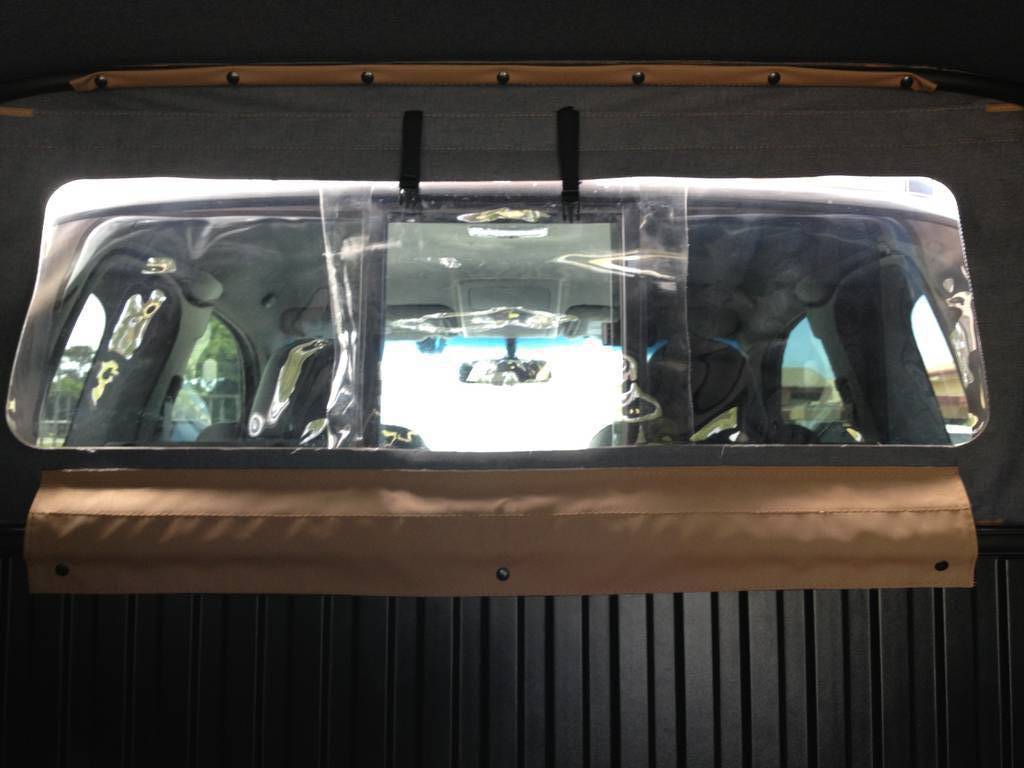

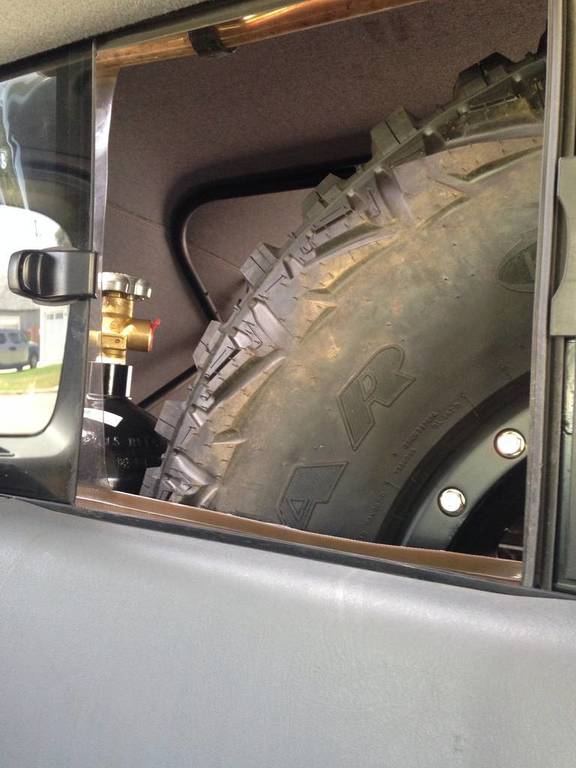

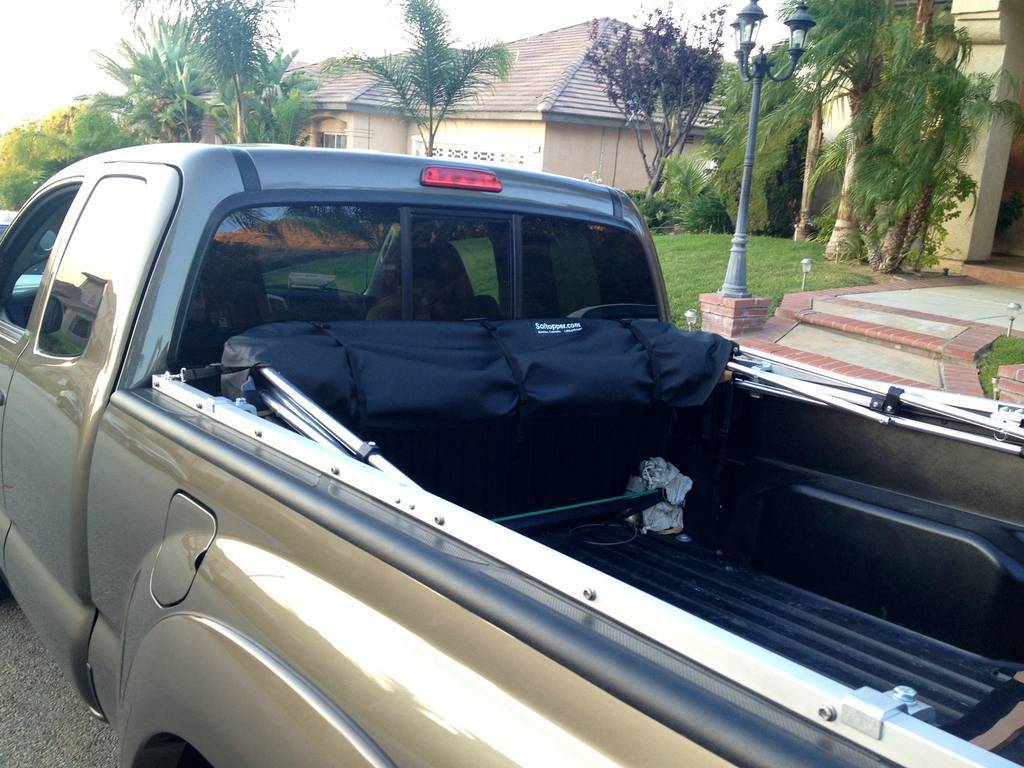

    Sure do! From bed looking forward. You can see it's the size of the sliding rear window. Two clipped straps keep it rolled up.[​IMG]
    [​IMG]

    The side
    [​IMG]

    From inside the cab looking back
    [​IMG]

    Lots of good info on softopper in this thread.
    http://www.tacomaworld.com/forum/2nd-gen-tacomas/277644-lets-see-some-softoppers.html

    Nate

    Edit: Photo added
    [​IMG]

    Last edited: Oct 5, 2014
  11. Oct 3, 2014 at 1:28 PM
    #11
    Nate87

    Nate87 [OP] Well-Known Member

    Joined:
    May 7, 2013
    Member:
    #103748
    Messages:
    751
    Gender:
    Male
    First Name:
    Nate
    CONUS
    Vehicle:
    2013 AC TRD OR
    Method NV wheels in 16x8 with 0mm offset are what I'm going with.
    [​IMG]

    My last set of Methods didn't make it out the box
    [​IMG]

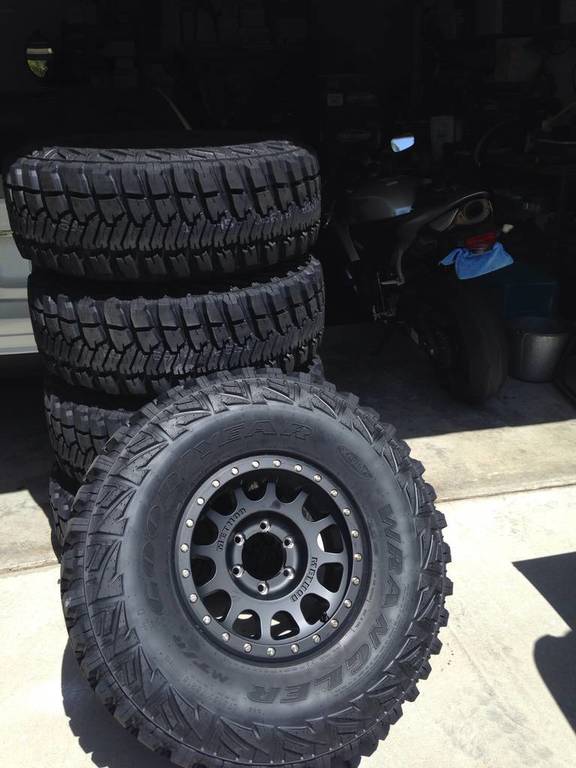

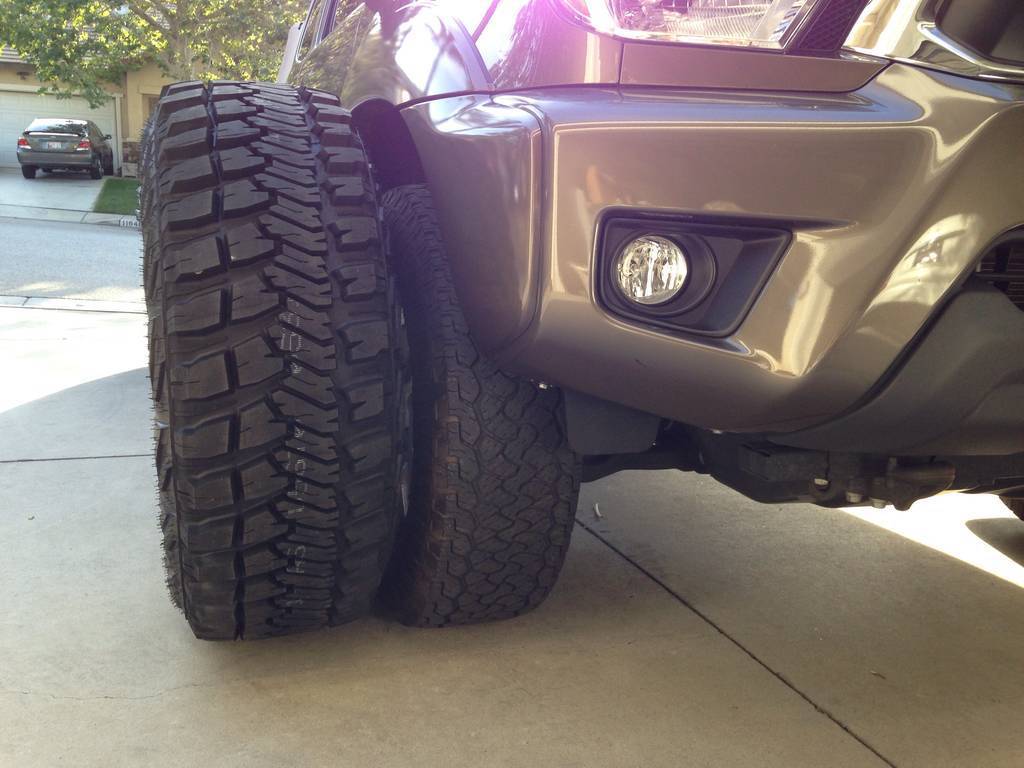

    Going from stock to this. 315/75/16 Goodyear MTR. It was a pain in the ass trying to find these tires in stock anywhere. Eventually found someone in Ohio, or something, that had like 40-something tires in his warehouse. Basically the only guy in America with them. Luckily he dealt with Americas Tire and was able to have them get them in and not only price match the lowest price but beat it.
    [​IMG]

    Laying them next to the truck. It's going to look pretty good.
    [​IMG]

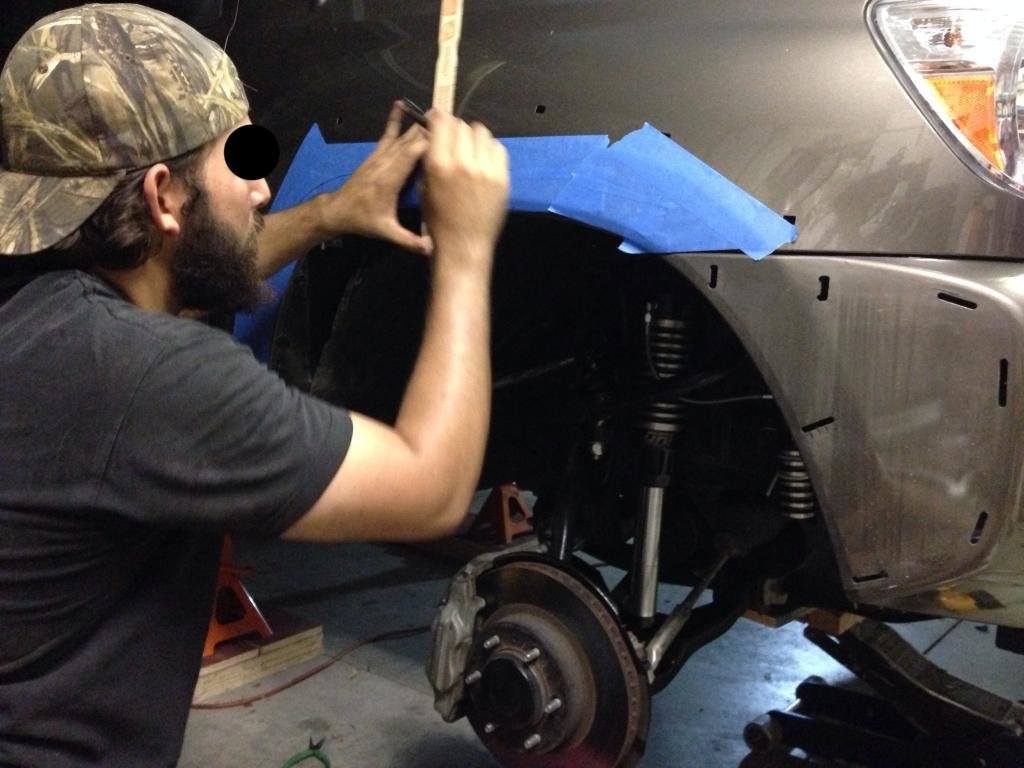

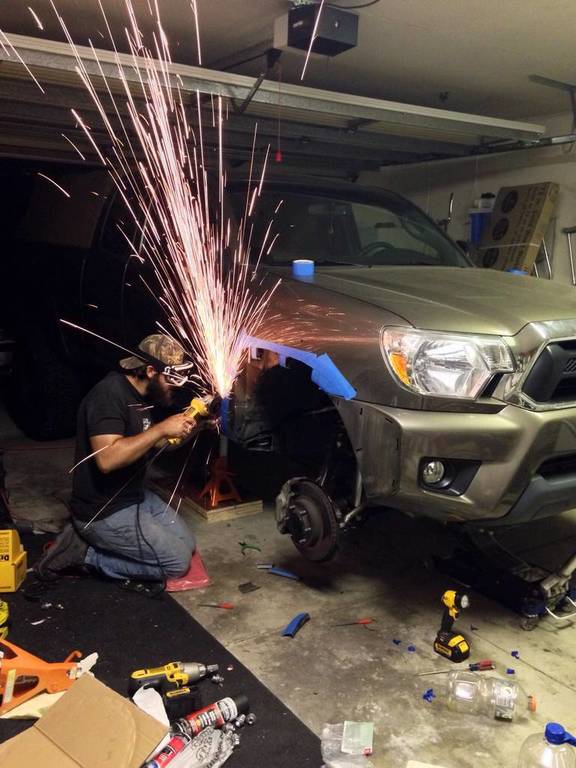

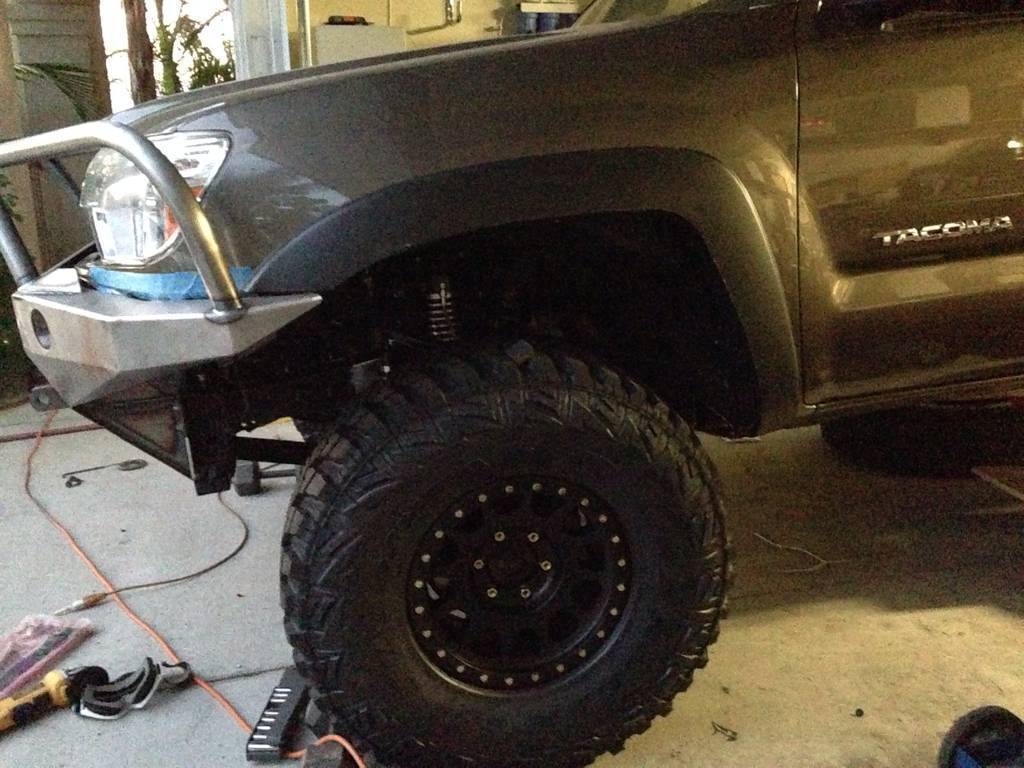

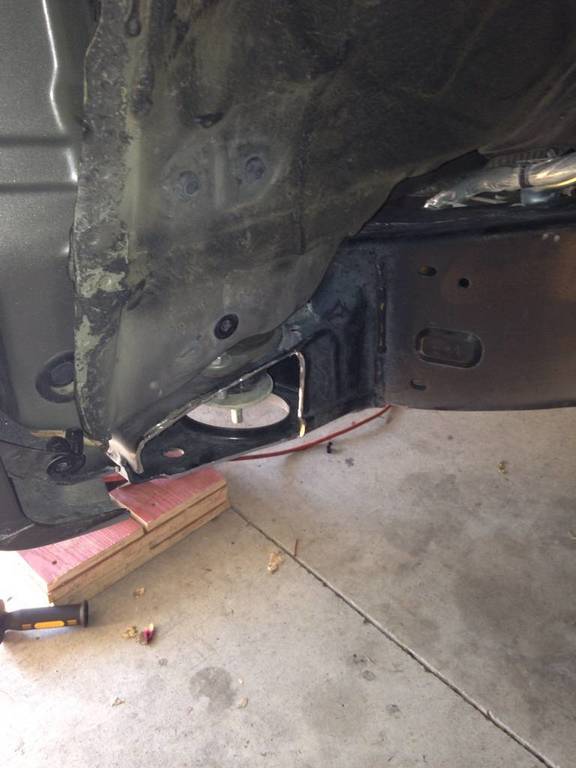

    Will definitly need to do some trimming/grinding/BFH to clear them
    [​IMG]

    Last edited: Oct 3, 2014
    4WDTrout and Gabex35 like this.
  12. Oct 3, 2014 at 1:33 PM
    #12
    RelentlessFab

    RelentlessFab Eric @Relentless Fab Vendor

    Joined:
    Feb 17, 2008
    Member:
    #4772
    Messages:
    15,448
    Gender:
    Male
    First Name:
    Eric
    Sparks, NV
    Vehicle:
    07 AC 6mt>03 SR5 >08 Sport and 17 6MT TRD OR
    Relentless Armored! Too many others to list.
    A damn nice truck :thumbsup:

    mahaloTaco likes this.
  13. Oct 3, 2014 at 5:11 PM
    #13
    Nate87

    Nate87 [OP] Well-Known Member

    Joined:
    May 7, 2013
    Member:
    #103748
    Messages:
    751
    Gender:
    Male
    First Name:
    Nate
    CONUS
    Vehicle:
    2013 AC TRD OR
    Thanks bro. Your armor came out great!! I'll be sure to take some in depth photos of the rear bumper and sliders. The armor really makes the truck what it is!!

  14. Oct 3, 2014 at 5:30 PM
    #14
    adriancast

    adriancast Well-Known Member

    Joined:
    May 20, 2013
    Member:
    #104544
    Messages:
    2,299
    Gender:
    Male
    First Name:
    Adrian
    Ontario, Ca
    Vehicle:
    2005 Tacoma 4x4 TRD Off-Road
    -2.5 Donahoe Coilovers -All Pro Standard Leaf Pack -All Pro U Bolt Flip Kit -Front/RearWheeler Super Bumps -Extended rear Bilstein 5100s -Flowmaster 40 Series -All Pro IFS Skid -All Pro Transmission Skid -Bruteforce Hybrid Bumper -30" Double Row LED bar -400 Watt Anytime -TRD Seat Covers -ABS Kill Switch -Locking Center Console Mod -Rear Differential Breather -BHLM -Anytime Fog Light Mod -Toyota Hilux Snorkel
    thats relentless gear? i was thinking pelfrey. you should post all that info on the first post.

  15. Oct 3, 2014 at 5:40 PM
    #15
    RelentlessFab

    RelentlessFab Eric @Relentless Fab Vendor

    Joined:
    Feb 17, 2008
    Member:
    #4772
    Messages:
    15,448
    Gender:
    Male
    First Name:
    Eric
    Sparks, NV
    Vehicle:
    07 AC 6mt>03 SR5 >08 Sport and 17 6MT TRD OR
    Relentless Armored! Too many others to list.
    Pelfrey front, the sliders and hc rear are mine

  16. Oct 3, 2014 at 5:41 PM
    #16
    adriancast

    adriancast Well-Known Member

    Joined:
    May 20, 2013
    Member:
    #104544
    Messages:
    2,299
    Gender:
    Male
    First Name:
    Adrian
    Ontario, Ca
    Vehicle:
    2005 Tacoma 4x4 TRD Off-Road
    -2.5 Donahoe Coilovers -All Pro Standard Leaf Pack -All Pro U Bolt Flip Kit -Front/RearWheeler Super Bumps -Extended rear Bilstein 5100s -Flowmaster 40 Series -All Pro IFS Skid -All Pro Transmission Skid -Bruteforce Hybrid Bumper -30" Double Row LED bar -400 Watt Anytime -TRD Seat Covers -ABS Kill Switch -Locking Center Console Mod -Rear Differential Breather -BHLM -Anytime Fog Light Mod -Toyota Hilux Snorkel
    Oh ok. Thanks.

  17. Oct 3, 2014 at 5:42 PM
    #17
    sixspeedlife

    sixspeedlife Well-Known Member

    Joined:
    Aug 13, 2014
    Member:
    #136072
    Messages:
    199
    Gender:
    Male
    First Name:
    Braden
    MB, Canada
    Vehicle:
    05 TRD OFFROAD Six speed
    Leveled, BHLM, Black mesh grill, black skid plate
    What are your specs for wheels/lift? Are those wheelers steelies?

  18. Oct 3, 2014 at 5:43 PM
    #18
    sixspeedlife

    sixspeedlife Well-Known Member

    Joined:
    Aug 13, 2014
    Member:
    #136072
    Messages:
    199
    Gender:
    Male
    First Name:
    Braden
    MB, Canada
    Vehicle:
    05 TRD OFFROAD Six speed
    Leveled, BHLM, Black mesh grill, black skid plate
    How do I delete a post!?!?!

  19. Oct 5, 2014 at 12:31 PM
    #19
    Nate87

    Nate87 [OP] Well-Known Member

    Joined:
    May 7, 2013
    Member:
    #103748
    Messages:
    751
    Gender:
    Male
    First Name:
    Nate
    CONUS
    Vehicle:
    2013 AC TRD OR

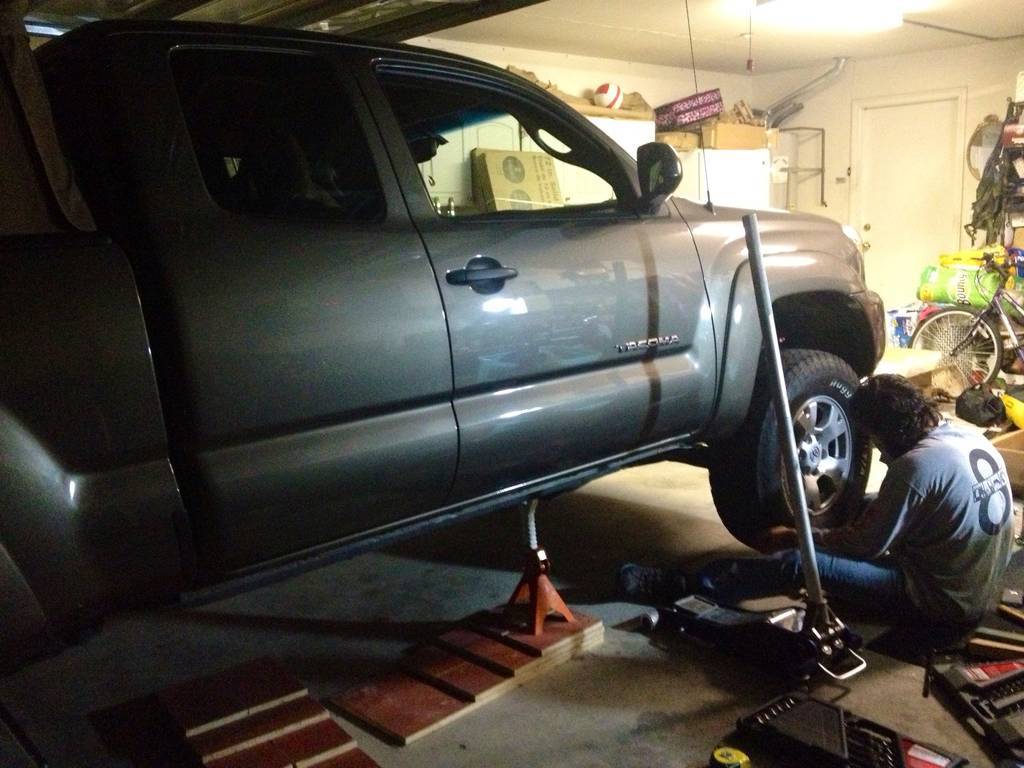

    Front suspension install:

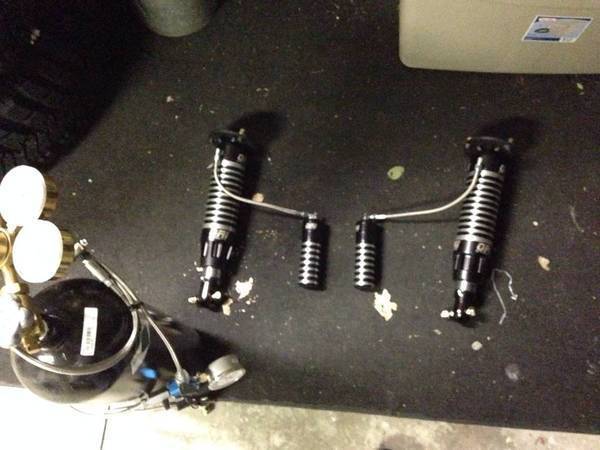

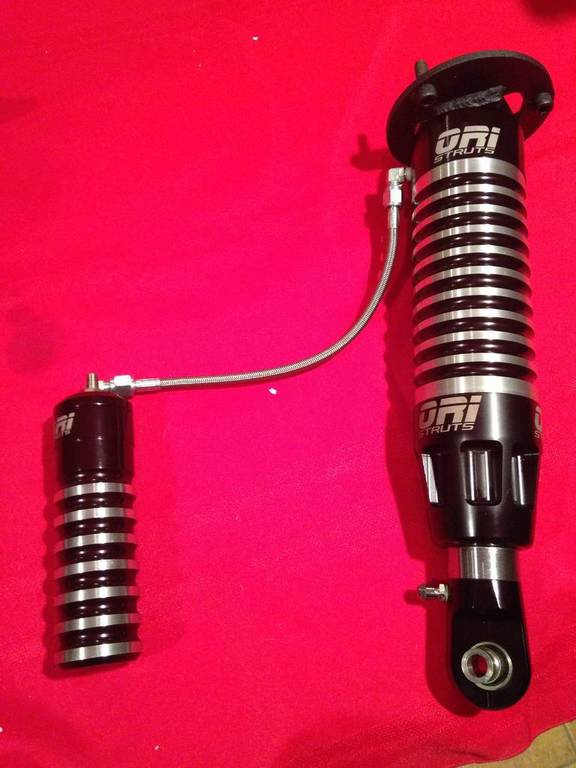

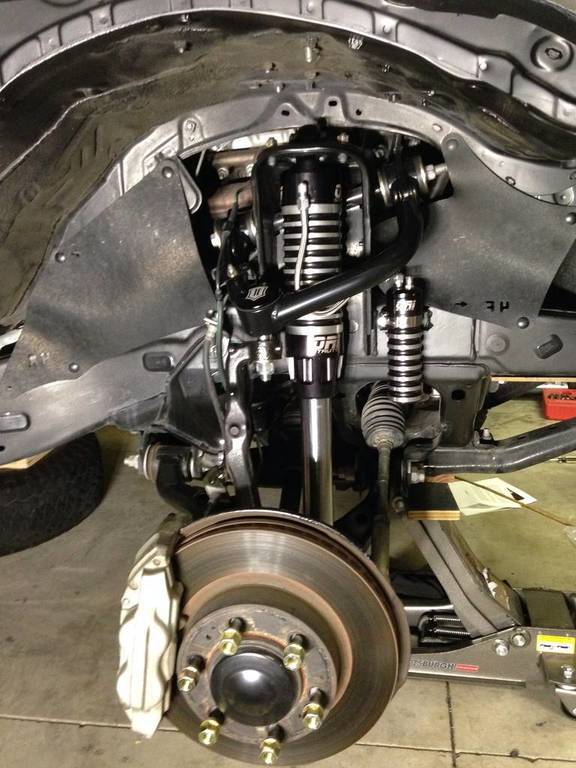

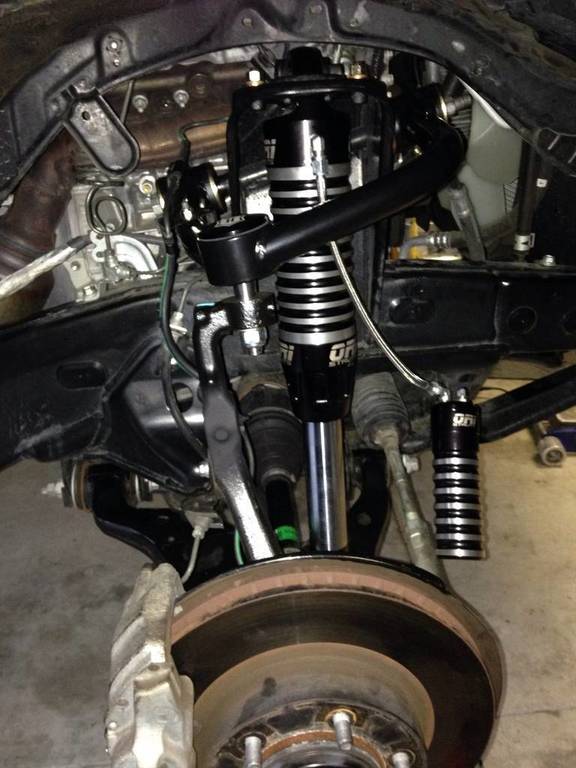

    Went with ORI 8" with remote reservoir. Jerry at BAMF had these for his "deal of the day" so I went ahead and got them. I did tons of research and it came down to these or King extended coil overs. Decided to go with ORI with the hopes of having more adjustability.

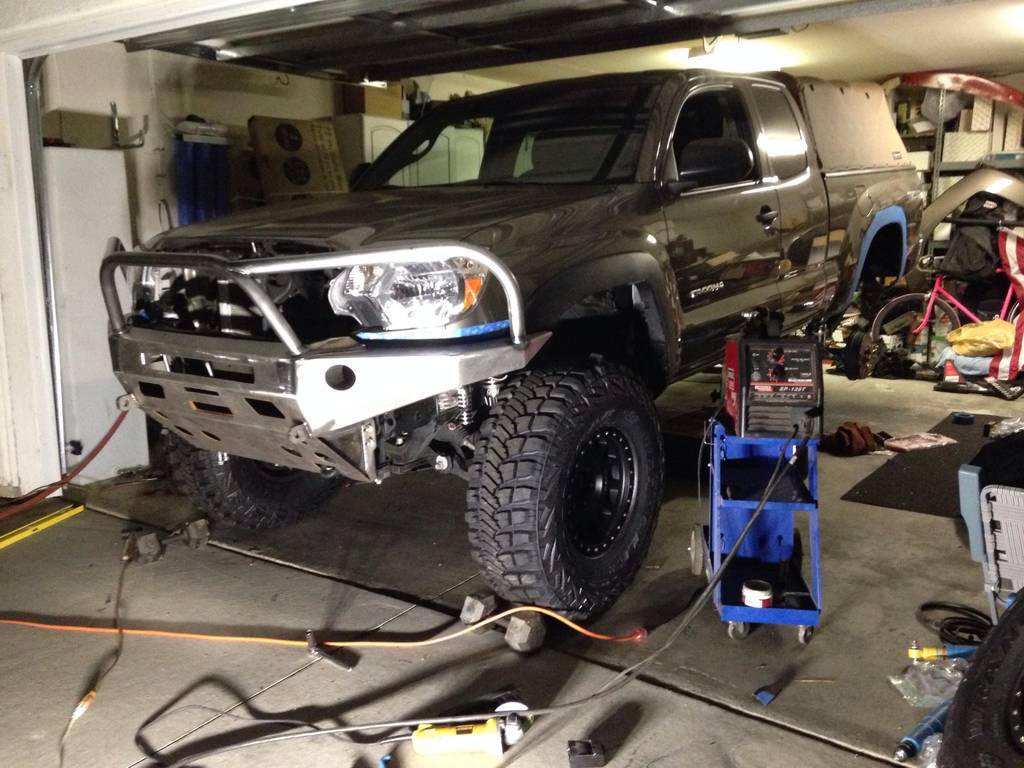

    [​IMG]

    [​IMG]

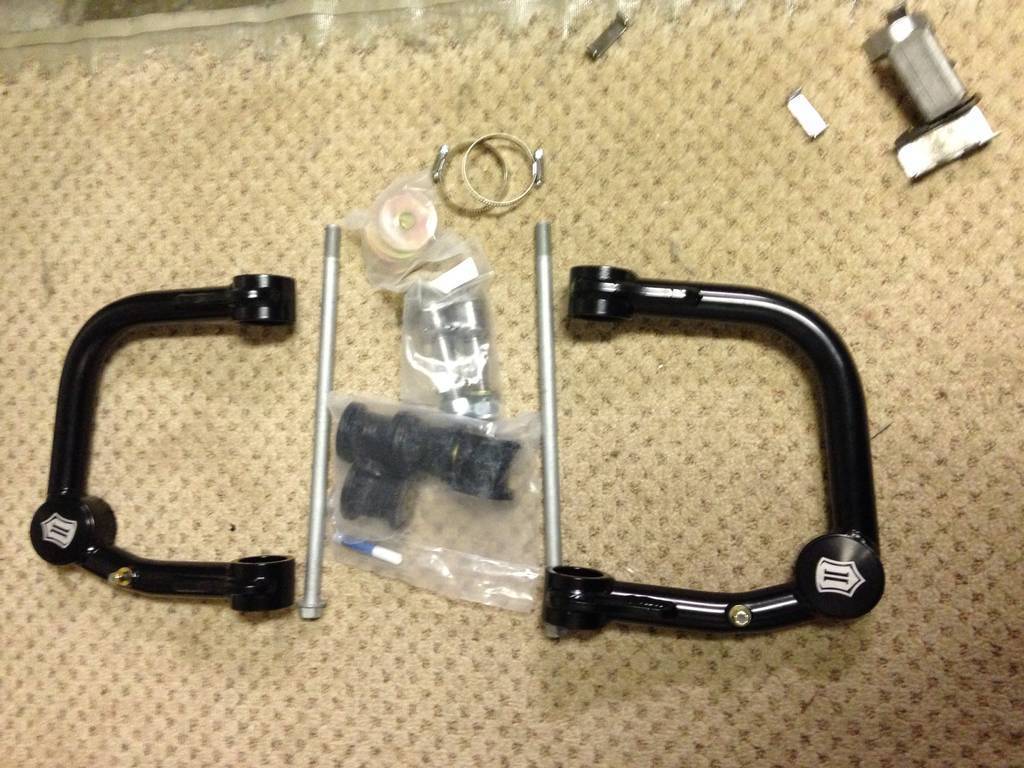

    Icon UCA's. I also tried the method where you cut the old UCA bolt and install a new one from the other direction. UCA bolt Toyota part # 90105-A0095.
    [​IMG]

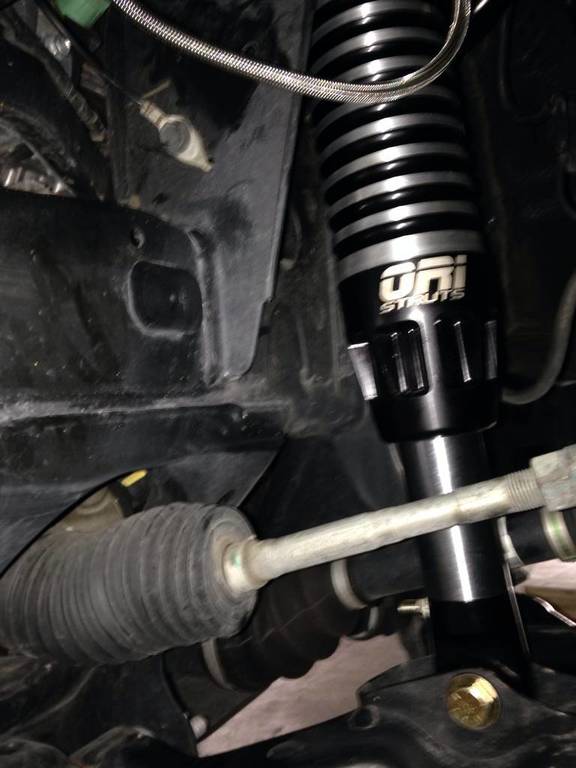

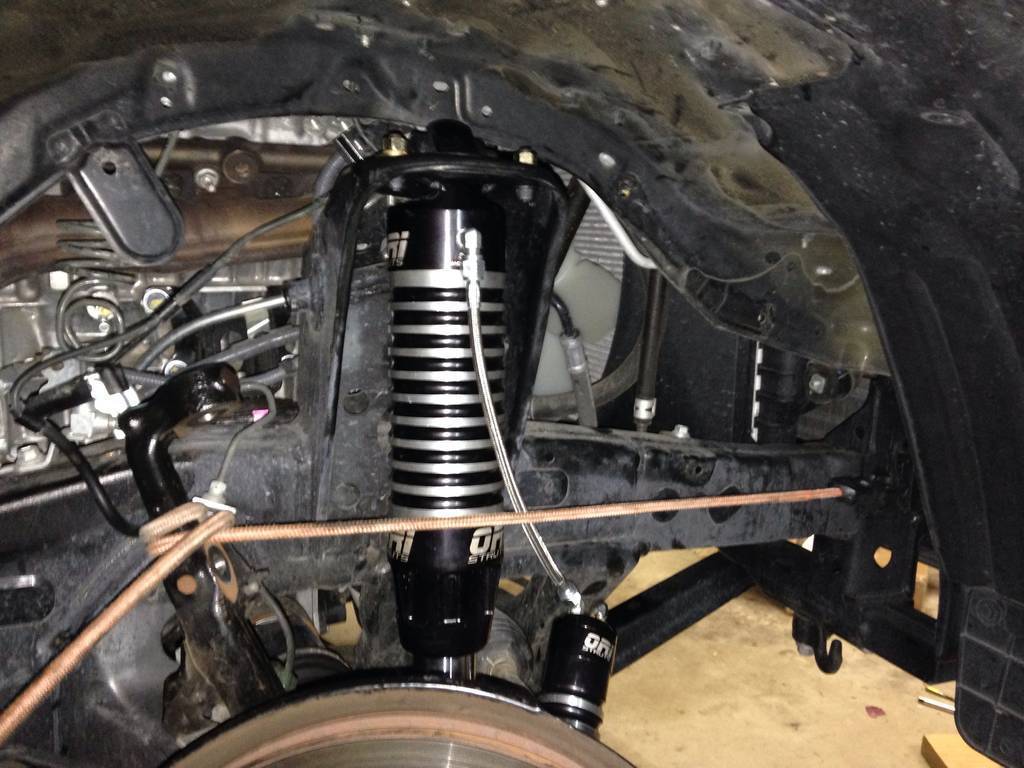

    The install of the ORI's was fairly easy since they were compressed (not charged) and fit easily. The only thing was having to grind and clearance a bit in the cool bucket to fit the top bolts.
    [​IMG]

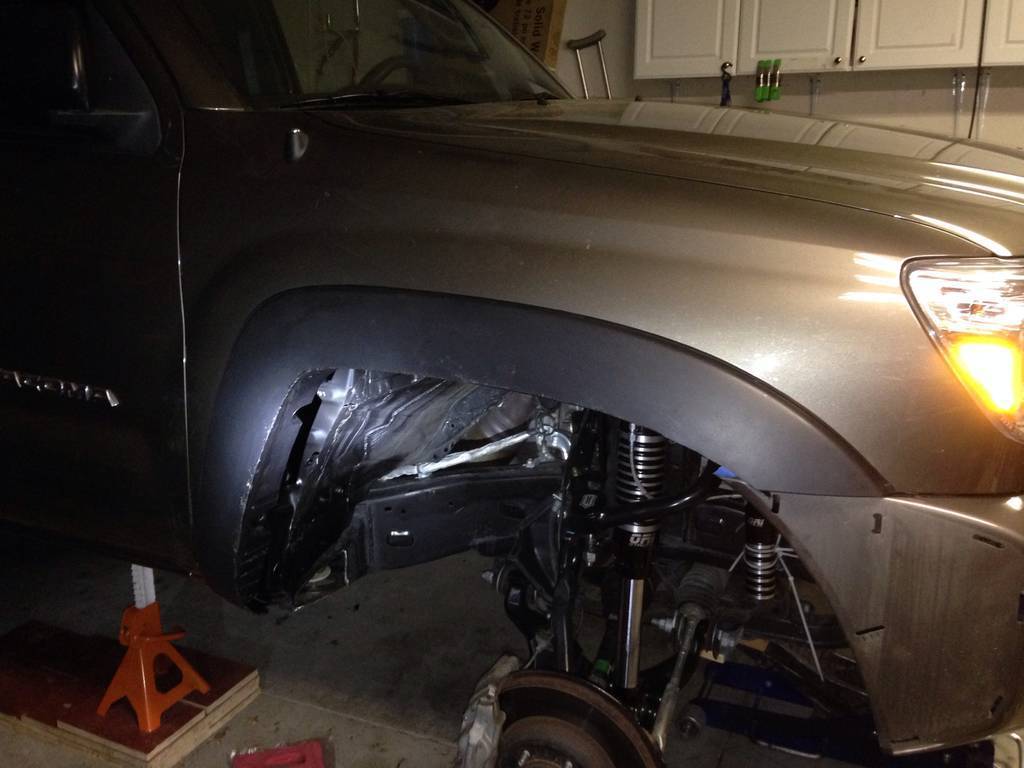

    Used a bungee to keep the spindle out of the way then also installed the UCA's. I followed the instructions on this thread. There is a good how-to video on page 23 post# 443
    http://www.tacomaworld.com/forum/suspension/14507-total-chaos-uca-how-install.html

    [​IMG]

    With Icon UCA and ORI installed. The reservoir mount still needs to be mounted here. That'll be done once I'm able to figure out where they'll clear the tires from lock to lock. I also removed the sway bar. That took me and my brother some figuring out to get it free.
    [​IMG]

    Factory wheels put on and resting on the bump stops.
    [​IMG]

    One clearance was checked I burned on the brackets supplied by BAMF. Repainted it all then buttoned everything back up and torqued and was done.
    [​IMG]

    After Action Review:
    Icon UCA: Getting UCA bolt and washers in were a pain in the ass. These things are tight as hell. Lots of knuckle busting, banging and cussing to get it all aligned. I've done other brands and they were a breeze. These took extra effort because of it.

    UCA bolts: cutting vs bending sheet metal. I went through the thread linked on UCA install and it seemed easy enough to just cut the bolts and install them from the other direction vs bending sheet metal and moving stuff out the way. Well, if I were to do it again, I'd just remove whatever is in the way and reuse original bolts. The passenger UCA bolt was able to slide in easily from the rear but not the driver side. I ended up bending the metal and removing stuff in the way to get it in. I'm not certain on why others has no issues and I did. Maybe difference in model years? There seemed to be a bunch of brake line stuff on the way for me and couldn't get an angle that would work.

    Sway bar: two people communicating is better than one aimlessly banging things around trying to get it free. Remove skid plate.

    ORI: don't charge them till after install. Rotate shaft to put lower chamber valve facing inboard. Be prepared to grind coil bucket to fit with the BAMF kit. Don't mount reservoirs till after checking clearance. I zip tied in place.

    Brake lines: factory brake lines were long enough at full drop. You don't NEED them but are recommended.

    Nate

    Edit: photos added to post 5 & 11

    Last edited: Oct 6, 2014
  20. Oct 6, 2014 at 4:45 PM
    #20
    Nate87

    Nate87 [OP] Well-Known Member

    Joined:
    May 7, 2013
    Member:
    #103748
    Messages:
    751
    Gender:
    Male
    First Name:
    Nate
    CONUS
    Vehicle:
    2013 AC TRD OR
    Sooo.... I needed 800-900 PSI delivery, high pressure regulator I had broke, used regular regulator and pumped 550 PSI of nitrogen into shocks. Only lifted what you see here till new regulator came in. Just ORI's in the front with factory rear suspension in the picture.
    [​IMG]

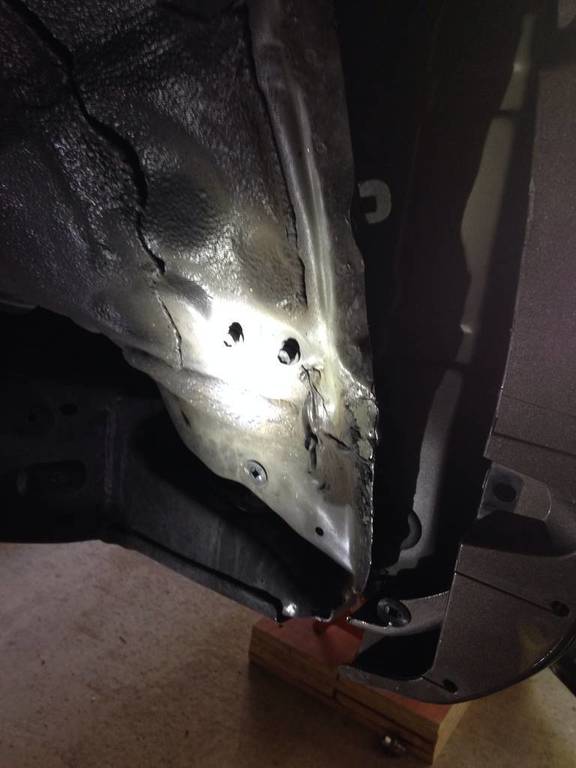

    Now I need to start cutting and clearing for tires.

    Got a spare set of base flares from the TW marketplace for a good deal.
    [​IMG]

    Started beating truck with large hammer. Flattened pinch weld.
    [​IMG]

    Cut cab mount in increments. Lots more has been cut since this. Will box in eventually.
    [​IMG]

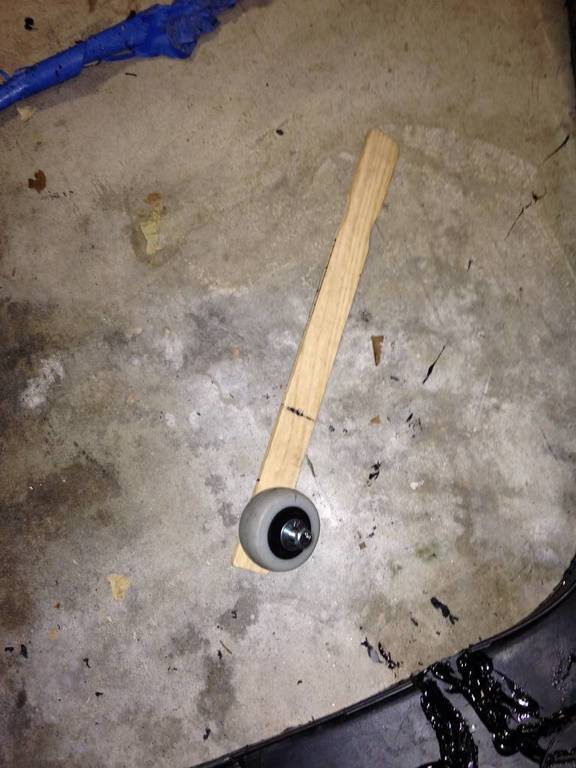

    Traced out two inches with radius tool.

    [​IMG]

    Used 4.5" angle grinder with cut off wheel to cut fenders. Left the original mounting tabs and just folded them back. Used painters tape on parts to be cut.
    [​IMG]

    This next part is what I tried to do research on but many details were left out. Rather than just cut the fender flare and finish with door trim I wanted to try and adhere the pieces back together to give it the factory look as well as increase rigidity of the flare. A few members have done it this way like Maxamillion2345, n0rth and RelentlessTaco that came out really nice. I tried to plastic weld a small test piece and it ended up being really brittle. After more research I went with the 3M automotive adhesive 08223. A Dremmel with cutting wheels was used to cut the two inches out. Here are a few shots.
    [​IMG]

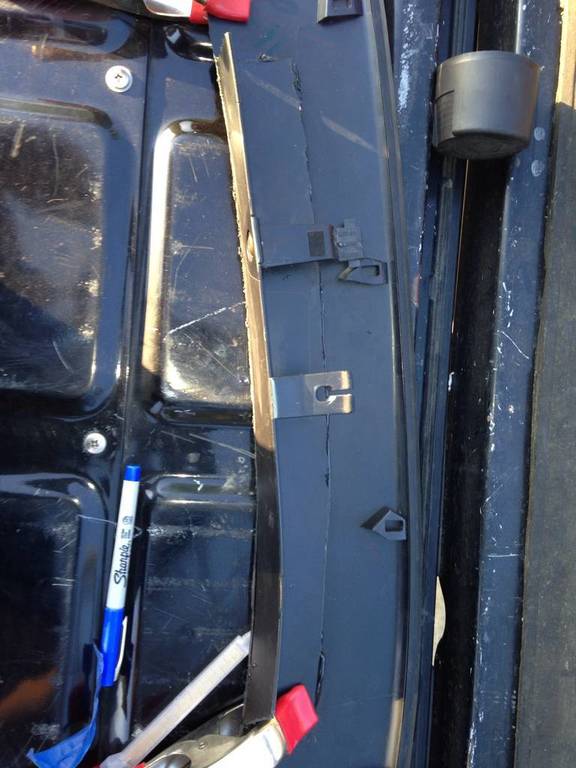

    How the cut piece overlaps. Put adhesive on the overlapping part and stick together.
    [​IMG]

    I did driver side first and learned how to do the passenger better. I added cross hashing by cutting into overlapping area with hopes it'll give it a better bond. I also did the front of the flare different. Rather than cutting a piece off like I did with the driver side, I just cut on crease to fold down into place to be adhered later.

    Driver has two gaps to be filled.
    [​IMG]

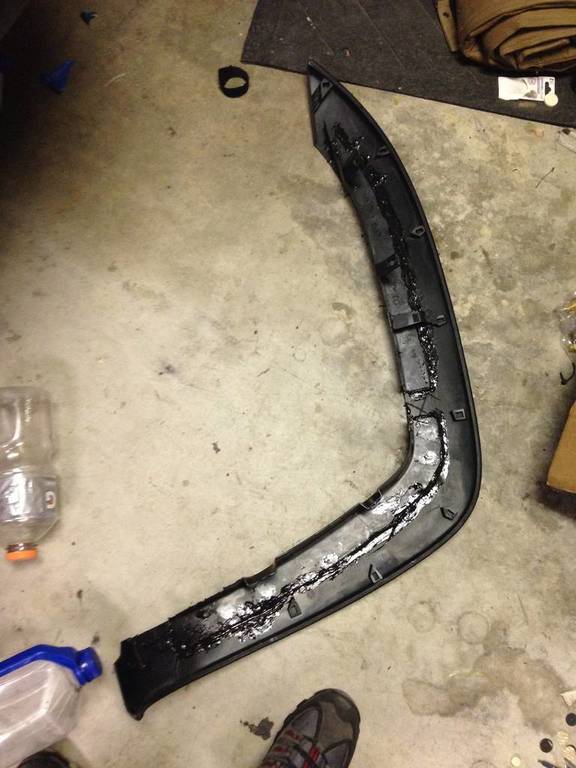

    Passenger has one because I left more on the front by cutting on the crease. Also note the cross hashing added so adhesive fills and prevents slipping. Hope it works.
    [​IMG]

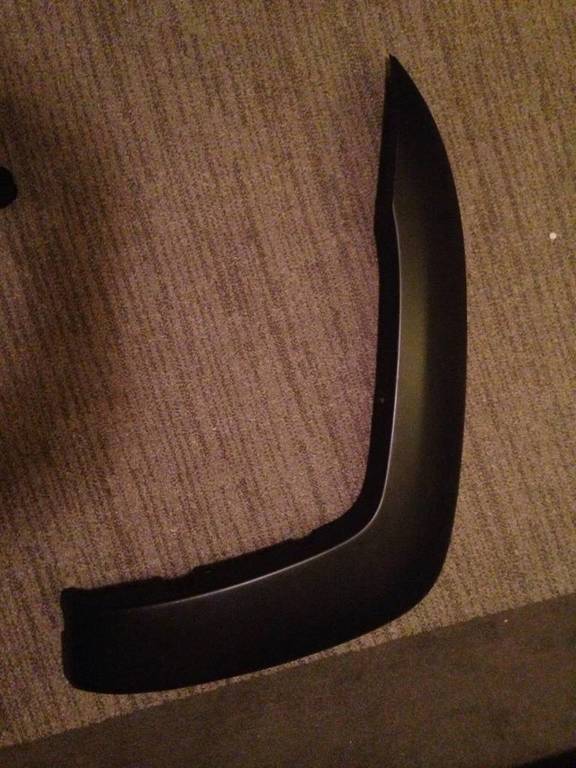

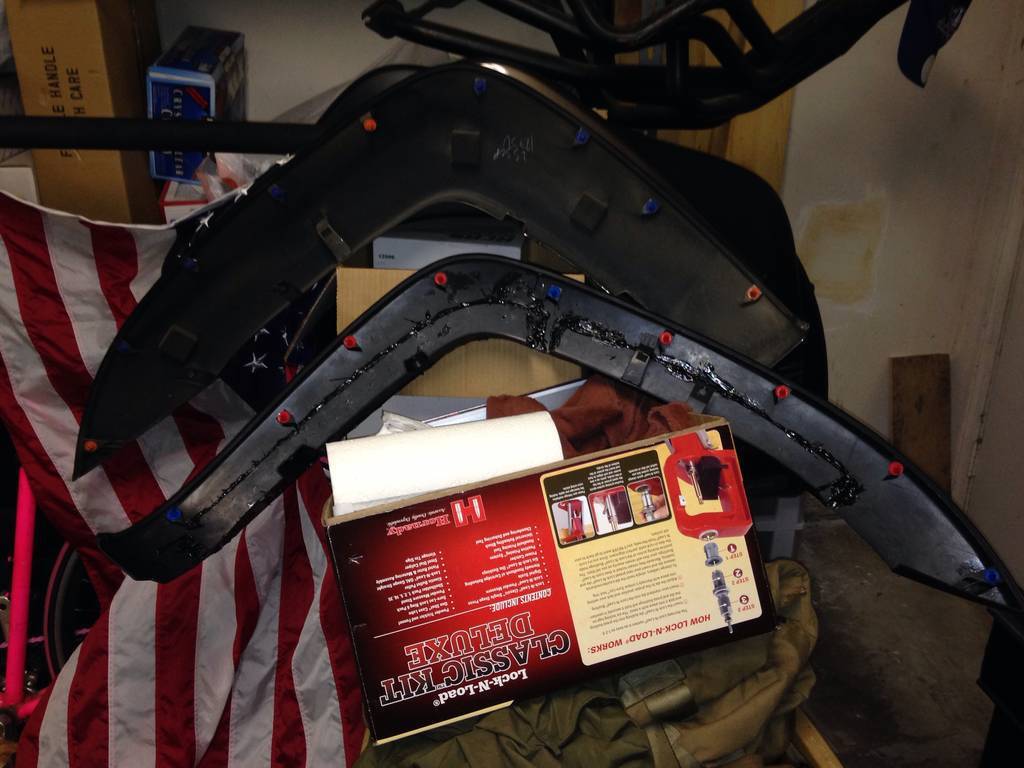

    Factory vs cut flare. One thing to note is the flare clips. If you look at the factory vs cut flares, you'll notice the colors are opposite. For the cut ones I used the Toyota flare clips from Fastenal which are aftermarket and much cheaper than Toyota factory clips. I didn't know this and ordered much more of the blue only to find out they were reverse and was short on red clips.
    [​IMG]

    Here is how it turned out. Still rough and still needs to be cleaned up, sanded and painted. The gaps need to be filled as well and would like to figure out a way to maybe attach some form of fender liner. Still unsure if I'll color match or just spray on bed line them. Bed lining seems easiest.
    [​IMG]

    Use liberal amounts of the adhesive. It can be sanded down later if needed. Also, use as much as you can of the cartridge in one use. The dispensing tip will get clogged from the hardened adhesive and will need to use a new tip the next go around.

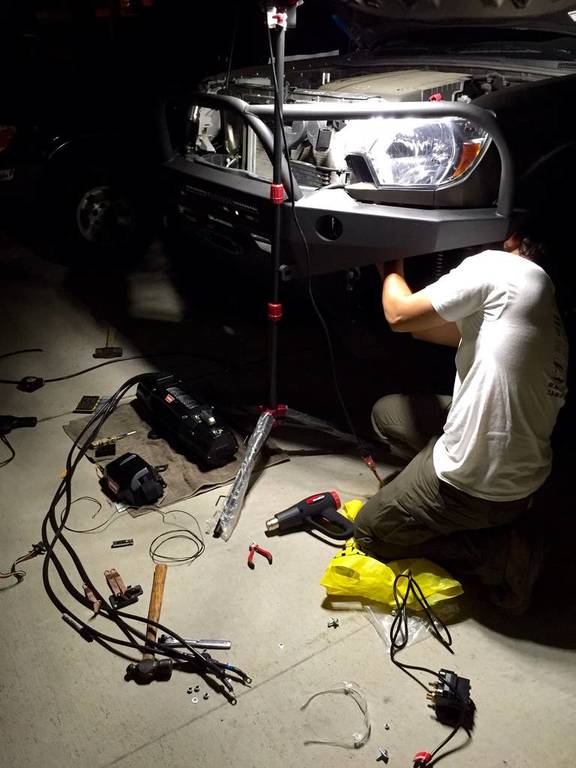

    A few days prior I placed an order with Tyler at Pelfreybilt. I went with the three hoop, 20" and Dually LED cutouts. He contacted me a few day letter and said he has one ready!! Someone backed out with the same setup I wanted so I waited a whopping 5 days from time of order till in my garage!!
    [​IMG]

    [​IMG]

    For those removing crash bar to install aftermarket bumper, the easiest way is to just unbolt the long bar from one of the legs and it'll slide rite off.

    The flares with 2" removed mate up perfect with the lines of the bumper. Sorry for crappy photos.
    [​IMG]

    [​IMG]

    More to follow...

    Nate

    Last edited: Oct 6, 2014
To Top
