Rear Shock relocation thread

Discussion in 'Suspension' started by Box Rocket, Feb 5, 2013.

  1. May 1, 2013 at 1:51 PM
    #61
    tacomonazul

    tacomonazul Well-Known Member

    Joined:
    Mar 4, 2012
    Member:
    #74163
    Messages:
    3,440
    Gender:
    Male
    First Name:
    Luis
    SOCAL
    Vehicle:
    07 DCSB LT/4LINK
    http://www.tacomaworld.com/forum/2nd-gen-builds/227832-my-never-end-build.html
    springs, shackles?

  2. May 1, 2013 at 2:08 PM
    #62
    Anthony250

    Anthony250 E-Fabber

    Joined:
    Sep 29, 2010
    Member:
    #44016
    Messages:
    3,099
    Gender:
    Male
    First Name:
    Anthony
    San Gabriel Ca
    Vehicle:
    99 Tacoma LT Prerunner
    Eagle Alloy's 058 on Goodyear BFG All Terrians . 265/75/16. Kenwood Stereo, 12" JL Audio Sub. Led Lighting interior. Led Turn Signals. Custom Bumper ,Total Chaos Long travel Sway away shocks, glassworks fenders, ,Spintech Super Pro street muffler, Hellas 500ff HID Converted, Window Tint,Black Emblems, Deckplate, , Deaver Prerunner Pack, Bilstein 7100's 12" SB's and Sway Away 2" Air Bumps
    Not sure, all DMZ. Its on their website.

  3. May 6, 2013 at 9:41 PM
    #63
    Johnnie

    Johnnie Well-Known Member

    Joined:
    Mar 11, 2009
    Member:
    #14594
    Messages:
    1,764
    Gender:
    Male
    I.E. SoCal
    Vehicle:
    Feds
  4. May 6, 2013 at 9:58 PM
    #64
    Lil'Taco

    Lil'Taco Well-Known Member

    Joined:
    Jul 1, 2010
    Member:
    #39694
    Messages:
    909
    Gender:
    Male
    First Name:
    Scotty
    Vacaville, CA
    Vehicle:
    2010 PreRunner Sport DCSB
    Grillcraft grill, Weather Tech floor mats, HID headlights and fog lights, aFe CAI, Borla Cat-back exhaust, Total Chaos +2" Long Travel, Coil Bucket Gussets, Spindle Gussets, LCA Cam Gussets, Glassworks 4" fenders, B.A.M.F. rock sliders with fill plates, Blitzpro 21S LED light bar w/ B.A.M.F. behind the grill light bar mount, Red Label Off-road tube bumper, Redline hood struts
    I think the real question is: Are you going to gusset the rear?

  5. May 6, 2013 at 10:21 PM
    #65
    PLC721

    PLC721 Well-Known Member

    Joined:
    Dec 27, 2009
    Member:
    #28268
    Messages:
    18,228
    Gender:
    Male
    First Name:
    Patrick
    Chandler, Az
    Vehicle:
    2015 Tundra Double Cab
    See Build in Sig
    Switched to Defined SUA and King Short Bodies that fit my Hoops
    [​IMG]
    [​IMG]

    Ride height up travel
    [​IMG]

  6. May 6, 2013 at 10:22 PM
    #66
    45acp

    45acp Paint me back in Wyoming again...

    Joined:
    Aug 9, 2009
    Member:
    #20861
    Messages:
    5,946
    Gender:
    Male
    First Name:
    Jonathan
    Boring, Wisconsin
    Vehicle:
    bone stock / unmolested 04 2.7L
    Subbed! Don't know how the hell I missed this thread haha

  7. May 7, 2013 at 8:17 AM
    #67
    PMK

    PMK Well-Known Member

    Joined:
    Feb 27, 2010
    Member:
    #32186
    Messages:
    1,023
    Gender:
    Male
    Florida
    Vehicle:
    10 DCLB TRD Sport
    White, debadged, Mudflaps removed, ICON 2.5 in front, 2.0 in rear, all 4 corners have reservoirs, Spidertrax wheel spacers all around, BAMF bolt on sliders, Avid lightbar, oem transmission cooler converted to power steering cooler, aftermarket transmission cooler eliminating all oem transmission cooler stuff, remote mounted spin on transmission fluid filter TrueTrac rear differential, rear diff housing vented and filtered into left side bed box, URD MAF calibrator, Volant intake scoop into oem airbox, second filter removed, airbox internals smoothed, blended and polished throttle body, NST intake manifold spacer, Wet Okolee set covers, WeatherTech Digital Fit mats, inexpensive JVC single DIN, Scangage, AVS Stepshield door sill protectors
    Without getting to crazy, does anyone know of simple way or kit to relocate the right side rear shock from the position forward of the axle to behind the axle.

    This would be to offer better protection.

    I would prefer to do just the one side. The simple idea is to cut the existing bracket of the frame and relocate it. Unfortunately it seems Toyota designed the same bracket for both sides. This would make the relocated bracket at the wrong angle.

    I am considering the easiest method is to install boots over the two rear shocks and keep it real simple.

    Any ideas?

    PK

  8. May 7, 2013 at 8:31 AM
    #68
    VolcomTacoma

    VolcomTacoma I get it, you've seen the movie.

    Joined:
    May 25, 2011
    Member:
    #57205
    Messages:
    10,099
    Gender:
    Male
    First Name:
    Jeff
    Fairfield, NorCal
    Vehicle:
    2015 TRD Sport 4x4 6 Speed Supercharged
    TRD Supercharger URD Mark III 3" Exhaust URD 4x4 Y Pipe AFE Stage II Si ProDry CAI Hurst Core Shifter with Hurst T AEM Wideband AFR Gauge Speedhut Boost Gauge Craven Speed Flex Pod mount Weathertech Floor Liners
    I mean, its still kinda crazy...but look into the BAMF shock relocation tower....it allows you to stuff a 12" shock up under there and relocate. I don't see why you cant just reverse the open resi sides when welding up the mount and have both sides be on the back side of the axle instead of the front...

  9. May 7, 2013 at 10:32 AM
    #69
    kbauman92

    kbauman92 Well-Known Member

    Joined:
    Jun 5, 2012
    Member:
    #80132
    Messages:
    710
    Gender:
    Male
    First Name:
    Kyle
    North Bend
    Vehicle:
    98 tacoma ext cab
    King 2.5x6 RR coilovers eibach coils Light Racing UCA Spidertrax spacers Fiberwerx fenders
    same, i wanna know if its gonna rub or not

  10. May 7, 2013 at 10:46 AM
    #70
    GEARAHOLIC

    GEARAHOLIC Well-Known Member

    Joined:
    Jul 29, 2009
    Member:
    #20340
    Messages:
    624
    Gender:
    Male
    First Name:
    KELLEN
    PASO ROBLES, CA
    Vehicle:
    07 Black on Black BEAST
  11. May 7, 2013 at 10:46 AM
    #71
    FixedTRD

    FixedTRD Well-Known Member

    Joined:
    Aug 2, 2009
    Member:
    #20511
    Messages:
    2,111
    Gender:
    Male
    First Name:
    Will
    Alhambra, CA
    All pro LT, All pro front bumper,All pro rear fox, 1.5 full leaf and u bolt flip kit. KR sliders, bestop, high lift with custom mount, katskin leather, Hankook MT and atx artillery. DMZ SUA w/FOX triple bypass
    :D thx

  12. May 7, 2013 at 11:01 AM
    #72
    Johnnie

    Johnnie Well-Known Member

    Joined:
    Mar 11, 2009
    Member:
    #14594
    Messages:
    1,764
    Gender:
    Male
    I.E. SoCal
    Vehicle:
    Feds
  13. May 7, 2013 at 11:05 AM
    #73
    Johnnie

    Johnnie Well-Known Member

    Joined:
    Mar 11, 2009
    Member:
    #14594
    Messages:
    1,764
    Gender:
    Male
    I.E. SoCal
    Vehicle:
    Feds
    Maybe somehthing like this? But you would need to completely fab that mount yourself as he did.

    http://www.ttora.com/forum/showpost.php?p=840516&postcount=9

    Here's his build thread.
    http://www.ttora.com/forum/showthread.php?t=28073
    http://seth.phizz.net/tacoma/mods/shock_relo.html

  14. May 7, 2013 at 6:28 PM
    #74
    PMK

    PMK Well-Known Member

    Joined:
    Feb 27, 2010
    Member:
    #32186
    Messages:
    1,023
    Gender:
    Male
    Florida
    Vehicle:
    10 DCLB TRD Sport
    White, debadged, Mudflaps removed, ICON 2.5 in front, 2.0 in rear, all 4 corners have reservoirs, Spidertrax wheel spacers all around, BAMF bolt on sliders, Avid lightbar, oem transmission cooler converted to power steering cooler, aftermarket transmission cooler eliminating all oem transmission cooler stuff, remote mounted spin on transmission fluid filter TrueTrac rear differential, rear diff housing vented and filtered into left side bed box, URD MAF calibrator, Volant intake scoop into oem airbox, second filter removed, airbox internals smoothed, blended and polished throttle body, NST intake manifold spacer, Wet Okolee set covers, WeatherTech Digital Fit mats, inexpensive JVC single DIN, Scangage, AVS Stepshield door sill protectors
    Thanks Guys, already had a look at the BAMF kit.

    As for swapping the oem bracket, the upper leg won't lay flat on the frame.

    Also, I have post style mounts on the shocks, not eyelets.

    Maybe the mounts off a FJ could be found and cut off the frame.

    PK

  15. May 7, 2013 at 7:56 PM
    #75
    Johnnie

    Johnnie Well-Known Member

    Joined:
    Mar 11, 2009
    Member:
    #14594
    Messages:
    1,764
    Gender:
    Male
    I.E. SoCal
    Vehicle:
    Feds
  16. May 8, 2013 at 11:48 AM
    #76
    Lumpskie

    Lumpskie Independent Thinker

    Joined:
    Apr 20, 2013
    Member:
    #102450
    Messages:
    1,863
    Gender:
    Male
    Colorado
    Vehicle:
    '96, 4x4, v6, manual hub
    Toytec 16" coilovers with Tundra Bilstein 5100s, Light Racing UCAs, Alcan Leafs with Orbit Eyes, 12" Bilstein 7100 short Bodies, ARB rear locker, 33x12.5 Duratracs, CBI sliders, Bushwacker fender flares, self made front bumper, M8000, Vision X 6.7" Hi/Lo Beam HIDs, full skids, Inchworm dual case setup - 15º clocking
    Hey GEARAHOLIC,

    Do you have any pictures of your shock bushings with your suspension fully flexed out? Do they get close to bindin? Nice, clean install, BTW

  17. May 8, 2013 at 11:53 AM
    #77
    Johnnie

    Johnnie Well-Known Member

    Joined:
    Mar 11, 2009
    Member:
    #14594
    Messages:
    1,764
    Gender:
    Male
    I.E. SoCal
    Vehicle:
    Feds
    Do you have any specs or build pics of these mounts? Are the metal bars welded to the frame solid or hollow? What thickness are they?

  18. May 13, 2013 at 11:13 AM
    #78
    Johnnie

    Johnnie Well-Known Member

    Joined:
    Mar 11, 2009
    Member:
    #14594
    Messages:
    1,764
    Gender:
    Male
    I.E. SoCal
    Vehicle:
    Feds
  19. May 14, 2013 at 12:15 PM
    #79
    Box Rocket

    Box Rocket [OP] just trying to help

    Joined:
    Mar 1, 2010
    Member:
    #32389
    Messages:
    6,070
    Gender:
    Male
    First Name:
    Adam
    Syracuse, Utah
    Vehicle:
    2003 TRD DoubleCab
    lift, tires, armor and stuff

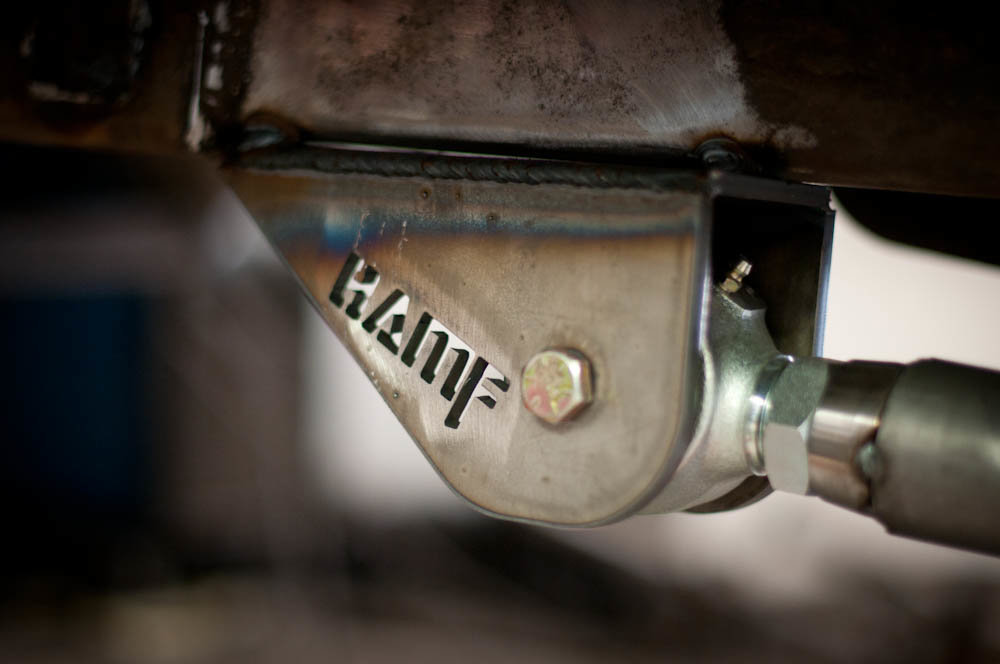

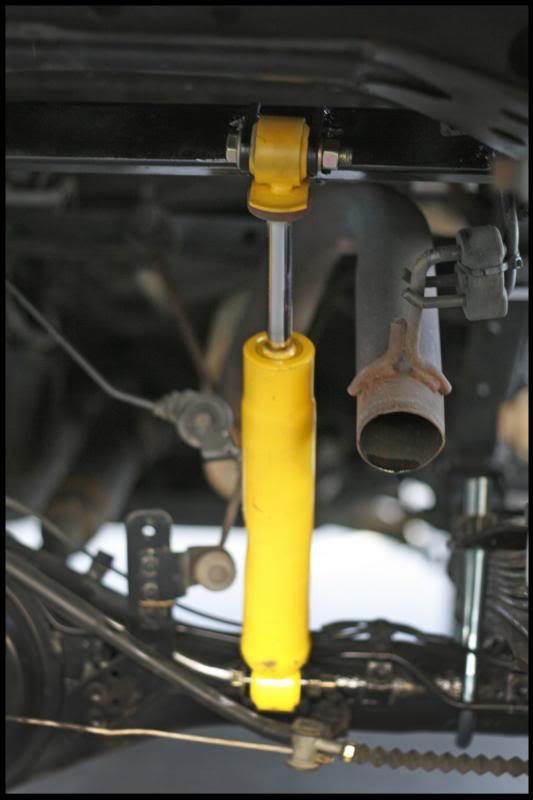

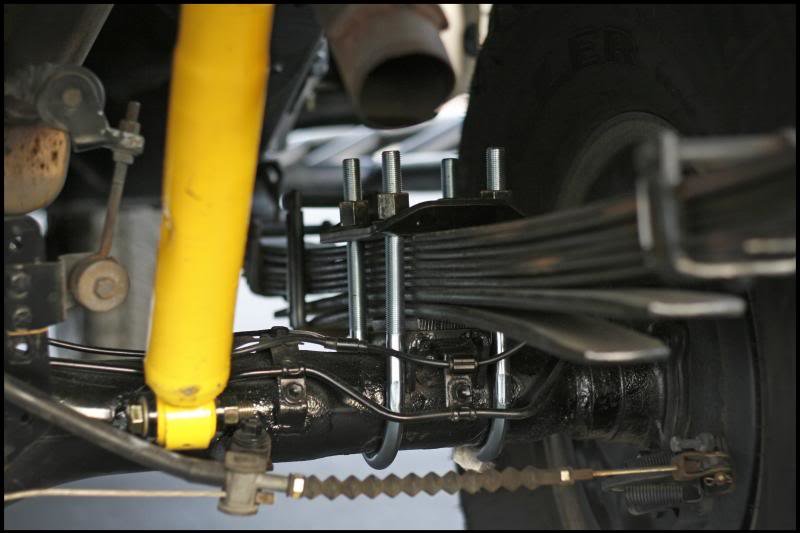

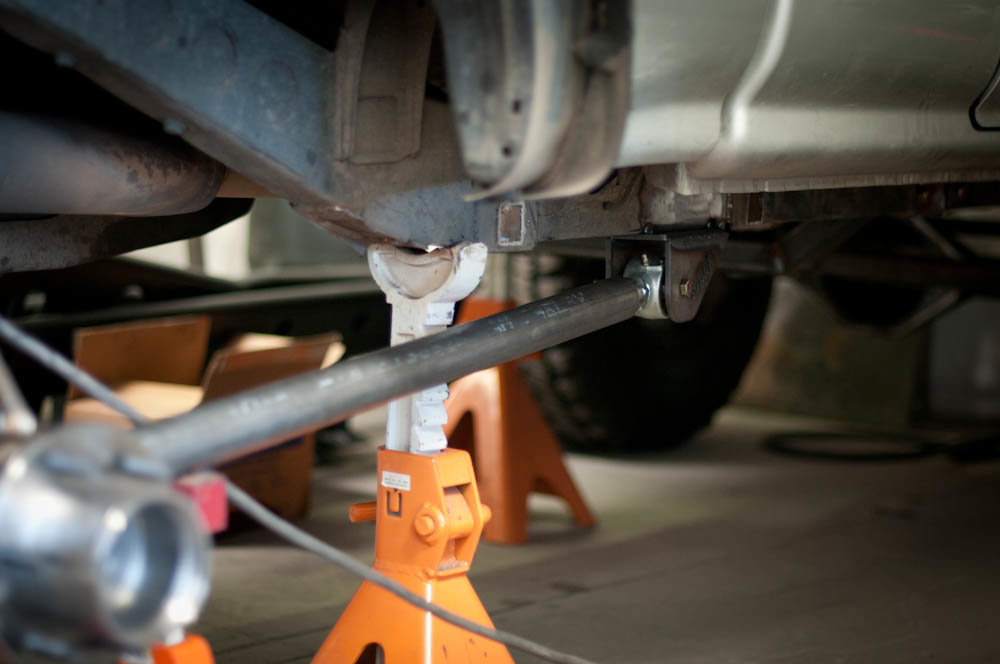

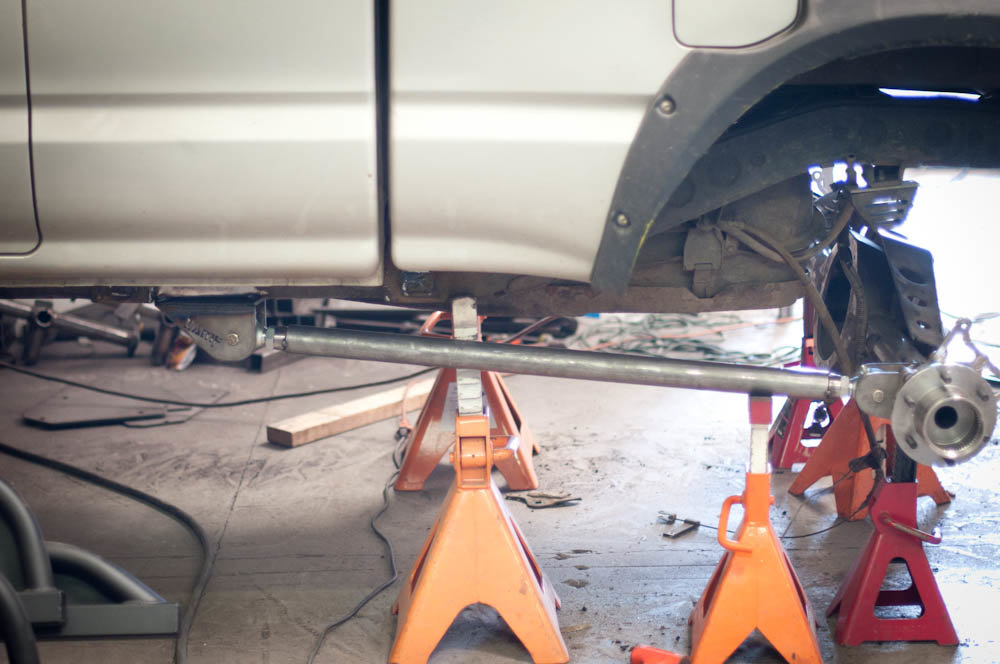

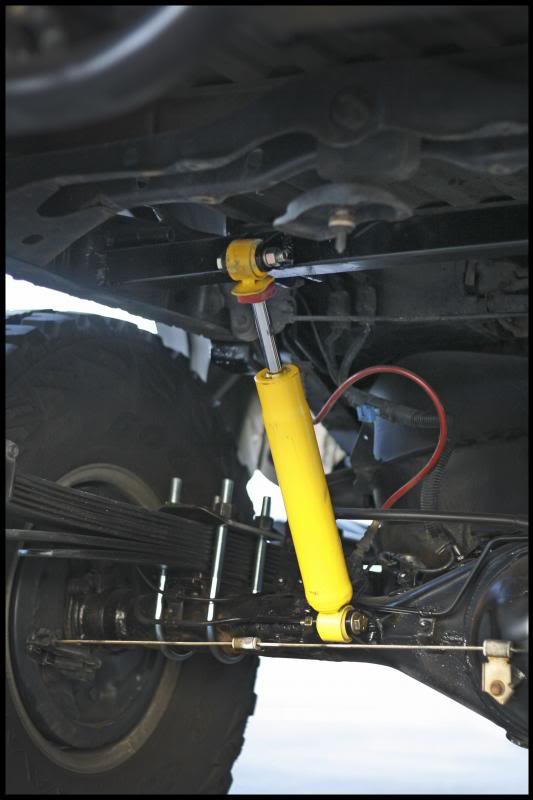

    Alright, I finally got my rear shock relocation taken care of over the weekend. Pretty basic 1st Gen set up. Welded in a new crossmember, used some new shock mounts from RuffStuff and reused my OME shocks.

    With my lift the stock mounting was limiting droop. My new mounts are slightly lower and closer together. I'm not bottoming them out but it allowed for a few more inches of droop. I went with a parallel setup because I do a lot of road driving and long moderate speed dirt road stuff. The parallel setup has better lateral stability than the angled /\ trail setup.

    I used the TG ubolt flip and also used some 4Crawler axle relocation plates to move my axle back .3/4" to fit in the wheel wells better.

    Nothing fancy but it works. I drove up the ramp at the Toyota Dealer down the street at lunch today to measure for bumpstops. I've got about .5" of travel left in the shock at full droop and about 2" of compression left. Works for me. In the real world on the trail it will probably stuff a bit more which should be about perfect.

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

  20. May 14, 2013 at 12:18 PM
    #80
    BradyT88

    BradyT88 Well-Known Member

    Joined:
    Nov 3, 2011
    Member:
    #66419
    Messages:
    36,796
    Gender:
    Male
    Idaho
    Nice work!!:thumbsup:
