Show off your aux fuse panels.

Discussion in 'Lighting' started by Newlife, Dec 29, 2013.

  1. nvwiggins

    nvwiggins Well-Known Member

    Joined:
    Apr 1, 2013
    Member:
    #101079
    Messages:
    426
    Gender:
    Male
    First Name:
    David
    Elko
    Vehicle:
    07 DCLB
    IVD stage 2 front, OME Dakar Leafs, Relentless DIY front and rear bumpers, self built bedrock, Tepui Kuenam Sky RTT.

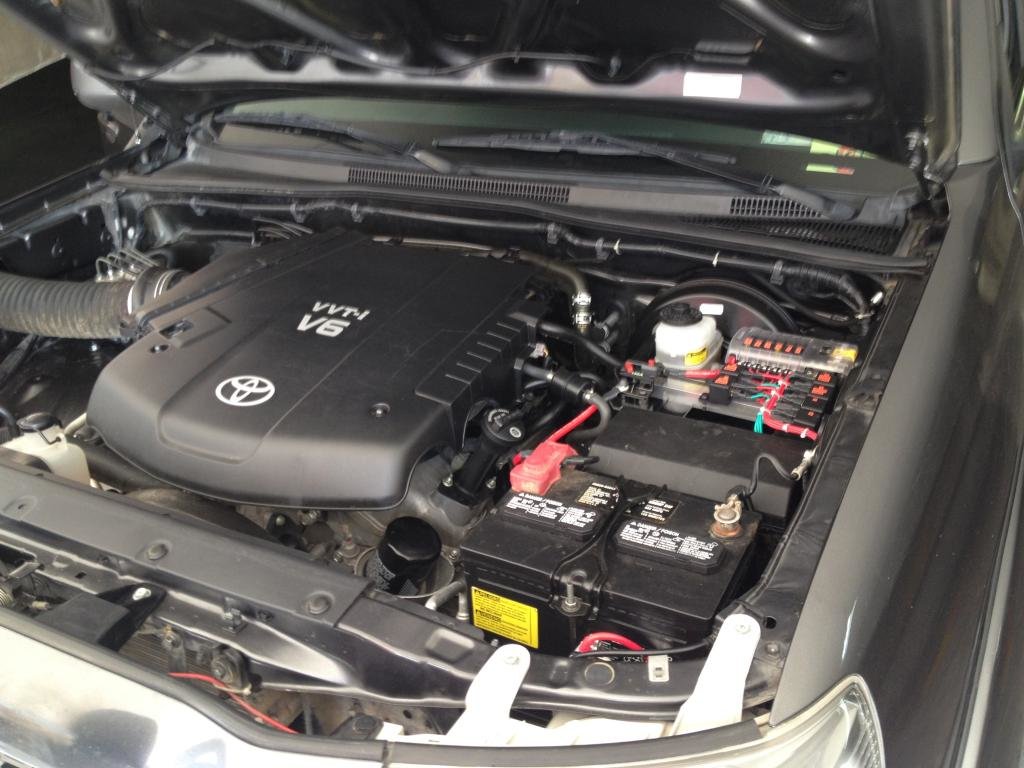

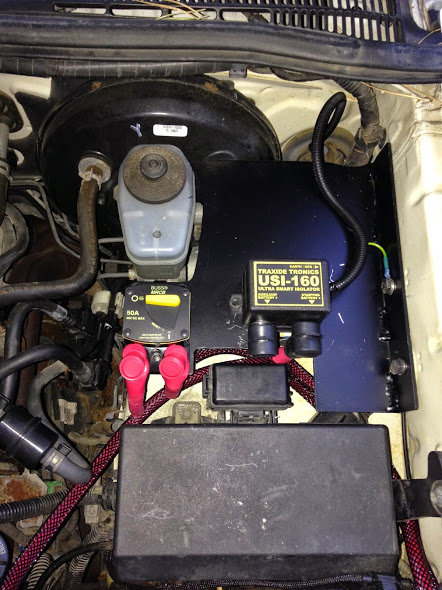

    Heres mine. Pretty simple but it does the job.

    [​IMG]

  2. IGO4LOW

    IGO4LOW Well-Known Member

    Joined:
    Dec 13, 2011
    Member:
    #68720
    Messages:
    712
    Gender:
    Male
    First Name:
    Zach
    Fullerton, CA
    Vehicle:
    2011 DCLB TRD SPORT 4x4 w/ JBL Audio
    3" Procomp lift, 285/70 R17 Nitto Terra Grapplers on Procomp series 6005 wheels, Fog lights on Anytime mod, illuminated oem fog switch, bed mat, all weather floormats, CB Radio in dash, alternating turn signal mod, automatic center console light. Blacked out badges, D2s in the grille.

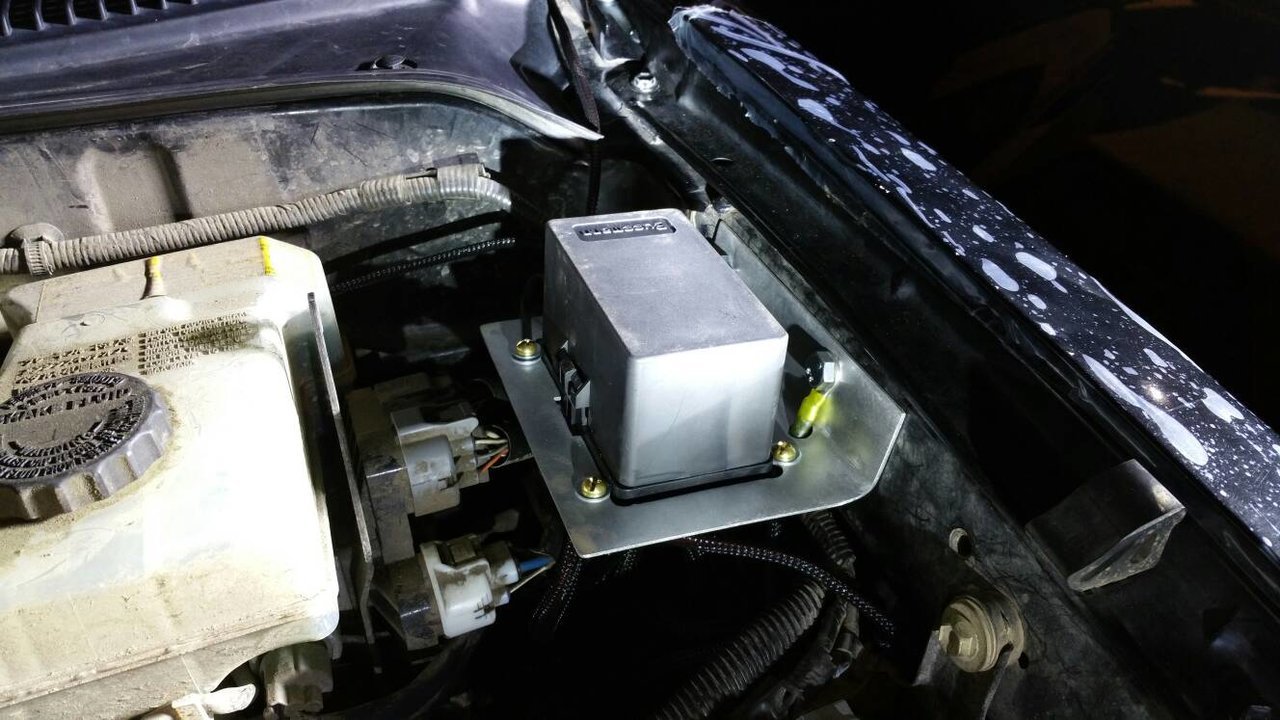

    Here's mine
    [​IMG]

  3. 808TacoMan

    808TacoMan HAWAIIAN

    Joined:
    Apr 25, 2012
    Member:
    #77615
    Messages:
    1,297
    Gender:
    Male
    First Name:
    Lawson
    Hilo, HI
    Vehicle:
    11 LIFTED
    Debadged, Fog Light Anytime, Procomp 6, Gold King Resi Shocks, 3" Body, Atlas Leaf Springs, ICON Billet UCAs, Color Match Everything, 6000K Headlights and Fog lights, Rigid Dually Backup light, Sounds
    [​IMG]
    [​IMG]

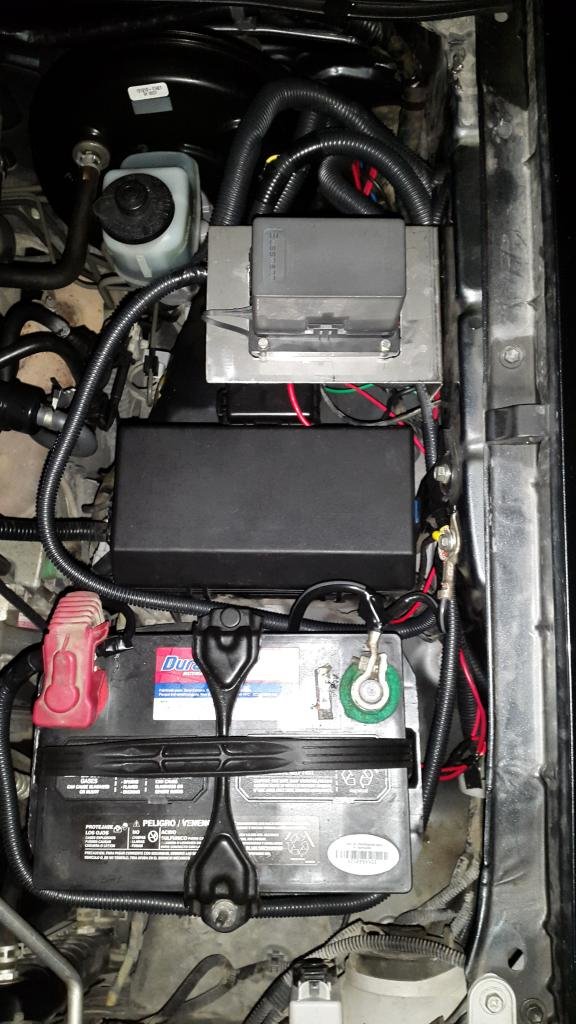

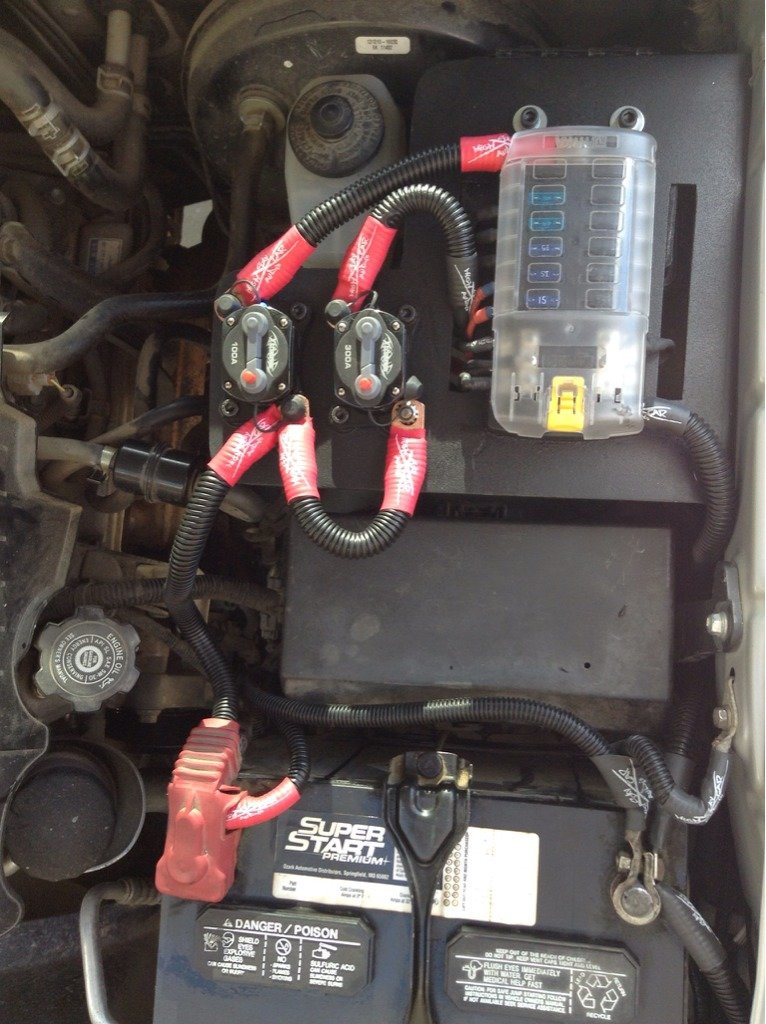

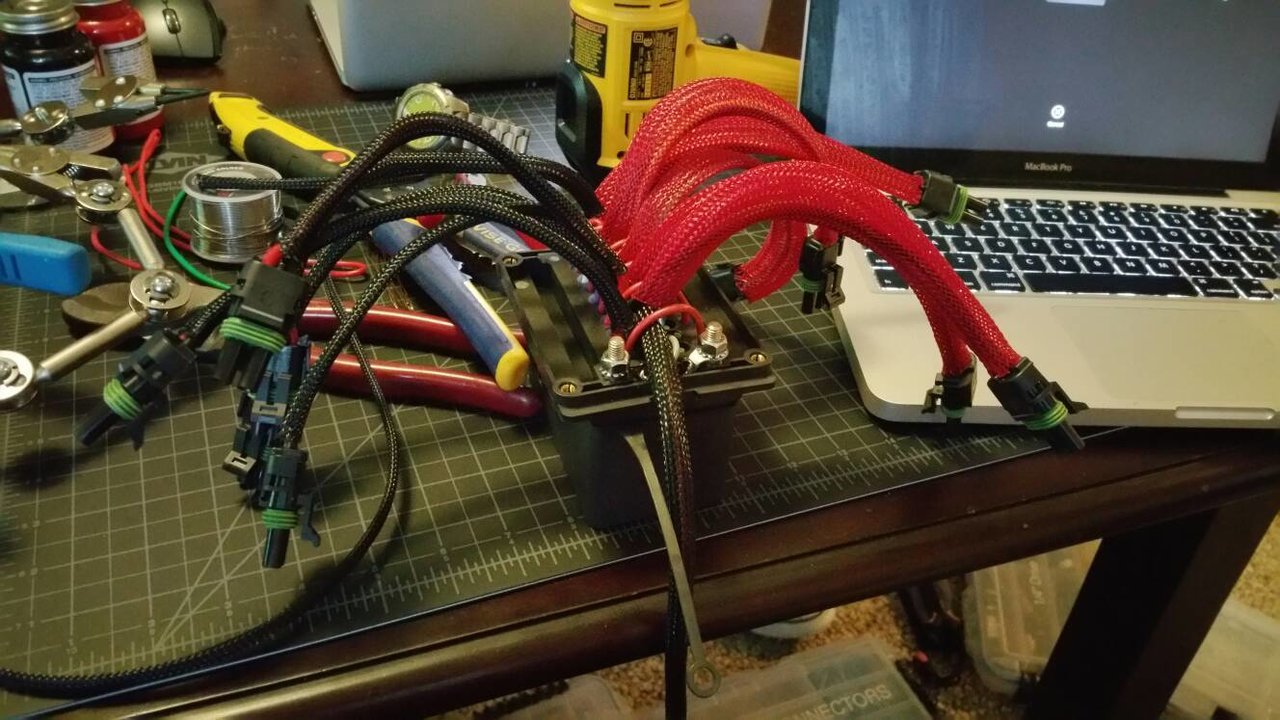

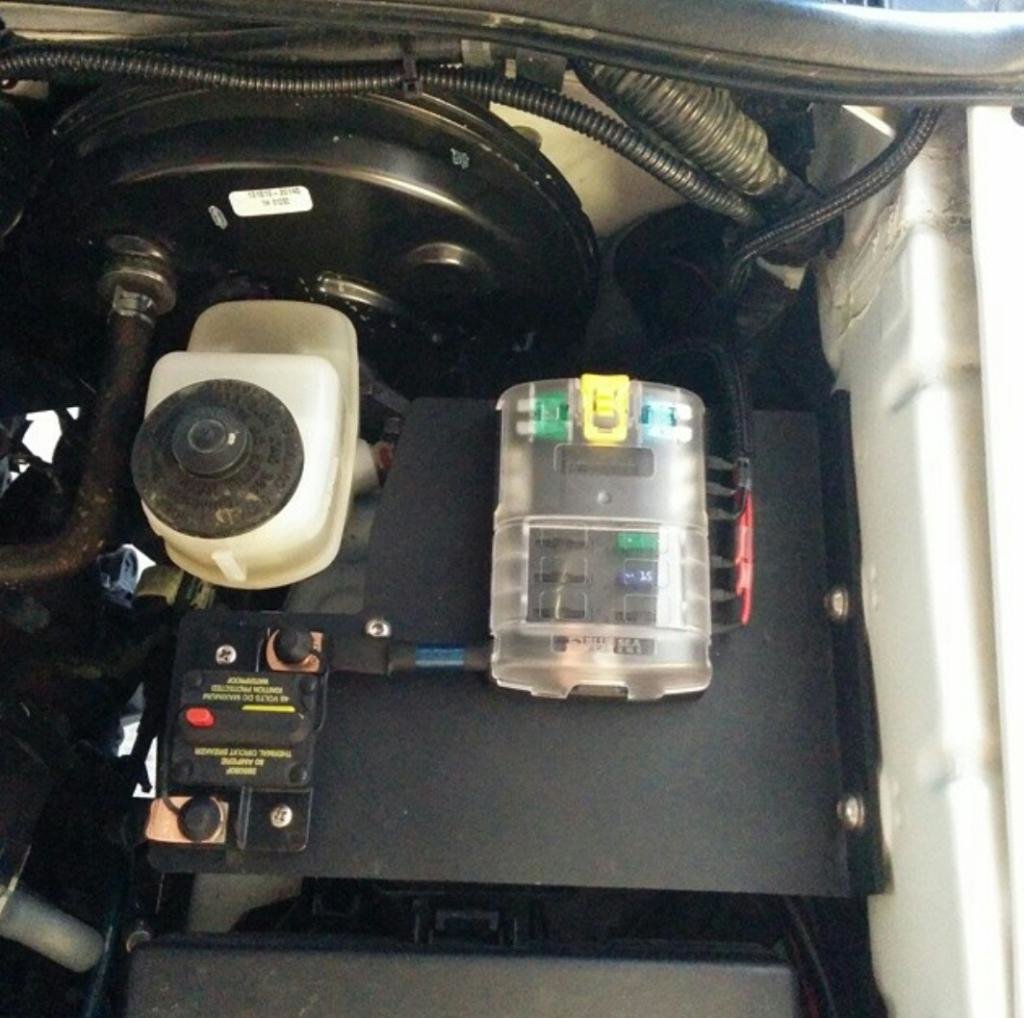

    Blue Sea 5026, Bussman Hi-Amp 100 Amp Circuit Breaker, and 5 Relays

    Fuse box mounting plate from Yotamac at Tacomapros.com

    Haven't wired it up yet, but you get the picture

  4. skygear

    skygear           

    Joined:
    Nov 6, 2011
    Member:
    #66558
    Messages:
    8,520
    Gender:
    Male
    Flip your fuse block around the opposite way. That way you will be able to reach the breaker on a shorter run of wire. You can ground straight to one of the bolts you used to mount the pan to the truck.

    Similar to the post right above yours.

  5. skygear

    skygear           

    Joined:
    Nov 6, 2011
    Member:
    #66558
    Messages:
    8,520
    Gender:
    Male

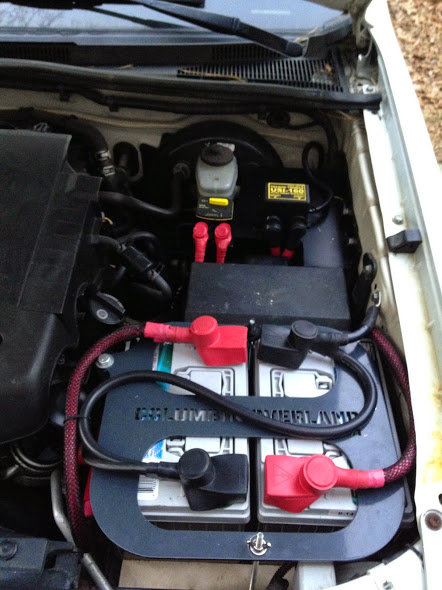

    Little secret to these fuse blocks too. You can use the Mini fuses instead of the full sized (ATO) in them. Helps with having to buy spares for the truck and separate for the blue sea. You can put a mini in a mini low profile fuse holder and in a full sized one. But not the other way around.

    [​IMG]

  6. Penten

    Penten Well-Known Member

    Joined:
    Aug 6, 2013
    Member:
    #109876
    Messages:
    574
    Gender:
    Male
    First Name:
    Peter
    Iowa
    That's awesome exactly what I'm looking for I couldn't find it on that site though?

  7. 808TacoMan

    808TacoMan HAWAIIAN

    Joined:
    Apr 25, 2012
    Member:
    #77615
    Messages:
    1,297
    Gender:
    Male
    First Name:
    Lawson
    Hilo, HI
    Vehicle:
    11 LIFTED
    Debadged, Fog Light Anytime, Procomp 6, Gold King Resi Shocks, 3" Body, Atlas Leaf Springs, ICON Billet UCAs, Color Match Everything, 6000K Headlights and Fog lights, Rigid Dually Backup light, Sounds
  8. james Daniel

    james Daniel Well-Known Member

    Joined:
    Oct 31, 2013
    Member:
    #115645
    Messages:
    128
    Gender:
    Male
    First Name:
    james
    Vehicle:
    13 TRD off road
    super clean job.

  9. geekhouse23

    geekhouse23 DCSBORFTMFW

    Joined:
    Jul 14, 2013
    Member:
    #108251
    Messages:
    3,724
    Gender:
    Male
    Vehicle:
    3rd gen MGM DCSB 4x4
    mostly stock, grocery gettin' Prius

    Thanks! :cheers:

  10. Chepo

    Chepo Tankoma!

    Joined:
    Sep 8, 2011
    Member:
    #63159
    Messages:
    569
    Gender:
    Male
    Mexico City
    Vehicle:
    '11 TRD Sport
    ARB front bumper, Custom Rear Bumper, Safari Snorkel, Led Lights all over, OME Lift

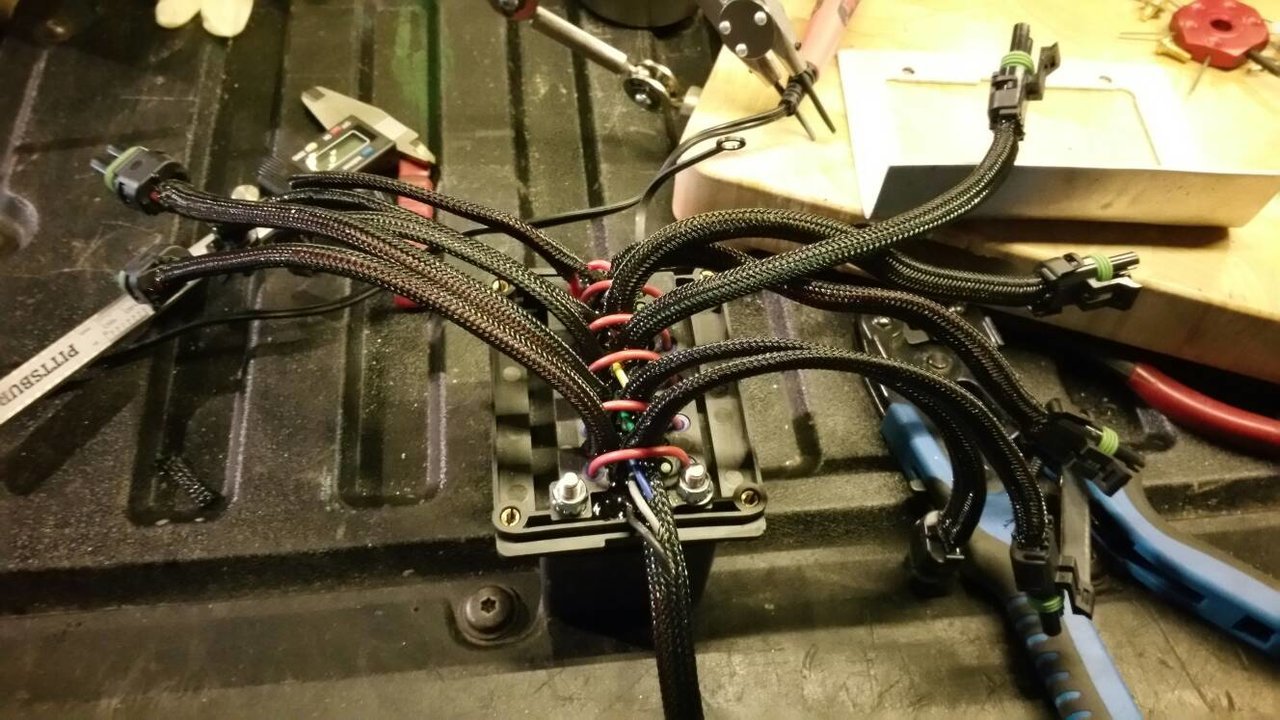

    Here is mine!

    [​IMG]

    [​IMG]

  11. Tractorman

    Tractorman Well-Known Member

    Joined:
    Aug 17, 2014
    Member:
    #136355
    Messages:
    150
    Gender:
    Male
    First Name:
    Steve
    Missouri
    Vehicle:
    2015 DCSB TRD Sport / MGM
    Clazzio leather seat covers, Fold-A-Cover, LED bed light, Weather Tech window guards, Weather Tech floor liners,LED under hood light, MUTH signal mirrors,Firestick under tailgate light, temp-compass-auto dimming mirror, N-Fab step nerf bars, window tint,
  12. Yotamac

    Yotamac Well-Known Member

    Joined:
    Mar 30, 2013
    Member:
    #100909
    Messages:
    641
    Gender:
    Male
    First Name:
    Ze
    562
    Vehicle:
    07 PreRunner
    Billie 5100's all around, MaxTrac spindles, 1.5" AAL's, Hankook DynaPro Mud Terrain 285/70/17"s on Procomp 7089's, Satoshi grille mod, Blacked Out Headlights
    Looking Good Man! very clean!

  13. Chepo

    Chepo Tankoma!

    Joined:
    Sep 8, 2011
    Member:
    #63159
    Messages:
    569
    Gender:
    Male
    Mexico City
    Vehicle:
    '11 TRD Sport
    ARB front bumper, Custom Rear Bumper, Safari Snorkel, Led Lights all over, OME Lift
    Thanks!!!

    It was a PITA, but it came out as expected!

  14. stevieloc

    stevieloc Member

    Joined:
    Jan 13, 2015
    Member:
    #146313
    Messages:
    8
    Gender:
    Male
    First Name:
    Steve
    SD(858)
    Vehicle:
    99 3.4L 2WD 5 Lug
    FRONT L/T: Total Chaos, Trac Performance spindles, hiem steering. REAR: Deavers, Downey shackles and T&T 2.0x14 smooth body remote resi's. Front/Rear tube bumpers Hella 500's. Retro fitted HID projector headlights. Quick release steering wheel.
    Hope to install my Blue Sea Systems 6 circuit here soon. I will be running my horn (after market due too quick release steering wheel), 2 55w Hella 500's (for now until upgraded) and maybe a set of 16w or 18w led pods. I have the BSS 6 circuit already and my dads shop has various wire gauge and connectors etc... I still need a maxi fuse and holder and possibly a circuit breaker??? Electrical is not my strong point by any means.

  15. skygear

    skygear           

    Joined:
    Nov 6, 2011
    Member:
    #66558
    Messages:
    8,520
    Gender:
    Male
    Not too late for one of these...

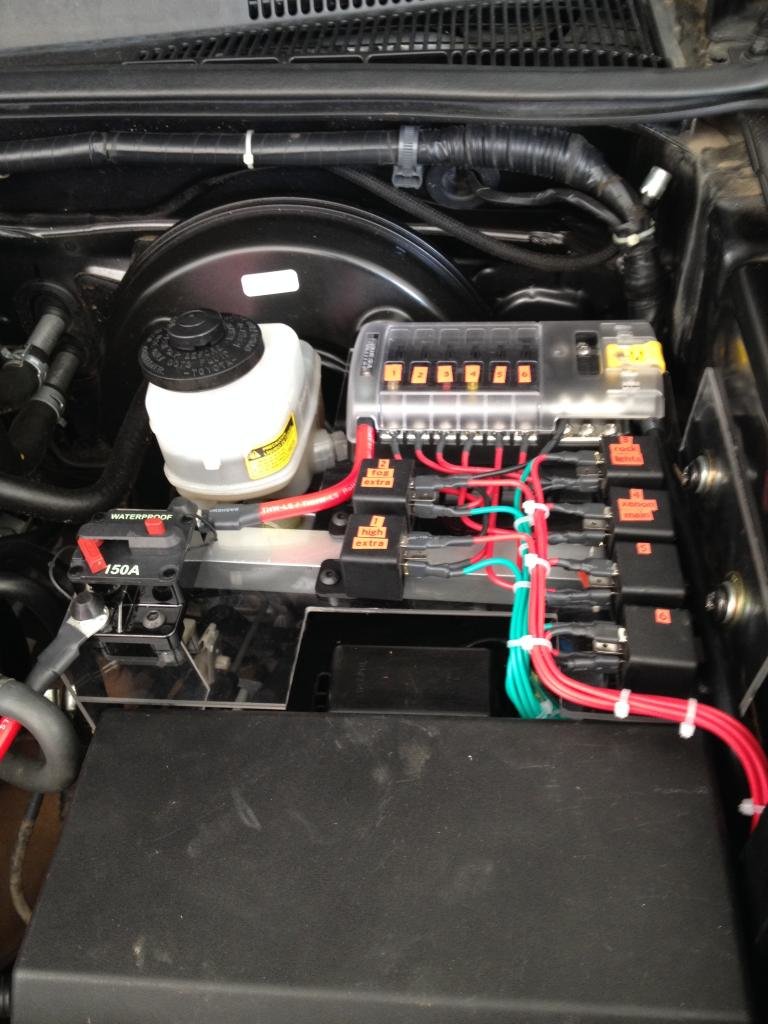

    A piece of heaven. -> http://www.tacomaworld.com/forum/bu...m-10-relay-rtmr-5-relay-no-blue-sea-spod.html

    [​IMG][​IMG][​IMG][​IMG][​IMG][​IMG]

  16. stevieloc

    stevieloc Member

    Joined:
    Jan 13, 2015
    Member:
    #146313
    Messages:
    8
    Gender:
    Male
    First Name:
    Steve
    SD(858)
    Vehicle:
    99 3.4L 2WD 5 Lug
    FRONT L/T: Total Chaos, Trac Performance spindles, hiem steering. REAR: Deavers, Downey shackles and T&T 2.0x14 smooth body remote resi's. Front/Rear tube bumpers Hella 500's. Retro fitted HID projector headlights. Quick release steering wheel.
    Holy hell that's wicked! I'm not so sure how it all works haha. I'm still pulling my shoes off to get my feet wet with any kind of electrical stuff.

  17. skygear

    skygear           

    Joined:
    Nov 6, 2011
    Member:
    #66558
    Messages:
    8,520
    Gender:
    Male
    I provide support . One on one. Install for free, or can do live video chat when it coms time for the install. Talk on phones. I help demystify 12v ;)

  18. SpruceJPG

    SpruceJPG Raging Dunkay

    Joined:
    Dec 24, 2012
    Member:
    #93651
    Messages:
    178
    Gender:
    Male
    First Name:
    .JPG
    Maryland
    Vehicle:
    2013 Spruce Mica DCLB SR5
    WeatherTech Floor Mats and some window tint
    Sub'd for when I finally get around to wiring my 2 rear floods, 2 grill spots, and 2 hood flood LEDs. Looking to keep all aftermarket toys separate from the existing wiring.

  19. ryanjboutin

    ryanjboutin Mob dirt parking lots.

    Joined:
    Mar 9, 2009
    Member:
    #14489
    Messages:
    18,678
    Gender:
    Male
    First Name:
    Ryan
    Las Vegas
    Vehicle:
    2013 4x4 Off Road, 6 speed.
    Spacers. Spacers everywhere.
    I have a Blue Sea and a 100 amp fuse, exactly like the one in the first post.
    I have a bracket all cut out and ready for mounting.

    Except, I seem to have an overflow brake fluid reservoir in the spot where all of you have mounted your bracket.

    I wonder if it's because I have a manual and a towing package, or...?
    Did you guys just relocate the the brake reservoir? :notsure:

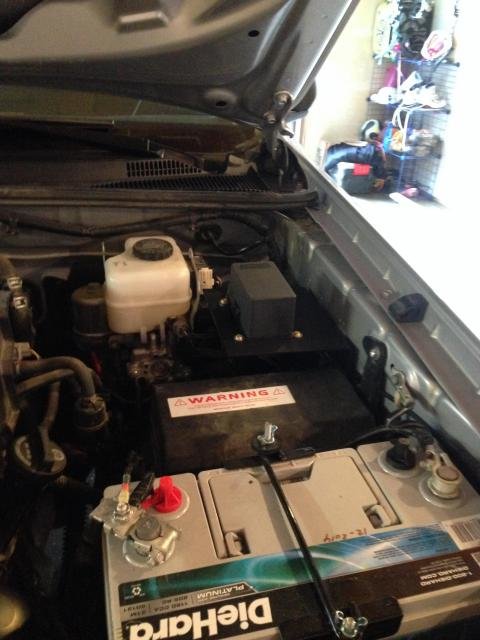

    [​IMG]

    Last edited: Jan 18, 2015
  20. miniorf

    miniorf Member

    Joined:
    Nov 28, 2013
    Member:
    #117488
    Messages:
    24
    Gender:
    Male
    First Name:
    justin
    Newport RI
