TRD LED Signal Flasher??

Discussion in 'Lighting' started by sledneck, Jun 8, 2011.

  1. Jun 8, 2011 at 7:13 PM
    #1
    sledneck

    sledneck [OP] Active Member

    Joined:
    Mar 20, 2011
    Member:
    #53361
    Messages:
    33
    Gender:
    Male
    Northern Maine
    Vehicle:
    2011 TRD Sport DC
    MBRP Stainless Duels, AFE CAI Stafe 2, lBilstein 5100's, 886's, smittybuilt Nerf Bars, UWS box, 6000K HID's, Grillcraft grille, Switchback LED signals and DTRL's, 20% tint,
    Can anyone confirm the TRD's have a 12 pin signal flasher? The only ones I've been able to find for LED lights are 8 pin. I pulled mine off and it is a 12 pin. Not sure if it is because it has the 110 Outlet in the bed or what.

    Thanks


  2. Jun 10, 2011 at 6:23 PM
    #2
    Tacokevin

    Tacokevin Well-Known Member

    Joined:
    Mar 17, 2011
    Member:
    #53205
    Messages:
    83
    Gender:
    Male
    First Name:
    Kevin
    East Hartford, CT
    Kenwood Excelon DNX9960, Hertz speakers, Extang Trifecta Tonneau, 3" Toytec Bilstien 5100 coilovers, LR UCA, Diff Drop, Rear AAL Bilstien 5100's, XD Series Bully Wheels, 285/74R16 Nitto Terra Grapplers, Yellow fog lights w/ anytime mod to FJ oem switch, DTRL custom mod w/Switchback LED and stealth switch, Smoked Headlights, Wired Streamlight Rechargable LED flashlight, Color matched grill, Color matched power mirrors w/oem switch, Heated Murth Bicolor signal mirrors w/Highlander oem heater switch, URD short shifter
    I don't believe that the outlets make a difference......but if you have DTRL then you have a 12 pin flasher. The extra pins are for the DTRL. The non DTRL flasher has 8 pins. I couldn't find a led flasher either and used the resistors first. Just make sure you mount them to metal and not plastic or near wires they get hot and will melt them.

  3. Jun 10, 2011 at 7:00 PM
    #3
    Tacokevin

    Tacokevin Well-Known Member

    Joined:
    Mar 17, 2011
    Member:
    #53205
    Messages:
    83
    Gender:
    Male
    First Name:
    Kevin
    East Hartford, CT
    Kenwood Excelon DNX9960, Hertz speakers, Extang Trifecta Tonneau, 3" Toytec Bilstien 5100 coilovers, LR UCA, Diff Drop, Rear AAL Bilstien 5100's, XD Series Bully Wheels, 285/74R16 Nitto Terra Grapplers, Yellow fog lights w/ anytime mod to FJ oem switch, DTRL custom mod w/Switchback LED and stealth switch, Smoked Headlights, Wired Streamlight Rechargable LED flashlight, Color matched grill, Color matched power mirrors w/oem switch, Heated Murth Bicolor signal mirrors w/Highlander oem heater switch, URD short shifter
    pictures of the DTRL flasher and the regular flasher and the DTRL harness ends

    DTRL flasher harness plug.jpg
    DTRL harness flasher plug other end.jpg
    normal flasher 8 pin.jpg
    DTRL flasher 12 pin.jpg

  4. Oct 28, 2011 at 7:57 AM
    #4
    hotrodman

    hotrodman Active Member

    Joined:
    Jun 7, 2011
    Member:
    #57871
    Messages:
    34
    Gender:
    Male
    First Name:
    Mike
    Cleveland, Ohio
    Vehicle:
    2011 TRD Offroad
    3" OME lift KC / Rigid LED lights and bar ATO full skids 4XI sliders AFI filter All the easy electrical mods...
    Can anybody tell me where this flasher is located? I heve looked under the dash by the steering column, and at the fuse boxes and cannot seem to find this flasher. I also want to change my DTRLs to LED, have the LEDS and an LED flasher, but cannot find it to change it.
    Thanks for any help!

  5. Oct 29, 2011 at 6:13 AM
    #5
    Tacokevin

    Tacokevin Well-Known Member

    Joined:
    Mar 17, 2011
    Member:
    #53205
    Messages:
    83
    Gender:
    Male
    First Name:
    Kevin
    East Hartford, CT
    Kenwood Excelon DNX9960, Hertz speakers, Extang Trifecta Tonneau, 3" Toytec Bilstien 5100 coilovers, LR UCA, Diff Drop, Rear AAL Bilstien 5100's, XD Series Bully Wheels, 285/74R16 Nitto Terra Grapplers, Yellow fog lights w/ anytime mod to FJ oem switch, DTRL custom mod w/Switchback LED and stealth switch, Smoked Headlights, Wired Streamlight Rechargable LED flashlight, Color matched grill, Color matched power mirrors w/oem switch, Heated Murth Bicolor signal mirrors w/Highlander oem heater switch, URD short shifter

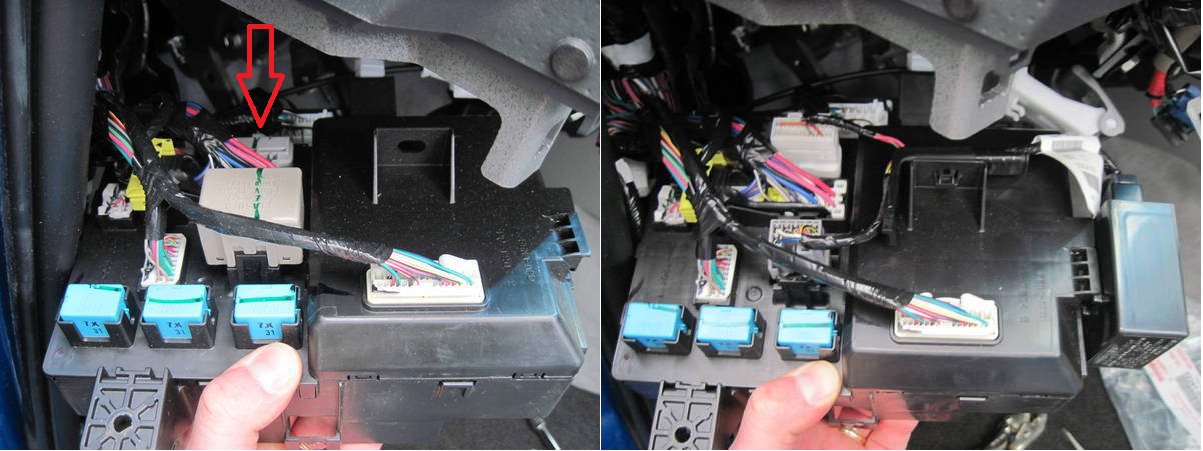

    It's behind the fuse panel under dash on drivers side

  6. Jun 18, 2014 at 6:06 PM
    #6
    thereverend

    thereverend rev

    Joined:
    May 18, 2014
    Member:
    #130125
    Messages:
    181
    Gender:
    Male
    First Name:
    Adam
    B'ham AL
    Vehicle:
    '14 DCSB TRD Sport 6spd SC
    TRD SC, URD 1 size smaller SC drive pulley, Volant CAI w scoop, TacoTunes full kit, MagnaFlow muffler for flow but ran out rear to kill the drone.
    I want to put all LED's (except unless some can recommend very bright quality ones). Can some one recommend a replacement flasher (PN would be great). Any help would be greatly appreciated! I am about to spend $140 in bulbs from superbrightleds.com, am I getting raped? Please Help

  7. Jun 28, 2014 at 11:29 AM
    #7
    VE7OSR

    VE7OSR 'interfering with Natural Selection since 1990'

    Joined:
    Dec 12, 2011
    Member:
    #68608
    Messages:
    3,870
    Gender:
    Male
    First Name:
    Rob II
    Okanagan, Canada
    Vehicle:
    05 DCLB TRD Sport
    Armour: All-Pro Skid plates - IFS, transmission, and transfer case. Pelfreybilt rear standard plate bumper Front Suspension: OME 885 + NitroCharger 9000 shocks + 1/2" spacers for a 3" lift. Superbumps replacing stock bumpstops. Camburg ball joint UCA SS braid brake lines Rear Suspension: All-Pro Expedition rear leafs, Walker Evans 27" rear shocks, extended rear brake lines (Wheelers Offroad), U -bolt flip kit, rear Timbren bumpstops. Interior: Weatherteck floor liners - front, Wet Okoles- front, ScanGauge, LED interior & map lights. Power moonroof. Exterior: Raider Cobra canopy, PIAA bulbs, LED bulbs all around, modified flasher unit for LEDs Rear diff breather mod. Front diff vibe problem, driver's side needle bearing replaced with ECGS bushing. yet to install: HID Blazer Fog Retrofit, LED Flood & Spot, + switches, fuse panel. Metal Tech Sliders w/ kickout and dimple die filler plates. swaybar relocate blocks (build my own)
    VLEDS.com has the brightest LEDs around, and you certainly pay the price for the top notch product. The challenge with the front signal on a 2nd Gen Tacoma, is finding an LED bulb that is bright enough, but will still fit behind the lens. The LED cannot be much longer than the stock bulb.

    There is no replacement flasher, you modify the stock unit by changing the two resistors in your unit.

    Here are some links
    http://www.tacomaworld.com/forum/2n...trl-led-flasher-modification-2012-tacoma.html

    http://www.tacomaworld.com/forum/gr...-super-bright-dtrl-bulbs-triton-groupbuy.html

  8. Jun 29, 2014 at 7:24 PM
    #8
    thereverend

    thereverend rev

    Joined:
    May 18, 2014
    Member:
    #130125
    Messages:
    181
    Gender:
    Male
    First Name:
    Adam
    B'ham AL
    Vehicle:
    '14 DCSB TRD Sport 6spd SC
    TRD SC, URD 1 size smaller SC drive pulley, Volant CAI w scoop, TacoTunes full kit, MagnaFlow muffler for flow but ran out rear to kill the drone.
  9. Jun 30, 2014 at 12:31 AM
    #9
    VE7OSR

    VE7OSR 'interfering with Natural Selection since 1990'

    Joined:
    Dec 12, 2011
    Member:
    #68608
    Messages:
    3,870
    Gender:
    Male
    First Name:
    Rob II
    Okanagan, Canada
    Vehicle:
    05 DCLB TRD Sport
    Armour: All-Pro Skid plates - IFS, transmission, and transfer case. Pelfreybilt rear standard plate bumper Front Suspension: OME 885 + NitroCharger 9000 shocks + 1/2" spacers for a 3" lift. Superbumps replacing stock bumpstops. Camburg ball joint UCA SS braid brake lines Rear Suspension: All-Pro Expedition rear leafs, Walker Evans 27" rear shocks, extended rear brake lines (Wheelers Offroad), U -bolt flip kit, rear Timbren bumpstops. Interior: Weatherteck floor liners - front, Wet Okoles- front, ScanGauge, LED interior & map lights. Power moonroof. Exterior: Raider Cobra canopy, PIAA bulbs, LED bulbs all around, modified flasher unit for LEDs Rear diff breather mod. Front diff vibe problem, driver's side needle bearing replaced with ECGS bushing. yet to install: HID Blazer Fog Retrofit, LED Flood & Spot, + switches, fuse panel. Metal Tech Sliders w/ kickout and dimple die filler plates. swaybar relocate blocks (build my own)
    If you have daytime running lights (DTRL), then you have a 12 pin flasher unit, and the answer is No. If you do not have DTRL, then you would have an 8 pin flasher unit, then maybe. The link does not give enough detail info to state if it will work on Toyota Tacoma.
