Who wants a stainless mounting bracket for spare fuse panel.

Discussion in '2nd Gen. Tacomas (2005-2015)' started by santas212, Aug 4, 2012.

  1. Aug 4, 2012 at 9:39 PM
    #1
    santas212

    santas212 [OP] I'm on a boat!

    Joined:
    Nov 7, 2009
    Member:
    #25567
    Messages:
    1,062
    Gender:
    Male
    First Name:
    Steve
    Georgetown, CT
    Vehicle:
    '09 DCLB, TRD Sport, Barcelona Red
    Mostly miscellaneous electronic mods.... -2 spare Electrical fuse blocks hard wired to the battery with a key on relay. -Hard Wired Radar detector over rearview mirror. -2 Dual Whelen Avenger blue LED emergency lights, one on each side of the rearview mirror. -EP911 Blue LED Light Bar & Traffic Advisor, Rear Windows. -4 corner amber strobes in stock lights. -Hardwired RF Scanner with external speaker under center console. -Huskyliner front splash guards -Fireband 2 way radio in center console. -Herculiner painted on hitch and skid plate. -Switch to power one 12v socket when truck is off. -AntiDark LED strip under hood with switch. -Timbren Rubber Springs - Rear -MBRP Offroad Cat-Back with Resonator -Duratrac's -Provisor -Color matched hood bug shield
    I've seen a basic stainless bracket under the hood of Buff's 2012 that looked good, he had a friend with the sheet metal stock & a way to bend it clean. So I purchased a marine use fuse panel I want to mount in the same way & my plan is to order up a custom cut & bent stainless bracket that would bolt to the drivers side inside the hood, it would look like a little stainless shelf to mount things on.

    I bring this up because ordering more than one will lower the cost per person significantly. I haven't drawn it up in cad yet so I don't know what the cost will be, just putting the feeler out, who else might want one??

    EDIT -- NEW THREAD FOR ORDERING IF YOU WANT TO SKIP AHEAD--
    http://www.tacomaworld.com/forum/2n...t-bluesea-systems-fuse-block.html#post5587635

  2. Aug 4, 2012 at 10:25 PM
    #2
    santas212

    santas212 [OP] I'm on a boat!

    Joined:
    Nov 7, 2009
    Member:
    #25567
    Messages:
    1,062
    Gender:
    Male
    First Name:
    Steve
    Georgetown, CT
    Vehicle:
    '09 DCLB, TRD Sport, Barcelona Red
    Mostly miscellaneous electronic mods.... -2 spare Electrical fuse blocks hard wired to the battery with a key on relay. -Hard Wired Radar detector over rearview mirror. -2 Dual Whelen Avenger blue LED emergency lights, one on each side of the rearview mirror. -EP911 Blue LED Light Bar & Traffic Advisor, Rear Windows. -4 corner amber strobes in stock lights. -Hardwired RF Scanner with external speaker under center console. -Huskyliner front splash guards -Fireband 2 way radio in center console. -Herculiner painted on hitch and skid plate. -Switch to power one 12v socket when truck is off. -AntiDark LED strip under hood with switch. -Timbren Rubber Springs - Rear -MBRP Offroad Cat-Back with Resonator -Duratrac's -Provisor -Color matched hood bug shield
    When I get home from work next week I'll mock something up to post

  3. Aug 4, 2012 at 10:34 PM
    #3
    benbacher

    benbacher Purveyor of Fun Vendor

    Joined:
    Jun 29, 2011
    Member:
    #59032
    Messages:
    9,213
    Gender:
    Male
    First Name:
    ^
    Anchorage, AK
    Vehicle:
    '10 Tacoma 4x4 LBDC SR5 TRD Sport
    Too many to list now.
    Curious too depending on cost

  4. Aug 5, 2012 at 12:06 PM
    #4
    santas212

    santas212 [OP] I'm on a boat!

    Joined:
    Nov 7, 2009
    Member:
    #25567
    Messages:
    1,062
    Gender:
    Male
    First Name:
    Steve
    Georgetown, CT
    Vehicle:
    '09 DCLB, TRD Sport, Barcelona Red
    Mostly miscellaneous electronic mods.... -2 spare Electrical fuse blocks hard wired to the battery with a key on relay. -Hard Wired Radar detector over rearview mirror. -2 Dual Whelen Avenger blue LED emergency lights, one on each side of the rearview mirror. -EP911 Blue LED Light Bar & Traffic Advisor, Rear Windows. -4 corner amber strobes in stock lights. -Hardwired RF Scanner with external speaker under center console. -Huskyliner front splash guards -Fireband 2 way radio in center console. -Herculiner painted on hitch and skid plate. -Switch to power one 12v socket when truck is off. -AntiDark LED strip under hood with switch. -Timbren Rubber Springs - Rear -MBRP Offroad Cat-Back with Resonator -Duratrac's -Provisor -Color matched hood bug shield
    [​IMG]

    Here's what i came up with doing a quick BS no measurements yet since i'm away from my truck at the moment.

    Seems it would be cheaper to make it out of aluminum rather than stainless, i also plan on adding some holes to the shelf part for bolting on a fuse panel and maybe some holes for running zip ties through to strap the wires down clean.

    Cost wise - If i get two of these made up they're gonna cost like $90 each for me to ship them around. If we get 10 people on board for this it brings it down to like $40 each, shipped.

    When i get home ill take proper measurements, and adjust the drawing accordingly. I'll also get a shot of under the hood where i expect this to go.

  5. Aug 5, 2012 at 12:08 PM
    #5
    THExBUSxDRIVER

    THExBUSxDRIVER Victory is reserved...

    Joined:
    Mar 19, 2010
    Member:
    #33508
    Messages:
    4,134
    First Name:
    GOO5E
    Vehicle:
    Old Man Tan!
    Not enough.
  6. Aug 5, 2012 at 12:12 PM
    #6
    santas212

    santas212 [OP] I'm on a boat!

    Joined:
    Nov 7, 2009
    Member:
    #25567
    Messages:
    1,062
    Gender:
    Male
    First Name:
    Steve
    Georgetown, CT
    Vehicle:
    '09 DCLB, TRD Sport, Barcelona Red
    Mostly miscellaneous electronic mods.... -2 spare Electrical fuse blocks hard wired to the battery with a key on relay. -Hard Wired Radar detector over rearview mirror. -2 Dual Whelen Avenger blue LED emergency lights, one on each side of the rearview mirror. -EP911 Blue LED Light Bar & Traffic Advisor, Rear Windows. -4 corner amber strobes in stock lights. -Hardwired RF Scanner with external speaker under center console. -Huskyliner front splash guards -Fireband 2 way radio in center console. -Herculiner painted on hitch and skid plate. -Switch to power one 12v socket when truck is off. -AntiDark LED strip under hood with switch. -Timbren Rubber Springs - Rear -MBRP Offroad Cat-Back with Resonator -Duratrac's -Provisor -Color matched hood bug shield
    that photo embed looks corrupt on my machine, trying a different approach >>

    bracket bmp.jpg

  7. Aug 5, 2012 at 3:13 PM
    #7
    penguins_cc

    penguins_cc Well-Known Member

    Joined:
    Aug 18, 2010
    Member:
    #41874
    Messages:
    2,360
    Gender:
    Male
    First Name:
    Will
    Bellevue, WA
    Vehicle:
    Timberland Mica Limo!
    Perkins Performance Sliders, Warn 9000, Brute Force Fab front & rear bumper, OME/Dakar lift, full ATO skids and hi-lift mount, satoshi, Wet Okoles, illuminated 4x4 switch, Diff Breather.
    Interested, although I'm also considering locating my BlueSea fuse block inside the cab.

  8. Aug 5, 2012 at 6:31 PM
    #8
    troy28

    troy28 Well-Known Member

    Joined:
    Dec 3, 2011
    Member:
    #68095
    Messages:
    130
    Gender:
    Male
    Capitol of Salty Roads
    Need help
    Interested

  9. Aug 6, 2012 at 6:33 AM
    #9
    Wallygater

    Wallygater Well-Known Member

    Joined:
    May 24, 2011
    Member:
    #57164
    Messages:
    381
    Gender:
    Male
    USA
    Vehicle:
    '11 SR5 DBL Cab 4x4 6 speed
    Softopper, All-pro bolt-on sliders, Tom Wood's drive shaft, Goodyear 235/85/16 Dura-trac's, SG, USA-Spec I-pod adaptor, Amsoil in everything
  10. Aug 6, 2012 at 8:52 AM
    #10
    santas212

    santas212 [OP] I'm on a boat!

    Joined:
    Nov 7, 2009
    Member:
    #25567
    Messages:
    1,062
    Gender:
    Male
    First Name:
    Steve
    Georgetown, CT
    Vehicle:
    '09 DCLB, TRD Sport, Barcelona Red
    Mostly miscellaneous electronic mods.... -2 spare Electrical fuse blocks hard wired to the battery with a key on relay. -Hard Wired Radar detector over rearview mirror. -2 Dual Whelen Avenger blue LED emergency lights, one on each side of the rearview mirror. -EP911 Blue LED Light Bar & Traffic Advisor, Rear Windows. -4 corner amber strobes in stock lights. -Hardwired RF Scanner with external speaker under center console. -Huskyliner front splash guards -Fireband 2 way radio in center console. -Herculiner painted on hitch and skid plate. -Switch to power one 12v socket when truck is off. -AntiDark LED strip under hood with switch. -Timbren Rubber Springs - Rear -MBRP Offroad Cat-Back with Resonator -Duratrac's -Provisor -Color matched hood bug shield
    Thanks for the links, those are all hitting around what I am looking at doing. Same spot in the engine, also I have a blue sea that I would probably have the holes pre drilled for.

    Stay tuned for me to get home next week to take measurements, make a final design & then we can get serious about ordering them up. Would love to order up 10+ to drop costs for everyone!

    Also I was looking at making small Z brackets that slip under the bed mounting tracks for hanging led lights on. They would catch the stock bolts so there would be no extra drilling in the composite bed material. Would these appeal to anyone? More to follow on that...

  11. Aug 7, 2012 at 2:23 PM
    #11
    Rakso

    Rakso CeRaTi

    Joined:
    Feb 26, 2009
    Member:
    #14105
    Messages:
    8,537
    Gender:
    Male
    First Name:
    OsKaR
    Cali
    Vehicle:
    09 PreRunner
    LSK LT in Progress, custom bed cage, DMZ SUA kit with 2.5 kings triple bypass, kings bump stops, baja bumper, rear custom tube bumper, glass all around, Weather Tech Liners, wet okole seat covers, Cluster LED Swap, HU LED Swap, hood LEDs, bed LEDs, etc etc etc
    Subd

  12. Aug 11, 2012 at 8:18 PM
    #12
    santas212

    santas212 [OP] I'm on a boat!

    Joined:
    Nov 7, 2009
    Member:
    #25567
    Messages:
    1,062
    Gender:
    Male
    First Name:
    Steve
    Georgetown, CT
    Vehicle:
    '09 DCLB, TRD Sport, Barcelona Red
    Mostly miscellaneous electronic mods.... -2 spare Electrical fuse blocks hard wired to the battery with a key on relay. -Hard Wired Radar detector over rearview mirror. -2 Dual Whelen Avenger blue LED emergency lights, one on each side of the rearview mirror. -EP911 Blue LED Light Bar & Traffic Advisor, Rear Windows. -4 corner amber strobes in stock lights. -Hardwired RF Scanner with external speaker under center console. -Huskyliner front splash guards -Fireband 2 way radio in center console. -Herculiner painted on hitch and skid plate. -Switch to power one 12v socket when truck is off. -AntiDark LED strip under hood with switch. -Timbren Rubber Springs - Rear -MBRP Offroad Cat-Back with Resonator -Duratrac's -Provisor -Color matched hood bug shield
    Got the time to pop the hood today to measure up the bracket plan, and also to install my Relentless hood CB mount :D

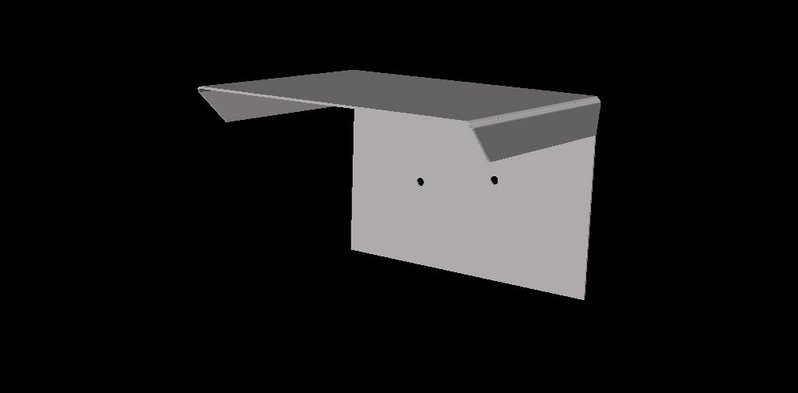

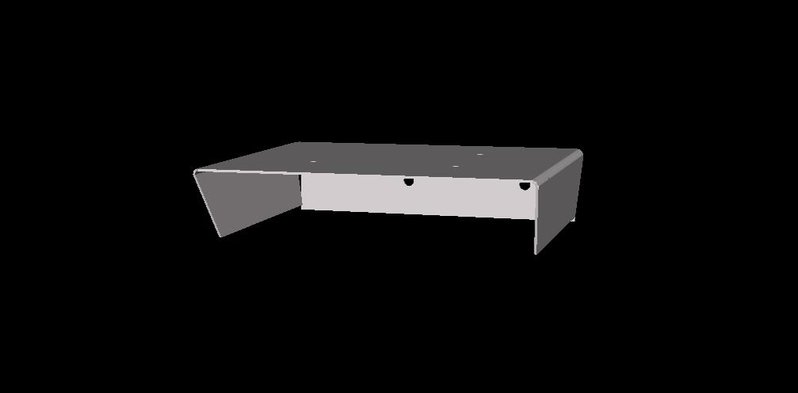

    The fuse panel bracket plan is as follows, 8.5"X6.5" top plate with 2" bent sides out of either aluminium 5054 or stainless 304 .062 thickness. holes drilled for bolting to the two holes on the side of the truck will be drilled through the plate just over 5/16" diameter and they are 3" apart.

    on the top plate holes are planned for the Bluesea systems 6 circut+ negative bus panel mine is model #PN 5025 the holes are just over 3/16" diameter and are 3 7/8" apart and 2 1/2" wide. You are welcome to drill your own holes as well or i can leave the top blank and you can do whatever you want.

    The side tabs on the top plate will help give a little extra support and should rest of the back mounting bend.

    The bend for the mount side is bent to 92deg as it seems the holes aren't exactly at a 90.

    Prices - assuming i can locate the correct bolts at the hardware store, i will ship these for $40 for a aluminum or $50 for stainless. I am leaning towards getting them all in aluminum to keep the cost down and make it easier to drill holes in later.

    Prices are assuming 10 people want these. I don't mind floating the cost of 2-3 but i would like to get some funds from interested party's before i order. It will take 4 days or so for them to be ready, then another few for them to ship to my house, and a few more days for me to individually pack and ship to 10 people. so from the time we order i would like them to you in 2 weeks- ish

    Also to be clear, im not going to be doing individual requests per person on holes and material. please all discuss and come to a consensus on what i should order and all will arrive the same.

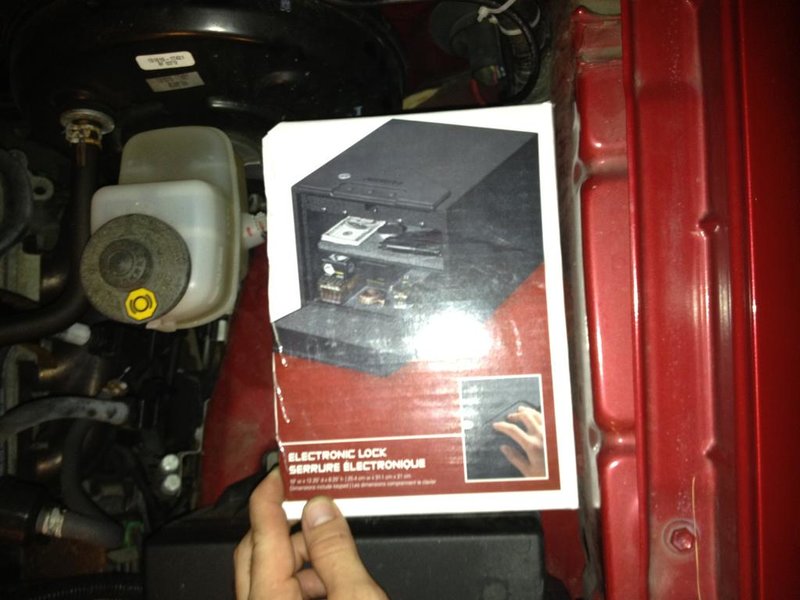

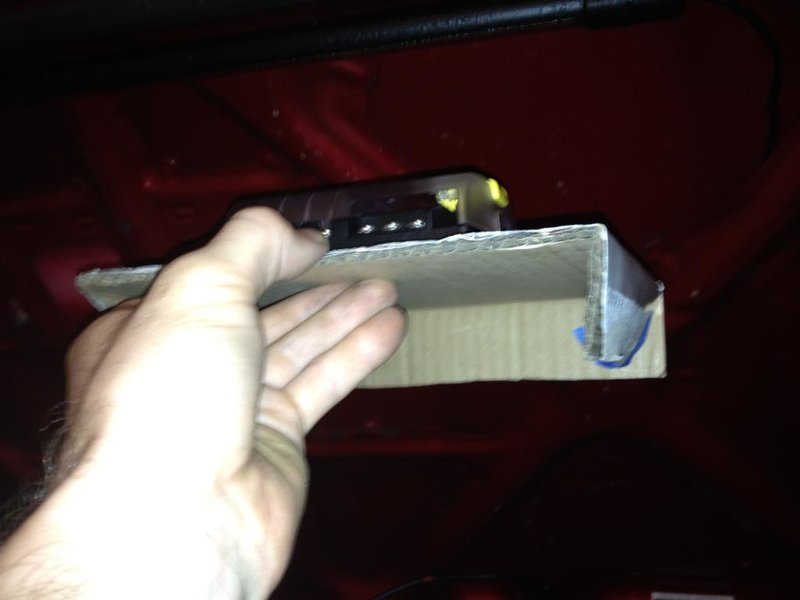

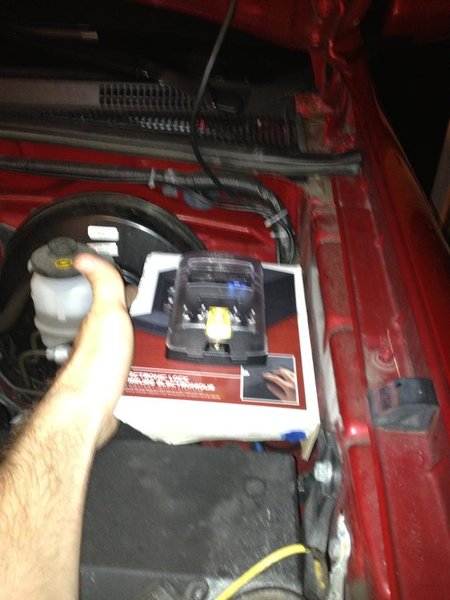

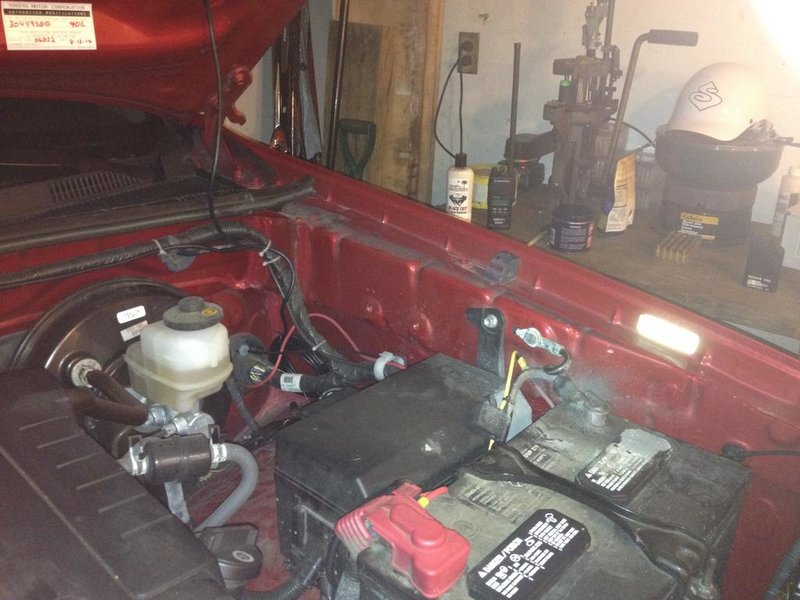

    photos are of the truck compartment, should see the holes for mounting, also made a cheap cardboard mock up, and then the last is the cad photo of the designed product.

    IMG_2062.jpgIMG_2061.jpgIMG_2060.jpgIMG_2058.jpgbracket bmp.jpg

  13. Aug 12, 2012 at 9:33 AM
    #13
    Buff

    Buff Well-Known Member

    Joined:
    Nov 24, 2011
    Member:
    #67612
    Messages:
    99
    Gender:
    Male
    First Name:
    Buff
    NEPA
    Vehicle:
    V6 TRD Sport 4x4
    Removed the damn stickers!
    Sorry. It's been hectic here. My neighbor just happened to have some SS that already was bent. We just cut it for the application. We cut the section that attaches to the existing fender bolt holes longer than the shelf so i retained access to the items below.
    [​IMG]
    [​IMG]
    [​IMG]
    Using aluminum would be a hell of a lot easier lol. Hope this helps!

  14. Aug 13, 2012 at 6:26 PM
    #14
    santas212

    santas212 [OP] I'm on a boat!

    Joined:
    Nov 7, 2009
    Member:
    #25567
    Messages:
    1,062
    Gender:
    Male
    First Name:
    Steve
    Georgetown, CT
    Vehicle:
    '09 DCLB, TRD Sport, Barcelona Red
    Mostly miscellaneous electronic mods.... -2 spare Electrical fuse blocks hard wired to the battery with a key on relay. -Hard Wired Radar detector over rearview mirror. -2 Dual Whelen Avenger blue LED emergency lights, one on each side of the rearview mirror. -EP911 Blue LED Light Bar & Traffic Advisor, Rear Windows. -4 corner amber strobes in stock lights. -Hardwired RF Scanner with external speaker under center console. -Huskyliner front splash guards -Fireband 2 way radio in center console. -Herculiner painted on hitch and skid plate. -Switch to power one 12v socket when truck is off. -AntiDark LED strip under hood with switch. -Timbren Rubber Springs - Rear -MBRP Offroad Cat-Back with Resonator -Duratrac's -Provisor -Color matched hood bug shield
    soo i'm standing by to order up about 10 of these and get them out to people. Just waiting to see some commitments so i'm not left holding the bag.

    Lets say its coming in aluminum, with the holes i mentioned above drilled, with hardware and shipping for $40, and ill drop it to $35 if we get over 10 people to commit.

    PM me if you want in and i'll update the forum with a list of those who are all in.

    #1 Santas212

  15. Aug 13, 2012 at 6:31 PM
    #15
    santas212

    santas212 [OP] I'm on a boat!

    Joined:
    Nov 7, 2009
    Member:
    #25567
    Messages:
    1,062
    Gender:
    Male
    First Name:
    Steve
    Georgetown, CT
    Vehicle:
    '09 DCLB, TRD Sport, Barcelona Red
    Mostly miscellaneous electronic mods.... -2 spare Electrical fuse blocks hard wired to the battery with a key on relay. -Hard Wired Radar detector over rearview mirror. -2 Dual Whelen Avenger blue LED emergency lights, one on each side of the rearview mirror. -EP911 Blue LED Light Bar & Traffic Advisor, Rear Windows. -4 corner amber strobes in stock lights. -Hardwired RF Scanner with external speaker under center console. -Huskyliner front splash guards -Fireband 2 way radio in center console. -Herculiner painted on hitch and skid plate. -Switch to power one 12v socket when truck is off. -AntiDark LED strip under hood with switch. -Timbren Rubber Springs - Rear -MBRP Offroad Cat-Back with Resonator -Duratrac's -Provisor -Color matched hood bug shield
    very helpful, thanks buff!

  16. Aug 20, 2012 at 6:27 AM
    #16
    santas212

    santas212 [OP] I'm on a boat!

    Joined:
    Nov 7, 2009
    Member:
    #25567
    Messages:
    1,062
    Gender:
    Male
    First Name:
    Steve
    Georgetown, CT
    Vehicle:
    '09 DCLB, TRD Sport, Barcelona Red
    Mostly miscellaneous electronic mods.... -2 spare Electrical fuse blocks hard wired to the battery with a key on relay. -Hard Wired Radar detector over rearview mirror. -2 Dual Whelen Avenger blue LED emergency lights, one on each side of the rearview mirror. -EP911 Blue LED Light Bar & Traffic Advisor, Rear Windows. -4 corner amber strobes in stock lights. -Hardwired RF Scanner with external speaker under center console. -Huskyliner front splash guards -Fireband 2 way radio in center console. -Herculiner painted on hitch and skid plate. -Switch to power one 12v socket when truck is off. -AntiDark LED strip under hood with switch. -Timbren Rubber Springs - Rear -MBRP Offroad Cat-Back with Resonator -Duratrac's -Provisor -Color matched hood bug shield
    anyone still interested??

  17. Aug 24, 2012 at 10:09 PM
    #17
    santas212

    santas212 [OP] I'm on a boat!

    Joined:
    Nov 7, 2009
    Member:
    #25567
    Messages:
    1,062
    Gender:
    Male
    First Name:
    Steve
    Georgetown, CT
    Vehicle:
    '09 DCLB, TRD Sport, Barcelona Red
    Mostly miscellaneous electronic mods.... -2 spare Electrical fuse blocks hard wired to the battery with a key on relay. -Hard Wired Radar detector over rearview mirror. -2 Dual Whelen Avenger blue LED emergency lights, one on each side of the rearview mirror. -EP911 Blue LED Light Bar & Traffic Advisor, Rear Windows. -4 corner amber strobes in stock lights. -Hardwired RF Scanner with external speaker under center console. -Huskyliner front splash guards -Fireband 2 way radio in center console. -Herculiner painted on hitch and skid plate. -Switch to power one 12v socket when truck is off. -AntiDark LED strip under hood with switch. -Timbren Rubber Springs - Rear -MBRP Offroad Cat-Back with Resonator -Duratrac's -Provisor -Color matched hood bug shield
  18. Aug 24, 2012 at 11:05 PM
    #18
    jackrules

    jackrules Well-Known Member

    Joined:
    Jun 9, 2010
    Member:
    #38678
    Messages:
    655
    Gender:
    Male
    First Name:
    Jack
    San Diego
    Vehicle:
    10 PreRunner Double Cab SR5 TRD Sport LB

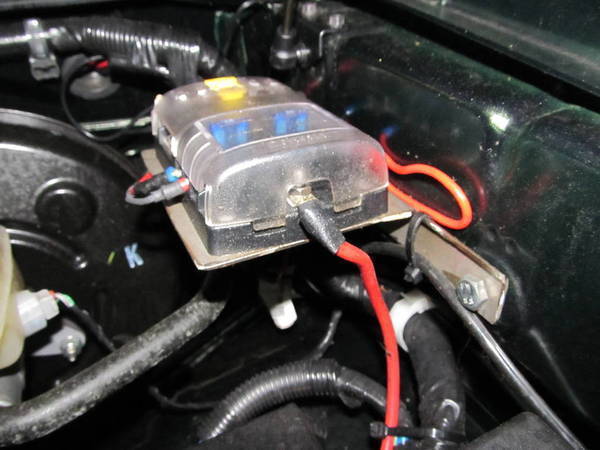

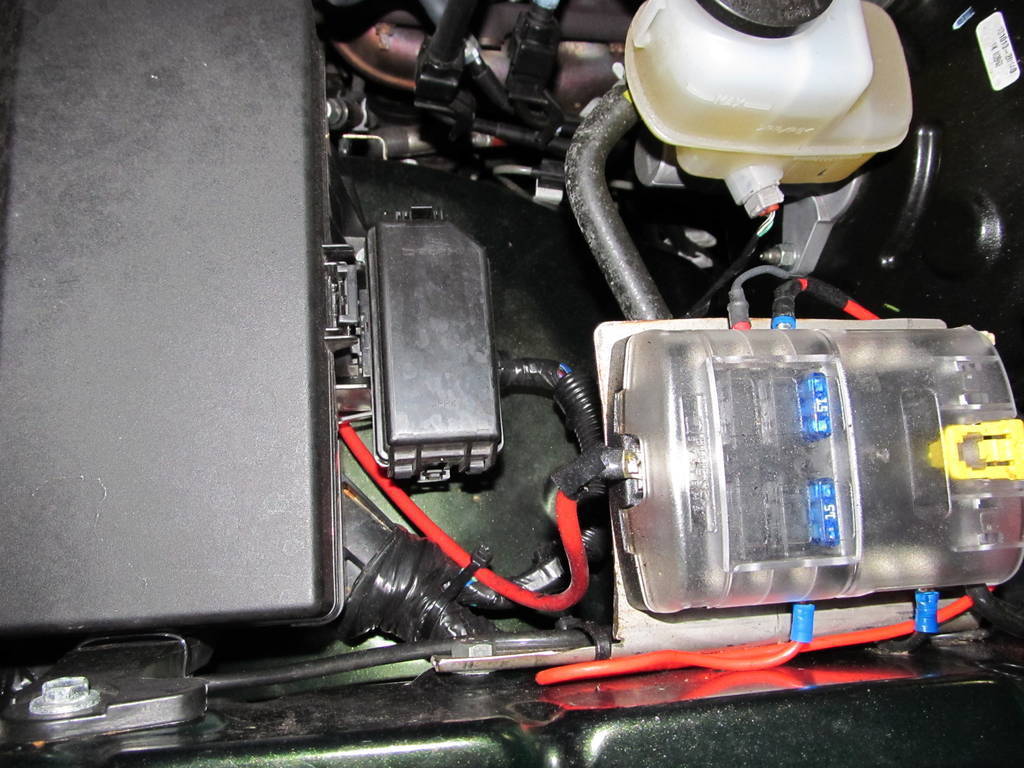

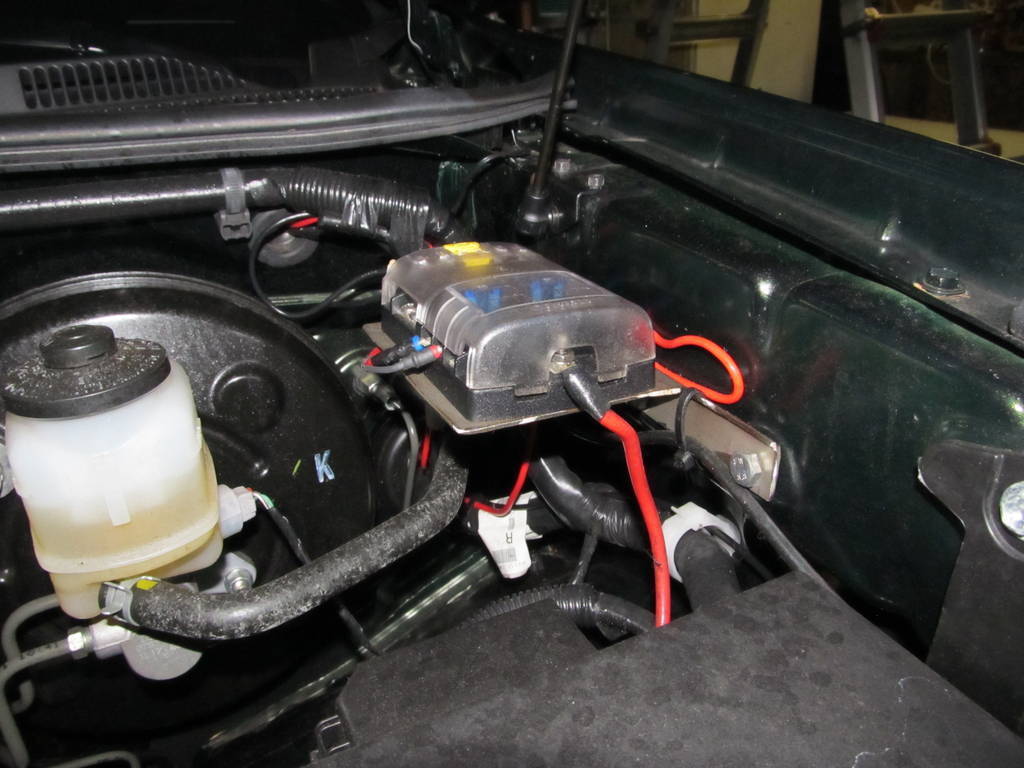

    I just built something a lot like what you posted up!

    It's holding my blue sea fuse block

    I'll post it up here. I'm not extremely proud of the looks of my work, but it works very well. I found a couple bolts to mount to. I used the bolt that goes to ground from the battery and I used the bolt that mounts the factory fuse box. Because of this, my steel mount is grounded ( kinda ironic considering I'm mounting a fuse block on it... but I've made sure everything is insulated well. I am also going to fuse the wire right at the battery just incase something goes wrong, I won't kill my battery. I need to go buy an inline fuse tomorrow though...

  19. Sep 7, 2012 at 4:12 PM
    #19
    VATACOEXP

    VATACOEXP Well-Known Member

    Joined:
    Dec 21, 2011
    Member:
    #69148
    Messages:
    2,002
    Gender:
    Male
    First Name:
    Jake
    Hampton, VA
    Vehicle:
    82 Hilux Flatbed.
    Could you tell me what the thread specs are for the bolts for the fender?

  20. Sep 8, 2012 at 7:29 AM
    #20
    santas212

    santas212 [OP] I'm on a boat!

    Joined:
    Nov 7, 2009
    Member:
    #25567
    Messages:
    1,062
    Gender:
    Male
    First Name:
    Steve
    Georgetown, CT
    Vehicle:
    '09 DCLB, TRD Sport, Barcelona Red
    Mostly miscellaneous electronic mods.... -2 spare Electrical fuse blocks hard wired to the battery with a key on relay. -Hard Wired Radar detector over rearview mirror. -2 Dual Whelen Avenger blue LED emergency lights, one on each side of the rearview mirror. -EP911 Blue LED Light Bar & Traffic Advisor, Rear Windows. -4 corner amber strobes in stock lights. -Hardwired RF Scanner with external speaker under center console. -Huskyliner front splash guards -Fireband 2 way radio in center console. -Herculiner painted on hitch and skid plate. -Switch to power one 12v socket when truck is off. -AntiDark LED strip under hood with switch. -Timbren Rubber Springs - Rear -MBRP Offroad Cat-Back with Resonator -Duratrac's -Provisor -Color matched hood bug shield
    i haven't gone down to the hardware store yet to figure it out. I will hopefully next week. I used to work at the local store so i just grab handfuls of bolts and walk out to the parking lot before paying. pop the hood, figure it out, then put back what i don't want and buy what i need.

    Theres a new thread on this here>
    http://www.tacomaworld.com/forum/2n...nting-bracket-bluesea-systems-fuse-block.html

    these brackets should be in by next week some time, then i will be mounting one, selling 9.
