X2 Power/Northstar Group 31 AGM Battery install on CBI Tray (3rd gen, picture heavy)

Discussion in '3rd Gen. Tacomas (2016+)' started by RyanDCLB, May 25, 2021.

  1. May 25, 2021 at 1:01 AM
    #1
    RyanDCLB

    RyanDCLB [OP] Well-Known Member

    Joined:
    Jun 13, 2019
    Member:
    #296235
    Messages:
    2,044
    Gender:
    Male
    Vehicle:
    4/19 DCLBOR
    I recently purchased the X2 Power's Group 31 AGM battery, and here's my experience installing it in the 3rd gen Tacoma. The starter cranks much faster now, but the main reason for doing this was for reserve battery capacity. There are reports of long-term battery use cracking the sheet metal (as seen here), but I decided to take the risk, even though my OEM battery is still under warranty and still holds a charge. I have an idea for a bracket to transfer some of the weight to the frame, but more on that later. :thumbsup:

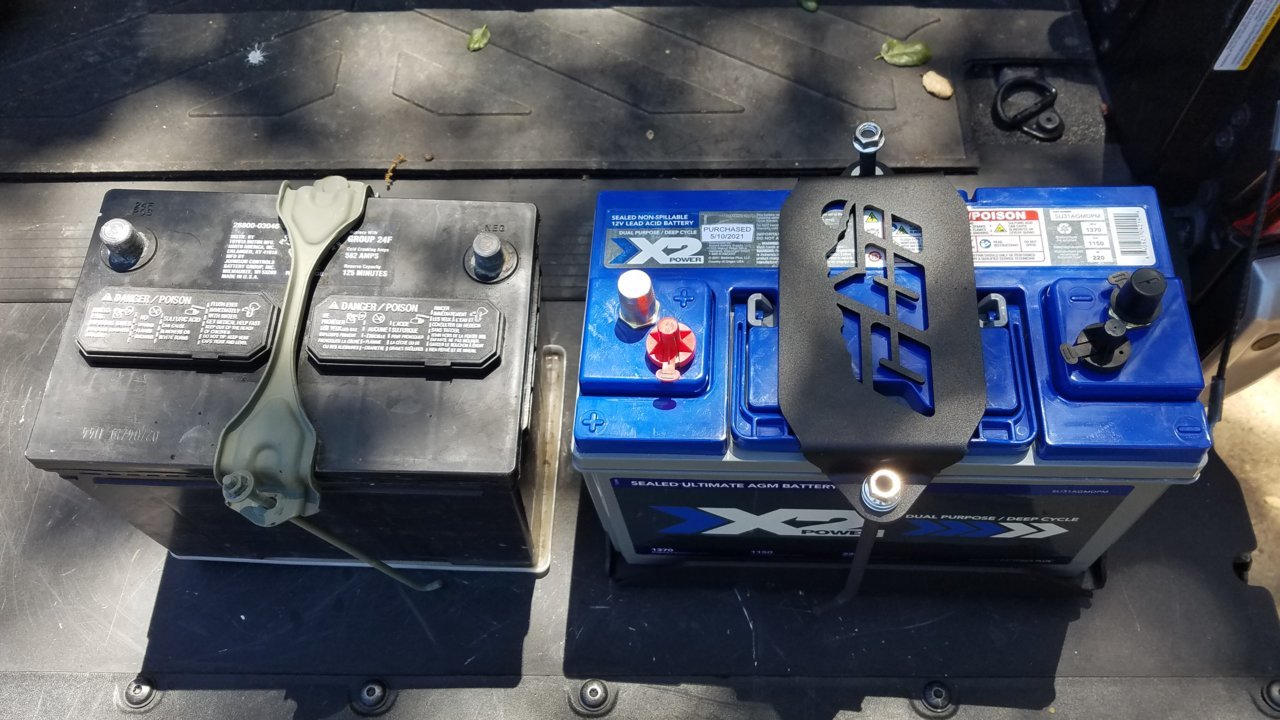

    -Comparison between the two batteries (40.5 lbs):
    • OEM Group 24 Lead Acid Battery: 42 lbs (with OEM tray and battery holddown), 582 Cold Cranking Amps, 125 Minutes Reserve Capacity.
    • X2 Power Group 31 AGM battery: 82.5 lbs (including CBI battery tray and 3/8" J-hooks), 1,150 Cold Cranking Amps, 220 Minutes Reserve Capacity.

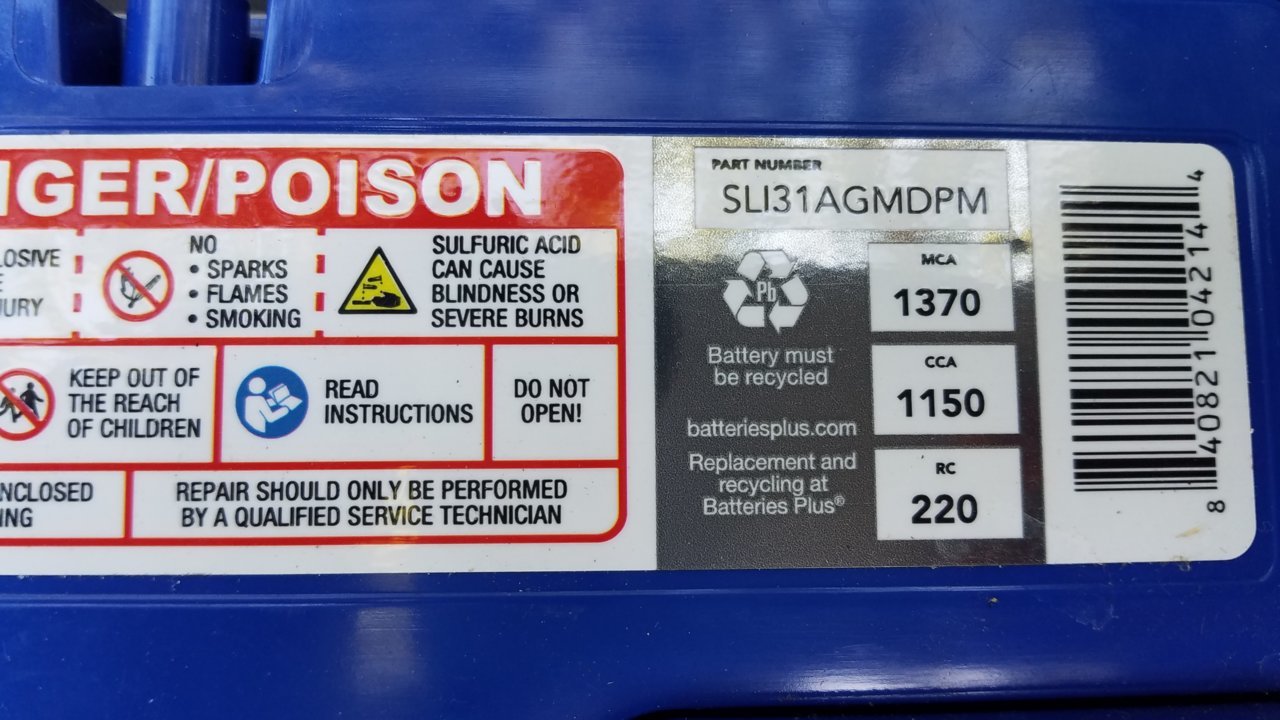

    -Model number:



    -Swap out the filler neck as seen here to make room for the bigger battery. The OEM neck is close to the Group 31 battery, and known to break if the battery hits it while wheeling:

    [​IMG]

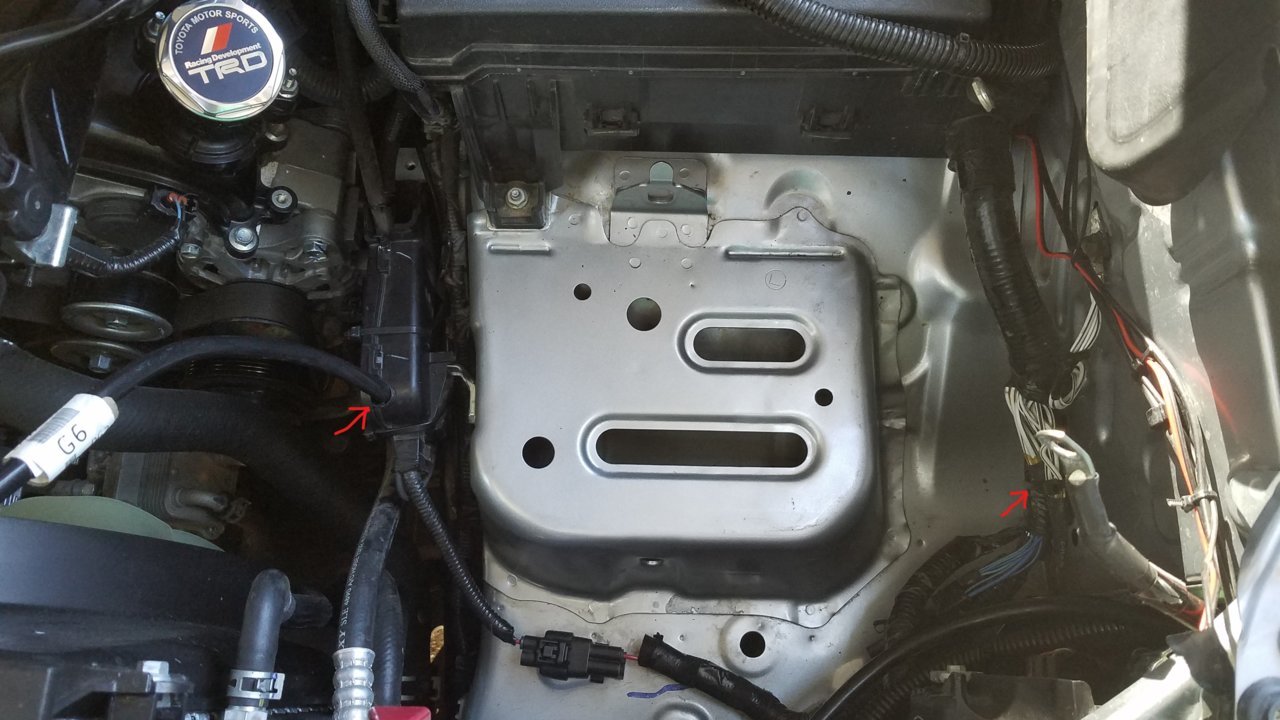

    -Remove the OEM battery and tray and lengthen the positive wire. Open the plastic box that houses the wires by prying the clips to release the lid. Cut any zip ties, and re-route the positive wire behind the negative wire. I used a small round file to cut a hole in the plastic box for the positive wire (see hole at red arrow in picture below). Pull the wire through the hole, and re-clip the lid. Secure with zip ties for good measure. I also reconfigured the white wires on the right side to make room for the CBI tray to clear (see right arrow):

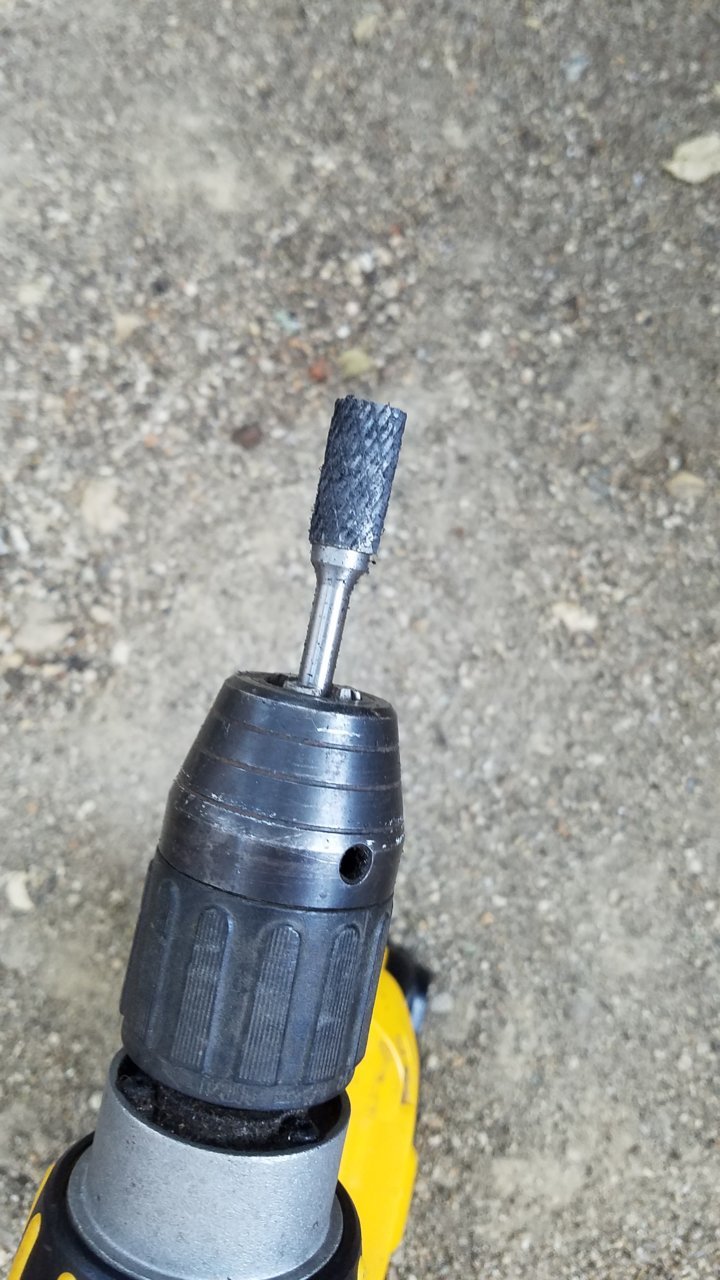

    -Small round file bit for hole:

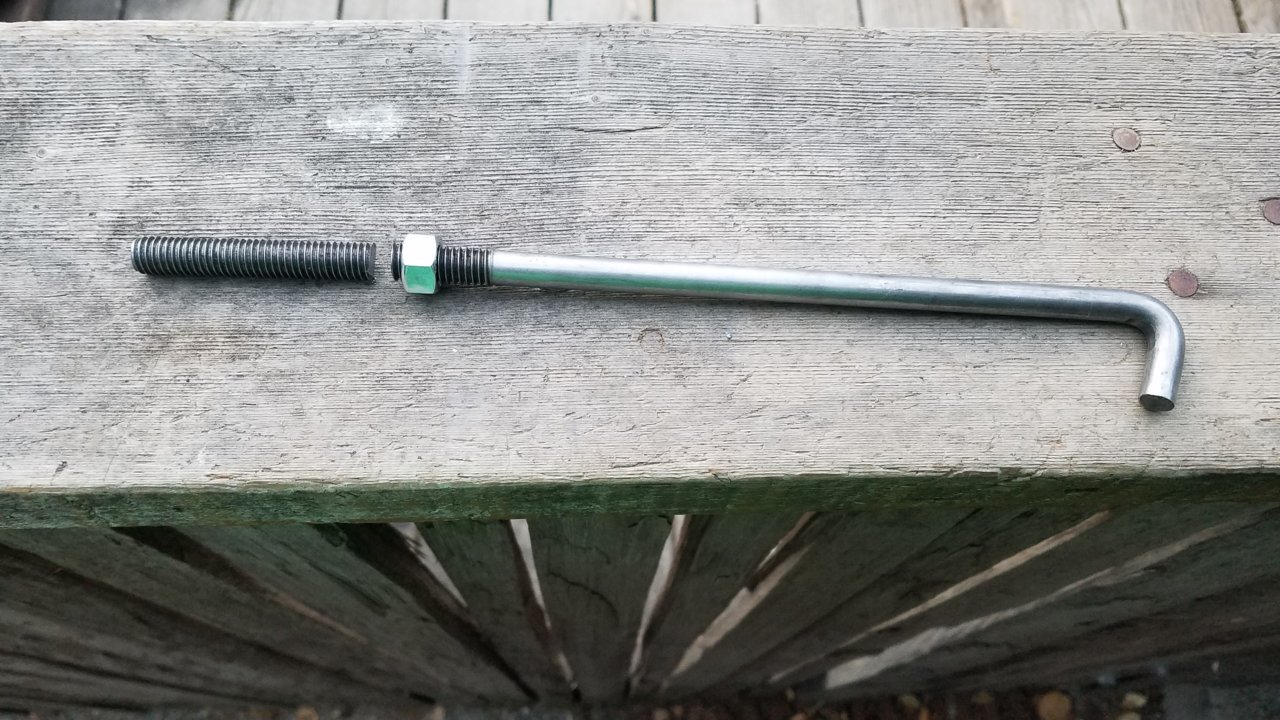

    -Cut the J-hook on the fuse box side of the battery. The J-hook will end up around 7-3/4". Paint the J-hooks to your liking. I used self-etching primer and flat black BBQ paint. Most folks will settle for longer OEM thick J-hooks (10"), but I personally went with "thicker" 3/8" J-hooks, after confirming they work in the slots (ebay link above):

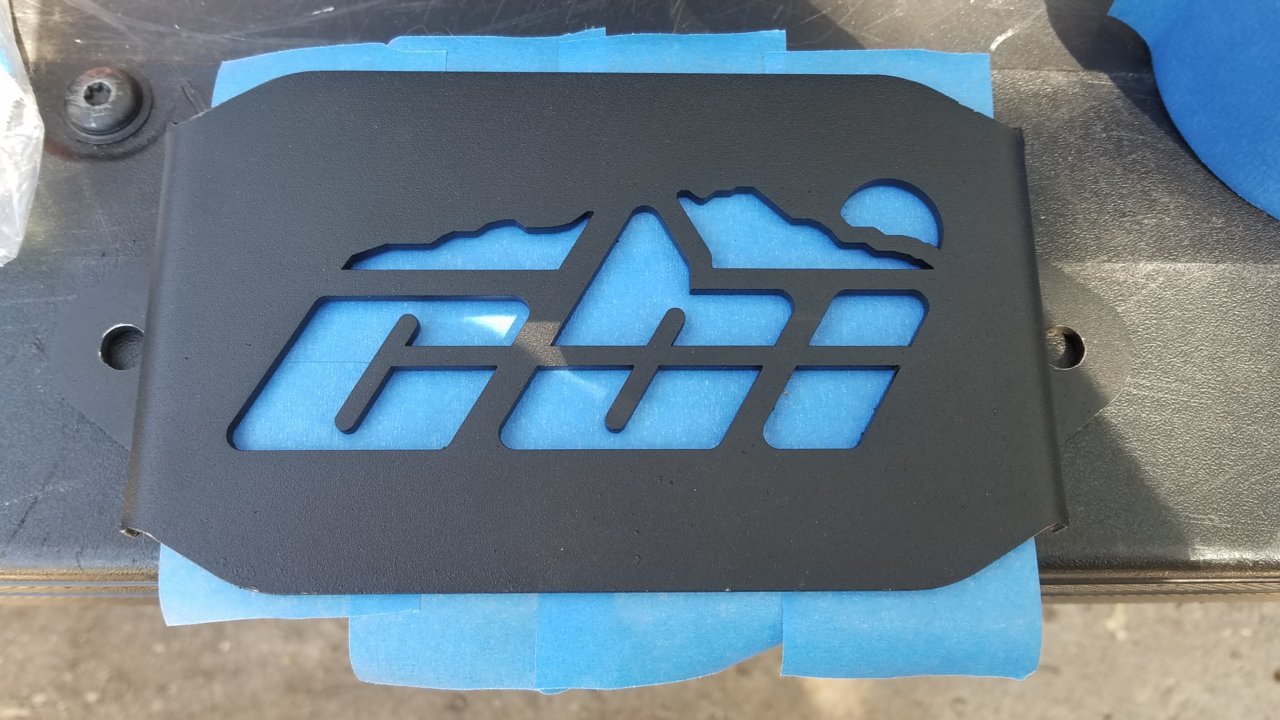

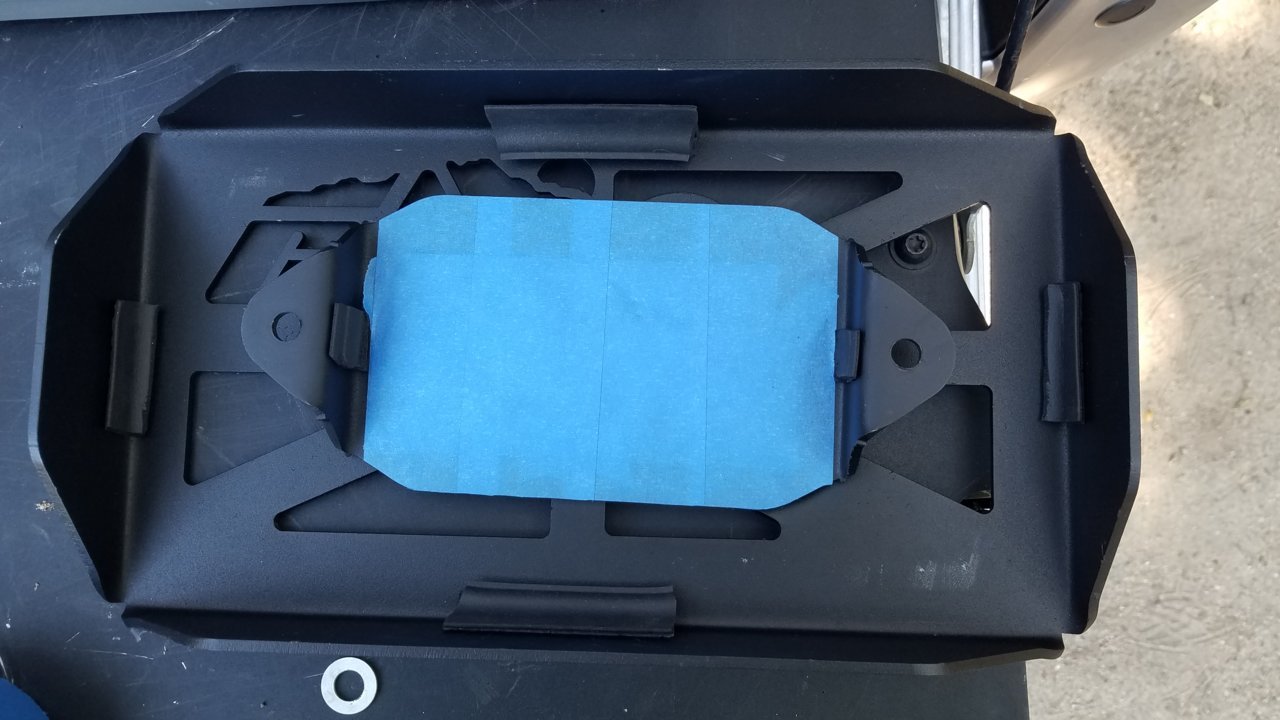

    -Prepare the CBI battery tray. Drill-out the holes in the top "CBI" piece, so the 3/8" J-bolts fit through it. Optional "backing" for the top CBI piece, if you're OCD like me. I used an inner layer of painters tape applied upside down, and then covered it with an additional layer of tape.
    -Add some rubber strips to keep the battery from moving around (again, optional). The rubber strips were leftover from the tailgate seal added to the bottom of the cab doors.

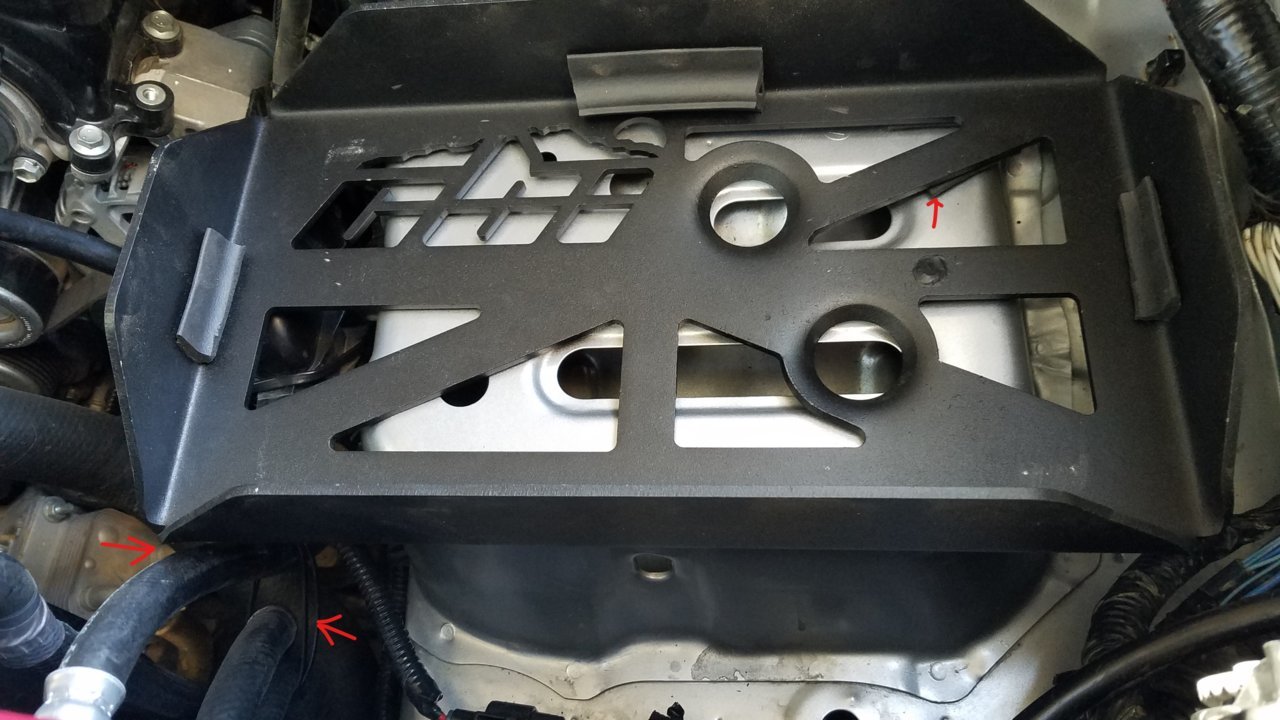

    -The tray wasn't quite level, so I added some rubber keep it from rocking (see "upper-right" red arrow).
    -I zip tied the A/C hoses, so they didn't rub on the CBI tray (see "bottom left" red arrows):








    -Bolt down the battery and re-wire the battery using hand tools, so you don't overtighten the bolts. Check for movement by shifting the battery back and forth, as you don't want any movement. \

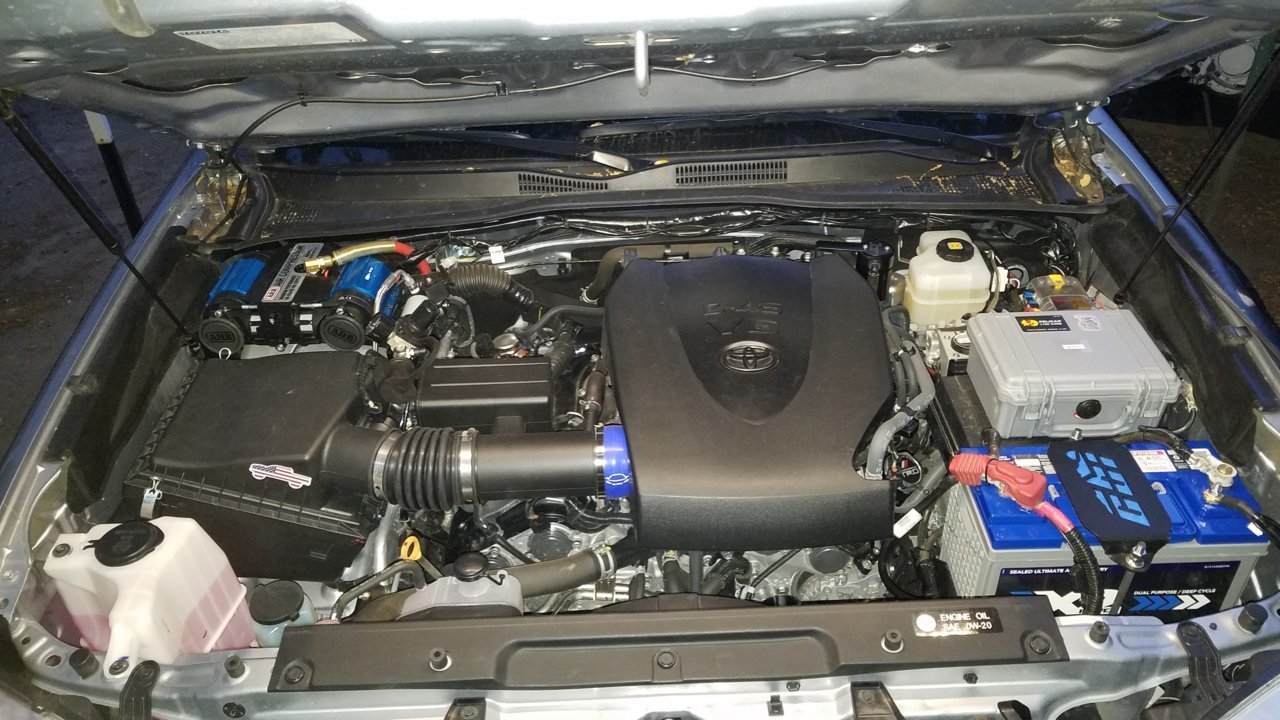

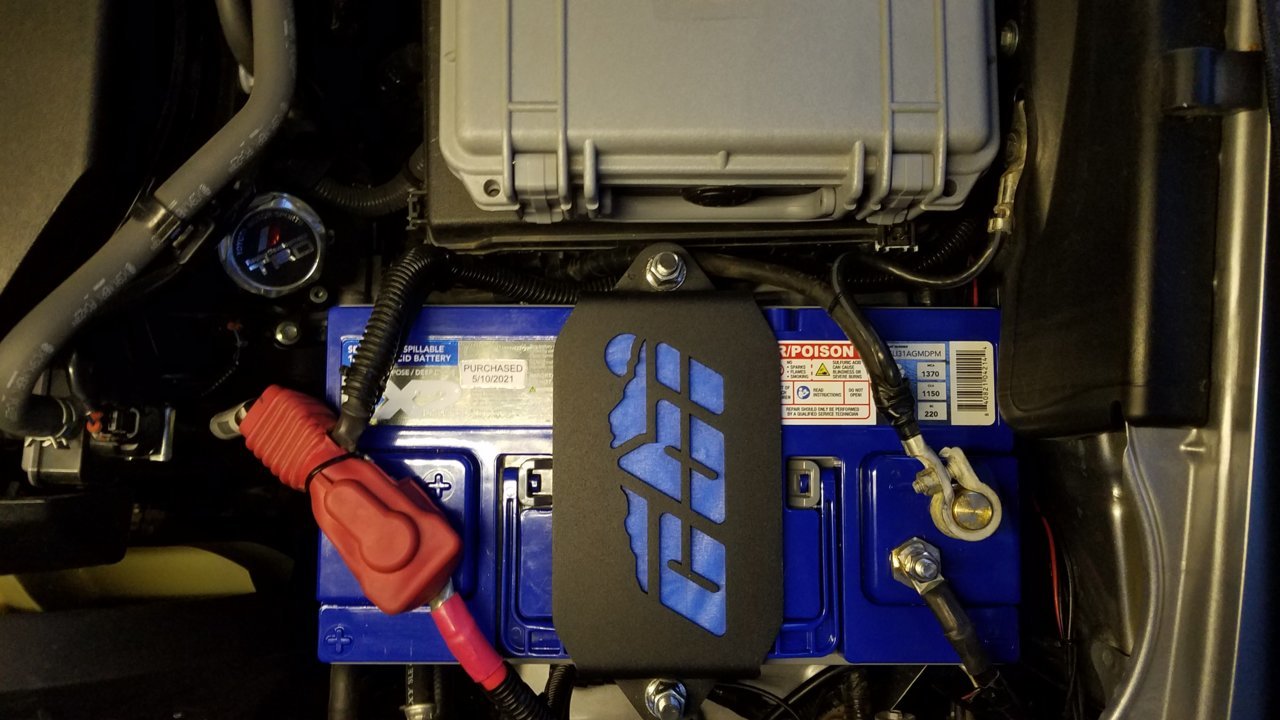

    -Start with the positive wires, and work your way over to the negative wires last. Be sure to keep everything "clean", including, not crossing wires (if possible), no rubbing on anything, zip tie everything for good measure, secure the rubber cap over the positive terminal. See pics below for final product: :thumbsup:

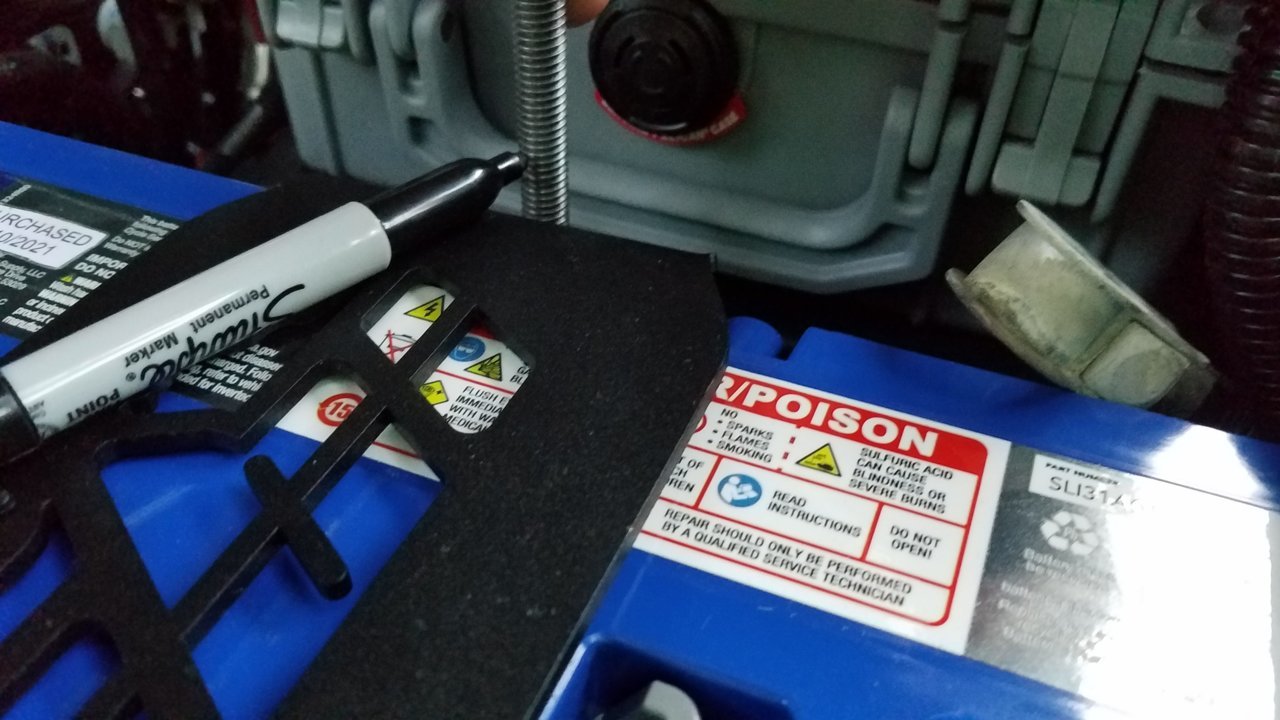

    -Note the purchase date on the battery:

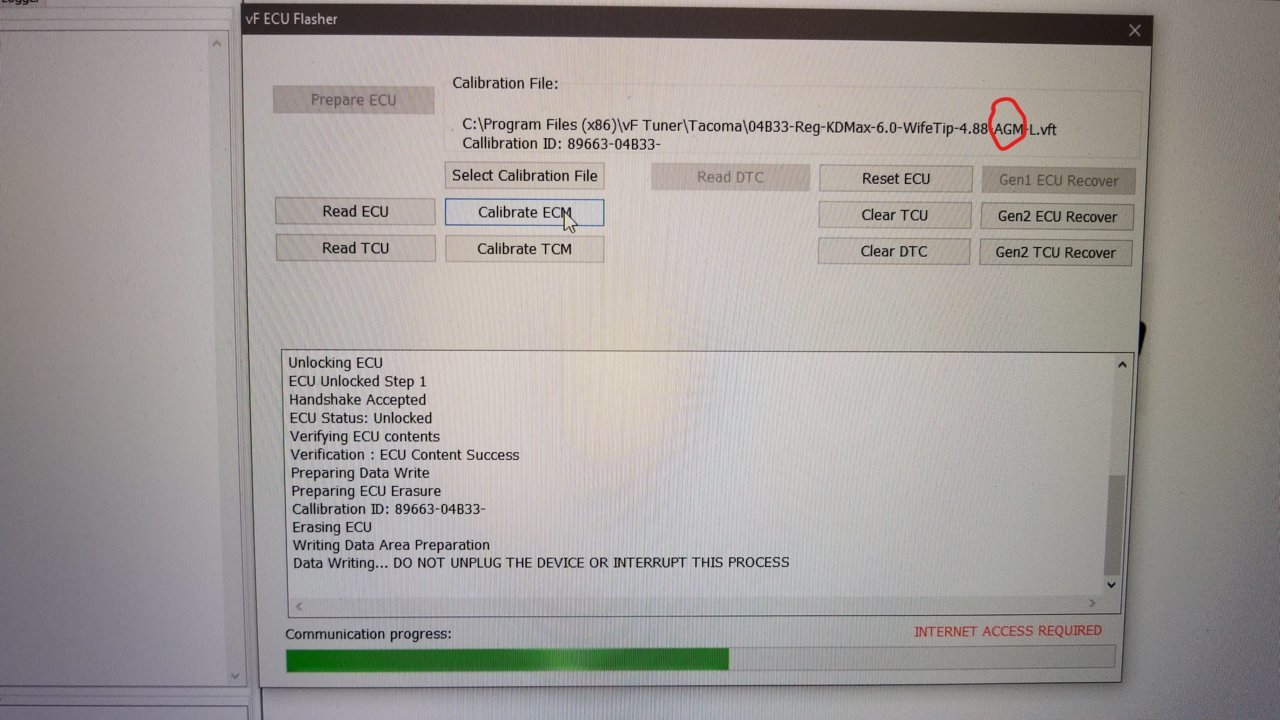

    -Flash the truck with your favorite AGM map using VFTuner software to get the correct alternator charging current of 14.4v-14.8v. Some folks think this step is unnecessary, but I personally flashed my truck with the KDMax 6.0, 4:88, Regular, WifeTip, AGM. :thumbsup: @PapaRee




    • There's a good "battery upgrade" write-up on Trail Tacoma over at: trailtacoma com/2020/05/21/cbi-offroad-battery-tray-install-2nd-3rd-gen-tacoma/. (add the DOT after trailtacoma) :thumbsup:
    • @crashnburn80 's AGM info thread can be found over here.
    • VFTuner AGM charging thread can be found here.


    Thanks for watching! Please bump the thread if you find it useful. :thumbsup:


    Attached Files:

    • tt.jpg
      File size:
      20.9 KB
      Views:
      35
    Last edited: May 26, 2021
    AppTaco, patdeezy, PapaRee and 8 others like this.
  2. May 25, 2021 at 8:49 AM
    #2
    tacomarin

    tacomarin ig: @the_chubby_unicorn_trd

    Joined:
    Sep 15, 2017
    Member:
    #230087
    Messages:
    1,493
    Gender:
    Male
    First Name:
    Steve
    Bay Area
    Vehicle:
    2018 DCLB TRD OR
    Prinsu Cab and Top Rack Tradesman Truck Shell LED Interior, License Plate, and Reverse Lights Huskyliner Weather Beater floor mats Salex Center Console Organizers 35% Front/15% Rear Tint Debadged and De-stickered Anytime Front and Rear Cameras Custom Bed Platform/Drawers 285/75r17 BFG KO2 X-Bull Recovery Boards Front: ADS 2.5, EXT, RR, Clickers Rear: OME Dakar HD, ADS 2.5, EXT, RR, Clickers Stainless steel brake lines (+4 in rear) Wheeler's Offroad Superbumps Front and Rear Wheeler's Offroad U-bolt flip ECGS CV Axle Bushing SCS Stealth 6 17x8.5 wheels, matte dark bronze
    Nice write up! :thumbsup:

    MGMDesertTaco and RyanDCLB [OP] like this.
  3. May 25, 2021 at 9:12 AM
    #3
    Skydvrr

    Skydvrr IG: @kalopsianick

    Joined:
    Sep 13, 2017
    Member:
    #229889
    Messages:
    10,727
    Gender:
    Male
    First Name:
    Nick
    Gilbert, AZ
    Vehicle:
    Black '17 OR
    Sweet! A lotta work for that big boy. What's in the pelican case?


    I'm surprised you OCD isn't freaking out about the sticky side of the tape haha.

    RyanDCLB [OP] likes this.
  4. May 25, 2021 at 9:25 AM
    #4
    RyanDCLB

    RyanDCLB [OP] Well-Known Member

    Joined:
    Jun 13, 2019
    Member:
    #296235
    Messages:
    2,044
    Gender:
    Male
    Vehicle:
    4/19 DCLBOR
    Thank you!

    Pelican case has the air hose, etc. More on it here. :thumbsup:

    [​IMG]



    I applied an inside layer of the painter's tape "upside down" first, so it's not sticky. :wink::D

    Dammit Evie and a2lowvw like this.
  5. May 25, 2021 at 9:34 AM
    #5
    Skydvrr

    Skydvrr IG: @kalopsianick

    Joined:
    Sep 13, 2017
    Member:
    #229889
    Messages:
    10,727
    Gender:
    Male
    First Name:
    Nick
    Gilbert, AZ
    Vehicle:
    Black '17 OR

    Smart feller! That case is super sweet!

    RyanDCLB [OP] likes this.
  6. May 25, 2021 at 10:01 AM
    #6
    RyanDCLB

    RyanDCLB [OP] Well-Known Member

    Joined:
    Jun 13, 2019
    Member:
    #296235
    Messages:
    2,044
    Gender:
    Male
    Vehicle:
    4/19 DCLBOR
    That case is super handy, but it's somewhat tough to open! I'm now searching for a smaller 10' coil-style hose for my rear air chuck attachment that I can keep in the bed cubbyhole :thumbsup:

  7. May 26, 2021 at 2:18 PM
    #7
    daveeasa

    daveeasa Slowest crimp in the West

    Joined:
    May 14, 2020
    Member:
    #328079
    Messages:
    2,296
    Gender:
    Male
    First Name:
    David
    San Diego
    Vehicle:
    2016 OR 4x4 DCSB MGM 6MT
    What were you design goals/intentions for the desire for extra reserve capacity?

    I've thought about this a bit and I think the idea of a completely independent battery/system for camping with solar panel to charge appeals to me more than big battery in the truck itself. And a large alternator has some big appeal too, though if gas prices increase significantly then the thought of using a v6 as a generator starts to seem dumber and dumber.

    I have an optima in mine, without the plastic, it's not light, it's shorter than OEM, and it holds nice and firm. So far so good but I haven't done anything useful with it other than start the truck.

    How much faster is the starter? 1/2 a second?

    RyanDCLB [OP] likes this.
  8. May 27, 2021 at 9:38 AM
    #8
    RyanDCLB

    RyanDCLB [OP] Well-Known Member

    Joined:
    Jun 13, 2019
    Member:
    #296235
    Messages:
    2,044
    Gender:
    Male
    Vehicle:
    4/19 DCLBOR

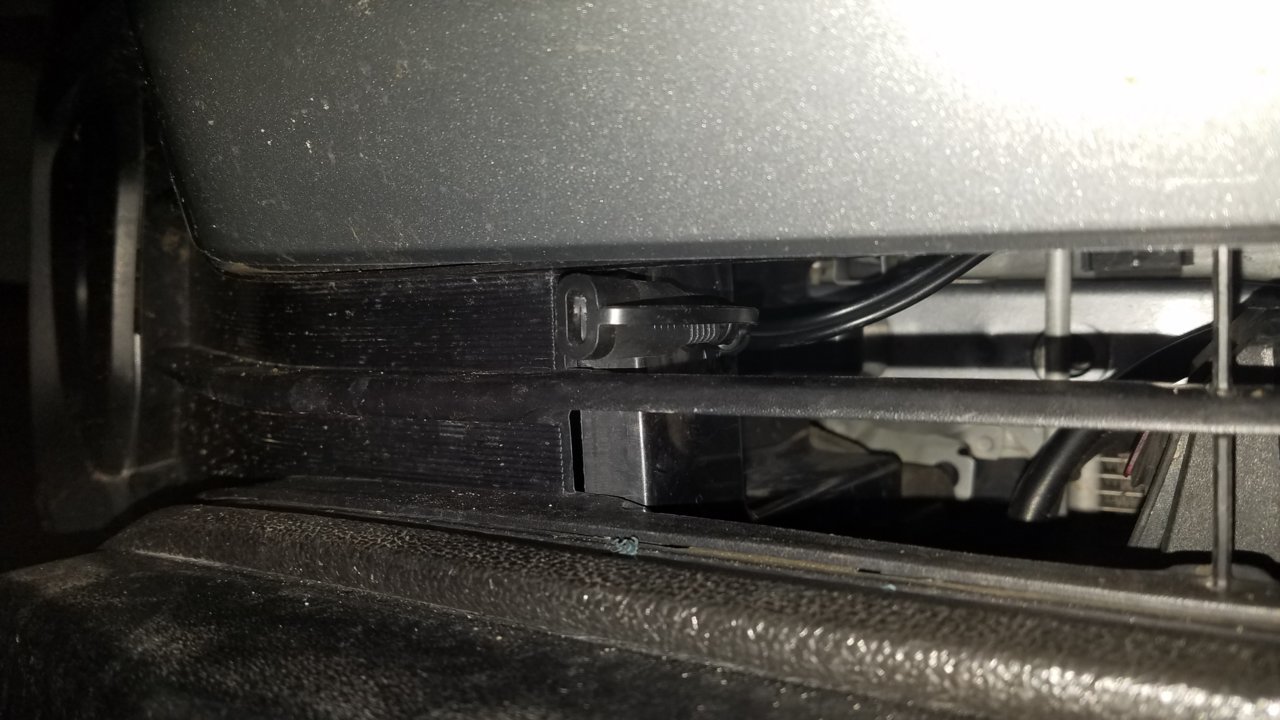

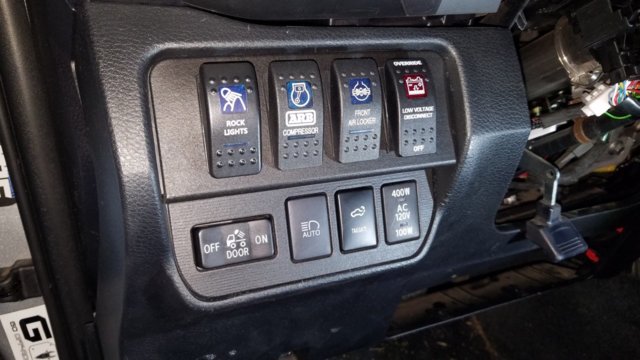

    :thumbsup: With the m-LVD disconnect, it was super easy to trigger the disconnect after using any accessories for a short time. I went with the X2 Group 31 battery, so I can run my lights and radio longer without triggering the LVD. I'd say the starter is at least a1/2" second faster now with the 1,150 CCA. :cheers:
