Front view camera

Discussion in '3rd Gen. Tacomas (2016+)' started by Warrant_ero, Jul 24, 2018.

  1. Jul 24, 2018 at 8:22 PM
    #1
    Warrant_ero

    Warrant_ero [OP] New Member

    Joined:
    Jul 24, 2018
    Member:
    #260478
    Messages:
    2
    Gender:
    Male
    Vehicle:
    2018 Tacoma TRD Sport 4 X 4
    Hello,
    New to the forum, have a 2017 Tundra and bought a TRD Sport Tacoma for my daughter after her RAV4 was totaled after someone rear ended her.

    Looking to install a front view camera in the Tacoma, was thinking about using the beat sonic interface, works well in my tundra. My question is since the radar sensor is in the emblem in the grill does anyone have a recommendation on a camera? Looking to install below the emblem in the grill. Thanks.

    Lucifer1 likes this.
  2. Jul 24, 2018 at 8:24 PM
    #2
    CaptainBart45

    CaptainBart45 Well-Known Member

    Joined:
    Sep 22, 2017
    Member:
    #230761
    Messages:
    994
    Gender:
    Male
    First Name:
    Bart
    Vehicle:
    2017 Tacoma Sport 4x4
    Work in progress...
    I am gonna watch this one. I need a camera up there myself.

    Lucifer1 likes this.
  3. Jul 24, 2018 at 9:08 PM
    #3
    Captqc

    Captqc Well-Known Member

    Joined:
    Mar 5, 2017
    Member:
    #212458
    Messages:
    2,474
    Gender:
    Male
    Tigard, OR
    Vehicle:
    2017 Tacoma 4x4 TRD AC Off Road
  4. Jul 24, 2018 at 9:17 PM
    #4
    kgarrett11

    kgarrett11 Master Yoda

    Joined:
    Jun 10, 2015
    Member:
    #157122
    Messages:
    2,763
    First Name:
    Garrett
    Ridgecrest, CA desert
    Vehicle:
    2015 DCLB
    Jibbs likes this.
  5. Jul 24, 2018 at 9:19 PM
    #5
    Humble Soul

    Humble Soul Well-Known Member

    Joined:
    May 31, 2018
    Member:
    #255123
    Messages:
    65
    First Name:
    kalanz
    Oʻahu, Hawaiʻi
    Vehicle:
    2018 TRD Sport 4x4 Cement
    does he still? Dudes been MIA from that thread for awhile now

  6. Jul 25, 2018 at 5:01 AM
    #6
    okichewy1

    okichewy1 Just chuggin' along!

    Joined:
    Feb 16, 2018
    Member:
    #244589
    Messages:
    524
    Gender:
    Male
    First Name:
    Ken
    Kimberly, Idaho
    Vehicle:
    2018 DCSB TRD Sport Quicksand
    Ultra Flex bed cover, TRD PRO Grille, 32" LED light under grille, Pop n' Lock on tailgate, OCD organizer for center console and glove box, LED bed lights, OEM bed mat, black TACOMA tailgate letters, LED illumination light package, black vinyl overlays for badges, OEM bed step, plasti-dipped front valance and mirrors, 15% tinted windows and sun strip, vinyl letters on dash, vinyl letters on tailgate handle and door sill protectors, TRD Pro shift knob, home-link rear view mirror, mountain vinyl decal above Tacoma on door, FN FX pro wheels, AVS bug deflector, AVS in-channel window vents, front bed rail, red line hood struts, LED interior lights, TRD Pro skid plate, slim line front license plate holder, CaliRaised LED Ditch light brackets with LED lights, Bilstein 5100's, OME 888's, Dakar HD leaf springs, cubby covers, CaliRaised LED Fog light kit,
    Very true. He isn't even updating that thread like he started to do in the beginning.

  7. Jul 25, 2018 at 5:05 AM
    #7
    mwc273

    mwc273 Earning my EAF sticker, one mod at a time.

    Joined:
    May 10, 2013
    Member:
    #103900
    Messages:
    8,855
    Gender:
    Male
    First Name:
    Matt
    Cincinnati-ish
    Vehicle:
    '13 TRD DCLB 4x4 (Trail-Limo)
    dents an' scratches an' stuff
  8. Jul 25, 2018 at 7:03 AM
    #8
    tonered

    tonered tacorider

    Joined:
    Sep 25, 2017
    Member:
    #231055
    Messages:
    8,750
    Gender:
    Male
    First Name:
    tony
    Lynnwood, WA
    Vehicle:
    2017 ACLB Sport 6MT BR
    OVT 2.0 87 Test (Order Number 3809), Functional Skewp, 7r41lbr34k3r knob, Debadge, Dechrome, MeSo switch panel and V4s
  9. Jul 25, 2018 at 7:14 AM
    #9
    BigWhiteTRD

    BigWhiteTRD Official thread killer (only crickets remain)

    Joined:
    May 24, 2017
    Member:
    #219848
    Messages:
    953
    Gender:
    Male
    First Name:
    Ted
    Treasure/Space Coast Florida
    Vehicle:
    2017 AC TRD OR Auto, 4wd w/2 whl Lo mod

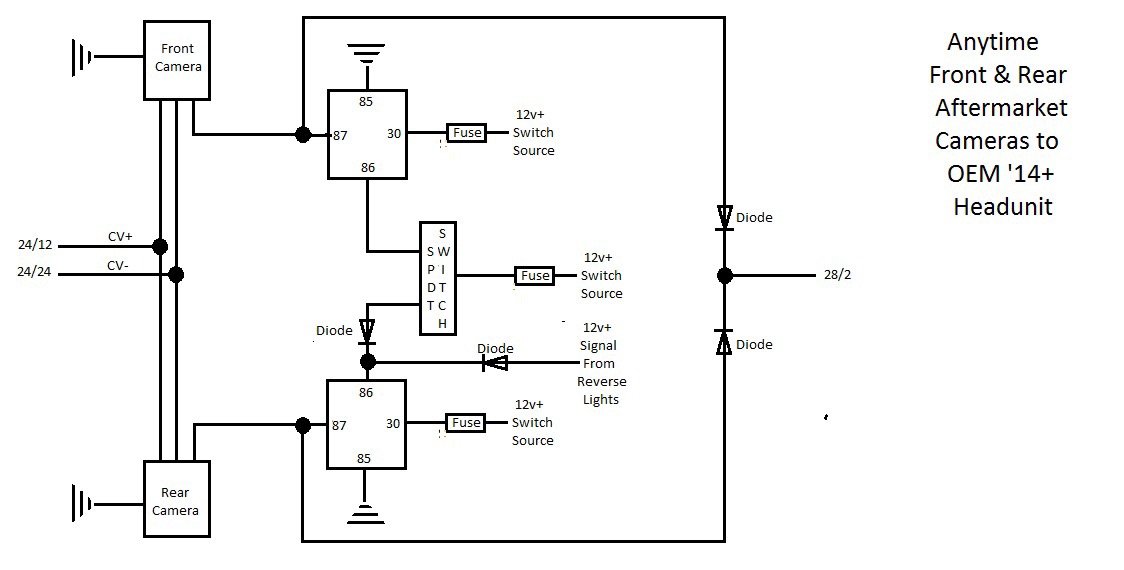

    I like that your schematic uses a SPDT switch, allows for much more creative switch locations. Most schematics people draw for anytime fwd/aft cameras use dpdt, which are a lot biggger.

    However, I just want to ask about a few things, if you have used this schematic on your vehicle as drawn.

    I recall Toyotas rear camera as being 6V, but circuit appears to be applying 12V. Am I wrong about the rear camera voltage? Has that caused issues, or are you using a 12v camera in the rear?

    What happens in reverse with the camera in forward position? Does that cause garbled video? (It appears both cameras are transmitting video in this situation)

  10. Jul 25, 2018 at 7:34 AM
    #10
    tacomarin

    tacomarin ig: @the_chubby_unicorn_trd

    Joined:
    Sep 15, 2017
    Member:
    #230087
    Messages:
    546
    Gender:
    Male
    First Name:
    Steve
    Bay Area
    Vehicle:
    2018 DCLB TRD OR
    Prinsu Cab and Top Rack Tradesman Truck Shell LED Interior, License Plate, and Reverse Lights Huskyliner Weather Beater floor mats Salex Center Console Organizers 35% Front/15% Rear Tint Debadged and De-stickered Anytime Front and Rear Cameras Custom Bed Platform/Drawers 265/75-16 Cooper ST MAXX X-Bull Recovery Boards Front: OME888/Bilstein 5100 with Light Racing SPC UCA Rear: OME Dakar HD/Bilstein 5100, Wheelers 3 Degree Shims Stainless steel brake lines (+4 in rear) Wheeler's Offroad Superbumps Front and Rear Wheeler's Offroad U-bolt flip ECGS CV Axle Bushing SCS Ray 10 16x8" wheels, matte dark bronze
    I used the Beat Sonic kit: https://www.tacomaworld.com/threads/tacomarin’s-chubby-unicorn-build.536001/page-2#post-17729398

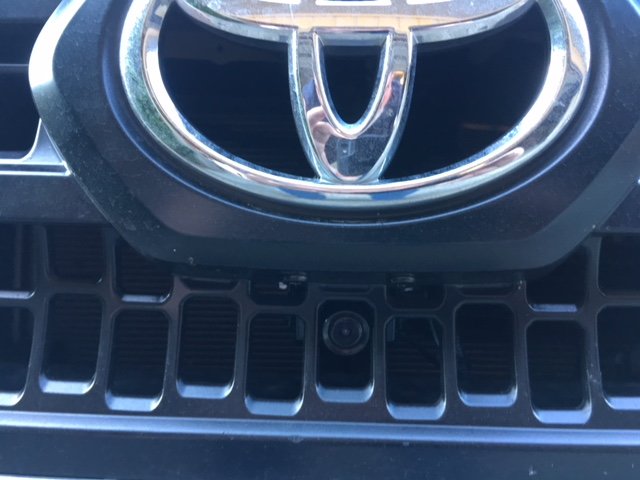

    I used this camera: https://www.amazon.com/gp/product/B017GC4GTA/ref=oh_aui_search_detailpage?ie=UTF8&psc=1. I just mounted it with VHB tape and it has been holding fine.

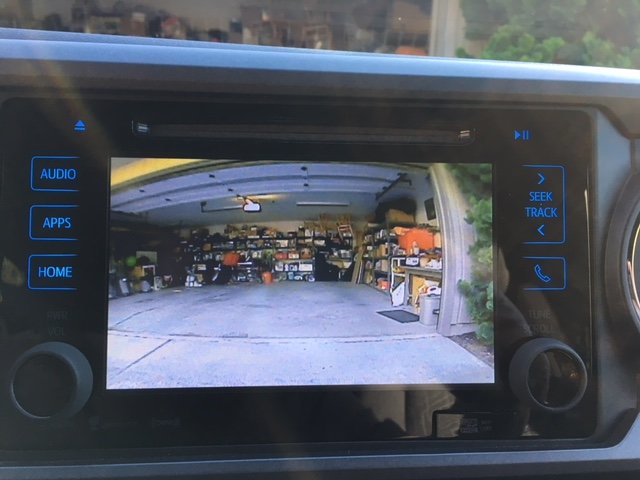

    I've been meaning to do a write-up on it. Actually, I did one, but then didn't post it and it deleted itself. :annoyed:The Beat Sonic kit is nice because it uses one switch for front and any time rear camera. It sucks because the switch only fits in the small switch blanks, and they don't make any other switches. I only had a large switch blank open so the small switch wasn't going to work. So I bought another front-camera push button switch that fit the larger blank, opened up the Beat Sonic switch and put the guts of it inside of a larger switch. Fortunately it works perfectly. The other weird thing with the Beat Sonic kit (maybe all of the kits?) is that if I unhook the battery, the camera no longer works. I have to have the truck on, then make the connections. No idea why, but it works fine when I do that.

  11. Jul 25, 2018 at 7:37 AM
    #11
    Jibbs

    Jibbs "When in doubt, throttle out!"

    Joined:
    Jan 12, 2017
    Member:
    #207363
    Messages:
    4,255
    Gender:
    Male
    First Name:
    Josh
    Cincinnati
    Vehicle:
    2016 TRD OR M/T, 2017 Panigale 959
    35s on a Lease
    I'd strongly recommend @Logistics91 's kit. I can't speak to his apparent lack of activity lately, but the kit he makes is great and he's very responsive. My kit had a jacked relay and he worked with me to triage and send out a new kit on a holiday weekend. It's also pretty easy to wire in.

    https://www.tacomaworld.com/threads/anytime-front-and-rear-camera-mod.542285/

    e: he also 3d prints switch panels for the cubby, and it's 2 separate switches for front and rear. Unsure on why you'd want only 1 switch for two cameras, but to each their own

  12. Jul 25, 2018 at 7:50 AM
    #12
    capequahog

    capequahog Well-Known Member

    Joined:
    Mar 21, 2016
    Member:
    #181901
    Messages:
    142
    Gender:
    Male
    First Name:
    John
    Cape Cod MA
    Vehicle:
    17TacomaDblCabTRDSport
    in the dreaded black
    i need one of these just to drive the sport with the stupid hood scoop :D

  13. Jul 25, 2018 at 8:22 AM
    #13
    Captqc

    Captqc Well-Known Member

    Joined:
    Mar 5, 2017
    Member:
    #212458
    Messages:
    2,474
    Gender:
    Male
    Tigard, OR
    Vehicle:
    2017 Tacoma 4x4 TRD AC Off Road
    First of all I can't take credit for the schematic, that was done by someone here much smarter than me. The rear camera is stock and I haven't had any issues with it. The diodes that you see in the schematic keep everything in order as far as the signals goes (if you don't know how they work, think of them as a one way gate). You can leave the front camera on while driving.

  14. Jul 25, 2018 at 8:42 AM
    #14
    BigWhiteTRD

    BigWhiteTRD Official thread killer (only crickets remain)

    Joined:
    May 24, 2017
    Member:
    #219848
    Messages:
    953
    Gender:
    Male
    First Name:
    Ted
    Treasure/Space Coast Florida
    Vehicle:
    2017 AC TRD OR Auto, 4wd w/2 whl Lo mod
    If you have that exact schematic installed..
    What do you get on the screen with truck in reverse, but switch on front camera at the same time? (Not that it is very likely, but I designed my circuit to stay on the front camera in that situation, and I am not sure what this circuit will do).

    Thanks

  15. Jul 25, 2018 at 8:53 AM
    #15
    Captqc

    Captqc Well-Known Member

    Joined:
    Mar 5, 2017
    Member:
    #212458
    Messages:
    2,474
    Gender:
    Male
    Tigard, OR
    Vehicle:
    2017 Tacoma 4x4 TRD AC Off Road
    I don't recall if I modified the schematic or used as is but mine will show the front camera anytime I have the front camera selected.

  16. Jul 25, 2018 at 9:07 AM
    #16
    Hextall

    Hextall Well-Known Member

    Joined:
    Apr 4, 2017
    Member:
    #215330
    Messages:
    933
    NH
    Vehicle:
    17 Inferno OR DCSB
    I purchased the kits from anytimebackupcamera.com. At the same time I installed a navigation override (tricks the truck inot thinking its stopped so you can access various etune menu items, including some navigation ones like address entry) as everything was apart doing the other stuff.

    People have mentioned you can make something much cheaper than the prices of these kits, and I have no doubt that's true. I just wanted something pretty well put together and with some support (the guy who sells this is pretty responsive to emails, and I think even talked with folks on the phone).

    I used a DPDT switch for my cameras... one side turns on the backup camera, the other side the front one.

    https://www.ebay.com/itm/MARINE-BOA...uck+Car+RV&_from=R40&rt=nc&_trksid=m570.l1313

  17. Jul 25, 2018 at 10:00 AM
    #17
    Snakedoctor

    Snakedoctor Well-Known Member

    Joined:
    Oct 16, 2017
    Member:
    #233188
    Messages:
    472
    First Name:
    Taylor
    Land O Lakes, FL
    Vehicle:
    2017 Tacoma TRD OR
    Mandatory tint, in-channel visors, and 265/75R16 MT Toyos.
    I did the anytimebackupcameramod or whatever his website is. It works well and doesn’t involve cutting into factory harness, which I will NOT do.

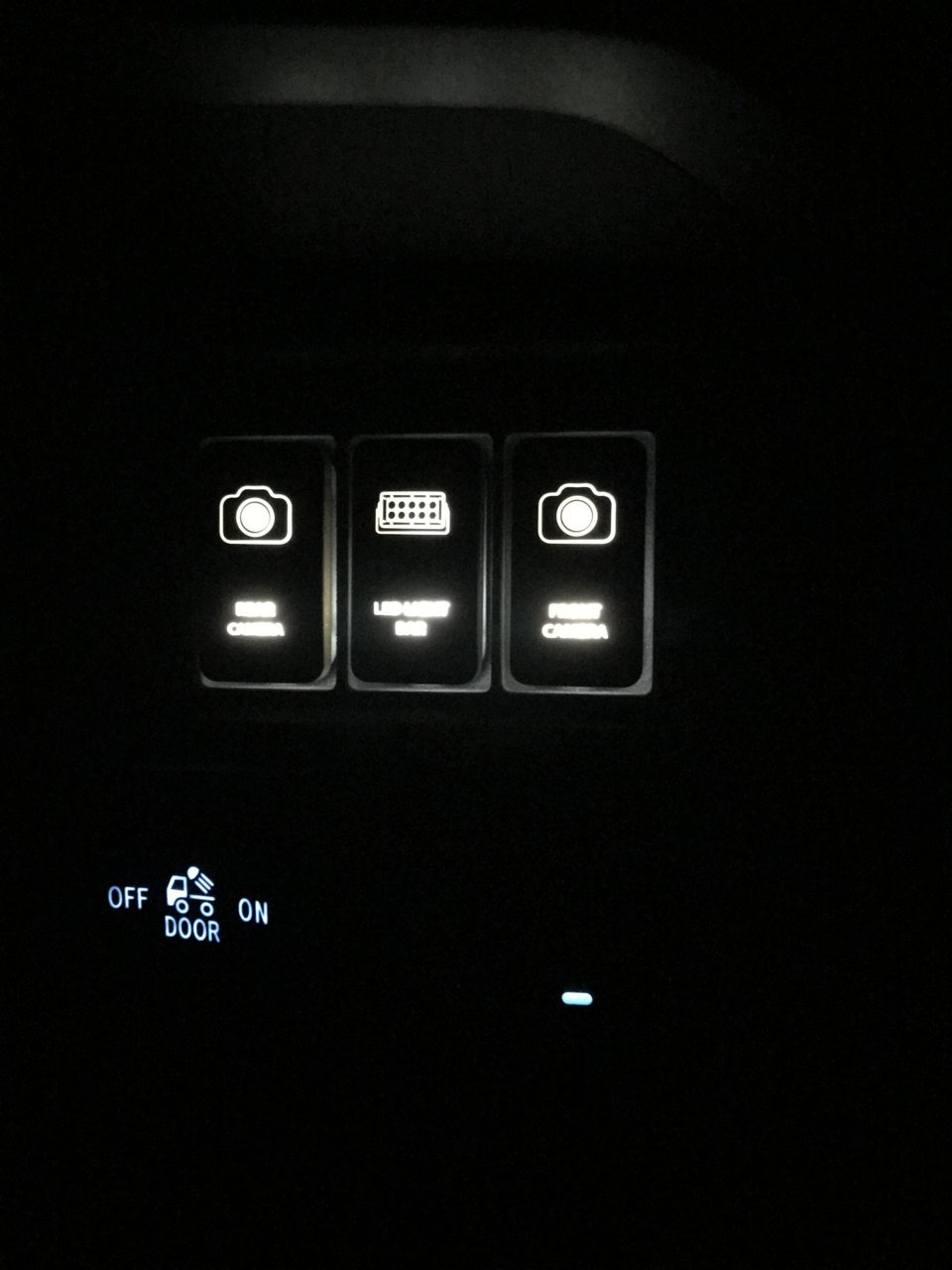

    I went with CH4x4 switches and love them. If I did it again I’d probably go with the newer switch mounts for the middle of the center. Just so I can see them that’s all.

    I picked the camera that @Captqc used but after literally 5 cameras I determined it was not meant for me. I then used a cheap Amazon camera and mounted in one of the holes where the air dam would be. Although I did take it off when I replaced the grill, got lazy and didn’t put back on till about a month ago. The connections were rusty and don’t work so I’ll have to order another and re-run the wiring....


    SilverII likes this.
  18. Jul 26, 2018 at 9:11 PM
    #18
    CaptainBart45

    CaptainBart45 Well-Known Member

    Joined:
    Sep 22, 2017
    Member:
    #230761
    Messages:
    994
    Gender:
    Male
    First Name:
    Bart
    Vehicle:
    2017 Tacoma Sport 4x4
    Work in progress...
    Ya always get a guy complaining that is wallet is too fat.

  19. Jul 30, 2018 at 12:58 PM
    #19
    wink4x4

    wink4x4 Well-Known Member

    Joined:
    Dec 11, 2016
    Member:
    #204638
    Messages:
    84
    Gender:
    Male
    Kentucky
    Vehicle:
    2017 DCSB TRD Offroad
    Would by chance have a pic of the back of your switch after it was wired?

  20. Jul 30, 2018 at 1:12 PM
    #20
    Hextall

    Hextall Well-Known Member

    Joined:
    Apr 4, 2017
    Member:
    #215330
    Messages:
    933
    NH
    Vehicle:
    17 Inferno OR DCSB
    @wink4x4 I don't, but I have a diagram that I asked people to check over. In that diagram is how I wired the switch, but see below.

    https://www.tacomaworld.com/threads...or-front-rear-camera-and-nav-override.531182/

    One thing though, I couldn't run the camera and the relay on the same circuit in series (the image flickered, which I think was the current going through the relay?), but I might have put them in parralel, or had the camera power up when the truck started on separately from this switch. I can try to take a look at how I wired the camera.

    wink4x4 likes this.
