Hobie Fishing Edition

Discussion in '3rd Gen. Tacomas (2016+)' started by silasvirus82, Jun 9, 2017.

  1. Jun 9, 2017 at 7:33 AM
    #1
    silasvirus82

    silasvirus82 [OP] Well-Known Member

    Joined:
    Apr 11, 2017
    Member:
    #215977
    Messages:
    410
    Gender:
    Male
    First Name:
    John
    Chapel Hill, NC
    Vehicle:
    3rd Gen Off-Road DCLB
    Hobie Fishing Edition
    I bought my truck used in March of 2016 and love it. Wanted a Tacoma since high school, almost 20 years ago! Most of my mods are for one purpose, using my truck as live-in camper for extended kayak fishing trips.

    [​IMG]

    [​IMG]

    Louvers since why not. https://www.tacomaworld.com/threads/3rd-gen-hood-louvers.489116/

    [​IMG]

    Water Storage/OBA System:

    For the tanks I used 6" SCH40 PVC and standard plumbing fittings. Each was coated in bedliner for durability, and heat absorption in the case of the upper warm water tank. To mount the interior tank and various other tool mounts seen below, I pulled ideas from this thread https://www.tacomaworld.com/threads/diy-hi-lift-and-tool-mounts.260147/. Each tank holds approximately 8 gallons (16+ total). In action https://www.tacomaworld.com/threads/hobie-fishing-edition.495630/page-4#post-17460410

    OBA system: OBA -> On Board Air Mega Thread & BS. OBA System: VIAIR 400C, OBA Kit, Regulator, Inflation Gun, Ironton Mini Hose Reel, mil-surp 2 GAL alum tank, lots and lots of fittings.

    [​IMG]

    Completed upper tank

    [​IMG]


    Camping Gear:

    Cap Vent Fan
    Cap Vent Fan #2 - Ventline VP-543
    Rhino-Rack Batwing
    NatureMat sleep pad
    TETON Sports Somnia Cot
    CampChef Pro 60x grill w/flat top griddle
    Cleanwaste Toilet
    Custom mesh screen for rear hatch


    Recovery/Tools/Misc:

    Rotopax 2 Gal w/bedside mount
    CYCMIA 800A jump starter
    Adventure Medical Kit - Professional Guide I
    Tool Kit
    ARB Magnum Hand Winch 3500
    Rugcel 10T Snatch Block
    Vault Tow Strap, Tree Saver & Shackles
    DIY Tool Mounts w/tools
    Tooluxe Tire Repair Kit


    Electrical:

    Low Beams: deAutoLED 35W HID Conversion
    High Beams: HIKARI H11 LED
    Fogs: Hella Optilux XY Xenon Yellow
    Reverse: LUYED 1600L LED
    Interior: Full LED bulb replacement
    Rock Lights: MICTUNING LED w/CH4x4 Switch
    Aux Fuse: Pelfreybilt Fuse Panel, Blue Seas 100A Breaker, Blue Seas 12 Blade Fuse Block
    Solar Charging: Renogy 100w 12V folding solar suitcase w/Zamp Solar Sidewall Port
    Cllena Switch Panel
    Hardwire USB port at rearview mirror
    AC outlet + 400W anytime mod
    Inverter anytime mod


    Comms:

    Midland MXT275 MicroMobile 2-Way FRS/GMRS
    Uniden CMX760 CB w/CaliRaised mount and FireStik antenna
    Wilson WA801212F Mobile Booster Kit


    Exterior:

    Bedside Decals
    AVS Low Profile Vent Visors
    VRaptor Louvers
    Custom Car Grills Mesh Grill w/TOYOTA & TRD logos
    ARE Z-Series w/LEDs, 12V, and Yakima rack
    Hobie Aero Rack Pads


    Interior
    :

    Toyota LB bed mat
    Toyota Bed Header rail
    AutofitPro windshield shade
    WeatherTech Mats
    RAM rearview mirror X-Mount
    RFID Electronic Center Console Lock


    Future additions:

    Odyssey PC1400 Group 35
    Kings
    Prinsu


    [​IMG]

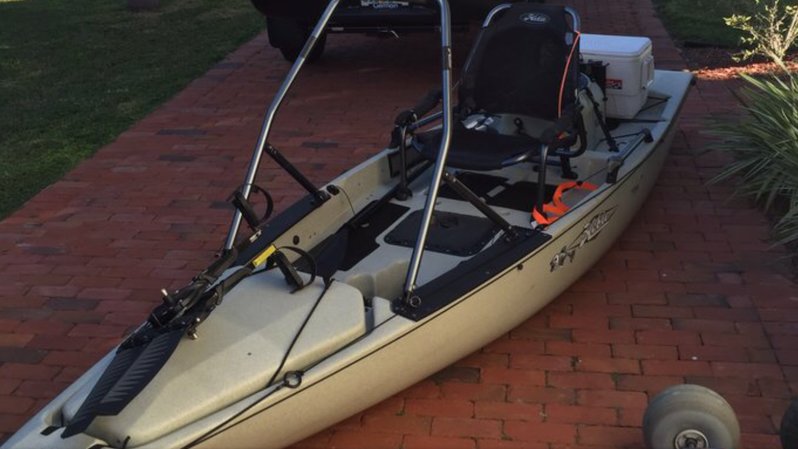

    My boat for those interested.

    Last edited: Jun 20, 2019 at 6:48 AM
  2. Jun 9, 2017 at 7:36 AM
    #2
    ChadsPride

    ChadsPride Tacoma Owner & Enthusiast

    Joined:
    Nov 26, 2014
    Member:
    #143119
    Messages:
    112,515
    Vehicle:
    Sponsored by TacomaWorld.com
    Very nice!!! :headbang:

  3. Jun 9, 2017 at 8:05 AM
    #3
    skifree

    skifree Member

    Joined:
    May 30, 2017
    Member:
    #220242
    Messages:
    10
    Gender:
    Male
    Connecticut
    Vehicle:
    2017 Tacoma trd sport
    Working on that part
    I love it!
    I have a hobie and kayak fish that's the reason why I bought my 2017 Tacoma to set it up for fishing. The weekend I bought my truck I won my first derby
    Good luck tight lines

  4. Jun 9, 2017 at 8:29 AM
    #4
    silasvirus82

    silasvirus82 [OP] Well-Known Member

    Joined:
    Apr 11, 2017
    Member:
    #215977
    Messages:
    410
    Gender:
    Male
    First Name:
    John
    Chapel Hill, NC
    Vehicle:
    3rd Gen Off-Road DCLB
    Hobie Fishing Edition
    What model Hobie do you have? If you didn't buy a long bed, go get a bed extender. I still have mine that I used with a previous truck, but I don't need it with the extra 1' now. Being able to keep your boat fully rigged and just slide it out ready to fish is such a time saver. Not long ago I had an Evo with a roof rack and the loading/unloading ritual got old. I only use my current roof rack when transporting multiple kayaks now.

    ChadsPride likes this.
  5. Jun 9, 2017 at 9:49 AM
    #5
    Broccoli

    Broccoli Well-Known Member

    Joined:
    Oct 16, 2015
    Member:
    #166833
    Messages:
    2,111
    Gender:
    Male
    Airdrie Alberta
    Vehicle:
    2016 trd sport blazing blue,
    Nice setup op, i personally opted for the waterport. But i see where you are going with this. You can buy "bushings" in abs that will have a 3-4" hub depending on the pipe size you chose and a 3/4" thread for a hosebibb. Then you will just have to use transition glue. Between pvc/abs.

    ChadsPride likes this.
  6. Jun 9, 2017 at 9:52 AM
    #6
    Broccoli

    Broccoli Well-Known Member

    Joined:
    Oct 16, 2015
    Member:
    #166833
    Messages:
    2,111
    Gender:
    Male
    Airdrie Alberta
    Vehicle:
    2016 trd sport blazing blue,
    Something like this, may have to nest a couple bushings if you cannot find the correct size. Plus these can be glued in a twye fitting if you want another bibb facing down in the centre.


    ChadsPride likes this.
  7. Jun 9, 2017 at 10:12 AM
    #7
    silasvirus82

    silasvirus82 [OP] Well-Known Member

    Joined:
    Apr 11, 2017
    Member:
    #215977
    Messages:
    410
    Gender:
    Male
    First Name:
    John
    Chapel Hill, NC
    Vehicle:
    3rd Gen Off-Road DCLB
    Hobie Fishing Edition
    No need for using ABS, I have found every piece I need in PVC. I have 1/2x1/4" bushing for the air valves, 1x1/2" bushings for the hose bibbs, and 1-7/8x1-1/2 bushings for the filler caps. My only concern is how to seal off the larger caps that will be screwed on/off continuously. As I mentioned before, Vaseline was one suggestion but I think joint compound is going to be a better bet.

    I would have bought the WaterPort too, but like the RinseKit the capacity was less than I thought I needed.

    ChadsPride likes this.
  8. Jun 9, 2017 at 10:14 AM
    #8
    skifree

    skifree Member

    Joined:
    May 30, 2017
    Member:
    #220242
    Messages:
    10
    Gender:
    Male
    Connecticut
    Vehicle:
    2017 Tacoma trd sport
    Working on that part
    I have an adventure it's 16ft.
    Just got the cap mounted this week.
    Rack to be mounted this weekend. Striper fishing my next week.

    silasvirus82 [OP] and ChadsPride like this.
  9. Jun 9, 2017 at 10:24 AM
    #9
    silasvirus82

    silasvirus82 [OP] Well-Known Member

    Joined:
    Apr 11, 2017
    Member:
    #215977
    Messages:
    410
    Gender:
    Male
    First Name:
    John
    Chapel Hill, NC
    Vehicle:
    3rd Gen Off-Road DCLB
    Hobie Fishing Edition
    Super jealous, if I had another boat it would be a TI. I saw a few of those at the JBay tournament, they can really fly! I'm surprised you're not towing with a 16' boat, but if you live in a city I can understand your choice.

    I mostly pursue stripers in my home waters on the upper Chesapeake, but I also have perch days in the dead of summer. This year a snakehead is on my bucketlist as well.

    Here's a couple flounder I caught two weeks ago in NY.

    [​IMG]

  10. Jun 9, 2017 at 10:38 AM
    #10
    barcelona7568

    barcelona7568 Well-Known Member

    Joined:
    Jun 3, 2016
    Member:
    #188665
    Messages:
    466
    Gender:
    Male
    Denver
    Vehicle:
    16 DCLB, Stock
    My advice to you would be to not pressurize sch 40 pvc with air. That is a violent explosion.

    Mnmlod and ChadsPride like this.
  11. Jun 9, 2017 at 10:45 AM
    #11
    skifree

    skifree Member

    Joined:
    May 30, 2017
    Member:
    #220242
    Messages:
    10
    Gender:
    Male
    Connecticut
    Vehicle:
    2017 Tacoma trd sport
    Working on that part
    Nice catch
    I fish salt fish Rhode Island and Martha vineyard. Both places towing is not an option due to the places I go. I had a f350 and rack was way higher.
    Tacoma way lower it's gonna be so nice.

    ChadsPride and silasvirus82 [OP] like this.
  12. Jun 9, 2017 at 10:45 AM
    #12
    silasvirus82

    silasvirus82 [OP] Well-Known Member

    Joined:
    Apr 11, 2017
    Member:
    #215977
    Messages:
    410
    Gender:
    Male
    First Name:
    John
    Chapel Hill, NC
    Vehicle:
    3rd Gen Off-Road DCLB
    Hobie Fishing Edition
    All SCH40 has a pressure rating. 6" is safely rated for around 180 psi, but failure is closer to 750 psi. How do you think they pressure test sewer systems. 30-40 psi should be more than enough to do what I want.

    Last edited: Apr 20, 2018
    Mnmlod and ChadsPride like this.
  13. Jun 9, 2017 at 10:47 AM
    #13
    radclerk1

    radclerk1 Well-Known Member

    Joined:
    Jan 16, 2016
    Member:
    #175092
    Messages:
    225
    Gender:
    Male
    First Name:
    Vic
    Vehicle:
    2017 TRD OFF-ROAD 6spd MT
    None
    Got me a IMG_0745.jpg pro angler. Love it! Hobies are fantastic!IMG_2590.jpg

  14. Jun 9, 2017 at 10:51 AM
    #14
    silasvirus82

    silasvirus82 [OP] Well-Known Member

    Joined:
    Apr 11, 2017
    Member:
    #215977
    Messages:
    410
    Gender:
    Male
    First Name:
    John
    Chapel Hill, NC
    Vehicle:
    3rd Gen Off-Road DCLB
    Hobie Fishing Edition
    Nice snook. I've caught a few of those on various trips to Florida. One of the best eating fish I my opinion and fun as hell on a fly.

    ChadsPride likes this.
  15. Jun 9, 2017 at 10:52 AM
    #15
    radclerk1

    radclerk1 Well-Known Member

    Joined:
    Jan 16, 2016
    Member:
    #175092
    Messages:
    225
    Gender:
    Male
    First Name:
    Vic
    Vehicle:
    2017 TRD OFF-ROAD 6spd MT
    None
    Thanks man, best eating saltwater fish I've come across. Love mangrove snapper as well.

    ChadsPride likes this.
  16. Jun 9, 2017 at 3:30 PM
    #16
    PoppinCorks

    PoppinCorks Well-Known Member

    Joined:
    May 31, 2017
    Member:
    #220395
    Messages:
    92
    Gender:
    Male
    Hoping to get my tacoma soon. I have a hobie and fish lots of saltwater and a little fresh down here in Louisiana

    Black Taco and ChadsPride like this.
  17. Jun 15, 2017 at 6:32 PM
    #17
    PoppinCorks

    PoppinCorks Well-Known Member

    Joined:
    May 31, 2017
    Member:
    #220395
    Messages:
    92
    Gender:
    Male

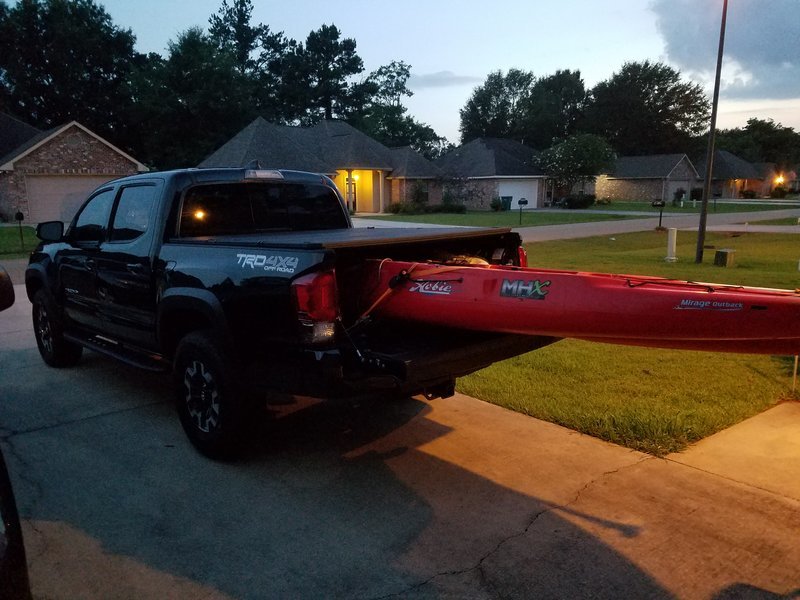

    20170615_202636.jpg Less than six hours after buying, hobie loaded and ready for tomorrow!

    LDR, Mnmlod, Black Taco and 5 others like this.
  18. Jun 15, 2017 at 7:06 PM
    #18
    m603holden

    m603holden @Koditten Pirate Radio member #063

    Joined:
    Oct 18, 2014
    Member:
    #140581
    Messages:
    8,100
    Gender:
    Male
    First Name:
    Marteeen
    New England
    Vehicle:
    2017 Tacoma DCSB OR MT
    Lots of sail boat fuel
    The fishing thread needs a sub thread of fishing rigs/ kayak fishing. Sweet setup!

    ndubl8 and silasvirus82 [OP] like this.
  19. Jun 15, 2017 at 7:53 PM
    #19
    melikeymy beer

    melikeymy beer Who buys a truck for the fukin grill?

    Joined:
    Oct 6, 2015
    Member:
    #165964
    Messages:
    6,146
    Vehicle:
    2016 Tacoooma
  20. Jun 15, 2017 at 8:02 PM
    #20
    melikeymy beer

    melikeymy beer Who buys a truck for the fukin grill?

    Joined:
    Oct 6, 2015
    Member:
    #165964
    Messages:
    6,146
    Vehicle:
    2016 Tacoooma
    I've been thinking about adding rod holders for transport. You guys use large diameter PVC and attach to the rail tie downs? I have the Feel Free 11.5


    Flytmech likes this.
