AaronArf's 2012 DCSB Build

Discussion in '2nd Gen. Builds' started by AaronArf, Apr 6, 2012.

  1. Apr 6, 2012 at 7:53 AM
    #1
    AaronArf

    AaronArf [OP] Well-Known Member

    Joined:
    Nov 12, 2011
    Member:
    #66926
    Messages:
    3,333
    Gender:
    Male
    First Name:
    Aaron
    Chesapeake, VA
    Vehicle:
    2012 DCSB LT 4x4
    Total Chaos +2 Long Travel. Check the build thread!
    2012 4x4 Double Cab Short bed TRD Sport upgrade package w/ ENTUNE

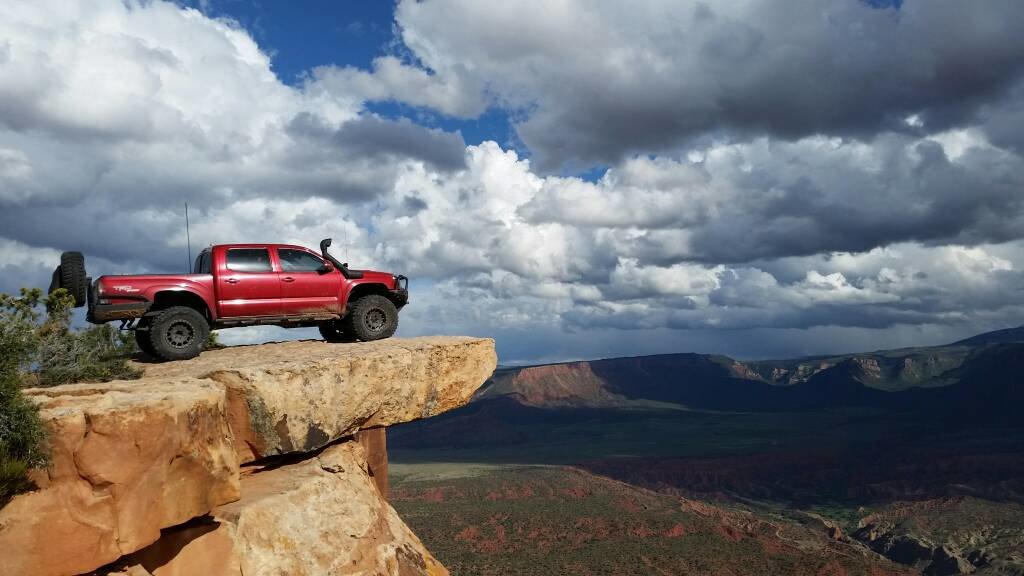

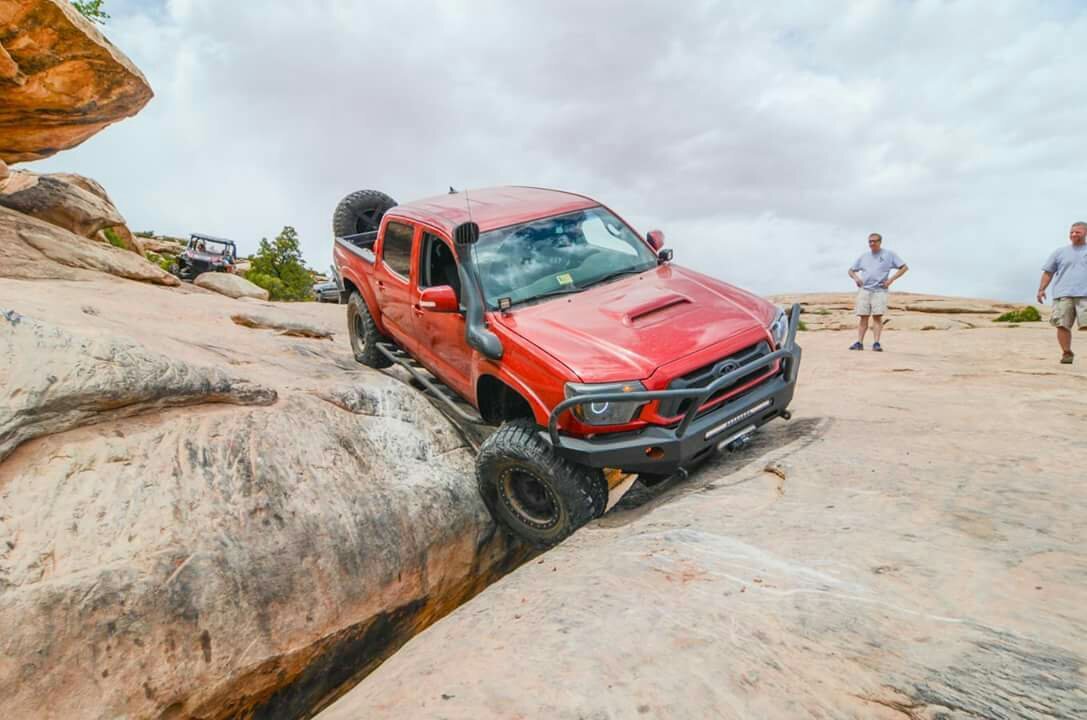

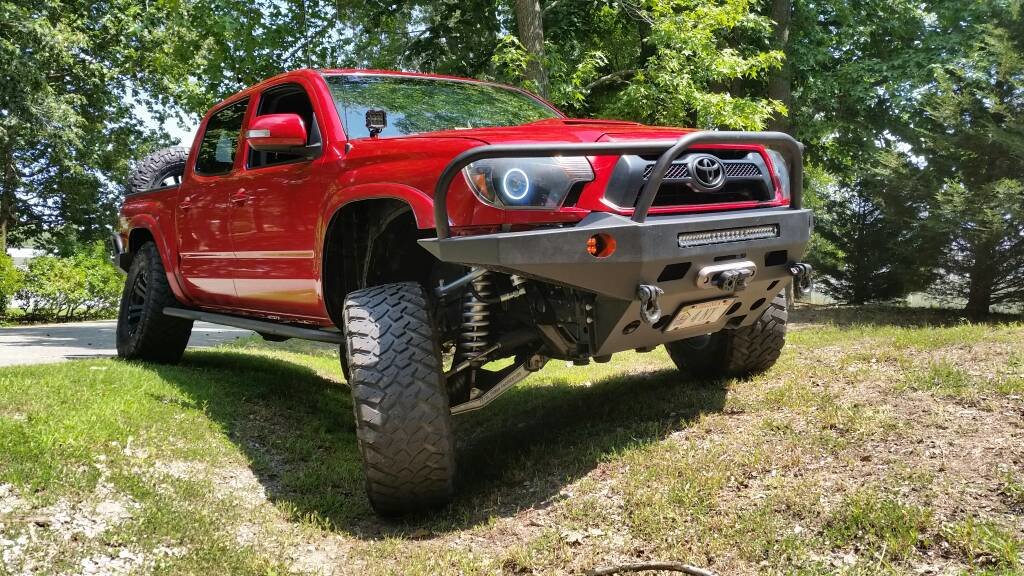

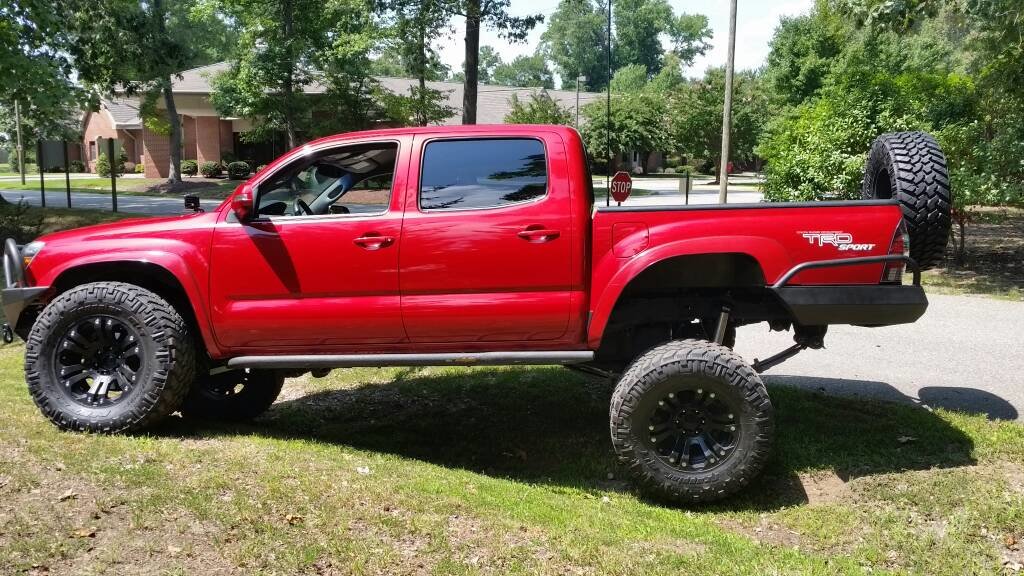

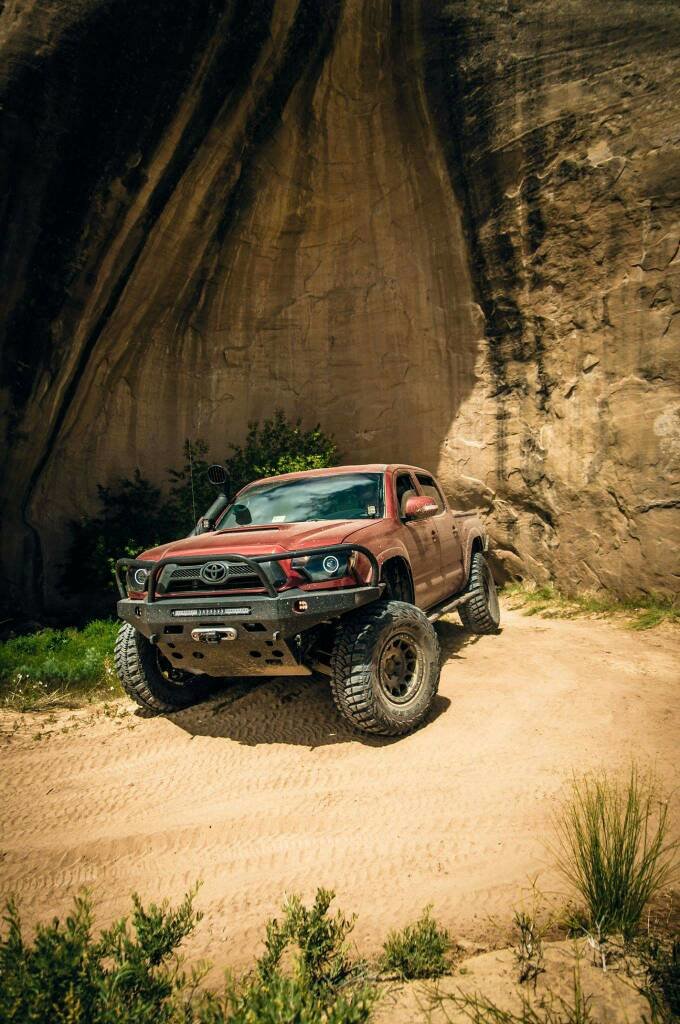

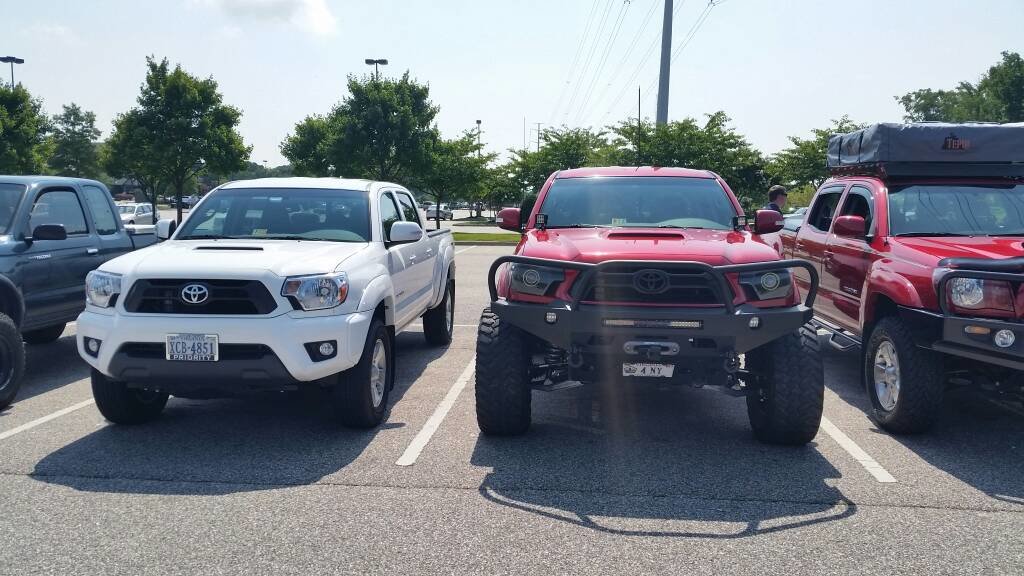

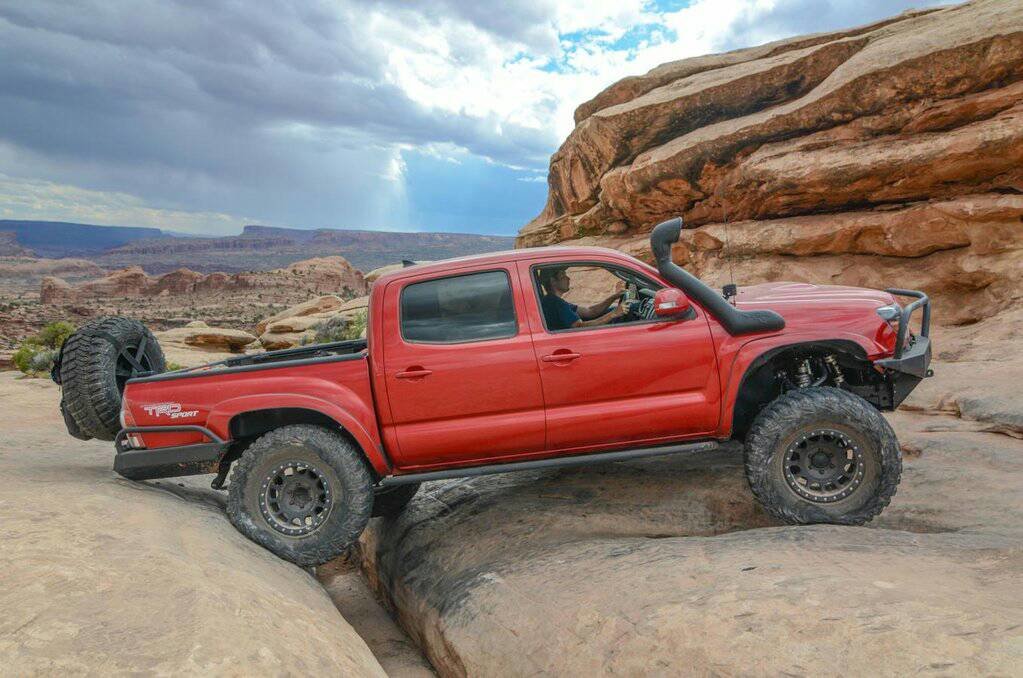

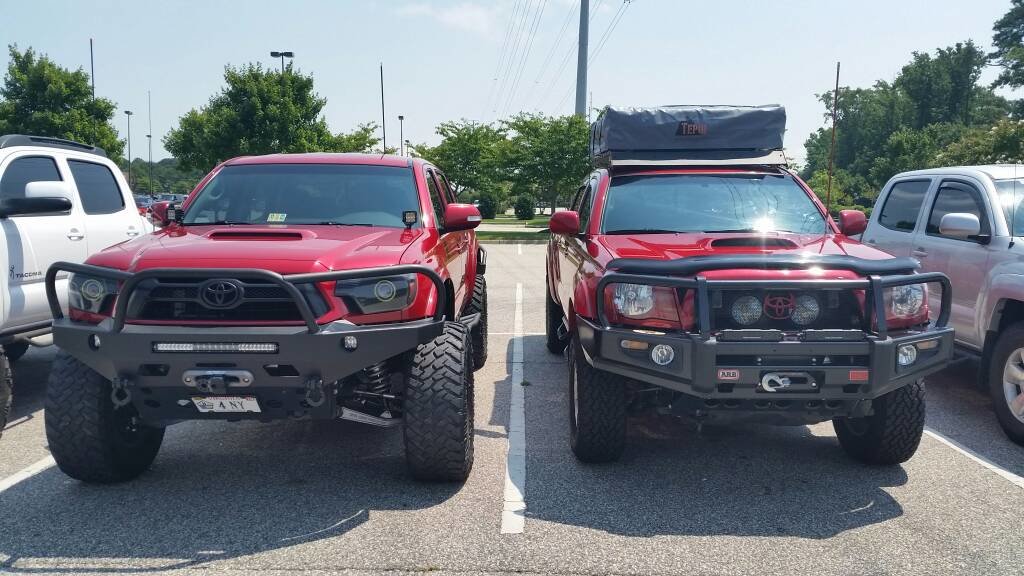

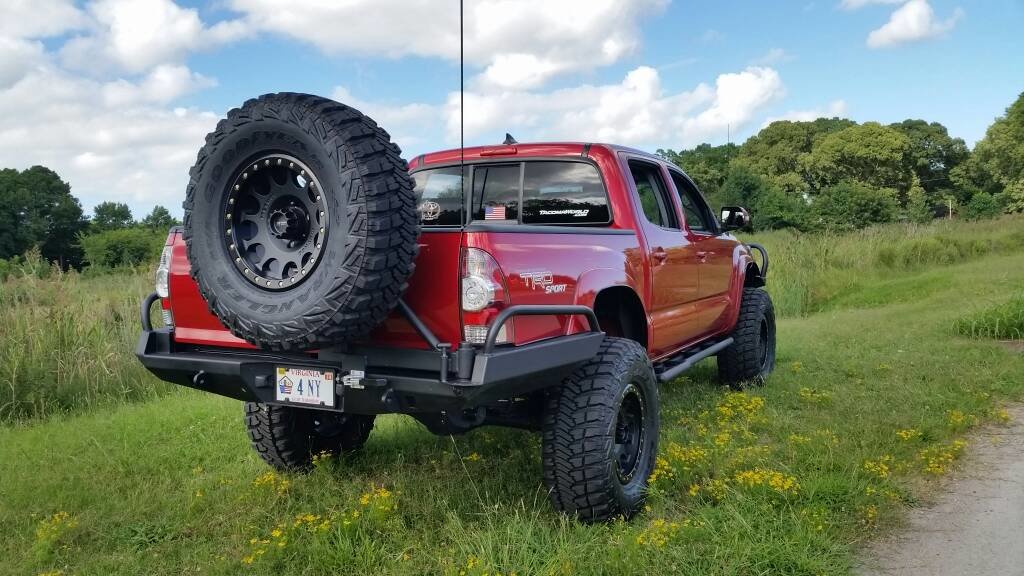

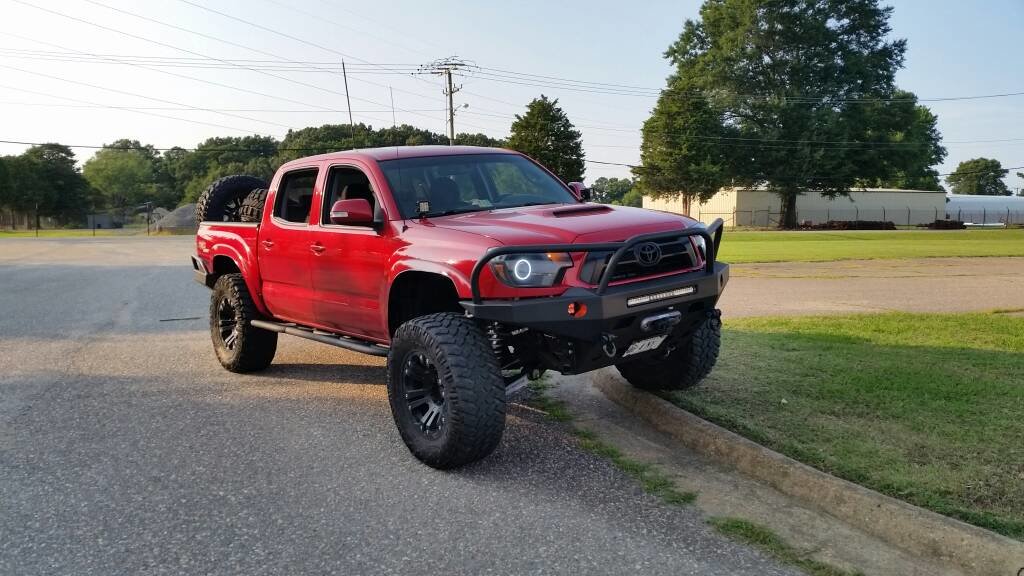

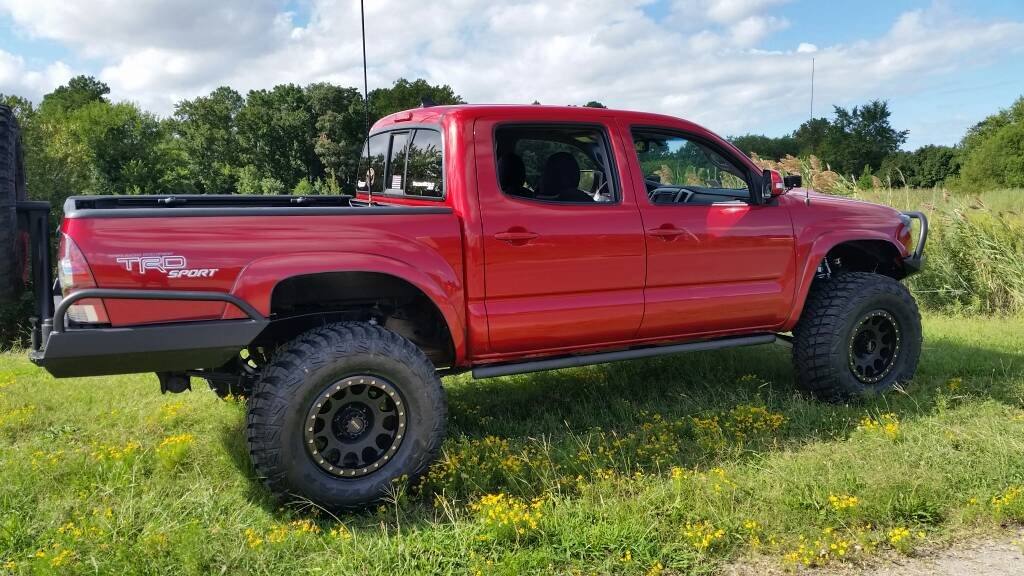

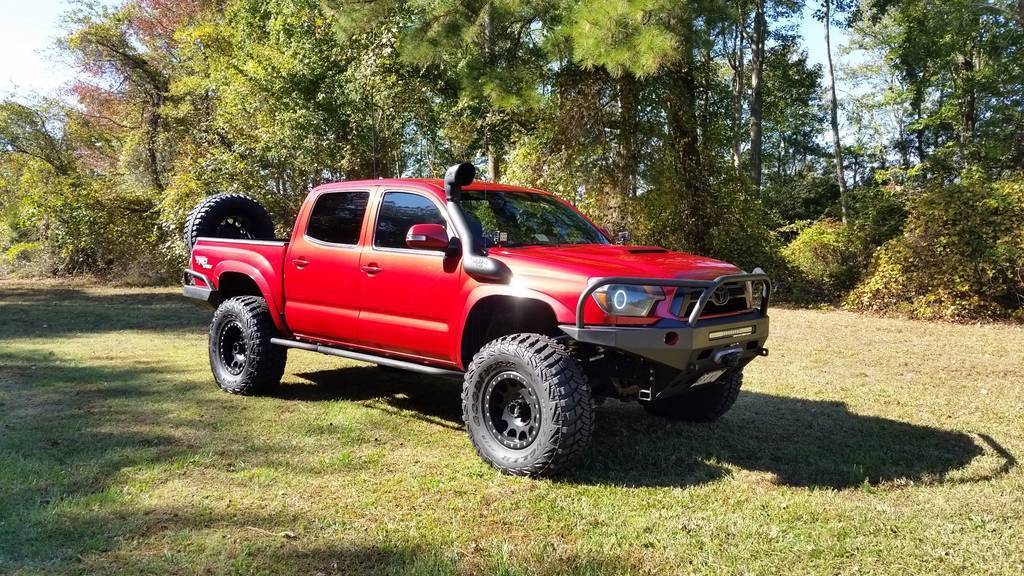

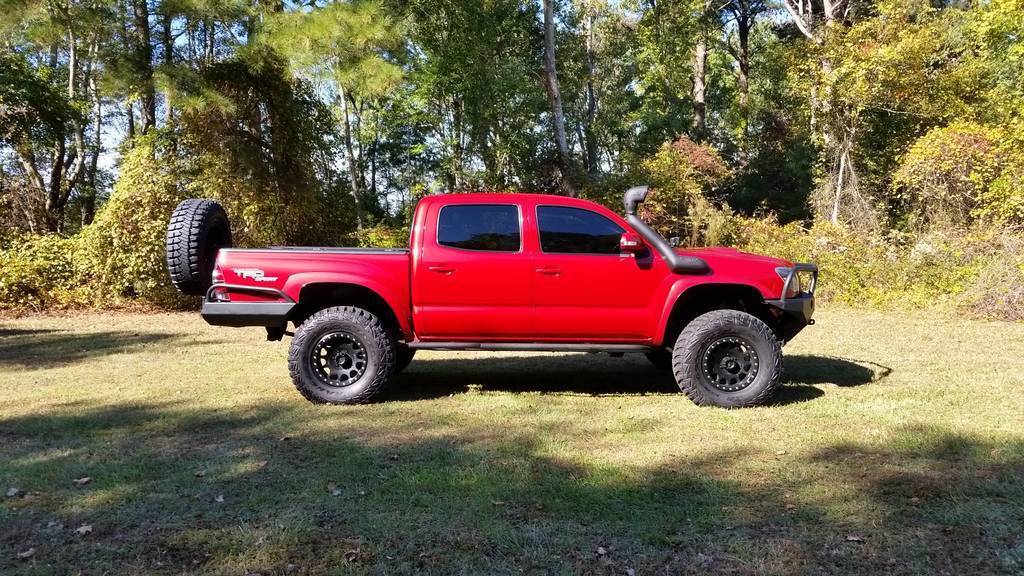

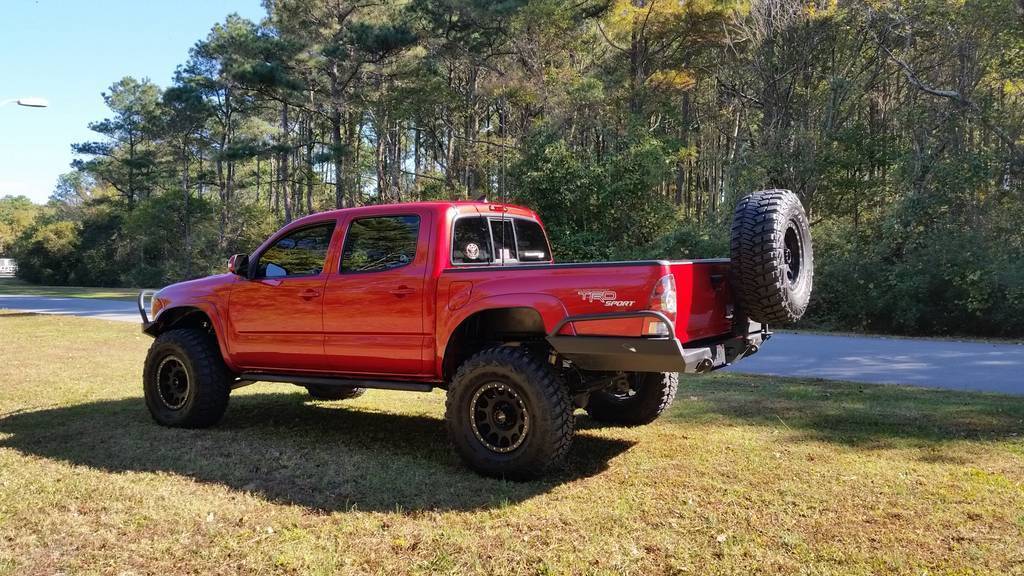

    Current Pics

    [​IMG]

    [​IMG]
    [​IMG]
    [​IMG]

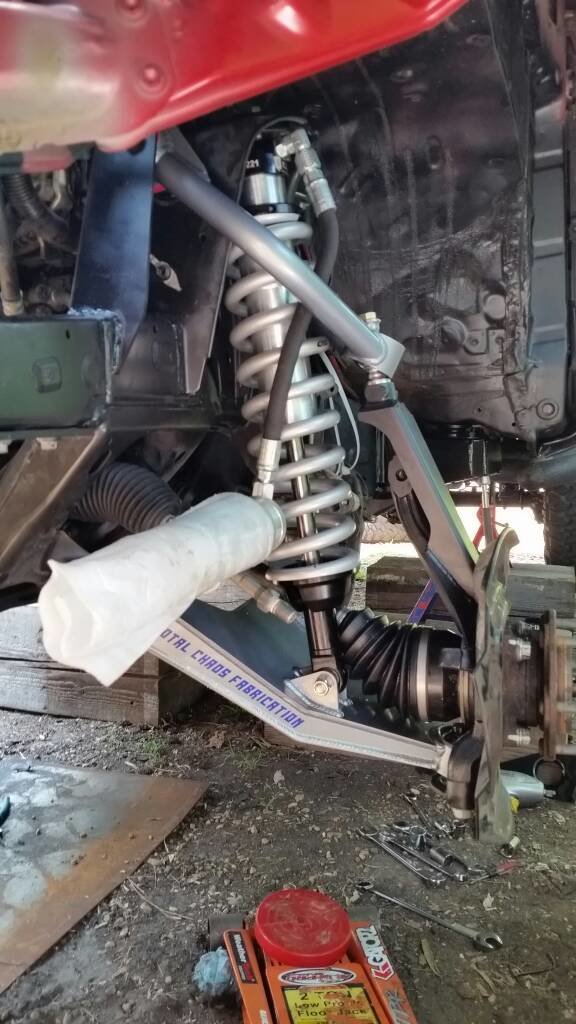

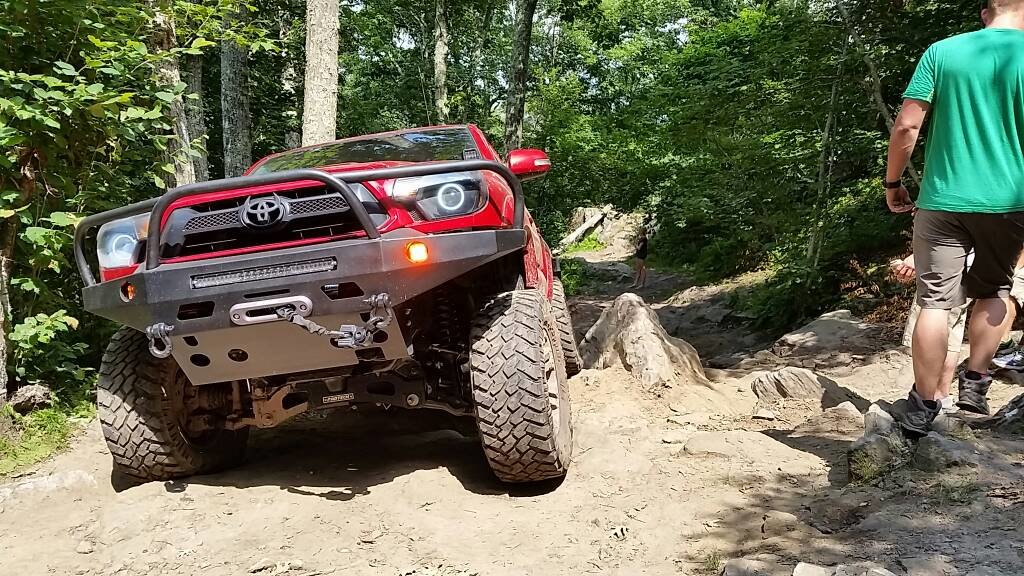

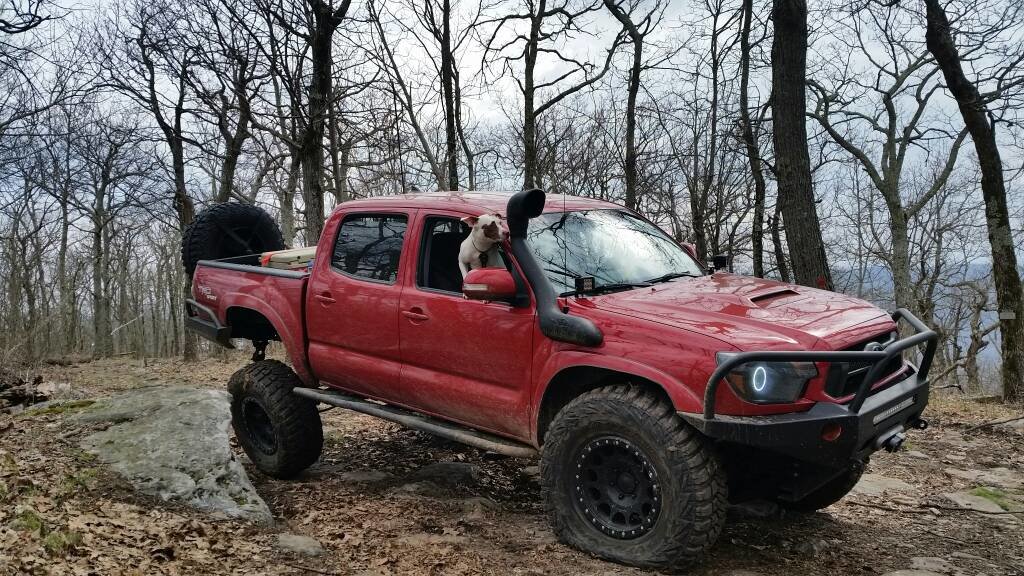

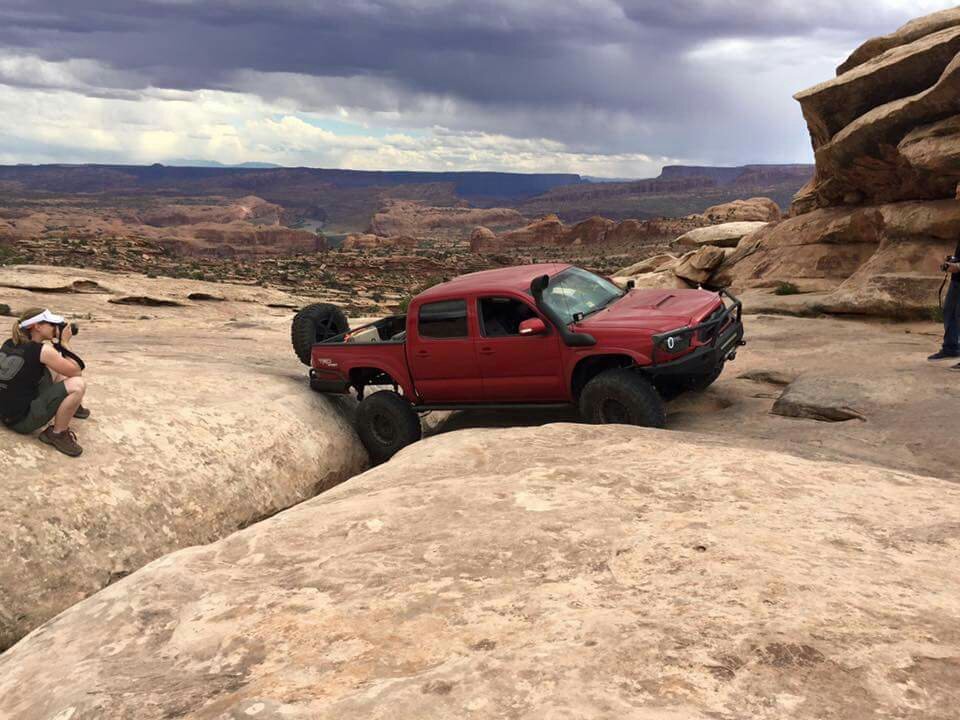

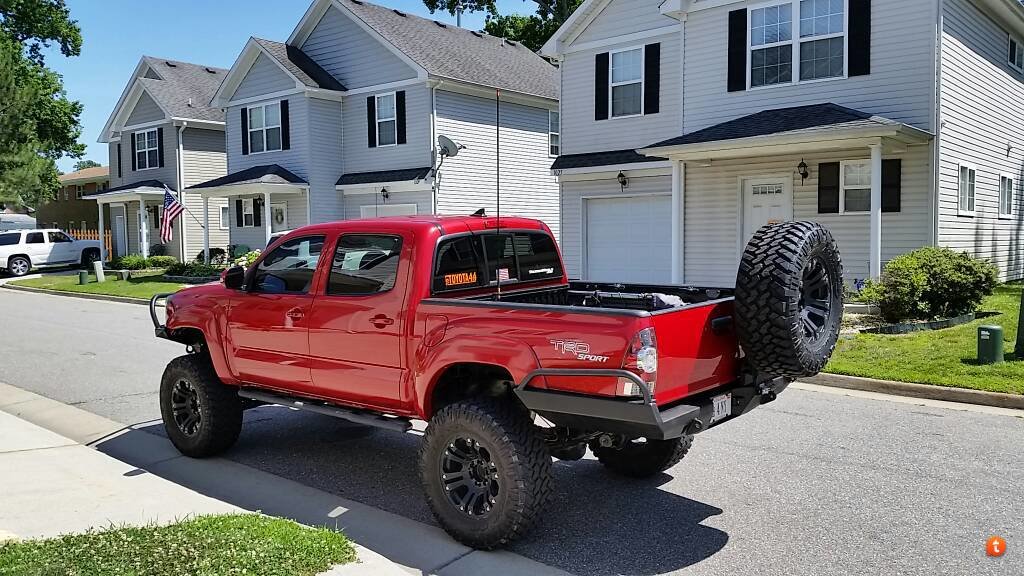

    Before new wheels but with LT Installed
    [​IMG][​IMG]
    [​IMG][​IMG][​IMG][​IMG][​IMG]
    [​IMG]

    Modifications

    Armor/Recovery
    Pelfreybilt Front Bumper (Full hoops, Light bar cut out, Fog cut out)
    Warn VR10000-S Winch
    Warn Wireless winch controller
    Factor 55 Flat link winch thimble
    Factor 55 Aluminum Hawse fairlead
    Custom Winch Solenoid mounting bracket
    Brute Force Fabrications High Clearance rear bumper w/ swing out & bed side protection
    BEEFED Bolt on sliders with Kick outs (Medium Width)
    Hi-Lift Jack bed rail mounts by Armor Tech Offroad
    Hi-lift Xtreme 60" Jack

    Suspension
    Total Chaos +2" Race Series Long travel Kit

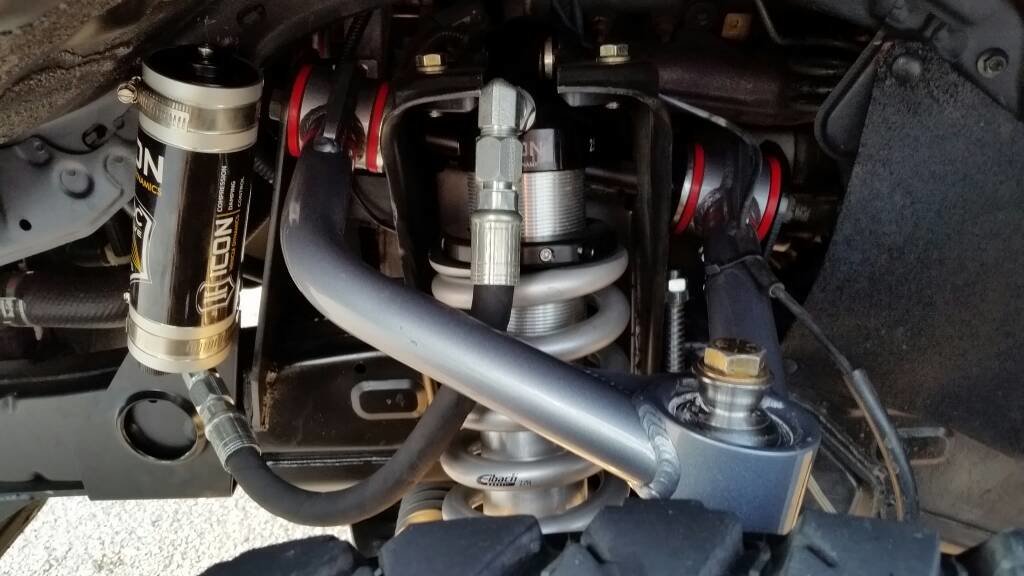

    ICON Long travel remote reservoir coil overs with #700 Eibach springs, CDC and IVD coating
    Total Chaos Alignment cam tab gussets
    Total Chaos Coil bucket gussets
    Total Chaos Spindle gussets [Sway bar version for extra strength]
    Total Chaos +2 Extended CV axles
    All Pro U Bolt Flip Kit
    ATO Shackle Flip kit
    OME Dakar Leaf Packs
    ICON Hydo Bump kit
    Dirt Logic 2.25 Rear Shocks

    Wheels/Tires
    Method 105 Matte Black Beadlock Wheels 17x8.5 (4.75BS, 0mm Offset)
    Goodyear MTR 35x12.50R17
    Spidertrax 1.25" wheel spacers [REAR]

    Lighting:
    FXR HID Retrofit by Ambiguous (Osram SVS 4300k bulbs, Morimoto 35w ballast, Apollo shrouds, XBAL LED Halo's)
    Famous Fabrication Hood hinge light brackets
    Rigid Industries LED D2 Dually Driving pattern lights
    Rigid SR2 20" Combo Driving/Hyperspot LED Bar
    Rigid D2 Amber Driving LED's for Fog lights
    LED Lights (Dome, License plate, Map lights)
    FLYZEYE V2W LED Dash light
    FLYZEYE 3VP Console light
    Fog light mod (On Anytime)
    886 Bulb Reverse Light mod

    Interior:
    Weathertech floor mats
    Wet Okole Seat Covers Front & Rear (Charcoal/Black)
    ImMrYo Rear View Mirror relocation bracket
    OTRATTW Switches in custom housing
    Ultra Gauge EM V1.2

    Misc:
    ECGS Assembled Differentials (Nitro 4.88 gears, ECGS solid spacers, ARB Air lockers)
    Stock Fenders & Flares Cut ~4" Front/Rear
    Airflow Snorkel
    Red line Quick lift Plus hood struts
    Stainless Steel Goodridge Extended Brake lines by OCTaco
    K&N Air filter
    Fumoto Oil drain valve
    Blue Sea 5026 Auxiliary fuse panel w/ Blue Sea 7144 100A Breaker
    Blue Sea USB Charging ports (One in bed / One interior)
    Rear Diff breather mod (Toyota PN Union: 90404-51319, Plug: 90930-03136 & Fuel line)
    Diehard Group 31M Deep Cycle Battery
    Pelfreybilt Battery Cage
    Pelfreybilt Bed side supports
    On Board Air (Air Zenith OB2 Compressor, 5 Gallon AVS Aluminium tank, 165 PSI on /200 PSI off Sealed Viair Pressure switch)
    Cab Mount Chop (CMC)
    Exhaust Re-Route
    Trasharoo

    COMMS
    Cobra 75WX CB Radio
    4' Firestik II Antenna
    Antenna Bed rail mount by Armor Tech Offroad
    Firestik Quick Disconnect
    Firestik SS Stud (P/N: K-4A)

    Ordered/Awaiting install: Deployed:oldglory:
    Pelfreybilt Skids (IFS/MID/REAR/GAS TANK)
    Iggy Switch panel
    Skygear's Iggy Switch panel harness
    Powertank ARB Solenoid manifold (to plumb into my 'one off' OBA system)
    ADS 2.5" Piggyback Reservoir 10" travel rear shocks
    TC +2 Axles for spare CVs
    SDHQ High angle CV Boots
    Trail Gear Rear Weld-on Diff guard for 8.4" rear (PN: 300655-KIT)
    Rubicon Express XJ shackles

    NEXT:
    MOAB!!

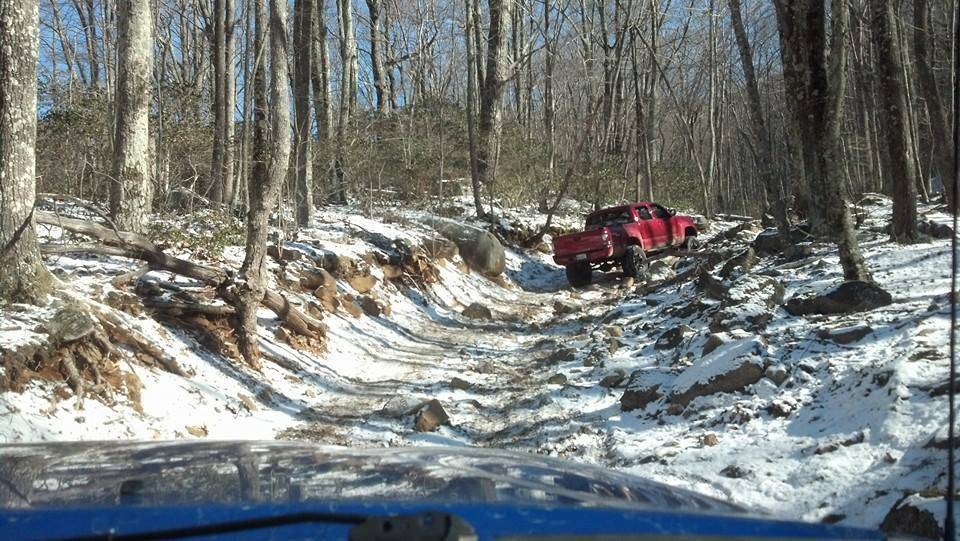

    Wheeling Pics - Pre Long Travel
    Potts Mountain Jeep Trail July 2014
    [​IMG]
    [​IMG]
    Shoe Creek 2014
    [​IMG]

    Last edited: Apr 23, 2015
  2. Apr 6, 2012 at 7:53 AM
    #2
    AaronArf

    AaronArf [OP] Well-Known Member

    Joined:
    Nov 12, 2011
    Member:
    #66926
    Messages:
    3,333
    Gender:
    Male
    First Name:
    Aaron
    Chesapeake, VA
    Vehicle:
    2012 DCSB LT 4x4
    Total Chaos +2 Long Travel. Check the build thread!

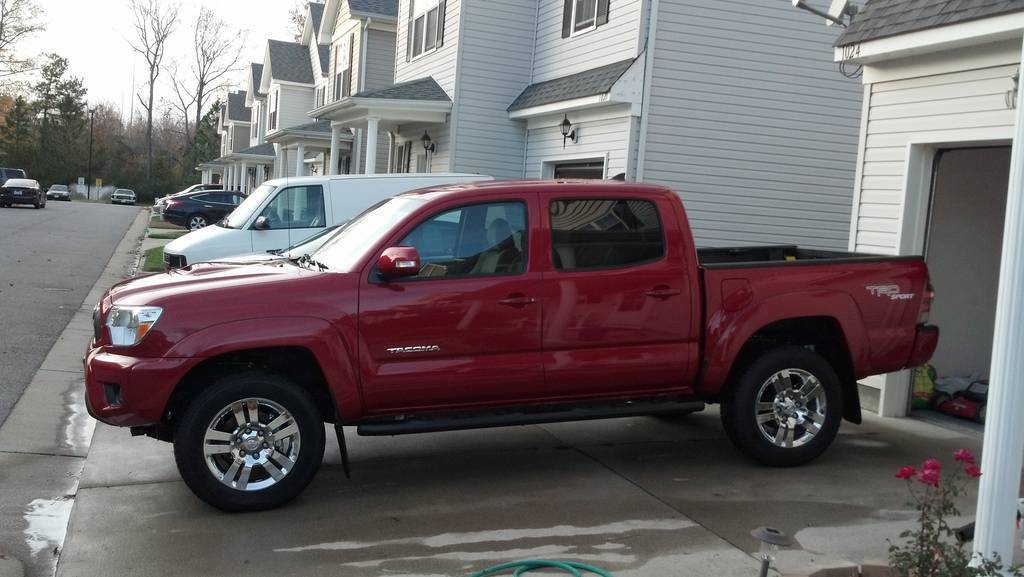

    Picked up 11/21/11

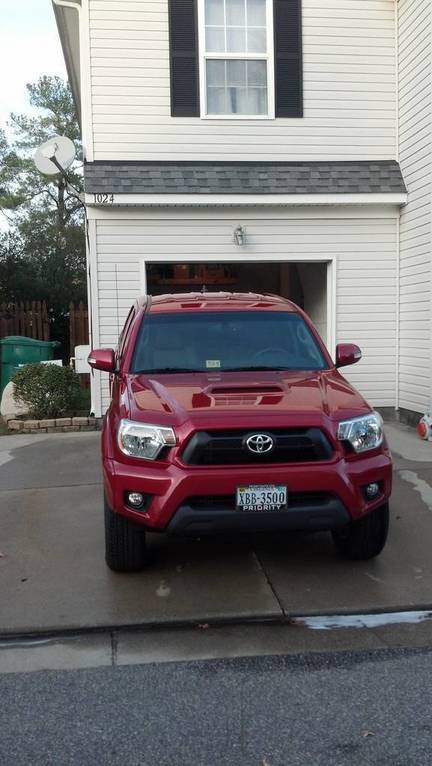

    Stock!
    [​IMG]
    [​IMG]

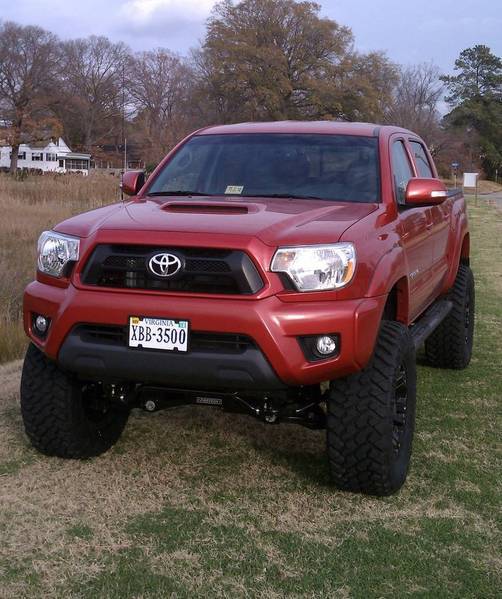

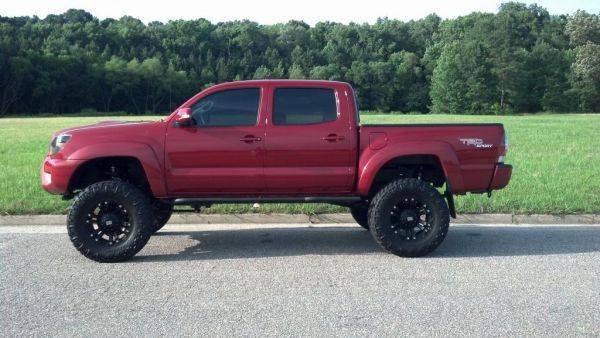

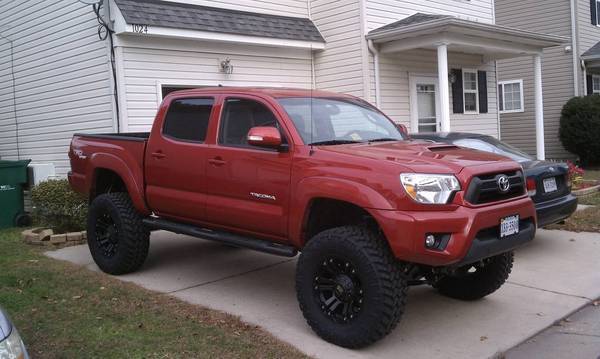

    A week later....Fabtech 6" lift and 35's
    [​IMG]
    [​IMG]

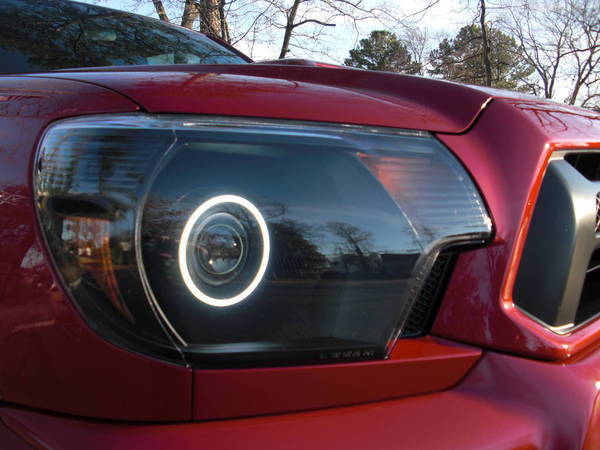

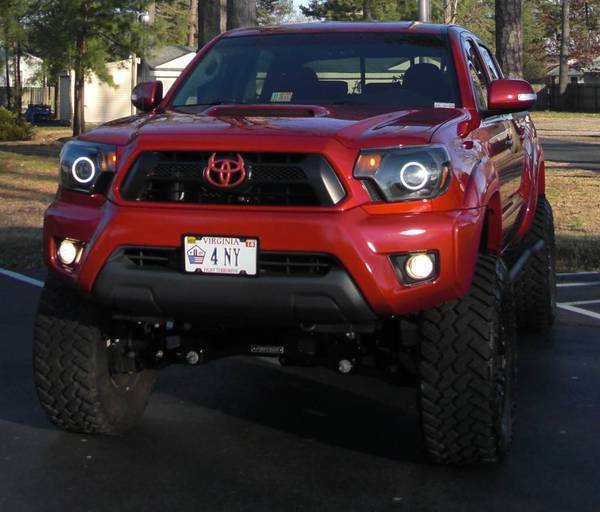

    Retrofitted headlights by TW member Ambiguous (FXR Projectors, Apollo Shrouds, LED Halo's, BHLM)
    [​IMG]
    Light output: FXR Retrofit (low beams on), D2 Duallys (driving pattern) and Fogs on
    [​IMG]

    OBX, NC / Ocracoke Ferry 2013
    [​IMG]

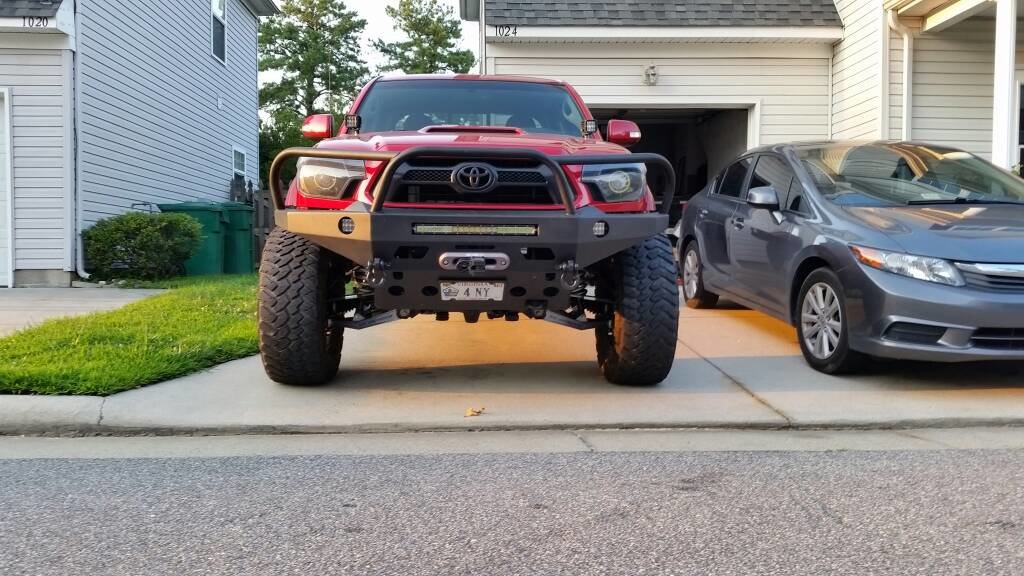

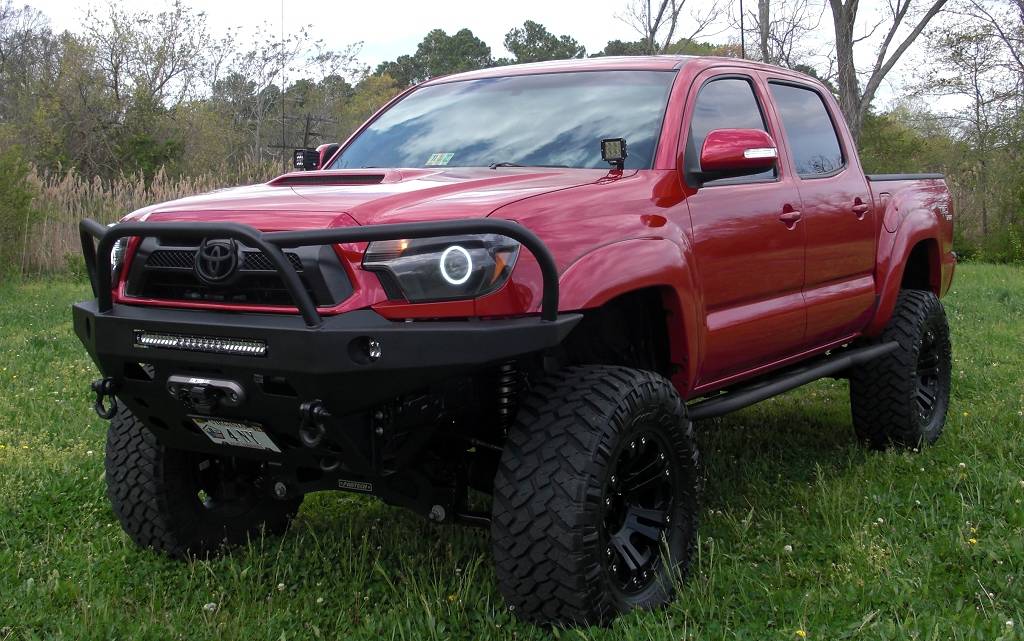

    Pelfreybilt Front Bumper and Bruteforce High Clearance Bumper
    [​IMG]
    [​IMG]

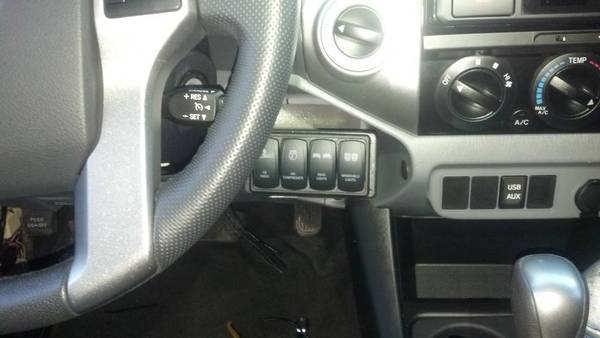

    OTRATTW Switches w/ custom bracket mounted in Radioshack Project enclosure
    [​IMG]

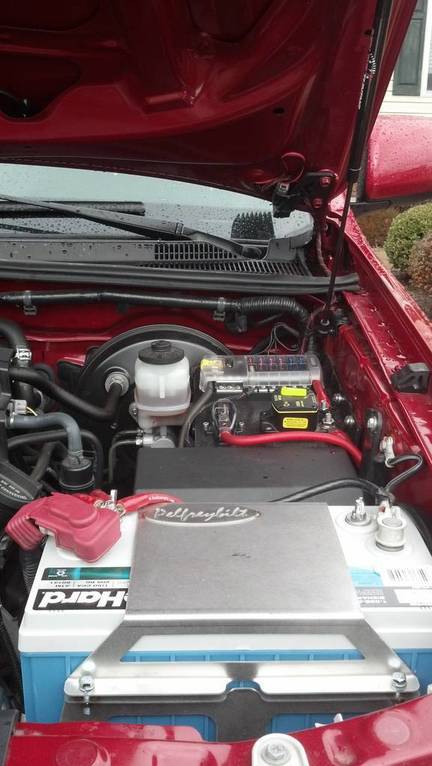

    Pelfreybilt Battery Tray & Aux Fuse Panel Revision 2
    [​IMG]

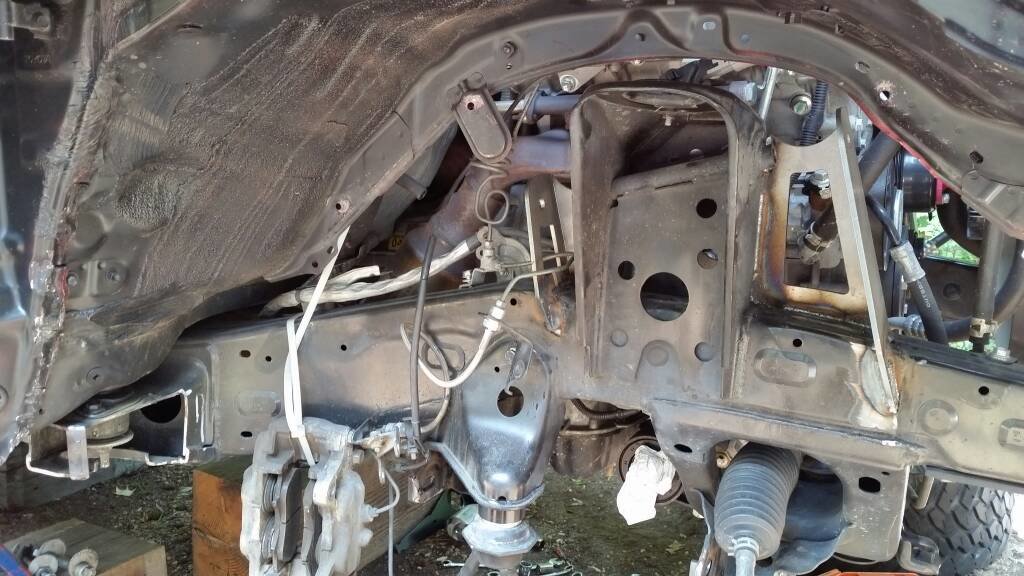

    Link to Long travel install pics: http://www.tacomaworld.com/forum/2nd-gen-builds/213614-aaronarfs-2012-dcsb-build-23.html#post8926871
    [​IMG]
    [​IMG]

    Last edited: Dec 20, 2014
  3. Apr 6, 2012 at 7:56 AM
    #3
    mondexyota

    mondexyota Well-Known Member

    Joined:
    Jan 16, 2012
    Member:
    #70785
    Messages:
    83
    Gender:
    Male
    First Name:
    Beau
    Titusville, FL
    Vehicle:
    2010 Barcelona Red DC SR5 4x4
    3" Toytec spacer lift, 285x70x17 Nitto Terra Grapplers on 17x9 XD Misfits
    Love your truck bro, I am wanting a 6" lift really bad right now!

  4. Apr 6, 2012 at 8:08 AM
    #4
    bridgcat

    bridgcat Well-Known Member

    Joined:
    Apr 4, 2010
    Member:
    #34572
    Messages:
    1,631
    Gender:
    Male
    Alabama
    Vehicle:
    Mag Grey 4x4 SR5 TRD Offroad
    Avid Off-road Light bar w/ Line-X, American Aluminum Black LP Toolbox, N Fab black step bars,In-Channel Vent Visors, two 10" Rockford subs, Pioneer Double Din DVD player w/ Metra dash kit, 285/65R18 Nitto Trail Grappler MT/s. 18x9" Black XD Monsters. Weathertech digital fit floor mats. Color matched grille with FJ Tacoma badge. De-badged with black, "4x4" badge on tail gate. Mud flap delete mod. Custon TRD decal, color matched rear bumper, Icon extended travel reservoir coilovers, Icon rear reservoir shocks, Dakar rear leaf pack, extended stainless steel brake lines, Camburg uniball upper control arms, timeren bump stops,Beefed Taco carrier bearing drop, Rockford Fosgate Door speakers, Dynomat doors and rear panel, All pro front bumper.
    sweet!

  5. Apr 6, 2012 at 9:15 AM
    #5
    Eagledynasty

    Eagledynasty The White Knight

    Joined:
    Dec 8, 2011
    Member:
    #68427
    Messages:
    1,660
    Gender:
    Male
    First Name:
    AJ
    Worcester, MassHole
    Vehicle:
    09 Super White DoubleCab Off-Road
    2009 SWDC O/R. Check Build!
    Jealous of the truck man. Sexy red an black look. Im SUB'D!! :D

  6. Apr 6, 2012 at 9:19 AM
    #6
    ShadesOfGrey

    ShadesOfGrey Well-Known Member

    Joined:
    Mar 31, 2011
    Member:
    #54102
    Messages:
    713
    Gender:
    Male
    First Name:
    Jamie
    Salem, OR
    Vehicle:
    '10 DCLB, TRD Sport 4x4, MGM
    TRD Cat-Back Exhaust, Airaid CAI, Pro Comp 3" Suspension Lift, 17" Moto Metal rims w/ 33" Pro Comp tires, Powder Coated Pro-Tech Headache Rack & Toolbox
    Lookin' awesome man.

  7. Apr 6, 2012 at 9:28 AM
    #7
    swervin22

    swervin22 "Obviously, You're not a Golfer..."

    Joined:
    Jul 9, 2008
    Member:
    #7838
    Messages:
    355
    Gender:
    Male
    First Name:
    Jonas
    Chesapeake
    Vehicle:
    2010 DCLB Sport Barc. Red
    Camburg Spindles, 3in All-Pro Leaf pack, 5100's, Kenwood Stereo with super awesome Aux cable mod
    Thought you installed your sliders already? Or just prepped and ready to go? Either way, looking good bro! Barcelonas Unite!!

  8. Apr 6, 2012 at 9:39 AM
    #8
    EATABULLETcom

    EATABULLETcom Well-Known Member

    Joined:
    Dec 11, 2011
    Member:
    #68587
    Messages:
    1,148
    Gender:
    Male
    First Name:
    mark
    TX
    Vehicle:
    MYT4CO
    Just cut off all the ifs stuff and stock rear axle.....going big......... wet okole seat covers, red line hood struts, 4xi sliders, bruteforce rear w/ tire carrier, bruteforce front bumper with warn m8000s, bestop soft top, alpine HU and JL speakers, 2nd battery and isolator, arb air compressor, tank and tire fill, FXR projector retrofit by AMBIGUOUS, overhead console by KNINE
    VARY NICE!!! im going with the same setup soon only with different wheels tho

  9. Apr 6, 2012 at 9:42 AM
    #9
    Eagledynasty

    Eagledynasty The White Knight

    Joined:
    Dec 8, 2011
    Member:
    #68427
    Messages:
    1,660
    Gender:
    Male
    First Name:
    AJ
    Worcester, MassHole
    Vehicle:
    09 Super White DoubleCab Off-Road
    2009 SWDC O/R. Check Build!
    Barcelonas are steppin it up these days :D

  10. Apr 6, 2012 at 9:47 AM
    #10
    vprgts

    vprgts Well-Known Member

    Joined:
    Jun 30, 2011
    Member:
    #59106
    Messages:
    92
    Gender:
    Male
    First Name:
    Walter
    Centreville, VA
    Vehicle:
    Tacoma Sport TRD 4x4 DC LB
    Volant cold air intake, Sirius satellite radio, Viper auto start/alarm, Husky floor liner, AVS window sills, Smitty Black N-fab bars, Fabtech 6" Basic lift with performance shocks, Nitto Terra Grapplers 325/65/18, XD Black Revolver 18x9, window tint, de-badged.
    Nice man! I've got pretty much the same set up and love it!! Are you going to do gears?

  11. Apr 6, 2012 at 9:47 AM
    #11
    Eagledynasty

    Eagledynasty The White Knight

    Joined:
    Dec 8, 2011
    Member:
    #68427
    Messages:
    1,660
    Gender:
    Male
    First Name:
    AJ
    Worcester, MassHole
    Vehicle:
    09 Super White DoubleCab Off-Road
    2009 SWDC O/R. Check Build!
    Hope he does :D

  12. Apr 6, 2012 at 9:59 AM
    #12
    joneill03

    joneill03 Look away, I'm hideous!

    Joined:
    Oct 26, 2009
    Member:
    #24912
    Messages:
    3,353
    Gender:
    Male
    First Name:
    Johnny-5
    Chantilly, VA
    Vehicle:
    Silver 2010 OR
    Very nice man :thumbsup:
    How do you like the drain valve? I was looking at those and didn't know how much help they'd be. I've got the ATO front skid so its kind of a reach to get to the drain plug now.

  13. Apr 6, 2012 at 1:50 PM
    #13
    AaronArf

    AaronArf [OP] Well-Known Member

    Joined:
    Nov 12, 2011
    Member:
    #66926
    Messages:
    3,333
    Gender:
    Male
    First Name:
    Aaron
    Chesapeake, VA
    Vehicle:
    2012 DCSB LT 4x4
    Total Chaos +2 Long Travel. Check the build thread!
    OLD PHOTO DUMPING GROUNDS OF PREVIOUS MODIFICATIONS OR SMALL MODS ETC.

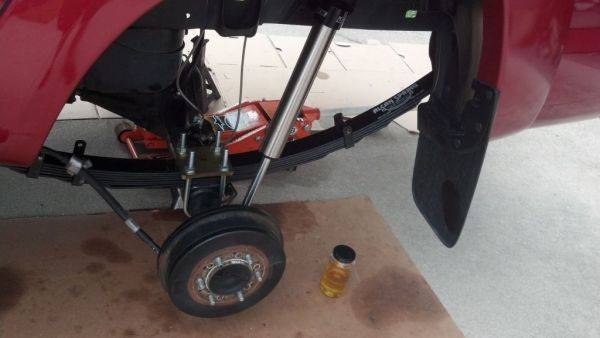

    Alcan Springs Custom built 6" Leafs, All Pro Flip and OCtaco Stainless lines [OLD LIFT]
    [​IMG]

    No more saggy rear end! [OLD LIFT]
    [​IMG]
    [​IMG][/URL]
    OBX Sunset
    [​IMG][​IMG]

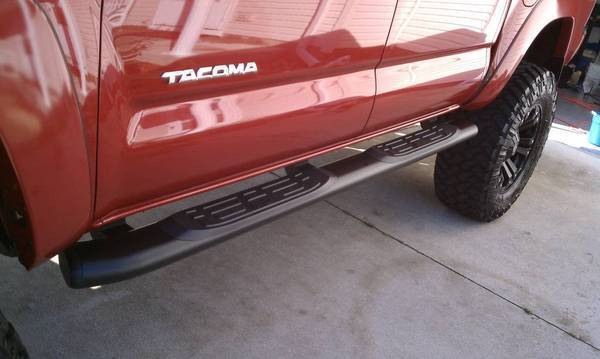

    Bye bye stock tube steps
    [​IMG]
    [​IMG]

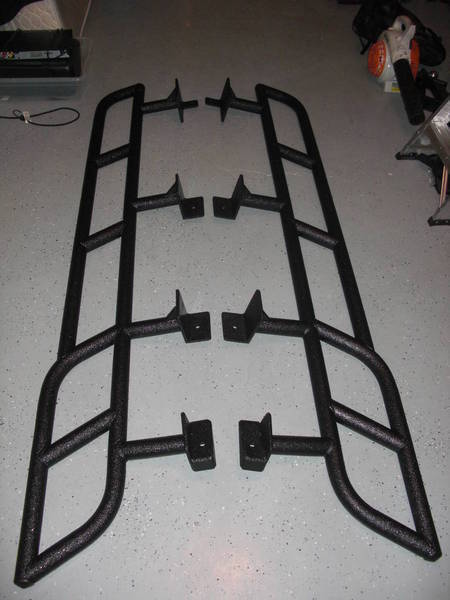

    BEEFED Medium width bolt on sliders w/ kick outs coated with LINE-X Premiuim
    [​IMG]


    [​IMG] Upgraded to 60"

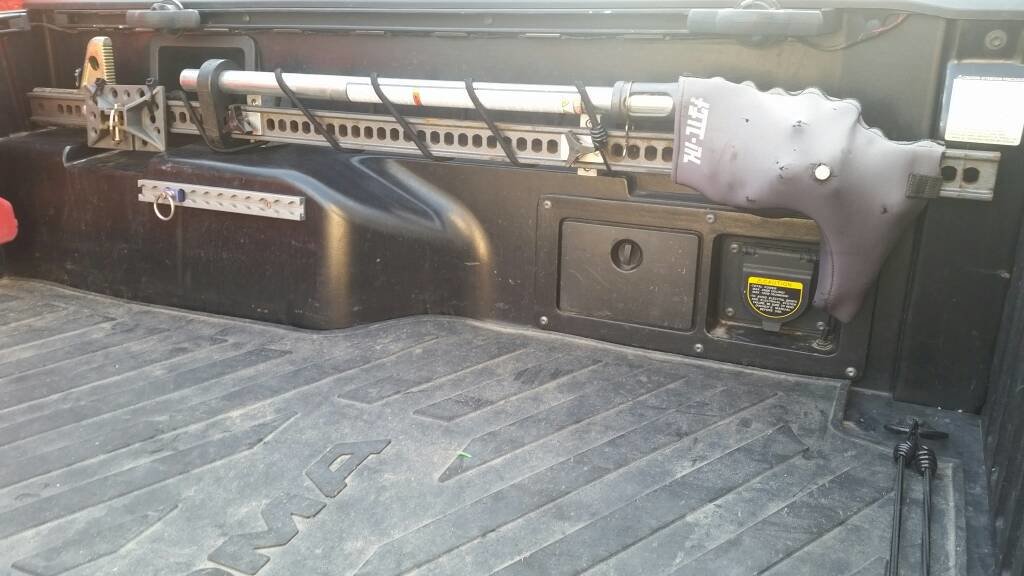

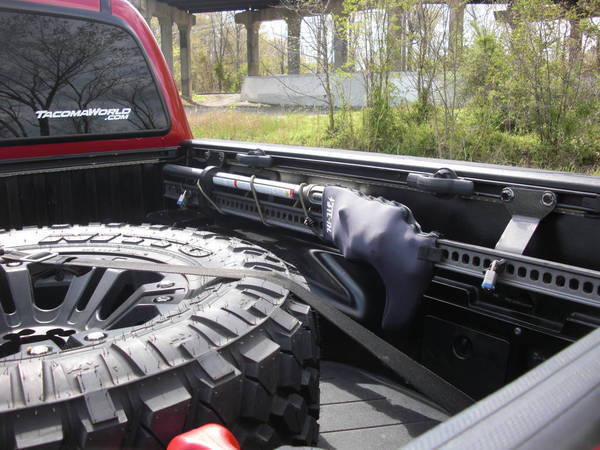

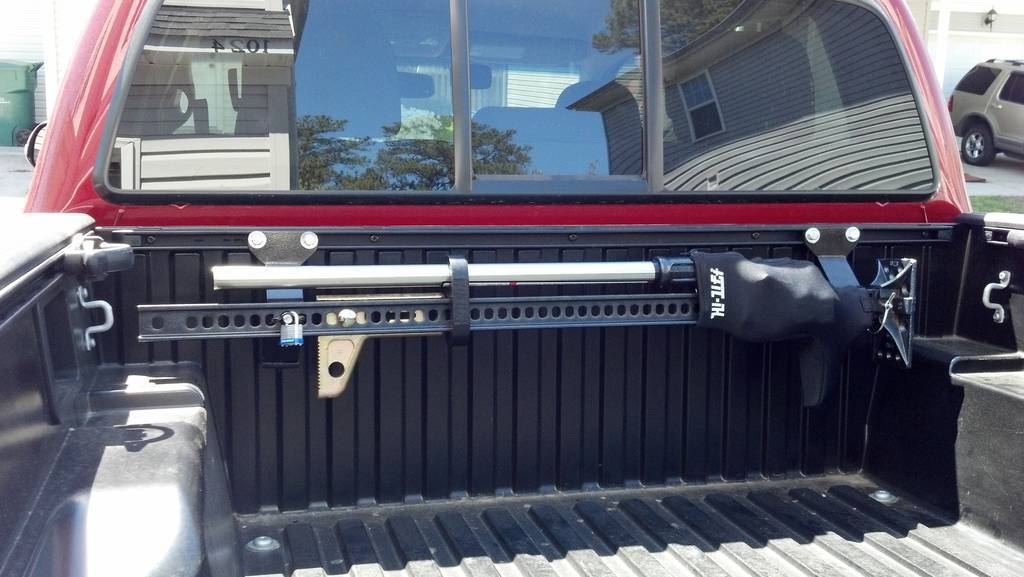

    Armor Tech Offroad Hi-lift bed rail mount & Hi-Lift 48" Xtreme Jack

    [​IMG]
    Switched to a 60" Hi-Lift Xtreme Jack since the 48" maxed out on the street

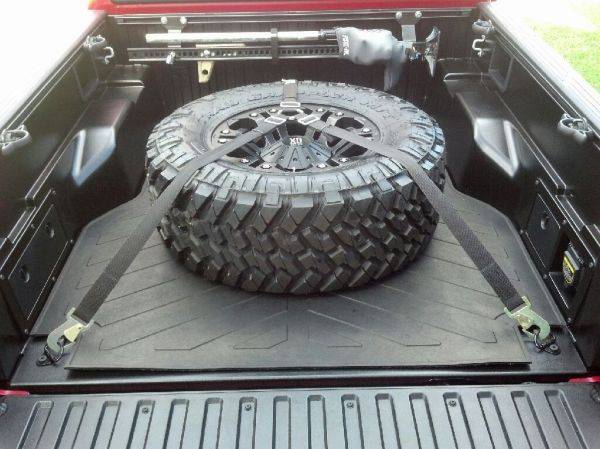

    Spare mounted with Beard Racing Y-Strap & Additional OEM Toyota D-Rings
    [​IMG]

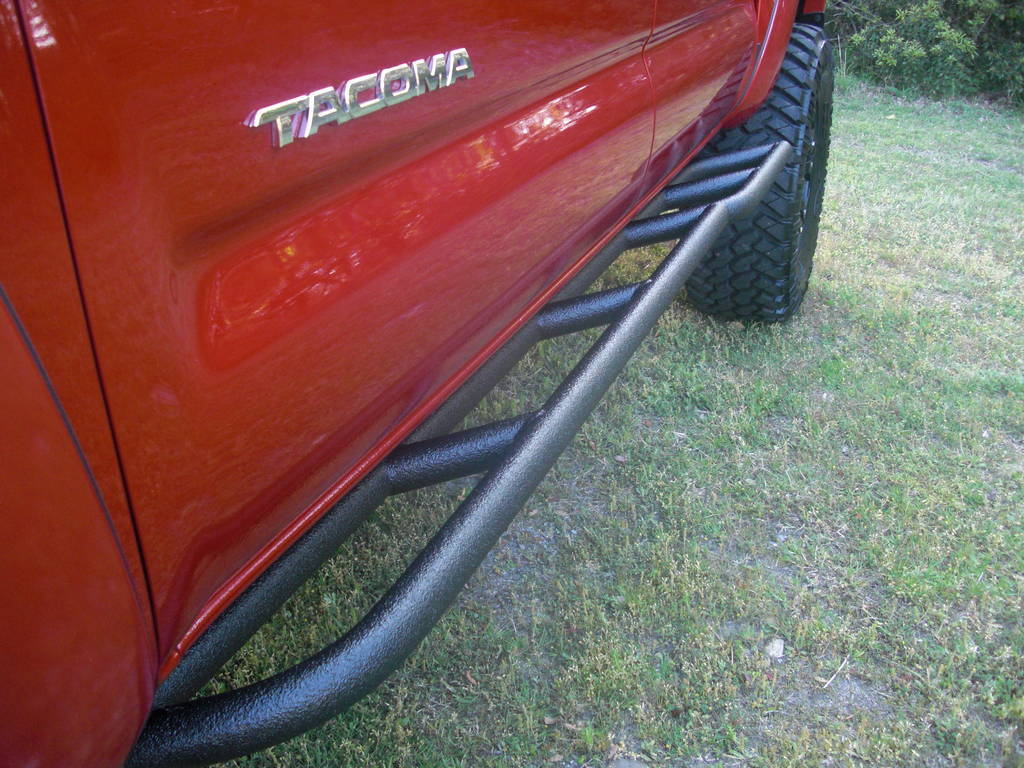

    Sliders installed!

    [​IMG]

    [​IMG]

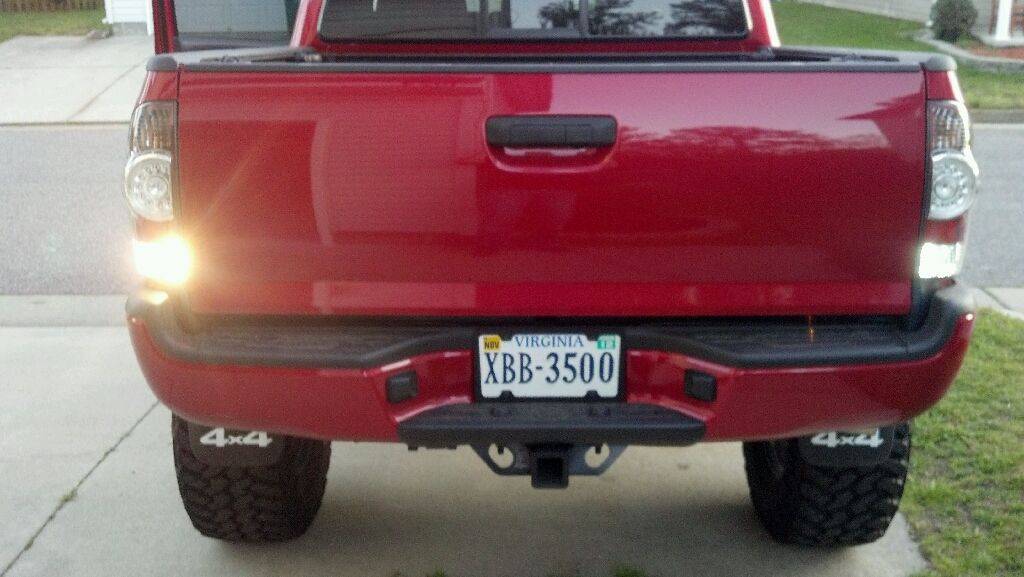

    886 Fog Light mod (left) vs. CSJumper LED Reverse Light (Right)

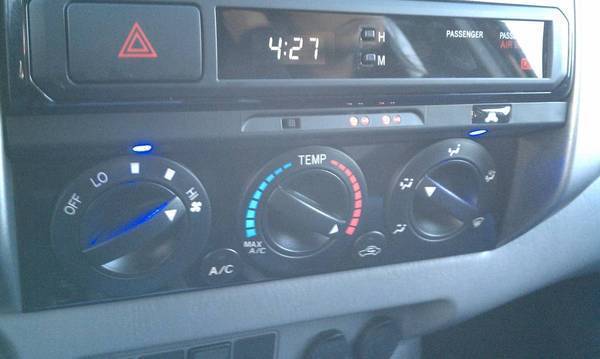

    FLYZEYE "2012 Black V2W" Interior Dash light installed (Blue/White & Red Halos)
    [​IMG]
    [​IMG]

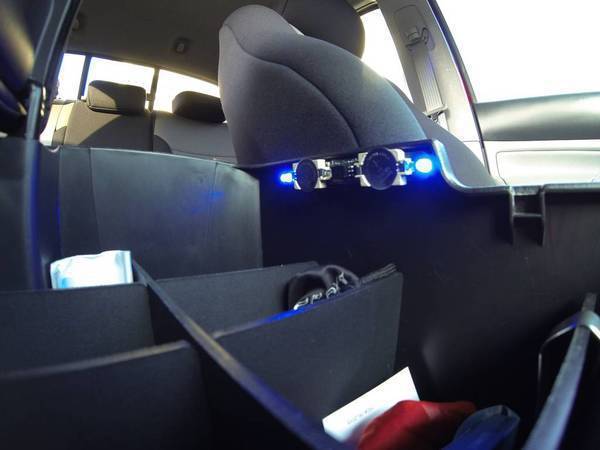

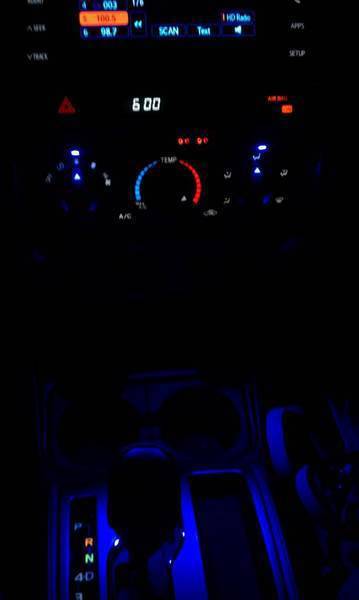

    Flyzeye 3VP Console light
    [​IMG]
    [​IMG][​IMG]

    Last edited: Dec 19, 2014
  14. Apr 6, 2012 at 1:52 PM
    #14
    COMAtose HI

    COMAtose HI Well-Known Member

    Joined:
    Jan 7, 2012
    Member:
    #70155
    Messages:
    1,968
    Gender:
    Male
    808
    Vehicle:
    2012 TRD SPORT 4x4
    6" Procomp Stage 1 Suspension Lift, Custom 6" Alcan Springs, N-Fab Side Steps, Husky Floor Liners, Wet Okole Seat Covers, Debadged, Weathertech Side Window Deflectors, 13" Antenna from AntennaX.com, 35% Tint for front windows, Procomp 7032 Series 18x9 wheels, 33x12.50 Nitto Mud Grappler tires
    Sick truck Aaron!!!! Finally got that build page!!! Now we can follow your mods. Keep up the good work buddy.

  15. Apr 6, 2012 at 6:32 PM
    #15
    knine00

    knine00 Well-Known Member

    Joined:
    Oct 31, 2011
    Member:
    #66179
    Messages:
    1,327
    Gender:
    Male
    Pikeville, NC
    Vehicle:
    12 PreRunner DC TRD Sport
    Stock for now
    Nice ride!!!:D

  16. Apr 6, 2012 at 6:38 PM
    #16
    0uTkAsT

    0uTkAsT Gun Toting Gearhead

    Joined:
    Mar 1, 2011
    Member:
    #52127
    Messages:
    4,222
    Gender:
    Male
    First Name:
    Josh
    Chandler, AZ
    Vehicle:
    '06 5-Speed 4X4 Base
    Avid custom front & rear bumpers, Avid sliders & skid plates, Avid light bar, six 6.5" 100W off road lights, Eibach coils, Bilstein 5100s front & rear, Deaver AAL, MB 72B 16x8.5" wheels, 33" Hankook Dynapro AT-Ms, aFe dry filter, intake baffle & charcoal filter deleted, MagnaPack 18" muffler & exhaust bend delete, bedside & tailgate vinyls, carpeted bed, 25% tint, painted grille, mudflap delete, Supertop camper, black headlights & tail lights, breather mod, smoked 3rd brake light, recovery gear, mounted shovel, axe, extinguisher, Hi-Lift in Quickfist clamps / XRAC, sway bar delete, debadged tailgate, custom gun rack, bullet antenna, Kenwood double DIN nav, Scosche dash, JBL door speakers, aluminum pedals & shift knob
    Frickin sweet truck bro, looking forward to seeing more progress!

  17. Apr 6, 2012 at 6:59 PM
    #17
    Lazylegs

    Lazylegs Well-Known Member

    Joined:
    Oct 6, 2011
    Member:
    #64723
    Messages:
    2,731
    Gender:
    Male
    First Name:
    Craig
    Southern Maryland, USA
    Vehicle:
    2011 Red Toyota AC Sold
    Tint (35%), a must. Step bars, Bull bar, Bull lights,4x4 light mod, Flip down 10" DVD player, De badged, Color match front emblem, color matched bumpers., black out tails, Cobra cb, Flashlight mod,bed-light mod,
    Beautiful

  18. Apr 6, 2012 at 7:02 PM
    #18
    Joben7726

    Joben7726 wes mantooth ™

    Joined:
    Oct 26, 2010
    Member:
    #45285
    Messages:
    6,380
    Gender:
    Male
    First Name:
    Joben
    Western PA/Va Beach
    Vehicle:
    Trail limo
    more than list-able
  19. Apr 6, 2012 at 9:33 PM
    #19
    S7ICKlVlAN

    S7ICKlVlAN Cpt. Bubbleguts

    Joined:
    May 15, 2009
    Member:
    #17250
    Messages:
    1,376
    Gender:
    Male
    First Name:
    Dave
    Hawaii
    Vehicle:
    2012 TRD Sport DCSB
    TRD badged | Hunting Cage | Smoked Tails | LED Everything | Slim Cubby HID bi-xenon's | Spidertrax 1.25" | BHLM | FLM | S2000 Ant | 20% Shade | PL 8521 | OME 885 | Bilstein 5100's | Toytec 2" AAL | FN 18x9" Bronze BFD's | 275/65-18 Duratrac's | Wrinkle Red Valve Covers | 3M Di-Noc Wrapped Interior | Kode MB Push Button Ignition | Relentless Sliders | URD TCAI | Mr.Marv Enclosure | Arc Audio 10" | Hybrid Audio Clarus F/R | Alpine PDX-5 | Alpine INE-S920HD
    Coming along really nice bro. I wish it would've been feasible for me to go with a 6" lift. You & COMA got some sick looking 12's....Keep up the good work.

  20. Apr 6, 2012 at 9:35 PM
    #20
    memario1214

    memario1214 Vivid Illumination Vendor

    Joined:
    Oct 1, 2009
    Member:
    #23628
    Messages:
    12,993
    Gender:
    Male
    First Name:
    Colton
    MT recently relocated to Willmar, MN
    Vehicle:
    05 Dub Cab TRD Sport 4x4
    TRD Cold Air Intake, rear cat delete with Aero Turbine 2525, Maglite mount mod, white LED's all around, white gauges w/blue needles, Tinted Tails, Morimoto 32" XBAR LED Bar, Truxedo Lo-Pro QT Tonneau, Pioneer AVIC X-920 BT touchscreen, FX-R Retrofit, LR UCAs, OME 3" Lift w/ Dakar leafs, DTLT Headers, Walbro 255 fuel pump, TRD S/C, Hankook Dynapro ATM tires
    You need the BHLM in a bad way Aaron... DO IT!!!

To Top
