BassAckwards' AWD 6 Speed Supercharged Tacoma

2013 TRD Sport 4x4
- Double Cab Short Bed
- Barcelona Red Metallic (3R3)
- 6 speed manual (RA60F)
- Bought used w/ 24,500 miles on 4-21-17 @ CarMax

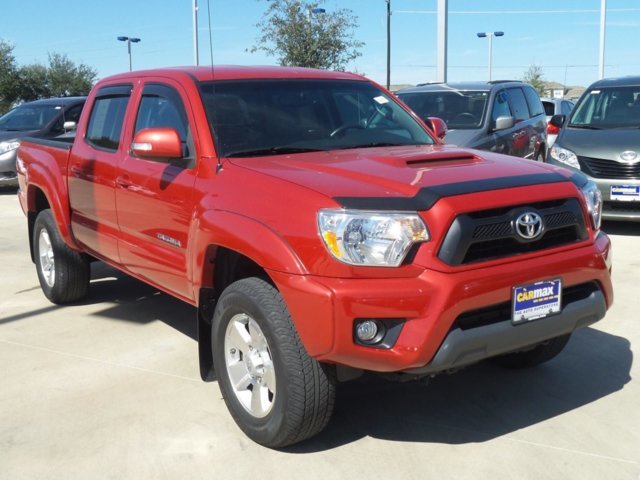

The day I brought her home

Performance/Drivetrain

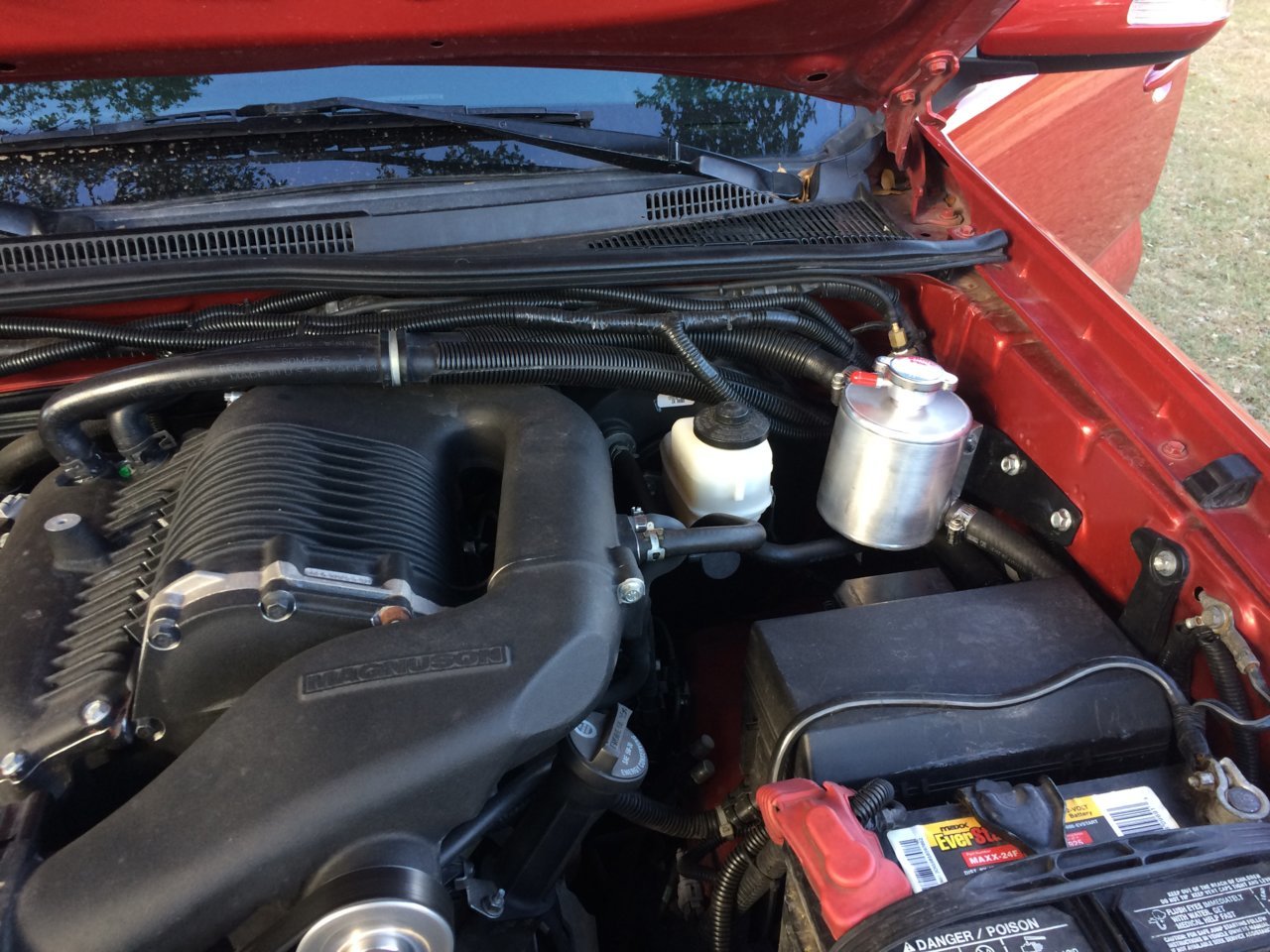

- Magnuson supercharger 6-23-18
- Walbro 255 LPH fuel pump 6-23-18
- 170 degree thermostat 6-23-18
- TRD radiator cap 6-23-18
- URD 3* retard exhaust cam gears: 6-23-18
- PulleyboysQwikchange S/C pulley hub: 6-26-18
- S/C snout trimmed for smaller pulley clearance 6-26-18
- TRD short shifter (PTR04-35052): 7-12-18
- URD true cold air intake: 7-31-18
- JFR equal length y-pipe #6: 9-15-18
- URD Spec-U equal length headers: 9-15-18
- URD lightweight steel flywheel: 11-9-18
- TOB repair/sleeve kit: 11-9-18
- Snow performance water/methanol injection w/ stage 3 controller: 12-9-18​

- SNO-40625 #6 625ML/Min nozzle ​

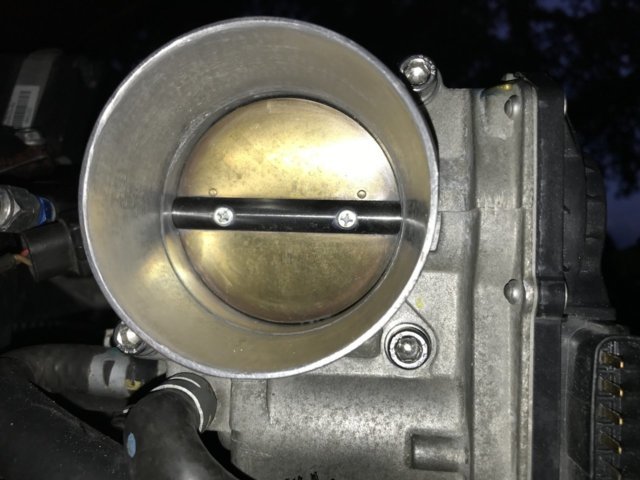

- TB to S/C inlet port matched 1-19-19
- Bypass valve restrictor jet removed 1-22-19
- 455cc TRD injectors: 2-3-19
- Devil's Own water/methanol filter: 2-21-19
- Fuel line check valve: 3-1-19
- ADD delete w/ FJ Cruiser front diff tube: 3-31-19
- TRD catback exhaust w/ 3" to 2.5" reducer and BorlaProXS muffler: 6-8-19
- URD 7th injector port matched to TB: 8-7-19
- FJ Cruiser VF4B Full-Time AWD transfer case (40/60 power split w/ lockable center diff): 3-2-21
- Tacoma 4wd A750F front & rear driveshafts: 3-2-21
- NST lightweight S/C crank pulley: 5-29-21
- NST water pump pulley: 5-29-21
- Gen 2 Mightytacoman S/C coolant reservoir: 5-29-21
- NST alternator pulley: 6-18-21
- 3.73 front gears w/ open diff: 12-15-22
- 3.73 rear gears w/ Detroit TrueTrac LSD & New Yukon bearings/shims, & Yukon solid pinion spacer: 12-16-22
- Denso 234-5136 o2 sensors for dual AEM AFR gauges: 1-9-24
- URD UCon EMS w/ 7th injector & stage 3 tune: 2-16-19 reinstalled 1-9-24
- 2.8 SC pulley: 1-22-24
- Hardened supercharger studs made by @Athlaos: 3-31-24
- Aisin CK-057 stock clutch disc, M-Pact 98TAC-OE-HD 2200lb pressure plate, & TSK/URD TOB for quill repair sleeve: 12-1-24
​

Interior/Cab
- Wet Okole seat covers w/ red Tacoma imprint 8-28-17
- Toyota all weather flooring 1-6-18
- Toyota floor mat clips 7-7-18
- TRD shifter color matched lettering: 7-27-18
- Flexpod gauge mount: 8-8-18
- Lotek a-pillar gauge mount: 11-17-18
- FJ Cruiser 6 speed lower shifter boot (58280-35320): 7-2-20
- FJ Cruiser 6 speed upper shifter boot (58808-35300-B0): 7-2-20
- FJ Cruiser TRD Special Edition black shift knobs: 3-2-21
- Snow performance controller relocated to coin tray: 6-13-21

Wheels/Tires
- Stock TRD Sport 17x7.5” wheels (28.9lbs/wheel)
- 265/65/17 Michelin LTX Defenders P-rated(40.74lbs/tire) 3-25-21 @76,194 miles

Lighting/Electrical
- Northstar 27F deep cycle battery 8-25-17
- Fog light anytime mod 12-12-17

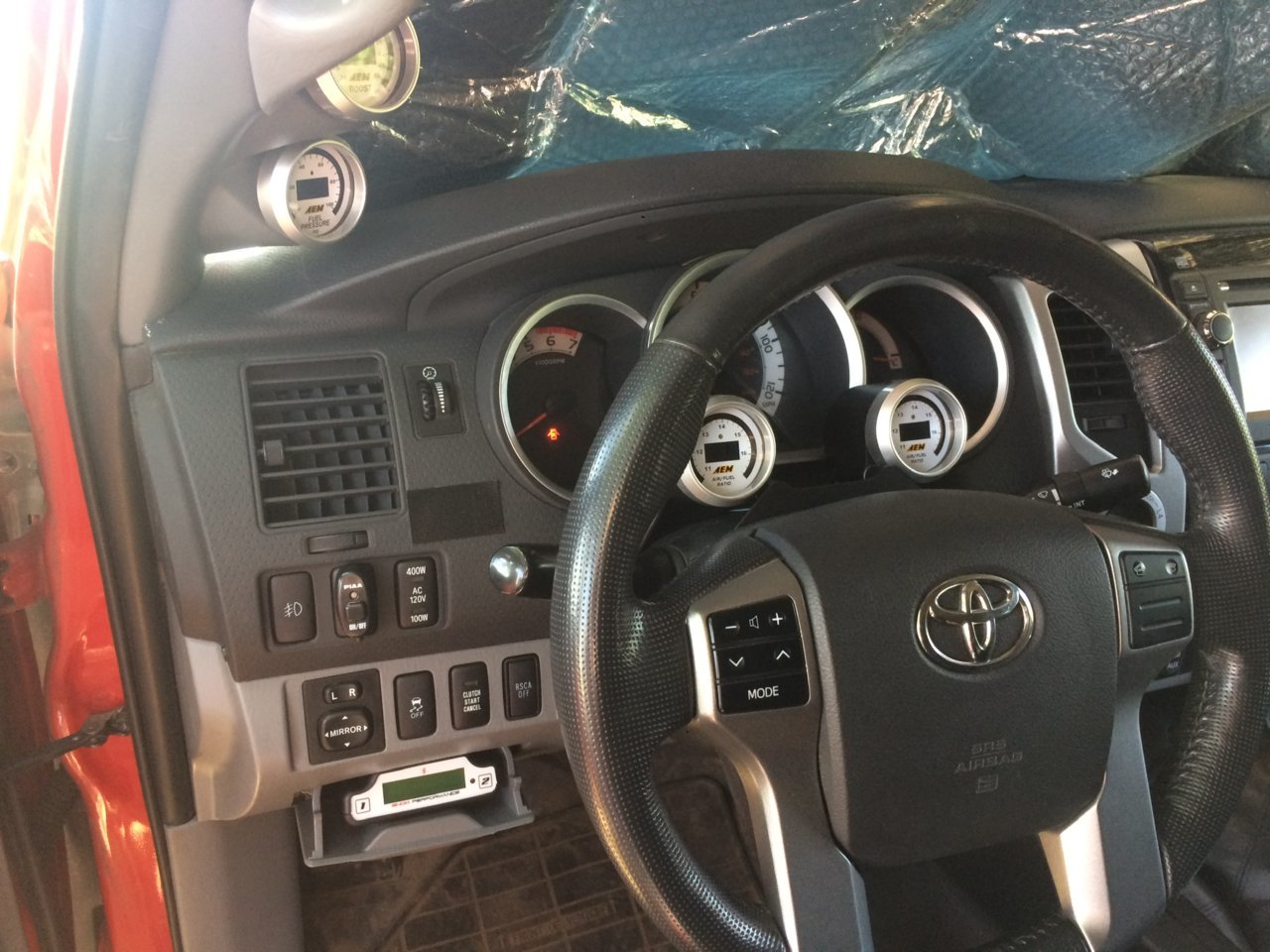

- AEM 52mm boost gauge: 8-8-18
- AEM 52mm fuel pressure gauge: 8-8-18
- Dual AEM 52mm AFR gauges: 11-17-18
- PIAA 520 SMR fog lamps: 2-28-19
- TYC base model incandescent tail lights: 1-12-23
- Coupe billet aluminum battery tie down: 4-27-23
- Headlights cleaned with Cerakote restoration kit: 7-1-23
- Baja Designs fog lamps w/ H11 adapter harnesses: 10-6-23
- RedArc Tow Pro Liberty brake controller: 7-20-24

Armor
- Pelfreybilt steel front bumper: 10-6-23
- Greenlane Offroad aluminum sliders: 8-10-24
- Pelfreybilt aluminum IFS skid: 4-15-25
- Pelfreybilt aluminum trans/mid skid: 4-15-25

Suspension
- Stock Bilstein 4600s rear shocks: 10-7-23
- Energy suspension poly sway bar bushings: 11-11-18
- X-runner rear sway bar (48812-AD030) w/ SOS mounting brackets: 9-14-24
- King 2.5 extended travel coilovers: 6-7-25
- Icon 3 leaf progressive 1.5” AAL: 6-21-25

Exterior/Bed
- AVS bug deflector & in-channel rain deflectors: installed by previous owner
- Toyota bed extender: installed by previous owner
- De-badged bedsides: 6-15-17
- Tan Softopper: 8-21-17
- Cali Raised faux TRD pro grille insert: 5-18-18
- Hood repainted: 6-20-18
- 3R3 Tacoma badges:7-7-18
- 3R3 TRD pro grille insert lettering: 7-15-18
- Toyota bed mat: 3-16-19
- 3R3 Toyota RAV4 AWD badge (75444-42060): 10-17-22
- Aluminum hitch shackle receiver: 7-10-23
- Pop-n-lock coded tailgate handle: 10-17-23
- Leer 100R w/ windoors: 2-25-23 Painted 3R3: 7-17-24
- Rokblokz regular black mud flaps: 9-28-24

Old/Removed Stuff
- Roush S/C belt tensioner: 1-5-19
- 4.10 geared front diff: 3-16-19
- 4.10 rear gears w/ Detroit TrueTrac LSD & solid pinion spacer: 12-2-18
- Smoothflow 2.6” pulley w/ rip mod: 6-22-20
- Gates K050694 69.5" S/C belt: 6-22-20
- aFe 3" Rebel series catback/sidepipes: 9-6-18
- Vibrant 1142 3" ultra quiet resonator: 9-15-18
- SOS performance 3.5" rear lowering kit: 5-19-18
- SOS performance front 2" drop w/ 2nd gen TRD OR progressive coils: 3-9-19
- SOS performance front poly bump stops for 2" drop: 3-16-19
- BedRug: 2-25-23
- Homertaco lower valence wire mesh: 11-24-18
- 3R3 TRD OR tow hook: 11-24-18
- Avid Off-Road front bumper guard: 1-6-19
- Spare ECU w/ HPTuners Custom tune for 2.5" SC pulley
- All-Pro Off-road HD rock sliders: 7-10-23
- Trimmed mud flaps; fronts 5", rears 4": 6-22-18
- Tyger tri-fold tonneau cover
- SPEC stage 2+ clutch (ST913H): 12-23-21
- 3rd gen TRD aluminum IFS skid plate: 11-17-18
- Stock Bilstein 4600’s w/ TRD OR progressive coil springs: 10-7-23

Awaiting Install/Maintenance:
- Valve cover gaskets
- Toyota fog light switch for PIAA relay
- SDHQ billet battery terminals
- ECGS needle bearing

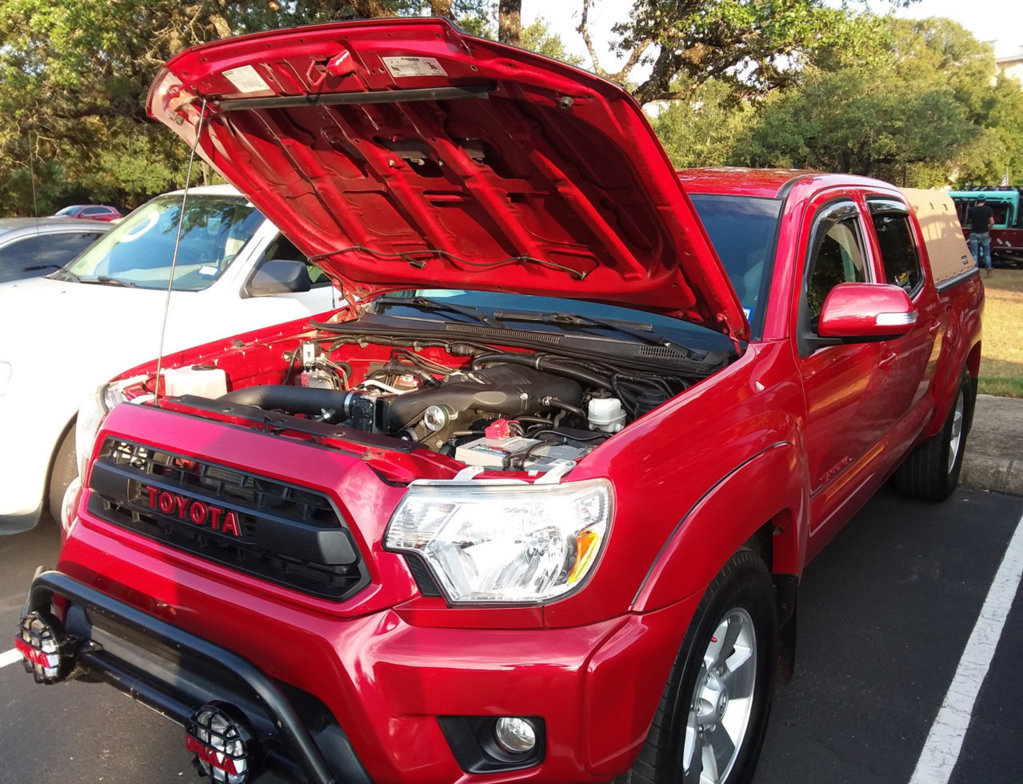

Updated picture

​

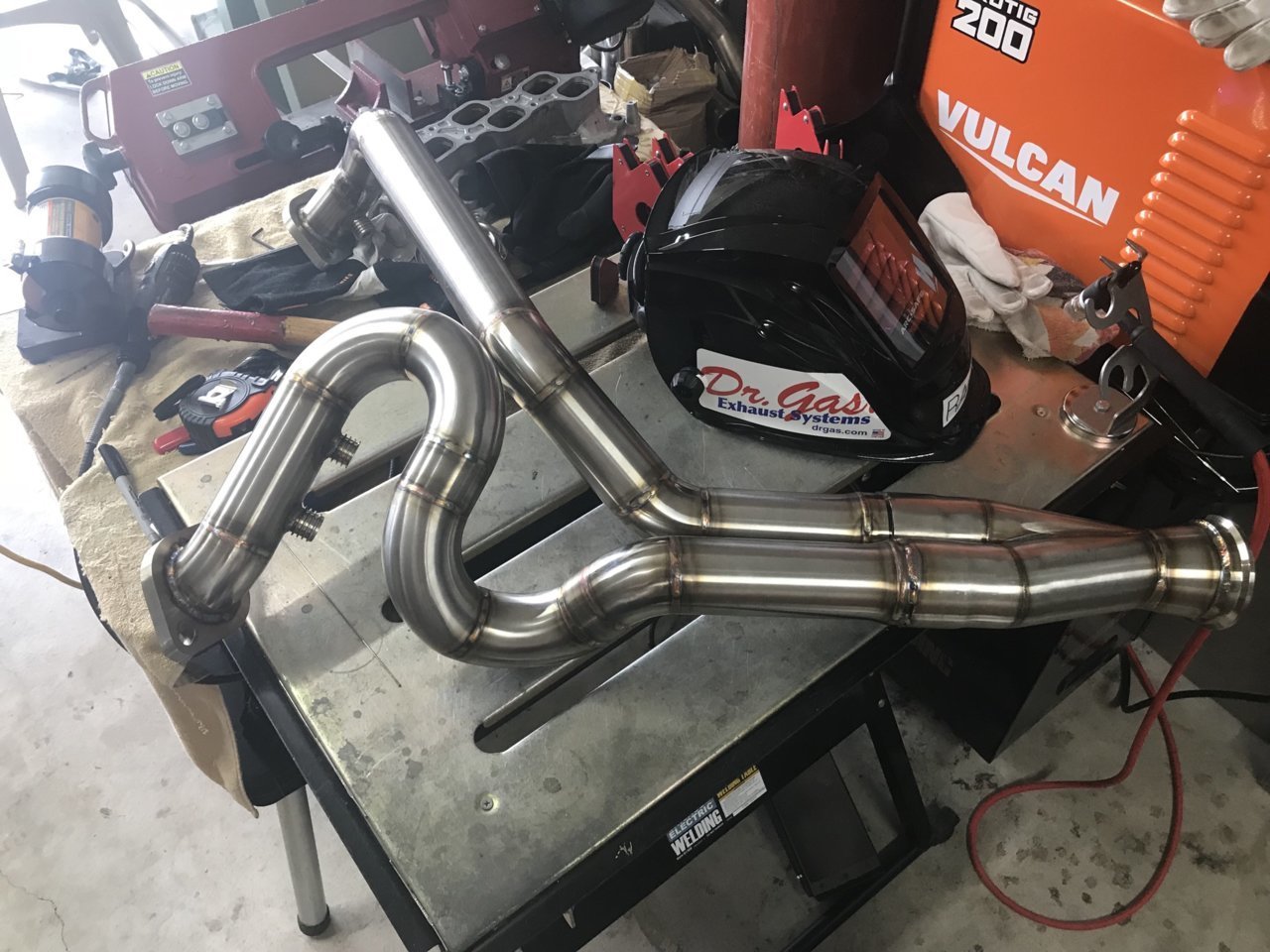

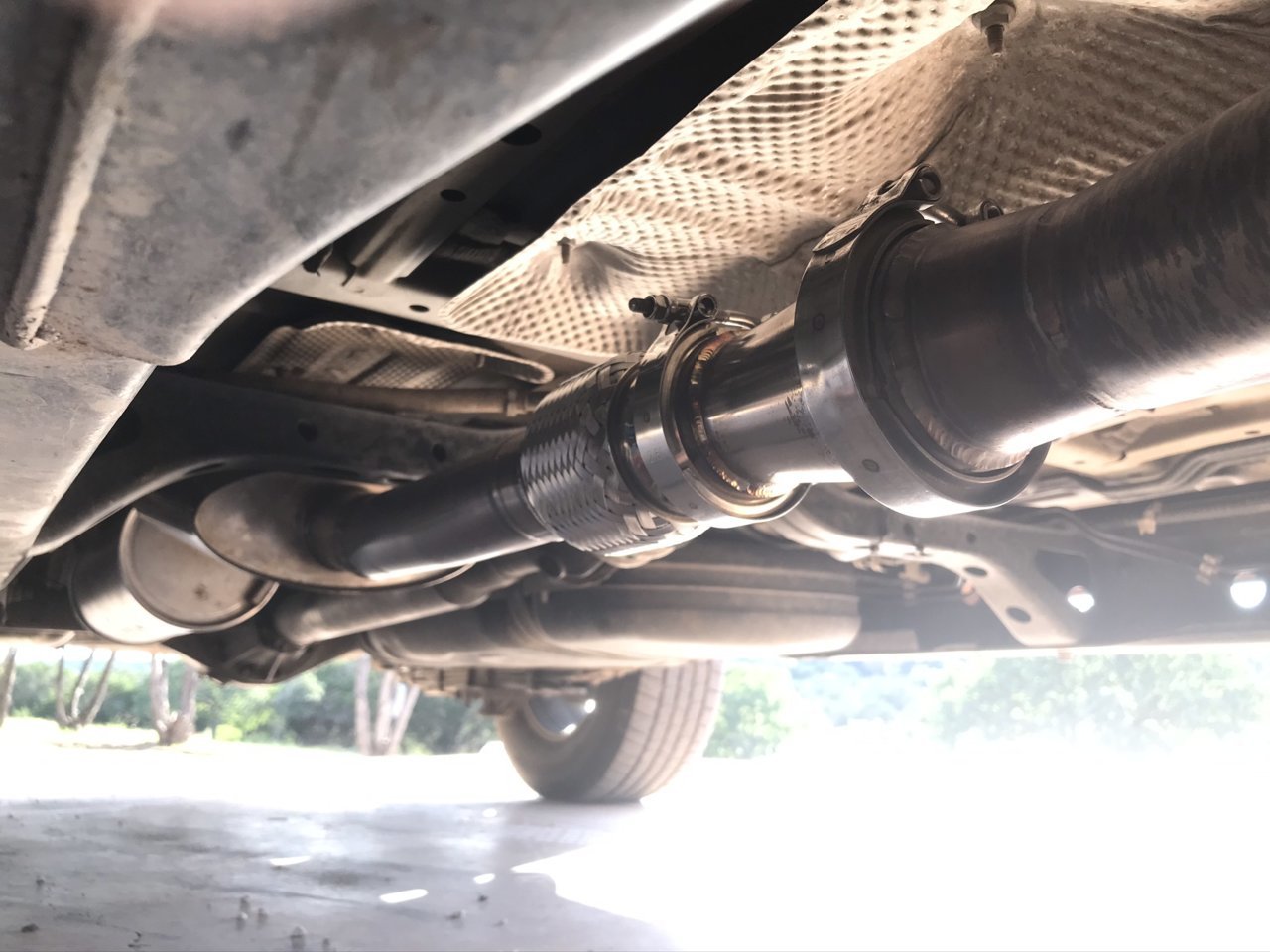

TRD catback w/ an extra borla muffler

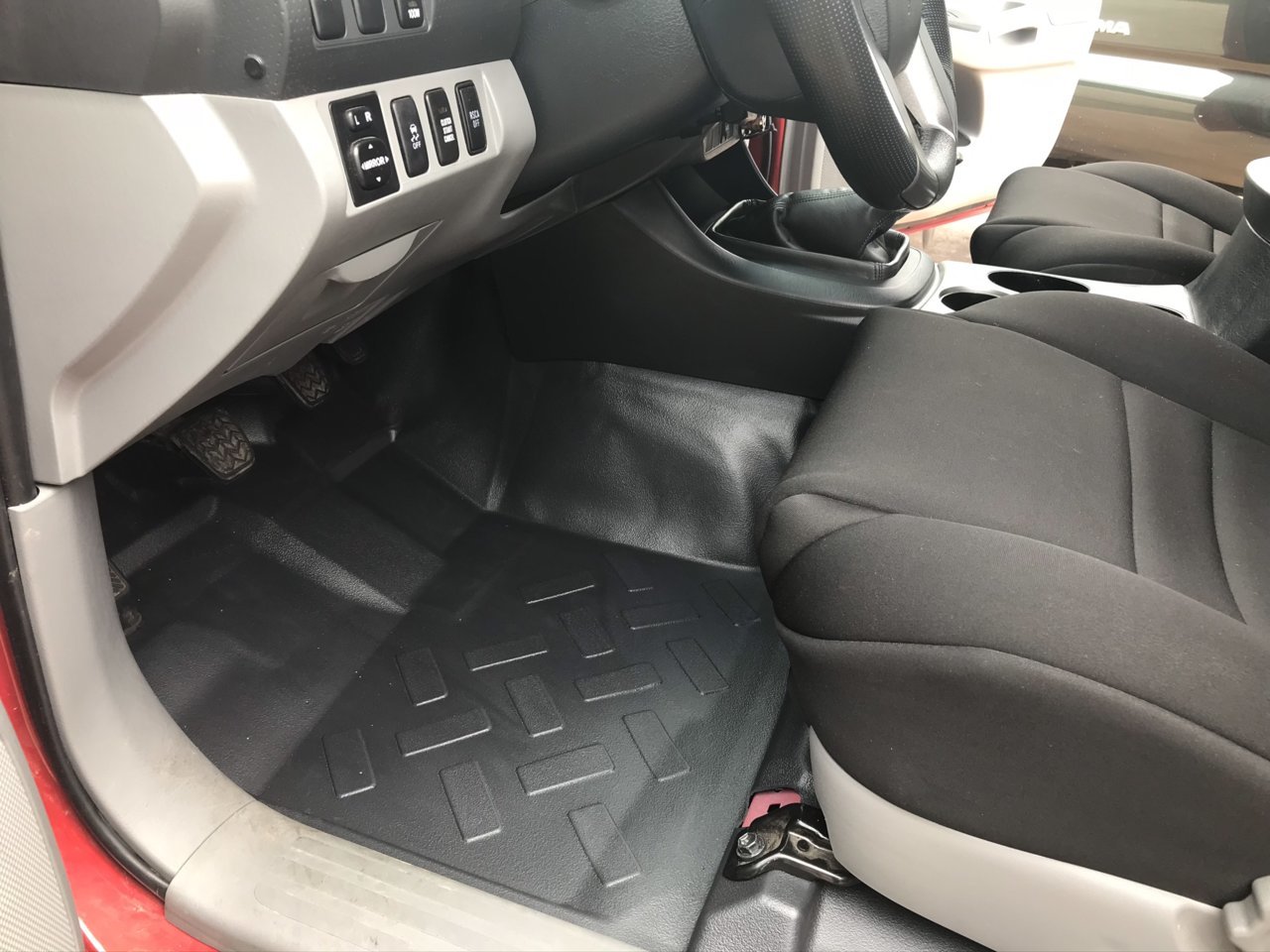

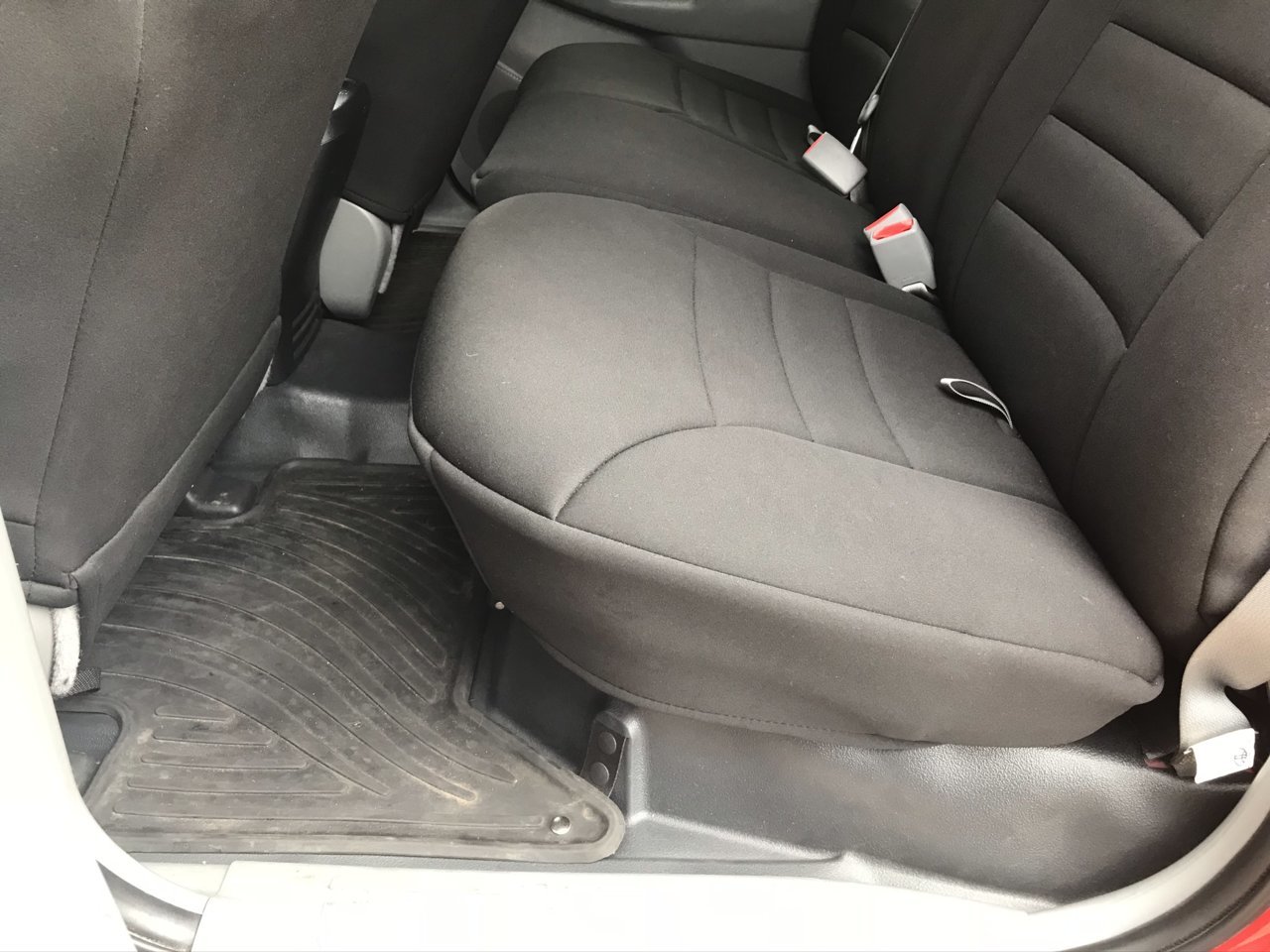

OEM all weather flooring




Future Upgrades:
- Nitro Helical LSD for 8" clamshell w/ 3.73s
- Weather stripping replacement
- ARP header studs/hardware (434-1301)
- Toyota T-SB-0170-16 Wind noise/kazoo OEM window seals: 67861-04062 & 67862-04062
- Caltrac traction bars
- Window tint
- 2015 TRD Pro headlights

81150-04221
81110-04221​

- Solid rear window glass
- Advan RGD-2 in Racing Hyper Black
- Trans cross member reinforcements (51225-04040)
- X-brace Part number (51207-04010)
- NST lightweight crank pulley
- Ported lower intake manifold
- Tundra oil filler neck

Part numbers:
12196-38010 Tundra oil filler tube seal
12185-38011 Tundra oil filler tube
PTR04-12108-02 TRD oil cap​

-

Noico 80 mil (2 mm) 36 sqft (3.4 sqm) car Sound deadening mat, Butyl Automotive Sound Deadener, Audio Noise Insulation and dampening

Sound deadening
- Coupe modified TRD short shifter
- Locking gas cap
- Redline tuning hood struts
- Seibon carbon fiber hood
- Custom gauge mount in front of shifter
- Oil temp gauge- AEM
- Oil pressure gauge- AEM
- Coolant temp gauge- AEM
- CSF radiator
- Dual SPAL electric fan conversion
- SOS performance rear disc brake conversion w/ sequoia master cylinder
- Front big brake kit or Stock brake upgrade
- SS red brake lines
- Front lower valence color matched or painted silver
- Tailgate reinforcement
- Ultimate headlight upgrade
- Poly motor mounts
- Poly transmission mount
- Black methanol tubing
- Poly UCA & LCA bushings
- Fuel cooler
- Inferno paint job (4X0)
- Brian Crower stroker crank, forged rods & pistons
- Twin BorgWarner EFR 7163v turbos
- Air-water intercooler
- Haltech Elite 2500
- Boomslang jumper harness
- Gaylord fiberglass tonneau



https://www.mishimoto.com/oil-plate-sandwich-adapter.html

http://www.gaylordslids.com/speedsturr-wing-lid/

https://prometh.com/collections/mist-a-pipe/products/copy-of-copy-of-mist-a-pipe?variant=18272051139

https://prometh.com/collections/sniper-ii-nozzle-system/products/sniper-ii-with-straight-couplers?variant=3109556551704

http://www.atiracing.com/links/pr/Toyota-1GR-FE/index.htm

https://designengineering.com/cryo-tank-and-installation-kit/

$60 BOSCH 0392020034 Electric Auxiliary Engine Water Pump - Compatible with Select Cadillac Catera; Chevrolet Silverado 1500, Silverado 1500 Classic; GMC Sierra 1500, Sierra 1500 Classic

https://www.amazon.com/Bosch-0392020034-Engine-Auxiliary-Electric/dp/B0068MUDE2?keywords=0392020034&qid=1567174985&s=gateway&sr=8-1

https://www.nationsstarteralternator.com/Denso-Solenoid-Repair-Kit-with-Plunger-2-contact-p/drk rebuild kit.htm
[/QUOTE]​



2



Maintenance/Replaced Parts:



Update from when I was running a part-time FJ case before the AWD swap.

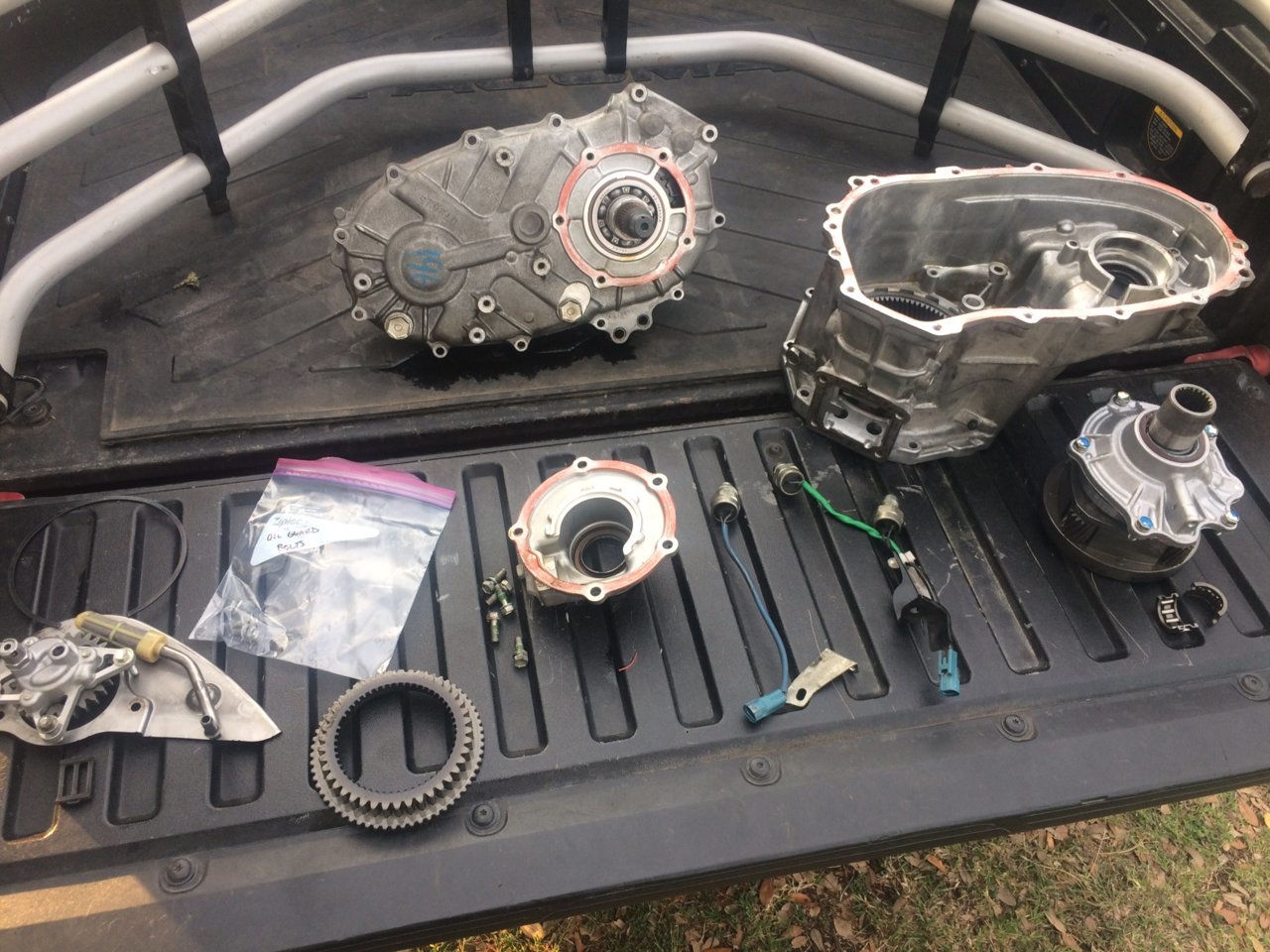

Tacoma input shaft swapped into the part time VF2A FJ case




The final product. I ran this combo for a few thousand miles without issue. A big upgrade imo over the stock electric shift t-case



5

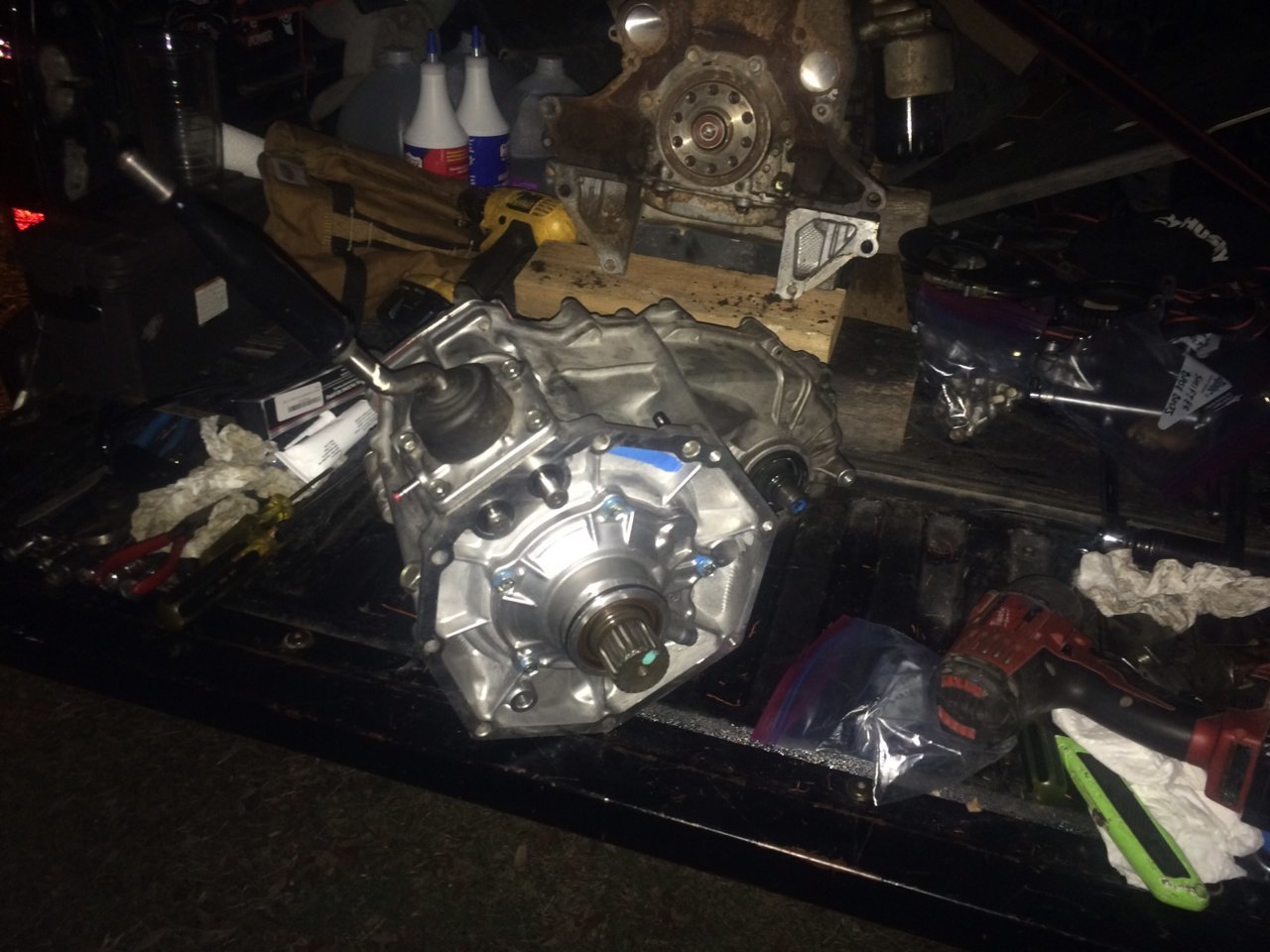

Finished up my AWD conversion tonight using a VF4B transfer case from a 6 speed FJ cruiser. So it’s now a 40/60 front/rear split in high unlocked and 50/50 split in high and low range with the center diff locked.

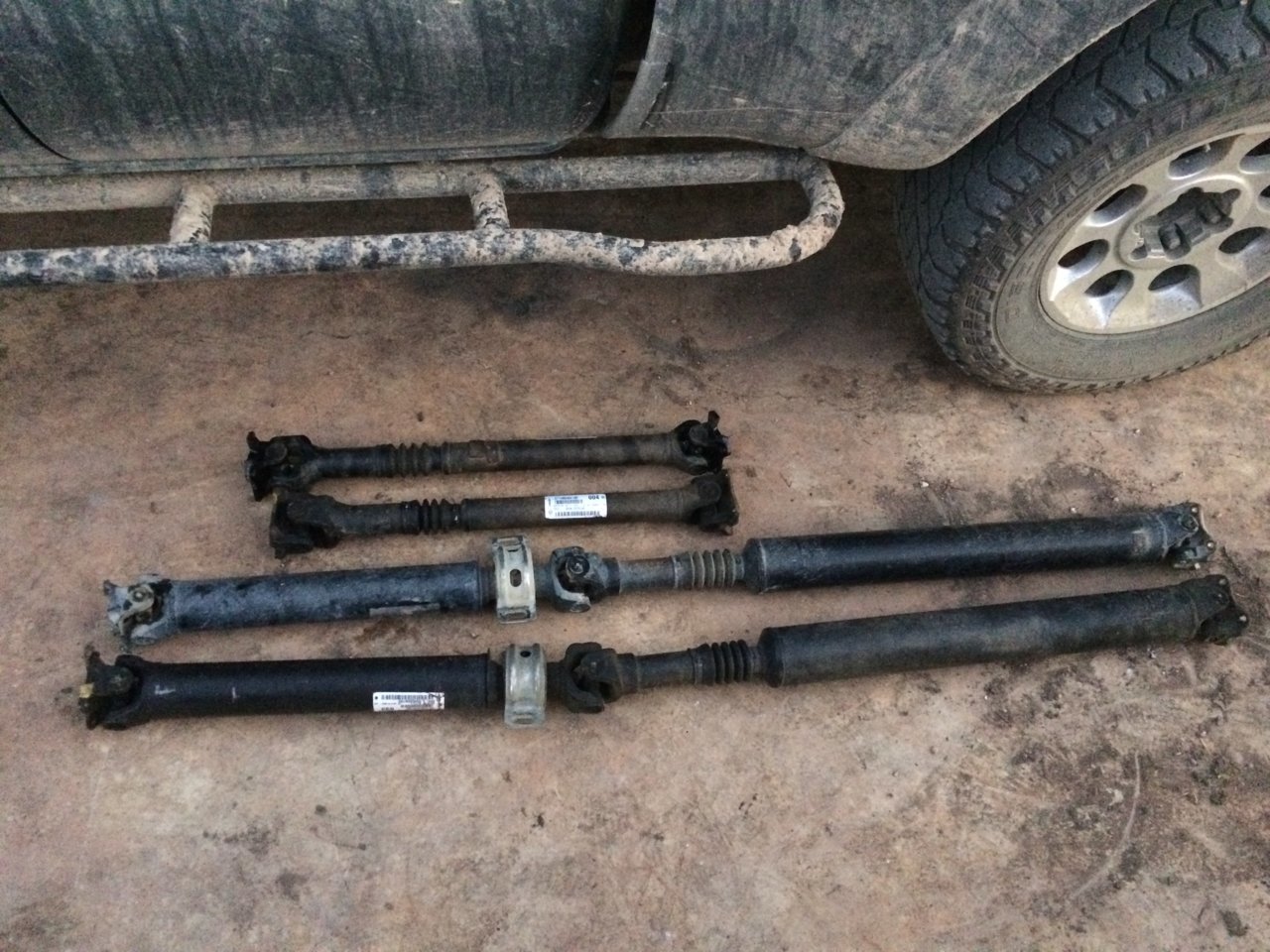

I used driveshafts out of a 4wd automatic Tacoma with the A750F. They bolted right up and fit perfect. Here’s a pic of the RA60F vs the A750F driveshafts. The automatic trans (A750F) driveshafts are the ones on top in their respective locations. Front one is an inch longer and the front section of the rear one is an inch shorter. The carrier bearing is in the same location so that was not an issue. I was going to go with a single piece driveshaft but my truck is regeared and i would need a 4” or larger one which would require modifying the carrier bearing cross member. That made me look for an alternative so i rolled the dice and these worked great

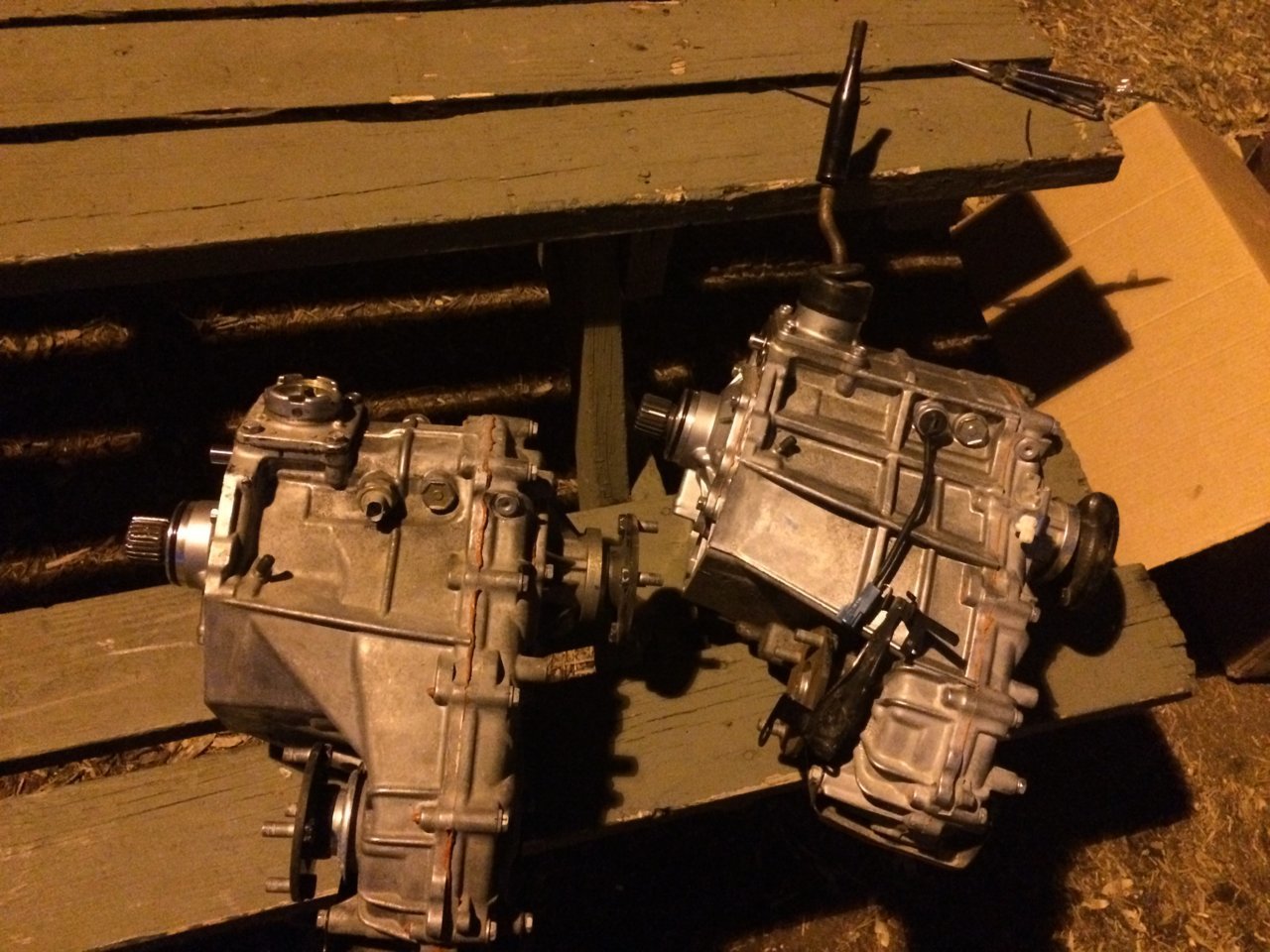

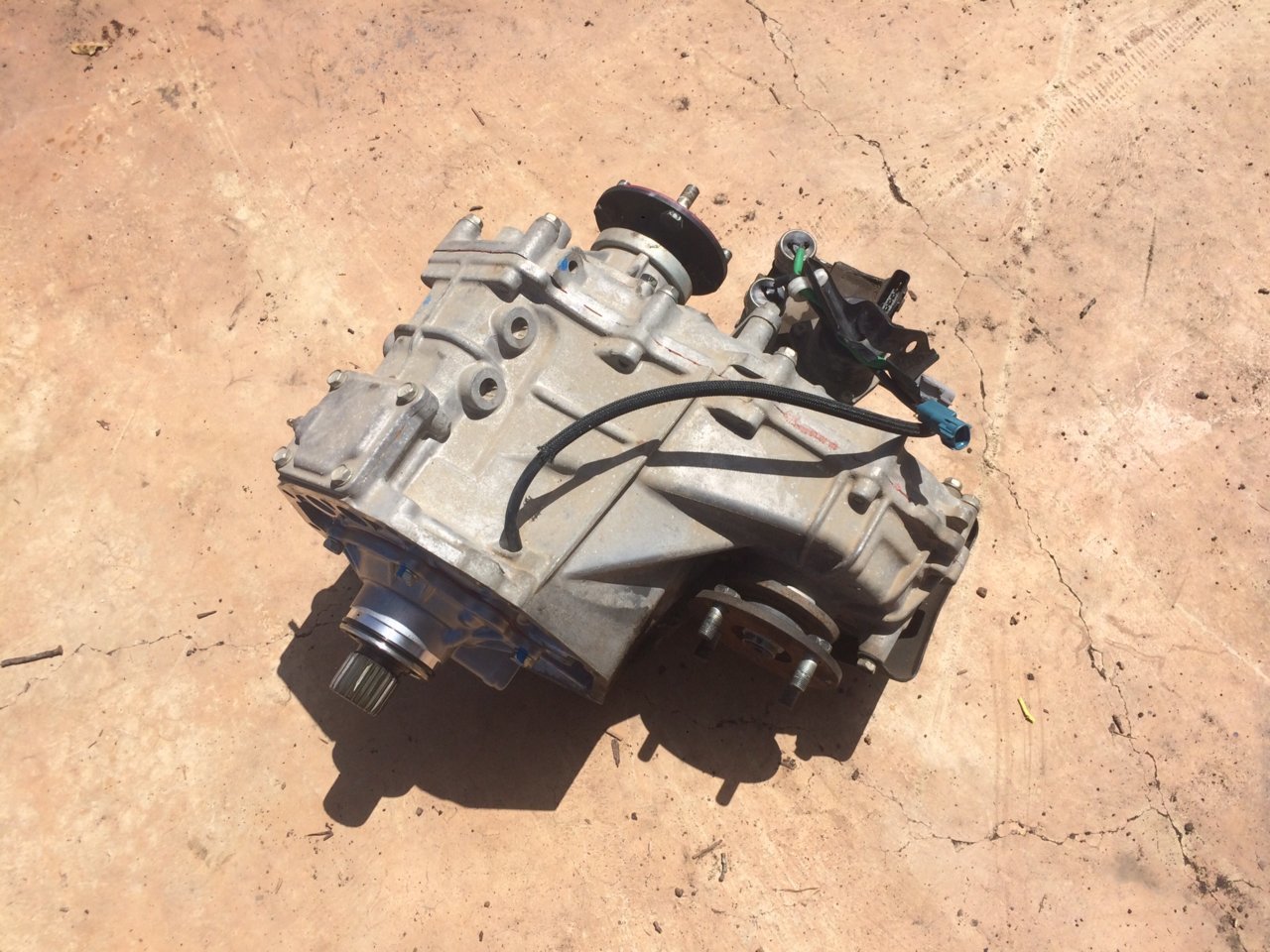

Auto trans/VF2A part time 4wd FJ case on the left, Manual trans/VF4B full time AWD case on the right

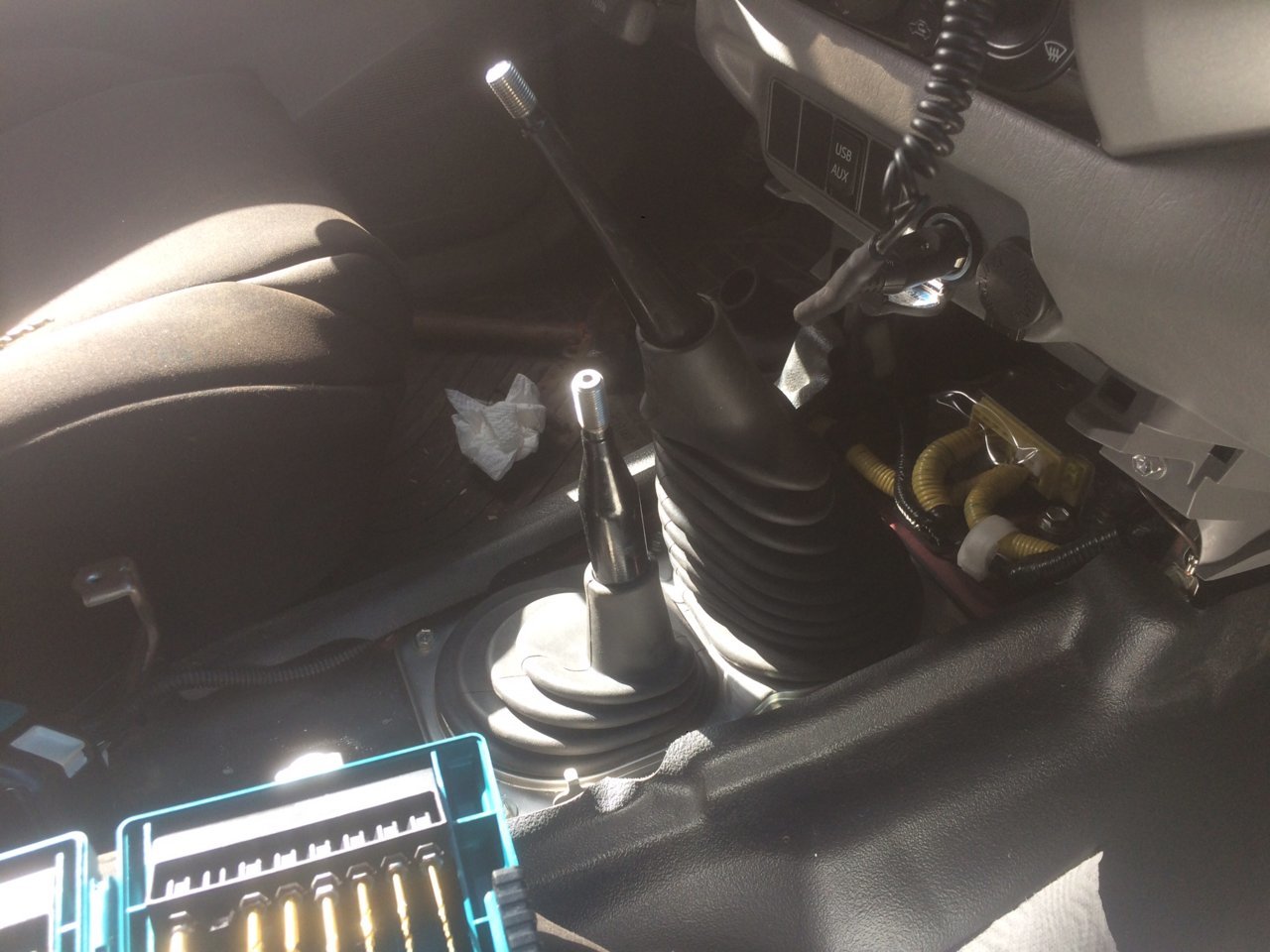

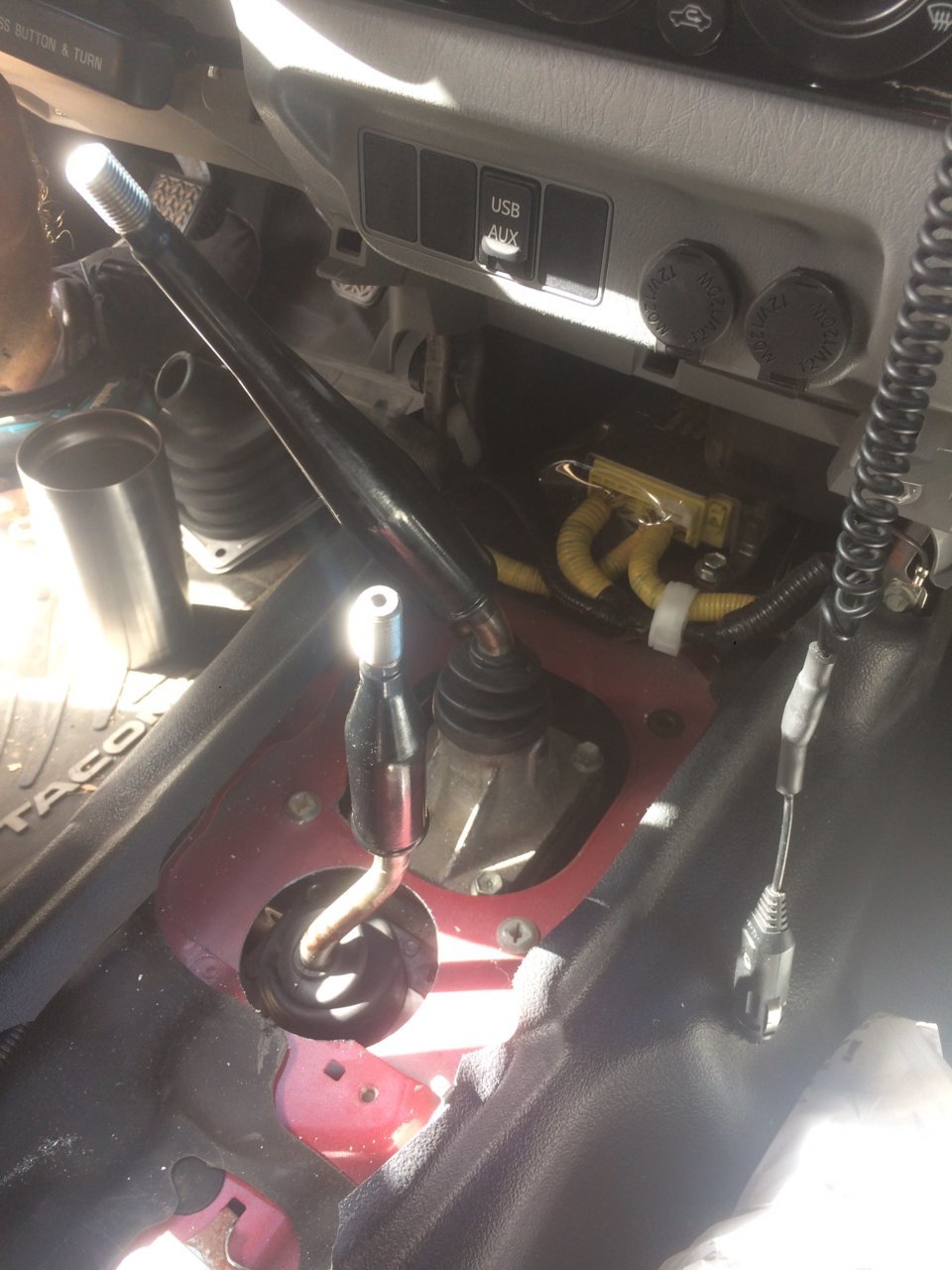

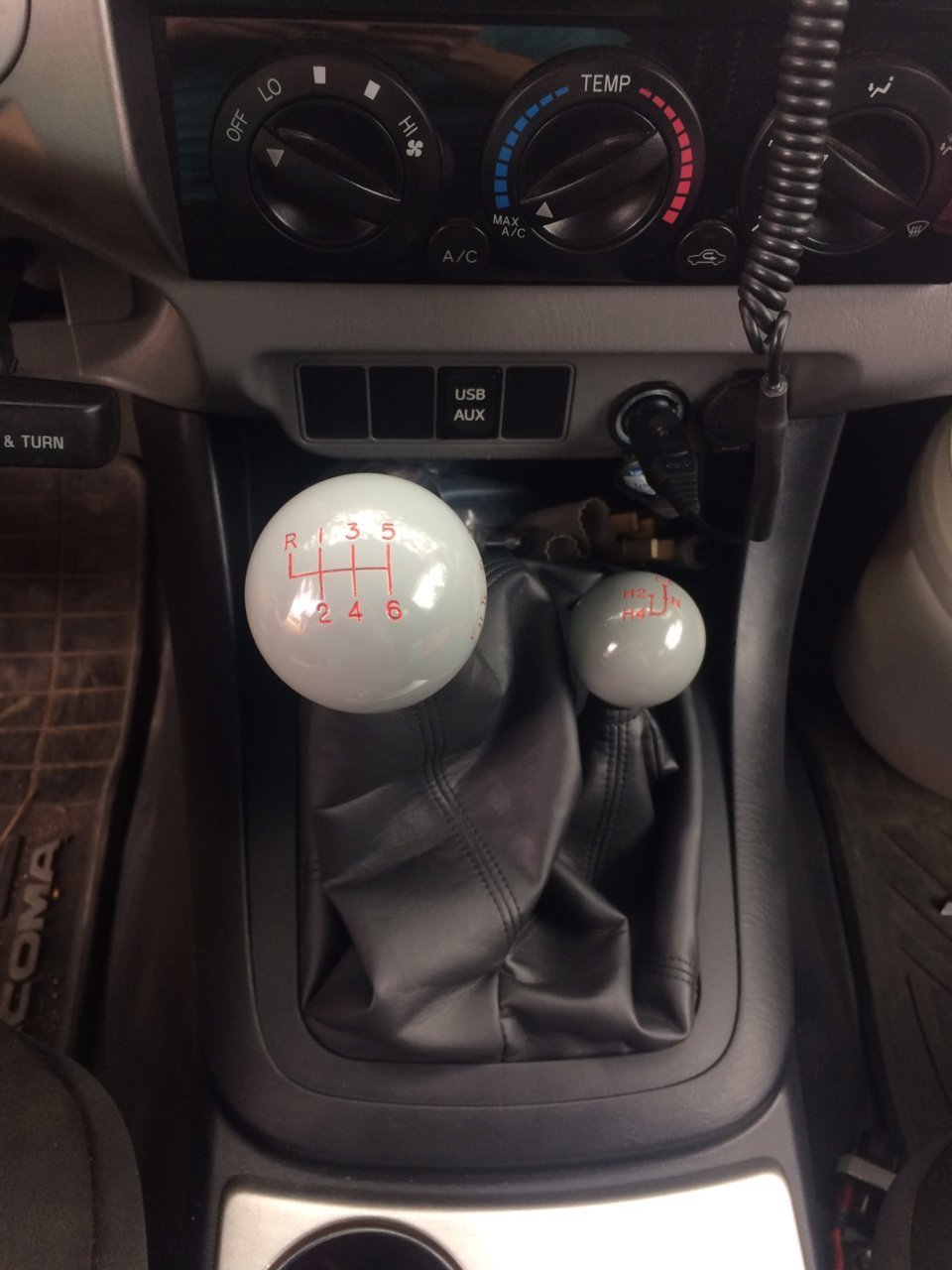

Topped off the shifters with the FJ cruiser TRD shift knobs for the trans and t-case.



Nice work! This would have been nice during the recent shitstorm you Texans got hit with.

Was wondering where your other truck build thread was....



DANG Robert!



Thanks Russ! Yeah it sure would have come in handy. Now im ready for the next 100 year storm lol.

Kurt!



You just sitting there in the snow turning stuff into what it's not!
I am



Man it went together like it couldve come like this from the factory! No interference between the shifters, just a very minor rub on the console in low. But other than that it was an easy swap. Want to do LBR next?



Maaaaaaaaaaaaaaaaaaaaaaaaaaaaaybe!
Don't even tell Brandon, and it's an automatic!



Oh, 2WD prerun, remember?



Subbed



Well that does put a slight wrinkle in the plan lol. Nothing that can’t be fixed with some parts though

Eric



How’s it going G. Been a fat minute since we BS’ed.



suspension first....



Been good man, just staying busy af at work like usual. What’s new with you man?



Got a new set of tires on the truck today. Went with the same 265/65R17 Michelin defenders that were on there previously.


Also ive got about about 750 miles on the AWD swap and it’s been running perfect. Ive done a bunch of mixed driving with it including around town, commuting, highway, wot pulls, and low range stuff and everything functions just as it should. I noticed that there appears to be a speed sensor or something on the back of the FJ case that was unused. Does anyone know if the 6spd tacomas use speed sensors at the wheels to run the speedo? I always thought they got it off the trans or t-case but mine works so it cant get it off the case
Edit: after more research, i found that the later model 6 spd trucks also use the abs sensors for the speed sensors so that's why mine didnt have something to plug into this case
